AR6A13 - Insect Repellent ARDES - Free user manual and instructions

Product Type	Mosquito Killer / Insect Trap
Brand	Ardes
Model	AR6A13
Power Supply	220-240 V ~ 50/60 Hz (see rating label)
Operation	UV light attracts insects, internal grid electrocutes them
Twilight Sensor	Yes, automatic on/off based on ambient light (cover to disable)
ON/OFF Button	Top of the appliance
Usage Location	Indoor only
Minimum Distance from People	2 meters
Insect Collection	Removable storage box with security screw
Safety Features	External protection grid; do not insert objects; automatic shut-off when sensor cover removed
Cleaning	Disconnect power; use soft damp cloth for body; degreasing product for tray; do not immerse
Maintenance	Contact authorized service center for repairs; do not disassemble
Warranty	24 months, subject to terms
Certification	CE marked
Country of Origin	China
Manufacturer	Poly Pool S.p.A., Italy

Frequently Asked Questions - AR6A13 ARDES

How does the Ardes AR6A13 mosquito killer work?

It uses a special UV light to attract insects. When they touch the internal electrical grid, they are electrocuted.

Can I use the AR6A13 outdoors?

No, it is designed for indoor use only. Do not expose to rain or sun.

How do I activate the twilight sensor?

Turn the product ON using the ON/OFF button, then remove the sensor cover on top. The sensor will automatically turn the device on at night and off during the day. To deactivate, replace the cover.

How far should I place the device from people?

Place the appliance at least 2 meters away from people to avoid disturbing noise from insects before they are captured.

How do I clean the insect collection tray?

First, disconnect the power. Unlock the security screw, turn the box counterclockwise to remove it. Clean with a degreasing detergent, then reattach by turning clockwise and locking the screw.

What should I do if the device malfunctions?

Immediately unplug the device and contact an authorized service center. Do not attempt to repair it yourself.

Can children use this mosquito killer?

Children aged 8 years and above may use it under supervision, provided they understand the risks. Cleaning and maintenance must not be done by children without supervision.

Is the UV light harmful to humans?

No, the UV light is harmless to humans. It is specifically designed to attract insects.

What is the warranty period for the AR6A13?

The warranty is valid for 24 months from the date of purchase, provided the receipt is presented and the warranty card is filled in.

Can I use extension cords with this device?

Only use extension cords that comply with safety standards and do not exceed current limits. It is recommended to plug directly into a wall socket.

USER MANUAL AR6A13 ARDES

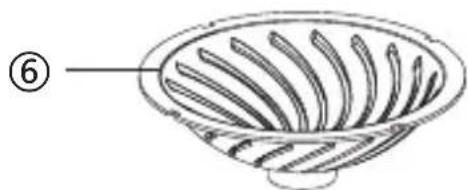

Line drawing of a bowl with radial blades, labeled with circled number 6 (no text or symbols on the diagram itself)

Technical diagram of a circular mechanical component with internal grid structure (no text or symbols)

ATTENTION : CAREFULLY READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL AS THEY PROVIDE IMPORTANT INFORMATION REGARDING THE SAFETY OF INSTALLATION, USE AND MAINTENANCE. IMPORTANT INSTRUCTIONS TO KEEP FOR FUTURE REFERENCE.

THIS APPLIANCE MAY BE USED BY CHILDREN FROM 8 YEARS UP AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPACITY OR LACK OF EXPERIENCE OR KNOWLEDGE PROVIDED THAT GOOD MONITORING IS ENSURED OR THEY HAVE RECEIVED INSTRUCTIONS REGARDING THE SAFE USE OF THE APPLIANCE AND THEY HAVE UNDERSTOOD THE RELATED RISKS. CHILDREN SHOULD NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE MUST NOT BE CARRIED OUT BY UNATTENDED CHILDREN.

THE APPLIANCE IS INTENDED FOR INTERNAL USE ONLY, DO NOT USE OUTDOORS. THE APPLIANCE MUST BE TAKEN OUT OF THE REACH OF CHILDREN. THE APPLIANCE MUST NOT BE USED INSIDE BARNS, STABLES AND SIMILAR

ENVIRONMENTS. THE APPLIANCE MUST NOT BE USED IN ENVIRONMENTS WHERE FLAMMABLE FUMES OR EXPLOSIVE POWDERS MAY BE PRESENT. THE COMPONENTS OF THIS PRODUCT AND THE SUPPLY CORD MAY ONLY BE REPLACED AT SERVICE CENTERS AUTHORIZED BY THE MANUFACTURER, IN ORDER TO AVOID A HAZARD.

Keep your warranty, the sales receipt and the instruction manual for each further consultation. After removing the packaging, make sure that the appliance is intact and in case of visible damage do not use it and consult a qualified professional. Do not leave packaging within the reach of children, or use it as a toy: it is an electrical appliance and must be considered as such. Before connecting the appliance, make sure that the voltage in the socket is the same as indicated in the nameplate data. Do not use adapters or extension cords that do not comply with the safety standards in force, or that exceed the flow limits in current value. Disconnect the appliance from the mains when not in use and make sure it is turned off. The use of any electrical appliance requires the observance of certain fundamental rules, in particular: do not touch the appliance with wet or damp hands; do not use the appliance with

bare feet; do not leave the appliance exposed to atmospheric agents (rain, sun); do not subject it to shocks.

If there is a fault or abnormality in the appliance, immediately remove the plug, do not touch it and contact an authorized service centre. If you decide not to use this type of machine, you should make it inoperative after disconnecting it from the power outlet. The appliance was built and designed for use in domestic environments; therefore any other use is considered improper and therefore dangerous. Do not use the appliance outdoors. For safety reasons, the appliance cannot be disassembled. In order to avoid compromising the functionality of the appliance, use only original accessories.

DO NOT PUT ANY METALLIC OBJECTS THROUGH THE EXTERNAL GRID OF PROTECTION.

CE

Technical data: see the rating label on the appliance.

Technical informations

1. Twilight sensor cover
2. ON/OFF button
3. Handles
4. Air inlet
5. Security screw
6. Funnel holder
7. Storage box

Instructions for use

Ecological mosquito net has a special UV light, completely harmless, attracting insects which are electrocuted when they touch the internal electrical grid. The insect trap is for internal use only, and not for places with inflammable materials (such as stables, barns). Place the appliance on a flat stable surface. Connect the plug to the power socket. Place the appliance at least 2 meters away from people to prevent insects from making disturbing noise before being captured. It is better to avoid

turning the lamp in the direction of doors, windows or other openings to the outside so as to avoid attracting other unwanted insects. Keep the appliance on during the night to exert a real disinfestations of the insects. Always disconnect the plug after the use.

ON/OFF: switch on the product while pressing the ON/OFF button at the top of the appliance.

Twilight sensor: the product is equipped with a light sensor that automatically turns on (at night) and off (during the day) the appliance depending on the brightness of the environment. To activate this function, turn the product ON using the ON/OFF button and remove the sensor cover on the top of the unit. The light sensor function is activated automatically. To deactivate the light sensor function, cover the light sensor with the proper cover.

Maintenance

Disconnect the plug from the power socket before carrying out any cleaning and maintenance operations. To replace any part of the product, contact an authorized service centre. Disconnect the appliance before carrying out cleaning. For the cleaning of the main part, use a small brush or a soft, slightly damp cloth. For the cleaning of the insect-collecting tray use a detergent-based degreasing product. To remove the storage box, unlock the security screw and turn the box counterclockwise. Clean it and then place it again in the same position, turning it clockwise. Lock the security screw again. Do not use petrol, alcohol, insecticide or any other chemical product to clean the appliance. When cleaning the product, this must be carried out with a soft, damp cloth. Do not use any substances, liquids or excessively wet cloths; in the case of any infiltration into the appliance, it could cause irreparable damage.

NEVER IMMERSE THE APPLIANCE IN WATER.

Condizioni

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste, or return it to the dealer in case they purchase a new device of equivalent type, at a one-to-one-ratio.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

Ardes

Poly Pool S.p.A. Via Sottocorna, 21/B

24020 Parre (Bergamo) - Italy

Tel. [phone] r.a. - Fax [phone]

http://www.ardes.it - e-mail:[e-mail]

MADE IN CHINA
