Product Type	Rack Mount Drawer
Form Factor	1U, 19-inch rack width
Dimensions (H x W x D)	1.75" x 19" x 12" (44 x 483 x 305 mm)
Weight	10 lbs (4.5 kg)
Material	Cold-rolled steel
Finish	Black powder coat
Mounting	Fixed rails, front and rear rack posts
Load Capacity	50 lbs (22.7 kg)
Front Panel	Solid steel with key lock
Drawer Depth	10 inches usable
Cooling	Passive (no fans)
Included Accessories	Mounting screws, keys (2)
Primary Function	Secure storage and cable management for AV equipment
Maintenance	Clean with a dry, lint-free cloth; do not use liquids
Safety	Secure to rack with all screws provided; lock drawer when not in use
Spare Parts	Keys, sliding rails available separately
Reparability	Drawer slides replaceable; front lock mechanism replaceable
Compliance	Designed for EIA/ECA-310 standard racks

Frequently Asked Questions - UD1 Middle Atlantic

What is the maximum weight the UD1 drawer can hold?

The UD1 has a load capacity of 50 lbs (22.7 kg), evenly distributed.

What rack depth does the UD1 support?

It supports standard 19-inch racks with depth between 20 and 30 inches using adjustable mounting brackets.

How do I lock the UD1 drawer?

The front panel includes a key lock. Turn the key 90 degrees clockwise to lock or unlock. Two keys are included.

Can I mount the UD1 in a slant rack?

Yes, the UD1 is designed for horizontal mounting in standard 19-inch racks. For slant racks, ensure the drawer operates smoothly.

What material is the UD1 made of?

It is constructed from cold-rolled steel with a durable black powder coat finish.

Does the UD1 include cable management features?

Yes, the drawer interior has cable tie-down points and a rear cable entry cutout for organized routing.

How do I clean the UD1?

Use a dry, soft cloth to wipe the surface. Avoid abrasive cleaners or liquids that could damage the finish.

Are replacement keys available?

Yes, replacement keys can be ordered from Middle Atlantic. Use the key code stamped on the lock face.

Can I install the UD1 without rails?

No, the UD1 requires mounting rails or a shelf bracket. It is not designed for direct screw mounting to rack posts.

What is the warranty for the UD1?

Middle Atlantic offers a 5-year limited warranty against defects in materials and workmanship.

USER MANUAL UD1 Middle Atlantic

ONE RACKSPACE DRAWER

THANK YOU

Thank you for purchasing the UD1 one rackspace drawer. Please read these instructions thoroughly before installing/assembling this product.

PRODUCT FEATURES

• Reversible design allows the drawer to be flipped over for use as a slide-out shelf for the following applications: writing surface, laptop and keyboard holder.
• Cable knockout at rear of drawer allows for efficient routing of cabling.

SUPPLIED HARDWARE

(2) 10-32 Wing nuts

(4) 6-32 X .25 Self threading screws

(4) #10 X .625 Pan head wood screws

(2) 10-32 X .5 Pan head machine screws

(2) Side mounting brackets (For wood installation)

(2) Rear mount brackets (For use with Rackrail)

NOTE: Drawer weight capacity is 50 pounds.

INSTALLATION WITH REAR MOUNTING BRACKETS (USE WITH REAR RAIL)

1) Position drawer in rack before attaching rear mounting brackets.
2) With drawer positioned in the rack, attach the supplied rear mounting brackets to each side as shown using the supplied hardware. (FIGURE A)

FIGURE A

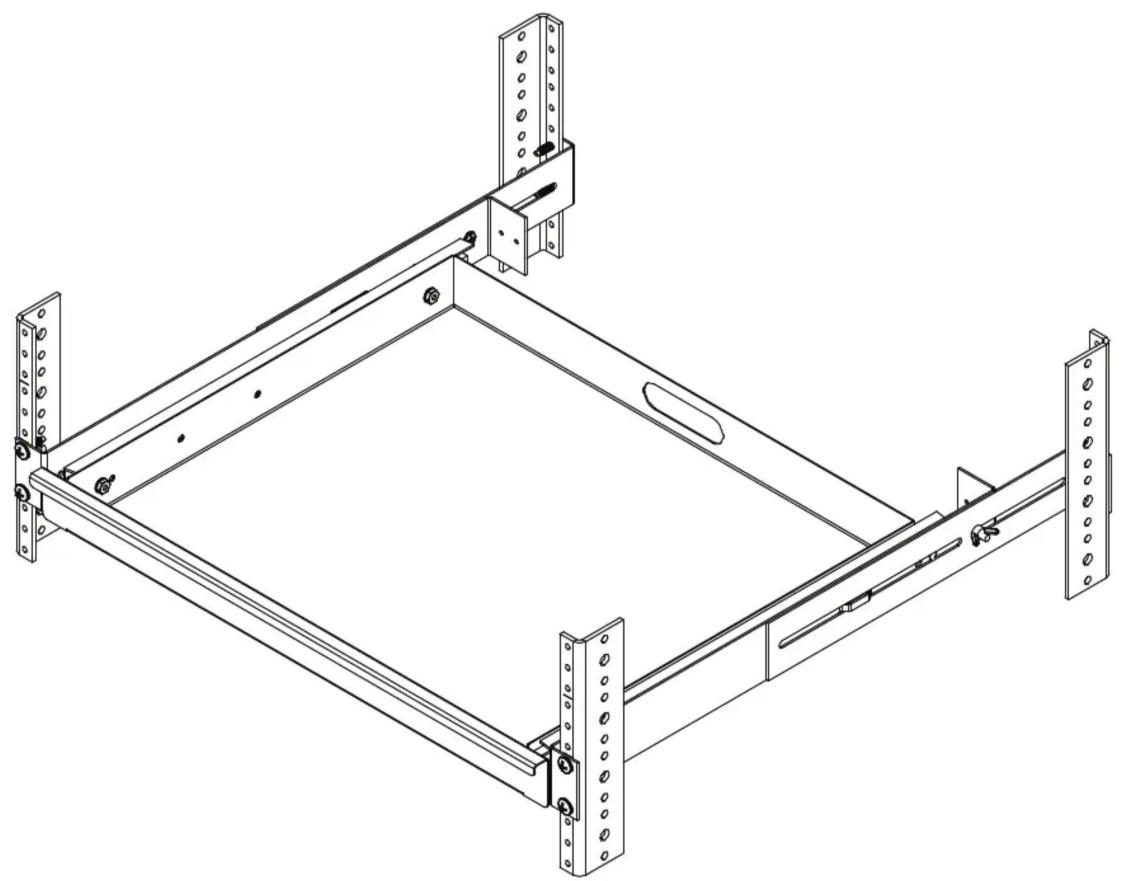

3) Install drawer to the front and rear rackrails as shown. (FIGURE B)

FIGURE B

INSTALLATION WITH SIDE MOUNTING BRACKETS (USE WITH WOOD RACKS/CASES)

1) Attach the drawer to the front rackrail before attaching the side mounting brackets
2) Attach the side mounting brackets to the drawer and then attach to the sides of the rack as shown using the supplied hardware. (FIGURE C)

CONVERTING FROM DRAWER TO SHELF AFTER INSTALLATION

1) Open the drawer and simultaneously push the right side quick release latch down and the left side latch up, and slide the drawer out from the tracks. (FIGURE D)
2) Flip the drawer over and insert onto the tracks. Close the shelf to lock it on the tracks.

NOTE: The above steps are the same for converting from shelf to drawer.

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the UD1 One Rackspace Drawer to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
