Product Type	19" EIA Compliant Equipment Rack
Model	IRCS-1824
Rack Spaces	18
Weight Capacity	500 lbs (227 kg)
Overall Height	38.62 in (981 mm)
Overall Width	23.3 in (592 mm)
Overall Depth	24.0 in (610 mm)
Usable Depth	20.2 in (513 mm)
Construction	Fully welded steel
Rackrail	Two pairs adjustable steel rackrail, tapped 10-32 mounting holes, black e-coat finish, numbered rack spaces
Front Door	Locking reversible tempered glass door with push-button latch
Rear and Side Panels	Locking solid panels, removable
Casters and Leveling Feet	Locking swivel casters and leveling feet
Cable Pass-Through	Top grommet: 33 mm x 191 mm opening; bottom: 305 mm x 305 mm and 33 mm x 191 mm openings
Configured Shelves	(3) 2-space 16" deep shelves
Configured Blank Panels	(3) 2-space blank panels
Finish	Metallic grey powdercoat, environmentally friendly
Certifications	UL Listed in US & Canada, GREENGUARD Indoor Air Quality Certified for Children and Schools, RoHS compliant
Manufacturing Standards	ISO 9001 and ISO 14001 registered
Warranty	Lifetime against defects in material or workmanship

Frequently Asked Questions - IRCS-1824 Middle Atlantic

What is the maximum weight capacity of the IRCS-1824 rack?

The IRCS-1824 has a certified weight capacity of 500 lbs (227 kg) when properly loaded and installed on a level surface.

Is the front door reversible?

Yes, the front glass door is reversible and includes a push-button latch. It can be mounted to open left or right.

Does the rack come fully assembled?

The rack ships with pre-installed shelves and blank panels. Casters and leveling feet are included but may require simple attachment. Overall assembly is minimal.

What are the dimensions of the cable pass-through openings?

The top has one grommeted opening measuring 33 mm x 191 mm. The bottom has two openings: 305 mm x 305 mm and 33 mm x 191 mm.

What type of mounting holes are on the rackrails?

The adjustable steel rackrails have tapped 10-32 mounting holes in universal EIA spacing with numbered rack spaces for easy equipment installation.

Is the rack GREENGUARD certified?

Yes, the IRCS-1824 is GREENGUARD Indoor Air Quality Certified for Children and Schools, ensuring low chemical emissions.

Can the side panels be removed?

Yes, the side panels are removable and locking, providing access for cable management and maintenance.

What is the usable depth for mounting equipment?

The usable depth is 513 mm (20.2 inches), measured from the front rackrail to the back rackrail.

Does the rack include leveling feet?

Yes, leveling feet are included along with locking swivel casters, allowing the rack to be stabilized on uneven floors.

What warranty is provided with the IRCS-1824?

Middle Atlantic offers a lifetime warranty against defects in material or workmanship under normal use.

USER MANUAL IRCS-1824 Middle Atlantic

configured rack series designed for use in residential installations

• Fully welded steel construction
• UL Listed with up to a 1,200 lb. / 544 kg weight capacity, depending on model
• Includes removable locking side panels
• Includes locking, reversible glass door and locking rear access panel
• Ships complete with locking swivel casters and leveling feet
  • Each rack includes pre-installed shelves and blank panels

Exterior view of a dark metal server cabinet with multiple slots (no text or symbols visible)

IRCS-4224

EIA compliant 19" equipment rack shall be Middle Atlantic Products model #IRCS-24 (see chart for available models). Overall dimensions of IRCS shall be _mm H x 592mm W" x 610mm D (refer to chart). Useable height of IRCS shall be _ rackspaces, useable depth shall be 513mm. IRCS shall come equipped with two pairs of adjustable steel rackrail with tapped 10-32 mounting holes in universal EIA spacing, black e-coat finish and numbered rackspaces. IRCS shall be of fully welded construction. IRCS shall include locking reversible tempered glass front door with a push-button latch. IRCS shall include solid locking rear and side panels. IRCS shall include locking swivel casters and leveling feet. IRCS shall have a top mounted grommet with an opening of 33mm x 191mm for cable pass through. IRCS shall have a 305mm x 305mm and 33mm x 191mm bottom opening. IRCS shall come preconfigured with shelves and blank panels, please refer to chart. IRCS shall be finished in an environmentally friendly, durable metallic grey powdercoat. Fully welded construction shall provide UL Listed load capacity of _kg.(refer to chart.) IRCS shall be UL Listed in the US and Canada. IRCS shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. IRCS shall comply with requirements of RoHS EU Directive 2002 / 95 / EC. IRCS shall be manufactured by an ISO 9001 and ISO 14001 registered company. IRCS enclosure shall be warranted to be free from defects in material or workmanship under normal use and conditions for the lifetime of the rack.

Customizable specification clips available at middleatlantic.com

EIA/TIA COMPLIANT

PRODUCT CERTIFIED FOR LOW CHEMICAL EMISSIONS UL.COM/GG UL 2818

what great systems are built on.™

IRCS Series

basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

top view

bottom view

front view

side view back view

section a-a
front door not shown

Part # Weight Rating		“A” Overall Height	“B” Front Opening Height Rackspaces
IRCS-1824 500 lbs/227 kg 38.62 [981] 31.59 [802] 18 [31.50"]
IRCS-2724 750 lbs/340 kg 54.37 [1381] 47.34 [1202] 27 [47.25"]
IRCS-3524	1000 lbs/454 kg	68.37 [1737]	61.34 [1558]	35 [61.25"]
IRCS-4224 1,200 lbs/544 kg		80.62 [2048] 73.59 [1869] 42 [73.50"]

what great systems are built on.™

IRCS Series

basic dimensions

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

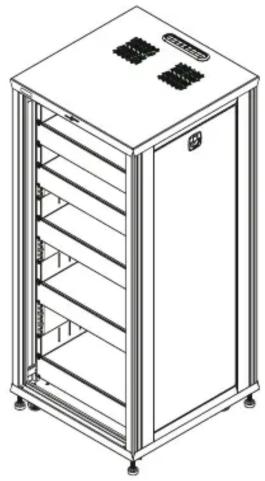

Technical line drawing of a multi-level industrial cabinet with internal shelves and mounting feet (no text or symbols)

IRCS-1824
factory configuration
(3) 2 space 16" [406] deep shelves
(3) 2 space blank panels

Line drawing of a multi-level server rack cabinet with mounting feet (no text or symbols)

IRCS-2724
factory configuration
(4) 2 space 16" [406] deep shelves
(1) 2 space 18" [457] deep shelf
(5) 2 space blank panels

Line drawing of a multi-tiered server rack cabinet with mounting holes and ventilation slots (no text or symbols)

IRCS-3524
factory configuration
(5) 2 space 16" [406] deep shelves
(1) 2 space 18" [457] deep shelf
(1) 3 space 20" [507] deep shelf
(7) 2 space blank panels

Line drawing of a multi-tiered server rack cabinet with mounting holes and ventilation slots (no text or symbols)

IRCS-4224
factory configuration
(5) 2 space 16" [406] deep shelves
(2) 2 space 18" [457] deep shelves
(2) 3 space 20" [507] deep shelves
(9) 2 space blank panels

equipment shelf

Shelf Size Weight Rating	“A” Usable Depth	“B” Usable Width Rack Spaces
2 SP 16" shelf 50 lbs 15.86 [403] 17.38 [441] 2
2 SP 18" shelf 50 lbs 17.86 [454] 17.38 [441] 2
3 SP 20" shelf 100 lbs 19.86 [504] 17.38 [441] 3
