INN-745 - Rice cooker Innoliving - Free user manual and instructions

Product Type	Electric Rice Cooker
Brand	Innoliving
Model	INN-745
Capacity	1.8 L (approx. 10 cups cooked rice)
Power	700 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	25 x 25 x 20 cm
Weight	1.5 kg
Material	Plastic housing, non-stick inner pot
Cooking Functions	Cook, Keep Warm, Steam
Controls	One-button mechanical switch with indicator light
Keep Warm	Automatic switch to keep warm after cooking
Inner Pot	Non-stick coated
Accessories	Measuring cup, rice paddle, steaming basket
Cleaning	Removable inner pot and lid are dishwasher safe
Safety Features	Automatic shut-off, overheat protection
Power Cord	Detachable, approx. 1 m
Warranty	2 years
Repairability	Repairable by authorized service; spare parts available

Frequently Asked Questions - INN-745 Innoliving

How do I cook rice in the Innoliving INN-745?

Measure rice using the provided cup, rinse if desired, place in inner pot, add water to the corresponding level, close lid, and press the cook button. The cooker will automatically switch to keep warm when done.

What is the maximum rice capacity?

The maximum capacity is 1.8 liters, which corresponds to about 10 cups of uncooked rice. Do not exceed the max fill line.

Can I use the rice cooker to steam vegetables?

Yes, you can steam vegetables using the included steaming basket. Add water to the pot, place the basket with vegetables, and start cooking. Monitor water level to avoid burning.

How do I clean the rice cooker?

Unplug and let cool. Remove the inner pot and wash with warm soapy water or in dishwasher. Wipe the exterior with a damp cloth. Do not immerse the base in water.

Why does the cooker switch to keep warm before rice is done?

This may happen if there is insufficient water. Ensure you add the correct water level. If the cooker senses dry heat, it may shut off. Add a bit more water next time.

Is the inner pot dishwasher safe?

Yes, the non-stick inner pot can be washed in the dishwasher. However, hand washing is recommended to prolong the non-stick coating life.

What is the power consumption?

The power consumption is 700 watts. This is typical for a rice cooker of this size.

Can I cook other grains like quinoa or oats?

Yes, you can cook grains such as quinoa, oats, or barley. Adjust water ratio according to the grain type. Start with a 1:1.5 grain-to-water ratio for quinoa.

How do I prevent rice from sticking to the bottom?

Rinse the rice to remove excess starch. Ensure you use the correct water amount. Lightly oil the pot before cooking. Allow rice to rest for 5-10 minutes after cooking before serving.

Where can I find spare parts?

Spare parts such as the inner pot or lid can be ordered through Innoliving customer service or authorized retailers. Check the user manual for contact details.

USER MANUAL INN-745 Innoliving

innoliving easy tech, easy life

CUOCIRISO

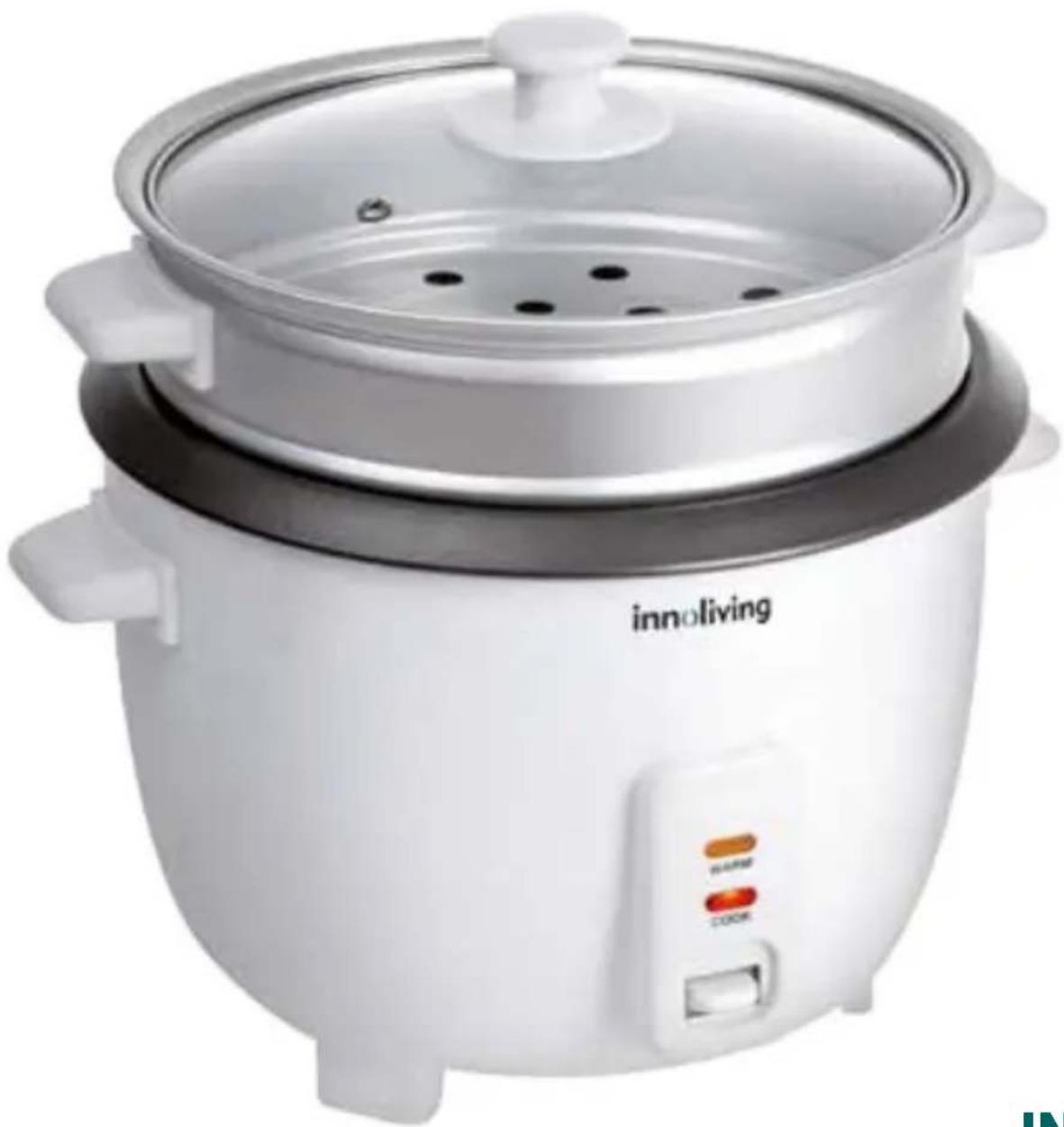

White rice cooker with a glass lid and side-mounted control panel (no visible text or symbols on the body)

INN-745

MANUALE D'USO

USER MANUAL

Thank you for purchasing the INNOLIVING electric rice cooker, a valid tool for preparing rice-based dishes.

Before use, carefully read all the instructions and keep this manual safe for future reference.

IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS

1. Before use, verify that the power supply voltage matches the one indicated on the rating label.
2. The power cord must be removed before cleaning the product. Make sure that the device is completely dry before using the rice cooker.
3. This product can be used by children over 8 years of age and by people with reduced physical, mental or sensory abilities, or without experience and knowledge if under supervision or if they have received instructions for the safe use of the appliance and they understood the related dangers. Cleaning and maintenance must not be performed by children unless they are at least 8 years old and supervised. Keep the product and its power cord away from children under the age of 8.
4. This product is not a toy. Make sure that children do not play with the appliance.
5. If the power supply cable is damaged, it must be replaced by the manufacturer, its authorized service agent or qualified staff in order to avoid any danger.
6. This product is designed for HOUSEHOLD use only. It must not be used in private cooking areas

in shops, offices and other workplaces, on farms, by hotel guests, motels, bed and breakfasts and other professional environments and similar locations.

1. Before using the product, carefully clean the parts in direct contact with the food.
2. Do not allow the power cord to come in contact with liquids when the product is operating.
3. Use this appliance only for the purpose for which it was designed, that is, as a RICE COOKER. Any other use is considered improper and therefore dangerous.
4. Do not pull the power cord to unplug the appliance from the power outlet. Keep the power cord away from heat sources.
5. Do not allow the power cord to hang from the edge of the worktop.
6. Place the appliance on a flat and stable surface.
7. Do not use the appliance outdoors.
8. Do not move the appliance when it is operating.
9. Unplug the power cord before inserting or removing any components and before proceeding with any cleaning or maintenance operation.
10. Steam can escape from the lid during use. Place the lid so that the steam is directed away from the user.
11. Do not immerse the product, its power cord and the plug in water or other liquids
12. ATTENTION: when the appliance is operating, its

accessible surfaces can reach high temperatures. Do not touch hot surfaces.

1. After use, the product can retain residual heat; wait until the product has completely cooled down before proceeding with any cleaning and maintenance operation.

2. Turn off the product and unplug it from the power outlet at the end of each use and whenever it is not in use.

3. ATTENTION: avoid any leakage of liquids or steam near the mains plug.

ADDITIONAL SAFETY INSTRUCTIONS FOR THE RICE COOKERS

1. Before starting cooking, ensure that no food remains between the hot plate and the bottom of the container. Keep the appliance and the heating plate clean and free of any foreign material, see paragraph "CLEANING AND MAINTENANCE".
2. Avoid bumping or dropping the container. Any deformation of the container could compromise the correct operation of the appliance.
3. Do not turn the appliance on without having inserted the cooking container first.
4. Do not block the steam outlet opening with any object.

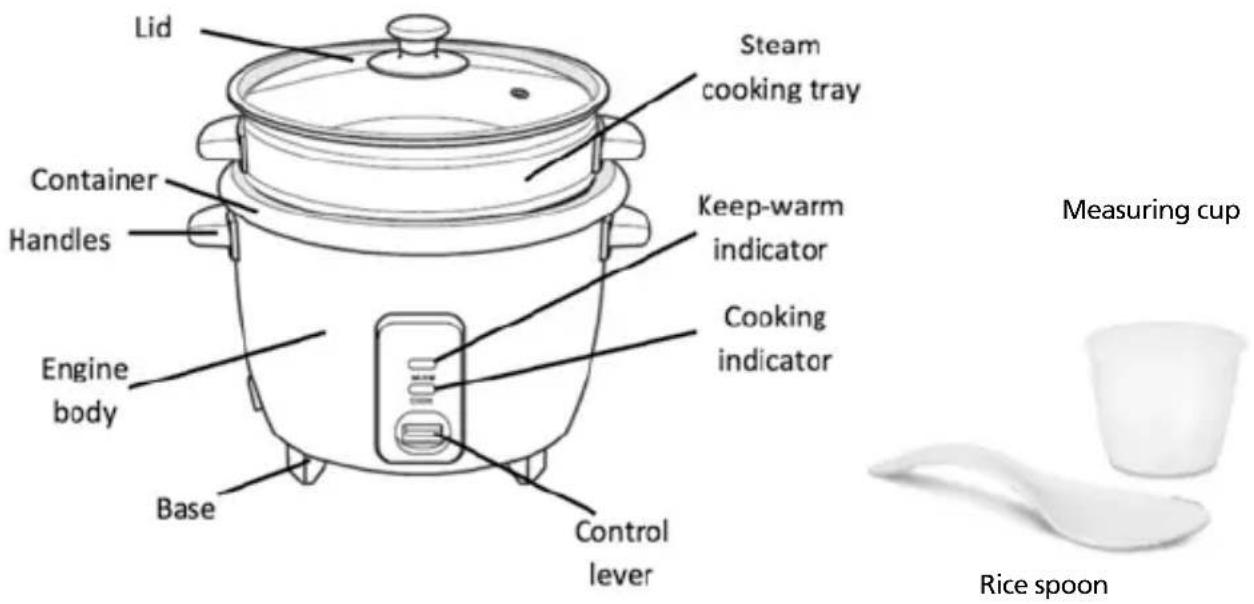

PRODUCT DESCRIPTION

HOW TO USE

• Before using the product for the first time, carefully clean the container, the tray, the cup and the spoon, see paragraph "CLEANING AND MAINTENANCE".
• Pour the desired amount of rice inside the container using the specific measuring cup (minimum quantity: 4 cups).
• Once the rice has been poured into the container, fill the container with water until the corresponding indication (CUP) is reached. For example, if you want to cook 4 cups of rice, you will have to fill the container with water until you reach the level corresponding to 4 (0.6).
• Place the rice cooker on a flat and stable surface and insert the container inside the appliance making sure that the container is positioned perfectly in contact with the heating plate.
• Place the lid.
• Connect the power cord to the mains.
  • The keep-warm indicator lights up.
• Lower the control lever to start the cooking process. At this point, the cooking indicator lights up.
  • After finishing cooking, the cooking indicator goes out and the keep-warm indicator turns on automatically.

Note: For best results, stir the rice only after the keep-warm indicator has lightened up. Stir the rice with the special provided spoon in

• Place the rice container in the rice cooker compartment.
• Pour 1 measure cup of water into the rice container.
• Insert the steam cooking tray.
• Inserire gli alimenti nel vassoio per la cottura a vapore.
• Close using the lid.
• Connect the power cord to the mains.
• The keep-warm indicator lights up.
• Lower the control lever down to the cooking function, thus starting the steam cooking.

CLEANING AND MAINTENANCE

Attention: Before proceeding with any cleaning or maintenance operation, unplug the appliance from the power supply and allow it to completely cool down. After use, the product can retain residual heat.

Attention: Do not immerse the product in water or other liquids.

• The product external surface can be cleaned by using a soft cloth damped in water.
• Do not use abrasive detergents or sharp tools to clean the appliance.
• Wash the container, the tray, the lid, the measuring cup and the hand spoon by using a mild detergent.

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-745 CUOCI RISO ELETTRICO - ELECTRIC RICE COOKER

220-240V\~50/60Hz 650W

Read carefully the user manual.

CE The product is made conforming with all the applicable European regulations

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

innoliving - easy tech, easy life

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel 199.188.335

www.innoliving.it

MADE IN CHINA

CE
