PWM6010M - Washing machine Premium - Free user manual and instructions

Product Type	Washing Machine
Brand	Premium
Model	PWM6010M
Capacity (kg)	7
Maximum Spin Speed (RPM)	1400
Energy Class	A
Noise Level (Wash/Spin dB)	56 / 74
Dimensions (HxWxD mm)	850 x 595 x 530
Weight (kg)	70
Power Supply	220-240 V, 50 Hz
Power Consumption (kWh/year)	195
Water Consumption (L/year)	9900
Number of Programs	15
Key Functions	Delay Start, Child Lock, Quick Wash, Eco Wash, Pre-wash
Display Type	LED
Drum Material	Stainless Steel
Door Opening	Front Load, 180° Hinge
Water Connection	Cold Water Only
Maintenance	Clean filter regularly, descale monthly
Safety Features	Overheat Protection, Overflow Protection, Unbalanced Load Detection
Spare Parts Availability	Yes, through authorized service centers
Repairability Index	7.5 / 10

Frequently Asked Questions - PWM6010M Premium

How do I install the washing machine?

Ensure the machine is on a level, solid floor. Remove all transport bolts. Connect the water inlet hose to a cold water tap with a 3/4 inch thread. Insert the drain hose into a standpipe or sink. Plug into a grounded outlet. Refer to the installation manual for details.

What should I do if the machine does not start?

Check if the door is properly closed, the water supply is on, and the power cord is plugged in. Also ensure the child lock is not activated. If the problem persists, refer to the troubleshooting section.

How do I clean the filter?

Open the filter cover at the bottom front. Place a container under the filter to catch water. Unscrew the filter counterclockwise and remove any lint or debris. Clean under running water and reassemble securely. Perform this every 3 months.

What types of detergent should I use?

Use only high-efficiency (HE) detergents designed for front-load washers. For best results, use liquid detergent for cold washes and powder for hot washes. Avoid overdosing.

How can I reduce vibration during spin?

Ensure the machine is level by adjusting the feet. Check that the transport bolts are removed. Distribute laundry evenly inside the drum. Do not overload the machine. Small items should be placed in a mesh bag.

What does the error code E1 mean?

Error code E1 indicates a water supply issue. Check that the tap is fully open and the inlet hose is not kinked. Also clean the inlet filter in the hose connection. Restart the cycle.

Can I wash delicate fabrics in this machine?

Yes, use the Delicate or Hand Wash program with cold water and a low spin speed. Place garments in a laundry bag for extra protection.

How do I use the delay start function?

Select the desired program and press the Delay Start button repeatedly to set the delay time (1-24 hours). Press Start. The machine will begin automatically after the delay.

What maintenance is required monthly?

Run a drum cleaning cycle using a washing machine cleaner or a cup of white vinegar without laundry. Also clean the door seal and detergent drawer to prevent mold.

Where can I find spare parts?

Spare parts are available through Premium authorized service centers. You can also order online using your model number PWM6010M. Common parts include door gaskets, filters, and belts.

USER MANUAL PWM6010M Premium

TWIN TUB WASHING MACHINE INSTRUCTION MANUAL

Line drawing of a washing machine (no text or symbols)

Model/Modelo:PWM6010M

Premium

This product is for domestic use only Use & Care Manual Important Safeguards

CONTENTS

Name Of Parts 1

Accessories 1

Introduction Of Control Panel 1

Attention To Installation 2

Lay upper drain hose 2

Change the position of the drain hose 2

Installation site 2

Preparation Instructions 3

Weight reference of washing materials 3

Laundry volume and detergent

dosage reference 3

Washing Method 4

Soak Function 4

Rinsing Method 4

Spinning Method 5

Attention To Maintenance 6

Cabinet maintenance 6

Cleaning the lint filter 6

Anti-freezing protection 6

Operation when objects are

dropped into outside of the spin tub 6

Notes 7

Others 8

Main Technical Parameters 9

Packing List 9

Structure Instruction

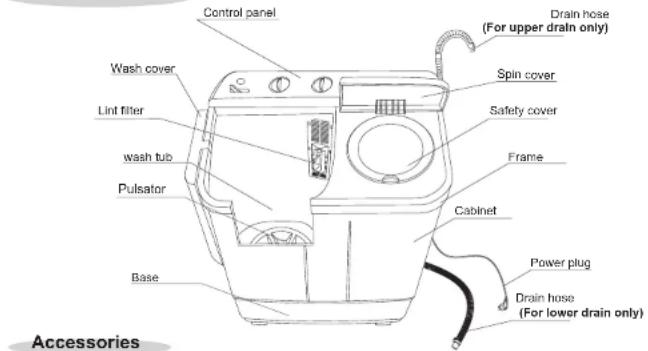

Name Of Parts

Introduction Of Control Panel

Water inlet Wash timer Wash selector -Drain Spin timer

※ he drawing above is for reference only, specific drawing is subject to actual models.T

Water inlet: be used to inject water to wash tub or spin tub.
- Wash timer: be used to select required washing time.
- Spin timer: be used to select required spinning time.
- Wash-Drain selector: For washing or rinsing, select "Normal" or "Heavy".

For Draining, select "Drain".

Installation

Attention To Installation

Lay upper drain hose

Needs a drain hose with minimum diameter 0.8 cm, and minimum carry away capacity of 40 liters per minute.
For upper drain system, the drain hose must be placed at least 86 cm(30 inches) from the bottom of washer, but not higher than 100 cm.

Change the position of the drain hose

The ex-factory installation position of the drain hose is located at the spin side. According to the installation site, the drain hose can also be installed at the wash side of the machine. The method is as follows:

① Unplug the power cord and empty
water in the drain hose completely.
- Spread a piece of soft cloth on the floor (e.g. a blanket) and place the washing machine on it gently.
Take the drain hose out from the buckle at the spin side, and put it into the buckle at the wash side.
4 Hang up the drain hose kit.

In order to avoid electrical failure, discoloration and deformation, do not install the machine in the following places:

● Locations exposed to direct sunlight

- Locations exposed to rain or snow

- Locations with uneven or unstable ground

Usage method

Preparation Instructions

Plug in power and connect the water inlet hose.
- Lay down the lower drain hose and connect it to the sewer, or lay the upper drain hose to places as indicated in page 2
- Check that there are no objects such as coins, hairpins, mud or sand in the pocket.
● Strings should be knotted in advance to prevent entanglement.
● Clothes can be classified for washing according to the texture, dirty degree and color
- For small pieces (e.g., stockings) or fluffy clothes, put them into a nylon net for washing.

Attachment: Weight reference of washing materials

T-shirt (cotton) about 150 g	Shirt (blended) about 200 g	Slipover (cotton) about 500 g
Panties (cotton) about 50 g	Socks (blended) about 50 g	Scarf (cotton) about 300 g

Attachment : Laundry volume and detergent dosage reference

Fabric type	Laundry capacity (kg)	Water level	Water flow	Wash time (minutes)	Detergent amount (g)
Synthetics, silk, Delicate fabrics	0-2.5	Low	Normal	3	About 34
	2.5-3.5	Mid		3-5	About 44
Cotton or linen	0-3.5	Mid	Normal	7	About 44
	3.5-6.0	High		7-10	About 54
Heavy soils	0-3.5	Mid	Heavy	10	About 44
	3.5-6.0	High		10-35(soak 20)	About 54

● The dosage of washing detergent varies according to dirty degree and texture of laundries.

Usage method

Washing Method

1. Insert the inlet hose into the , and choose injectingwater water inlet mouth water to the wash tub.
2. Put the laundry into the wash tub, and add detergent into it. When fill water to half of the desired water level, turn off the water tap and let laundries soak in the solution for minutes, then fill water to desired water level.
3. Set wash program "Normal" or "Heavy" as per amount and texture of laundries.
4. Turn the wash timer knob to set wash time.
5. After washing, set the wash drain selector to "Drain" position for draining.
6. Buzzer will alarm the completion of washing.(For machines having buzzer function only)

Soak Function

(For machines having soak function only )

For seriously stained clothes, Soak wash is useful to achieve better wash result. 15-35 minutes of the wash timer is for soak wash: (illustrate as follows)

Water level indicator

Work time
Static time

This machine can wash blended blanket (less than 3kg) marked with the "hand washing" label. Washing method is as follows:

Dilute detergent with an open (below 60% cut) then pour the solution into
2 Fold the blanket as shown in the figure, and pinted the wash tub.

Fold in half along the long edge

1/3 fold in the same direction

Roll up the blanket

Put into the tub with blanket edge facing down

Rinsing Method

A. Spraying rinse (rinse in the spin tub)

① Put the laundry into the spin tub after washing.
2 Turn on the water tap, choose to fill water into the spin tub for 3-4 minutes, and then turn off the water tap.
3 Set the spin timer for 2-5 minutes for rinsing.
The above steps can be repeated.

Note: ① If there is red rust in water, do not choose spraying rinse, for the rust is easy to adhere to laundries. ② Ensure that do not fill water into spin tub when spinning.

B. Common rinse (rinse in the wash tub)

To save time, water and energy, can do pre-spinning before rinsing.
2 Put laundries which have already been dehydrated into the wash tub
3 After filling water to the desired level, turn off the water tap to save water.
Tum the "Wash-Drain selector" knob to the "Normal" or "Heavy"
5 Set the "wash timer" to the desired time (about 3-5 minutes) for rinsing.
After rinsing, put the washing materials into the spin tub to spin for 1 to 5 minutes.
Drain out the rinsing water in the wash tub.
8 The above steps can be repeated.

Usage method

Spinning Method

1.Shake out the laundry and put them into the spin tub.	2.Put the inner spin cover on the laundry Confirm the inner spin cover is placed horizontally.
	Correct Incorrect
3.Close the safety cover and the spin cover.	4.Refer to the following table to select spinning time.
	Washing materials	Spin time
	Wire	About 50 seconds
	Light clothes (fiber/blended)	About 1 minute
	Knitwear (fiber)	About 1~2 minutes
	Underwear (cotton)	About 2~3 minutes
	Slipover (cotton/linen)	About 3~4 minutes
	Toweling coverlet (cotton)	About 5 minutes

Washing materials	Spin time
Wire	About 50 seconds
Light clothes (fiber/blended)	About 1 minute
Knitwear (fiber)	About 1~2 minutes
Underwear (cotton)	About 2~3 minutes
Slipover (cotton/linen)	About 3~4 minutes
Towelling coverlet (cotton)	About 5 minutes

The appliance can not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Please do not use other water inlet hoses, except for the water inlet hoses that are supplied as the accessories. If need to replace the hose, please buy it from the local service center.
Please stop injecting water at the time of transferring water injection valve.(To avoid the water inlet hose washed away by the supplied water, because the pressure of the water supply is very high).
If strong vibration occurs in time of spinning, open the spin cover immediately. Make sure that the washing machine is placed on a flat and stable floor, and then adjust washing materials, distribute them evenly.
To do spinning and draining together, please spin for 1 minute before draining.
Do not wash or spin waterproof clothes or clothes that float easily to avoid abnormal vibration or damage to the clothes.

Maintenance

Attention To Maintenance

Cabinet maintenance

After using the washing machine, wipe the moisture and stain on it with a piece of soft cloth. To avoid damage to the surface, do not use corrosive or volatile chemicals.

Cleaning the lint filter

1. Press the button head, and pull the lint filter out.

Turn the filter net inside out, and rinse it in water.
After inserting the claw, press the button to insert it into place.
A sound of "ba" means proper installation.

Anti-freezing protection

A To prevent from freezing:

① Turn off the water tap, remove the water inlet hose and empty water in the water inlet hose completely.
2 Lay the drain hose and turn the drain selector knob to the "Drain" position to empty the water in the tub.

A If the water is frozen, please take the following steps:

① Put the water inlet hose into warm water of about 50°C.
② Keep about 2 liters of warm water below 50°C in the wash tub for about 10 minutes, and then lay the drain hose and turn the wash drain selector knob to the "Drain" position to empty the water
3 Fit the water inlet hose and turn on the water tap to confirm water filling and draining work properly.

Operation when objects are

dropped into the outside of the spin tub

① Remove all screws on the frame with a screw driver. ② Pull up the frame with both hands and turn it backwards.
③ Take out the clothes dropped into the outside of the spin tub. ④ Press the frame to reset and tighten screws.

After you use the washing machine, never forget to do the following two things:

1. Disconnect the power plug
2. Remove the water inlet hose

Others

Notes

The washing machine employs alternative current with rated voltage and frequency. When voltage fluctuates between -10% and 10% of the rated voltage, the machine can work normally.

Connection mode of the power cord of this machine is Y-shaped connection. Users should not detach or reconnect the wire by themselves. If this point is the designated service center.

After using, be sure to unplug the power plug.

• Be sure to use plug that is properly grounded
  The maximum gradient of the supporting surface for the washing machine should not exceed 2".
  Do not tear down electrical wires and components in the machine by yourself.
  There are holes on the base for ventilation. These holes should not be blocked by foreign objects (carpets, etc.).
  Never connect the grounding wire with the live wire, or it may lead to an electric shock.
  If the power cord is damaged, it must be replaced by a qualified person to avoid a hazard.

If the following symptoms occur, please disconnect the power plug and perform the following checks:

Symptom	Reason
The washing machine does not work.	● Check that the power supply is in good condition. ● Check that the power plug is inserted properly. ● Check that the wash timer knob or the spin timer knob is not in the "0" position.
The drain hose does not work.	● Check that the drain hose is not laid too high. ● Check that the drain hose is not frozen. ● Check that the drain hose is not blocked by foreign matter.
There is abnormal noise during washing.	● Check that there are no coins or any other foreign objects dropped into the wash tub.
There is abnormal noise and violent vibration during spinning.	● Check that the washing machine is placed on flat, stable floor. ● Check that clothes are evenly distributed in the spin tub. ● Check that there are no washing materials or foaming debris dropped into the outside of the spin tub.

Others

Others

Do not open the spin cover in time of spinning	Which can not be washed
If the spin cover is opened in time of spinning, the washing machine will arrest at once, which will shorten its service life. So avoid opening the spin cover during spinning. Furthermore, do not put hands into the wash tub while the machine running, for it is very dangerous.	Do not wash clothes that are stained with paint, petrol or other volatile or flammable substance.
Avoid dampness	Do not forget to close the inner spin cover
Do not put the washing machine in extreme damp place, for dampness may weaken insulation of the machine, which may lead to electric shocks or faults.	If laundries in the spin tub are tossed out, they are easily damaged.
Notes for scrubbing	Do not use warm water above 50°C
In order to avoid damaging electrical components, do not scrub operation parts of control panel with water.	This will prevent plastic deformation and aging.
Do not let children play near the tub	Keep away from fire or heat source
It's very dangerous for children falling into the tubs.	Keep the washing machine away from fire or heat source such as heater, cigarette, etc. to avoid fire accident or plastic deformation.

Be sure to comply with all the notes above.

Parameters

Main Technical Parameters

Function\Parameter	Capacity(any clothes)	Power Supply	Input Power(lower dry)	Input Power(upper dry)	Maximum Time	Water volume	Maximum water pressure permitted in the water inlet	Overall dimension(L×W×H)	Net weight
Wash	9.0 kg	110V68Hz	325W	325W	15 min.	H: 54L; N: 44L; L: 34L	0.6Mpa	735x430x645(mm)	17.5kg
					35 min.(power output)
Spin	3.8kg		125W	125W	5 min.	/
Pump			/	30W	/

PACKING LIST

Packing list
Quantity	1 Set of washing machine
Accessories	Name	Quantity	Note
	Water inlet hose	1
	Instruction manual	1
	Inner spin cover	1
