USER MANUAL DX-WD1201 Dynex

ASSEMBLY INSTRUCTIONS

DX-WD1201

Espresso TV Stand for 32" TVs

Line drawing of a simple wooden cabinet with shelves and drawers (no text or symbols)

Safety information and specifications .....2

Tools needed....3

Package contents 4

Assembly instructions....6

Safety information and specifications

CAUTION:

This stand's work surface is intended only for use with a product not weighing more than 95 lbs. (43.09 kg) and accommodates most 32"

flat-panel TVs with dimensions that will permit the TV to sit evenly on the stand. Using with other products, including products that weigh more than the maximum weight allowed, may result in instability, which may cause possible injury.

Maximum weight: 95 lbs. (43.09 kg)

Maximum screen size: Most 32" flat-panel TVs

Weight capacity (top of stand): 95 lbs. (43 kg)

Weight capacity (top shelf): 35 lbs. (15 kg)

Weight capacity (middle shelf): 25 lbs. (11 kg)

Weight capacity (total lower shelf): 50 lbs (22 kg)

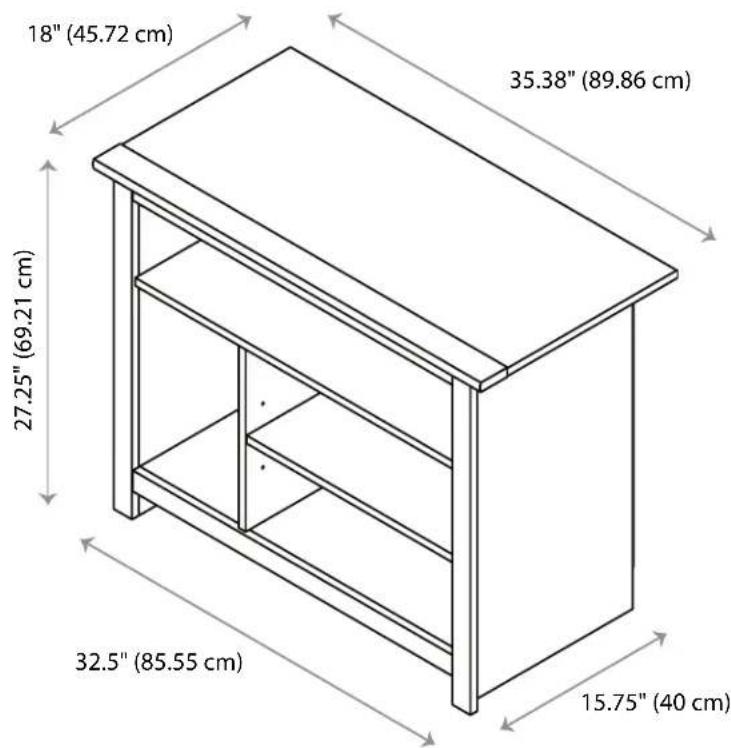

Overall dimensions: (W × H × D)

35.38 × 27.25 × 18 inches (89.86 × 69.21 × 45.72 cm)

Top of stand: (W × D) 35.38 × 18 inches (89.86 × 45.72 cm)

Usable top shelf: (W × H × D)

29×6.13×15.5 inches (73.66×15.57×39.37 cm)

Usable left game shelf: (W × H × D)

9.38 × 14.5 × 15.5 inches (23.82 × 36.83 × 39.37 cm)

Usable right middle shelf (in middle position): W × H × D

19.25×6.88×15.5 inches (48.89×17.47×39.37 cm)

Usable lower shelf (shelf in middle position): W × H × D

19.25 × 6.88 × 15.5 inches (48.89 × 17.47 × 39.37 cm)

Warnings

• Do not let children climb on your stand or play near it. The stand may tip over causing the TV or stand to injure someone.
• When placing items on the shelves or the top of the stand, load the bottom shelf first and work up to the top of your stand.
• Do not overload the shelves. They may break.
• Do not move your stand with items on the top or shelves. Your stand may tip over and injure someone. Before you move your stand, unload starting with the top of your stand and working to the bottom shelf.
• Do not push your stand to move it. With the help of a second person, lift your stand to move it.

Tools needed

No. 2 Phillips screwdriver

Symbol of a drill crossed out by a diagonal line, representing no power or resistance (no text present)

Caution: Do not use an electric drill or screwdriver

Illustration of a hammer with a handle and labeled body (no text or symbols on the object itself)

Package contents: hardware

Make sure you have all the hardware necessary to assemble your new TV stand:

Label Hardware Qty.
M217		Hidden cam
N217		Cam dowel
0		Angle bracket	3
P		Metal pin	6

Label Hardware Qty.
Q		Rubber sleeve	4
R		Cam cover	13
S		Warning label	1

Label Hardware Qty.
T		Black 1-7/8"flathead screw	2
U		Black 9/16" largehead screw	6
V	[62TS]	[GATB]Nail	24

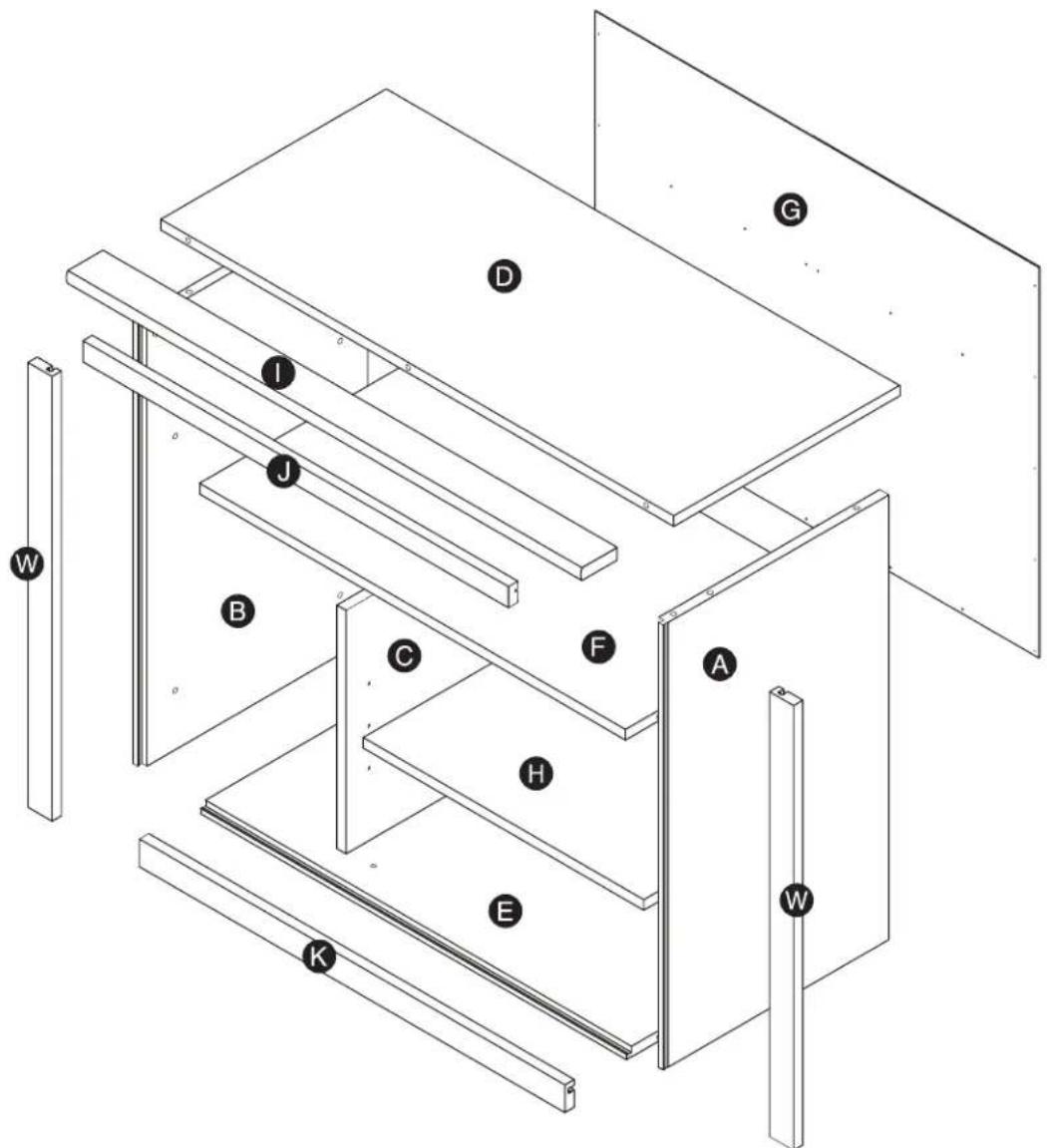

Package contents: parts

Note: All parts except for the back (G) have a lettered sticker to make identifying parts easier.

Letter	Description	Qty.	Letter	Description	Qty.
A	Right end 1		G	Back	1
B	Left end 1		H	Adjustable shelf	1
C	Upright 1		I	Stop molding	1
D	Top 1		J	Top skirt	1
E	Bottom 1		K	Bottom molding	1
F	Shelf 1		W	End molding	2

Step1:

Assemble your stand on a carpeted floor or on the empty carton to avoid scratching your unit or the floor. A hidden cam (M2) has an arrow. When you insert the hidden cam, make sure that the arrow points toward the hole in the side of the part you are inserting it into.

Push seventeen hidden cams (M2) into the ends (A and B), top (D), bottom (E), and shelf (F). Then, insert the metal end of a cam dowel (N2) into each hidden cam.

Need help? Call 800-305-2204

Tightening hidden cams:

In the remaining steps, use these illustrations for instructions on tightening hidden cams.

Warning: Risk of damage or injury. Hidden cams must be completely tightened. Hidden cams that are not completely tightened will loosen, and parts may separate.

In the illustration below, the hidden cam has not been tightened enough.

Make sure that you turn the hidden cam a minimum of 190^irc to a maximum of 210^irc . Note the position of the arrow on the hidden cam.

You'll need:

Phillips screwdriver

Need help? Call 800-305-2204

Step 2:

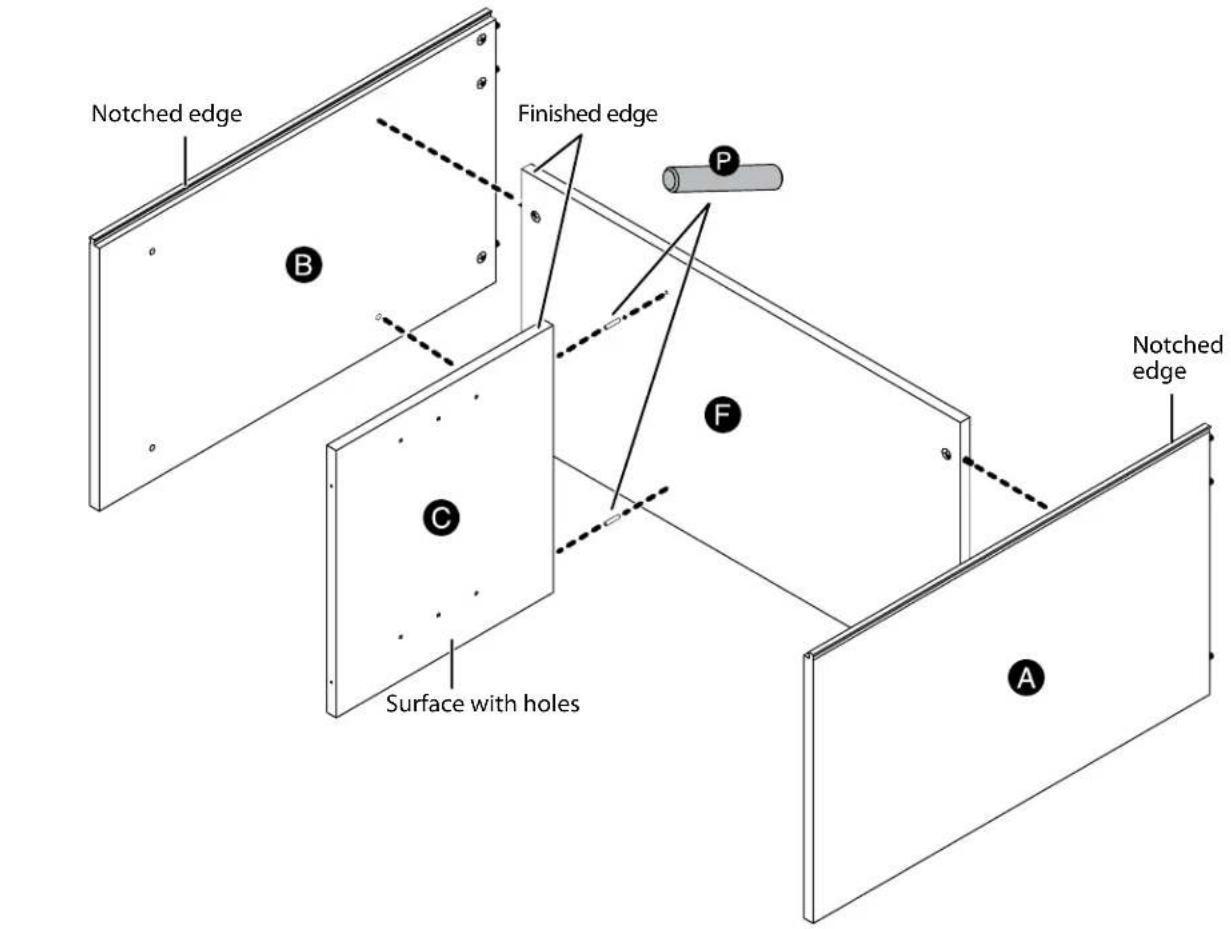

Fasten the shelf (F) to the ends (A and B). Use a Phillips screwdriver to tighten four hidden cams (M2). See "Tightening hidden cams:" on page 7.

Insert two metal pins (P) into the upright (C), then insert the other ends of metal pins (P) into the holes in the shelf (F).

Step 3:

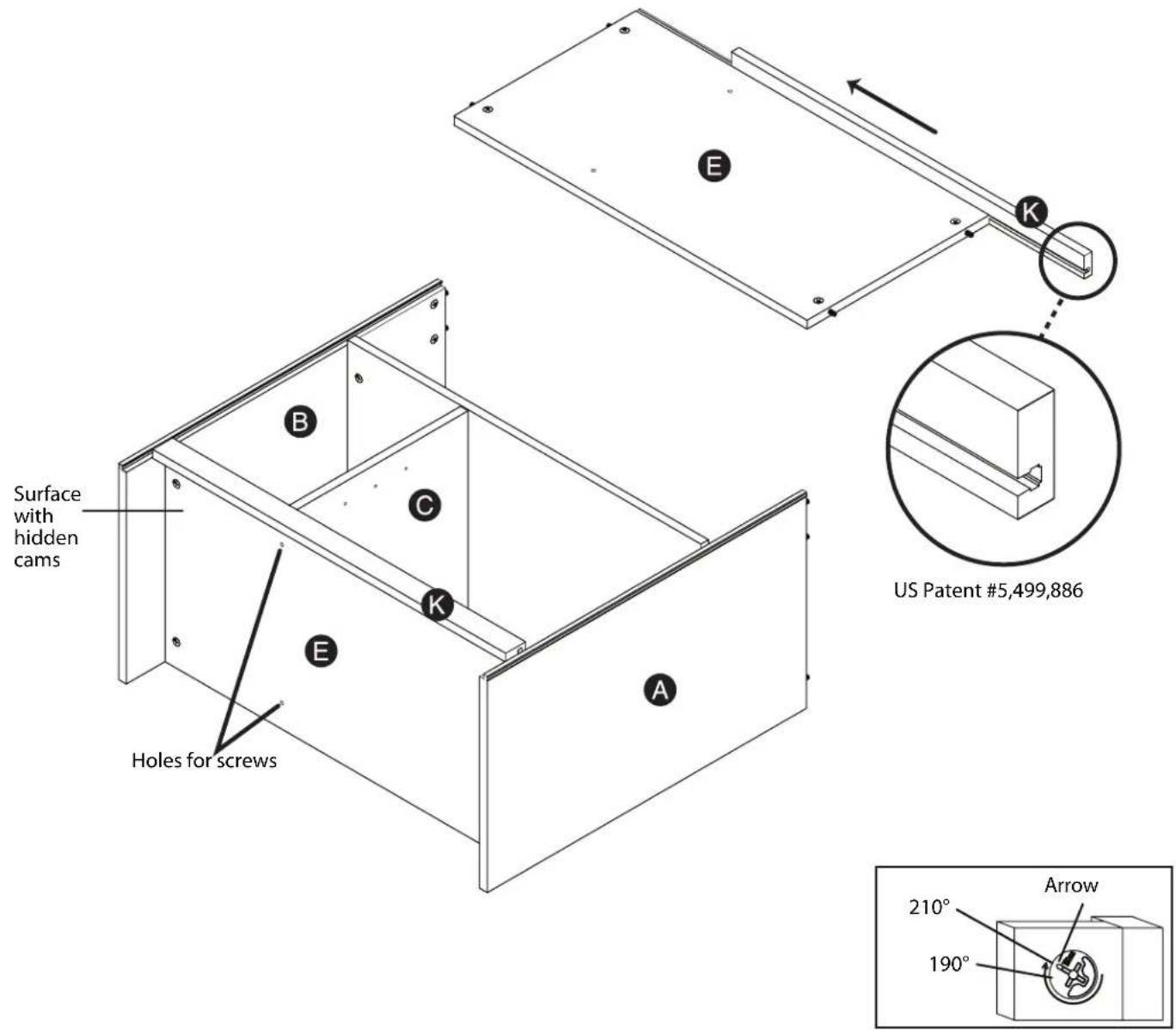

Slide the bottom molding (K) onto the notched edge of the bottom (E).

Fasten the bottom (E) to the ends (A and B). Use a Phillips screwdriver to tighten four hidden cams (M2). See "Tightening hidden cams:" on page 7.

Fasten the bottom (E) to the upright (C). Use a Phillips screwdriver and two black 1-7/8" flat head screws (T).

You'll need:

Phillips screwdriver

T(2)

Step 4:

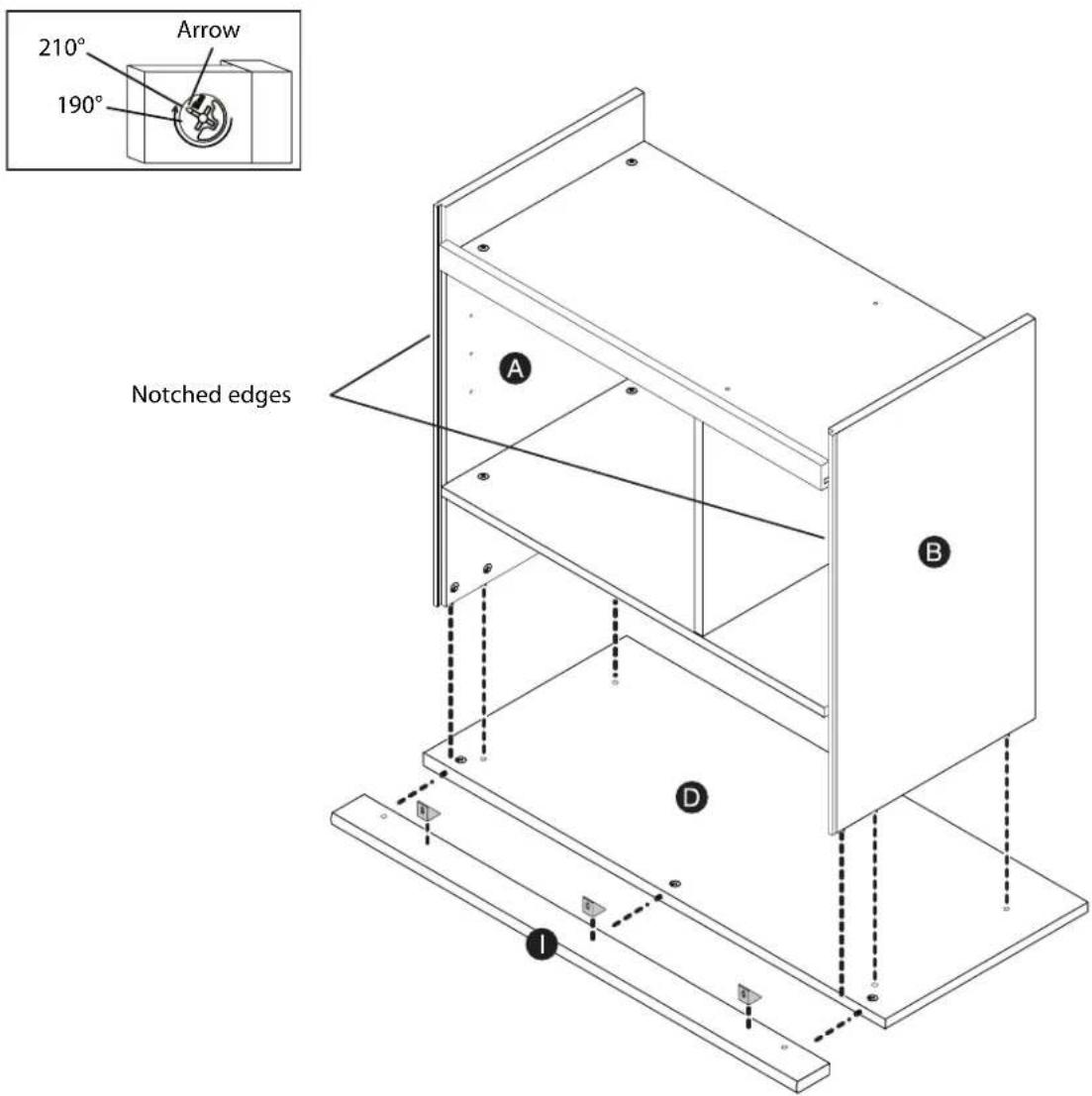

Fasten three angle brackets (O) to the stop molding (I). Use a Phillips screwdriver and three black 9/16" large head screws (U).

Fasten the stop molding (I) to the top (D). Use a Phillips screwdriver to tighten three hidden cams (M2).

See "Tightening hidden cams:" on page 7.

Carefully turn your stand onto its top.

Fasten the ends (A and B) to the top (D). Use a Phillips screwdriver to tighten six hidden cams (M2).

Step 5:

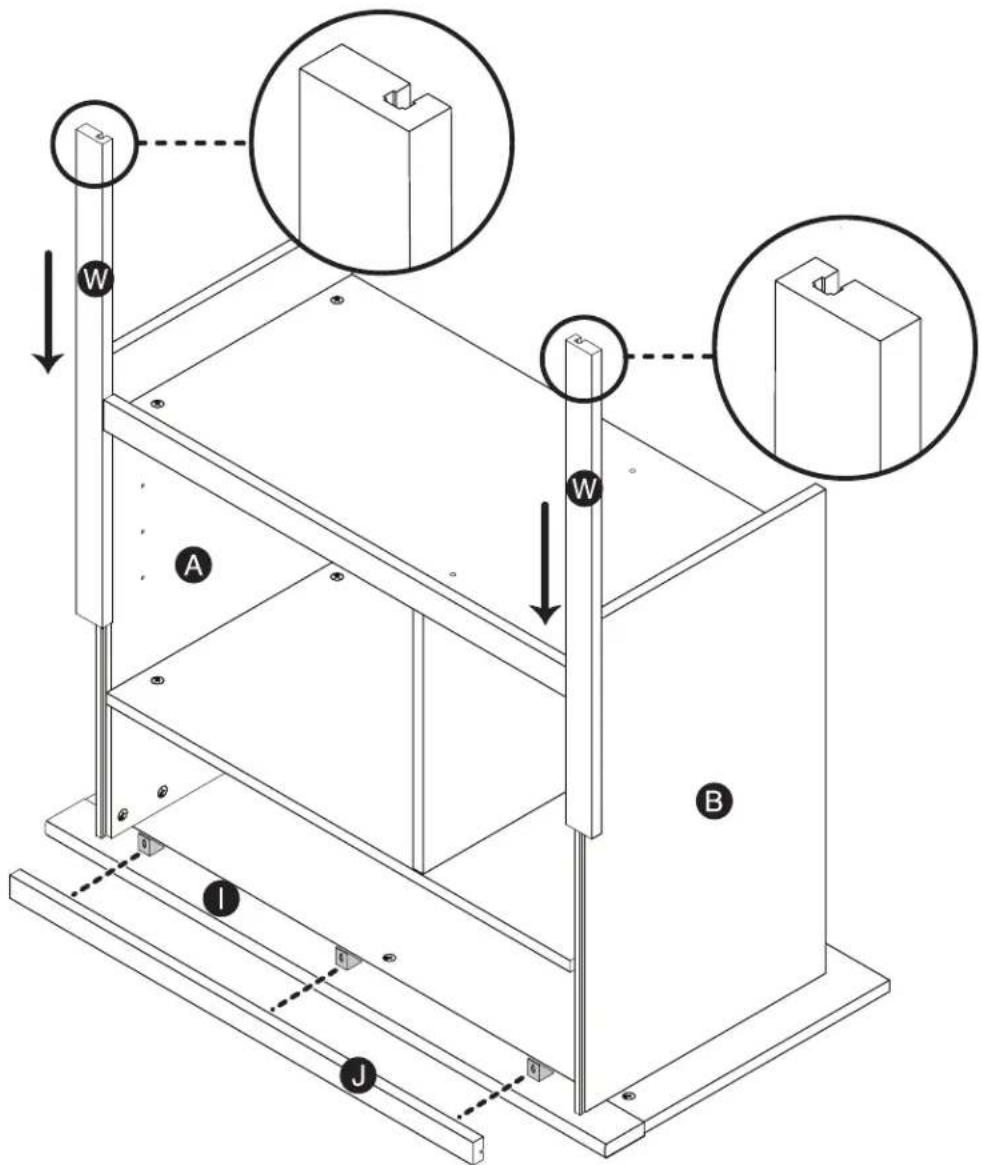

Slide the end moldings (W) onto the notched edges of the ends (A and B).

Fasten the top skirt (J) to the angle brackets (O) on the stop molding (I). Use a Phillips screwdriver and three black 9/16" large head screws (U).

Note: There are no pre-drilled holes in the top skirt (J). The screws will tighten into the groove.

Step 6:

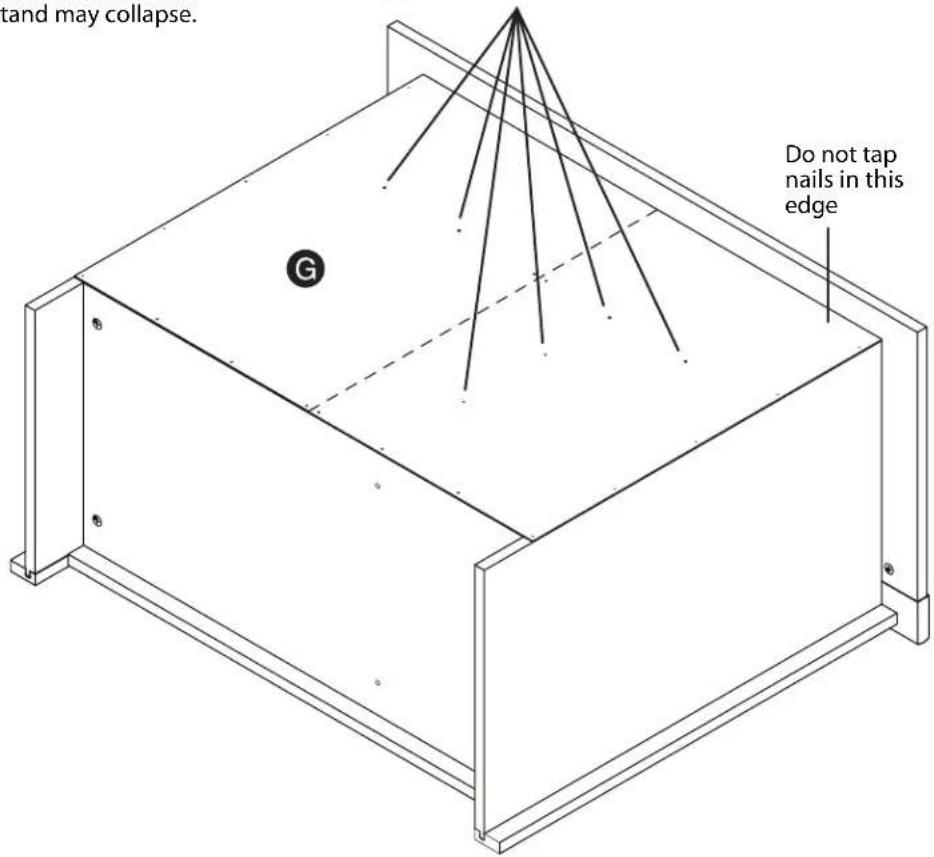

Carefully turn your stand over onto its front edges. Unfold the back (G) and lay it over your stand.

Make equal margins along the side and bottom edges of the back (G). Push on opposite corners of your stand if needed to make it "square."

Fasten the back (G) to your stand using the nails (V).

Note: Make sure that you tap nails into the holes that line up over the upright (C) and shelf (F).

Note: Perforations have been provided for access through the back (G). Carefully cut out the holes needed.

Caution: Do not stand your stand upright without the back fastened. Your stand may collapse.

These holes must line up over the back edges on the upright (C) and shelf (F).

Step 7:

Carefully stand your stand upright.

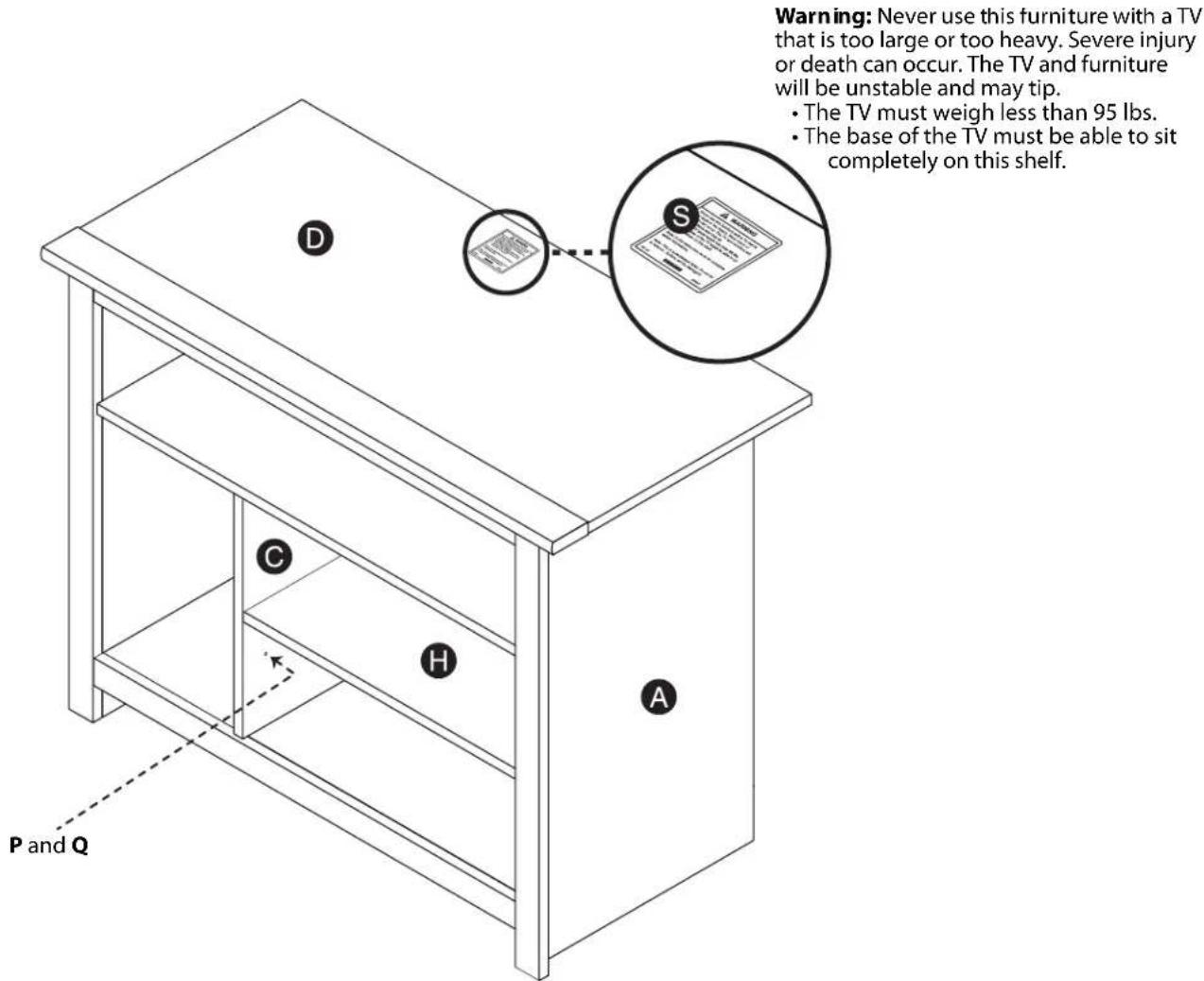

Push the rubber sleeves (Q) over the remaining metal pins (P). Insert the metal pins (P) into the hole locations of your choice in the right end (A) and upright (C). Set the adjustable shelf (H) onto the metal pins (P).

Apply the warning label (S) to the top (D). You should be able to read the label when the TV is removed from your stand. When the TV is in place, it should hide the label. Peel off the backing and apply the label as shown.

Caution: This is a permanent label intended to last for the life of the product. Once applied, do not try to remove it. You may damage the finish on the top.

Push a cam cover (R) onto each visible hidden cam (M2).

Clean with your favorite furniture polish or a damp cloth. Wipe dry. Your stand is ready to use.

Need help? Call 800-305-2204

Still need help?

For customer service, call: 800-305-2204 (U.S./Canada markets)

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, MN USA 55423-3645

© 2012 BBY Solutions, Inc.
