Product Type	LCD Television
Brand	Sharp
Model	AQUOS LC-32NX430H
Screen Size	32 inches (81 cm)
Resolution	1366 x 768 pixels (1,049,088 pixels)
Video Color Systems	PAL / SECAM / NTSC 3.58 / NTSC 4.43 / PAL 60
TV Standards (Analog)	PAL B/G, D/K, I; SECAM B/G, D/K, K/K1; NTSC M
TV Standards (Digital)	DMB-T/H (MHEG-5)
Audio Amplifier Power	5 W x 2
Speakers	3.6 x 10 cm, 2 pcs
Terminals (Rear)	HDMI x3, Composite, Component, PC, USB 2.0, RS-232C, Audio out/Headphone
Power Requirement	AC 220 V, 50 Hz
Power Consumption (Typical)	63 W
Power Consumption (Standby)	0.5 W
Weight (with stand)	9.0 kg
Weight (without stand)	7.8 kg
Operating Temperature	0°C to 40°C
Main Features	Dolby Digital Plus, DivX HD, USB Media Player, EPG, Child Lock, ECO Mode, Sleep Timer, Teletext (MHEG-5)
Accessories Supplied	Remote control, AA x2 batteries, Stand unit, Long screws, Operation manual
Cleaning Instructions	Use soft dry cloth; avoid solvents, benzene, thinner; for LCD panel, use dry soft cloth gently
Safety Precautions	Do not open rear cover; avoid water and moisture; unplug before cleaning; use proper ventilation
Repairability	Contact qualified service personnel; do not attempt self-repair

Frequently Asked Questions - AQUOS LC-32NX430H SHARP

How do I connect external devices like a DVD player or game console?

Use the HDMI (1/2/3) or Composite (INPUT 4) or Component (INPUT 5) terminals on the rear. For PC, use the PC input (15-pin D-sub). Always turn off the TV before connecting.

How can I play media from a USB drive?

Insert a USB device into the USB terminal. Press TV/VIDEO to select USB media. Then choose between Movie, Music, or Photo mode using the cursor buttons. Supported formats include DivX, MP3, JPEG, and more.

How do I set up the TV for the first time?

Press POWER on the TV. The initial auto installation wizard appears. Follow the on-screen steps to select language, home/store mode, and scan for channels (analog and digital).

How can I protect my children from inappropriate content?

Use the Child lock function in the Setup menu. Set a 4-digit password and then lock specific channels or set a parental rating (e.g., block age 13 and below).

What should I do if the remote control stops working?

First, check that the batteries are inserted correctly (polarity +/-) and are not exhausted. Replace with new AA batteries if needed. Also ensure no strong or fluorescent lighting is shining on the remote sensor.

How do I clean the LCD screen and cabinet?

For the cabinet, use a soft dry cloth. For the LCD panel, turn off the TV and use a dry, soft cloth gently. Do not use solvents, benzene, or abrasive cloths. For stubborn dirt, use a cloth slightly dampened with diluted neutral detergent.

How can I save energy with this TV?

Enable the ECO menu settings: No signal off (auto power off after 15 min), No operation off (auto off after 30 min or 3 hr), and Quick start off. The Ecology option activates these automatically.

Why is there no picture but sound is working?

You may have accidentally activated Audio only mode. Press MENU, go to Option, and check that Audio only is set to Off. If not, change it.

How do I reset the TV to factory settings?

Press MENU, select Setup, then choose Reset. Confirm with Yes. This will reset all picture, audio, programme, and language settings to factory defaults.

What is the password to clear child lock if I forget it?

If you forget your password, enter 3001 at the password prompt. Then you can set a new 4-digit password. It's recommended to note your password and keep it safe.

USER MANUAL AQUOS LC-32NX430H SHARP

Illustration of a flat-screen monitor with no visible text or symbols on the screen or side.

HDMI® H3+0F MITECH INDUSTRAL INTERNS

DOLBY.

DIGITAL PLUS

DIVX HD

TINS-F218WJZZ

親愛的SHARP顧客

Simple graphic of a media player with headphones and a numeric value 20 (no text or symbols beyond the number)

Person kayaking in turbulent water with a paddle, captured mid-jump (no visible text or symbols)

用於全屏顯示操作的按鈕

註

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.

Contents

Page

Dear SHARP customer ....1

Contents ....1

Precautions for daily use ....2

Trademarks 2

Important safety precautions ....3

Supplied accessories 4

Preparation ....5

Before turning on the power 7

Connecting external devices 8

Remote control unit 9

Part names ......10

A-TV(Analogue TV)/D-TV(Digital TV)/AV input mode menu items....12

PC input mode menu items ....13

Turning the TV on/off 14

Supplying electric power to the antenna .....14

Initial auto installation 14

Checking signal information ....14

Auto installation 15

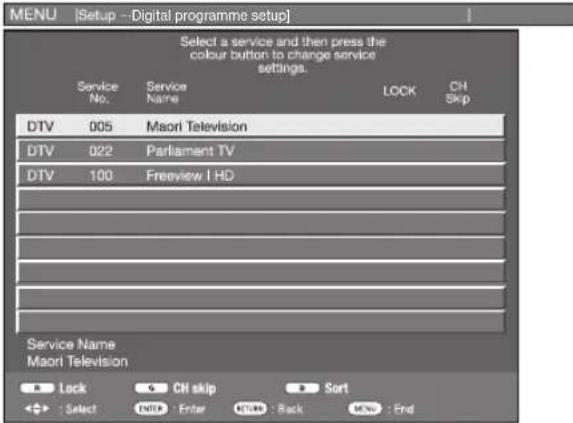

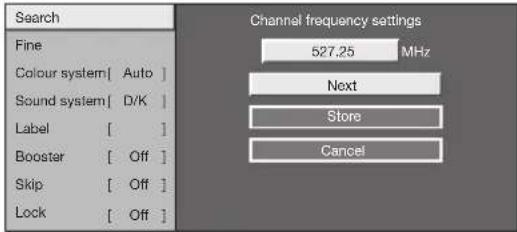

Programme setup 15

Menu operation....18

Picture menu 18

Audio menu 19

ECO menu 20

Page

Setup menu 20

Option menu 22

Digital setup menu 25

Programme guide ......26

Info 26

A-TV (Analogue TV)/D-TV (Digital TV)buttons .....27

Switching the analogue audio format ....27

Switching the digital audio format 28

EPG (Electronic Program Guide) 29

TEXT 30

Picture and still image ....30

Wide Mode ....30

Connecting a PC ....31

PC compatibility chart ....32

RS-232C commands list ....32

Connecting a USB device 33

Appendix ....37

Specifications 38

Dimensional drawings....39

Clearing the password 40

Precautions.for.daily.use

Observe the following items

Maintenance of the cabinet

• When cleaning the cabinet, use a soft cloth (made of cotton, floss, etc.) to clean gently.
  Do not use a dry or damp rag mixed with chemicals, as this could cause the ingredients of the cabinet body to deteriorate or crack.
• Be careful not to use an abrasive cloth for cleaning or clean with excessive force, as this could scratch the surface of the cabinet.
• If the cabinet is greatly soiled, clean with a soft cloth (made of cotton, floss, etc.) soaked with a small amount of diluted neutral detergent and wrung out, and then clean with a soft dry cloth.
• Because the cabinet is made of plastic, solvents such as benzene or thinner could cause it to deteriorate, or make its coating come off. Therefore do not use such solvents to clean the cabinet.
• Because plasticizer is included in the plastics, deterioration or the coating peeling off could occur when the cabinet comes into contact with some substances. Therefore keep it away from volatile substances such as insecticide. In addition, do not let it come into contact with objects made of rubber, resin, etc. for a long time.

Maintenance of the LCD panel

• Before cleaning the LCD panel, be sure to turn off the TV set and unplug the power cord from the outlet.
• When cleaning the LCD panel, use a dry and soft cloth (made of cotton, floss, etc.) to clean the surface of the LCD panel gently. For protecting the LCD panel, do not clean with a dirty cloth, detergent, or a dry or damp rag mixed with chemicals, as this could cause peeling of the panel surface.
• Be careful not to clean with an abrasive cloth or with excessive force, as this could cause the panel surface to be scratched.
• If the LCD panel is greatly soiled, clean it gently with a soft cloth (made of cotton, floss, etc.) soaked with a small amount of water (Do not clean with excessive force, so as to avoid the scratch of the panel surface).
• If dust sticks on the surface of the LCD panel, clean the panel with a commercially available cleaning brush (anti-static brush).

Trademarks

• Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

- “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”

- DivX® is a registered trademark of DivX, Inc., and is used under license.

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your opinion menu. Go to vod.divx.com for more information on how to complete your registration.

Important.safety.precautions

- Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the product.

- Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

- Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

- Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

- When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

- Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

- In case the product is dropped and the cabinet is damaged, be sure to turn off the power of the product, and unplug the power cord. If you continue to use the product, it may cause fire or electric shock.

- Do not open the rear cover of the cabinet to reconstruct the circuits. There exists high voltage within the cabinet and it may cause electric shock and injury. If maintenance is required, contact your dealer.

- The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.

- Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers)

- To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

- To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

- Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take special care near children and pets.

- Unplug the power cord before you move the TV set. If not unplugged beforehand, the power cord may become damaged and cause electric shock.

The LCD panel is a very high technology product with 1,049,088 pixels, giving you fine picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

- When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV.

- Do not display a still picture for a long time, as this could cause an afterimage to remain.

- Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT terminal on the rear of the product.

NOTE

- The above are pictures for reference only; the actual item might be different.

Supplied.accessories

Make sure the following accessories are provided with the product.

Remote.control.unit	“AA”.size.battery.(×2)		Operation.manual
Page 9	Page 10
Stand.unit
LC-26LX430H Stand Long screws (×3) Page 6 LC-32LX430H/NX430H Stand Long screws (×4)

Preparation

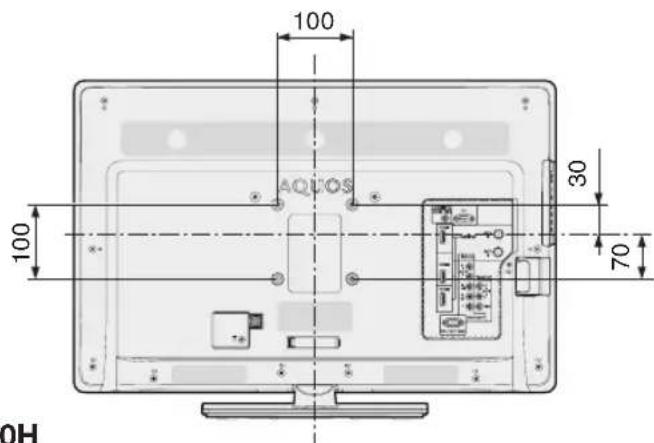

Handling and precautions with the wall-mounted TV

• You can mount the TV on the wall using the optional bracket.
• For details, refer to the instructions supplied with the optional bracket.

CAUTION

• This TV should be mounted on a wall only with a wall mount bracket recommended by SHARP. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.
• Installing the TV requires special skills that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using a SHARP recommended bracket to mount the TV

• You can ask a qualified service professional about using a SHARP recommended bracket to mount the TV to the wall.
• Carefully read the instructions that come with the bracket before beginning work.

NOTE

- If you want to mount the TV on the wall, use the screws provided with the wall-mount bracket to affix the bracket to the rear of the TV.

Attaching the stand

• Before attaching (or detaching) the stand, unplug the AC power cord from the AC power outlet.
• Before performing work, spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

CAUTION

• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

Preparation (Continued)

LC-26LX430H LC-32LX430H/NX430H

1

Confirm the 3 screws supplied with the stand.

Long.screws.(×3)

(used in step 2)

1

Confirm the 4 screws supplied with the stand.

Four identical cylindrical objects with cross symbols, each showing a different surface pattern (no text or labels)

Long.screws.(×4)

(used in step 2)

2

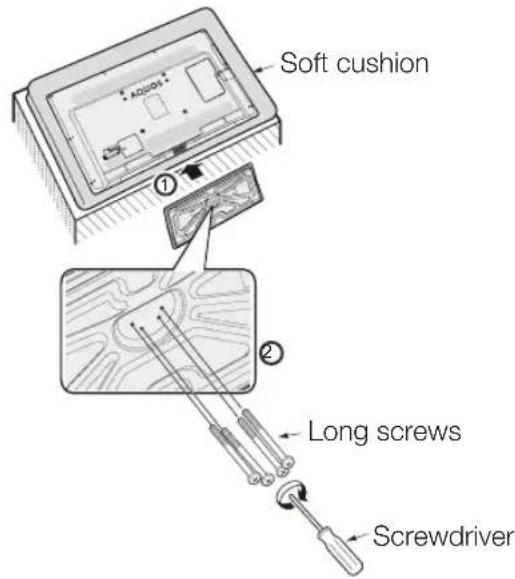

① Insert the stand into the openings on the bottom of the TV.
② Insert and tighten the 3 long screws into the 3 holes on the bottom of the stand.

2

① Insert the stand into the openings on the bottom of the TV.
② Insert and tighten the 4 long screws into the 4 holes on the bottom of the stand.

NOTE

• To detach the stand, perform the steps in reverse order.
• Angle adjustment is not available with the LC-26LX430H/LC-32LX430H/LC-32NX430H.
• Screwdriver is not supplied with this product.

Before turning on the power

Before turning on the power

Notes on installing the TV

• Avoid direct sunlight and place the TV in a well-ventilated location.
• Place the TV in a level location.
• Do not turn on the power of the TV before connecting the AC cord.
• If there are any protective plastic sheets on the TV cabinet, please take them off before connecting.

1

Connecting the antenna cable

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for coaxial cable.

2

Connecting external devices

See page 8 for connecting external equipment, such as a VCR and DVD player.

3

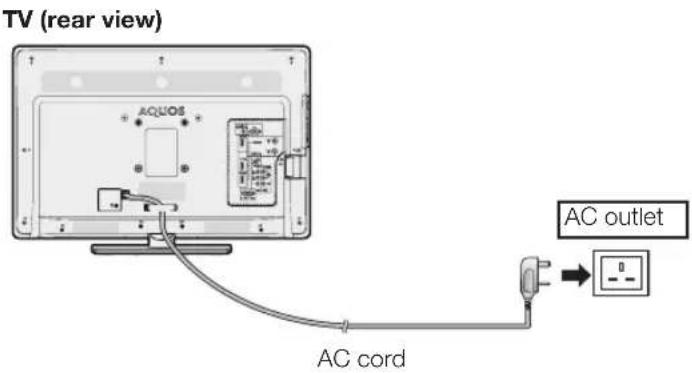

Connecting the AC cord

• Place the TV close to the AC outlet, and keep the power plug within reach.
• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.

CAUTION

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

Connecting.external.device

You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player, Digital TV Set Top Box (STB) and PC. To view external source images, select the input source from TV/VIDEO on the remote control unit or TV/VIDEO on the TV.

CAUTION

• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital TV Set Top Box (STB), PC or other external equipment.
  • Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.

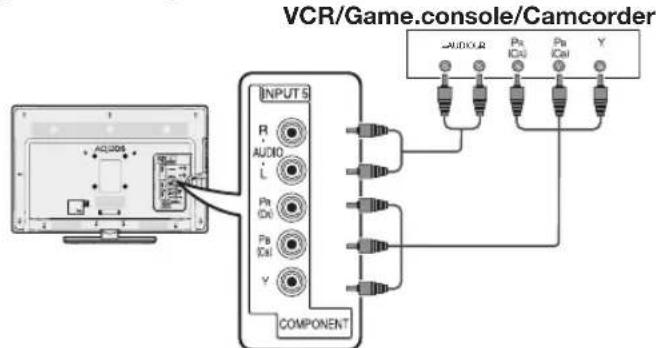

Connecting.a.VCR,.game.console.or.camcorder

A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using the INPUT 4 (Composite), INPUT 5 (Component) terminals.

When.using.component.cable.. (commercially.available)

When.using.composite.cable.. (commercially.available)

Connecting.a.DVD.player/Digital.TV.Set.Top.Box.(STB)

You can use the HDMI 1/HDMI 2/HDMI 3 (HDMI), INPUT4(Composite) INPUT 5 (Component) terminals when connecting to a DVD player/Digital TV Set Top Box (STB) and other audiovisual equipment.

NOTE

- When using a DVI-HDMI conversion adaptor, input the audio signal from the HDMI1/PC AUDIO INPUT terminal. (See page 22.)

When. using. HDMI-certified. cable. (commercially.available)

When. using. composite. cable.. (commercially.available)

When.using.component.cable (commercially.available)

Connecting.a.pc

You can use the PC terminals when connecting to a PC. (See page 31.)

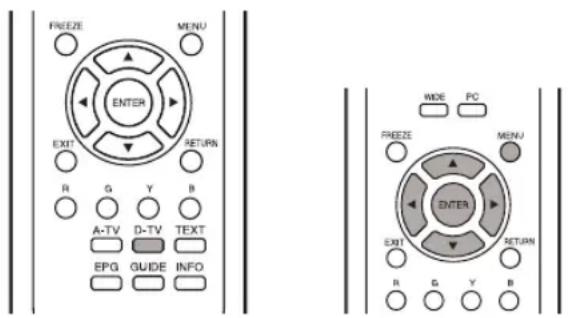

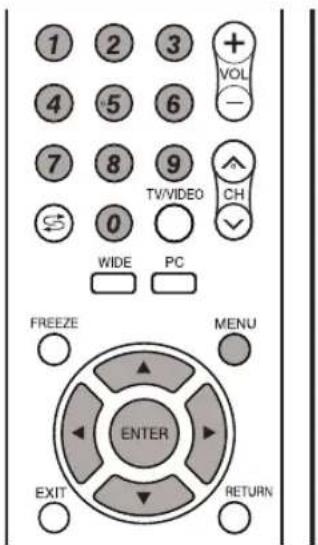

Remote.control.unit

1. POWER.(STANDBY/ON)

To switch the power on and off. (See page 14.)

2. DISPLAY

Display the channel or input information.

3.0-.9

Select the channel. (See page 27.)

4. S.(Flashback)

Press to return to the previous selected channel or external input mode.

5. WIDE

Change the wide image mode. (See page 30.)

6. FREEZE

Freeze a motion picture on the screen. (See page 30.)

7. ▲/▼/◄/►.(Cursor)

Select a desired item on the setting screen.

ENTER

Execute a command.

8. EXIT

Return to the default screen.

9. A-TV

Press to access A-TV mode. (See page 27.)

10. EPG

D-TV only: To display EPG (Electronic Programme Guide) screen. (See pages 29 to 30.)

11. SLEEP

Set the Sleep timer.

12. (Subtitle)

D-TV only: To toggle the subtitle display. (See page 25.)

13. ☐.(Mute)

Press ☐→Mutes sound.

Press again → Restores sound.

Mute will be cancelled after 30 minutes. However, the TV will not suddenly output loud sound as the volume level will be set to 0 automatically. Increase the volume level by pressing VOL.+.

14. MPX

Select the sound multiplex mode. (See page 27.)

15. VOL +/VOL -

Set the volume.

(VOL+) Increase the volume.

(VOL-) Decrease the volume.

16. CH∧/CH∨

TV input mode: Select the channel.

(CH∧) Increase the channel number.

(CHV) Decrease the channel number.

17. TV/VIDEO.(INPUT.SOURCE)

Select an input source.

18. PC

Select PC input source.

19. MENU

Display the menu screen.(See page 18.)

20. RETURN

MENU mode: Return to the previous menu screen.

21. Colour.Buttons.(R/G/Y/B)

D-TV and USB only: The coloured buttons are used to select correspondingly to the coloured items in the menu screen. (See page 15 to 16 and page 29 to 30 and page 34 to 35.)

22. TEXT

D-TV only: To display MHEG-5 broadcasts. (See page 30.)

23. D-TV

Press to access D-TV mode. (See page 27.)

24. INFO

D-TV only: Display the programme information. (See page 26.)

25. GUIDE

D-TV only: Display the programme list. (See page 26.)

Remote control unit (Continued)

Inserting.the.battery

Before using the TV for the first time, insert two "AA" size batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new "AA" size battery.

1 Open the battery cover.

2 Insert the supplied "AA" size batteries.

3 Close the battery cover.

- Place batteries with their terminals corresponding to the (+) and (−) indications in the battery compartment.

CAUTION

• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.
• Batteries (batteries pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Part.names

TV.(Front./.Side)

POWER (On/Off) button

MENU button

TV/VIDEO button

CH ∧/V

(Channel up/down) buttons

VOL +/−

(Volume up/down) buttons

* POWER indicator

Light off Power off
Light (Red) The TV	is in standby mode.
Light (Green) The TV	is on.

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The illustrations used throughout this manual are based on LC-26LX430H.

Part names (Continued)

TV.(Rear)

1 HDMI 1/PC (AUDIO) terminal*
2 HDMI 1 terminal
3 HDMI 2 terminal
4 HDMI 3 terminal
5 RS-232C terminal
6. PC terminal*
7 D-TV (Digital antenna) terminal

8 A-TV (Analogue antenna) terminal
9 INPUT 5 (Component) terminal
10. INPUT 4(Composite) terminal
11. USB terminal
12. Audio out/Headphone jack

* The HDMI1 and PC terminals share the same analogue audio input terminal. However, the proper item must be selected in the "PC audio select" menu. (See page 22.)

- The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

Regarding.the.headphone.jack

• Use headphones with a stereo mini plug ( 3.5 mm).
• Be sure to unplug headphones from the jack when they are not in use.
• The speakers do not output volume when headphones are plugged in.
• The "Audio" menu cannot be operated when headphones are plugged in.

Volume.display.when.headphones.are.plugged.in

Simple graphic of a playback bar with an ear icon and value 20, no text or symbols present

A-TV(Analogue TV)/D-TV(Digital TV)/AV input mode menu items

List of A-TV/D-TV/AV menu items to help you with operations


Setup

AV mode 18

Backlight 19

Contrast 19

Brightness 19

Colour 19

Tint 19

Sharpness 19

Advanced

Colour temp 19

Film mode 19

Active contrast 19

3D-Y/C 19

Monochrome 19

DNR 19

Reset 18

Auto installation 15

Analogue programme setup 16

Digital programme setup 15

Child lock 20

Input skip 21

Input label 21

Position 21

HDMI auto view 21

WSS 21

4:3 mode 22

Quick start 22

Language 22

Identification 22

Reset 22

Audio

Option

Treble 19

Bass 19

Balance 19

Surround 19

Reset 19

PC audio select 22

Headphone/audio out select 23

Auto volume 23

Audio only 23

Game play time 23

Colour system 23

DivX Reg. Code 24

Version up 24

Power control

Digital setup

No signal off 20

No operation off 20

Ecology 20

Audio language 25

Subtitle language 25

Hearing impaired 25

Time zone 25

Summer time 25

OAD setup 25

NOTE

- Some menu items may not be displayed depending on the selected input source.

PC input mode menu items

List of PC menu items to help you with operations


AV mode 18

Backlight 19

Contrast 19

Brightness 19

Advanced Colour temp .... 19

Reset 18

Audio

Treble 19

Bass 19

Balance 19

Surround 19

Reset 19

Power control

Power management 20

No operation off 20

Ecology 20

Setup

Input skip 21

Input label 21

Quick start 22

Language 22

Identification 22

Reset 22

Option

Headphone/audio out select 23

Auto Volume 23

Audio only 23

Fine sync. Input signal .... 24

Auto sync. 23

H-Position 24

V-Position 24

Clock 24

Phase 24

Reset 24

DivX Reg. Code 24

Version up 24

Digital setup

Audio language 25

Subtitle language 25

Hearing impaired 25

Time zone 25

Summer time 25

OAD setup 25

NOTE

- Some menu items may not be displayed depending on the selected input source.

Turning.the.TV.on/off

Turning.on/off.the.power

•.To.turn.on.the.power

Press POWER on the TV. After a few seconds, an image appears with sound.

•.To.turn.off.the.power

Switch it off by pressing POWER on the TV.

Standby.mode

•.To.standby.mode

If the TV is switched on, you can switch it to standby mode by pressing POWER on the remote control.

- .Switching.on.from.standby.mode

Under standby mode, press POWER on the remote control.

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.
• Minor power is consumed when the unit is in standby mode.

Supplying.electric. power.to.the.antenna

When you set-up the D-TV antenna for the first time, or connect the antenna to a community antenna, you need to proceed to set the antenna by following this manual.

1

Press D-TV to access D-TV mode.

2

Press MENU and the MENU screen displays.

3

Press ◀/▶ to select "Setup".

4

Press ▲/▼ to select “Digital programme setup” and then press ENTER.

5

Press ▲/▼ to select "Supply Voltage" and then press ENTER.

6

Press ◀/▶ to select "Yes" and then press ENTER.

Selected.item Description
Yes Select “Yes”	when your antenna is set-up and connected independently.
No Select “No”	when you do not need to supply voltage to your antenna, i.e. when your antenna is connected to a community antenna. (The factory default setting of this function is “No”.)

Initial.auto.installation

When the TV powers on for the first time after purchase, the initial auto installation wizard appears. Follow the menus and make the necessary settings one after another.

1

Press POWER on the TV.

- The initial auto installation wizard appears.

2

Press ▲/▼ to select the desired language, and then press ENTER.

Press ◀/▶ to select "HOME" or "STORE", and then press ENTER.

• HOME: "STANDARD" will be the default value for the "AV mode" setting.
• STORE: "DYNAMIC (Fixed)" will be the default value for the "AV mode" setting. If the "AV mode" is changed, the TV will automatically switch back to "DYNAMIC (Fixed)" when there is no further change to TV setting for 30 minutes. When selecting "STORE", press ◀/▶ to select "Yes" or "No" to confirm.

Press ▲/▼/◄/► to select "D-TV", "A-TV" or "A-TV + D-TV", and then press ENTER.

Press ▲/▼ to select the desired sound system, and then press ENTER.

• Sound system is selectable when the signal search is set to "A-TV" or "A-TV + D-TV" mode only.
• Auto installation will be executed.
• You do not need to do anything during the auto search.

Checking.signal. information

If you install a D-TV antenna for the first time or relocate it, you should adjust the alignment of the antenna to receive a good reception while checking the antenna setup screen.

1

Press MENU and the MENU screen displays.

2

Press ◀/▶ to select "Setup".

3

Press ▲/▼ to select "Digital programme setup", and then press ENTER.

Checking signal information (Continued)

Checking.signal.information

Press ▲/▼ to select "Signal information".

Position and align the antenna so that the maximum possible values for "Signal strength" and "Signal quality" are obtained.

NOTE

- The values of "Signal strength" and "Signal quality" indicate when to check the appropriate alignment of the antenna.

Auto.installation

You can run auto installation again, even after setting up the preset channels.

1

Press MENU and the MENU screen displays.

2

Press ◀/▶ to select "Setup".

3

Press ▲/▼ to select "Auto installation", and then press ENTER.

4

If you have already set the password, enter it here.

• See page 20 for setting a password.

5

Press ◀/▶ to select "Yes", and then press ENTER.

6

Press ▲/▼ to select the desired language, and then press ENTER.

Press ▲/▼/◄/► to select "D-TV", "A-TV" or "A-TV + D-TV", and then press ENTER.

Press ▲/▼ to select the desired sound system, and then press ENTER.

- Sound system is selectable when the signal search is set to "A-TV" or "A-TV + D-TV" mode only. You do not need to do anything during the auto search. Press MENU to exit.

Programme.setup

Digital.settings

You can reconfigure D-TV services settings automatically or manually.

1

Press MENU and the MENU screen displays.

2

Press ◀/▶ to select "Setup".

3

Press ▲/▼ to select "Digital programme setup", and then press ENTER. If you have already set the password, enter it here.

• See page 20 for setting a password.

4

Press ▲/▼ to select the desired menu item, and then press ENTER.

5

Press ◀/▶ to select "Yes", and then press ENTER.

■.Auto.search.(Digital)

Use this menu to add new services automatically after auto installation has been completed.

■. Manual.search.(Digital)

Add new services within a specified frequency band.

- Press ◀/▶ to select the frequency and then press ENTER.

Configure various settings for each service using the Colour (R, G, B) buttons.

1

Press ▲/▼ to select desired service.

2

Press the colour button on the remote control corresponding with the item you want to reconfigure.

• Each time the colour button is pressed, you can switch the corresponding operation on/off.

Buttons.for.Manual.adjust.operation

Menu.items	Remote.control.buttonons	Description
Lock R	When the service is locked,you must enter your passwordwhenever you tune to the service.
CH.Skip	G Services with “Skip” are passedover when pressing ∧/∨ in theTV/remote control unit.
Sort B	The item position of services can besorted.

Programme setup (Continued)

The.item.position.of.services.can.be.sorted

① Press ▲/▼ to select the service whose item position you want to move, and then press B.

DTV 005 Maori Television

DTV 022 Parliament TV

DTV 100 Freeview I HD

② Press ▲/▼ to move it to the desired position, and then press ENTER.

DTV 100 Freeview I HD
DTV 022 Parliament TV
DTV 005	Maori Television

③ Repeat steps ① and ② until all desired service items are sorted.

Analogue.settings

. Auto.search.(Analogue)

You can also automatically search by performing the procedure below. This is the same function as programme auto search in auto installation.

1 Press MENU and the MENU screen displays.

2 Press ◀/▶ to select "Setup".

3 Press ▲/▼ to select "Analogue programme setup", and then press ENTER.

4 If you have already set the password, enter it here.

• See page 20 for setting a password.

5 Press ▲/▼ to select "Auto search", and then press ENTER.

6 Press ◀/▶ to select "Yes", and then press ENTER.

Press ▲/▼ to select the desired sound system, and then press ENTER.

You do not need to do anything during the auto search. Press MENU to exit.

■.Manual.adjust.(Analogue)

You can set some channel item manually.

1 Repeat steps 1 to 4 in Auto.search.

2 Press ▲/▼ to select "Manual adjust", and then press ENTER.

3 Press ◀/▶ to select "Yes", and then press ENTER.

4 Press ▲/▼/◄/► to select the channel you want to edit, and then press ENTER.

- The selected channel information displays.

5 Press ▲/▼ to select the desired menu, and then press ENTER.

6 Press ▲/▼ or ◀/▶ to select the desired item or adjust the item to the desired level. Press ENTER if necessary.

Search

The next channel will be searched in order.

Fine

You can adjust the frequency to your desired position.

NOTE

• Adjust while checking the background picture as a reference.
• Instead of pressing ◀/▶ to adjust the frequency, you can set by directly entering the frequency number of the channel with 0.—.9.
• When setting a frequency on the "Fine" screen, the last figure of the frequency needs to be "0" or "5".

EXAMPLE

• 179.25 MHz: Press 1.→.7.→.9.→.2.→.5.
• 49.25 MHz: Press 4.→.9.→.2.→.5.→.ENTER.

Colour.system

Select the optimum colour system to receive. (Auto, PAL, SECAM, NTSC 3.58, NTSC 4.43, PAL-60)

Sound.system.(Broadcasting.system)

Select the optimum sound system (Broadcasting system) to receive. (B/G, D/K, I, M)

Label

You can change individual channel names.

- Press ▲/▼/◄/►: To select each character of the new name for the channel, and then press ENTER. Repeat until the name is fully spelt out.

- The name can be 5 characters or less. Select "END" to set the channel name.

Booster

Enhance the picture quality during weak signal. It is not recommended to turn on during strong signal condition. It may induced unwanted noise. (On, Off)

Skip

Channels with "Skip" set to "On" are passed over when using CH ∧ ∨ even if selected while watching the image from the TV.

Lock

You can block the viewing of any channel.

NOTE

• See "Child lock" for setting a password.
• If "Lock" is set to "On" for a channel, "Child lock has been activated" is displayed when you select the channel, and the image and sound of the channel is blocked.
• When pressing ENTER while "Child lock has been activated" is displayed, password input menu will be displayed. Inputting the correct password lifts the child lock temporarily until the power is turned off.

Programme setup (Continued)

Sort (Analogue)

Channel position can be sorted freely.

1 Repeat steps 1 to 4 in Auto search.
2 Press ▲/▼ to select "Sort", and then press ENTER.
3 Press ◀/▶ to select "Yes", and then press ENTER.
4 Press ▲/▼/◄/► to select the channel you want to move, and then press ENTER.
5 Move it to the desired position by pressing ▲/▼/◄/►, and then press ENTER.
6 Repeat the steps 4 and 5 until all desired channels are sorted.

■ Erase programme (Analogue)

The individual programme can be erased.

1 Repeat steps 1 to 4 in Auto search.
2 Press ▲/▼ to select "Erase programme", and then press ENTER.
3 Press ◀/▶ to select "Yes", and then press ENTER.
4 Press ▲/▼/◄/► to select the channel you want to erase, and then press ENTER.
5 Press ENTER to erase the channel.
6 Repeat the step 4 and 5 until all desired channels are erased.

Menu operation

1

Press MENU and the MENU screen displays.

2

Press ◀/▶ to select the desired menu. (Picture, Audio, ECO, Setup, Option, Digital setup)

3

Press ▲/▼ to select the desired menu item. Press ENTER to proceed if necessary.

4

Press ▲/▼ or ◀/▶ to select the desired item or adjust the item to the desired level. Press ENTER if necessary.

5

Press EXIT or MENU to exit from the menu.

■ Using the control panel of the TV

You can also operate the Menu using the control panel of the TV.

Button operations on the control panel correspond to the ones on the remote control as shown below.

TV control panel buttons	Remote control buttons
MENU MENU
TV/VIDEO ENTER
CH ∧	▲
CH ∨	▼
VOL +	▶
VOL -	◀

NOTE

• Menu options differ in the selected input modes, but the operating procedures are the same.
• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens.

About Guide Display

The Guide Display at the bottom of the screen shows operations with a Remote Control.

Select

ENTER

RETURN

Back

MENU

End

The bar above is an operational guide for the remote control. The bar will change in accordance with each menu setting screen.

Picture menu

AV mode

"AV mode" gives you several viewing options to choose from to best match the system environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input from external equipment.

Selected item	Description
STANDARD For	a highly defined image in a normally bright room.
MOVIE For a movie.
GAME	For game play.
PC	For PC. (Available only when inputting an HDMI or PC signal.)
USER	Allows the user to customise settings as desired. You can set the mode for each input source.
DYNAMIC (FIXED)	Changes the image and sound settings to the factory preset values. No adjustments are allowed.
DYNAMIC	For a clear-cut image emphasising high contrast for sports viewing.

NOTE

• You can select a different AV mode item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)
• During PC input mode, only "STANDARD", "PC" and "USER" can be selected under the AV mode selection.

Picture adjustments

Selected item	◀ button	▶ button
Backlight The screen dims The screen brightens
Contrast For less contrast For more contrast
Brightness For less brightness For more brightness
Colour For less colour intensity		For more colour intensity
Tint Skin tones become purplish		Skin tones become greenish
Sharpness For less sharpness For more sharpness

NOTE

- For resetting all adjustment items to factory preset values, press ▲/▼ to select "Reset", press ENTER, press ◀/► to select "Yes", and then press ENTER.

Advanced

Colour temp. (Colour Temperature)

Adjusts the colour temperature to give the best white image.

Selected item	Description
HighMid-HighMiddleMid-LowLow	White with bluish tone↓White with reddish tone

Film mode

Automatically detects a film-based source (originally encoded at 24/25 frames/second, depending on the vertical frequency), analyses it then recreates each still film frame for high-definition picture quality. (On, Off)

Active contrast

Automatically adjusts the contrast of an image according to the scene. (On, Off)

3D-Y/C

Provides high quality images with minimal dot crawl and cross colour noise. (On, Off)

NOTE

• 3D-Y/C is not selectable depending on the input signal type.
• 3D-Y/C may not operate depending on the input signal type or noisy input signal.

Monochrome

For viewing images in monochrome. (On, Off)

DNR (Digital Noise Reduction)

Reduces noise on screen and produces a clearer video image. ("Off", "High", "Low", "Auto")

Audio menu

Audio adjustments

Selected item	◀ button	▶ button
Treble For weaker	treble For stronger treble
Bass For weaker	bass For stronger bass
Balance Decrease	audio from the right speaker	Decrease audio from the left speaker

Surround

When "on" is selected, you can enjoy surround sound, the same as if you were in a movie theater.

NOTE

- For resetting all adjustment items to the factory preset values, press ▲/▼ to select "Reset", press ENTER, press ◀/▶ to select "Yes", and then press ENTER.

ECO menu

No signal off

You can set the TV to automatically power off in about 15 minutes after the TV goes into a state of receiving no programme signals, such as the end of a broadcast day. (Enable, Disable)

- Five minutes before the power shuts down, the remaining time displays every minute.

NOTE

- "Disable" is the factory preset value.

- When a TV programme finishes, but the TV receives signal input, this function may not operate.

■ Power management (PC input mode only)

You can set the TV to automatically power off when no image is displayed on PC.

Selected item	Description
Off • No power	management• Factory preset value.
Mode1 • If no signal inputs for approximately 8 minutes, the power shuts down.• Even if you start using the PC and the signal inputs again, the TV stays off.• The TV turns on again by pressing POWER. (See page 14.)
Mode2 • If no signal inputs for approximately 8 seconds, the power shuts down.• When you start using the PC and the signal inputs again, the TV turns on.• The TV turns on again by pressing POWER. (See page 14.)

No operation off

You can set the TV to automatically power off when no TV operation is performed for 30 minutes or more than 3 hours.

(30 min., 3 hr., Disable)

- Five minutes before the power shuts down, the remaining time displays every minute.

NOTE

- "Disable" is the factory preset value.

Ecology

When set to "Yes", the TV activates the following power saving mode.

- "No signal off" set to "Enable". (See page 20.)

- "Power management" set to "Mode1". (See page 20.)

- "No operation off" set to "3 hr.". (See page 20.)

- "Quick start" set to "Off". (See page 22.)

NOTE

- Ecology mode cannot be deactivated by selecting "No". Each setting must be changed individually to deactivate Ecology mode.

Setup menu

■ Child lock (A-TV and D-TV input mode only)

Allows you to use a password to protect certain settings from being accidentally changed.

Setting a password

1 Repeat steps 1 to 2 in Menu operation.(See page 18).
2 Press ▲/▼ to select "Child lock", and then press ENTER.
3 If you have already set the password, enter it here.
4 Press ▲/▼ to select "Change password", and then press ENTER.

5 Enter the 4-digit number as a password using 0 - 9.

6 Enter the same 4-digit number as in step 5 to confirm.

NOTE

• To view a locked channel (Lock setting in Analogue programme setup "Manual adjust" is set to "On"), you must enter a password. When you select a locked channel, "Child lock has been activated" is displayed.
• Press ENTER to display the password input window.

Clearing the password

Allow you to clear your password.

1 Repeat steps 1 to 3 in Setting a password.

2 Press ▲/▼ to select "Clear password", and then press ENTER.

3 Press ◀/▶ to select "Yes", and then press ENTER.

Setup menu (Continued)

Parental rating

This function allows TV channels to be restricted. It prevents children from watching violent or sexual scenes that may be considered inappropriate.

1

Repeat steps 1 to 3 in Setting a password.

2

Press ▲/▼ to select "Parental rating", and then press ENTER.

3

Press ▲/▼ to select your desired rating, and then press ENTER.

Selected item	Description
No block	Cancel the restriction.
Block 5-18 age and below	Select desired age to restrict.(Example) If “Block 13 age and below” is selected, programmes rated for ages of 13 or more are restricted.

Input skip

This setting allows you to skip the HDMI or PC input on the "Input Source" menu.

Input label

You can assign each input source a label as you prefer.

1

Press TV/VIDEO to select the desired input source.

2

Press MENU and the MENU screen displays.

3

Press ◀/▶ to select "Setup".

4

Press ▲/▼ to select "Input label", and then press ENTER.

5

Press ▲/▼/◄/► to select letters, and then press ENTER to label the input source.

- When you want to change the input label that you have already assigned to the default name, press ◀/▶ to move to "CLEAR" on the "Input Label" screen, and then press ENTER.

6

Repeat the above until the name is fully spelt out.

•The name can be 6 characters or less.

- When you want to set an input source name of less than 6 characters, press RETURN to exit from the labelling menu.

NOTE

- You cannot change labels if the input source is A-TV and D-TV.

Position

For adjusting a picture's horizontal and vertical position.

Selected item	Description
H-Position Centres the image by moving it to the left or right.
V-Position Centres the image by moving it up or down.
Reset Reset position to factory preset values.

NOTE

• Adjustments are stored separately according to input source.
• Images may not be displayed properly depending on the settings and/or signals.

■ HDMI auto view (HDMI input mode only)

Selected item	Description
Enable/Disable	Set whether or not to use WIDE MODE based on signal recognition, including an HDMI signal.

WSS

WSS allows a television to switch automatically among the different screen formats. (On, Off)

NOTE

• Try to set WIDE mode if an image does not switch to the correct screen format. When the broadcast signal contains no WSS information, the function will not work even if enabled.
• When receiving weak or unstable signals and for avoiding wrong estimation of the signals, it is recommended to set WSS to "Off".

Setup menu (Continued)

4:3 mode

The WSS signal has 4:3 auto-switching that allows you to select between Panorama and Normal.

Selected item	Description
Panorama Wide	image without side bars
Normal Normal	range keeping 4:3 or 16:9 aspect ratio

WSS signal 4:3 screen

4:3 mode "Panorama" 4:3 mode "Normal"

Quick start

You can reduce the TV's start-up time after turning on the power with the remote control unit.

Selected item	Description
On The TV quickly starts up from standby, more of power consumption is required during standby.
Off Power consumption is small during standby.

Language

You can also select a language from setup menu. Select from 3 languages: English, Traditional Chinese and Simplified Chinese.

Identification

You can check the current version of the software on the screen.

Reset

If complex adjustments are made and the settings cannot be restored to normal, you can reset the settings to the factory preset values.

NOTE

- If you execute "Reset", all the settings such as Picture, Audio, Programme and Language will be reset to the factory preset values.

Option menu

PC audio select

When connecting devices with HDMI cable to the HDMI1 terminal, and inputting analogue audio signals from the HDMI1/PC(AUDIO) terminal.

Selected item	Description
HDMI1	When connecting devices with HDMI cable to the HDMI1 terminal.
PC	When connecting devices with HDMI cable to the HDMI1 terminal, and inputting analogue audio signals from the HDMI1/PC(AUDIO) terminal.

NOTE

• Set this to "PC" when connecting devices with HDMI cable to the HDMI1 terminal and inputting analogue audio signals from the HDMI1/PC(AUDIO) terminal. If "HDMI1" is set, there will be no sound output.
• Set this to "HDMI1" when connecting devices with HDMI cable to the HDMI1 terminal only.

Option menu (Continued)

Headphone/audio out select

Allows you to select what controls the audio output.

1

Press MENU and the MENU screen displays.

2

Press ◀/▶ to select "Option".

3

Press ▲/▼ to select "Headphone/audio out select", and then press ENTER.

4

Press ◀/▶ to select "headphone" or "audio out", and then press ENTER.

Auto volume

Different sound sources, fairly often do not have the same volume level, for example the changing from movie to the advertisements. Auto volume solves this problem and equalises the volume levels. (On, Off)

Audio only

When listening to music from a music programme, you can set the display off and enjoy audio only.

Selected item Description

On Audio is output without screen image.

Off Both screen images and audio are output.

NOTE

- When you make operations that change the picture on the TV such as by changing the input source, the Audio only function is set to "Off".

Game play time

This function displays the elapsed game time so you do not lose track of the time. To display the elapsed time, select “GAME” under “AV mode” for the input mode of the terminal connected to the game console before starting the game.

Selected item Description

On When using HDMI 1/2/3,INPUT 4/5 the AV MODE is change to “Game”, the elapsed time is displayed every 30 minutes.

Off There is no display.

Colour system

You can change the colour system to one that is compatible with the image on the screen. (Auto, PAL, SECAM, NTSC 3.58, NTSC 4.43, PAL-60)

NOTE

• Factory preset value is "Auto".
• If "Auto" is selected, colour system for input signal is automatically set. If an image does not display clearly, select another colour system (e.g. PAL, NTSC 4.43).
• “Colour system” is selectable only when inputting composite signal.

Fine sync. (PC input mode only)

Adjusting the PC image automatically

Auto sync.

This function enables the screen to be automatically adjusted to its best possible condition when the analogue terminals of the TV and PC are connected with a commercially available RGB cable, etc.

NOTE

• Auto sync. is likely to succeed when an input PC image has wide vertical stripes (e.g. pattern with high contrast stripes, or cross-hatched).
  It may fail when an input PC image is solid (low contrast).
• Be sure to connect the PC to the TV and switch it on before starting Auto sync.

Option menu (Continued)

Adjusting the PC image manually

Ordinarily you can easily adjust the picture as necessary to change image position using Auto sync. In some cases, however, manual adjustment is needed to optimise the image.

Selected item	Description
H-Position Centres the image by moving it to the left or right.
V-Position Centres the image by moving it up or down.
Clock Adjusts when the image flickers with vertical stripes.
Phase Adjusts when characters have low contrast or when the image flickers.

NOTE

• For resetting all adjustment items to the factory preset values, press ▲/▼ to select "Reset", press ENTER, press ◀/► to select "Yes", and then press ENTER.
• Images may not be displayed properly depending on the settings and/or input signals.

Input signal

• Some input signals may have to be registered manually to display properly.
• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

$$ 1 2 8 0 \times 7 6 8 \quad 1 3 6 0 \times 7 6 8 $$

NOTE

- You can only select the "Input Signal" on the Setup menu when receiving one of the 2 input signals listed above.

DivX® setup

This is the function to confirm your registration code.

1

Press MENU and the MENU screen displays.

2

Press ◀/▶ to select "Option".

3

Press ▲/▼ to select "DivX Reg Code", and then press ENTER.

DivX® VOD registration

You need to visit the DivX® main page to register your TV, then you can play DivX® content.

DivX® VOD deregistration

You can find the deregistration code.

NOTE

- Visit www.DivX.com for more information about DivX® VOD.

Version up

This function is only for SHARP qualified service personnel to update to the latest software using a USB device. Updating the software should be made through the USB terminal.

CAUTION

- If a problem arises, ask SHARP qualified service personnel.

1

Insert the USB device containing the software update file.

2

Press MENU and the MENU screen displays.

3

Press ◀/▶ to select "Option".

4

Press ▲/▼ to select "Version up", and then press ENTER.

5

Press ◀/▶ to select "Yes", and then press ENTER.

CAUTION

- Be sure to insert the USB device correctly into the terminal.

6

Start the update operation.

• This operation may take a while.

7

After completing the update, please plug the AC power cord again.

CAUTION

• If the data is not compatible with the system, an error message appears on the screen. Repeat steps 3 and 4 after pressing ENTER.
• When an error message displays, check to see if:

• The USB device is inserted firmly.
- There is only one software update file in the USB memory.
- No data for updating the system exists in the USB memory.
• The software update file is broken.
- The software update file is not compatible with your TV's software.

Digital setup menu

■ Selecting the audio language

Set up to two preferred multi audio languages to display if the audio languages are available.

1 Press MENU and the MENU screen displays.
2 Press ◀/▶ to select "Digital setup".
3 Press ▲/▼ to select "Audio language", and then press ENTER.
4 Press ▲/▼ to select "1st Language" or "2nd Language", and then press ENTER.
5 Press ◀/▶ to select the desired language, and then press ENTER.

NOTE

- This function depends on audio lanugage information from broadcasters.

■ Switching subtitle languages

Each time you press 📄 on the remote control, the subtitle switches.

■ Displaying subtitles for the hearing impaired

You can display subtitles for the hearing impaired in the broadcast if the subtitle languages are available.

1 Press MENU and the MENU screen displays.

2 Press ◀/▶ to select "Digital setup".

3 Press ▲/▼ to select "Hearing impaired", and then press ENTER.

4 Press ◀/▶ to select "On", and then press ENTER.

■ Selecting subtitle language

1 Press MENU and the MENU screen displays.
2 Press ◀/▶ to select "Digital setup".
3 Press ▲/▼ to select "Subtitle language", and then press ENTER.
4 Press ▲/▼ to select "1st Language" or "2nd Language", and then press ENTER.
5 Press ◀/▶ to select the desired language, and then press ENTER.

NOTE

- If subtitles for the selected language are not included in a received broadcast, subtitles will not be shown for that language.

Time zone

This function enables you to select your local time zone.

1 Press MENU and the MENU screen displays.
2 Press ◀/▶ to select "Digital setup".
3 Press ▲/▼ to select "Time zone", and then press ENTER.
4 Press ◀/▶ to select the desired time zone and then press ENTER.

- This function lets you select the right time zone in case the time displayed in the EPG does not match the local time of your area.

Summer time

When the summer time is set to “On”, the Standard Time is plus one hour. (Auto, On, Off)

OAD setup

- This function is for automatically download the data for the version update software over digital broadcasts when the "OAD setup" is set to "On".

- To download, follow the instructions when the download message appears during a digital broadcast.

CAUTION

- Do not disconnect the AC cord when the software upgrade is in progress, as this may cause the upgrade to fail. If problem arises ask a qualified service personnel before the software upgrade period expires.

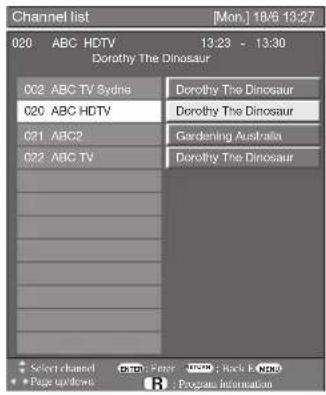

Programme guide

You can check the current schedule of D-TV events and view detailed information about current events.

1

Press GUIDE to display the programme guide list.

2

Pressa /b to display your desired programme, and then press ENTER.

- When you press ENTER, the TV jumps to the channel.

3

Press R to view programme information.

4

Press RETURN or MENU to exit.

Info

While watching D-TV you can check the extended programme information on the screen using INFO on the remote control.

General INFO screen

1 Service name
2 Title
3 Date for the current programme
4 Time for the current programme
5 Video system
6 Audio system
7 Parental rating

- If there is more information, pressing c /d allows you to go to the next page or return to the previous page.

- You can cancel this info by pressing INFO or EXIT.

A-TV (Analogue TV)/D-TV (Digital TV)buttons

Use the following buttons on the remote control to operate the menu. | | FREEZ | | MENU | |

A-TV: Press to switch to analogue TV mode. After switching from digital TV or external input mode to analogue TV mode, the TV jumps to the most recently viewed analogue channel.

D-TV: Press to switch to digital TV mode. After switching from analogue TV or external input mode to digital TV mode, the TV jumps to the most recently viewed digital TV channel.

When you watch the TV for the first time

When the TV powers on for the first time after purchase, perform the auto installation.

A-TV (Analogue TV)

You can run the auto installation to set channels automatically.

1

To watch the analogue TV, select "Auto installation" from Setup menu. (See page 15.)

2

After setting the channels, you can select a channel using CH ∧∨ or 0 - 9 on the remote control unit.

D-TV

When the TV accesses to D-TV mode for the first time, you need to run the auto search. To scan all available services in your area, follow the procedures below.

1

To watch D-TV broadcasts, select "DTV" from auto installation menu. (See page 15.)

2

After setting the channels, you can select a channel using CH ∧∨ or 0 - 9 on the remote control unit.

Switching the analogue audio format

You can switch between multiple audio modes when watching a multiple audio or stereo broadcast programme.

In the NICAM TV broadcasts

When receiving a stereo signal

Each time you press MPX, the mode switches between NICAM STEREO and MONO.

Stereo mode

When receiving a bilingual signal

Each time you press MPX, the mode switches among NICAM CH A, NICAM CH B, NICAM CH AB and MONO.

Bilingual mode

When receiving a monaural signal

Each time you press MPX, the mode switches between NICAM MONO and MONO.

Monaural mode

Switching the analogue audio format (Continued)

In the TV mode of A2 TV broadcasts

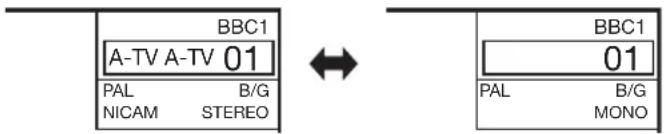

When receiving a stereo signal

Each time you press MPX, the mode switches between STEREO and MONO.

Stereo mode

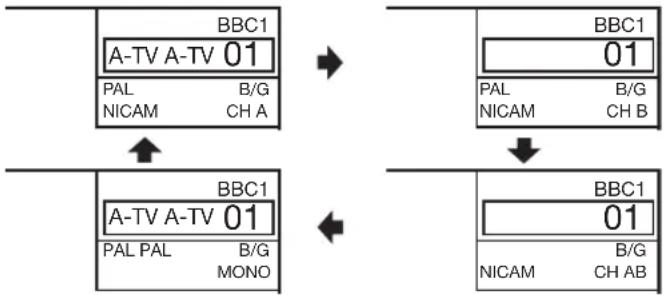

When receiving a bilingual signal

Each time you press MPX, the mode switches among CH A, CH B and CH AB.

Bilingual mode

When receiving a monaural signal

When you press MPX, "MONO" displays.

Monaural mode

NOTE

- "BBC1", "01" and "PAL" are tentative network name, channel and colour system.

Switching the digital audio format

When receiving digital TV broadcast that contains multi sound modes, you can press MPX button to switch between different audio languages.

NOTE

- Selectable items vary depending on the received broadcasts.

EPG

EPG setup

What is an EPG?

An "EPG (Electronic Programme Guide)" is a programme schedule, which is displayed on the TV screen. The EPG is broadcasted together with D-TV. The TV screen shows the EPG when the viewer presses EPG on the remote control, provided that the TV is receiving the digital broadcasting signal. The EPG enables you to search for a programme, do timer view the programme schedule in detail.

Basic Operation

■ Display the EPG screen

① Press EPG.

② Press R/G to select the date you want to search.
③ Press ◀/▶ to select the desired service name.
④ Press ▲/▼ to select the desired programme.

■ Close the EPG screen

⑤ Press EPG again or MENU to exit.

NOTE

- The time displayed on the EPG is information sent by the TV station.

Reminder timer setting

You can schedule a reminder for future programmes. Channel will automatically change on time as scheduled.

1 Press EPG.

2 Press ▲/▼/◄/►/R/G to select the programme you want to watch.

3 Press B to set reminder time.

5

Press ENTER to display the reminder schedule list.

6

Press MENU or EPG to exit.

4 Press ENTER to save reminder timer.

- "Timer Save Success" will display.

NOTE

• "Timer Overlap" will display if same time is set twice.
• "Timer Past" will display if past time is set.

EPG (Continued)

Viewing the reminder schedule list

1

Press EPG.

2

Press Y to display the reminder schedule list.

3

Press ▲/▼ to display next or previous programmes in schedule list.

4

Press MENU or EPG to exit.

Cancelling the reminder timer setting

1

Press EPG.

2

Press Y to display the reminder schedule list.

3

Press ▲/▼ to select a programme you want to cancel.

4

Press Rto delete a programme from reminder list.

5

Press MENU or EPG to exit.

Text

MHEG-5 data broadcast is scheduled in Hong Kong. You can watch a MHEG-5 data broadcast after pressing the TEXT button.

Picture and still image

You can freeze a motion picture on the Display.

1

Press FREEZE.

- A still image displayed on the screen. The still image is one frame captured from a moving image at the movement you press FREEZE.

2

Press FREEZE again to exit from still image.

NOTE

• The still image automatically goes out after 30 minutes.
- When this function is not available, "No still image display available" will appear.
- During PC input mode, still image function will not function.

Wide Mode

Auto Selection

If you set "WSS" and "4:3 mode" in the Setup menu, the optimum WIDE mode is automatically chosen for every broadcast containing the WSS information.

"WSS" menu

To enable Auto Selection, set "WSS" in the Setup menu to "On". (See page 21.)

"4:3 mode" menu

To set the type of the wide screen, select "Panorama" or "Normal" in the 4:3 mode menu. (See page 22.)

4:3 mode set to "Panorama" 4:3 mode set to "Normal"

NOTE

- If the broadcast signal contains no WSS information, Auto Selection will not function even when the WSS option is enabled.

Manual Selection

You can select different picture sizes that account for the kind of each picture.

1

Press WIDE.

• The WIDE MODE menu displays.
• The menu lists the wide mode options selectable for the type of video signal currently received.

2

Press WIDE or ▲/▼ while the WIDE MODE menu displays on the screen.

- As you toggle down the options, each mode is immediately reflected on the TV.

Selected item	Description
Normal For 4:3	“standard” pictures. A side bar appears on each side.
Zoom14:9 For	4:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and bottom with some programmes.
Panorama In this mode the picture is progressively stretched toward each side of the screen.
Full For 16:9 squeeze pictures.
Cinema16:9 For	16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
Cinema14:9 For	14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
Underscan Display with an “Underscan” image only when receiving a 720p/1080i/1080p signal. Display with the High-Definition image adjusted optimally. Noise may appear on the edge of the screen with some programmes.
Dot by Dot Display an image with the same number of pixels on the screen (only when receiving PC signal).

NOTE

- Some picture size may not be displayable depending on the input signal.

Connecting a PC

Use the PC terminals to connect a PC.

Analogue Connection

Signal names for 15-pin mini D-sub connector

Pin No.	Signal name Pin No.	Signal name	Pin No.	Signal name
1	R GND (Ground)	Not connected		11
2	G GND (Ground)	SDA		12
3	B GND (Ground)	BD		13
4	Not connected +5V VD9			14
5	CSYNC GND (Ground) SC_			15

NOTE

• Macintosh adaptor may be required for use for some Macintosh computers.
• Refer to page 32 for a list of PC signals compatible with the TV.
- Refer to page 22 for the PC audio select, when connecting TV with HDMI cable to PC.

PC compatibility chart

Resolution		Horizontal Frequency	Vertical Frequency	VESA Standard
VGA 640	× 480 31	.5 kHz 60 Hz		√
SVGA 800	× 600 37	.9 kHz 60 Hz		√
XGA 1024	× 768 4	8.4 kHz 60 Hz		√
WXGA	1280 × 768	47.8 kHz 60 Hz_
	1360 × 768 4	7.7 kHz 60 Hz		√

NOTE

- This TV has only limited PC compatibility, correct operation can only be guaranteed if the video card conforms exactly to the VESA 60Hz standard. Any variations from this standard will result in picture distortions.

DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of international Business Machines Corp

RS-232C commands list

Commands

- Commands not indicated here are not guaranteed to operate.

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
POWER SETTING	P	O	W	R	0	-	-	-	POWER OFF (STANDBY)
INPUT SELECTION A	I	T	G	D	-	-	-	-	INPUT SWITCHING (TOGGLE)
	I	T	V	D	-	-	-	-	A-TV (CHANNEL FIXED)
	I	D	T	V	-	-	-	-	D-TV (CHANNEL FIXED)
	I	A	V	D	*	-	-	-	HDMI 1-3, INPUT 4-5, PC 6
CHANNEL	D	C	C	H	*	*	-	-	A-TV DIRECT CHANNEL (1-99)
	C	H	U	P	-	-	-	-	A-TV CHANNEL UP
	C	H	D	W	-	-	-	-	A-TV CHANNEL DOWN
	D	T	V	D	*	*	*	-	D-TV DIRECT CHANNEL (1-999)
	D	T	U	P	-	-	-	-	D-TV CHANNEL UP
	D	T	D	W	-	-	-	-	D-TV CHANNEL DOWN
AV MODE SELECTION	A	V	M	D	0	-	-	-	TOGGLE
	A	V	M	D	1	-	-	-	STANDARD
	A	V	M	D	2	-	-	-	MOVIE
	A	V	M	D	3	-	-	-	GAME
	A	V	M	D	4	-	-	-	USER
	A	V	M	D	5	-	-	-	DYNAMIC (Fixed)
	A	V	M	D	6	-	-	-	DYNAMIC
	A	V	M	D	7	-	-	-	PC

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
VOLUME	V	O	L	M	*	*	-	-	VOLUME (0-60)
POSITION	H	P	O	S	*	*	*	-	H-POSITION (AV) (-10-10)
	H	P	O	S	*	*	*	-	H-POSITION (PC) (0-180)
	V	P	O	S	*	*	*	-	V-POSITION (AV) (-20-20)
	V	P	O	S	*	*	*	-	V-POSITION (PC) (0-120)
	C	L	C	K	*	*	*	-	CLOCK (0-180)
	P	H	S	E	*	*	*	-	PHASE (0-15)
WIDE MODE	W	I	D	E	0	-	-	-	TOGGLE (AV)
	W	I	D	E	1	-	-	-	NORMAL (AV)
	W	I	D	E	2	-	-	-	ZOOM 14:9 (AV)
	W	I	D	E	3	-	-	-	PANORAMA (AV)
	W	I	D	E	4	-	-	-	FULL (AV)
	W	I	D	E	5	-	-	-	CINEMA 16:9 (AV)
	W	I	D	E	6	-	-	-	CINEMA 14:9 (AV)
	W	I	D	E	7	-	-	-	NORMAL (PC)
	W	I	D	E	9	-	-	-	FULL (PC)
	W	I	D	E	1	0	-	-	DOT BY DOT (AV/PC)
	W	I	D	E	1	1	-	-	UNDERSCAN (AV)
MUTE	M	U	T	E	0	-	-	-	TOGGLE
	M	U	T	E	1	-	-	-	MUTE ON
	M	U	T	E	2	-	-	-	MUTE OFF
SURROUND	A	C	S	U	0	-	-	-	SURROUND TOGGLE
	A	C	S	U	1	-	-	-	SURROUND ON
	A	C	S	U	2	-	-	-	SURROUND OFF
AUDIO CHANGE	A	C	H	A	-	-	-	-	TOGGLE
SLEEP TIMER	O	F	T	M	0	-	-	-	OFF
	O	F	T	M	1	-	-	-	SLEEP TIMER 30 MIN
	O	F	T	M	2	-	-	-	SLEEP TIMER 1 HOUR
	O	F	T	M	3	-	-	-	SLEEP TIMER 1 HOUR 30 MIN
	O	F	T	M	4	-	-	-	SLEEP TIMER 2 HOUR
	O	F	T	M	5	-	-	-	SLEEP TIMER 2 HOUR 30 MIN

NOTE

• If an underbar (_) appears in the parameter column, enter a space.
• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

Connecting a USB device

Connect a USB device to the TV as shown below.

• The TV automatically switches to the USB mode when a USB device is inserted in the USB terminal.
• Depending on the USB device, the TV may not be able to recognise the contained data.
• Use only alphanumeric characters for naming files.
• File names over 80 characters (may vary depending on character set) may not be displayed.
• Do not connect and disconnect a USB device from the TV repeatedly.

USB Movie and Photo viewer/Music Player

In this mode, you can enjoy viewing photos and listening to music and viewing videos from external USB devices. Select "USB media" from the "Input Source" menu to enter this mode.

NOTE

• You cannot enter this mode when there is no USB device connected to the TV.
• "Wide mode" is fixed during the USB mode.

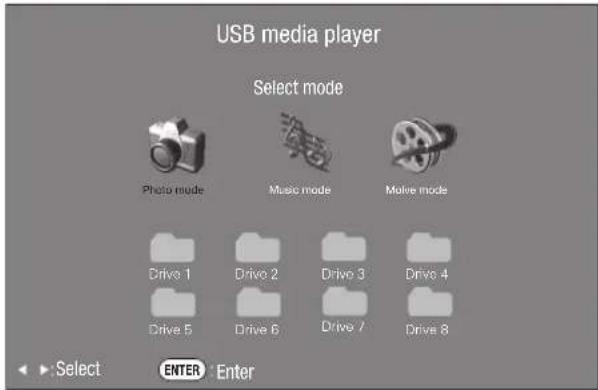

Selecting modes and devices

1

Press ◀/▶ to select between "Movie mode", "Music mode" and "Photo mode", and then press ENTER.

2

Press ▲/▼/◄/► to select the drive where you want to find your files.

3

Press ENTER.

NOTE

• You do not need to select the drive in step 2 when there is only one drive in the connected USB device.
  • 16 is the maximum number of drives that can be displayed.

Movie mode

1

Press ◀/▶ to select "Movie mode", and then press ENTER.

2

Press ▲/▼ to select the desired folder or directory, and then press ENTER.

3

Press ▲/▼ to select the desired movie.

Buttons for Movie mode

Buttons Description
ENTER	Display the movie in full screen.
▲/▼ (Cursor)	Select a desired item.
◀/▶ (Cursor)	Page up/down.
Return	Return to the mode list.

Viewing movie

Person paddling a river in mid-air, creating large splashes (no visible text or symbols)

Buttons for full screen display operation

Buttons Description
ENTER	Play/Pause the movie.
▲ (Cursor)	Go to the previous file.
▼ (Cursor)	Go to the next file.
▶ (Cursor)	The FWD speed changes every time you press ▶. After playing to the end, the player goes to the next file and starts to play.
◀ (Cursor)	The REW speed changes every time you press ◀. After going back to the beginning, the player starts to play the same file.
Return	Return to the movie list screen.
B button	Reveal/hide the guide display.
R button	Each time you press R button on the remote control, the subtitle switches.
G button	Each time you press G button on the remote control, the audio switches.
Y button	Each time you press Y button on the remote control, the VIDEO switches.

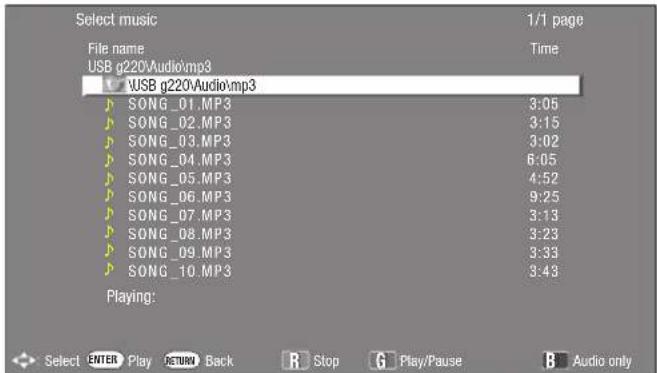

Music mode

1 Press ◀/▶ to select "Music mode", and then press ENTER.

2 Press ▲/▼ to select the desired folder, and then press ENTER.

3 Press ▲/▼ to select the desired music, and then press ENTER.

Buttons for music mode

Buttons	Description
ENTER	When selecting a music file: Play the music.
▲/▼ (Cursor)	Select a desired item.
◀ (Cursor)	Page up.
▶ (Cursor)	Page down.
Return	Return to the mode list.
R button	Stop music.
G button	Play/Pause music.
B button	Audio only.

NOTE

• When there are invalid music files, the X mark will be displayed for the file.
• The displayed play time may differ slightly from the actual play time depending on the files.

Photo mode

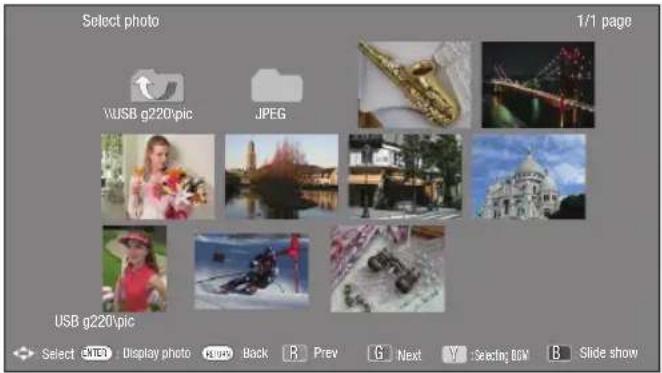

Viewing thumbnails

1

Press ◀/▶ to select "Photo mode", and then press ENTER.

2

Press ▲/▼/◄/► to select the desired folder, and then press ENTER.

3

Press ▲/▼/◄/► to select the desired photo.

Buttons for thumbnail operations

Buttons Description
ENTER	Display the photo in full screen.
▲/▼/ ◀/► (Cursor)	Select a desired item.
B button	Slide show.
R button	Page up.
G button	Page down.
Y button	Selecting BGM.

NOTE

• When there are invalid photo files, the X mark will be displayed for the file.
• You can see the file name, shooting date, file size and pixel size of the selected photo in the lower-left corner of the screen (shooting date is only available in the EXIF file format).

■ Viewing photos in full screen

Buttons for full screen display operation

Buttons Description
◀/▶ (Cursor)	Go to the previous/next photo in the same directory.
Return	Return to the thumbnail selection screen.
R button	Rotate the photo by 90 degrees to the left.
G button	Rotate the photo by 90 degrees to the right.
B button	Reveal/hide the guide display.

NOTE

- Rotating photos only applies to the temporarily selected item and this setting is not saved.

Selecting BGM (Background Music)

1

Press ◀/▶ to select "Photo mode", and then press ENTER.

2

Press Y button, and press ▲/▼ to select the desired folder, and then press ENTER.

3

Press ▲/▼ to select the desired music, and then press Y button.

4

Press RETURN to return to photo selection mode, and press ▲/▼/◄/► to select the desired folder, and then press ENTER.

5

Press ▲/▼/◄/► to select the desired photo, and then press B button (Silde show), then BGM playing with the photo.

NOTE

- Background Music (BGM) function is available only when the slide show is on.

List of files compatible with USB mode

USB device	USB Memory, USB card reader (Mass Storage class)
File system	FAT/FAT32/NTFS
Photo file format	JPEG (.jpg) (DCF2.0 compliant)
Music file format	MP3 (.mp3)Bitrate: 32 k, 40 k, 48 k, 56 k, 64 k, 80 k, 96 k, 112 k, 128 k, 160 k, 192 k, 224 k, 256 k, 320 kbpsSampling frequency: 32 k, 44.1 k, 48 kHz

Video file format
File extension	File type	Video decoder Resolution		Audio decoder	Frame rate (fps)	Bit rate (Mbsp)
*.avi	AVI	Divx 3.11/4/4.12/5.x/6	1920×1080	MP3/Dolby Digital plus	6-30 8
		Xvid 1920×1080	6-30 8
		H.264 1920×1080	6-30 20
		MPEG2 1920×1080	6-30 8
*.mkv MKV		H.264	1920×1080	MP3/Dolby Digital plus	6-30 20
		MPEG2	1920×1080	6-30 8
		MPEG1	1920×1080	6-30 8
*.mp4 MP4		Divx 3.11/4/4.12/5.x/6	1920×1080	MP3/Dolby Digital plus	6-30 8
		Xvid 1920×1080	6-30 8
		H.264 1920×1080	6-30 8
*.vob VOB	MPEG2 1920×1080			MP3/Dolby Digital plus	24/25/30 20
*.mpg/*.mpeg PS		MPEG2 1920×1080		MP3/Dolby Digital plus	24/25/30 20
		MPEG1 1920×1080	24/25/30 20
*.rm/*.rmvb	RM	RM codec	1280×720	Real Audio	24/25/30	10
*.ts/*.trp/*.tp	TS	H.264 1920×1080		MP3/Dolby Digital plus	6-30 20
		MPEG2 1920×1080	24/25/30 20
*.divx	Divx	Divx 3.11/4/4.12/5.x/6	1920×1080	MP3/Dolby Digital plus	6-30 20
*.dat	DAT	MPEG2 1920×1080		MP3/Dolby Digital plus	6-30 8
		MPEG1 1920×1080	6-30 8

NOTE

• Progressive format jpeg files are not supported.
• Files in USB 1.1 devices may not be played properly.
  • Operation using USB hubs is not guaranteed.
• The compatibility of USB HDDs may not be guaranteed.
• Some video file formats may not be played depending on the file.
• Files may not be playable depending on the bitrate.

Appendix

Troubleshooting

The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced.

Problem Possible	Solution
No power. Check if you pressed POWER on the remote control unit. (See page 14.)If the indicator on the TV lights up red, press POWER.Is the AC cord disconnected?Has the power been turned on? (See page 14.)
Unit cannot be operated.	External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the TV power off or unplugging the AC cord and re-plugging it in after 1 or 2 minutes.
Remote control unit does not operate.	Is battery inserted with polarity (+, -) aligned? (See page 10.)Is battery worn out? (Replace with new battery.)Are you using it under strong or fluorescent lighting?Is a fluorescent light shining on the remote control sensor?
Picture is cut off. Is the image position correct? (See page 21.)Are screen mode adjustments such as picture size made correctly? (See pages 21,24,30.)
Strange colour, light colour, or dark, or colour misalignment.	Adjust the picture tone. (See page 19.)Is the room too bright? The picture may look dark in a room that is too bright.Check the colour system setting. (See page 23.)Check the input signal setting. (See page 24.)Check the HDMI auto view setting. (See page 21.)
Power is suddenly turned off.	The unit's internal temperature has increased.Remove any objects blocking the vent or clean.Check the ECO setting. (See page 20.)Is the sleep timer been set? (See page 9.)
No picture. Is the connection to external equipment correct? (See page 8.)Has the input signal setup been performed correctly after connection? (See page 14.)Is the correct input selected?Is the picture adjustment correct? (See page 18-19.)Is the antenna connected properly? (See page 7.)Is “On” selected in “Audio only”? (See page 23.)
No sound. Is the volume too low? (See page 9.)Make sure that headphones are not connected.
The TV sometimes makes a cracking sound.	This is not a malfunction. This happens when the cabinet slightly expands and contracts according to changes in temperature. This does not affect the TV's performance.

Troubleshooting-Digital broadcasting

The error message about reception of broadcast

The example of an error message displayed on a screen	Error code	Possible Solution
Failed to receive broadcast.	E202	Check the antenna cable. Check that the antenna is correctly setup.
No broadcast now.	E203 Check the current broadcast.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. Storage temperature: -20^ to +60^ .

Specifications

Item\Model			LC-26LX430H LC-32LX430H/NX430H
Resolution			1,049,088 pixels (1366 × 768)
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV Function	TV- Standard Analogue PAL:		B/G, D/K, I SECAM: B/G, D/K, K/K , NTSC:M
			Digital DMB-T/H(MHEG-5)
	Receiving Channel		VHF/UHF 44.25-863.25 MHz
			CATV S1-S41ch (including Hyperband)
	Digital terrestrial broadcast 470 MHz - 862 MHz
	TV-Tuning System Auto Preset 99 ch
	Stereo/Bilingual NICAM: B/G		I, D/K A2 stereo: B/G
Audio amplifier			5 W × 2
Speakers			3.6 × 10 cm 2pcs
Terminals Rear		A-TV (Analogue antenna)	UHF/VHF 75 Ω DIN type
		D-TV (Digital antenna)	UHF/VHF 75 Ω DIN type
		HDMI 1	HDMI input (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz, 1080P/24Hz, 1080P/50Hz, 1080P/60Hz), AUDIO in (common use with PC INPUT) (φ3.5 mm jack)
		HDMI 2	HDMI input (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz, 1080P/24Hz, 1080P/50Hz, 1080P/50Hz)
		HDMI 3	HDMI input (480I, 480P, 576I, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz, 1080P/24Hz, 1080P/50Hz, 1080P/60Hz)
		INPUT 4 VIDEO in, AUDIO in
		INPUT 5	COMPONENT in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz), AUDIO in
		PC input	15 pin mini D-sub, AUDIO in (common use with HDMI 1) (φ3.5 mm jack)
		RS-232C	9 pin D-sub male connector
		USB	USB 2.0
		Audio out/Headphone	φ 3.5 mm stereo
OSD language			English/Simplified Chinese/Traditional Chinese
Power Requirement			AC 220 V, 50 Hz
Power Consumption (Standby)			50 W (0.50 W)	63 W (0.50 W)
Weight		without stand 6.3 kg	7.8 kg
		with stand	7.0 kg	9.0 kg
Operating Temperature			0°C - 40°C

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Dimensional drawings

Unit: mm

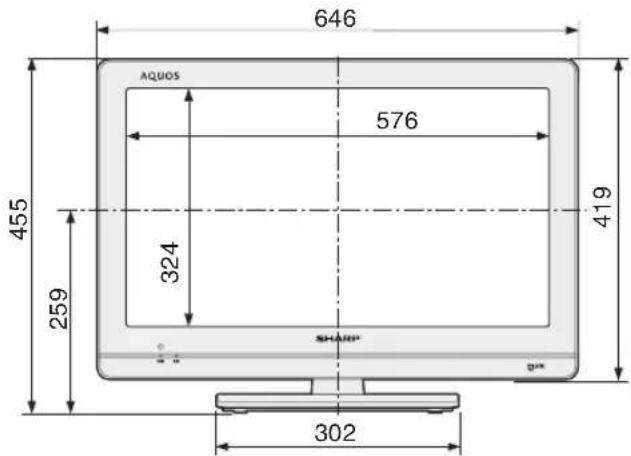

LC-26LX430H

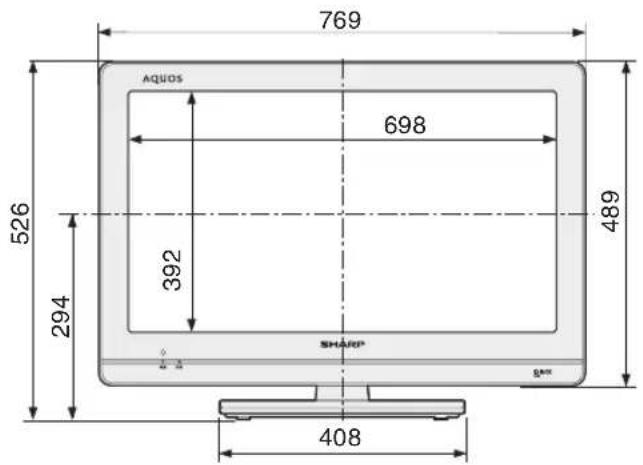

LC-32LX430H/NX430H

Clearing the password

If you forget the password, clear the password using the following procedures.

1 Press MENU to display the MENU screen, and then press ◀/▶ to select "Setup".
2 Press ▲/▼ to select "Child lock", and then press ENTER and the password input screen display.
3 If you enter "3001" using 0 - 9, the "Child lock" setting menu will be displayed.
4 Enter the 4-digit number as a password using 0 - 9. The new password is now set.

The Password is

Simple geometric pattern with four vertical rectangles and a single dot in the center (no text or symbols)

NOTE

- As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.
