PC70TS - Range hood Philco - Free user manual and instructions

Product Type	Range Hood
Brand	Philco
Model	PC70TS
Width	70 cm
Depth	50 cm
Height	15 cm (without flue)
Weight	12 kg
Power Supply	220-240 V, 50-60 Hz
Rated Power	200 W
Motor Type	Single motor, 2 speeds
Extraction Capacity	600 m³/h
Noise Level	55 dB (max speed)
Lighting	2 x 40 W halogen bulbs
Filter Type	Aluminum grease filter (washable)
Duct Diameter	150 mm
Installation Type	Wall-mounted or under cabinet
Control Type	Mechanical push buttons
Energy Class	C (EU energy label)
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Safety Features	Auto-off timer, thermal fuse
Spare Parts	Filters, bulbs, motor available from Philips service centers
Reparability	Designed for easy DIY filter replacement; professional repair for motor/electronics
Warranty	2 years

Frequently Asked Questions - PC70TS Philco

How do I install the Philco PC70TS range hood?

Installation requires securing the hood to the wall and connecting to a duct or recirculating. Ensure the power is off. Follow the manual for exact mounting steps. Use appropriate anchors for your wall type.

What is the duct diameter required for PC70TS?

The hood uses a 150 mm duct. Use rigid or flexible ducting of the same diameter for optimal airflow.

How often should I clean the grease filter?

Clean the aluminum grease filter every month for normal use. Wash with warm soapy water or in the dishwasher. Dry completely before reinserting.

Does the PC70TS come with a charcoal filter?

No, the charcoal filter is not included. It is required for recirculation mode. Purchase a replacement charcoal filter (compatible with PC70TS) and replace every 3-6 months.

How do I replace the light bulb?

The PC70TS uses 40 W halogen bulbs (G4 base). Turn off power, remove the bulb cover, and replace with a new bulb of the same type.

Why is my range hood noisy?

Noise can be due to loose parts, clogged filters, or improper installation. Check that the hood is secured tightly, clean the grease filter, and ensure the ductwork is not obstructed.

Can I use the hood without ducting?

Yes, you can use it in recirculation mode. You must install a charcoal filter (sold separately) and ensure the air outlet is directed back into the kitchen.

What are the dimensions of the PC70TS?

The hood has a width of 70 cm, depth of 50 cm, and height of 15 cm (without flue). Overall height with flue can be adjusted up to 100 cm.

How do I reset the filter alarm?

If equipped, press and hold the speed button for 3 seconds until the indicator light turns off. Some models reset automatically after cleaning.

Is a professional installation required?

For electrical connection and ductwork, it is recommended to hire a qualified technician. The hood can be mounted by a DIYer if comfortable with basic tools and safety precautions.

USER MANUAL PC70TS Philco

Line drawing of a device casing with ventilation slots and a label 'PC70TS' (no other text or symbols)

適用環境：

注意：

This appliance is designed for home or indoor environment and not for commercial and outdoor uses.

PRECAUTION:

※ Please read this manual CARREFULLY before installation. During the installation, power supply must be disconnected.

1. The installation should be done by a qualified technician.
2. Air circulation inside kitchen must be maintained in good condition when range hood in use.
3. Do not put flame on the range hood. Please turn on the hood before turning on the stove.
4. Replacement of the main cord and all other parts should be done by a qualified electrician.
5. Cleaning processes should follow the instructions as stated in this manual. To avoid danger or damage, no parts should be removed or modified.
6. In the case when the light breaks, please disconnect the power supply before you replace it with a new bulb. Maximum power for the light bulb is 40W.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or qualified persons in order to avoid a hazard.
8. In case of changes in technical specification, there would be no prior notice.

INSTALLATIONS:

※ This appliance must be earthed. Installation must be carried out only when power supply is disconnected.

1. Unpack the carton.

2. Detach the fan grille by removing the screws, then take ployform out from inside and reinstall the grille.

3. The installation height is measured vertically from the bottom of hood to the top of stove, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. When the range hood is located above a gas appliance, this distance shall be at least 650mm and the best recommended height is 650-800mm, avoid left-right or up-down inclination.

4. For Wall-Mounted Installation, drill two holes in an inappropriate position on the wall and insert the attached inflation plastic bolts properly. Insert the self-tapping screw into the wall leaving with 1/5 space for hanging the hood, make sure the screw drive into the wall firmly.
5. Unfasten the screws between the hanging bracket a bit, pull up the bracket to the top and then fasten the screws back.
6. Position the hood to the screws on the wall and balanced the inclination of the hood. Then fasten the screws tightly to mount the hood onto the wall.
7. This hood could be built-under kitchen cabinet, fasten the screws tightly on the cabinet. The exhaust duct should go through the cabinet to a window.
8. To increase the efficiency of hood, it is recommended to use 6" exhaust duct. The turns of exhaust duct should be always straight, or more than 90° to help exhaust system run smoothly. The outside end of exhaust duct must face downward to avoid rain and air backflow from outside and damage the appliance.
9. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room), regulations concerning the discharge of air have to be fulfilled.
10. Check the voltage on the rating lable which should match the national or local code.

Wall Mounting Instruction

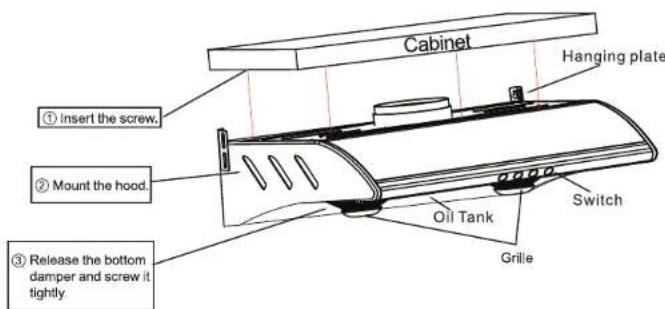

Built-under Instruction

MAIN FEATURE:

1. MECHANICAL SWITCH CONTROL: Paddle switch design for durable, safety and easy usage.
2. The left and right rotary fans can be operated individually or simultaneously. Users can select 3 different fan speeds to fit their cooking needs.
3. 15° curve chassis design for maximizing Suctionpower and effective oil discharge.

OPERATION:

1. • Light button: Press the button to switch on and off the light.
2. Press either the L or R switch or both of them simultaneously to turn on the appliance. The fan speed of the appliance is controlled by L and R switches, they both represent each side of the function of left/right motor individually. I indicates low fan speed, II indicates high fan speed, Indicates highest fan speed. indicates motor off. During operation, users can select different fan speed to fit their cooking needs.

MAINTENANCE AND CLEANING:

▲ Caution: Always disconnect the appliance from the power supply before cleaning.
1. Please clean the appliance regularly, do not use abrasive cleaner. Always clean the oil cups and grilles to prevent oil spillage and prolong the life of the hood.

1. The period of cleaning for oil tray, surface of the appliance, grilles and vanes depends on the usage of the appliance.
2. Cleaning the body of the appliance with a damp cloth with cleaning agent, and use a clean cloth to dry. Foamless detergent specified for range hood cleaning must be used for cleaning purposes (Water to detergent ratio → 20:1).
3. Never adjust the turning angle of vane or subject it on impact/collision to avoid any hazard; do not rub it with petrol or other related chemicals.

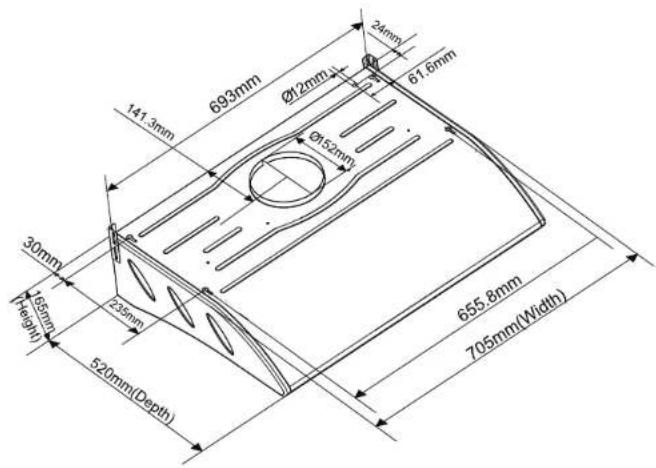

MOUNTING DIMENSIONS DIAGRAM

Attention:

• Installation must be carried out by qualified technician.
- Please disconnect power supply before dismantling for cleaning.
- Remember to turn on the cooker hood before turning on the hob to avoid overheating the hood.

注意

NOTE

請紀錄下列資料 Please record the following information:

As a result of technological progress, the product functions may change due to product improvement; no prior notice will be given. If any queries, please contact our service department.

7/F, Goodwill Industrial Building, 36-44 Pak Tin Par Street, Tsuen Wan, Hong K

Customer Service Hotline 客戶服務熱線：(852) 8210 8210

Service E-mail 電郵地址：[e-mail]

Please register now at 請即上網登記: www.toolbox.hk

Website 網址：www.gilman-group.com

Gilman

since 184

ToolBox

1. Credit card service fee

2/F, Shing Dao Industrial Building, 232 Aberdeen Main Road, Hong Kong 香港香港仔大道232號城都工業大廈2樓
