Platinum 21 - Dehumidifier ARGO - Free user manual and instructions
Find the device manual for free Platinum 21 ARGO in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Portable Dehumidifier |
| Brand | ARGO |
| Model | Platinum 21 |
| Power Supply | 220-240 V ~ 50 Hz |
| Power Consumption | 280 W (max) |
| Dehumidification Capacity | 21 L/day (at 30°C, 80% RH) |
| Water Tank Capacity | 4.5 L |
| Airflow | 220 m³/h |
| Noise Level | 42 dB(A) |
| Dimensions (W x D x H) | 340 x 250 x 580 mm |
| Weight | 13.5 kg |
| Refrigerant | R290 (flammable) |
| Functions | Continuous drainage, humidity setting, auto defrost, timer, laundry mode |
| Control Type | Electronic with LED display |
| Filter Type | Washable pre-filter + optional HEPA |
| Maintenance | Clean filter every 2 weeks; empty tank regularly |
| Safety Features | Auto shut-off when tank full, overheat protection, child lock |
| Spare Parts | Filters, remote control (optional), drainage hose |
| Repairability Index | 7.5 / 10 |
| Certifications | CE, RoHS |
Frequently Asked Questions - Platinum 21 ARGO

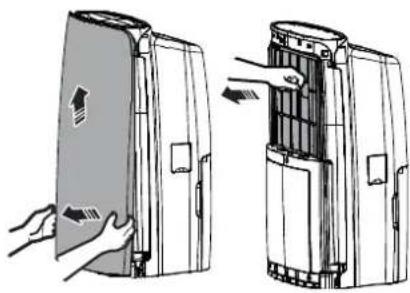

How often should I clean the filter?
Clean the washable pre-filter every two weeks or more frequently in dusty environments. A clogged filter reduces efficiency. Refer to the manual for removal instructions.
What does the 'Platinum 21' capacity mean?
It indicates the dehumidifier can remove up to 21 liters of moisture per day under standard conditions (30°C, 80% relative humidity). Actual performance depends on room temperature and humidity.
Can I use a continuous drainage hose?
Yes, the unit supports continuous drainage via a standard garden hose (not included). Connect it to the drain outlet at the back of the unit. Ensure the hose is positioned downhill.
Why is the dehumidifier not collecting water?
Check if the ambient humidity is below the set level (e.g., below 40%). Also ensure the filter is clean, the room temperature is above 5°C, and the water tank is properly inserted. If the compressor is running but no water, humidity may be low.
Is the refrigerant R290 dangerous?
R290 (propane) is a flammable refrigerant. The unit is designed with safety standards; however, never puncture the cooling circuit. If a leak occurs, ventilate the room immediately and unplug the unit. Keep away from ignition sources.
How do I set the desired humidity level?

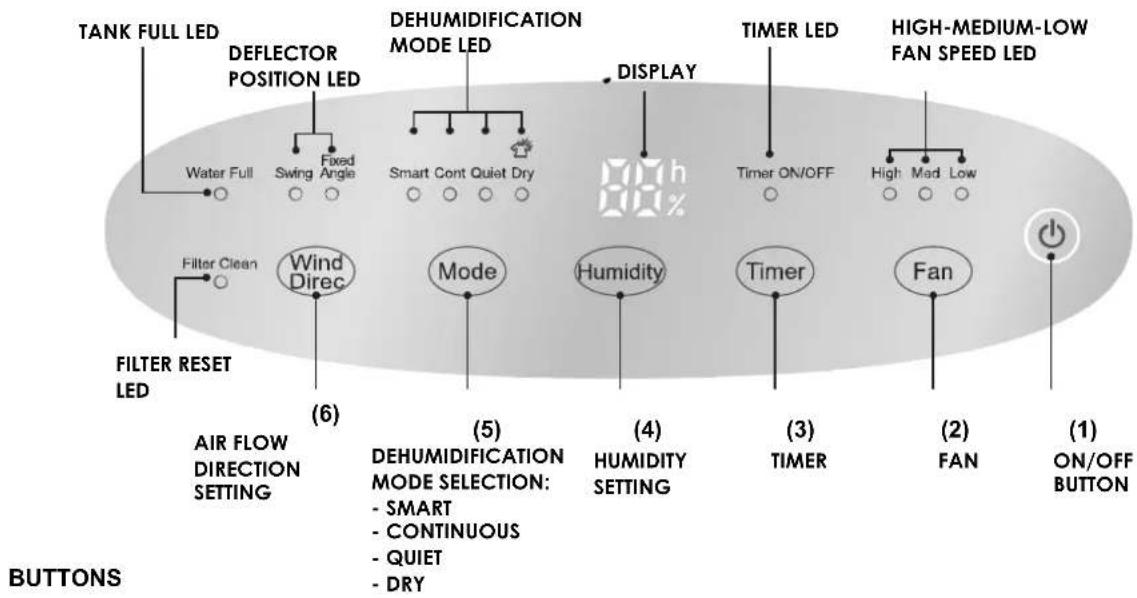

Press the 'Humidity Set' button repeatedly to cycle from 30% to 80% in 5% increments. The display will show the selected target. The unit will automatically stop when the ambient humidity reaches the set point.
Can I use the dehumidifier in an unheated garage?
Yes, but the operating temperature range is 5°C to 35°C. Below 5°C, the unit may not defrost properly. For optimal performance, use in spaces above 10°C.
What does the 'auto defrost' function do?
When the evaporator coil temperature drops too low (e.g., in cold rooms), the unit automatically enters defrost mode to prevent ice buildup. The compressor stops while the fan continues to circulate air. This is normal.
Why is the display showing 'FL'?
'FL' indicates the water tank is full. Empty the tank and reinstall it properly. If the error persists, check if the float switch is stuck or the tank is misaligned.
How do I clean the water tank?
Remove the tank and rinse it with warm water and mild detergent. Do not use abrasive cleaners. Dry thoroughly before reinserting. Clean every few weeks to prevent mold and odors.
