| Product Type | Commercial Display |
| Screen Size | 70 inches (176.4 cm diagonal) |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Dimensions (without stand) | 1604 x 966 x 87 mm (W x H x D) |
| Weight (without stand) | 55 kg |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | 250 W (typical), 0.5 W (standby) |

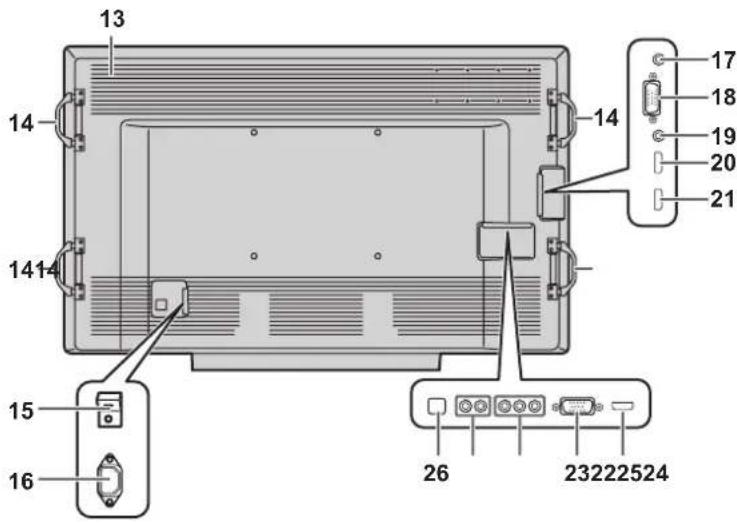

| Input Terminals | HDMI x2, DisplayPort x1, VGA x1, USB x1, RS-232C x1 |
| Mounting | VESA 600 x 400 mm |
| Operating Temperature | 0°C to 40°C |
| Cleaning | Use a soft dry cloth; do not use harsh chemicals. |
| Safety | Do not expose to water or install near heat sources. |
| Spare Parts & Reparability | Available through authorized service centers. Reparability score: 7/10. |
| General Information | Designed for 24/7 operation, built-in speakers (15W x 2). |
Frequently Asked Questions - PN-C705B SHARP
How do I connect external devices?
Use the HDMI or DisplayPort inputs for video sources. For older devices, use the VGA input. Connect audio via the 3.5mm jack or use the built-in speakers. Ensure the correct input source is selected via the remote or menu.
What is the recommended cleaning procedure?
Turn off the display and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly on the screen. Avoid using alcohol, ammonia, or abrasive cleaners. Gently wipe in a circular motion.
Can I mount this display on a wall?

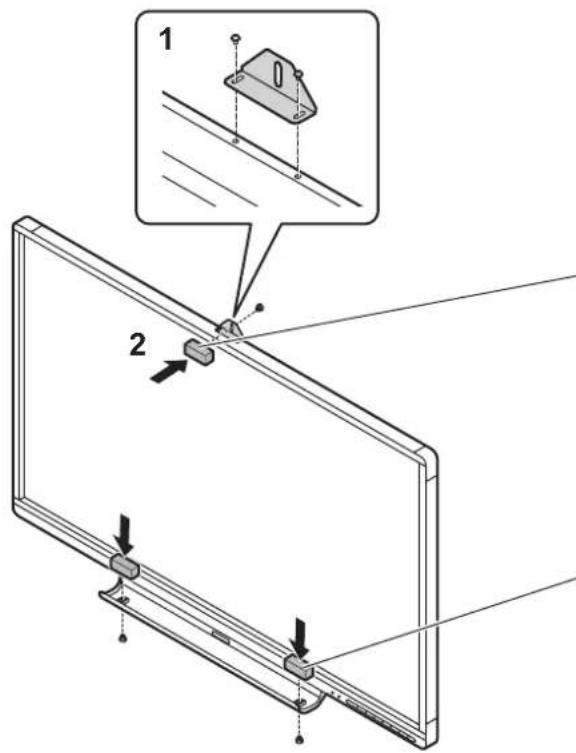

Yes, the display supports VESA 600x400 mm mounting. Use a compatible wall mount rated for at least 55 kg. Ensure the wall can support the weight. Follow the mounting instructions in the manual to avoid damage.
How do I adjust picture settings?
Press the Menu button on the remote or display. Navigate to Picture settings. Adjust Brightness, Contrast, Color, and Sharpness. For advanced calibration, use Color Temperature and Gamma options.
The screen does not power on. What should I do?

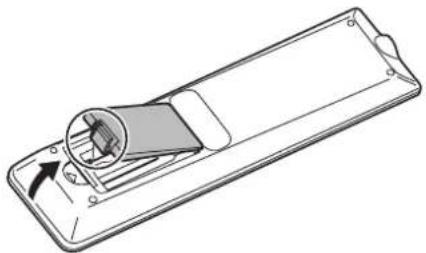

Check the power cable connection and ensure the outlet is working. Press the Power button on the display. If using a remote, replace the batteries. If still off, try a different power source. If the issue persists, contact Sharp support.
Is this display suitable for outdoor use?
No, this display is designed for indoor use only. Operating temperature is 0°C to 40°C. Exposure to rain, dust, or direct sunlight may damage the unit and void the warranty.
What is the lifespan of the backlight?
The LED backlight has a typical lifespan of 50,000 hours to half brightness. This corresponds to about 5.7 years of continuous 24/7 operation. Actual life may vary based on usage and environmental conditions.
How do I update the firmware?
Download the latest firmware from the Sharp support website using the model number PN-C705B. Save the file to a USB flash drive. Insert the drive into the USB port on the display. Go to Settings > System > Firmware Update and follow on-screen instructions.
Can I connect multiple displays in a daisy chain?

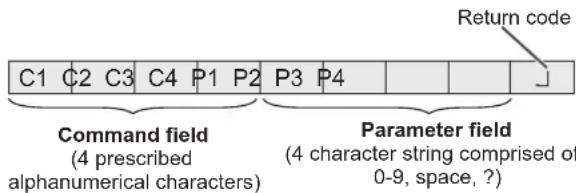

Yes, through the RS-232C port or DisplayPort daisy chain (if supported). For RS-232C, connect the OUT of one display to the IN of the next. Configure ID numbers in the menu. Daisy chain allows control of multiple displays with one remote.
Where can I find the serial number?
The serial number is located on the back panel of the display near the power input. It is also printed on the shipping box and in the product manual. Use it for warranty or support inquiries.
