Type of Product	CD Player
Brand	Curtis
Model	CD156
Power Supply	2 x AA (UM-3) alkaline batteries (not included) or AC adapter 4.5V DC, 500mA (not included)
Disc Compatibility	8cm and 12cm compact discs without adapter
Playback Modes	Normal, Repeat Single, Repeat All, Intro Scan (first 10 sec of each track), Random, Program (up to 20 tracks)
Controls	Skip/Search Down, Skip/Search Up, Mode, Program, Play/Pause (power on), Stop (power off), Volume Down, Volume Up, Open
Display	LCD display showing track number, repeat indicators (REPEAT 1, REPEAT ALL), INTRO, RANDOM, PROG, battery low indicator
Auto Power Off	Player turns off automatically after 30 seconds in STOP mode
Audio Output	Headphone/earphone jack (PHONE JACK)
Battery Safety	Do not mix old/new or different types; remove exhausted batteries; store away from metal objects; do not dispose in fire; rechargeable batteries only under adult supervision
Cleaning the Lens	Use camera lens blower; avoid scratching
Cleaning the Cabinet	Soft dry cloth; use mild detergent if needed; never use benzene, alcohol or solvents
Warranty & Repair	Do not adjust or repair by anyone except qualified service personnel due to hazardous radiation exposure

Frequently Asked Questions - CD156 CURTIS

How do I turn on the Curtis CD156 CD player?

Press the PLAY/PAUSE button (▶II) once. The unit will power on and begin playback if a disc is inserted.

How do I insert a CD?

Press the OPEN button to open the lid. Place the disc with the label side facing up into the compartment, pressing gently around the center until it clicks onto the pivot. Close the lid.

How do I skip to the next or previous track?

Press the SKIP/SEARCH UP button (▶) to skip to the next track, or SKIP/SEARCH DOWN button (◀) to go back to the previous track.

How do I repeat a single track or the entire disc?

During playback, press the MODE button once for REPEAT 1 (single track) or twice for REPEAT ALL (entire disc). Press MODE again until the repeat indicator disappears to cancel.

How do I program tracks to play in a custom order?

In stop mode, press PROG until "PROG" flashes. Use SKIP/SEARCH buttons to select a track, then press PROG to store it. Repeat up to 20 tracks. Press PLAY/PAUSE to start program playback. To erase the program, press STOP.

What batteries does the Curtis CD156 use?

It uses 2 AA (UM-3) alkaline batteries. Batteries are not included. Do not mix old and new batteries or different types.

Can I use an AC adapter?

Yes, you can use a 4.5V DC, 500 mA AC adapter (not included). Plug it into the DC IN jack on the unit and then into a wall outlet. Disconnect the adapter when using batteries.

Why is there no sound from my earphones?

Check that the earphone plug is fully inserted into the PHONE JACK. Ensure the volume is turned up with the VOLUME UP button. If batteries are weak, replace them or use the AC adapter.

How do I clean the lens if the disc skips?

Use a camera lens blower to gently remove dust from the lens. Be careful not to scratch the surface. Avoid using any liquids or solvents.

What should I do if the disc skips or won't play?

Try a different disc. If the disc is dirty, clean it with a soft cloth from the center outward. Ensure the lens is clean. Place the CD player on a stable, level surface to avoid vibrations. Check that the disc is inserted correctly with the label side up.

USER MANUAL CD156 CURTIS

Line drawing of a circular electronic device with an exclamation mark on the top surface (no text or symbols)

INSTRUCTION MANUAL

Please read instructions carefully before use and retain for future reference.

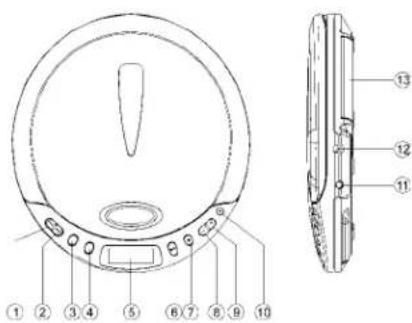

LOCATION OF CONTROLS

1. SKIP / SEARCH DOWN BUTTON
2. SKIP / SEARCH UP BUTTON
3. MODE BUTTON
4. PROG(PROGRAM) BUTTON
5. LCD DISPLAY
6. PLAY / PAUSE BUTTON (POWER ON)
7. STOP BUTTON (POWER OFF)
8. VOLUME DN BUTTON
9. VOLUME UP BUTTON
10. OPEN BUTTON
11. PHONE JACK
12. DC JACK
13. BATTERY COMPARTMENT

CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

THIS SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL.

POWER SOURCES

Using Battery

1. Open the lid of the battery compartment.
2. Insert 2 "AA" Size (UM-3) alkaline batteries by matching the (+ and -) to the diagram inside the battery compartment and close the lid. (batteries are not included)
   Note: For battery operation the AC power adaptor must be disconnected from DC IN Jack. (adaptor is not included)

When to Change the Battery

When the battery is used up, " indicator flashes in the display. Replace all the batteries with new alkaline batteries.

Note: Do not mix new batteries with old one. Do not use different types of batteries together.

Using an AC Power Adapter (Not included)

1. Insert the adapter plug into the DC input jack on the unit.
2. Plug the adapter into the AC wall outlet.
3. Unplug from wall outlet when not in use.
   Note: Use only a 4.5V DC, 500 mA Adapter.

PLAYING A CD

This CD player is designed to play the 8cm and 12cm CD's compact disc without using adaptor.

Getting Start

1. Insert the headphone/earphone plug to PHONE JACK.
2. Press the OPEN button, and then the door open, put a disc into the CD
   compartment with label side upward.
3. Push the disc gently around the centre area until it clicks so that the disc fits into the pivot.
4. Close the door and press the PLAY/PAUSE button once.

5. The Display will show the total number of tracks of the disc, then begin to play the first track.

6. Adjust the Volume control.

General Operation

Play/Pause Button ▶ II

- Press once to start playback in the original order.

Press again to stop the disc play temporarily.

- Press once to stop playback.

Press again to turn off power.

- Press once to skip to next track ▶ or back to previous ▶ track.

Press continuously to search forward ▶ or backward ▶.

Automatic Turn off (Auto Power Off)

If the player in STOP mode for 30 seconds, it will turn off automatically.

Various Playing Modes

MODE Button - There are 3 kinds of function:

A. Repeat Play

During PLAY mode

- Press the MODE button once to play single track repeatedly.

- The repeat indicator "REPEAT 1" will appear in display.

During PLAY mode

- Press the MODE button twice to play the entire disc repeatedly.

- The repeat indicator "REPEAT ALL" will appear in the display.

NOTE - To cancel REPEAT simply press the MODE button until the repeat indicator disappears.

B. Intro Scan

In STOP mode

- Press the MODE button three times.

- The INTRO indicator will appear in the display.

- Press the PLAY button to play the first 10 seconds of each track on the disc.

NOTE - To cancel INTRO SCAN simply press the MODE button until the INTRO indicator disappears.

C. Random Play

In STOP mode

- Press the MODE button four times.

- The RANDOM indicator will appear in the display.

- Press the PLAY button, all the tracks on a disc to be played in a random sequence.

NOTE - To cancel RANDOM PLAY simply press MODE button one time until the RONDOM indicator disappears.

Program Play

1. During stop, press PROG button until "PROG" and track number flashes in Display.
2. Press or SKIP/SEARCH button to choose a track.
3. Press PROG button to program the track, up to 20 tracks can be programmed into memory.
4. Repeat steps 2 and 3 to program tracks to start the program payback.
5. Press ▶ II PLAY/PAUSE button.
6. To erase the program, simply press the ■ STOP button to turn the power off.

MAINTENANCE

Cleaning the Lens

If the lens becomes dusty, clean it with camera lens blower. Be careful not to scratch the surface of the lens.

Cleaning the Cabinet

From time to time, clean the cabinet with a soft dry cloth. For more stubborn stains, slightly moisten the cloth with water or a mild detergent solution. Never use benzene, alcohol or other solvents as they may damage the finish of the cabinet.

Battery Safety

1. Install batteries correctly observing the (+/-) polarity signs.
2. Use only the recommended battery type or equivalent (voltage and size).
3. Always replace a complete set of batteries at the same time.
4. Do not mix batteries of different types.
5. Never mix new and used batteries in the same compartment.
6. Remove exhausted batteries immediately.
7. Remove batteries when product is not in use.
8. Do not dispose of batteries in fire as they may explode.
9. Do not recharge non-rechargeable batteries.
10. Rechargeable batteries are to be removed from the item before being charged.
11. Rechargeable batteries are only to be charged under adult supervision.
12. Do not short circuit the supply terminals.
13. Ensure batteries are stored away from metal objects as contact may cause a short circuit.

GENERAL INFORMATION

Troubleshooting Guide
SYMPTOM	CAUSE	SOLUTION
CD Player will not turn on	- Dead or weak batteries- AC adaptor not connected properly	- Replace batteries- Check AC adaptor connection
Disc will not play	- Disc inserted incorrectly	- Reinsert disc with label side facing up
No sound from earphones	- Earphone plug not inserted properly- Volume control set to minimum- Weak batteries	- Reinsert earphone cord into Earphone jack- Increase the volume- Replace with fresh batteries, or use AC power
Sound is skipping	- Defective compact disc- The compact disc or pickup lens is dirty- Strong vibrations	- Try another compact disc- Clean or replace the compact disc or clean the pickup lens- Place the CD player on a level surface that is stable (no vibrations)
