AAW-24CR3FHUE - Air-conditioner Admiral - Free user manual and instructions
Find the device manual for free AAW-24CR3FHUE Admiral in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Split Air Conditioner |
| Model | AAW-24CR3FHUE |
| Cooling Capacity (BTU/h) | 24,000 |
| Heating Capacity (BTU/h) | 24,000 (Heat Pump) |
| Power Supply | 208-230 V / 60 Hz / 1 Phase |
| Rated Cooling Current (A) | 12.5 |
| Rated Heating Current (A) | 12.0 |
| Indoor Unit Dimensions (WxDxH) | 42.1 x 10.2 x 12.6 in (1070 x 260 x 320 mm) |
| Outdoor Unit Dimensions (WxDxH) | 35.4 x 13.0 x 26.8 in (900 x 330 x 680 mm) |
| Net Weight Indoor | 28.7 lb (13 kg) |
| Net Weight Outdoor | 66.1 lb (30 kg) |
| Refrigerant Type | R-410A |
| Energy Efficiency Ratio (EER) | 12.0 |
| Modes | Cool, Heat, Fan, Dehumidify, Auto |
| Fan Speeds | High, Medium, Low, Auto |
| Air Flow (CFM) | 800 |
| Timer | 24-hour On/Off Timer |
| Remote Control | Yes, Included |
| Filter Type | Washable Mesh Filter |
| Maintenance | Clean filter every 2 weeks; annual professional check |
| Safety Features | Overload protection, auto restart, circuit breaker |
| Spare Parts & Repairability | Contact Admiral service for replacement parts; user-replaceable filter and remote |
| Warranty | 1 year parts and labor, 5 years compressor |
Frequently Asked Questions - AAW-24CR3FHUE Admiral
How do I install the Admiral AAW-24CR3FHUE air conditioner?

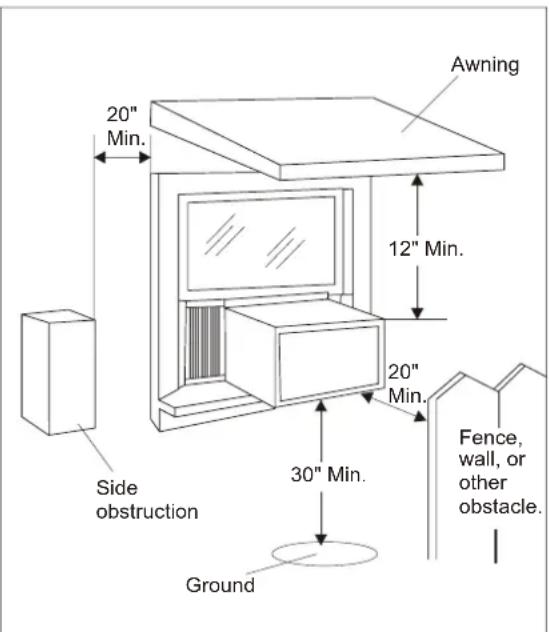

Installation should be performed by a qualified professional. Ensure proper clearance, electrical supply (208-230V), and secure mounting of both indoor and outdoor units. Refer to the manual for detailed steps.Do not attempt DIY installation unless you are licensed.
How often should I clean the air filter?
Clean the washable mesh filter every two weeks under normal usage. More frequently in dusty conditions. Remove the filter, wash with mild soap and water, dry thoroughly before reinstalling.
Why is my air conditioner not cooling?
Check the thermostat setting, ensure the filter is clean, verify the outdoor unit has airflow, and confirm the circuit breaker is not tripped. If the issue persists, contact a technician for refrigerant or compressor issues.
How do I use the remote control?

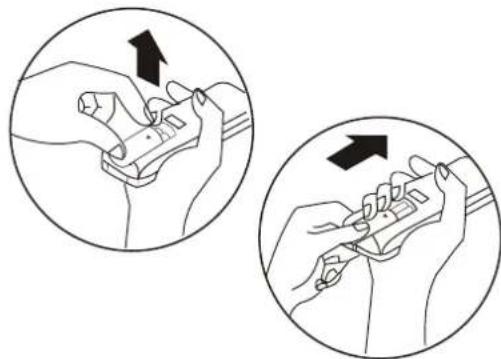

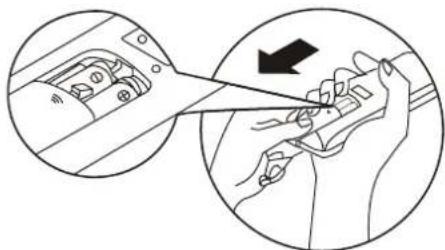

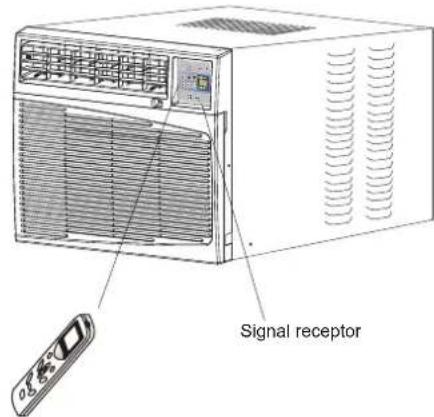

Insert two AAA batteries. Press MODE to select Cool/Heat/Fan/Dehumidify/Auto. Adjust temperature with +/-. Use FAN for speed and TIMER for scheduled on/off. Point remote at indoor unit receiver.
What are the error codes on the display?
Common codes: E1 (room sensor fault), E2 (pipe sensor fault), E3 (overload), E4 (communication error). Refer to manual for full list. Reset by unplugging for 5 minutes; if persists, call service.
Can I use an extension cord with this air conditioner?
No, do not use an extension cord. The unit requires a dedicated power supply with proper gauge wire and a circuit breaker. Use only a direct connection to a grounded outlet.
What is the recommended cooling area?
The 24,000 BTU unit is suitable for rooms up to about 1,400-1,500 sq ft (130-140 m²). Actual coverage depends on insulation, ceiling height, and sun exposure.
How do I set the timer?
Press the TIMER button on the remote. Use +/- to set hours (0-24). Press TIMER again to confirm ON time. Repeat for OFF time. The unit will start/stop automatically.
Does the AAW-24CR3FHUE have a heating function?
Yes, it is a heat pump model. It provides both cooling and heating. Switch to HEAT mode using the remote. Outdoor temperatures above freezing are optimal for heating efficiency.
Where can I find spare parts or service?
Contact Admiral customer service or an authorized dealer. User-replaceable parts include filters and remote control. For internal components, schedule a service appointment with a certified technician.
