Product Type	Steam Cleaner
Brand	Philips
Model	GC553
Dimensions (approx.)	30 x 25 x 20 cm
Weight (approx.)	2.5 kg
Power Supply	230 V, 50 Hz
Power Consumption	1500 W
Water Tank Capacity	0.8 L
Steam Pressure	3.5 bar
Steam Flow Rate	30 g/min
Heating Time	60 seconds
Functions	Steam cleaning, adjustable steam, floor cleaning, handheld mode
Accessories Included	Floor nozzle, detail nozzle, brush, extension tube, measuring cup
Material	Plastic body, stainless steel soleplate
Safety Features	Auto shut-off, child lock, pressure release valve
Maintenance	Descaling every 3 months, clean tank after use
Spare Parts Availability	Nozzles, brushes, sealing rings available from Philips
Warranty	2 years
Energy Efficiency Class	A

Frequently Asked Questions - GC553 PHILIPS

How do I descale the Philips GC553 steam cleaner?

To descale, fill the tank with a mixture of water and white vinegar (1:1). Run the steamer until half the liquid is used, then let it sit for 30 minutes. Empty and rinse thoroughly.

Can I use tap water in the steam cleaner?

Yes, but for optimal performance, use distilled or demineralized water to reduce scaling. Avoid adding detergents or chemicals.

Why is my steam cleaner not producing steam?

Ensure the tank is filled, the unit is plugged in, and the heating process has completed (around 60 seconds). If still no steam, check if the nozzle is clogged and clean it.

How do I clean the nozzles?

Remove the nozzle and soak it in white vinegar for 15 minutes. Rinse with water and dry before reattaching. Use a pin to clear any blocked holes.

What surfaces can I use the steam cleaner on?

It is safe for sealed hardwood, tile, vinyl, laminate, and marble floors. Avoid unsealed wood, carpet, and delicate surfaces. Always test a small area first.

How often should I replace the brushes?

Replace brushes when they become frayed or lose effectiveness, typically every 6-12 months depending on usage. Genuine Philips brushes are recommended.

Is the steam cleaner safe to use around children and pets?

Yes, but the steam is hot. Use caution and keep children and pets away during use. The child lock feature prevents accidental operation.

What should I do if the steam pressure drops?

Check if the tank is full and the unit is properly heated. Clean the nozzle and check for blockages. If pressure remains low, descale the unit.

Can I use the steam cleaner for upholstery?

Yes, with the fabric attachment. However, test on an inconspicuous area first. Avoid saturating the fabric and allow to dry thoroughly.

How do I store the steam cleaner?

Empty the water tank completely after use. Allow the unit to cool. Store in a dry place with the cord wrapped loosely around the cord wrap.

USER MANUAL GC553 PHILIPS

User manual

用户手册

3

5

6

8

10

12

16

17

18

19

20

20

23

EN

①FlexHead
② FlexHeadholder

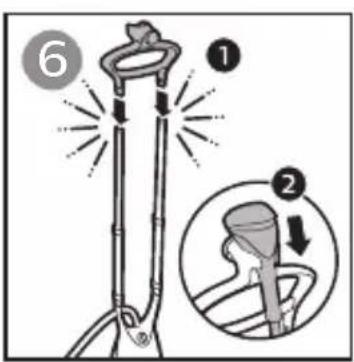

③ Hang&lock

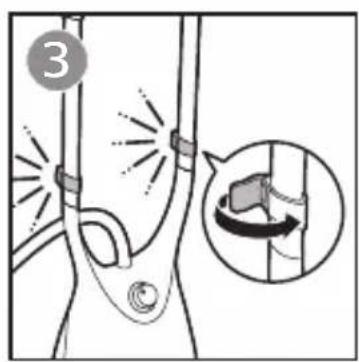

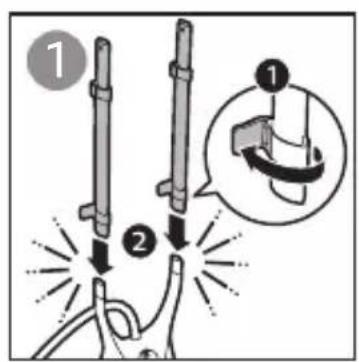

④ Pole lock clip
⑤ Pole
⑥ Steam knob
⑦ Base
⑧ De-calc knob
⑨ Water tank
⑩ Board cover
⑪ Board
⑫ Steam supply hose
⑬ Glove
⑭ Brush

SC

① FlexHead 灵动熨烫

② FlexHead 灵动熨烫支架

③ 悬挂和锁定功能

④ 衣架锁夹

⑤ 衣架杆

⑥ 蒸汽旋钮

⑦ 基座

⑧ 除垢旋钮

⑨ 水箱

⑩ 熨衣板外罩

⑪ 熨衣板

⑫ 蒸汽输送管

⑬ 防烫手套

⑭ 毛刷

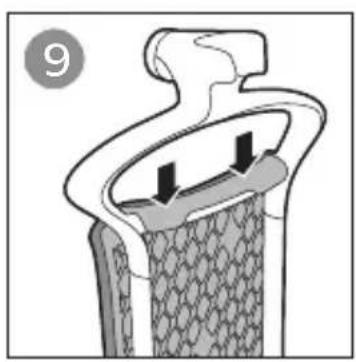

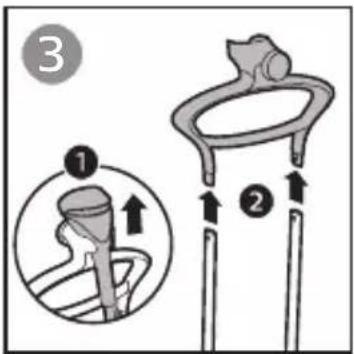

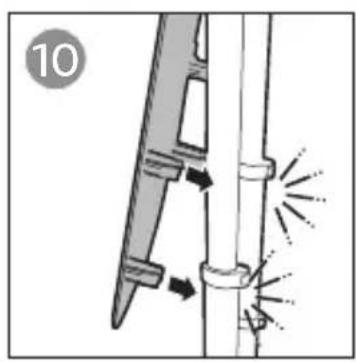

EN The board provides backing support to enhance the steaming performance.

Note: Do not wash the board cover as it may damage the foam material.

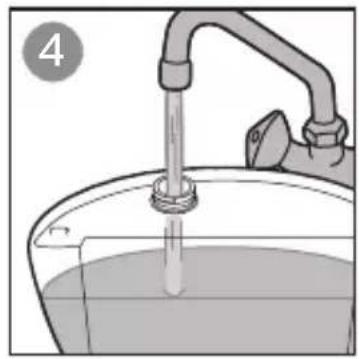

EN Your appliance has been designed to be used with tap water. In case you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use water without minerals such as distilled or purified water to prolong the lifetime of your appliance.

Note: Do not add perfume, vinegar, mineral water, starch, descaling agents, ironing aids, chemically descaled water or other chemicals into the water tank as they may cause water spitting, brown staining, or damage to your appliance.

EN FlexHead

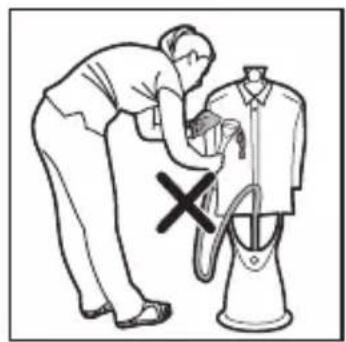

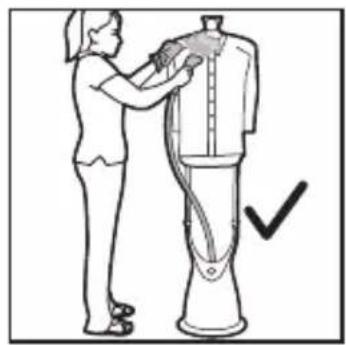

FlexHead allows you to have contact with your garment from top to bottom to avoid steam escape and for less kneeling and bending.

Note: Do not shake the steamer head vigorously.

SC FlexHead 灵动熨烫

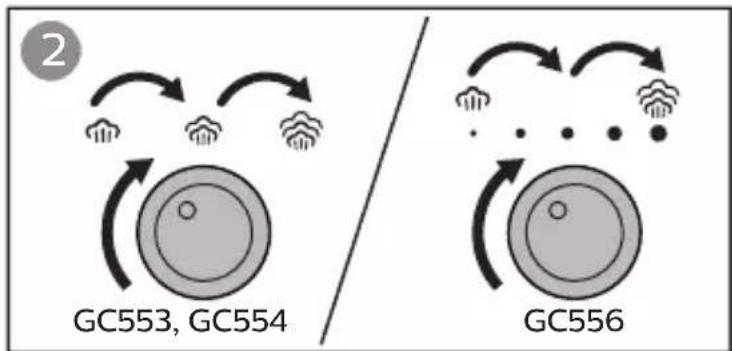

EN Multi steam settings are provided to save water and energy. You can increase the steam setting for more steam power at any point of time. This appliance is safe to use on all fabrics at any setting.

Note: The steam supply hose becomes warm during steaming. This is normal.

GC556

EN Auto shut-off

The ring flashes after the water tank is empty for 10 minutes.

SC 自动关闭功能

水箱为空分钟后，该环闪烁。

EN Refill the water tank and insert it back. You can resume steaming after turning the steam knob. The ring should stop flashing.

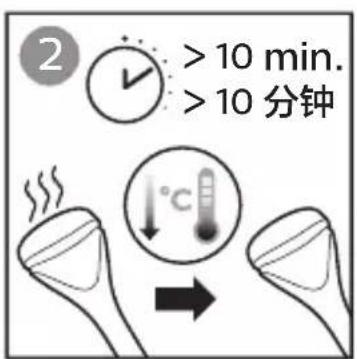

EN If the water tank is not refilled within the next 10 minutes, the appliance starts to cool down and will shut off.

EN For garments which require a formal look and crisp result, such as shirts, jackets and pants, it is recommended to use the board.

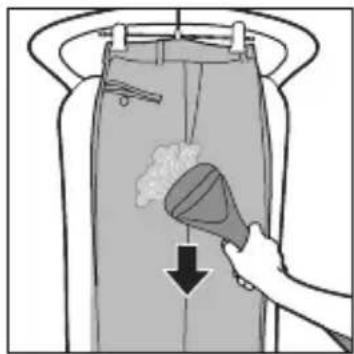

EN To make crisp pleats, start steaming from the bottom half of the pants and move onto the top half to prevent accidental wrinkles on parts which have already been steamed.

EN For a more natural look and quick touch-up on garments such as dresses, pleated skirts and T-shirts, it is recommended to use the board.

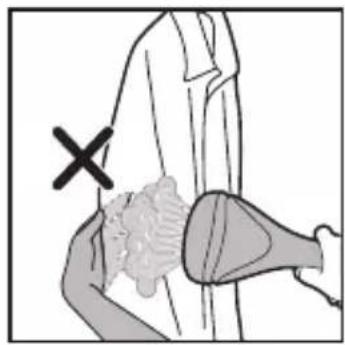

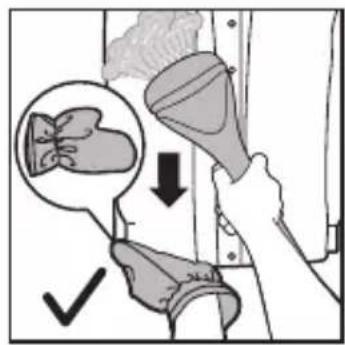

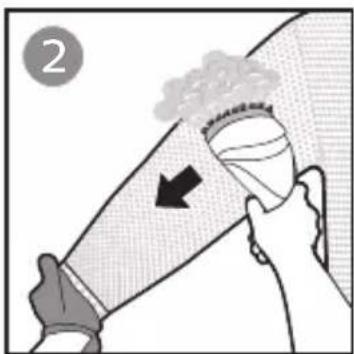

EN Put the glove on the hand you are using to hold a garment. The glove protects your hand against the steam from the steamer head.

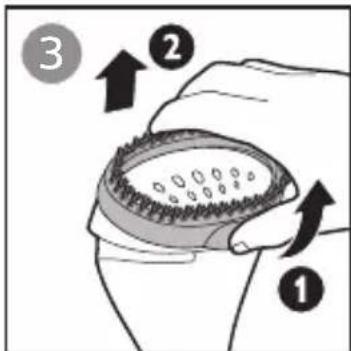

ENThe brush improves steam penetration into thick and heavy fabrics for faster results. Brush slowly with the bristles touching the garment.

Caution: Do not attach or detach the brush while the steam is on or the steamer head is hot.

SC毛刷可增强蒸汽对厚重纤维的渗入，更快定型。用刷毛缓慢刷拭衣物。

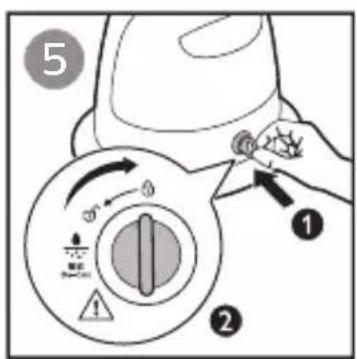

EN To maintain optimal steam performance and prolong the lifetime of the appliance, it is important to remove scale and impurities inside the appliance regularly. Therefore, it is recommended to perform the de-calc process at least once a month.

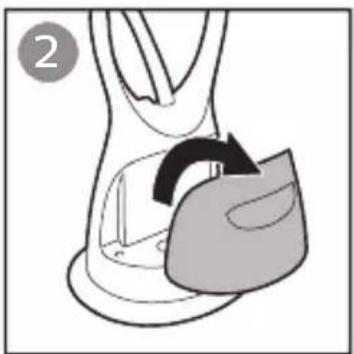

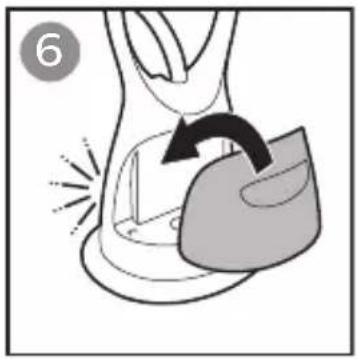

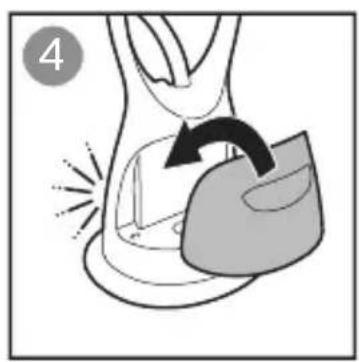

Before you start de-calc process, make sure there is some water in the water tank.

ENNote: Clean the appliance and wipe any deposits off the steamer head with a damp cloth and non-abrasive liquid cleaning agent.

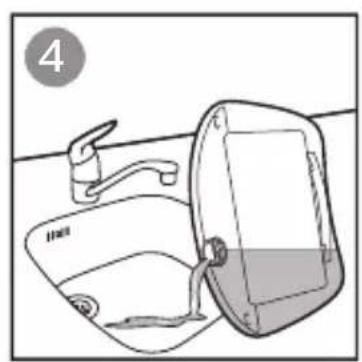

Always empty the water tank after usage, to prevent calc build-up and maintain good steam performance.

EN

Problem	Possible cause Solution
The appliance produces no steam or irregular steam.	The steamer has not heated up sufficiently.	Let the appliance heat up for approximately 45 seconds.
	Steam has condensed in the hose.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	Low water level in the tank or the tank is not inserted properly.	Refill the water tank and insert it properly.
	Too much scale has built up in the appliance.	Perform de-calc process.Refer to section.
Water droplets drip from the steamer head or the appliance produces a croaking sound.	You have left the steamer head and/or the steam supply hose in horizontal position for a long time.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	When the hose forms a U-shape, condensation in the hose cannot flow back into the water tank.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
An excessive amount of water drips out of the steamer head when the appliance is heating up.	The water in the appliance is dirty or has been left inside the appliance for a long time.	Perform de-calc process.Refer to section.
Water leaks out from the steamer base.	You have not closed the water tank cap or de-calc knob securely.The water tank is not inserted properly.	Close the water tank cap or de-calc knob securely.Insert the tank properly.
