SN7109 - Cooker ELEKTRO HELIOS - Free user manual and instructions

Product Type	Freestanding Electric Cooker
Brand	Elektro Helios
Model	SN7109
Dimensions (Approx.)	60 cm (W) x 85-90 cm (H) x 60 cm (D)
Weight (Approx.)	55 kg
Power Supply	230 V ~ 50/60 Hz
Total Power Consumption (Approx.)	10 kW
Number of Cooking Zones	4 (including high-speed and simmer zones)
Oven Type	Multifunction electric oven with grill and fan
Oven Functions	Conventional, fan-assisted, grill, defrost, bottom heat
Oven Capacity (Approx.)	70 liters
Control Type	Knobs for hob and oven functions
Display	None (mechanical controls)
Storage Drawer	Yes, below oven
Cleaning Features	Removable oven door with inner glass for easy cleaning
Safety Features	Child lock, automatic shut-off, overheat protection
Accessories Included	Oven rack, baking tray, instruction manual
Installation Type	Freestanding, not built-in
Energy Rating (Approx.)	Class A (estimated)

Frequently Asked Questions - SN7109 ELEKTRO HELIOS

How do I clean the oven door glass?

The oven door can be removed to clean between the glass panes. Refer to the section 'Rengöring mellan glasen' in the manual. Use mild detergent and a soft cloth, avoid abrasive cleaners.

What are the dimensions of the Elektro Helios SN7109?

Approximate dimensions: width 60 cm, height 85-90 cm, depth 60 cm. Always measure your space before installation and consult the manual for exact measurements.

How do I set the oven timer?

The SN7109 uses mechanical knobs. There is no digital timer. Set the cooking time manually by turning the oven knob to the desired function and temperature, and use an external timer if needed.

Can I use the grill and oven simultaneously?

Yes, the oven features a grill function. However, some models may not allow simultaneous use of all hobs and oven at full power due to limited total power. Check the manual for specific power distribution.

What power supply does the cooker require?

It requires a 230 V ~ 50/60 Hz electrical connection. A proper circuit and plug should be installed by a qualified electrician. The total power consumption is approximately 10 kW.

How do I replace a faulty hob element?

Replacement of heating elements should be done by a qualified service technician. The manual includes a 'Service' section. Contact Elektro Helios authorized service for spare parts and repairs.

What is the storage drawer for?

The storage drawer is located below the oven and can be used to store baking trays, pans, or other accessories. Do not store flammable items or use it as a warming drawer.

How do I unlock the child lock?

The child lock feature is typically engaged by pressing and holding a specific knob. Check the manual for the exact procedure. Usually, it involves turning a knob to the lock position or pressing a combination.

Can I use aluminum foil in the oven?

Yes, but avoid covering the oven bottom or slots as it may cause overheating. Use foil only on the baking tray or to wrap food, keeping it away from the heating elements.

What should I do if the oven does not heat up?

First, check the power supply and circuit breaker. Ensure the oven function knob is correctly set. If it still doesn't heat, the heating element or thermostat may be faulty. Contact a service technician.

USER MANUAL SN7109 ELEKTRO HELIOS

B R U K S A N V I S N I N G

SN 6109

SN 7109

Elektro EH Helios

Stekning

Övriga plattor

Ugnen

Stekning

S

Ugnen

Ugnsluckan

Rengöring mellan glasen

Förvaringslådan

Service

Uppackning

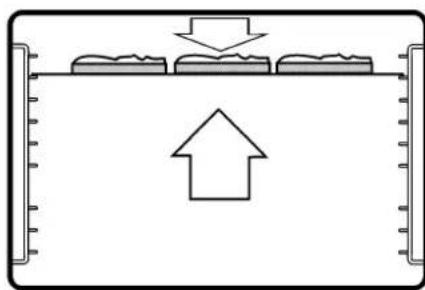

Placering i ugn
