SMV630DEWWY - Tumble drier Mabe - Free user manual and instructions
Find the device manual for free SMV630DEWWY Mabe in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Electric Tumble Dryer |
| Brand | Mabe |
| Model | SMV630DEWWY |
| Capacity | 6.5 kg |
| Dimensions (H x W x D) | 85 cm x 60 cm x 60 cm |
| Weight | 40 kg |
| Power Supply | 220-240 V, 50 Hz, 10 A |
| Energy Efficiency Class | C |
| Drying System | Vented |
| Number of Programs | 9 |
| Main Functions | Timed Drying, Sensor Drying, Anti-crease, Cool Down |
| Lint Filter | Removable and washable |
| Drum Material | Stainless steel |
| Control Type | Electronic with LED display |
| Maintenance | Clean lint filter after each cycle; inspect vent hose periodically |
| Safety Features | Overheat protection, door lock, child lock |
| Spare Parts Availability | Genuine parts available from Mabe service centers |
| Repair Index | 7.5 / 10 |
| Noise Level | 65 dB(A) |
| Color | White |
Frequently Asked Questions - SMV630DEWWY Mabe
How do I clean the lint filter on my Mabe SMV630DEWWY dryer?
Open the door, pull the lint filter upward from the bottom of the door opening, open the filter screen, and remove lint by hand or with a soft brush. Rinse with water if needed, dry thoroughly, and reinsert. Clean after every cycle.
What should I do if the dryer does not start?
Check that the door is fully closed and latched. Ensure the dryer is plugged in and the circuit breaker is not tripped. Verify that the start button is pressed. If the problem persists, check the child lock feature is disabled.
How can I reduce drying time?
Avoid overloading the dryer. Select a higher heat setting if appropriate for the fabric. Ensure the lint filter and vent hose are clean for maximum airflow. Use the Timed Drying program if needed.
What does the 'Cool Down' feature do?
The Cool Down feature runs the dryer with cool air at the end of a cycle to reduce the temperature of the clothes, making them cooler to the touch and reducing wrinkles.
Can I install the dryer in a closet?

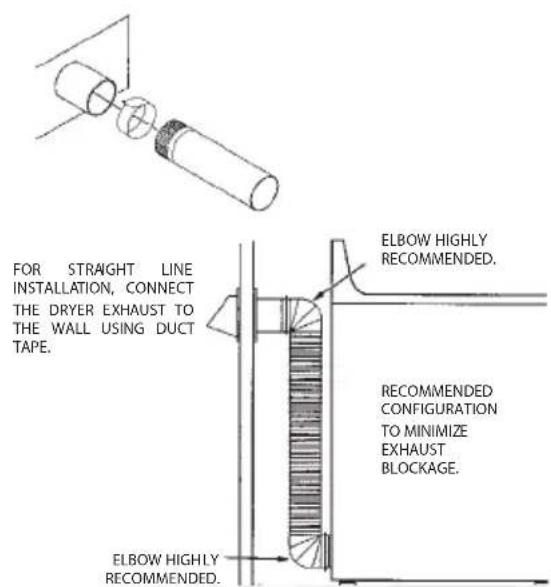

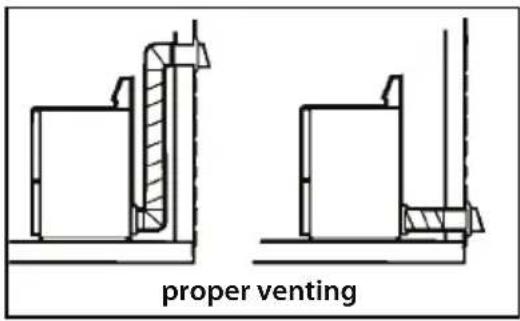

The dryer requires proper ventilation. If installed in a closet, ensure there is adequate airflow and the vent hose is properly routed to the outside. Refer to the manual for space requirements.
How do I activate the child lock?
Press and hold the Child Lock button (if available) for 3 seconds until the indicator appears. To deactivate, repeat the process. This prevents accidental changes to settings during operation.
Why is the dryer taking too long to dry?
Check if the lint filter is clogged, the vent hose is blocked, or the load is too large. Also ensure the selected program matches the fabric type. A dirty moisture sensor can also cause extended drying.
What is the maximum load capacity?
The maximum load capacity is 6.5 kg for cotton items. For synthetics or mixed loads, reduce the load to about half to ensure proper drying.

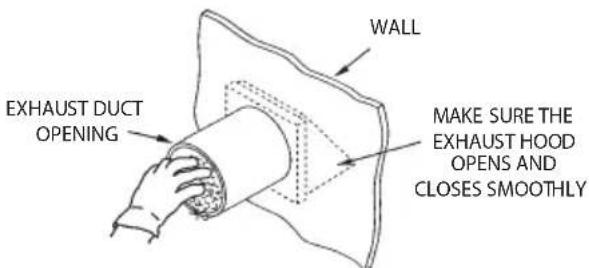

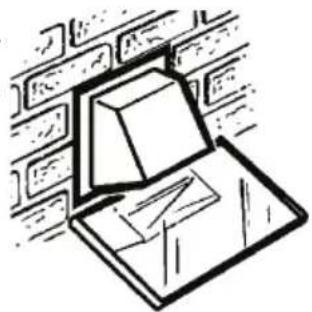

How often should I clean the vent hose?
Inspect the vent hose every 6 months and clean if lint buildup is visible. Disconnect the hose, remove lint manually, and reassemble. A clean vent improves efficiency and safety.
Where can I find replacement parts for my Mabe dryer?
Contact Mabe customer service or visit an authorized service center. Genuine parts such as belts, heating elements, and door seals are available. Provide the model number SMV630DEWWY.
