| Brand | Mabe |
| Model | SMV749NXPRR |
| Product Type | Tumble Drier |
| Installation Type | Vented |
| Energy Source | Electric |
| Rated Voltage | 120 V |
| Rated Frequency | 60 Hz |
| Power Consumption | ~1500 W (heating) |
| Drying Capacity | 7.0 kg (15.4 lbs) |
| Drum Material | Stainless Steel |
| Number of Drying Cycles | 8 |
| Temperature Settings | 3 (High, Medium, Low) |
| Control Type | Electronic with LED Display |
| Lint Filter | Removable, Cleanable |
| Moisture Sensor | Yes (Auto Dry Cycles) |
| Drum Light | Yes |
| Delay Start | Up to 12 Hours |
| Door Reversible | Yes (Left Hinge as Shipped) |
| Dimensions (H x W x D) | 850 x 600 x 600 mm |
| Net Weight | 42 kg (92.6 lbs) |
| Noise Level | < 65 dB |
| Included Accessories | Exhaust Hose, Vent Kit |
Frequently Asked Questions - SMV749NXPRR Mabe

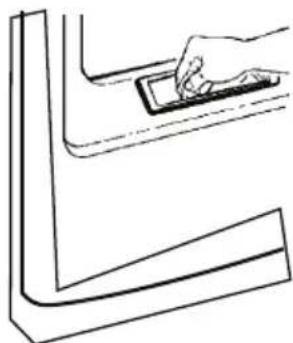

How do I clean the lint filter?
Open the door and pull the lint filter upward. Remove lint by hand or with a soft brush. For thorough cleaning, rinse the filter under running water and dry completely before reinserting. Always clean the lint filter after each use to maintain efficiency and prevent fire hazards.
Why is my dryer not heating?
First, check that the circuit breaker or fuse is not tripped. Ensure the power cord is securely plugged into a working outlet. If the dryer still does not heat, the thermal fuse or heating element may be defective. Contact a qualified technician for repair.

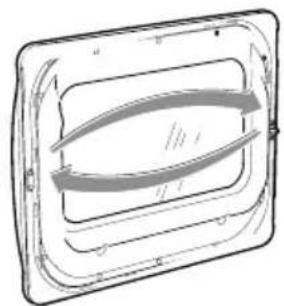

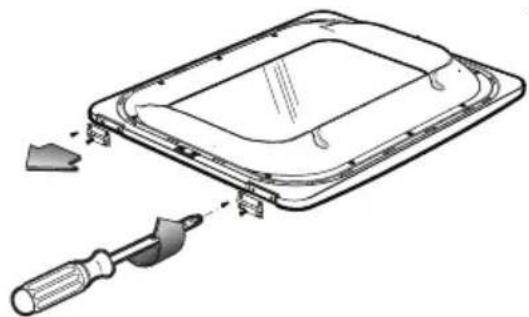

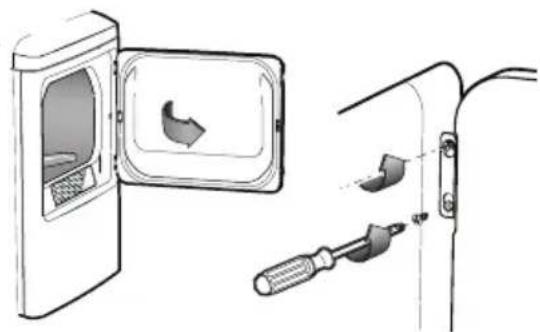

How do I reverse the door swing?
Unplug the dryer. Remove the screws holding the door hinge and bracket. Move the hinge to the opposite side and reattach. The door catch plate must also be switched. Refer to the manual for exact screw positions. This process allows reversible door installation for flexible placement.
What is the maximum drying capacity?
The rated capacity is 7.0 kg (15.4 lbs) for cotton items. Do not overload to ensure proper tumbling and efficient drying. Overloading can cause long drying times and damage the dryer.
How do I use the moisture sensor?
Select an auto dry cycle (e.g., Cotton Normal, Synthetics). The moisture sensor inside the drum detects humidity and automatically stops the cycle when clothes reach the desired dryness level. This saves energy and prevents over-drying.

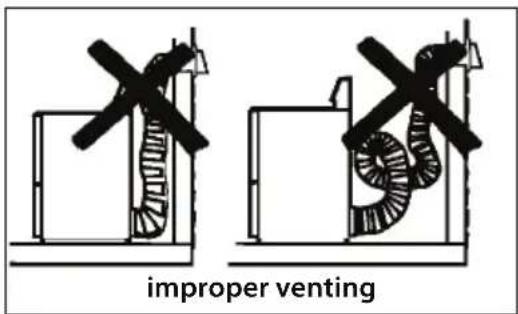

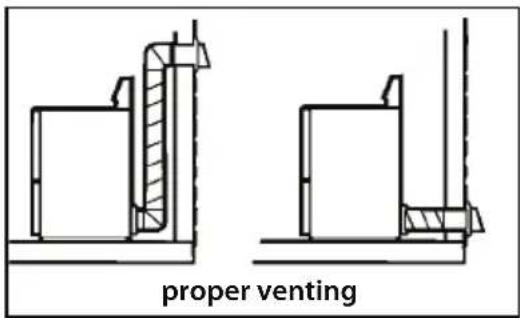

Why is my dryer taking too long to dry?

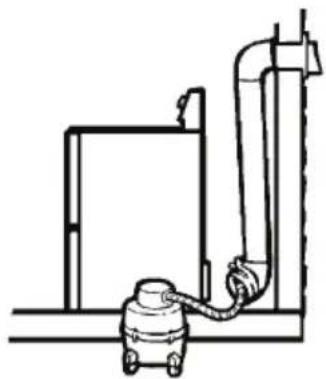

Check the lint filter for clogs. Ensure the exhaust vent is not blocked or kinked. A dirty condenser (if model has one) or restricted airflow are common causes. Also, avoid overloading and use appropriate cycle settings.
How do I adjust the buzzer volume?
Press and hold the Sound or Buzzer button for 3 seconds to cycle through volume levels (off, low, high). Some models may have a separate menu. Refer to the manual for specific instructions.
Where is the model number located?
The model number and serial number are on a rating plate located inside the door frame or on the back of the dryer. You can also find it in the user manual cover page.
How do I clean the drum interior?
Wipe the drum with a soft, damp cloth and a mild detergent. Rinse thoroughly. Do not use abrasive cleaners. After cleaning, run a drum clean cycle if available, or run a short cycle with empty drum to remove residues.

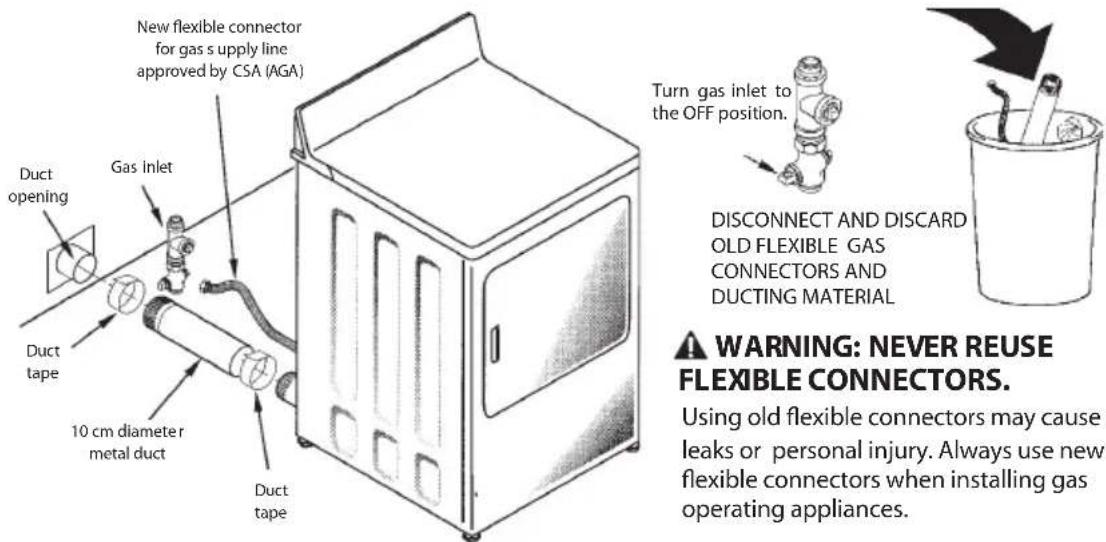

Can I install it myself?
Yes, but ensure proper ventilation and electrical connection. Use the included exhaust hose and vent kit. Level the dryer using the adjustable feet. If unsure, hire a professional installer. Always follow local building codes.
