NM822SL - Microwave NORDMENDE - Free user manual and instructions

Product Type	Solo Microwave
Brand	Nordmende
Model	NM822SL
Capacity	22 Liters
Microwave Power	800 Watts
Power Levels	6 Levels
Control Type	Electronic Touch
Display	LED Digital
Timer	Up to 99 Minutes
Defrost Function	By Time & Weight
Auto Cook Menus	8 Pre-set Programs
Turntable	Yes, Glass Tray
Interior Light	Yes
Child Lock	Yes
Dimensions (W x D x H)	46.0 x 38.0 x 28.0 cm
Weight	12.5 kg
Power Supply	230V / 50Hz
Energy Consumption	1150 W
Cleaning	Wipe with damp cloth; avoid abrasives
Safety Features	Overheat protection, door interlock
Spare Parts Availability	Glass tray, waveguide cover, fuse
Repairability Index	7.5 / 10

Frequently Asked Questions - NM822SL NORDMENDE

How do I set the timer on the Nordmende NM822SL?

Press the Time button, then use the + and - buttons to set the desired cooking time. Up to 99 minutes.

Can I use metal containers in this microwave?

No, metal containers can cause sparks. Use microwave-safe glass or ceramic dishes.

How do I activate the child lock?

Press and hold the Stop button for 3 seconds until a beep sounds. Repeat to unlock.

What does the defrost function do?

The defrost function allows you to defrost food by time or by weight. Select the desired option and follow the prompts.

Why is my microwave not heating?

Check that the door is fully closed and the timer is set. If the problem persists, ensure the fuse is intact.

How do I clean the interior?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. Remove the glass tray and wash separately.

What is the maximum cooking time?

The timer can be set up to 99 minutes in one session.

Can I cook popcorn in this microwave?

Yes, use the Popcorn auto menu or manual setting. Follow the package instructions for best results.

How do I set the clock?

Press the Clock button, then use the + and - buttons to set the hour and minute. Confirm with Clock again.

Where can I find the user manual?

The user manual is available for free download in PDF format on the official Nordmende website or notice-facile.com.

USER MANUAL NM822SL NORDMENDE

MODEL:NM820BL/NM822SL

Read these instructions carefully before using your microwave oven, And keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. (See Page 7, Oven part G)
(b) Do not place any object between the oven front face and the door or allow food or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the microwave is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	NM820BL/NM822SL
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1250W
Rated Output Power(Microwave):	800W
Oven Capacity:	1250W
Turntable Diameter:	245mm
External Dimensions(LxWxH):	461x357x280mm
Net Weight:	Approx. 11.4 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Only use utensils suitable for use in microwave ovens.
5. The oven should be cleaned regularly and any food deposits should be removed.
6. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
7. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
8. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
9. Do not overcook food
10. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
11. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

12. Install or locate this oven only in accordance with the installation instructions provided.

13. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has caused
    after microwave heating has ended.

14. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
15. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
16. Do not store or use this appliance outdoors.
17. Do not use this oven near water, in a wet basement or near a swimming pool.
18. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.
19. Do not let cord hang over edge of table or counter.
20. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
21. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
22. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

BS WIRING INSTRUCTIONS

See Technical Specification on Page 2

This appliance is designed to operate from a mains supply of AC230V \~ 50Hz. The unit is fitted with a 13amp (BS1363) mains plug. Should the fuse in the mains plug need replacing, a 13amp (BS1362) fuse must be fitted. Ensure the voltage of your electrical power supply matches those indicated on the rating plate located on the base of the appliance.

If the sockets in your home are not suitable for the plug supplied with the unit, the plug should be removed and fitted with an appropriate one.

Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are colored in accordance with the following code:

BLUE - NEUTRAL or Letter N or Colored Black

BROWN - LIVE or Letter L or Colored Red

GREEN AND YELLOW - EARTH or Letter E or Earth Symbol

If the Mains Cord is damaged it must be replaced by the Service Agents or a similarly qualified peson to avoid a hazard.

Cleaning Instructions

1) Keep the inside of the oven clean
Food spatters or spilled liquids stick to the oven walls and door surface. Spillovers should be wiped with a damp cloth right away. Crumbs and spillovers will absorb microwave energy and increase cooking times. Use a damp cloth to clean out crumbs that fall between the door and frame. This area must be kept clean to ensure a tight seal. Remove greasy spatters with a scapy cloth then rinse and dry. Do not use harsh detergents or abrasive cleaners. The glass tray can be washed by hand or in the dishwasher.
2) Steam may accumulate inside or around the outside of the oven door if the oven is operated under high humidity conditions. This does not indicate a malfunction of the unit. If this occurs wipe the panels with a soft cloth.
3) Clean the outside of your oven with soap and water then with clean water and dry with a soft cloth or paper towel. Be careful not to allow water to seep into the ventilation openings as this could cause damage to the operating parts of the oven. Clean the control panel using a damp cloth followed by a dry cloth. It is recommended to keep the door open when cleaning control panel to prevent accidental starting of the oven.
4) The door and seals must be kept clean, using only warm soapy water, rinse and then dry.
DO NOT USE ABRASIVE MATERIALS SUCH AS CLEANING POWDER OR STEEL OR PLASTIC PADS ON YOUR MICROWAVE OVEN.
Metal parts will be easier to maintain if wiped frequently with a damp cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be silt, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven
Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

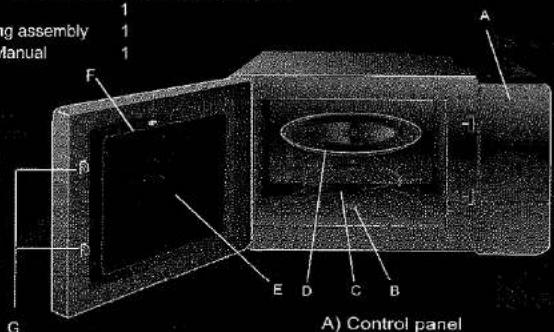

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shut off oven power if the door is opened during operation.

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.
(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press "Clock/Pre-set", the hour figures will flash, and the indicator for clock "移" will light.
2) Turn " " to adjust the hour figures, the input time should be within 0-23.
3) Press "Clock/Pre-set", the minute figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press "Clock Preset" to finish clock setting. The indicator for clock "will go cut," will flash, and the time will light.

0:00
9:00
5:00
9:58
9:58

2. Cooking food

Press "Microwave" and turn "☐" to select the function you want. Press "Microwave" and turn "☐" to select the cooking time. Press "Quick Start/Start" to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.
1) Press "Microwave" the screen display "P100".
2) Turn "P 80" to adjust 80% microwave power until the oven displays "P 80".
3) Press "Microwave" to confirm, the screen displays "P 80".
4) Turn " [icon] " to adjust the cooking time until the oven displays "20:00".
P100
B B
P 88
300

5) Press "Quick Start/Start" to start cooking or press "Cancel/Stop" to cancel the settings.

Microwave Power Chart

Power	High	M.High	Med	M.Low	Low
Display	P100	P80	P50	P1)	P10

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

1. Program set in Advance

1) Set the clock first. (Consult the instruction of clock setting.)

2) Input the cooking program. Three stages can be set at most. Defrosting should always be set as the first stage, if it is included in the multi-level program.

3) Press "Clock/Pre-set", the hour figures will flash, and the indicator

"will light.

4) Turn " [icon] " to adjust the hour figures, the input time should be within 0-23.

5) Press "Clock Pre-set", the minute figures will flash.

6) Turn " " to adjust the minute figures, the input time should be within 0--59.

7) Press "Quick Start/Start" to finish setting. The indicator for clock "E" will flash. If the door is closed, buzzer will ring twice when the time arrives, then cooking will start automatically and the indicator for clock "E" will go out. The indicators of cooking will flash,

1. Quick Start/Start

When the oven is in the waiting states, Press "Quick Star/Start" to start cooking food with full microwave power for 1 minute. Each press will increase one minute. The maximum cooking time is 95 minutes.

1. Defrost By WEIGHT

1) Press "Defrost By Weight" button. LED will display "dEF1", " [ ] and " [ ] " will light.

2) Turn "2" to select the weight of food, "g" will light.

3) Press " Quick Start/Start " to start defrosting food. " and " will flash.

1. Defrost By Time

1) Press "Defrost By Time" button. LED will display "dEF2", "×" and "★" will light.

2) Turn " " to select the cooking time.

3) Press "Quick Start/Start" to start defrosting food. " " and " " will flash.

1. Inquiring Function

(1) In one stage cooking state, press "Microwave", the current microwave power will be displayed for 4 seconds. After 4 seconds, the oven will turn back to the former state;
(2) In cooking state, press "Clock Press" to inquire the time and the time will flash in the LED for 4 seconds.

1. Multi-section cooking

At most 3 sections can be input for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Note: Auto cooking can not work in the multi-section cooking.

Example: If you want to use "20 minutes of 100% microwave power + 5 minutes of 80% microwave power" to cook.

1) Press "MicroVare" pad, the screen display "P100".

2) Press "Microwave" to select 100% microwave power.

3) Turn " " to select cooking time.

4) Press "Microwave" pad, the screen display "P100".

5) Turn " " to select 80% microwave power.

6) Press "Microwave" pad, then turn " " to select cooking time of 80% microwave power.

7) Press "Quick Start/Start" to start cooking or press "Cancel/Stop" to cancel the setting. The unit will turn back to the clock state. The oven will start cooking when the time arrives.

9. Auto Menu

Example: If you want to use "Auto Menu" to cook fish of 250g.

1) Press "Auto Menu" the oven display "A-1", "", and "", will light.

2) Turn " " to select the function you want.

3) Press "Auto Menu" button to confirm.

4) Turn " to select weight of fish. "g" will light.

5) Press "Quick Start/Start" to start. "g" will go out, "☐" and "☐" will flash.

The automatic menu procedure:

Menu	Order	Weight	Display
A-1Auto Reheat	1	450 g	2.00
		450 g	7.00
		450 g	9.00
A-2Vegetable	1	450 g	3.00
		450 g	9.00
		450 g	7.00
A-3Fish	1	450 g	8.50
		450 g	7.50
		450 g	9.50
A-4Meat	1	450 g	9.50
		450 g	9.50
		450 g	9.50
A-5Pasta	5	50 g(with cold water 450)	7.50
		100 g(with cold water 800)	9.50
A-6Potato	1	450 g	3.00
		450 g	9.00
		600 g	9.00
A-7Pizza	5	450 g	9.00
		450 g	9.00
A-7Pizza	5	600 g	9.00
		600 g	9.00

10. Lock-out Function for Children

Lock: In waiting state, press "Cancel/Stop" for 3 seconds, there will be a long beep denoting entering into the children-lock state and LED will display "☑ ☐". Lock quitting: In locked state, press "Cancel/Stop" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Maintenance
Troubleshooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It does no damage to oven if oven operates empty for quite short time. But it should be avoided.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repairs only by service agents or similarly qualified person)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Guarantee

This appliance is guaranteed for 12 months from the date of purchase, against defective workmanship or materials.

The appliance should be returned to the place of purchase with its original receipt for repair, replacement or refund.

The guarantee excludes misuse or failure to follow instructions.

This guarantee is in addition to your statutory rights as a consumer.

Distributed by:

Zenith Electrical Appliances Ltd.,

KAL Group of Companies,

4078 Kingswood Road,

Citywest Business Campus,

Dublin 24

Tel: [phone]

Fax; 00 353 1 4136453

E mail; [e-mail]
