Product Type	Canister Vacuum Cleaner
Model	Pluser VC3050.0 SK
Brand	Zelmer
Dimensions (L x W x H)	Approx. 40 cm x 25 cm x 30 cm
Weight	Approx. 5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	800 W
Suction Power	Adjustable, max 300 air watts
Dust Capacity	2.5 L (bag type)
Filtration System	HEPA filter (washable)
Noise Level	Approx. 75 dB(A)
Cord Length	5 m
Operating Radius	8 m (with hose)
Hose Length	1.5 m
Included Accessories	Floor nozzle, crevice tool, dusting brush, upholstery tool
Bag Replacement Indicator	Yes
Variable Speed Control	Electronic slider on handle
Parking/Storage System	Vertical park position
Maintenance	Clean HEPA filter every 3-6 months; replace bag when full
Spare Parts / Repairability	Available: dust bags, HEPA filter, hose, nozzles
Safety Features	Thermal overload protection, automatic cord rewind
Certifications	CE, RoHS

Frequently Asked Questions - Pluser VC3050.0 SK Zelmer

How do I change the dust bag on my Zelmer Pluser VC3050.0 SK?

Open the bag compartment lid, remove the full bag by pulling the cardboard tab, insert a new bag until it clicks, and close the lid securely.

How often should I clean the HEPA filter?

The HEPA filter should be cleaned every 3 to 6 months, or when the suction power noticeably decreases. Rinse it under lukewarm water and let it dry completely for 24 hours before reinserting.

What does the bag full indicator look like?

When the dust bag is full or airflow is restricted, a red indicator on the vacuum body will show or a flap will rise. Refer to your manual for exact location.

Can I use the vacuum without a dust bag?

No, the Zelmer Pluser VC3050.0 SK is designed only for use with original dust bags. Operating without a bag may damage the motor and void the warranty.

How do I rewind the power cord?

Hold the plug and press the cord rewind button located on the top or side of the vacuum. Guide the cord gently to avoid whipping.

Which dust bag type does this model use?

It uses Zelmer type A dust bags (e.g., ZVC3050). Check your manual or the bag compartment for the exact model number.

Why is the suction power weak?

Possible causes: a full dust bag, a clogged hose or filter, or the suction power setting is too low. Check the bag, clean the filter, and increase the power slider.

How do I clean the floor nozzle?

Detach the nozzle from the tube. Use a brush to remove hair and debris from the bristles and the suction opening. Wash the brush strip if removable.

Is the vacuum suitable for pet hair?

Yes, it comes with an upholstery tool and a turbo brush (if included) that can help remove pet hair from furniture and carpets.

Where can I buy spare parts?

Spare parts like dust bags, HEPA filters, and accessories are available from Zelmer service centers or authorized online retailers. Use the model number Pluser VC3050.0 SK for compatibility.

USER MANUAL Pluser VC3050.0 SK Zelmer

Parketa birste "BNB" (Brush Natural Bristle) (22)

Parketihari "BNB" (Brush Natural Bristle) (22)

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety instructions

Danger! / Warning!

Health hazard

Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a qualified person in order to avoid a hazard.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Always unplug the appliance before cleaning, assembling or dismantling.

Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

Do not use the vacuum cleaner to clean people or animals, pay special attention to keep the nozzles away from eyes and ears.

Do not use the vacuum cleaner to clean liquids or other damp dirt.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

Caution!

Not observance can result in damage to possessions

Connect the vacuum cleaner only to a 220-240 V mains supply equipped with a 16 A fuse.

Do not unplug by pulling on cord.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.

Do not use the vacuum cleaner without the filters installed in the vacuum cleaner or if the filters are damaged.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.

Check the suction hose, the tubes and the nozzles – remove the dirt from the inside.

Do not vacuum fine dust such as: flour, cement, gypsum, toners for printers and copy machines etc.

Do not under no circumstances ever cover the air holes on the upper part of the housing during vacuuming. In this way you cover the escape holes in the outlet filter cover. The accumulation of hot air may lead to engine overheating, and consequently its failure or deformation of plastic parts.

Suggestion

Information on the product and suggestions for its use

The vacuum cleaner is for household use only.

Operate the appliance only in indoor spaces and vacuum only dry surfaces. Before vacuuming dry the carpets that were wet cleaned.

Technical parameters

The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A. Does not cause interferences with audio/video devices.

Does not require grounding

ZELMER vacuum cleaners meet the requirements of the applicable norms.

The appliance is in conformity with the requirements of the directives:

Low voltage appliance (LVD) - 2006/95/EC. -

Electromagnetic compatibility (EMC) - 2004/108/EC.

Noise level: 85 dB/A.

The appliance was marked by a CE sign on the rating label.

Static electricity

In the process of vacuuming of some surfaces in areas of low air humidity the device may become electrically charged. It is a natural phenomenon – it does not damage the device, and it is not considered to be a fault.

In order to minimize the phenomenon, we recommend you to:

discharge the device by touching metal items in the room with the pipe,

Increase air humidity in the room,

- se widely available antistatic agents.

Appliance elements

1 Outlet filter cover
2 Combination brush fastening
3 Plug and cord
4 Cord rewind button
5 Suction power regulation control
6 CYKLON dust container full indicator
7 ON/OFF button
8 CYKLON dust container fastening

9 Handle

10 Suction hose

11 Telescopic suction tube with a fastening hook

12 Outlet filter (installed in the vacuum cleaner)

13 Outlet filter frame (installed in the vacuum cleaner)

14 Basic HEPA filter (installed in the vacuum cleaner)

15 Foam filter (installed in the vacuum cleaner)

16 "CYKLON" dust container (part of the removable segment of the vacuum cleaner)

17 Inlet filter cone (installed in the vacuum cleaner)

18 Switchable combination brush

19 Crevice nozzle

20 Small brush

21 Small nozzle

22 Parquet brush "BNB" (additional equipment – may be bought in retail centers)

Preparing the vacuum cleaner for operation

① Press the side button on the end of the suction hose.
② Place the end of the suction hose in the vacuum cleaner. You should hear a distinctive click, if you do it right.
③ Attach the other end of the hose (the handle) to the suction tube.
④ Adjust the length of the telescopic suction tube by sliding the slider according to the arrow and pull out/ pull the tube together.
⑤ Assemble the proper nozzle or brush to the other end of the suction tube.
⑥ To clean hard surfaces – wooden floors, plastic floors, ceramic tiles etc. pull out the brush by pressing the switch on the combination brush according to the figure ____
⑦ Pull the plug and cord (3) out of the vacuum cleaner.

while pulling out the cord, pay attention to the yellow stripe which signals the end of the cord. Further attempts (pulling on cord) may result in damaging the cord.

⑧ Plug in the appliance.

Before turning the vacuum cleaner on, check whether the CYKLON dust container is installed in the chamber of the vacuum cleaner, and whether the inlet and outlet filters are installed in the vacuum cleaner.

⑨ Switch on the vacuum cleaner by pressing the "on/off" button (7).
⑩ The vacuum cleaner is equipped with a suction power regulation control. The power is controlled by means of a knob.
⑪ Turning the knob according to the label increases or respectively decreases the suction power.

Filter disassembly

Before changing the filters make sure that the vacuum cleaner is switched off and unplugged from the mains supply.

INLET FILTER CONE

It is necessary to clean the inlet filter cone from time to time.

① Remove the CYKLON dust container and empty it according to paragraph (F).
② Release the fastening of the HEPA basic filter (14) and remove it from the CYKLON dust container.
③ Press the button situated on the CYKLON dust container and open the bottom of the container.
④ Turn the inlet filter cone (17) clockwise.
⑤ Remove the inlet filter cone from the CYKLON dust container.
⑥ If the inlet filter cone (17) is dirty, it may be rinsed with running water. Remember to dry the cone before its reinstallation.

attention to the gasket placed bottom of the cone collar. Do not lose it.

the

⑦ Place a new/rinsed inlet filter cone into the socket in such a way that the two protrusions placed on the collar are situated under the fastening in the body of the container.
⑧ The cone should be pressed tightly and turned to the limit counterclockwise. A characteristic click notifies about a proper installation.
⑨ Snap the bottom of the CYKLON dust container.
⑩ Place the HEPA basic filter (14). Pay attention so that the two protrusions on the bottom part of the HEPA basic filter (14) find their way into the holes of the dust container.
⑪ Place the CYKLON dust container in the chamber of the vacuum cleaner. A characteristic click notifies about a proper installation.

BASIC HEPA FILTER & FOAM FILTER

It is necessary to clean the basic HEPA filter from time to time, as it is contaminated with dust.

Uninstall the CYKLON dust container and empty it according to paragraph (F).

① Release the fastening of the HEPA basic filter (14) and remove it from the CYKLON dust container.

② Remove the foam filter (15). If the foam filter (15) is dirty, it may be washed with running water. Remember to dry it off before reinstalling the filter.

The main function of the foam filter (15) is protecting the basic HEPA filter (14) from excessive dirt.

to safety reasons it is forbidden to install a wet or damaged foam filter (15).

- clean the pleads of the basic HEPA filter (14), if any of them are damaged, the filter definitely must be replaced. If the basic HEPA filter (14) is dirty, it may be washed with running water. Remember to dry it off before reinstalling the filter.

to safety reasons it is forbidden to install a wet or damaged basic HEPA filter (14).

Place the foam filter back into its place.

③ Put the new/rinsed HEPA basic filter (14) back in its place – pay attention to put the two protrusions in the bottom part of the HEPA basic filter (14) in the holes of the dust container. A characteristic click notifies about a proper installation.
④ Place the CYKLON dust container with the installed basic HEPA filter (14) in the chamber of the vacuum cleaner. A characteristic click notifies about a proper installation.

OUTLET FILTER

① In order to replace the outlet filter (12) pick up the vacuum cleaner handle, then press the fastenings on the cover of the outlet filter and slide out the cover out of the vacuum cleaner.
② Remove the outlet filter frame out of the vacuum cleaner.
③ Remove the outlet filter out of the frame fastenings. If the outlet filter (12) is dirty, it may be rinsed with running water. Remember to dry the filter, before its reinstallation.

to safety reasons, it is vital never to install a damp outlet filter.

④ Carefully put the new/rinsed filter onto all frame fastenings.

Place the cover in such a way that the two protrusions situated in the bottom part of the cover find their way into the holes in the body of the vacuum cleaner, and then press the filter cover to snap the fastenings on the body. A characteristic click notifies about a proper installation.

ys replace a damaged inlet filter only with a brand new one.

Disassembly/assembly of the "CYKLON" dust container

The vacuum cleaner is equipped with a removable CYKLON dust container (a removable segment of the vacuum cleaner) gathering all pollutants. When the CYKLON dust container is full, it needs to be emptied.

① The vacuum cleaner is equipped with a CYKLON dust container full indicator (6). When the CYKLON dust container full indicator (6) lights during operation (with the nozzle or the brush lifted above the cleaned surface) it means that the container is full and needs to be emptied. In addition the CYKLON dust container full indicator (6) may activate if the suction hose or the elements attached to the suction hose are clogged.
② Switch off the vacuum cleaner by pressing the "on/off" button (7).
③ Unplug the appliance.
④ Press the side button on the end of the hose, and then remove the end of the hose from the inlet hole of the vacuum cleaner.
⑤ Press the fastening of the CYKLON dust container (8) and remove the CYKLON dust container (16) from the vacuum cleaner.
⑥ Place the CYKLON dust container over a waste bin. Press the button on the CYKLON dust container and its contents will fall out into the bin.
⑦ After emptying the container, snap its bottom shut.

The container must be tightly closed. Otherwise the dust might enter the cleaner chamber and the suction power will be reduced.

⑧ Place the emptied CYKLON dust container into the vacuum cleaner. A characteristic click notifies about a proper installation.

Emptying the CYKLON dust container is necessary, when: a) the CYKLON dust container full indicator light is on, b) the vacuum cleaner operates poorly, c) the CYKLON dust container is full.

Special accessories

The following special accessories may be purchased in retail outlets:

Parquet brush "BNB" (22)

Is used to clean and polish hard, scratch sensitive surfaces such as wooden floors, floor panels, parquet, marble, tiles, etc.

Delicate and soft natural bristles ensure maximum vacuum effectiveness and protects against scratching the cleaned surface.

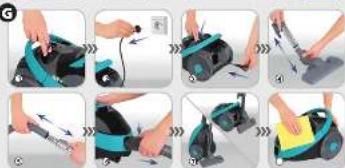

End of operation cleaning and maintenance

① Switch off the vacuum cleaner by pressing the "on/off" button (7).
② Unplug the appliance.
③ Wind the cord by pressing the cord rewind button (4). While doing this hold the cord to make sure it is not tangled and the plug does not hit the vacuum cleaner housing.
④ Disconnect the telescopic tube from the nozzle or brush.
⑤ Disconnect the telescopic tube from the hose.
⑥ Press the side button on the end of the hose, then remove the end of the hose from the inlet hole of the vacuum cleaner.
⑦ The vacuum cleaner may be stored in a vertical position – just place the fastening hook of the combination brush into the fastening of the combination brush. The hose may be connected to the vacuum cleaner. Yet it is necessary to make sure it is not bent to hard during storing time.

Horizontal storage:

- place the fastening hook of the combination brush into its fastening placed at the back of the vacuum cleaner, near the cord exit.

Vertical storage:

• place the combination brush on the telescopic tube,
• place the fastening hook on the telescopic tube into the fastening of the combination brush placed on the bottom of the vacuum cleaner, near the front wheel.

⑧ Clean the housing and the chamber of the vacuum cleaner with a wet cloth (it may be wet with washing agent), the dry them or wipe them dry.

Do not use abrasive detergents or solvents.

Examples of problems while operating the vacuum cleaner

PROBLEM ACTION

The vacuum cleaner has turned off during operation – thermal fuse was activated.Do not install the CYKLON dust container until the vacuum cleaner cools off.

Turn off the vacuum cleaner, unplug it and wait ca. 40n minutes before turning it on again.Remove, empty and clean the CYKLON dust container, as well as the inlet filter cone and the HEPA inlet filter.Check and clean accessories: suction hose, tubes, nozzles and brushes.Reassembly all the parts and turn the vacuum cleaner on.If the thermal fuse is activated too often or the vacuum cleaner will not turn on after cooling, the vacuum cleaner should be repaired by a professional in a service center.

PROBLEM ACTION
The vacuum cleaner works poorly.	Remove, empty and clean the CYKLON dust container, replace filters, check the suction hose, tube and the nozzle – remove the cause of clogging.
The electrical installation fuse went out.	Check if other appliances are not plugged to the same electrical circuit as the vacuum cleaner. If the fuse goes out repeatedly, return the vacuum cleaner to a service point.
The vacuum cleaner does not operate; the housing or the cord is damaged.	Return the vacuum cleaner to a service point.

Ecology – Environmental protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into proper containers.

Return a worn out appliance to a proper collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose of with household waste!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

B

G

D

E

F

G

PL

S###lllilead!

Gadzom kryse rupące wiatcna i vinky mind cytow do porów Zr. 2016. W. 30 zydans, wiatcna, mierami, zymiak (kryse wiatcna) in Zr. 2016. Zysek na aędkem na godyd zysu zysu. Pozycu wiatcna, przycu wiatcna, wiatcna, zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu zysu

Wukes

In handiakii, i am 100% in 2018, i am 100% in 2019, i am 100% in 2020, i am 100% in 2021, i am 100% in 2022, i am 100% in 2023, i am 100% in 2024, i am 100% in 2025, i am 100% in 2026, i am 100% in 2027, i am 100% in 2028, i am 100% in 2029, i am 100% in 2030, i am 100% in 2031, i am 100% in 2032, i am 100% in 2033, i am 100% in 2034, i am 100% in 2035, i am 100% in 2036, i am 100% in 2037, i am 100% in 2038, i am 100% in 2039, i am 100% in 2040, i am 100% in 2041, i am 100% in 2042, i am 100% in 2043, i am 100% in 2044, i am 100% in 2045, i am 100% in 2046, i am 100% in 2047, i am 100% in 2048, i am 100% in 2049, i am 100% in 2050, i am 100% in 2051, i am 100% in 2052, i am 100% in 2053, i am 100% in 2054, i am 100% in 2055, i am 100% in 2056, i am 100% in 2057, i am 100% in 2058, i am 100% in 2059, i am 100% in 2060, i am 100% in 2061, i am 100% in 2062, i am 100% in 2063, i am 100% in 2064, i am 100% in 2065, i am 100% in 2066, i am 100% in 2067, i am 100% in 2068, i am 100% in 2069, i am 100% in 2070, i am 100% in 2071, i am 100% in 2072, i am 100% in 2073, i am 100% in 2074, i am 100% in 2075, i am 100% in 2076, i am 100% in 2077, i am 100% in 2078, i am 100% in 2

Parugal

1. In the case of the first time, a person who has been being treated with a treatment in the first time is 20 minutes. The treatment is used to be a patient's treatment for the first time.

Mukazówka

1. Ate de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte de la parte of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same part of the same

Dose technolone

Tymyta zem yozny pomerzy, kore zem zem zem zem zem zem zem, zem zem zem zem, zem zem zem Zem zem zem zem zem zem zem Zem zem zem zem zem zem zem Zem zem zem zem zem zem zem Zem zem zem zem zem zem zem Zem zem zem zem zem zem zem Zem zem zem zem zem zem zem Zem zem zem zem zem zem Zem zem zem zem zem zem Zem zem zem zem zem Zem zem zem zem Zem zem zem Zem zem Zem

5.2.10.14

Notes
