Product Type	Remote Control Buggy Car
Brand	NINCO
Model	Buggy Storm NH93087
Scale	1:10
Dimensions (L x W x H)	Approx. 30 x 20 x 15 cm
Weight	Approx. 500 g (without batteries)
Power Source (Car)	Rechargeable 7.2V NiMH battery pack
Power Source (Transmitter)	4 x AA batteries (not included)
Charging Time	Approx. 4 hours
Running Time	Approx. 20 minutes per charge
Radio Frequency	2.4 GHz
Control Range	Up to 50 meters
Speed	Up to 30 km/h
Drive System	4WD (Four-wheel drive)
Suspension	Independent front and rear
Functions	Forward, reverse, left, right
Recommended Age	8 years and above
Safety Warnings	Not suitable for children under 3 years. Contains small parts. Use under adult supervision.
Maintenance	Clean with a dry cloth. Avoid water and moisture.
Spare Parts Availability	Available from NINCO authorized dealers
Warranty	1 year limited warranty

Frequently Asked Questions - Buggy Storm NH93087 NINCO

What type of batteries does the Buggy Storm NH93087 require?

The car uses a rechargeable 7.2V NiMH battery pack. The transmitter requires 4 AA batteries (not included).

How long does it take to charge the car battery?

Charging time is approximately 4 hours. Use only the charger provided with the vehicle.

What is the maximum control range of the remote control?

The 2.4 GHz transmitter provides a control range of up to 50 meters in open areas.

Is the Buggy Storm NH93087 waterproof?

No, it is not waterproof. Avoid driving in wet or muddy conditions to prevent damage.

What age is this toy recommended for?

It is recommended for children aged 8 years and above due to small parts and speeds.

Can I use a different battery with higher voltage?

No, using a battery with higher voltage may damage the electronics. Only use the specified 7.2V NiMH battery.

How do I replace the wheels or tires?

Wheels are attached with a hex nut. Use a suitable wrench to remove and replace with NINCO spare parts.

What should I do if the car doesn't respond to the controller?

Check batteries in transmitter and car. Re-pair by turning on car first, then transmitter. Ensure frequency is clear.

Where can I find spare parts for the Buggy Storm?

Spare parts are available from NINCO authorized dealers or online stores. Search for NH93087 spare parts.

How can I clean the car after use?

Use a dry or slightly damp cloth to wipe the body. Avoid water on electronics. Remove battery before cleaning.

USER MANUAL Buggy Storm NH93087 NINCO

Red and black off-road vehicle with visible tires and suspension components (no text or symbols)

NH93087

1/12 STORM BUGGY RTR 2,4 Ghz

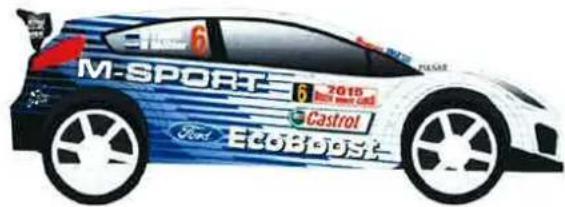

NH93072 NH93073

1/12 FORD RALLY RTR 2,4 Ghz

MANUAL DEL USUARIO

USER HANDBOOK

MANUAL DO USUARIO

HANDBUCH

MANUEL DE L'UTILISATEUR

MANUALE D'USO

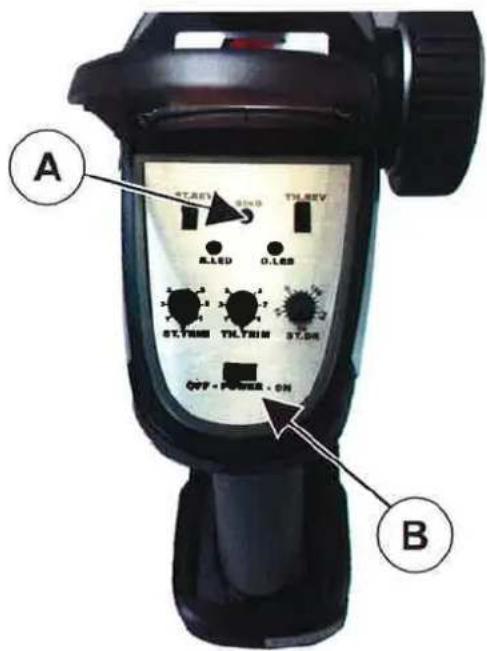

SINCRONIZACIÓN (COCHE-EMISORA) / BINDING PROCESS (CAR - TRANSMITTER)

Press and hold "BIND" button Ⓐ while we turn on the transmitter Ⓑ.

Press and hold "BIND" button ⓒ while we turn on the car Ⓓ.

Black handheld device with a circular head and handle, no visible text or symbols

Coche

Emisora 2,4Ghz

Motor

PBC 3-1 (Servo-ESC-RX)

Bateria Li-Po 7,4v 1500mAh

Requiere 8 pilas AA

NOTA:

Top-down view of a black electronic device with two white arrows pointing outward from its side (no text or symbols visible)

Black handheld device with a circular head and a smiling face, no visible text or symbols

Black handheld device with a circular head and arrow indicator (no visible text or symbols)

Black handheld device with circular head and arrow indicator (no text or symbols)

Black handheld device with a circular head and directional arrow, no visible text or symbols

Black handheld device with circular head and directional arrows indicating motion (no text or symbols)

Black handheld device with a circular head and directional arrow (no text or symbols visible)

1. Abrir gatillo (marcha atrás)

Please read carefully the instructions before using the car.

FEATURES:

NH93072-73 - 1/12 FORD RALLY 2,4 Ghz

Length	Width	Height	Wheel base	Gear ratio	Ground clearance	Wheel diameter	Wheel width	Motor
410mm	210mm	145mm	275mm	1:8,2	25mm	72mm	30mm	Rc380

NH93087 - 1/12 BUGGY STORM 2,4 Ghz

Length	Width	Height	Wheel base	Gear ratio	Ground clearance	Wheel diameter	Wheel width	Motor
340mm	210mm	115mm	275mm	1:8,2	25mm	72mm	29/35mm	Rc380

CONTENTS:

Items needed for running

Car

Transmitter 2,4Ghz

Motor

PBC 3-1 (Servo-ESC-RX)

Battery Li-Po 7,4v 1500mAh

8 AA batteries required

NOTE:

-Charge the battery for 8-10 hours for the first time usage. Do not charge the battery unattended.

-When the car is blocked, do not continue to pull/push the trigger, this will cause the ESC to overheat and damage the ESC

The following items, not included in the kit, are required for assembling your model:

Hexagonal screwdriver

4-way cross wrench

4-way cross wrench

mini screwdriver

Scissors

needle nose cutter

Wire cutter

TRANSMITTER

The transmitter requires 4 AA batteries.

Close-up of a black electronic device with two white arrows pointing outward, no visible text or symbols.

Slide the battery cover to open the battery compartment.

Replace the battery cover after 8AA batt. are installed.

Battery precautions:

We recommend to use the 1,5V alkaline batteries instead of the 1.2V chargeable batteries.

Do not install with wrong polarities.

Do not use batteries of different types and do not mix old and new batteries.

Do not leave batteries if not in use for a long period.

Please replace batteries when power indicators are weak

Function switches of the transmitter:

1. Steering trim

2. Throttle trim

3. Trigger

4. Biding

5. Power indicator

6. Switch on-off

7. On-off indicator

8. Control wheel

9. Steering Dual rate

10. Inversor servos

How to drive:

Black handheld device with circular head and handle, no visible text or symbols

1. Trigger at the neutral position (stop) (forward) (de

Black handheld device with circular head and arrow indicator (no visible text or symbols)

1. Pull the trigger erate)

Black handheld device with circular head and directional arrows indicating motion (no text or symbols)

1. Back to neutral

Black handheld device with a circular head and directional arrow, no visible text or symbols

1. Push the trigger (breaking)

Black handheld device with circular head and directional arrows, no visible text or symbols

1. Release the trigger to neutral

Black handheld device with a circular dial and directional arrow, no visible text or symbols

1. Push the trigger (backwards)

Black handheld electric shaver with a circular head and handle (no visible text or symbols)

Coche

Emisora 2,4Ghz

Motor

PBC 3-1 (Servo-ESC-RX)

Bateria Li-Po 7,4v 1500mAh

Requiere 8 pilas AA

NOTA

-Carregar a bateria durante 8 a 10 horas antes de seu primeiro uso. Durante o proceso de carga, supervisione a batería.

Top-down view of a black automotive battery casing with white arrows indicating flow direction (no text or symbols)

Black handheld device with a circular head and handle, no visible text or symbols

Black handheld device with a circular head and arrow indicator (no visible text or symbols)

Black handheld device with circular head and directional arrows indicating motion (no text or symbols)

1. Voltar a neutro

Black handheld device with a circular head and arrow indicator (no visible text or symbols)

Black handheld device with circular head and double-headed arrow indicating rotation (no text or symbols)

Black handheld device with circular head and arrow indicator (no text or symbols)

1. Empurrar gatillo (marcha atrás)

Black handheld device with a circular head and handle, resembling a handheld electric shaver or trigger device (no visible text or symbols)

Farzeugh

Sender 2,4Ghz

Motor

PBC 3-1 (Servo-ESC-RX)

Batterie Li-Po 7,4v 1500mAh

Top-down view of a black car with two white arrows pointing left and right, no visible text or symbols

Black handheld device with a circular head and handle, no visible text or symbols

Black handheld device with a circular head and directional arrow, no visible text or symbols

Black handheld device with circular head and two directional arrows indicating motion (no text or symbols)

1. Zurück zu Neutral

Black handheld device with a circular head and arrow indicator (no text or symbols)

Black handheld device with circular head and directional arrows indicating motion (no text or symbols)

Black handheld device with a circular head and arrow indicator (no visible text or symbols)

Black handheld device with a circular head and handle, no visible text or symbols

Voiture

Emetteur 2,4Ghz

Motor

PBC 3-1 (Servo-ESC-RX)

Batterie Li-Po 7,4v 1500mAh

Top-down view of a black electronic device with two white arrows pointing left and right (no text or symbols visible)

Black handheld device with a circular head and handle, no visible text or symbols

Black handheld device with a circular dial and directional arrow, no visible text or symbols

Black handheld device with a circular head and double-headed arrow indicating rotation or bidirectional motion (no text or symbols visible)

1. Retour au point

Black handheld device with a circular head and arrow indicator (no visible text or symbols)

Black handheld device with circular dial and bidirectional arrow indicator (no text or symbols)

Black handheld device with circular head and arrow indicator (no text or symbols)

1. Poussez la

Black handheld device with a circular head and handle, no visible text or symbols

Auto

Top-down view of a black electronic device with two white arrows pointing left and right (no visible text or symbols)

Black handheld electronic device with a circular head and handle (no visible text or symbols)

Black handheld device with a circular head and arrow indicator (no visible text or symbols)

1. Tirare il grilletto

Black handheld device with a circular head and directional arrows indicating motion or movement (no text or symbols visible)

Black handheld device with circular head and directional arrow (no visible text or symbols)

Black handheld device with circular head and directional arrows indicating motion (no text or symbols)

Black handheld device with circular head and directional arrow (no visible text or symbols)

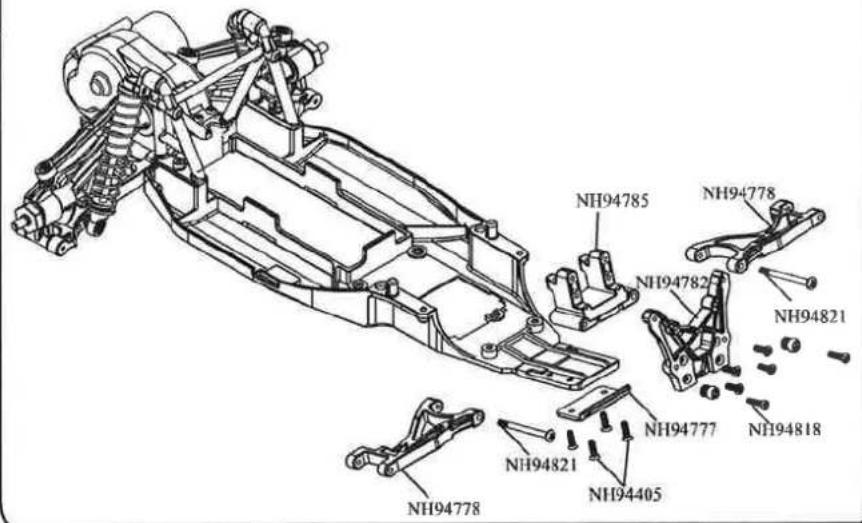

④ Front Lower Suspension Arms Assembly

5 Front steering Assembly

This is a sophisticated hobby product and not a toy. Children under the age of 14 are forbidden. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product in not intended for use by children without direct adult supervision. The product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or injury.

PORTUGUES

Red square icon with two white gear symbols (no text or labels)

SERVICIO TÉCNICO ON-LINE

For service, spare parts and warranty visit www.ninco.com for all information, videos, spare parts and service available online.

NINCO DESARROLLOS S.L. hereby declares that this radio control system is in accordance with the basic requirements of the following European directives: 98/37 EG and 89/336/EWG and other relevant regulations of guideline 1999/5/EG (R&TTE). The original declaration of conformity can be obtained clicking downloads in the following internet address: www.ninco.com

NINCO4RC is brand of NINCO DESARROLLOS S.L.

Ctra. de l'Hospitalet 32

08940 Cornella Barcelona Spain

CIF B-60307725 · www.ninco.com

C € 0678

MADE IN CHINA
