5321 CLi USB - Payment terminal HID Identity - Free user manual and instructions

Product Type	Payment Terminal / Smart Card Reader
Brand	HID Identity
Model	5321 CLi USB
Interface	USB 2.0 (Type-A)
Dimensions	120 x 75 x 40 mm
Weight	200 g
Power Supply	USB bus-powered (5V, 500 mA)
Card Support	Contactless (ISO 14443 A/B, MIFARE, FeliCa), Contact Chip Card (ISO 7816)
Operating Frequency	13.56 MHz (contactless)
Communication Protocol	PC/SC, CCID
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	5% to 95% non-condensing
IP Rating	IP41 (splash resistant)
LED Indicators	Power, Data activity, Card detection
Cable Length	1.8 m (USB cable)
Material	ABS plastic
Color	Black or White
Compliance	CE, FCC, RoHS, EMV Level 1
Warranty	1 year limited
Included Accessories	USB cable, Quick start guide
Cleaning	Wipe with soft dry cloth; avoid liquids
Security	Secure element, encryption, tamper detection
Repairability	Not user-serviceable; contact support

Frequently Asked Questions - 5321 CLi USB HID Identity

How do I connect the HID 5321 CLi USB to my computer?

Plug the USB cable into an available USB port on your computer. The device is plug-and-play and should be recognized automatically as a CCID smart card reader. No additional drivers are needed for most operating systems.

What types of cards does the terminal support?

It supports contactless cards (ISO 14443 A/B, MIFARE, FeliCa) and contact smart cards (ISO 7816). It can read most common payment and identification cards.

How should I clean the payment terminal?

Disconnect the device from USB. Use a soft, dry, lint-free cloth to wipe the exterior. Do not use any liquids, sprays, or abrasive cleaners. For stubborn dirt, slightly dampen the cloth with water and dry immediately.

What do the LED indicators mean?

A steady green LED indicates power on. Blinking green shows data activity. A blue LED may indicate contactless card detection. Refer to the manual for exact patterns.

Is the device compatible with my operating system?

The terminal is PC/SC compliant and works with Windows, macOS, and most Linux distributions without additional drivers. It supports CCID protocol for seamless integration.

The terminal is not recognized by my computer. What should I do?

First, try a different USB port or cable. Ensure the USB port supplies adequate power. On Windows, check Device Manager for unknown devices; on macOS, check System Information. Restart your computer. If the issue persists, reinstall USB controllers or contact HID support.

Can I use this terminal for contactless payments?

Yes, it supports contactless payment cards (EMV contactless) as well as NFC-enabled mobile wallets. Ensure your software application supports the required protocols.

What is the maximum read distance for contactless cards?

The typical read range is up to 4 cm depending on the card type and environment. For optimal performance, hold the card flat and close to the contactless symbol.

How do I update the firmware on the HID 5321 CLi USB?

Firmware updates are performed via proprietary HID software tools. Visit the HID Global website and download the latest firmware and update utility. Follow the instructions provided with the tool.

What is the warranty period and how do I claim it?

The device comes with a limited 1-year warranty from the date of purchase. For warranty claims, contact HID Identity support or your authorized reseller with proof of purchase and the serial number.

USER MANUAL 5321 CLi USB HID Identity

© 2008 - 2012 HID Global Corporation. All rights reserved.

This guide describes the HID OMNIKEY® Smart Card Reader installation. Reference your driver documentation (readme) for a list of supported windows versions.

Three types of installation exist:

• Unattended (preferred installation)
• Automatic (internet connection required)
- Manual

Unattended

The Unattended installation is the preferred method. Unattended installation files are found at www.hidglobal.com/omnikey.

Optionally, obtain these files from an installation CD (if available).

1. To download the latest HID OMNIKEY Unattended setup drivers, go to: www.hidglobal.com/omnikey, and select Driver Downloads.
2. Select your OMNIKEY product and operating system.
3. From the list, select the Unattended Setup Installer and confirm the license agreement.
4. Double-click the executable file and follow the instructions displayed in the setup window.

Note: In addition, download API drivers. The SYNC-API is often required for applications with memory or contactless (HID iCLASS) cards. While the CT-API is often required for PinPad reader use (electronic signature applications), as well as health care applications.

In standard installations, installing these APIs is suggested.

CAUTION:

• For driver installation local administration rights may be required.

• Do not plug-in the OMNIKEY reader into your computer until setup is complete.

• Execute the Unattended Setup.EXE file and follow the Install Wizard instructions.

Note: For uninstalling the OMNIKEY drivers, restart the setup or (from the control panel) use Add/Remove Programs.

1. After finishing the installation, plug-in your reader to the port (USB, ExpressCard, or PCMCIA).
2. Windows automatically detects and installs the new hardware connected to the port (USB, ExpressCard, or PCMCIA).

Proceed to the OMNIKEY Workbench section for testing and installation.

Automatic

Ensure your computer has an online connection to the Internet.

1. Connect the reader to the computer port (USB, ExpressCard, or PCMCIA).
2. Windows detects the new hardware connected to the port (USB, ExpressCard, or PCMCIA) and requests the drivers.
3. After the Windows Hardware Wizard opens. Windows requests to connect to Windows Update to search for software, click Yes, this time only.
4. The OMNIKEY reader automatically is recognized and the appropriate driver installed through Windows Update.

The OMNIKEY reader is ready for use.

Note:

If your OMNIKEY reader is CCID compliant, use a native Windows CCID driver to operate the reader. However the native driver does not allow you to utilize the readers advanced features and functions.

Proceed to the OMNIKEY Workbench section for testing the installation.

Manual

For manual driver installation, local administration rights may be required.

Original OMNIKEY drivers must be locally available on your computer (for example, after internet download or from a CD).

1. To download the latest OMNIKEY drivers, go to: http://www.hidglobal.com/omnikey, and select Driver Downloads.
2. Select your OMNIKEY product and operating system.

3. From the list, select the driver for download and confirm the license agreement.
   Note: In addition, download API drivers. The SYNC-API is often required for applications with memory or contactless cards (HID iCLASS). While the CT-API is often required for PinPad reader use (electronic signature applications), as well as health care applications.
   In standard installations, installing these APIs is suggested.

4. After downloading the self-extracting file, execute the file to extract the drivers to the local hard drive (default path c:\HID Global).

Note: Drivers have not yet been installed.

1. Select the driver location, click Next.

2. Once the drivers are stored on the computer, connect the OMNIKEY reader to the port (USB, ExpressCard, or PCMCIA) and start the installation process. When the Windows Hardware Wizard requests for the driver, select Install from a list or specific location.

3. Check Include this location in search and specify the location where the drivers are stored (for example: C:\HID Global\5x21_V1.2.9.2). Click Next. When installation is complete, click Finished.

Note: If using unsigned BETA drivers, choose the Don't search, I will choose the driver to install radio button.

After finishing the installation your OMNIKEY Smart Card Reader is ready for use.

Installation Check

Ensure your device is recognized and listed in the Windows Device Manager dialog, for example OMNIKEY 5x21, in the Smart Card Reader section.

Note: If you are using an OMNIKEY reader with a native CCID driver, the reader is listed as a CCID compliant device.

1. Open Windows Explorer. Click Start > Programs > Accessories > Click Windows Explorer.
2. Open the Device Manager. Right-click Computer > Properties > click Device Manager.
3. Expand the Smart card readers and ensure the OMNIKEY reader is found.

Proceed to the OMNIKEY Workbench section for testing the installation.

Release Notes

When installing with Unattended or Manual options, the readme, and Driver Release Notes are installed by default at C:\Program Files\HID Global\HID OMNIKEY Workbench.

OMNIKEY Workbench

1. Download the latest OMNIKEY OMNIKEY Workbench, by going to: http://www.hidglobal.com/omnikey. Select Driver Downloads.
2. Select your OMNIKEY product and operating system. Choose to download the OMNIKEY Workbench and confirm the license agreement. When download is complete, click Run.

Note: The OMNIKEY Workbench only works with OMNIKEY readers. Older drivers uses a Diagnostic tool which is available from the control panel.

Start the OMNIKEY Workbench from the program shortcut. Go to Start > Programs > HID Global > OMNIKEY Workbench.

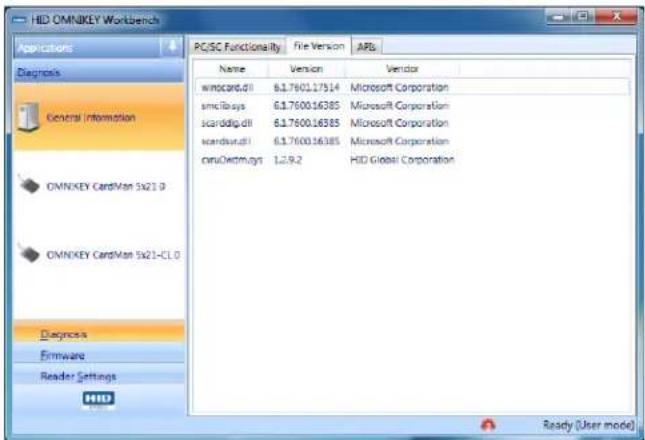

OMNIKEY Workbench provides various applications. On startup the Diagnosis application shows the General Settings view with different tabs for smart card reader service status. Also shown is the driver file and API DLL information.

The Diagnosis application also lists all connected OMNIKEY smart card reader details (per the available contact and contactless interface).

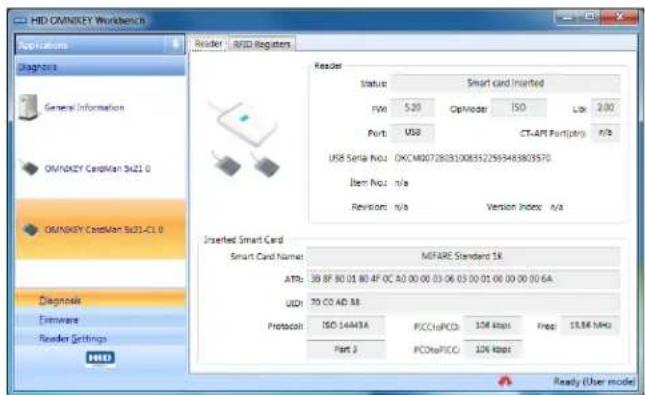

For a functional test, insert a working smart card into the reader. As a result, an ATR string and other card details display.
