Product Type	Freestanding Refrigerator
Brand	GRAM
Model	KFD35
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Energy Class	A+
Annual Energy Consumption	220 kWh
No Frost System	Yes
Climate Class	SN-T
Total Gross Capacity	350 L
Refrigerator Capacity	260 L
Freezer Capacity	90 L
Freezing Capacity	4 kg/24h
Adjustable Shelves	Yes (glass shelves)
Temperature Control	Electronic, adjustable
Door Reversible	Yes
Interior Light	LED
Cooling System	Static with fan
Defrosting	Automatic (No Frost)
Power Supply	220-240 V, 50 Hz
Cleaning	Wipe interior with mild detergent, avoid abrasives
Safety Features	Anti-tip, stable leveling, ventilation clearance
Repairability	Spare parts available for 10 years
Noise Level	42 dB

Frequently Asked Questions - KFD35 GRAM

How do I adjust the temperature on my GRAM KFD35 fridge?

Use the electronic control panel inside the refrigerator compartment. Press the temperature button and set the desired level (usually 1-5 or specific degrees). The recommended setting is 4°C for the fridge and -18°C for the freezer.

How to clean the interior of the fridge?

Unplug the appliance. Remove all shelves and drawers. Wash them with warm water and mild detergent. Wipe the interior surfaces with a soft cloth soaked in a solution of water and baking soda. Rinse and dry thoroughly before reassembling.

What should I do if the fridge is not cooling properly?

Check if the appliance is plugged in and the thermostat is set correctly. Ensure the condenser coils at the back are clean and free of dust. Verify that the door seal is intact and the door closes properly. If the problem persists, contact a qualified technician.

Why is my fridge making unusual noise?

Normal sounds include the compressor humming, refrigerant flowing, and fans operating. Unusual noises may be due to the fridge not being level, items vibrating inside, or the compressor mounting. Adjust the leveling feet to stabilize the appliance.

How to reverse the door of the GRAM KFD35?

The door is reversible. Refer to the user manual for detailed steps. Generally, you need to remove the hinge covers, unscrew the hinges, lift the door off, and install on the opposite side. Keep all screws and parts. Ensure the door closes tightly after reversal.

What does the No Frost system mean?

No Frost means the fridge and freezer automatically defrost themselves. A fan circulates cold air, preventing ice buildup. This eliminates the need for manual defrosting and maintains consistent temperatures.

How to save energy with my fridge?

Place the fridge away from heat sources (oven, direct sunlight). Ensure good ventilation around the condenser. Let hot food cool down before placing inside. Keep the door closed as much as possible. Defrost the freezer regularly if not No Frost. Set the temperature to recommended levels.

What should I do if water is leaking from the fridge?

Check if the drain hole at the back of the fridge is clogged. Clean it with a pipe cleaner or warm water. Also, ensure the fridge is level so water flows properly to the collection tray. If the problem continues, inspect the water supply line (if model has ice maker).

How to install the GRAM KFD35 fridge?

Choose a well-ventilated location. Leave at least 5 cm clearance at the back and sides. Level the fridge using the adjustable feet. Wait 2-3 hours after installation before plugging in to allow the refrigerant to settle. Then connect to a properly grounded outlet.

Where to find spare parts for my fridge?

Spare parts are available from authorized service centers or online spare parts retailers. Use the model number KFD35 and brand GRAM to locate correct parts. Common parts include shelves, door seals, and temperature controls. Contact GRAM customer support for assistance.

USER MANUAL KFD35 GRAM

KF 310-01 / KF 320-01 / KF 350-01 / KF 312-01 / KF 323-01 / KF 352-01 / KF 353-01 / KFD 31-01 / KFD 32-01 / KFD 35-01

GB Instructions for use 2

Congratulations on your new GRAM refrigerator/freezer

Congratulations on your new refrigerator/freezer. The refrigerator/freezer was developed taking the different storage requirements of food items into consideration. Some must be stored cold - others require a little higher temperature. A few must be stored separately so as not to impart flavour and odour to other items of food. Most items of food require high air humidity in order to stay fresh.

To ensure that you get as much joy out of your refrigerator/freezer as possible, it is important that you become familiar with the its functions and know how to use the accessories. Please read the instructions for use carefully before setting up and using your refrigerator/freezer.

As these instructions apply to several refrigerator/freezer models, the equipment may vary from model to model.

Before using the refrigerator/freezer

On receipt, check to ensure that the refrigerator/freezer has not become damaged in transport. Transport damage should be reported to the local supplier before the refrigerator is put to use.

Before filling the refrigerator/freezer with items of food, the refrigerator/freezer interior should be cleaned with lukewarm water containing a mild detergent. Use a soft cloth. If the refrigerator/freezer has been stored in cold surroundings (colder than +5°C), it must be allowed to stabilise for at least 2 hours before being switched on.

Read more about setting up, building in, and installation on pages 14 and 15.

Contents

Important information

Transporting and moving the refrigerator/freezer 5

If the refrigerator is to remain unused for a time 5

Old refrigerators/freezers 5

Disposal 5

Description of the refrigerator/freezer

Using the refrigerator/freezer

Electronic control 7

Switching ON/OFF the refrigerator-freezer 8

Temperature regulation 8

Temperature display 8

Temperature inside the refrigerator-freezer 8

Quick-freezing 8

Slight temperature variations 9

Function "QUICK FREEZING" 9

Function with a ventilator 9

Display brightness adjustment 10

Alarm

Alarm codes 10

Interrupting an alarm 10

Using the refrigerating compartment and accessories

Glass shelves 11

Bottle shelf 11

Vegetable drawers 11

GB

Multi-boxes 11

Storage shelves in the door 11

Using the freezer compartment and accessories

Defrosting and cleaning

Automatic defrosting of refrigerating compartment 12

Manual defrosting of refrigerating compartment 12

Manual defrosting of freezing compartment 12

Cleaning 13

Setting up and installation

Where to place the refrigerator/freezer 14

Electrical connection 15

Starting up the refrigerator/freezer 16

You can change the doors from right-hinged to

left-hinged or vice versa yourself 17

Replacing the bulb 19

GRAM Service

Spare parts 19

Important information

The refrigerator/freezer contains the environment-friendly, non-ozone-depleting refrigerant R600a. As R600a is a flammable gas, it is important to avoid damage to the refrigeration circuit during transport and installation. If the refrigeration circuit is damaged, avoid using naked flame in the vicinity of the refrigerator/freezer and connecting power to the refrigerator/freezer. Also make sure that there is good ventilation in the room. If you are in doubt, please contact your supplier.

Transporting and moving the refrigerator/freezer

The refrigerator/freezer must always be moved in the vertical position. The cabinet must not be tilted more than approx. 40°. If the refrigerator/freezer has been tilted more than 40°, the power supply must not be connected until the appliance has stood upright for at least two hours.

If the refrigerator/freezer is to remain unused for a time

If the refrigerator/freezer is to remain unused for a time, e.g. in a summer-house, switch refrigerator and freezer off by pressing the buttons

(1), (2) and then disconnecting the power supply to the cabinet and possibly pulling the plug out of the wall socket.

Empty, defrost and clean the refrigerator/freezer. Leave the doors to the refrigerating and freezing compartments slightly ajar. This will prevent bad smells in the cabinets.

Warning

Old refrigerators and freezers are often fitted with complicated latches that can only be opened from the outside. If you have an old unit like this stored away somewhere, or if you scrap it, remember to destroy the latch to prevent children from being exposed to danger by getting locked inside the unit.

Note! Please also observe the environmental rules on disposal.

Disposal

If a refrigerator/freezer is to be disposed of, this must be done in an environmentally correct way, in accordance with current rules on disposal.

Please observe the environmental rules on disposal. There might be special requirements/conditions to be observed. Information on disposal can be obtained from:

- Gram A/S

- Your white-goods supplier

- Authorities (the local council, Ministry of the Environment, etc.)

Description of the refrigerator/freezer

The refrigerator/freezer is intended for use in a normal household. It is designed for temperature class SN-T in accordance with European standard EN 153. This means that it will run best at

a room temperature of +10°C to +43°C. The freezing compartment is a four-star freezer approved for freezing down and storing frozen items of food.

Using the refrigerator/freezer

Electronic control

The refrigerator-freezer has been equipped with electronic control. The equipment has been set up by the manufacturer for optimum temperature operation, i.e., +5°C in the refrigerator's chamber and -18°C in the freezer's chamber.

If the user intends to modify the manufacturer's setup, the new setting shall be stored in the electronic control memory. In case of a power supply failure, after the power supply has been restored, the control will keep the latest settings in memory.

The electronic control has been equipped with the following functions:

• ON/OFF switch function
• Display of the real temperature inside the refrigerator's chamber and freezer's chamber
• Setting the temperatures in the refrigerator's chamber and freezer's chamber
• Automatic defrosting of the refrigerator's chamber
• Quick freezing
• Quick cooling
• Vent function inside the cooler chamber.
• Adjustment of the display contrast
• Acoustic and visual signalling of alarms
• Visual signalling with use of LEDs of switched on functions
• Freezer's ON/OFF switching push-buttons
• Refrigerator's ON/OFF switching pushbuttons
• Green light-emitting LED signalling that the refrigerator's chamber has been switched on
• Blue light-emitting LED signalling that the freezer's chamber has been switched on
• "COOL" pushbutton
• "FREEZE" pushbutton 7 Display showing the set temperature, time of super freezing, and alarm status codes
• Pushbutton for displaying the real temperature inside the freezers' chamber
• Pushbutton for displaying the real temperature inside the refrigerator's chamber
• Function pushbutton (for quick freezing quick cooling adjusting the ligh on the display)
• Blue light-emitting LED signalling that the quick cooling function has been switched on
• The button turning the vent on and off.
• The control light (yellow) signals the installation of the vent function.
• Blue light-emitting LED signalling that the quick freezing function has been switched on

GB

Switching ON/OFF the refrigerator-freezer

Switching ON the refrigerator: press and hold the pushbutton (2). The operation of switching on the refrigerator is signalled by the green light-emitting LED (3), and the real temperature inside the refrigerator's chamber shall be shown on the display. Switching OFF the refrigerator: press and hold the pushbutton (2).

Switching ON the freezer: press and hold the pushbutton (1). The operation of switching on the freezer is signalled by the blue light-emitting LED (4), and the real temperature inside the freezer's chamber shall be shown on the display.

Switching OFF the freezer: press and hold the pushbutton (1).

The refrigerator and freezer can be switched ON and OFF independently.

Temperature regulation

The temperature in the refrigerator's chamber can be set within the temperature range from +2°C up to +9°C. When pressing and holding the COOL push-button (5), the set temperature shall be shown on the display. When pressing the pushbutton ▲ (9) or pushbutton (8) it is possible to modify setting the temperature inside the refrigerator. The temperature in the freezer's chamber can be set within the range from -25°C up to -16°C. When pressing and holding the FREEZE pushbutton (6), the set temperature shall be shown on the display.

When pressing the pushbutton ▲ (9)

or pushbutton ▼ (8) it is possible to modify setting of the temperature inside the freezer.

Every pressing of the pushbutton shall activate a brief acoustic signal. In case of the power supply failure or disconnecting the power supply to the refrigerator-freezer, the control will keep in the memory the latest settings after the power supply has been restored.

Displaying of temperature

You can decide which temperature should be shown on the display – the temperature inside the refrigerator's chamber (by pressing the pushbutton (9)) or of the temperature inside the freezer's chamber (by pressing the pushbutton (8)). The above mentioned setting can be changed any time.

Temperature inside the refrigerator-freezer

The temperature settings and temperature values shown on the display are average temperatures of the refrigerator-freezer. It concerns both the refrigerator's chamber and the freezer's chamber. Do not change the temperature setting simply because it is warmer in summer. The increase of the room temperature will be detected by the sensor and the compressor will automatically run for a longer time to maintain the set temperature.

Quick freezing

Quick freezing to a low temperature is important to maintain the quality of the food of products. Quick freezing is activated by pressing and holding the function button (10) and pressing the FREEZE pushbutton (6). The blue light-emitting LED (14) switches on signalling activation of the quick freezing function.

You can choose between freezing in 24 or 48 hours:

- by holding the function button (10) and pressing once the FREEZE pushbutton (6) you switch on the 24-hours quick freezing function and "24" is shown on the display,

- by holding the function pushbutton

(10) and pressing twice the FREEZE pushbutton (6) you switch on the 48-hours quick freezing function and "48" is shown on the display,

- the next pressing of the pushbutton (6) switches off the quick freezing function and switches off the blue light-emitting LED. The quick freeze function will be automatically disabled after 24 or 48 hours.

After pressing the quick freezing function pushbutton, the indication "24" or "48" is displayed for 5 seconds. Afterwards the real temperature inside the refrigerator's chamber and freezer's chambers will be shown on the display.

It is recommended to switch on the quick freezing function (24 or 48 hours) for approximately 2 hours before loading the freezer's chamber with large quantities of the food products.

Brief temperature variations

Brief temperature variations are normal and may occur when for example the fresh food products are stored in the refrigerator-freezer or when the door is open for a longer time. These variations will not affect the food products and the temperature will quickly return to the set-point level.

The interior light switches on when the door of the refrigerator's chamber has been opened. When the door remains open, the interior light switches off after approximately 3 minutes. The display will show E4 alarm and the acoustic alarm will be activated.

Super cooling function

- the first pressing of the pushbuttons (10) + (5) switches on the blue light-emitting LED and activates quick cooling down of the refrigerator's

chamber to the temperature of approximately 1° C (the continuous operation of the compressor), after the temperature of 1° C has been reached the function automatically disables and the equipment switches into a normal cyclic operation restoring the latest temperature set for the refrigerator.

• during the super refrigerating function operation, the display shows "Sc" indication, (it is possible to monitor the freezer temperature by pressing the pushbutton ▼ (8)).
• The second pressing of the pushbuttons (10) + (5), during operation of the quick refrigerating function, disables the function and switches off the blue light-emitting LED (11).

It is recommended to switch on the quick refrigerating function “Sc” before loading the refrigerator’s chamber with a large quantity of fresh food products.

Function with a ventilator

The ventilator, after connecting the cooler to the network, is active. It is turned on and off by button (12).

Yellow LED light (13) turns on when the ventilator is turned on.

The ventilator allows maintaining the same temperature on all levels of the cooler.

After being turned on, the ventilator works in a cycle function except when the cooler door is opened.

Display brightness adjustment

By pressing and holding the pushbutton (10) and

• pressing at the same time the push-button ▲ (9), the display brightness increases,
• pressing at the same time the push-button ▼ (8), the display brightness decreases.

When adjusting the display brightness, the display shows the following indications:

1.8 - minimum brightness, 2.8 - medium brightness, 3.8 - maximum brightness (manufacturer's setting).

Alarms

Normal use of the refrigerator-freezer may cause different situations leading to interruption of various functions and unstable operation of the entire equipment as a consequence. These interruptions are shown on the display as the alarm code (an E followed by a number) and signalled by the acoustic alarm.

In case there will be several faults, the alarm codes shall be displayed in turn.

Alarm codes

E1 – temperature sensor fault in the refrigerator's chamber. E2 – temperature sensor fault in the freezer's chamber. E4 – door is open. E5 – too high temperature inside the freezer's chamber.

E1, E2

One of the temperature sensors has been damaged. Call technical service. The built-in emergency program maintains the admissible temperature until the fault will be eliminated by the authorized technical service.

E4

The door of the refrigerator's chamber has been opened for more than 3 minutes.

The alarm code disappears when the door is closed.

E5

The temperature inside the freezer's chamber has been exceeding.

Interrupting an alarm

The acoustic alarm can always be interrupted by opening the door and/or pressing any push-button.

The alarm code E4 - E5 can be cancelled by pressing for 7-8 seconds at the same time the push-buttons.

The exception: in case of the alarm E1 it is possible to cancel the alarm only after replacing damaged sensors.

In such cases please contact Gram Service Center.

Using the refrigerating compartment and accessories

Glass shelves

The glass shelves can be arranged to give more or less space between them, allowing flexible refrigerator/freezer arrangement (11 and 12).

Extract the shelf by lifting up the left shelf side (13). Start by removing the top shelf when you want to clean the refrigerator or rearrange the shelves.

Bottle shelf

The bottle shelf is suitable for large and small bottles.

Vegetable drawers

The drawers at the bottom of the refrigerating compartment are very suitable for storing fruit and vegetables. The overlying shelf covers the drawer and maintains humidity, thus preventing stored food from drying out.

Multi-boxes

The multi-boxes are ideal for all items of food and can be placed in the cabinet or the door, whichever is most expedient. The tight-fitting lids prevent drying out and save much time in tedious wrapping and unwrapping. The multi-boxes are made of material that remains unaffected by mineral oils, fats, and weak acids.

Multi-boxes can also be purchased as accessories.

Storage shelves in the door

The shelves in the door can hold bottles of up to 2 litres. They can be moved and placed throughout the entire height of the door.

Using the freezer compartment and accessories

The whole of the freezer can be used for freezing down and for the long-term storage of frozen food items. In addition, the KF 350 comes equipped with a freezing tray for berries, etc.

dition, KF 350 comes equipped with a freezing tray for berries, etc.

Automatic defrosting of refrigerating compartment

Automatic defrosting of refrigerating compartment

The refrigerating compartment features automatic defrosting. In some periods, however, frost may form on the rear wall of the refrigerator. This normally happens when many fresh food items are stored in the refrigerator or in summer when the refrigerator is filled with beverages to be cooled. In situations such as these, the compressor must run for long periods of time to cool the food items. As automatic defrosting takes place while the compressor is at a standstill, the refrigerator may not defrost completely before the compressor restarts. In situations such as these, manual defrosting is required or help must be called in to change the defrost function.

It is recommended to defrost the freezing compartment at least once a year. Stop the freezing compressor by pressing the lower button ① (1).

It is recommended to defrost the freezing compartment at least once a year. Stop the freezing compressor by pressing the lower button ① (1).

Remove all items from the freezer. To keep them as cold as possible during defrost, they can be placed in the refrigerating compartment. Place a bowl containing hot water (not boiling) in the freezer.

Warning

It is dangerous to use electrical apparatus, knives or sharp objects to accelerate defrost.

It is dangerous to use electrical apparatus, knives or sharp objects to accelerate defrost.

Stop the refrigeration compressor by pressing the upper button ① (2) and disconnect the power supply to the refrigerator/freezer.

Stop the refrigeration compressor by pressing the upper button ① (2) and disconnect the power supply to the refrigerator/freezer.

The cabinet is best cleaned using a weak soap solution and a soft cloth. Never use cleaning agents that scour. Clean the sealing strip around the door regularly to prolong its life. Use only clean water for cleaning the sealing strip.

The plastic parts of the cabinet cannot withstand boiling water (max. 85°C). It is important to prevent water from getting into the control panel.

Cleaning of doors in stainless steel or aluminium

Stainless steel or aluminium doors on GRAM products can, with advantage, be cleaned with a spray and a soft cloth. There are a number of different spraying agents for this purpose on the market. We recommend that you contact your usual white goods supplier for advice on the advantages and disadvantages of the individual products.

Clean the melt water drain in the refrigerating compartment using the cleaning pin supplied (15).

Remove dust and threads from the compressor compartment at the back of the refrigerator/freezer with a vacuum cleaner.

Setting up and installation

Where to place the refrigerator/freezer

For safety reasons the refrigerator/freezer must not be installed outdoors; it must be placed in a dry room. Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight. The surface on which the appliance is placed must be plane. Do not use a frame or similar. The small wheels mounted at the rear of the refrigerator/freezer make it easy to place it in the required position.

The refrigerator/freezer can stand freely on the floor or be built into a kitchen element or a refrigerator element.

It is important that the refrigerator/freezer stands completely level and that there is good air circulation over, under and around it. The appliance can be adjusted by turning the four adjusting screws on the plinth. After adjustment, the feet and the two rear wheels must be in contact with the surface on which the appliance stands.

The illustrations show how to create sufficient air circulation around the cabinet. The dimensions give the actual size of openings. The circulation area must be at least 200 cm².

Building into a kitchen element

When building into a kitchen element ensure that there is sufficient ventilation around the refrigerator/freezer to dissipate heat from the compressor. The appliance can stand direct on the floor or on its plinth. (16)

Building into a refrigerator element

Building into a refrigerator element follows the same principle as described under 16. (17)

Electrical connection

The appliance is intended for connection to alternating current. The connection values for voltage (V) and frequency (Hz) are given on the nameplate in the cabinet. Power must be connected via a wall socket with switch. The wall socket should be easily accessible.

tion to alternating current. The connection values for voltage (V) and frequency (Hz) are given on the nameplate in the cabinet. Power must be connected via a wall socket with switch. The wall socket should be easily accessible.

All earthing requirements stipulated by the local electricity authority must be observed. The appliance plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or an authorised electrician.

The flexible cord (mains lead) fitted to this appliance has three cores for use with a 3-pin 13-amp or 3-pin 15-amp plug. If a BS 1363 (13-amp) fused plug is used, it should be fitted with a 13-amp fuse.

The flexible cord (mains lead) fitted to this appliance has three cores for use with a 3-pin 13-amp or 3-pin 15-amp plug. If a BS 1363 (13-amp) fused plug is used, it should be fitted with a 13-amp fuse.

IMPORTANT

The cores in this mains lead are coloured in accordance with the following code:

The cores in this mains lead are coloured in accordance with the following code:

These colours might not correspond with the colour markings identifying the terminals in your plug.

Connect the GREEN-AND-YELLOW core to the plug terminal marked "E" or by an earth symbol, or coloured GREEN or GREEN-AND-YELLOW. Connect the BLUE core to the plug terminal marked "N" or coloured BLACK.

Connect the BROWN core to the plug terminal marked "L" or coloured RED.

Connect the BROWN core to the plug terminal marked "L" or coloured RED.

Starting up the refrigerator/freezer

Start the refrigerator/freezer by plugging it into a wall socket. If the mains lead has been damaged, it must be replaced with a corresponding type supplied by GRAM service.

The refrigerator/freezer incorporates a “stand-by function” and in the display two horizontal lines indicate that the power supply has been connected.

Start the refrigerating compartment by pressing the upper on/off button

① (2). After approx. 5 seconds, the green light-emitting diode (3) lights to indicate that the refrigerating compartment is on. Start the freezing compartment by pressing the lower on/off button

(1). After approx. 5 seconds, the blue light-emitting diode (4) lights to indicate that the freezing compartment is on.

The actual temperature in the refrigerating compartment is shown on the display (5). By pressing button ▼ (8) the actual temperature in the freezing compartment is displayed.

By pressing button ▲ (9) the actual temperature in the refrigerating compartment is displayed.

You can change the doors from right-hinged to left-hinged or vice versa yourself

Illustrations 18-25 show how easy it is to change the doors from right-hinged to left-hinged - or vice versa. (Changing the door from left-hinged to right-hinged is done in the same way, but opposite).

The refrigerator/freezer must be switched off and emptied completely.

• Remove the two screws in the hinge top on the righthand side of the cabinet. (18)
• Lift the refrigerator door slightly and take the door and upper hinge off by pulling the door towards you.
• Remove the dummy hinge from the opposite side by un-screwing the two screws. (19)
• Reverse the dummy hinge and refit it on the opposite side of the cabinet using two screws.
• Remove the lower door by unscrewing the two screws in the centre hinge. (20)

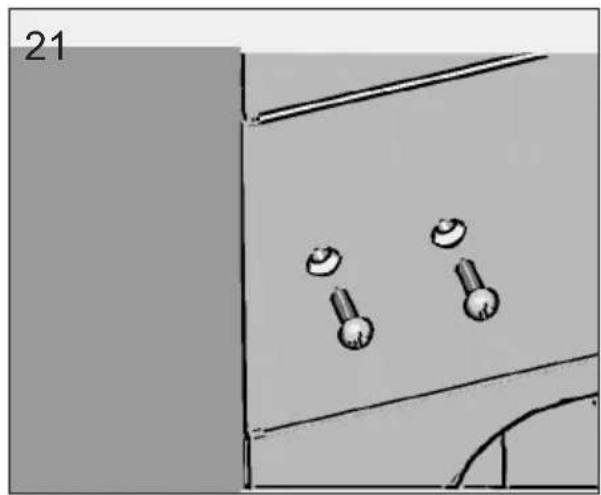

• Refit the two screws from the lefthand side on the righthand side. (21)
• Lift the lower door and the centre hinge up and take them off.
• Tilt the refrigerator to an angle of max. 45° and unscrew the bottom hinge.

This is done by removing the two screws holding the bottom hinge on the cabinet underside. (22)

• Remove the bottom dummy hinge in the opposite side in the same way as the upper dummy hinge was removed. (23)
• Reverse the dummy hinge and refit it on the opposite side of the cabinet.
• Reverse the upper righthand hinge and refit it in the lower lefthand corner of the cabinet.
• Place the cabinet in the vertical position again.
• Dismount the door handle by removing the screws. (24)
• Place the lower door in correct position on the bottom hinge.
• Reverse the centre hinge, refit it on the lower door and screw it onto the cabinet. Remember to adjust the hinges.
• Lift the top door into position on the centre hinge. Reverse the lower righthand hinge and refit it on the top part of the door in the left side of the cabinet. Push the door into position and slide the upper hinge into the upper lefthand hinge casing. Tighten the two screws. Remember to adjust the hinges.
• Remove the screws on the righthand side of the door and screw them onto the left side of the door. Use the screws from the left side to attach the handles to the righthand edge of the doors (25)

Replacing the bulb

Switch off the refrigerator/freezer by pressing the on/off buttons ① (1), (2) and unplug the mains lead from the wall socket. Screw off the screen. Replace the bulb with a new one (max. 10 W, 12 V, halogen base G4). Refit the screen, connect the power supply and restart the refrigerator/freezer by pressing the on/off buttons ① (1), (2).

GRAM Service

Spare parts

When ordering spare parts, please give the refrigerator/freezer type and number. This information is given on the nameplate inside the cabinet.

Bottle rack

Warning

Starting the refrigerator/freezer

NL

FIN

FIN

Replacing the bulb
