USER MANUAL TDW14WA TECO

Interior view of a modern kitchen appliance with multiple STECO rack units (no visible text or symbols)

READ BEFORE USE

Congratulations on your purchase of a TECO dishwasher. We hope the appliance meets your expectations and serves you well for many years.

For your safety and correct operation of the dishwasher, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

This appliance is intended for indoor use only.

Due to constant improvements, this appliance is subject to change without prior notice.

All diagrams and illustrations contained within this manual are for illustration purposes only.

CORRECT USE

• The appliance is designed to clean household utensils and dishes that are suitable for dishwashers. It is not recommended to use the appliance for any other purpose.
• Do not put solvents in the appliance. This may result in fire or injury.
• Place knives and other sharp items so that they cannot harm anyone or damage the dishwasher.
• Use only products specified for dishwashers (detergent and rinse aid).
• If you open the door while the appliance is in operation, hot water or steam can escape. This may result in injury.
• Do not remove dishes from the dishwasher before the end of the washing program.
• When the washing program is completed, disconnect the mains plug from the mains socket and close the water tap.
• Only an authorised TECO service agent can repair this appliance.
• Do not carry out repairs yourself to prevent injury and damage to the appliance. Always contact TECO Service.
• Contact the local water utility to check the water hardness in your area. This is important with regard to how much detergent and rinse aid to use

BEFORE CALLING SERVICE

Before calling TECO service, please refer to the Troubleshooting section of this manual. This section is designed to assist in solving common issues with your appliance.

If the dishwasher continues to malfunction, switch the appliance off, disconnect from the mains power source and ensure to stop the water supply. Have the warranty information sheet (serial and model number) handy before contacting TECO service.

Safety Information 3

Quick Start Guide 4

Operating Instructions

Control Panel 5

Part Names 6

First Time Use 6

Rinse Aid & Detergent Dispenser 7

Function of Detergent 8

Amount of Detergent to Use 9

Filling Detergent Dispenser 9

Loading the Dishwasher 10

Before & After Loading Baskets 10

Removing the Dishes 10

Loading Upper Basket 11

Loading Lower Basket 11

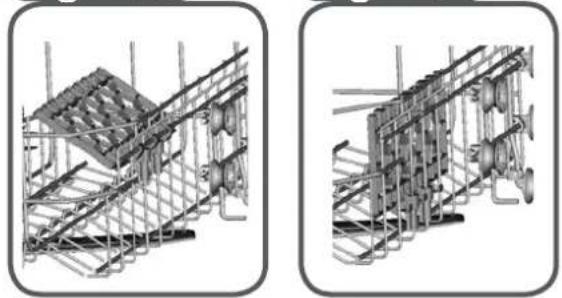

Folding Cup Shelves 11

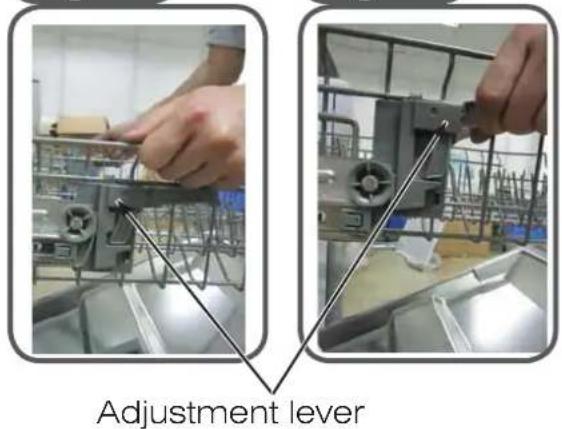

Adjusting Upper Basket 11

Folding Lower Basket Tines 11

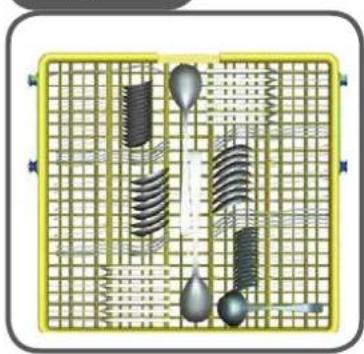

Cutlery Tray 11

Wash Programs

Start/Pause button 13

Changing the Program 13

Adding Additional Items 13

At the End Of The Wash Cycle 13

Cleaning & Maintenance 14

Filtering System 14

Filter Assembly 14

Cleaning the Filter 15

Regular Maintenance 15

Winter Maintenance 15

Spray Arm Maintenance 15

General Maintenance 16

Installation

Positioning the Dishwasher 16

Power Connection 16-17

Power Connection- Grounding 17

Water Connection 17

Aqua-Stop Hose 18

Disconnection the Aqua-Stop Hose 18

Cold Water Connection 18

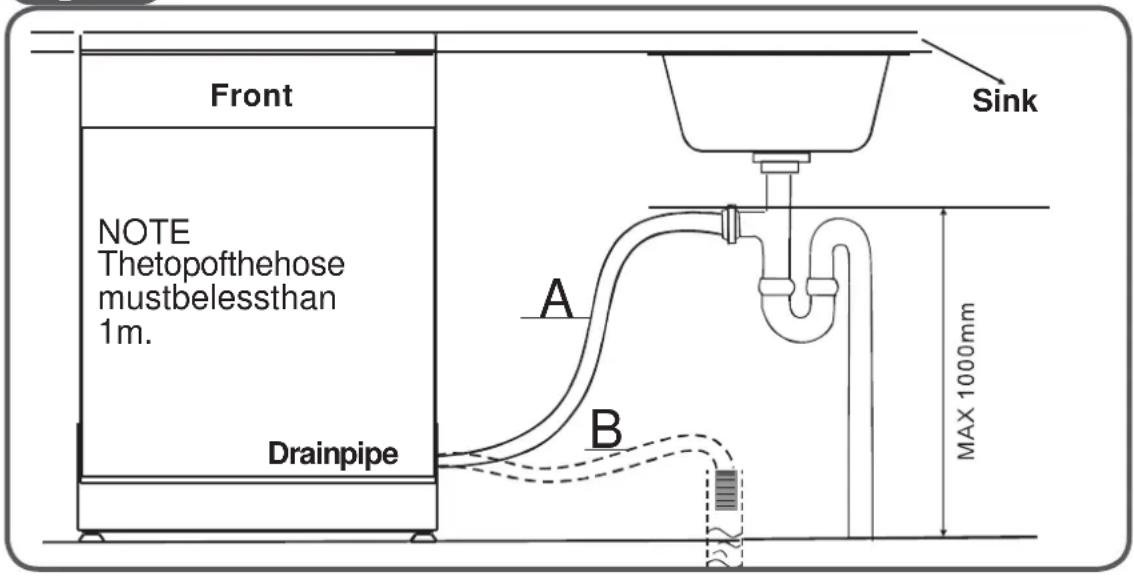

Drain Hose Connection 18

Draining Excess Water 18

Before Use Checklist 19

Troubleshooting 20

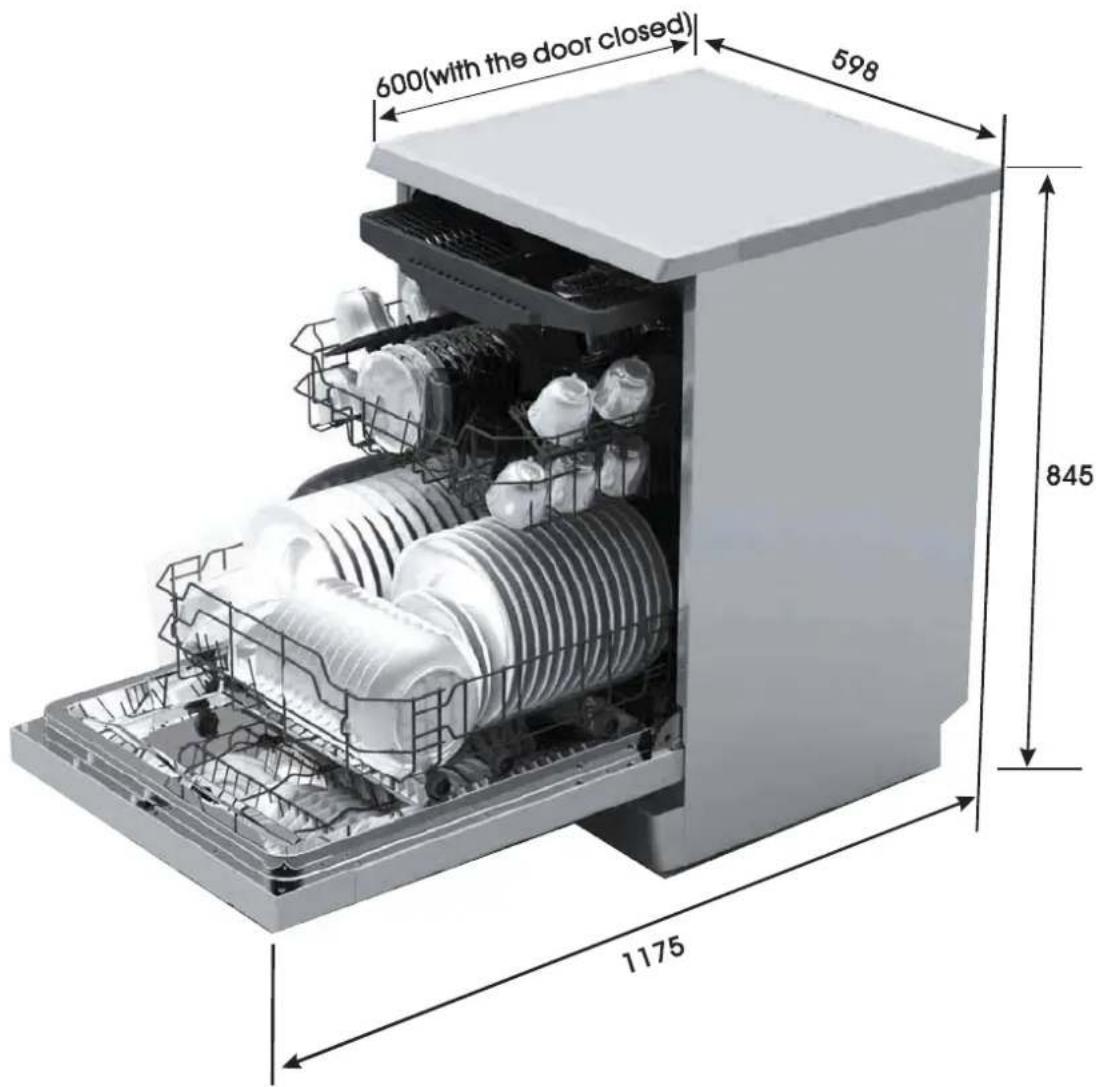

Technical Information 24

SAFETY INFORMATION

• Do not use electrical items or fire equipment nearby.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• When disposing of the appliance, do so only at an authorised waste disposal centre.
• Do not expose to flame.
• Please keep the appliance away from substances which could cause ignition.
• Before obtaining access to electrical terminals, all electrical supply circuits must be disconnected.
• The dishwasher is designed to operate on a single phase power supply within a voltage range of 220\~240V/50Hz.
• Don't splash water on the rear of the appliance, for it may cause malfunction or electric shock.
• Do not operate any electrical appliance in the dishwasher.
• Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.

Safety of Children

Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation. Keep packaging materials away from children.

Remember to dispose of old appliances in accordance with local laws.

Pull out the mains plug, cut off the mains cable, break or remove spring or bolt catches if fixed and ensure that children cannot lock themselves in the appliance when playing (there is risk of suffocation) or involve themselves in other dangers, for children cannot recognize the hazard present in household appliances themselves. Therefore, it is very important for parents to make adequate supervision and never let children play with the appliance.

Always keep dish washing liquids and detergents away from children.

General Safety

• Dishwasher detergents are very dangerous. Be careful they do not touch eyes, mouth and skin.
• Keep children away from the appliance when the door is open.
• Obey the safety instructions from the manufacturer of the dishwasher detergent to prevent injury.
• Only put detergent in the dispenser before you start a washing program. Make sure that the detergent dispenser is empty at the end of the washing program.
• Do not drink the water from the dishwasher. Detergent residues can remain in your appliance.
  • Always close the door when the appliance is not in use to prevent injury.
• Do not sit or stand on the open door.
• Keep children and pets away from the appliance when the door is open.
• Never touch the heating element during or immediately after use.
• Ensure items placed within the appliance are "dishwasher safe".
• Never place delicate or fragile glass into the appliance.
• Never use laundry detergent, or hand soap / washing detergent in your dishwasher.

QUICK START GUIDE

Step 1

Correctly install the appliance. Ensure it is connected securely to the mains power source and water supply using the supplied hose.

Step 2

Switch on the appliance by pressing the ON/OFF button. Check the front panel indicates power is supplied to the appliance.

Step 3

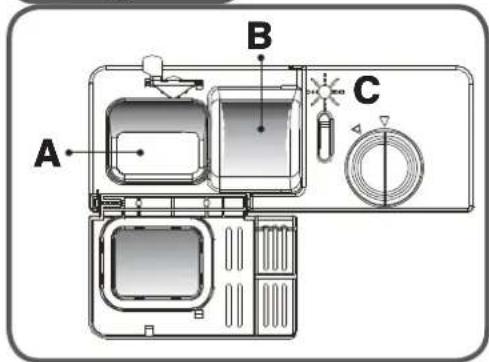

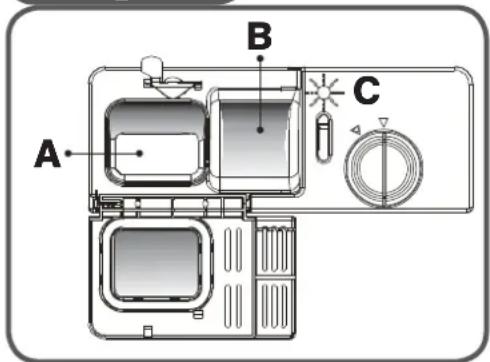

Open the dishwasher door and fill the detergent dispenser (Refer to Fig.1). Fill compartment A with each wash cycle. Fill compartment B when choosing programs with a pre-wash cycle.

Step 4

Check the rinse aid level indicator (Refer to Fig.1 C). Fill if necessary.

Step 5

Load the dishwasher baskets. Scrape off excess food scraps from utensils and dishes before placing carefully in the place settings, baskets and drawers. Close the dishwasher door. NOTE: Do not overload the dishwasher. Doing so may reduce the performance and damage the appliance.

Fig.1

Step 6

Select a program by pressing the Program Button until the selected program lights up. Refer to CHANGE below to change the program after starting a wash.

Step 7

Ensure the water tap connected to the dishwasher is supplying water before pressing the START/PAUSE button. The appliance starts after approximately 10 seconds.

CHANGE

A running program cycle should only be changed if it has been running for a short time. Otherwise, the detergent may have been released and the water drained. If this is the case, the detergent will need to be refilled.

To change the program once a wash has been started:

1. Press the START/PAUSE button once.
2. Press and hold the program button for 3 seconds.
3. The appliance will go into standby mode.
4. Press the Program Button to change the desired program.

ADD+

To add additional items to a wash that has started:

1. Press the START/PAUSE button
2. Wait for the spray arms to stop. Check this by opening the door slightly.
   CAUTION! Be careful when opening the door as hot steam or water may escape from the dishwasher.
3. Once safe, open the door completely and add additional items.
4. Securely close the door and press the START/PAUSE button.
   The wash will resume in approximately 10 seconds.

WHAT IF...?

If power is cut to the dishwasher during a wash cycle, once power is restored, the appliance will be reset. Choose a program and press START/PAUSE to start a wash. Check and refill detergent if necessary before re-starting another wash.

Step 8

Once the program is complete, the appliance will beep 8 times. Press the ON/OFF button. Turn off the water tap. Wait aprox. 15 minutes before carefully opening the door and unloading the clean utensils and dishes.

OPERATING INSTRUCTIONS

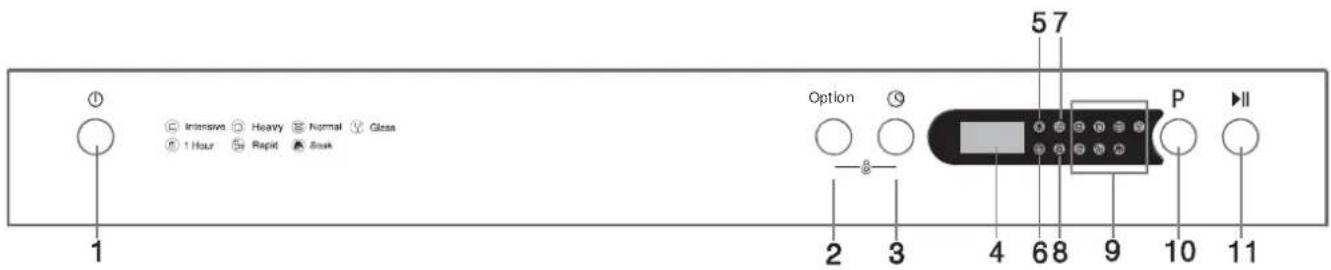

CONTROL PANEL

No.

1

Name

ON/OFF

Button

Function

Power

supply

button

2 OPTION Button Selects half load or extra drying function

Half

Load:

Recommended

for

This

mode

will

use

less

wa

Only

available

in

intensive,

heav

and 1 hour programs. Refer to No.6 for Extra

Drying

function.

3 DELAY Button Press to delay the start of a wash program.

4 Display This multi-function display shows the remaining time of a wash and current state of the

5 Rinse Aid Indicator dishwasher (run state, delay tim Indicates when the dispenser needs to be refilled.

6 Extra Drying Indicator This indicates an increase in temperature during

the final rinse cycle. It will assist the drying process of dishes and utensils. increase energy consumption

7 Half Load Indicator Indicates when the half load function is enabled.

8 Child Lock Indicator This indicates when the child lock feature is enabled and the buttons on the control panel are

locked. All control panel function

Activation: To enable child lock, press and hold is for at least 3

seconds until the child lock

Deactivate: To disable child lock, press and hold as for at least 3 cator is no longer illuminated.

9 Program Indicator Indicates the currently chosen program. Refer to

page

12

for

more

information

Intensive

Heavy

Normal

Glass

1

10

Program Button

Press this button to cycle through one of the several available programs.

11

START/PAUSE Button

Press this button to start the currently selected wash program. Pressing this

program has started, will pause the wash. Press

this

button

again

to

resume

OPERATING INSTRUCTIONS

PART NAMES

Front

Back

No.

1	Top	spray	arm
2	Cutlery	rack
3	Upper	basket
4	Inner	pipe
5	Lower	basket
6	Dispenser
7	Cup	shelf
8	Lower	spray	arm
9	Filter	assembly

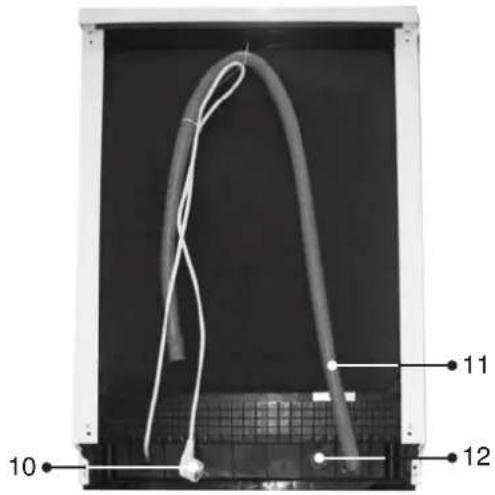

No.

	10	Mains
11		Inlet	pipe
12		Drain	pipe

Name

FIRST TIME USE

Before using your dishwasher for the first time, fill the rinse aid and detergent dispenser. Rinse Aid Dispenser - The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

NOTE - It is strongly recommended to only use rinse aid specifically designed for dishwashers. Never fill the rinse aid dispenser with any other liquid or substances (e.g. dishwasher cleaning agent, liquid detergent, etc.). This could damage the appliance.

Refilling the rinse aid dispenser - If there is no rinse aid warning light on the control panel, you can judge the amount of rinse aid by the colour of the optical level indicator (Refer to Fig.2 Page 7 C) located next to the rinse aid cap. When the rinse aid container is full, the whole indicator will be dark. As the rinse aid diminishes, the size of the dark dot decreases. It is not recommended to let the rinse aid get below 1/4 full.

RINSE AID & DETERGENT DISPENSER

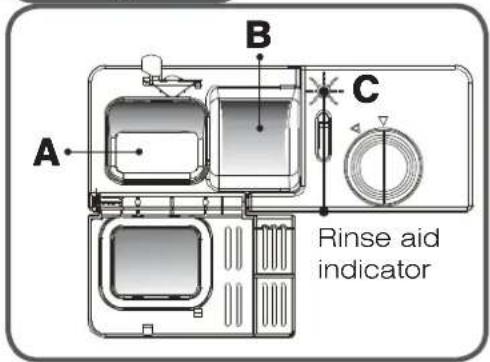

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4 full
● 1/2 full

1/4 full - recommended to refi ll at this stage

○ Empty

Fig.3a

Illustration of a hand holding a card with a finger pointing to it, showing a curved arrow (no text or symbols present)

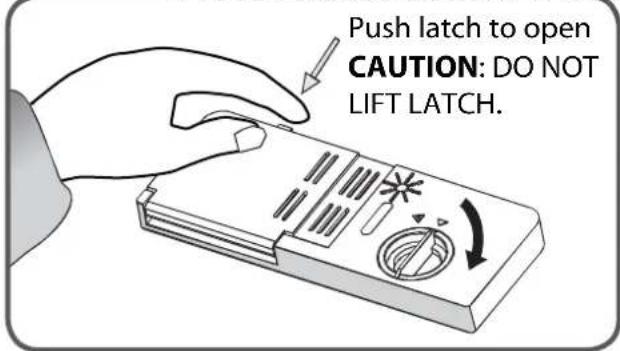

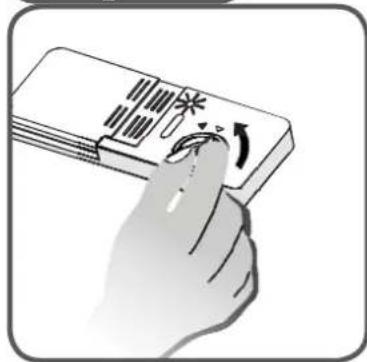

To open the rinse aid dispenser, turn the cap to the "open" (left) arrow and lift it out. Refer to Fig.3a.

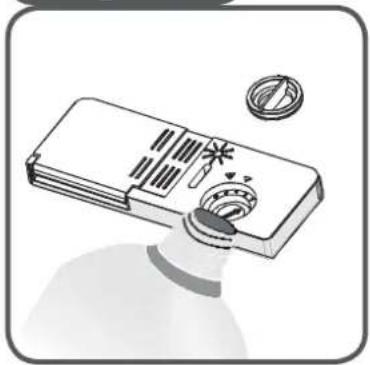

Pour the rinse aid into the dispenser, being careful not to overfi II. Refer to Fig.3b.

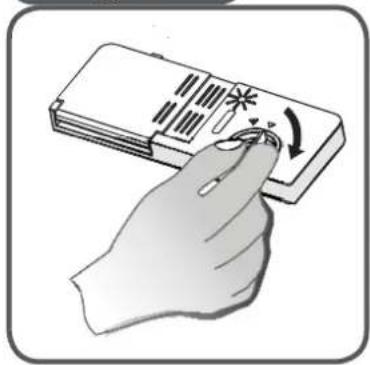

Replace the cap by inserting it aligned with "open" arrow and turn it to the closed (right) arrow. Refer to Fig.3c.

Fig.3b

Illustration of a device with a knob and a ball, no text or symbols present

Be careful not to overfi ll the dis-penser, as this could cause over sudsing. Wipe away any spills with a damp cloth. Do not forget to replace the cap before closing the dishwasher door.

Fig.2

Fig.3c

Illustration of a hand pressing a button on a device with an arrow indicating rotation (no text or symbols present)

Attention: Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during the next wash.

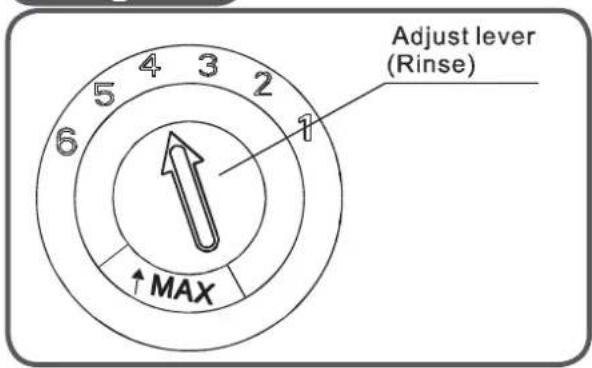

ADJUSTING RINSE AID DISPENSER

Fig.4

The rinse aid dispenser has six settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to increase the rinse aid indicator until dishes are spot-free. Refer to Fig.4. The factory and recommended setting is "4".

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing.

Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or cutlery.

FUNCTION OF DETERGENT

Detergents with its chemical ingredients are necessary to remove dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

DETERGENTS

There are 3 types of detergents:

1. With both phosphate and chlorine
2. With phosphate and without chlorine
3. Without both phosphate and chlorine

Normally, modern pulverised detergents do not contain phosphate. Because of this, the water softener function of phosphate is less effective. In this case, we recommend filling the salt container with salt when the hardness of the water is 6 dH or greater. In the case where the detergent is without phosphate and is washed in hard water, white spots may appear on dishes and glassware. When this occurs, it is recommended to add more detergent to achieve better results. Detergents without chlorine, may bleach a little. Strong and coloured spots may not be removed completely. In this case, it is recommended to choose a program with a higher temperature.

CONCENTRATED DETERGENTS

Based on their chemical composition, detergents can be split in two basic types:

• Conventional, alkaline detergents with caustic components
• Low alkaline concentrated detergents with natural enzymes

The use of normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason, normal wash programs in which concentrated detergents are used, can achieve the same results that can otherwise only be achieved using intensive programs.

DETERGENT TABLETS

Detergent tablets of different brands dissolve at different speeds. For this reason, some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore, it is recommended to use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

DETERGENT DISPENSER

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AMOUNT OF DETERGENT TO USE

Fig.5a

• If the lid is closed:

Press release button. The lid will spring open.

• Always (Refer to Fig. 5a) add the detergent each wash cycle. • Only use detergent designed use. Check detergent packaging.

WARNING

Fig.5b

Dishwasher detergent is corrosive! keep it out of reach of

Proper Use of Detergent Use only detergent specifi cally made in dishwashers. Keep your deter dry. Don't put powdered deterg dispenser until you're ready to

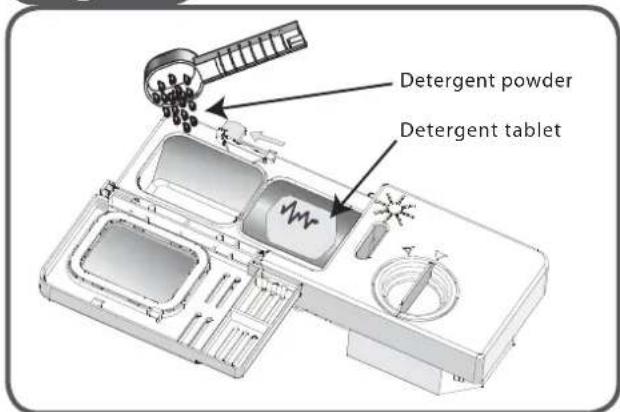

FILLING DETERGENT DISPENSER

Fill the dispenser with detergent.

The markings indicate the dosage level, Refer to Fig.6.

A - Location for main wash cycle detergent.
B - Location for pre-wash cycle detergent.

Please check and follow the recommended dosage and storage instructions as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber.

This detergent will take effect during the pre-wash phase of the wash cycle.

Fig.6

NOTE

• You can find information about the amount of detergent for each program on page 12 of this manual.
• Please be aware that soiling levels and water hardness can effect wash results.
• Please observe the directions and recommendations found on the chosen detergent packaging.

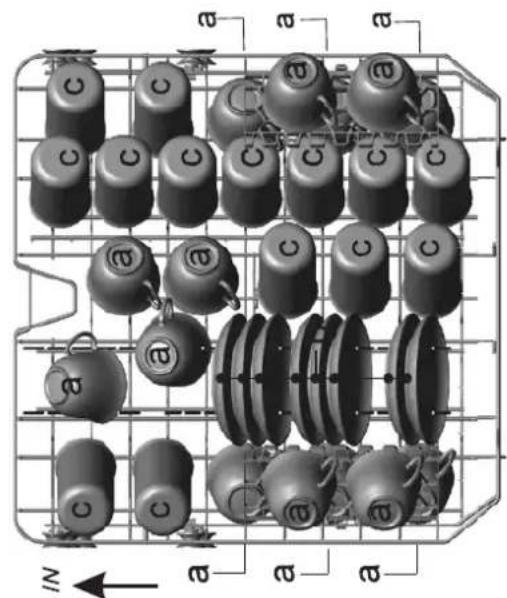

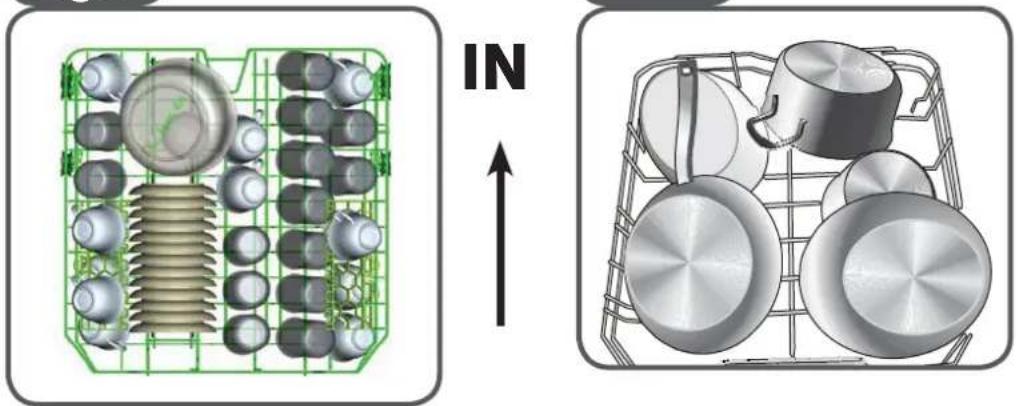

LOADING THE DISHWASHER

RECOMMENDATIONS

• Consider buying dishes, glassware, mugs, cups, cutlery, etc. which are identified as dishwasher-proof or dishwasher-safe.
• Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from the detergent manufacturers.
• For particularly delicate or thin items, select a program with as low a wash temperature as possible. Refer to Page 12.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

NOT SUITABLE FOR DISH WASHING

• Cutlery with wooden, horn china or mother of pearl handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are not temperature resistant.
• Bonded cutlery items or dishes
• Pewter or cooper items
• Crystal glass
  • Steel items subject to rusting
• Wooden platters
• Items made from synthetic fi bres

LIMITED DISHWASHER SUITABILITY

• Some types of glasses can become dull after a large number of washes.
  • Silver and aluminium parts have a tendency to discolour during washing.
• Glazed patterns may fade if machine washed frequently.

ATTENTION: BEFORE & AFTER LOADING BASKETS

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved or items with recesses, should be loaded on a slant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in a way that the spray arms can rotate freely during washing.

NOTE - Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the lower basket.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard.
• Long and/or sharp items of cutlery, such as carving knives, must be positioned horizontally in the upper basket.

REMOVING THE DISHES

To prevent water dripping from the upper basket into the lower basket, it is recommended that you empty the lower basket first and then the upper baskets.

LOADING UPPER BASKET

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups, saucers, plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not get moved by water spray.

LOADING LOWER BASKET

It is suggested that you place large items and the most diffi cult to clean items to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls. Refer to Fig.8 below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

REMINDER

• Pots, serving bowls, etc. must always be placed top down.
• Deep pots should be slanted to allow water to flow out.
• The bottom basket features folding tines so that larger or more pots and pans can be loaded into the lower basket.

Fig.7

Diagram showing a 3D mechanical component with internal parts and a wire basket filled with various metallic parts (no text or symbols)

FOLDING CUP SHELVES

For better stacking of pots and pans, the tines can be folded down. Refer to Fig.10a and Fig.10b.

ADJUSTING UPPER BASKET

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper and lower basket. The height of the upper basket can be adjusted by lifting the basket for the upper position. Lift the adjustment lever to lower the upper basket. Refer to Fig.9a and Fig.9b.

Fig.10a

Two technical diagrams showing structural steel framework and piping system (no text or symbols)

Fig.9a

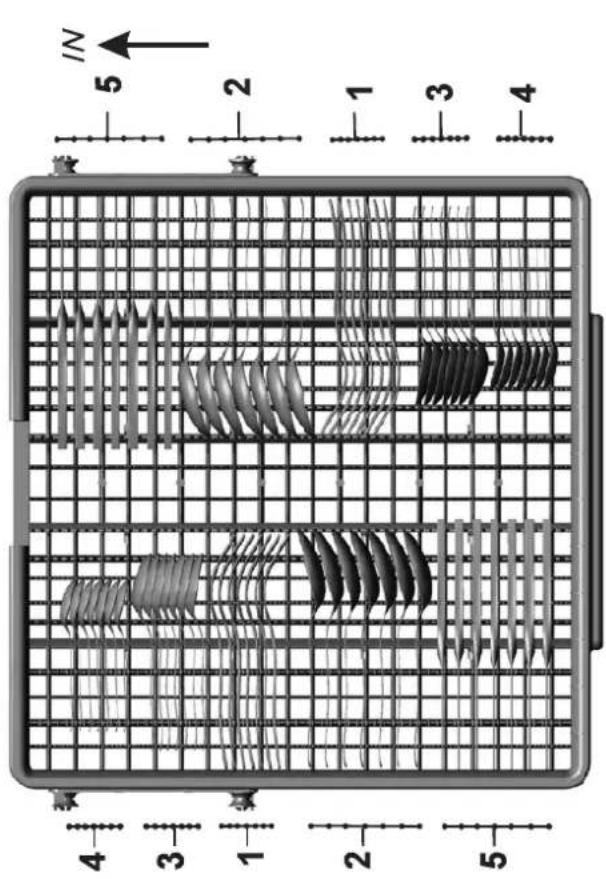

CUTLERY TRAY

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions. Make sure the utensils do not nest together, this may cause poor wash performance.

FOLDING LOWER BASKET TINES

For better stacking of pots and pans, the tines can be folded down. Refer to Fig.11.

Fig.12

Diagram of mechanical components arranged in a grid-like structure (no text or labels)

Fig.11

Close-up of a hand holding a grid-like object with diagonal lines, possibly a patterned structure (no text or symbols visible)

For best cutlery cleaning results:

• Ensure cutlery do not nest together.
  • Silverware is placed face up.
• Place long utensils in the middle.

WASH PROGRAMS

WASH CYCLE TABLE
√ = This program performs best with rinse aid.

Program Icon & Name	Wash Cycle Information	Wash Cycle Details	Detergent Pre/Main	Run Time (min)	Energy (Kw/h)	Water Used (L)	Rinse Aid
Intensive	For heaviest soiled crockery, pots and pans, dishes, etc. with dried on soiling.	Pre-wash (50°C) Wash (65°C) Rinse x 2 Rinse (65°C) Drying	5/27.5g Or All in 1	135	1.40	18	√
Heavy	For heavily soiled loads such as pots, plates, glasses and lightly soiled pans.	Pre-wash (45°C) Wash (55°C) Rinse Rinse (60°C) Drying	5/27.5g Or All in 1	165	1.15	14.5	√
Normal* (AS/NZS 2007.1)	Standard daily wash for normal soiled loads. Suitable for pots, plates and glasses	Pre-wash Wash (50°C) Rinse Rinse (50°C) Drying	5/27.5g Or All in 1	160	0.9	13.9	√
[0252] Glass	For lightly soiled crockery and glass.	Pre-wash Wash (40°C) Rinse Rinse (60°C) Drying	5/27.5g	115	0.8	14.5	√
[1241] 1 Hour	For lightly soiled loads that do not need an extensive drying cycle.	Pre-wash (50°C) Wash (60°C) Rinse (55°C) Drying	5/27.5g	60	0.9	10	√
[2504] Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (40°C) Rinse Rinse (45°C)	20g	40	0.5	10.5
[0387] Soak	To rinse dishes that you intend to wash later.	Pre-wash	N/A	8	0.01	3.8

NOTE:

* AS/NZS 2007.1 : This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1, as follows:
• Capacity: 14 setting
- Position Upper basket: upper wheels on rails
- Rinse aid setting: 6
- Open the door slightly 50mm to assist in drying of the dishes after every wash

STARTING A WASH CYCLE

1 Open the dishwasher door and pull out the lower and upper baskets. Load the baskets with soiled cutlery and dishes. Push the baskets in and close the dishwasher door. It is recommended to load the lower basket, then the upper basket (Refer to page 11).
2 Pour in the detergent (Refer to pages 7 to 9).
3 Insert the power plug into the mains socket. Ensure the water supply is turned on to full pressure.
4 Press the ON/OFF Button, and the display will turn on.
5 Press the program button to select your desired program. Press the Start/Pause button, the dishwasher will start the selected wash cycle.

START/PAUSE BUTTON

When you press the Start/Pause button during a wash cycle, the selected program indicator will stop blinking and the buzzer will sound each minute until the Start/Pause button is pressed and the wash cycle resumes.

CHANGING THE PROGRAM

1. A wash program should only be modified if it has been running for a short time.
   Otherwise, the detergent may have been released and wash water drained.
   If this is the case, refill the detergent dispenser prior to starting another program. (Refer to page 9).
2. Press the Start/Pause button so that the dishwasher enters stand-by mode. Press and hold the program button in for at least 3 seconds. You can now change the selected program. (Refer to page 12).

NOTE

If you open the door during a wash cycle, the dishwasher will pause. The program light will stop blinking and the buzzer will sound every minute until you close the door. After you close the door, the dishwasher will continue the wash cycle after 10 seconds.

ADDING ADDITIONAL ITEMS

Items can be added at any time to a wash that has begun. It is not recommended, however, to add items once the detergent has been released into the wash cycle. The additional items will not receive the minimum required detergent for a complete clean.

To add items once a wash cycle has started:

1. Press the Start/Pause button.
2. Slightly open the door (<50mm) and wait for the dishwasher to stop.
3. Once the wash arms have come to a complete stop, open the door completely.
4. Add the additional items to the top or bottom baskets.
5. Close the dishwasher door.
6. Press the Start/Pause button. The wash cycle will resume after 10 seconds.

AT THE END OF THE WASH CYCLE

When the wash cycle has finished, the buzzer will sound for 8 seconds, then stop.

1. Press the power button to switch off the dishwasher
2. Shut off the water supply
3. Open the dishwasher door. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. This will assist in the drying process.
4. Switch off the dishwasher at the mains power source.
5. Carefully open the door completely.

NOTE: Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down for aprox. 15 minutes before removing from the dishwasher baskets.

1. Unload the dishwasher. It is normal to find the dishwasher is wet inside.

Empty the lower basket first and then the upper basket. This will avoid water dripping from the upper basket onto the dishes in the lower basket.

CAUTION

Be very careful when opening the dishwasher door during a wash cycle as hot water and steam may cause injury or burns.

CLEANING & MAINTENANCE

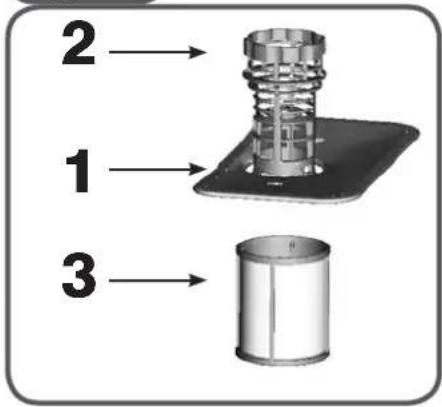

FILTERING SYSTEM

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

Fig.13

1. MAIN FILTER

Food and dirt particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down the drain.

2. COARSE FILTER

This fi Iter is designed for larger debris, such as bone pieces or food scraps, that could block the drain. To remove the items that become trapped in the course fi Iter, gently squeeze the tap on the top of this fi Iter and lift out.

3. FINE FILTER

This filter collects dirt and food residues in the sump area and prevent it from returning to the dishes during wash cycles.

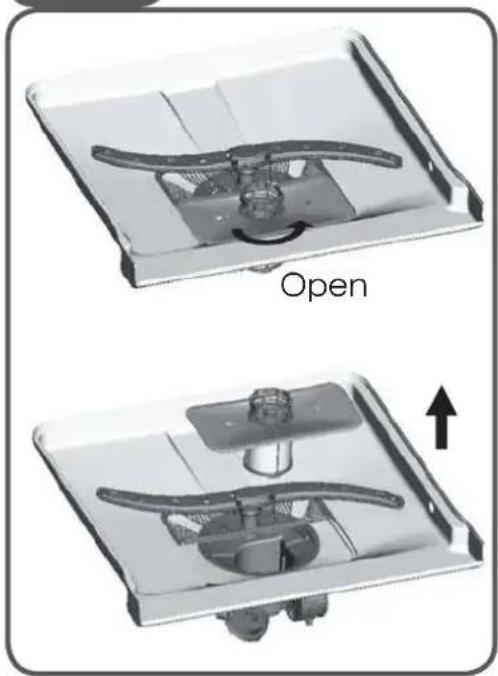

FILTER ASSEMBLY

The filter efficiency removes food particles from the water during a wash, allowing the water to be recycled during a cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is recommended to remove the larger food particles trapped in the filter after each wash by rinsing the semicircular filter and cup under running water. To remove the filter, pull the cup handle in an upward direction.

Fig.14

Two technical diagrams showing a mechanical component with open and closed states, no text or symbols present.

WARNING

• The dishwasher must never be used without the filters.
• Improper replacement of the fil ters may reduce the performance of the dishwasher and damage dishes and utensils.

Step 1

Turn the fi Iter in an anti clockwise direction.

Step 2

Lift the fi Iter in an upward direction.

NOTE

To replace the filter after maintenance, lower the filter into place and turn in a clockwise direction to lock in place.

• Inspect the filters for blockages after each use.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food scraps and debris by cleaning the filters under running water.

The entire filter assembly should be checked regularly and cleaned once a week.

CLEANING THE FILTER

To clean the coarse and fine filter, use a cleaning brush. Reassemble the filter parts (refer to page 14) and reinsert the entire assembly in the dishwasher, positioning it in place and pressing downwards.

NOTE: When cleaning the filters, avoid knocking and abrasive action as this could cause the filter to become distorted and effect the performance of the filter and the dishwasher.

REGULAR MAINTENANCE

The control panel can be cleaned by using a lightly damp cloth. After wiping down, ensure to dry thoroughly.

To clean the exterior cabinet, use a good appliance polish. Be sure to follow directions on the polish packaging. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Fig.15

Metallic electronic component with internal structure and mounting holes, no visible text or symbols

To clean the edge around the door, you should only use a soft, warm and damp cloth.

To avoid penetration of water into the door lock (refer to Fig.15) and electrical components, do not use a spray cleaner of any kind.

WINTER MAINTENANCE

In extremely cold and frosty environments, please follow these steps to protect your dishwasher:

1. When not using the dishwasher, disconnect the mains power from the wall socket.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and valve. (Use a pan or bucket to gather water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher does not work due to ice, please contact TECO service.

CAUTION

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.

Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots or streaks on the stainless steel surface.

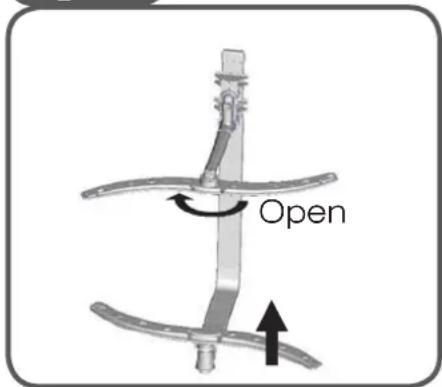

SPRAY ARM MAINTENANCE

It is necessary to clean the spray arms regularly as hard water chemicals will clog the spray arm jets and bearings. To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward. Wash the arms in warm and soapy water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Fig.16

GENERAL MAINTENANCE

AFTER EACH WASH

After every wash, turn off the water supply to the dishwasher and leave the door slightly open so that moisture and odours are not trapped inside.

REMOVE THE PLUG

Before cleaning or performing maintenance, always remove the power plug from the mains wall socket.

NO SOLVENTS OR ABRASIVE CLEANERS To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a damp cloth with water and a little vinegar, or a cleaning product made specifically for dishwashers.

WHEN NOT USED FOR LONG PERIODS It is recommended that you run a wash cycle with the dishwasher empty and then remove the power plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the dishwasher.

MOVING THE DISHWASHER

If the dishwasher must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

SEALS

One of the factors that cause odours to form in the dishwasher, is food that remain trapped in the seals.

Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION

POSITIONING THE DISHWASHER

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Fig.17

Pure technical line drawing of a U-shaped structural component with two side supports (no text or symbols)

LEVELLING THE DISHWASHER

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2.

POWER CONNECTION

WARNING

For your own safety:

• DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS DISHWASHER.
• DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD
• DO NOT TAMPER WITH THE POWER CORD. IF THE CORD REQUIRES REPLACEMENT, PLEASE CONTACT TECO SERVICE.

Refer to the rating label for the rated voltage and connect the dishwasher to the appropriate power supply. Use the required 10 amp fuse, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

POWER CONNECTION (CONT.)

CHECK DISHWASHER IS PROPERLY GROUNDED BEFORE USE

Ensure the voltage and frequency of the power being supplied corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. This dishwasher is designed to operate on a single phase power supply within a voltage range of 220\~240V/50Hz. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified ed persons in order to avoid a hazard.

POWER CONNECTION - GROUNDING

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock. This appliance is equipped with a power cord with an equipment-earthing conductor and an earthing plug. The plug must be inserted into an appropriate outlet that is installed and earthed in accordance with local standards and requirements.

WARNING

• Improper connection of the equipment earthing conductor may increase the risk of an electric shock.
• Check with a qualified electrician or TECO service if you have any doubt about the electrical safety of power source or power plug.
• Do not modify the plug provided with the appliance. If the plug does not fit properly in the outlet, please consult a qualified electrician.

WATER CONNECTION

CONNECTING THE SAFETY SUPPLY HOSE (AQUA-STOP)

The appliance must be connected to the water mains using a new hose set. An old hose set should not be reused.

Water pressure must be between 0.04 MPa and 1 MPa.

If the pressure is below the minimum requirement, please consult your local water supplier, authorised plumber or TECO service department

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Step 1

Pull the Aqua-stop completely out from storage compartment located at rear of the dishwasher.

Step 2

Tighten the screws of the Aqua-stop hose to the faucet with 19mm (3/4inch) thread.

Step 3

Turn on the water to full before starting the dishwasher.

AQUA-STOP HOSE

The Aqua-stop hose consists of double walls. The hose system guarantees its intervention by blocking the flow of water in cases where the supply hose breaks or when the space between the supply hose itself and the outer corrugated hose is full of water.

DISCONNECTING THE AQUA-STOP HOSE

Step 1

Turn off the water at the source.

Step 2

Release the water pressure by depressing the hose slightly.

Step 3

Unscrew the Aqua-stop hose from the faucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 19mm (3/4 inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run, to make sure that the water is clear and free of impurities. This is done to prevent the water inlet from blockages and damage to the dishwasher.

DRAIN HOSE CONNECTION

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The hose must not be raised above 1m.

Choose either method A or B (refer to Fig.19) to connect the drain hose.

Fig.17

DRAINING EXCESS WATER

If the sink is greater than 1m high off the floor, the excess water in the hoses cannot be drained directly into the sink. It will be necessary to drain excess water from the hoses into a bowl or suitable container that is held outside and lower than the sink.

WATER OUTLET

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

EXTENSION HOSE

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4m; otherwise the cleaning effect of the dishwasher could be reduced.

SYPHON CONNECTION

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into a sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1m from the floor.

BEFORE USE CHECKLIST

Before operating the dishwasher, please check the following

1. The dishwasher is level and fixed properly in place.
2. The inlet valve is open
3. There are no leaks from any conduct connections.
4. The power cable is securely connected to the mains power source.
5. The power is switched on.
6. The inlet and drain hoses are free of kinks and blockages.
7. All packing and printed material have been removed from the dishwasher.
8. Keep this manual in a safe location for future reference.

TROUBLESHOOTING

TECHNICAL ISSUES

Problem	Possible	Causes	Possible	solutions
Dishwasher does not start	Check and replace fuse if circuit has been	breaker triggered. sharing	necessary. and the	Res remove circuit.
	Power supply switched on.	is not switched closely power into	check on closed. cord mains	the and Check corre powe
	Error code water too low	E1 is faucet	Check connected securely turned	w an on.
	Dishwasher door not properly	closed. securely	Ensure obstruction closed.	do and
Water is not pumped from the dish	Drain hose is kinked	Check the drainage hose is not kinked and
	Filter is clogged	Check and clean the filter Refer to page 15.
	Clogged drain	Check clogged.	the Consult	drainage your
Suds in the tub	Improper detergent	Only use detergent specifically designed for dishwasher When this occurs, d dishwasher door and Suds to evaporate. Litres of cold water Close the dishwasher securely and select cycle. This will cause dishwasher to drain water. Open the dis door after draining finishes and check if suds have disappeared. Repeat necessary.
	Spilled rinse	aid always wipe immediately.
Stained tub interior	Detergent with colourant was	Choose a detergent without used colourant.

TROUBLESHOOTING (CONT.)

GENERAL ISSUES

Problem	Possible	Causes	Possible	solutions
White film on the inside of	Hard water minerals dishwasher	Wearing rubber gloves, clean with a damp spong dish washing detergent. use any other chem cleaner.	the interior	interior
Rust stains on cutlery The affected items are not corrosion obtaining dishwasher as resistant	Ensure your cutlery is corrosion obtaining corrosion	cutlery.	corrosion	res
A wash cycle was not dishwasher salt was of salt got into a wash	Always run the quick wash started after is empty. Do not select the added or traces after adding dishwasher salt. cycle	program while the turbo function	turbo	function
	The lid of the softener	Be sure to tighten the softener lid is loose before and check the debris obstruction and debris.	is check the debris.	before the debris.
Knocking sound from inside the dishwasher cabinet	A spray arm is hitting an item in a basket	Interrupt the wash cycle and rearrange the items which are obstructing the spray
Rattling noise in the dishwasher cabinet	Cutlery or crockery have come loose within the cabinet	Interrupt the wash cycle and rearrange items so they are secure within
Knocking sound from inside water pipes	Incorrect plumbing or pipe cross sections	This has no influence on the performance of the dishwasher. Consult a professional

UNSATISFACTORY WASH RESULTS

Problem	Possible	Causes	Possible		solutions
The dishes are not clean	The dishes were not loaded	Refer to page 11 on correct correctly	procedure	for	loadin
	The was	selected not suitable	program	Select program.	a more Refer
	Insufficient detergent was dispensed		Use more detergent or consider a more powerful detergent.
Items are blocking the path of the spray arms	Rearrange the items so that the spray arms rotate freely.
installed. Spray arms	The filters are not clean or incorrectly Clean the spray arm jets (refer may get blocked to page 15).
Cloudiness on glassware	Combination of soft water and too much detergent		Use less detergent if you have soft water and select a shorter wash cycle to wash glassware.

TROUBLESHOOTING (CONT.)

UNSATISFACTORY WASH RESULTS (Cont.)

	Problem			Possible	Causes	Possible	solutions
Black or gray marks on dishes			Aluminium utensils dishes	Use a mild have	abrasive cleaner to rubbed	against	eliminate

Detergent left in Dishes have blocked Relocate dishes making sure dispenser detergent dispenser they do not block the dispenser.

UNSATISFACTORY DRYING RESULTS

Problem	Possible	Causes	Possible		solutions
The dishes are not dry	Incorrectly loaded	Load the dishwasher as directed.	Refer	to	p.
	Insufficient rinse aid		Increase the amount of rinse aid and/or refill the rinse aid dispenser.
	Dishes too	are soon	removed immediately	do not after	empty w
			Open the steam to unloading are lower basket first. This will prevent glassware upper	door escape. only water and baskets.	sligh B
	Wrong selected	program	In temperature decreases Choose wash	short is wash a program.	programs, lower. perform ru
Cutlery has a low	Water drainage is more quality coating		difficult with items of low quality coating. These are not recommended washing in a dishwa
	Normal (default eco mode - for consumption and water savings)		program Select Extra D NOTE: This function will increase energy consumption.

ERROR CODES

When a malfunction occurs, the dishwasher will display an error code.

Code	Meaning	Possible Causes
E1	Longer inlet time	Faucet is not open fully, water intake is restricted or water I o w .
E4	Overflow	An element of the dishwasher is

WARNING

• If an overflow occurs, turn off the main water supply before calling TECO service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

	mm548:thgieH
	mm895:htdiW
:htpeD (mm0.06 indoor closed)
Water pressure:	0.04-1.0MPa
Power supply:	Refer to rating plate
Capacity:	14 place settings

1. Upper Basket


1. Lower Basket

1 Forks

2 Soup spoons

3 Dessert spoons
Information for comparability tests in accordance with (*AS/NZS 2007.1)
■ Voltage:230V/50Hz
■ Capacity: 14 place settings ■ Position of the upper basket: lower ■ Programme: Normal ■ Detergent(Pre/main): 5 g/27.5 g ■ Rinse aid setting: 6

Dessert dishes
