OM26073 - Support pour écran plat ITB - Free user manual and instructions

Product Type	TV Wall Mount
Brand	ITB
Model	OM26073
Compatible Screen Sizes	32 to 65 inches
VESA Compatibility	200x200 to 600x400 mm
Maximum Weight Capacity	50 kg
Material	Heavy-duty cold-rolled steel
Color	Black
Tilt Adjustment	+5° / -15°
Swivel Range	±60°
Rotation	3°
Distance from Wall	52 mm
Mount Type	Fixed, tilt, and swivel
Installation	Wall mount with concrete anchors included
Dimensions (W x H x D)	500 x 200 x 52 mm
Weight	2.3 kg
Warranty	1 year
Care Instructions	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety Notes	Ensure wall can support weight; use provided hardware; avoid overloading.
Spare Parts Availability	Contact ITB customer service for replacement parts.

Frequently Asked Questions - OM26073 ITB

What is the maximum TV size supported by the ITB OM26073 mount?

The mount supports TVs from 32 to 65 inches. Always check the actual weight and VESA pattern.

What VESA patterns are compatible with this mount?

It fits VESA patterns from 200x200 mm up to 600x400 mm. Measure the distance between your TV's mounting holes.

How much weight can the OM26073 support?

The maximum load is 50 kg. Ensure your TV does not exceed this limit.

Does this mount tilt or swivel?

Yes, it offers tilt (+5°/-15°), swivel (±60°), and rotation (3°) for optimal viewing angles.

What tools are needed for installation?

You will need a drill, level, socket wrench, and the included Allen key. Concrete anchors are provided for solid walls.

Can I install this mount on drywall or plaster?

It is designed for solid concrete or brick walls. For drywall, you must use appropriate anchors (not included). We recommend a professional installer.

What is the distance between the TV and the wall after installation?

The mount keeps the TV just 52 mm from the wall, offering a low-profile look.

Does the mount come with all necessary hardware?

Yes, it includes screws, spacers, washers, and concrete anchors to fit most TVs. Check your VESA pattern and screw size.

How do I clean the mount?

Use a soft, dry cloth to wipe away dust. Avoid harsh chemicals that could damage the finish.

Is there a warranty for the ITB OM26073?

The mount comes with a 1-year limited warranty against manufacturing defects. Contact ITB support for claims.

USER MANUAL OM26073 ITB

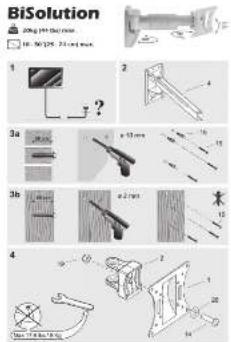

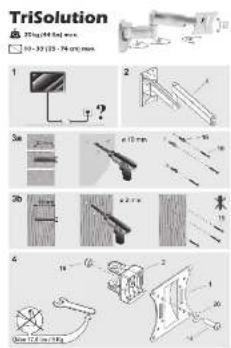

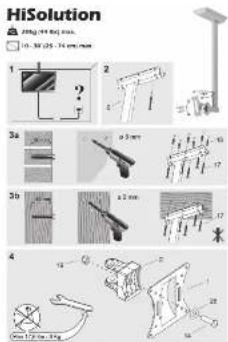

BiSolution TriSolution HiSolution

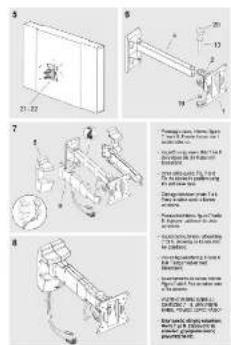

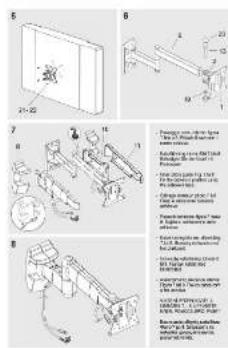

Guida di montaggio / Mounting instructions / Montageanleitung / Prescriptions de montage Gula de montaje / Montagevoerschrift / Monteringsvejiedning / Prescricoes de montagem

GB Warning: Correct assembly is essential. The maximum weight of supported LCD must not exceed Kg 20 (bis-6). The unit which it is to be attached must be of solid wood, brickwork or stone. Require appropriate assembly materials. The manufacturer is not responsible for any consumer use delivering from incorrect assembly or for use otherwise for LCD uses.
