Product Type	Smartphone
Brand	Acer
Model	Liquid Z205
Operating System	Android 4.1 Jelly Bean
Processor	1 GHz Cortex-A5
RAM	512 MB
Internal Storage	4 GB
Expandable Storage	microSD up to 32 GB
Display Size	4.0 inches
Display Resolution	480 x 800 pixels
Display Type	TFT LCD
Rear Camera	5 MP
Front Camera	VGA (0.3 MP)
Battery Capacity	1300 mAh
Battery Type	Li-ion removable
Dimensions	126 x 64 x 10 mm
Weight	125 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, microUSB 2.0
Network	3G HSDPA 7.2 Mbps, GSM
Sensors	Accelerometer, Proximity
Maintenance	Clean with dry soft cloth. Do not use liquid cleaners. Avoid moisture.
Safety	Do not disassemble. Use only approved accessories and chargers.
Spare Parts & Repair	Battery, USB cable, charger, back cover. Repair by qualified service.

Frequently Asked Questions - Liquid Z205 ACER

How to insert SIM card and microSD card?

Remove the back cover and battery. Locate the SIM card slot (Mini-SIM) and microSD card slot. Insert the SIM card with gold contacts facing down, and push until it clicks. Insert the microSD card similarly. Reinsert battery and back cover.

How to perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm by tapping Reset phone. This erases all data, so back up important information first.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for about 2 seconds. The screen will flash and the screenshot will be saved in the Gallery.

How to check available storage?

Go to Settings > Storage. You will see the total and available space on internal storage and SD card (if inserted).

How to extend battery life?

Reduce screen brightness, turn off Wi-Fi/Bluetooth when not in use, close unused apps, and enable Power Saving Mode from Settings > Battery.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, turn it on, select your network from the list, enter the password, and tap Connect.

How to update the operating system?

Go to Settings > About phone > System updates. If an update is available, follow the on-screen instructions to download and install. Ensure battery is charged above 50%.

What to do if the device freezes?

Press and hold the Power button for about 10 seconds until the device turns off. Then press the Power button again to restart. If the issue persists, perform a factory reset.

How to clean the device?

Use a soft, lint-free cloth slightly dampened with water. Do not use harsh chemicals or abrasive materials. Avoid getting moisture into openings.

Is the battery removable?

Yes, the battery is removable. To replace it, turn off the device, remove the back cover, and gently lift the battery from the compartment. Insert a compatible Acer battery.

USER MANUAL Liquid Z205 ACER

© 2014 All Rights Reserved

Acer Liquid Z205 User's Manual

Model: Z205

This revision: August 2014

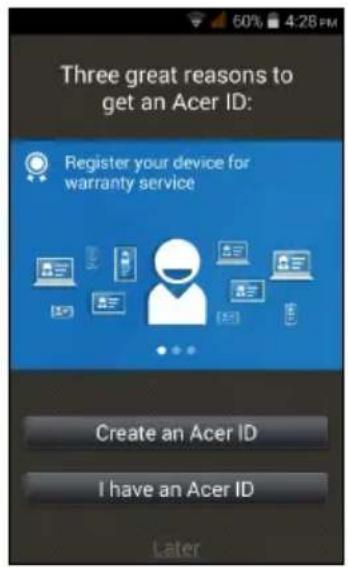

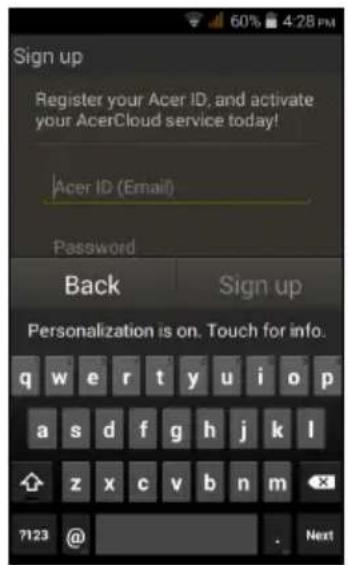

Sign up for an Acer ID and enable Acer Remote Files

Open the Acer Portal from the Home screen to sign up for an Acer ID or sign in if you already have an Acer ID.

There are three great reasons for you to get an Acer ID:

• Remotely access your PC from your other devices with our free Acer Remote Files app
• Get the latest offers and product information
• Register your device for warranty service

For more information, please visit the AcerCloud website: www.acer.com/acercloud

Important

This manual contains proprietary information that is protected by copyright laws. The information contained in this manual is subject to change without notice. Images provided herein are for reference only and may contain information or features that do not apply to your computer. Acer Group shall not be liable for technical or editorial errors or omissions contained in this manual.

Acer Liquid Z205 Smartphone

Model number:

Serial number:

Date of purchase:

Place of purchase:

TABLE OF CONTENTS

Setting up 5

Unpacking your smartphone.... 5

Getting to know your smartphone...... 5

Views 5

Charging the battery 6

Installing a SIM or microSD card 7

SIM card lock 8

Using your smartphone 9

Turning on for the first time.... 9

Sign in to or create a Google account ..... 9

Entering your PIN....9

Activating a new SIM card 9

Locking your smartphone 9

Waking your smartphone 10

Navigating through menus and options . 10

Using the touchscreen.... 11

Onscreen keyboards 12

Google keyboard.... 12

Predictive text 13

The Home screen 13

Search.... 13

The extended Home screen.... 14

Personalizing the Home screen 14

The Application (Apps) menu.... 17

Notification and status area 17

Multitasking 18

Managing contacts 19

Managing your contacts 19

Adding a contact 19

Making calls 21

Before making a call 21

Making a call.... 22

Dialing a number from Call History ...... 22

Viewing missed calls.... 22

Making a call to one of your contacts...... 23

Dialing an international number 23

Direct dial widget.... 23

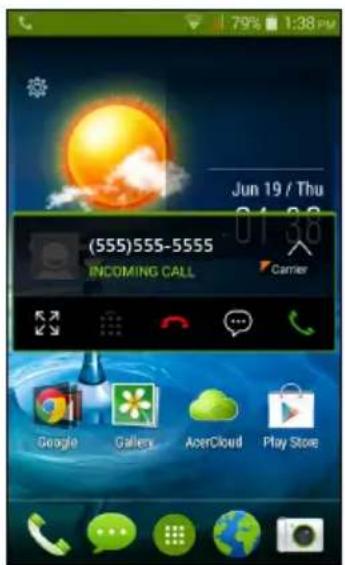

The voice call screen.... 24

Answering or declining a call 24

Conference calls 26

Internet calling 27

Adding an internet calling account...... 27

Editing or removing an internet calling account 27

Using internet calling 27

Receiving internet calls.... 27

Calling a contact's internet calling address.... 28

Calling a phone number using internet calling 28

Messaging 29

Creating a new message 29

Replying to a message 30

Multimedia messages 31

Receiving multimedia messages .... 31

Going online 33

Browsing the internet 33

Using the browser 33

Setting up Email.... 34

Google services 34

Setting up your Google email 35

Voice search 35

Play Store 36

Google Hangouts.... 37

Maps, Navigation, Places and Latitude .... 38

AcerCloud setup 39

AcerCloud setup for Windows 39

Install AcerCloud.... 40

Sign in using your Acer ID 40

AcerCloud options 42

Using the Camera 44

Camera/camcorder icons and indicators 44

Settings menus 46

Taking a photo 47

TShooting a video.... 48

Supported formats 48

Viewing photos and videos 48

Geotagging 48

Advanced settings 49

Putting your smartphone in Airplane

mode.... 49

Turning Airplane mode on or off 49

Restarting your phone 50

Adjusting settings.... 51

Activating or deactivating connections..... 51

Phone network settings 53

Phone settings 54

Sound 54

Audio profiles 55

Display 55

Setting the date and time.... 55

Setting alarms.... 55

Changing language and text options ..... 56

Connecting to a PC.... 56

Synchronization 56

FM radio.... 57

Applications (apps) 58

Closing an app.... 58

Uninstalling an app 58

Restoring to factory settings 58

Accessories and tips 60

Using the headset 60

Using a Bluetooth headset.... 60

Creating a new access point.... 60

Inserting a microSD card 61

Appendix 62

FAQ and troubleshooting 62

Other sources of help.... 64

Warnings and precautions 65

Medical devices 66

Vehicles 67

Potentially explosive environments...... 67

Emergency calls 68

Taking care of your smartphone.... 68

Specifications 70

Performance 70

Display 70

Multimedia 70

USB connector....70

Connectivity 71

*Camera....71

Expansion 71

Battery 71

Dimensions 71

End User License Agreement 72

SETTING UP

Unpacking your smartphone

Your new smartphone comes packed in a protective box. Carefully unpack the box and remove the contents. If any of the following items is missing or damaged, contact your dealer immediately:

• Your new Acer smartphone
• Quick Guide
• USB cable
• AC adapter
• Headset

Note

In-box content varies depending on country and region.

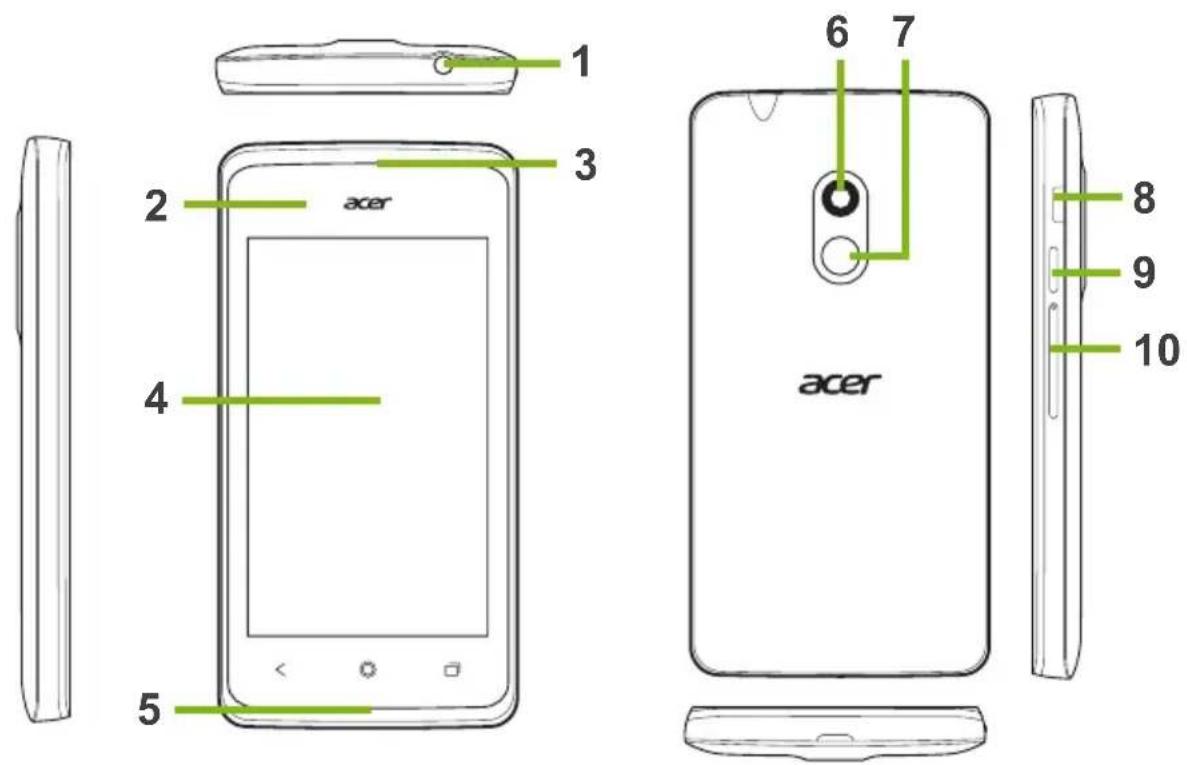

Getting to know your smartphone

Views

1 2 3 4 5 6 7 8 9 10 acer

No. Item Description

1 3.5 mm headphone jack Connects to stereo headphones.

2 Proximity sensor Disables touchscreen avoiding accidental "taps" while on a call.

3 Phone speaker Emits audio from your smartphone; suitable for holding to your ear.

4 Touchscreen 4-inch, 800 x 480 pixel capacitive touchscreen to display data, phone content and enter information.

5 Microphone Internal microphone.

6 Camera A camera for taking high-resolution images.

7 AcerRAPID button Shortcut button to answer incoming calls. Long press to launch the camera app; short press to launch a designated app (default app is Google Play Music).

8 Micro USB connector Connects to a USB cable/charger.

9 Power button Press to turn the screen on/off or enter sleep mode; press and hold to turn the smartphone on or off.

10 Volume up/down button Increases or decreases the phone volume.

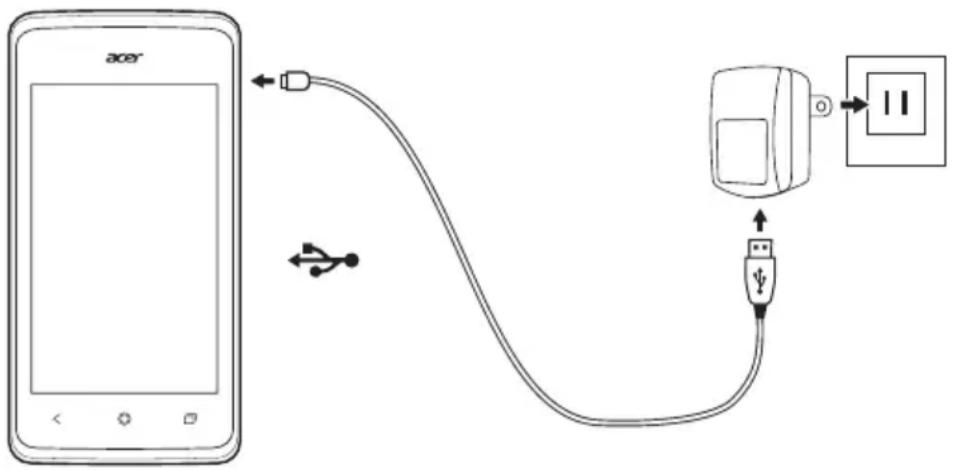

Charging the battery

For initial use, you need to charge your smartphone for eight hours. After that you can recharge the battery as needed.

Connect the AC adapter cord to the micro USB connector on your smartphone.

aer ← ↔ → ← ← → ← ←

Installing a SIM or microSD card

To take full advantage of your smartphone's telephony capabilities, you must install a SIM card.

Additionally, you may wish to increase your smartphone's storage by inserting a microSD card into the labeled slot.

1. Turn off the phone by pressing and holding the power button.

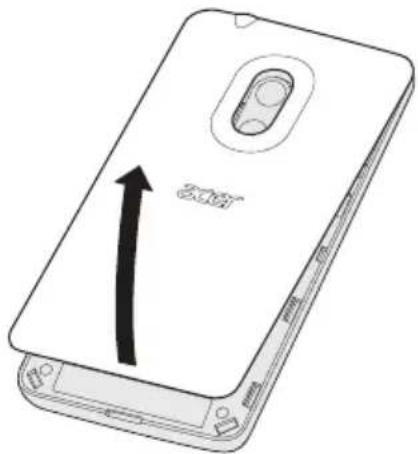

2. Insert your fingernail into the cutout between the cover and the phone. Unclip the cover and lift off the cover.

2.005

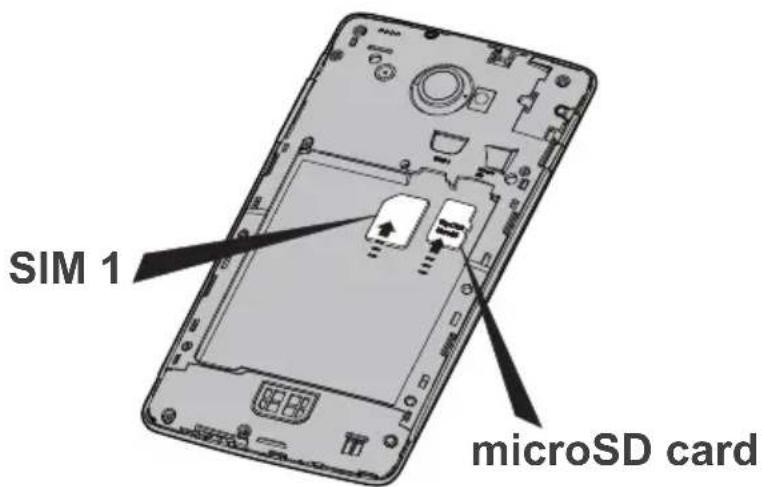

1. Insert the SIM or microSD card as shown.

Note

Ensure that the microSD card is inserted all the way into the card slot.

SIM 1 microSD card

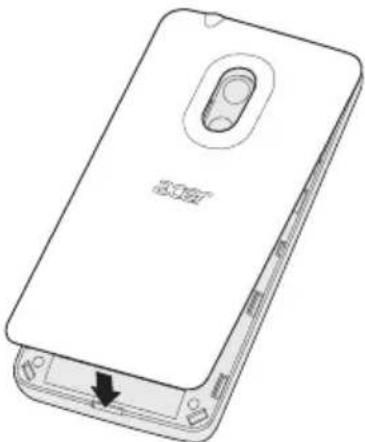

1. Replace the cover by aligning the tabs on the cover into the slots on the phone. Gently press the cover until it snaps in place.

Line drawing of a smartphone case with a closed lid and internal components (no text or symbols)

SIM card lock

Your smartphone may come with a SIM card lock, i.e., you will only be able to use the SIM card provided by your network operator.

To cancel the SIM lock, contact your network provider.

USING YOUR SMARTPHONE

Turning on for the first time

To turn on your smartphone for the first time, press and hold the power button until the screen turns on. You will then be asked to configure some settings before you can use your smartphone.

Follow the onscreen instructions to complete setup.

Sign in to or create a Google account

If you have Internet access, your smartphone allows you to synchronize information with a Google account.

You may create or sign in to an existing Google account, which will be used to synchronize your contact list, email, calendar and other information. Open the Application menu and then tap Settings > Add account. Tap the type of account you want to add (e.g. Google). You will need internet access to complete the synchronization process. You can create and easily access multiple Google accounts.

Entering your PIN

When you install a SIM card for the first time, you may need to enter a PIN using the onscreen number pad.

Important

Depending on your settings, you may be required to enter your PIN each time you switch on the phone function.

Activating a new SIM card

If you are using your SIM card for the first time, it may require activation. Contact your network operator for details on how to do this.

Locking your smartphone

If you will not use your smartphone for a while, briefly press the power button to lock access. This saves power and ensures your

smartphone does not unintentionally use any services. Your smartphone will lock automatically if it is not used for one minute (depending on your settings).

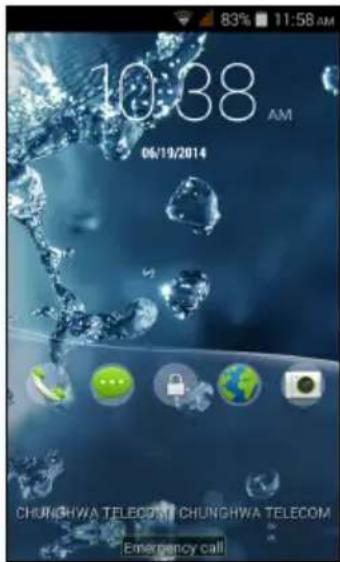

Waking your smartphone

83% 11:58 AM 10:38 AM 06/19/2014 CHUNGHWA TELECOM CHUNGHWA TELECOM Emergency call

If the screen is off and the smartphone does not react to any taps on the screen or front panel button, then it has been locked and is in sleep mode.

Press the power button to wake your smartphone. Unlock your smartphone by sliding your finger from one side of the screen to the other (it works both ways).

For additional security, you may set an unlock pattern, a set of dots that must be touched in the correct order to access the phone. Open the Application menu and then tap Settings > Security > Screen lock. If you forget your unlock pattern, please refer to Unlock pattern on page 64.

You may also directly enter the lock screen apps. Tap and hold the lock screen icon, move your finer slightly in any direction, and release. The phone unlocks and opens that app.

Navigating through menus and options

To navigate through menus and options, there are three buttons beneath the screen.

< Back Home Menu

Back

Tap this button to go to the previous page, or to go up one level in a menu.

Home

Tap this button to go directly to the Home screen. Tap and hold this button to open Search.

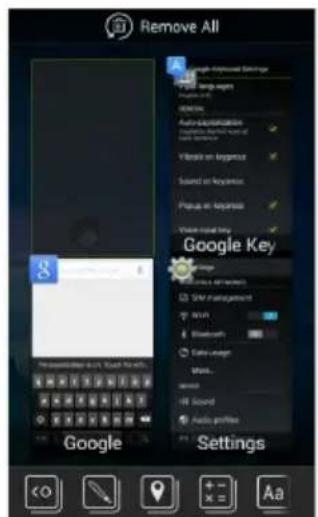

Menu

Tap this button to see recently opened apps. Tap an app to open it. At the bottom of the Menu screen are Acer Float apps. Tap a Float app to open the app in its own window while keeping what you were doing visible. You can customize which apps appear. Swipe to the right in the Acer Float apps bar and tap the gear icon. Choose from float Browser, Buttons, Calculator, Camera, Maps, Notes, Stopwatch, and Text.

Tap and hold the Menu button to open a menu of actions that are valid for the current app or screen. Tap anywhere on the screen to return to the Home screen. See Multitasking on page 18.

Using the touchscreen

Your smartphone uses a touchscreen for selecting items and entering information. Use your finger to tap the screen.

Tap: Touch the screen once to open items and select options.

Drag: Hold your finger on the screen and drag across the screen to select text and images.

Tap and hold: Tap and hold an item to see a list of actions available for that item. On the pop-up menu that appears, tap the action you want to perform.

Scroll: To scroll up or down the screen, simply drag your finger up or down the screen in the direction that you want to scroll.

Onscreen keyboards

Note

The keyboard layout varies slightly, depending on the application and information that is required.

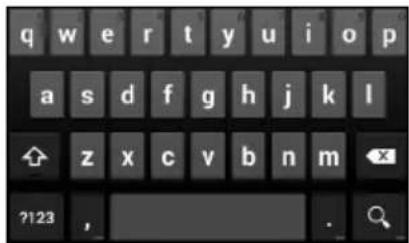

Google keyboard

This is a standard onscreen QWERTY keyboard that allows you to enter text. Tap and hold a key with numbers at the top to select alternative characters, such as letters with accents.

q w e r t y u i o p a s d f g h j k l z x c v b n m ?123 , .

Tap the ?123 button to see numbers and special characters, and then tap the =\< key to see even more.

You can choose another input language by tapping and holding the forward slash key. Alternatively, you can open the Application menu and then tap Settings > Language & input. Then tap the Settings button next to Google keyboard > Input languages. The keyboard layout changes according to the selected language.

After setting up more than one language, the world button appears next to the space bar. Tap this button to quickly toggle between multiple input languages.

Text assistance

The Google keyboard has various features that assist you to enter correct text. In the Application menu, tap Settings > Language & input. Then tap the Settings button next to Google keyboard. From here you can enable or disable several keyboard-related settings.

Changing the text input method

To change the input method, in the Application menu tap Settings > Language & input > Default and then select your preferred input method.

Predictive text

Google keyboard provides predictive text input for the browser. As you tap the letters of a word, a selection of words are displayed above the keyboard that continue the sequence of letters tapped, or are a close match allowing for errors. The word list changes after every key press. If the word you need is displayed, you can tap on it to insert it into your text.

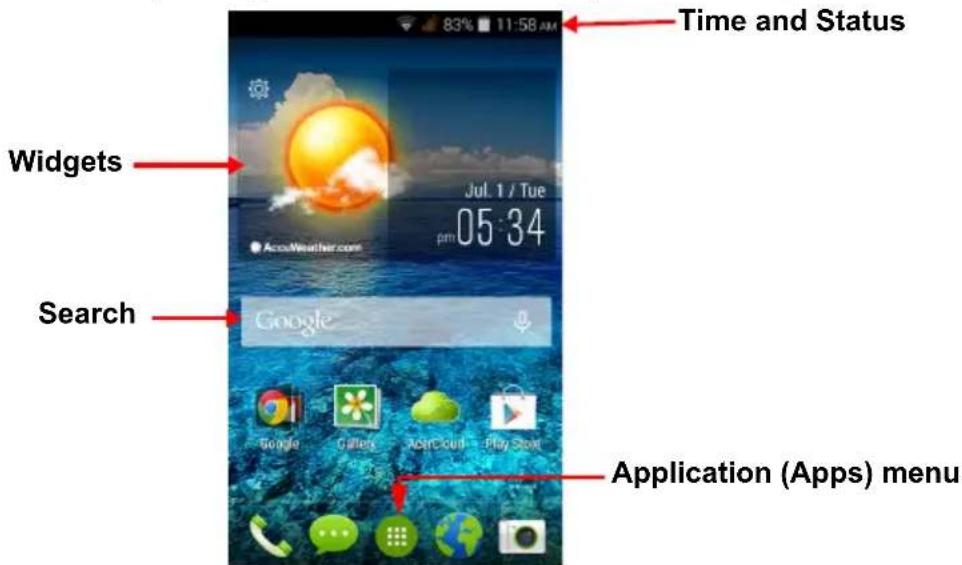

The Home screen

The Home screen gives you quick access to information and simple controls with widgets or shortcuts. These display information such as the time and weather, or provide additional controls and direct access to apps and other frequently used features of your smartphone.

Time and Status Widgets Search Google Application (Apps) menu

At the bottom of the screen is the application dock which displays default apps. Tap an icon to open the app. Tap the Application menu icon in the middle of the application dock to view your apps. To change apps, see Changing application dock icons on page 16.

Search

To search for apps, files or for information on the Internet, tap the Google icon.

Simply enter the text you want to find and tap or tap one of the suggestions, apps or files shown in the list.

In order to search or browse the Internet, you must be connected to a cellular data (if available) or wireless network. See Going online on page 33.

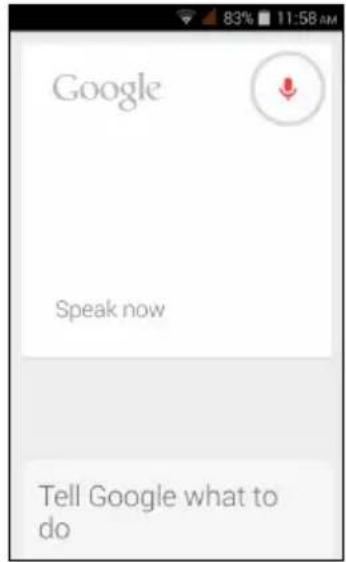

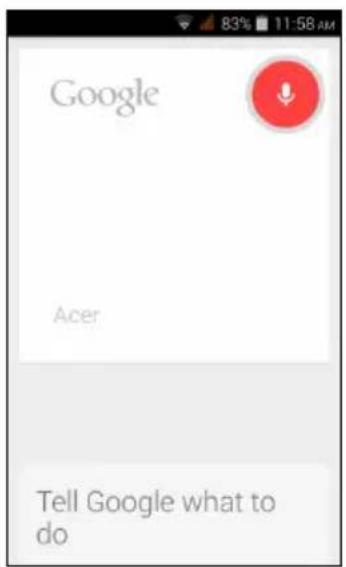

Voice search

If voice search is available, tap the microphone and speak your search request. See Voice search on page 35.

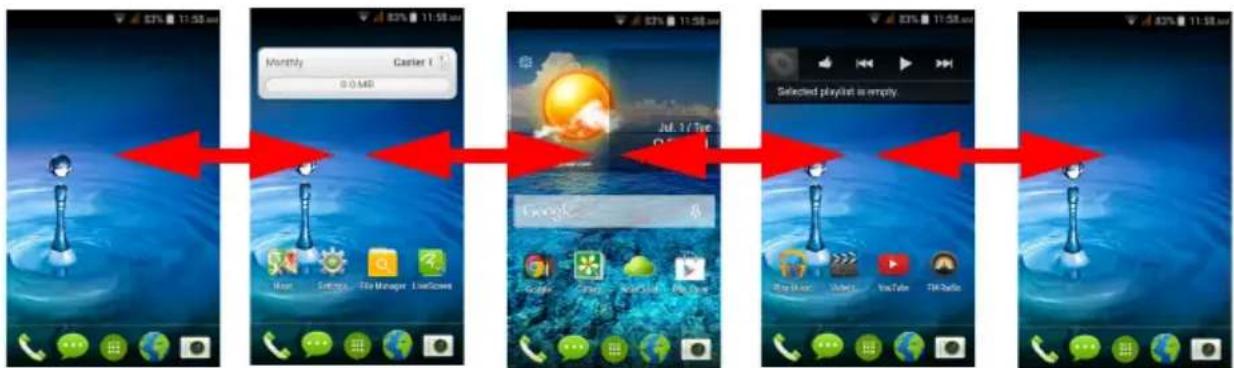

The extended Home screen

The Home screen extends to either side of the screen, giving you more room to add icons, widgets or features. To view the extended screen, slide your finger to the left or right.

Personalizing the Home screen

You may personalize your Home screen by adding or removing app shortcuts or widgets, and by changing the wallpaper.

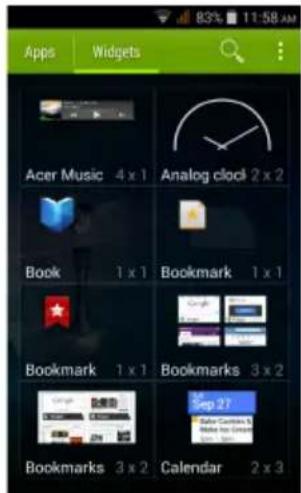

Adding and removing shortcuts and widgets

To add shortcuts or widgets, tap the Application menu icon in the bottom-center of the Home screen.

Tap Apps to see a list of shortcuts to apps you can drag to a Home screen.

Tap Widgets to see small apps and links (such as custom shortcuts, contacts or bookmarks) that you can add to a Home screen. Widgets

are small apps that display constantly-updated information or quick shortcuts to apps or special functions.

Apps Widgets Acer Music 4 x 1 Analog clock 2 x 2 Book 1 x 1 Bookmark 1 x 1 Bookmark 1 x 1 Bookmarks 3 x 2 Calendar 2 x 3 83% 11:58 AM

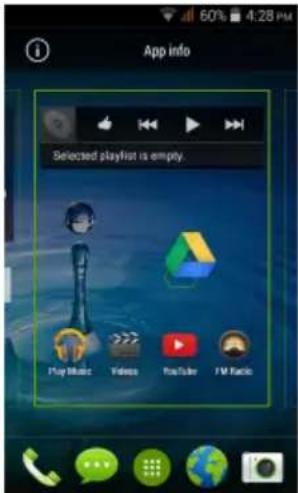

To move an app or widget to the Home screen, tap and hold an item until it is selected. The Home screen will open. Drag the item to any free area on the screen. To view information about the app or widget, drag it to the icon at the top of the screen.

App info Selected playlist is empty. Play Music Videos YouTube FM Radio

To move the item to a different Home screen, drag it to the side of the screen, the Home screen will switch to the screen in that direction. Release the item when it is positioned correctly.

To remove a shortcut or widget from the Home screen, tap and drag it to Remove at the top of the screen.

Resizing widgets

Some widgets can be resized. To resize a widget that is already on the Home screen, tap and hold the widget. Once the Remove icon appears, release the widget. If the widget is resizable, you will be able to drag the sides of the widget to resize it.

Adding or removing folders

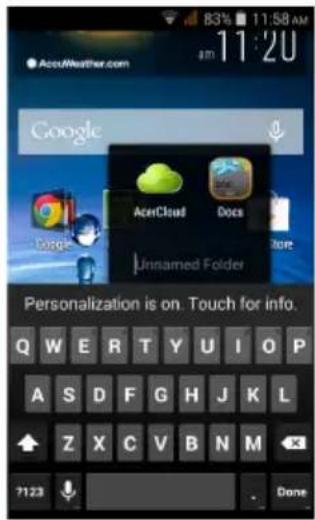

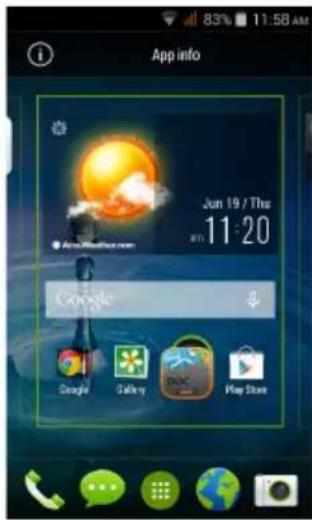

You can also add folders to your Home screen. To create a new folder drag and drop an app icon onto another app icon in the Home screen. This will create an Unnamed Folder. Tap the folder icon and then tap the name of the folder to rename it.

App info Jun 19 / Thu 11:20 Google Google Game Play Store

AccuWeather.com 83% 11:58 AM am 11:20 Google AcerCloud Docs Unnamed Folder Personalization is on. Touch for info. Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 7123 Done

To delete an app shortcut from a folder, tap on the folder icon to display the apps inside and then tap and hold the app icon that you want to remove. Drag and drop the icon on Remove that will appear at the top of the screen.

To delete a folder, tap and hold on the folder and then drag and drop the folder on Remove that will appear at the top of the screen.

Changing application dock icons

You can set icons for installed apps in the application dock. Open the Application menu and find the app you want to add. Tap and hold the icon, then drag it to any open position in the dock. Dragging the new app to an existing dock icon will create a folder for both icons.

To remove an icon from the dock, tap and hold the icon to select it. Either drag the icon to a different location outside the dock or to Remove at the top of the screen.

Changing the wallpaper

In the Application menu, tap Settings > Display > Wallpaper. Choose from images stored in the Gallery, Live Wallpapers (featuring animated or interactive backgrounds), Photos, Video Wallpaper (enabling you to use videos as your background), or Wallpapers.

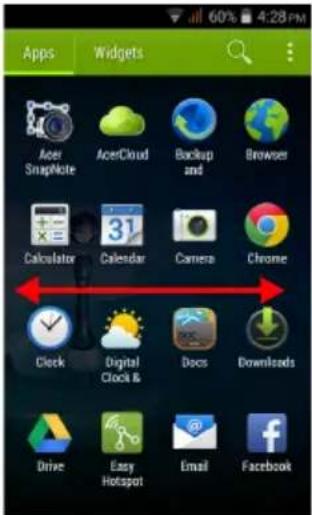

The Application (Apps) menu

To access the Application menu, on the Home screen tap 📋 in the center of the dock.

Apps Widgets Acer SnapNote AcerCloud Backup and Browser Calculator 31 Calendar Camera Chrome Clock Digital Clock & Docs Downloads Drive Easy Hotspot Email Facebook

Apps are displayed in alphabetical order. Swipe the page to the left or right to see more apps. When you are on the last page of apps, swipe to the left to see widgets available on your tablet, or tap Widgets at the top of the page.

To quickly jump to apps or widgets, tap Apps or Widgets at the top of the Application menu.

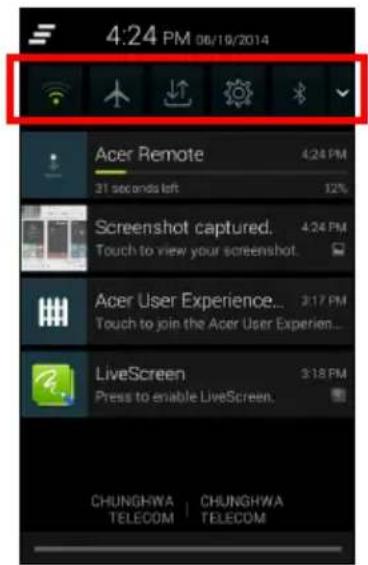

Notification and status area

Notification and status icons are shown at the top of the screen. The top-right area displays a variety of status information, such as Wi-Fi connectivity, signal strength, battery status, and time. The top-left area displays event icons, such as a new message.

56% 5:17 PM

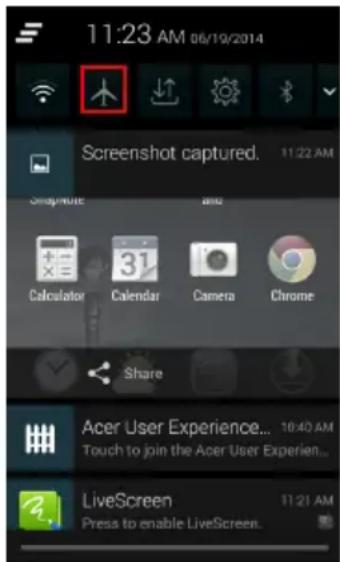

Drag the Notification area down the screen to view more information about new events and access Quick Settings.

11:23 AM 06/19/2014 Screenshot captured. 11:22 AM Calculator Calendar Camera Chrome Share Acer User Experience... 10:00 AM Touch to join the Acer User Experien... LiveScreen 11:21 AM Press to enable LiveScreen.

Multitasking

You can have multiple apps open at the same time. To open a new app, tap the home button to return to the Home screen, then start the new app. Tap the Menu button to quickly navigate back and forth between previously-opened apps.

Note

To prolong battery life, it is better to close an app when you've finished using it. Do this by either pressing the Back key or the Menu button and selecting Exit (if available).

Remove All Google Settings

MANAGING CONTACTS

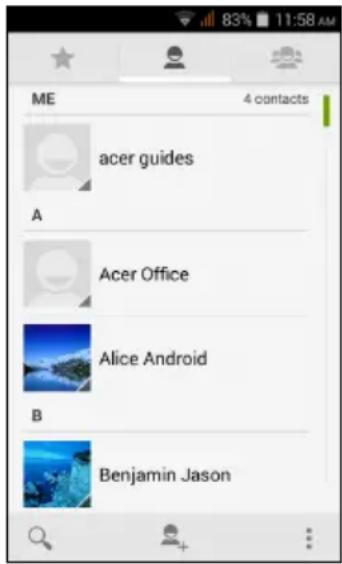

Managing your contacts

Your smartphone features an address book that allows you to save contacts to either the internal memory or onto your SIM card.

Tap the People app from the Application menu or tap All contacts from the Dialer to view your contacts.

ME 4 contacts acer guides A Acer Office Alice Android B Benjamin Jason

If you don't have any contacts stored on your phone, you can import your Google account contacts, add a new contact or import contacts from your SIM or SD card. Open the People app from the Application menu and then tap to add a contact, to search for a contact, or tap the Menu button to open the menu.

Adding a contact

Tap to add a new contact. You may also scan a person's profile barcode to add the person to your contact list or group.

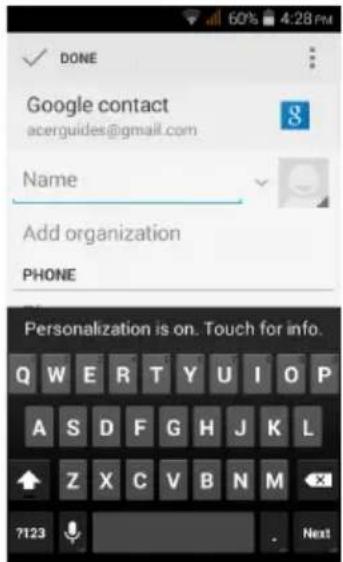

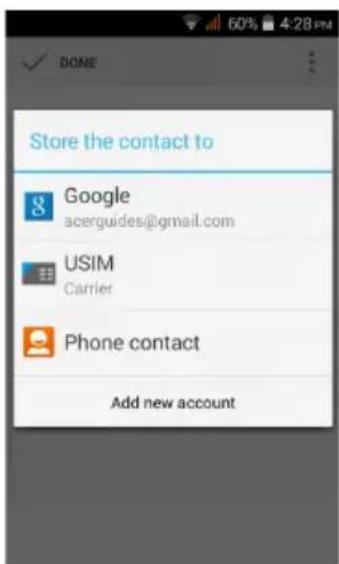

To create a contact, first choose where you want to store the contact's information. You will then be asked to enter the contact's information, such as name, address, and phone number.

Store the contact to Google [e-mail] USIM Carrier Phone contact Add new account

DONE Google contact [e-mail] Name Add organization PHONE Personalization is on. Touch for info. Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 7123 Next

You may scroll down the page and tap Add another field to add things such as:

• IM addresses.
• Add any personal notes about the contact.
• Phonetic name
• Link a website

To assign an image to your contact, tap the silhouette and select whether to take a photo or select an image from your smartphone's picture gallery.

When done, click Done at the top of the screen.

Tapping on the contacts name will bring up their profile. Tap while viewing a contact's profile to edit, share, delete, or print the contact. You may also set a ringtone for the contact, block incomign calls from this contact, or place the contact on your Home screen.

You may also create a contact from an already dialed or received number, see Saving a dialed number to contacts on page 25.

MAKING CALLS

This chapter shows you how to make phone calls, and the various options available to you during your call.

Before making a call

Check that the phone function is on before you make a call. You can confirm the phone status from the Notification area.

Note

Status and notification icon colors may vary.

Icon Description

	Not connected to the network: You are unable to make a call.
	Connected to the network: You may make a call.

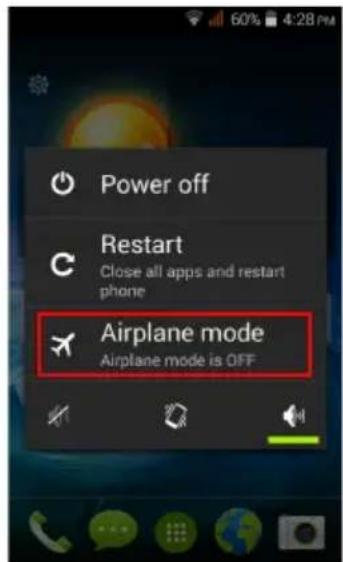

	Airplane mode: Wireless connectivity disconnected (Wi-Fi, Bluetooth, 2G and 3G). Please disable airplane mode before trying to make a call.

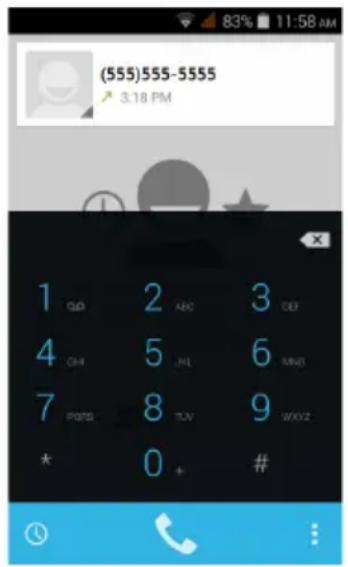

Making a call

1. From the Home screen tap Phone to open the onscreen number pad.

[phone] 3:18 PM 1 QD 2 ABC 3 DEF 4 CH 5 JHL 6 MND 7 POTS 8 TLV 9 WKYZ * 0 + #

1. Enter the number you wish to dial.
2. Tap to make the call.
3. To end the call, tap

If the contact you need is displayed, simply tap the contact name to make a call.

Dialing a number from Call History

Your call history can be viewed by tapping the Call History ⏻ button. It displays recent received, dialed, and missed calls.

Tap the phone icon to redial. To view call details and other options, tap the number or contact's name.

Viewing missed calls

Missed call notifications are displayed in the following three areas:

1. The Notification area with the missed call icon. Open the Notification area and tap the missed call notification to display the missed call details.

2. By the Phone icon 📄 (the number in the box is the number of missed calls). Tap Phone from either the Home screen or the Application menu to directly display the missed call details.

3. On your phone's lock screen. Tap the notification and slide to the left or right to display the missed call details.

Making a call to one of your contacts

Calling a contact from the Contacts tab

1. Tap the All contacts to view your contacts.
2. Tap on a contact to call them.

Calling a contact from the Contacts app

1. Tap the People icon the Application menu to view your contacts.
2. Tap on a contact to open their profile.
3. Tap on the contact's phone number to call them.

Dialing an international number

When dialing international numbers, there is no need to enter the international direct dialing prefix ('00' etc.) before the country code. Simply tap and hold 0+ on the onscreen number pad until + appears onscreen.

Important

International call rates can vary greatly depending on the country you are calling and your network provider. We suggest you check all call rates with your network provider, to avoid excessive phone bills. If you are using your smartphone abroad, roaming charges will apply. Consult your network provider for roaming rates specific to the country you are visiting before you leave.

Direct dial widget

You may add a direct dial widget for a contact on your Home screen. Open the Application menu, then tap the Widgets tab. Tap and hold Direct dial and you will be able to place the widget on your Home screen. Once placed, you will be able to select a contact to associate with that particular widget on your Home screen.

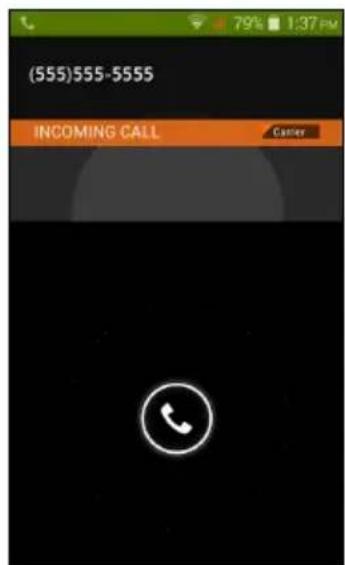

The voice call screen

You can minimize the call window to appear as a movable dialog instead of a whole screen by tapping the icon. You can even set this "floating" dialog box as the default voice call screen. To do so, open the Notification area and tap the down arrow to display more Quick Settings options (see Notification and status area on page 17). Tap the Float caller button to activate (green means Float caller is "ON").

79% 1:38 PM Jun 19 / Thu [phone] INCOMING CALL Carrier Google Gallers AckerCloud Play Store

[phone] INCOMING CALL Carrier

Answering or declining a call

When you have an incoming call, the number will be shown on the screen. To accept or decline the call, tap the appropriate icon and

slide your finger across the screen. To decline the call with a text message, tap the icon and select a message.

[phone] INCOMING CALL Cancel

Ending a call

To end a call, tap from the voice call screen.

Voice call options (call screen maximized)

Icon Description
	Place the call on hold.
	Mute a call.
	Speakerphone.
	Access the keypad while a call is in progress.
	Add a second call

Saving a dialed number to contacts

You can save a number you have dialed to your contacts for future use.

1. From the Call History ⏻, tap the number and then tap Add to contacts 📁.

2. Tap Create new contact and enter the information. See Adding a contact on page 19.

Conference calls

If you have one call on hold and another on line, you can combine both calls to create a conference call.

After the first call is established, tap to add a second call. Tap to start the conference call.

INTERNET CALLING

You can place and receive internet calls over a wireless network.

Adding an internet calling account

From the Home screen, tap Phone. If open, tap the Back button to close the onscreen number pad. Tap the Settings > Internet Call button at the bottom-right of the call screen. Enable internet calling by tapping Use Internet calling. Tap Accounts > ADD ACCOUNT to add an internet calling account.

Enter the Username, Password, and Server information and if you want this new account to be your primary internet calling account, tap Set as primary account. You can also configure optional settings such as Display name, Outbound proxy address, Port number, Transport type, and Send keep-alive.

Editing or removing an internet calling account

Open an existing internet calling account and make the edits you want on the SIP account details. Tap Save to save your changes, tap Discard to discard the changes, or tap the Menu button and then select Remove account to delete the existing account.

Using internet calling

You can configure your phone to use internet calling (when you're connected to Wi-Fi) for all calls, only for internet calls, or to ask each time you place a call.

Receiving internet calls

Once your have created an internet calling account, you can toggle off and on the internet calling feature on your phone. From the Home screen, tap Phone. If open, tap the Back button to close the onscreen number pad. Tap the Settings > Internet Call button at the bottom-right of the call screen. Enable internet calling by tapping Use Internet calling.

Calling a contact's internet calling address

You must add an internet calling address to a contact to be able to place an internet call to them.

To make an internet call, from the Application menu tap People. Tap on the contact to open their profile, and then tap on their internet calling address to place the call.

Note

Many modern internet calling apps automatically "connect" to any of your Android contacts who also have that service. Any connected services will be listed under "connections" in the contact's profile.

Calling a phone number using internet calling

If you have configured your phone to place all calls using internet calling or to ask for each call, you may also call a phone number using internet call, whenever you are connected to a wireless network.

Dial the number and tap 📋 or select the contact you wish to place a call to, then tap the internet call account you want to use to make the call.

Important

Calling a phone number using internet calling requires that your service provider supports it, and may incur additional charges. Please contact your service provider if you have any questions.

MESSAGING

This chapter shows you how to set up and use the Phone messages, Social messages and Social events functions of your smartphone.

All SMS and MMS messages are accessed via Messaging. Messaging automatically arranges received and sent messages into threads.

To access Messaging, open the Application menu and tap Messaging on the Home screen.

Note

If you have multiple SIMs inserted in the phone, you will be asked which SIM to use before the message is sent. To select a SIM, just tap the name of the carrier.

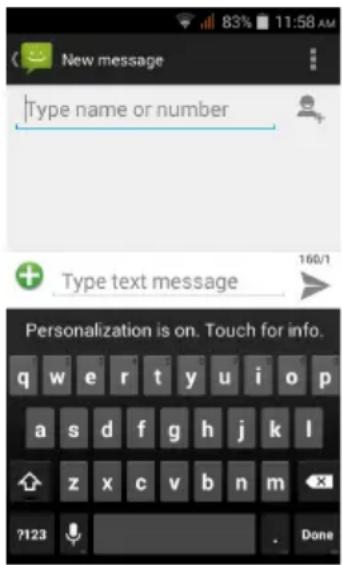

Creating a new message

You can use your phone to compose text (SMS) and multimedia (MMS) messages.

Tap to compose a new message.

New message Type name or number 160/1 + Type text message Personalization is on. Touch for info. q w e r t y u i o p a s d f g h j k l z x c v b n m ?123 Done

Tap 📷 to add contacts from your contacts list (People), or tap the Type name or number field to enter the recipient's phone number or name directly. Suggested contacts will be displayed in a drop-down list below the text field. To select a suggested contact, tap the contact's name.

Enter your message in the text box labeled Type text message.

Note

Text messages may be up to 160 characters long. If your message is longer than 160 characters, it will be sent as multiple linked messages. Most phones will automatically join the linked messages to present the recipient with a single long message, however, some older phones do not have this ability.

Tap the Menu button to see what options are available when creating a new message. The options change depending on the status of the message.

Option Description

Insert quick text	Insert pre-defined text content.
Insert contact Add a contact to the recipients list.
Add subject Add a subject to the message.
Discard Discard the message.

Replying to a message

When a new text message arrives a message icon appears in the Notification area and the message icon at the bottom of the phone displays the number of unread text messages.

Tap Messaging from the Application menu to view the message list or open the Notification area to see a summary of the message. Tap the summary to open the message list.

To reply to an SMS or MMS message, open the message from the message list. Enter your text in the text box labeled Type text message. Tap the Menu button to see available options.

Option Description

Select message	Select multiple messages.
Insert quick text	Insert pre-defined text content.
Insert contact	Add a contact to the recipients list.
Add subject	Add a subject to the message.

Option Description

Add to contacts

Add the other contact to your contacts list.

Chat settings Modify various messaging settings.

Multimedia messages

Multimedia messages are similar to text messages but also allow you to attach files such as pictures, audio or video clips. Each message can be up to 300 kB in size.

Note

You need to set up an MMS profile before you can send MMS messages. Normally, your smartphone will set up the profile for you based on information retrieved from your provider.

Ask your network provider for the necessary information if you need to manually set up the MMS profile.

Receiving multimedia messages

When a new multimedia message arrives, a message icon appears at the top of the screen and a notification message is displayed.

1. The notification message displays a summary of the message. Tap View to view a summary of the message.
2. Tap Download to download the message content. Downloads can take a long time, depending on your connection quality. If you reply or open another app, the download will be stopped.

Important

You may be charged to download message content, especially if you are roaming. Please contact your provider if you have any questions.

1. Tap the message to view the content.

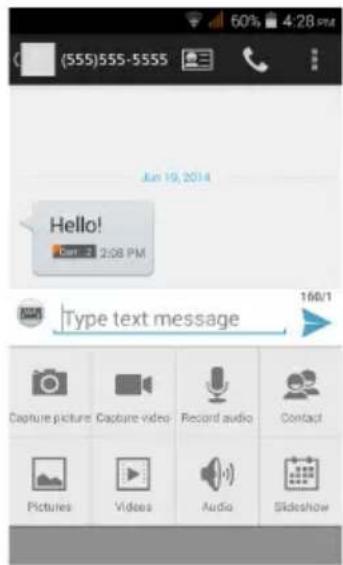

[phone] Jun 19, 2014 Hello! 2:08 PM Type text message Capture picture Capture video Record audio Contact Pictures Videos Audio Slideshow

1. To reply to the message, enter your text in the text box labeled Type message and tap the Send icon. Simple text replies will be sent as SMS messages. If you wish to attach a file, tap 📄You will be presented with a menu of options.

2. When you have finished composing the message, tap the Menu button and tap Send.

GOING ONLINE

Browsing the internet

In order to browse the internet with your smartphone, you must be connected to a data or wireless network.

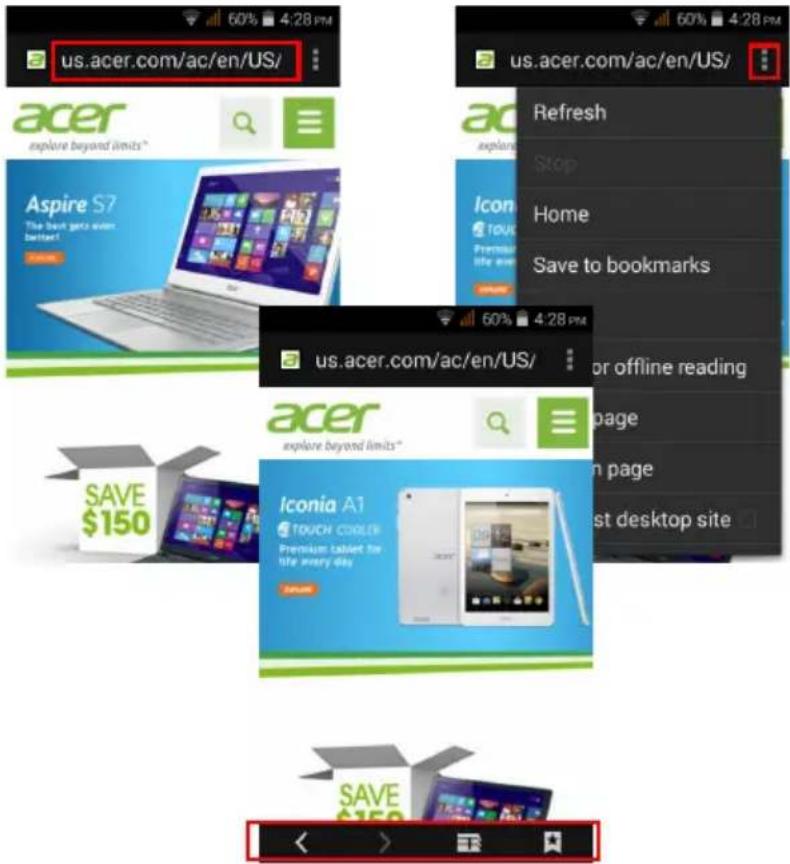

Using the browser

us.acer.com/ac/en/US/ acer explore beyond limits* Aspire $7 The best gets even better! us.acer.com/ac/en/US/ ac explor ina Icon TOUCH Premium life every day 60% 4:28 PM Refresh Stop Home Save to bookmarks us.acer.com/ac/en/US/ acer explore beyond limits* Iconia A1 TOUCH COOLER Premium tablet for the every day 60% 4:28 PM or offline reading page n page st desktop site SAVE $150 SAVE $150

To start browsing, open the Application menu and tap the Chrome or Browser icon.

Note

Reference images made using Browser.

To open a new website, tap the address box at the top of the page. Enter the address using the keyboard and tap Go. You can zoom in or out of pages by pinching or reverse pinching.

To navigate forward and backward in your browser's history, view your bookmarks, and open multiple pages, tap or slide the screen to display the navigation options at the bottom of the screen.

To open multiple pages Tap 📄 to display all of your open tabs (tap again to close). Tap a tab from the list to open it. To open a new tab, tap the plus sign. The number in the icon represents the number of open tabs.

Setting up Email

Your smartphone enables you to access your email. Most popular ISPs can be set up in two steps. In the Application menu tap Email to start setting up your email account.

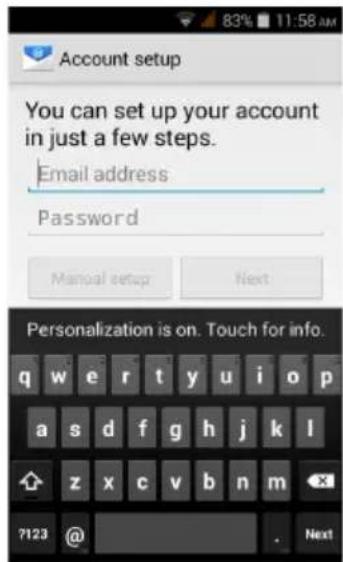

Account setup You can set up your account in just a few steps. Email address Password Manual setup Next Personalization is on. Touch for info. q w e r t y u i o p a s d f g h j k l z x c v b n m ?123 @ . Next

If necessary, enter your email address and tap Manual setup to enter the parameters manually. Tap Next to finish the setup process.

Google services

Note

Apps may not be available in all countries and regions.

You must activate a Google account before using Google services. The first time you access Google services, you must read and accept the Terms of Service.

Setting up your Google email

1. Make sure your smartphone is connected to a data or Wi-Fi connection.

2. From the Application menu tap Gmail.

If you did not enter your Gmail account address and password when you first started your phone, follow the onscreen instructions.

Composing an email

1. Make sure your smartphone is connected to a data or Wi-Fi connection.

2. From the Application menu tap Gmail.

3. Tap .

4. Enter the recipient's email address, the subject and message.

5. When you are finished composing your message, tap

Voice search

With voice actions, you can send text messages, place calls, send emails, find directions of establishments, automatically call establishments, search the internet and even send a note to yourself using your voice. Tap Voice Search from the Application menu, or tap the microphone icon on the Home screen.

Google Speak now Tell Google what to do

Google Acer Tell Google what to do

Play Store

Important

For connection issues with Play Store, see FAQ and troubleshooting on page 62

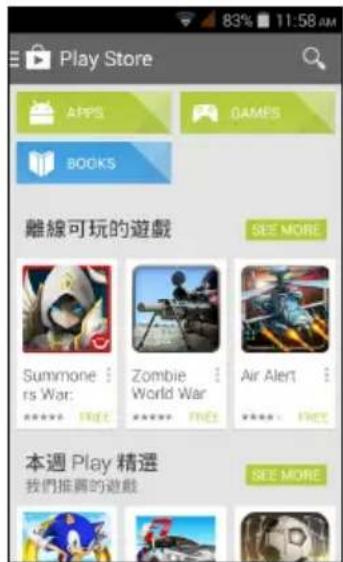

Tap Play Store from the Application menu to open Google Play. Here you can obtain a variety of add-on programs and apps to enhance the functionality of your smartphone.

The contents and design of Google Play varies by region. For example, in some regions, you can also browse for and purchase movies, books, magazines, or music. Updates may add new categories or change how to navigate Google Play at any time.

You can browse the store by category or tap the search icon to search for a specific app.

Once you have selected an app, tap the Install button to download and install the app. You will be told which services the app requires access in order to function correctly (e.g. contact information, wireless access, GPS). If none of these services seem unusual, tap Accept & download to proceed with the installation.

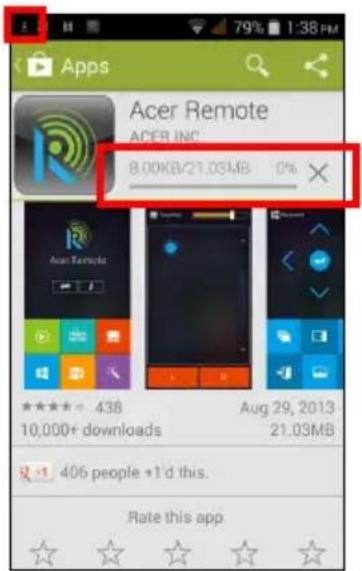

You may keep track of the download progress from both the app's page and the notification area.

Acer Remote ACER INC 8.00KB/21.03MB 0% × 438 Aug 29, 2013 10,000+ downloads 21.03MB 406 people +1'd this. Rate this app

4:24 PM 06/10/2014 Acer Remote 31 seconds left 4:24 PM 12% Screenshot captured. Touch to view your screenshot. Acer User Experience... Touch to join the Acer User Experience... LiveScreen Press to enable LiveScreen. CHUNGHWA TELECOM | CHUNGHWA TELECOM

Important

Some apps may require payment before you can download them. You will need to have a Google Wallet account in order to pay for these apps, or a credit card number associated with your Google account.

Using downloaded apps

Once you've downloaded and installed an app, you may find it in the Apps or Widgets sections of the Application menu.

Certain apps provide both an App and widget, or only provide a widget (with no app icon). See Personalizing the Home screen on page 14.

Uninstalling downloaded apps

Once you've downloaded and installed an app, you may uninstall the app by opening the Application menu and tapping Settings > Apps. In the downloaded tab, select the the app you wish to uninstall and tap Uninstall. Deleting an app icon from the Home screen only deletes the shortcut.

Google Hangouts

Tap Hangouts from the Application menu to open Google Hangouts. Here you can see a list of your contacts connected to Google

Hangouts services. Tap on a contact to open a chat session. After you have connected, you can open a video chat session.

Maps, Navigation, Places and Latitude

Get easy-to-follow directions using Google Maps, view real-time traffic condition and navigate by using spoken, turn-by-turn driving instructions. Also, view where your friends are, places of interest, and local businesses.

Note

Maps does not have information about every location.

Some locations may not have all zoom levels.

Using the map

Tap the Maps icon in the Application menu. Drag the map with your finger to move the map around.

To zoom in or out:

1. Double tap a location on the map to zoom in on the location, and tap once to zoom out, or
2. Touch an area with two fingers at once and spread them apart to zoom in, and pinch them together to zoom out.

ACERCLOUD SETUP

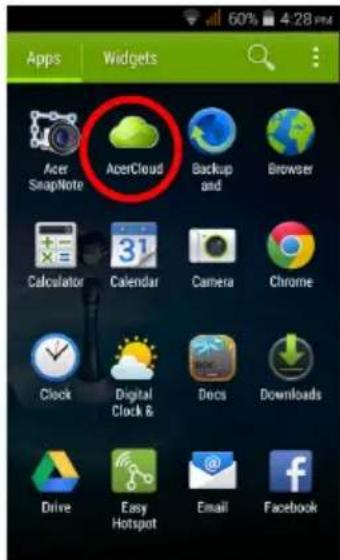

AcerCloud is a personal cloud service that allows you to access your files over the internet, and make sure your most important files are always up to date. With your personal cloud all your devices (PC, tablet, phone) with AcerCloud installed can access files on your main Cloud PC. Open the Application menu and tap AcerCloud.

Apps Widgets Acer SnapNote AcerCloud Backup and Browser Calculator Calendar Camera Chrome Clock Digital Clock & Docs Downloads Drive Easy Hotspot Email Facebook

For more information please visit the AcerCloud website: www.acer.com/acercloud

Note

To access files on other devices, your Cloud PC must be on and connected to the internet. If your PC has Always Connect, your PC may be in Sleep mode, but must be connected to a power supply (not battery power).

AcerCloud setup for Windows

To install AcerCloud on a PC without AcerCloud, you can download the AcerCloud setup program from the AcerCloud website (https://

www.cloud.acer.com/ops/downloads) and select AcerCloud Installer in the Windows part.

Windows PC

AcerCloud Portal

After download, double-click on the installer and follow the instructions to install AcerCloud.

Note

AcerCloud is designed for Windows 7, Windows 8 and 8.1. It is not compatible with older Windows Operating Systems or MAC OS X.

Install AcerCloud

Double-click on the AcerCloud icon, then double-click on AcerCloudSetup. Follow the instructions to install AcerCloud.

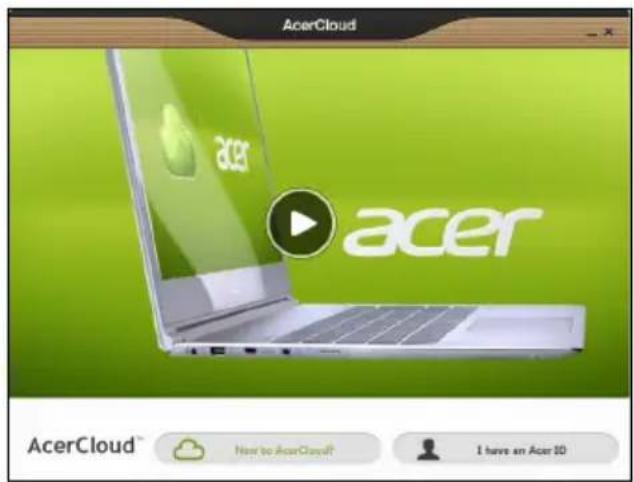

Sign in using your Acer ID

Start the AcerCloud program from the desktop or Start Menu.

If you already have an Acer ID, use your email address and password to sign in to your AcerCloud account.

AcerCloud acer acer AcerCloud™ How to AcerCloud? I have an Acer 10

Create an AcerCloud ID

If you do not have an AcerCloud ID, you first need to sign up for an AcerCloud account, which you can do from your smartphone. Open the Application menu, tap AcerCloud, then tap Create an Acer ID, and enter the requested information

Three great reasons to get an Acer ID: Register your device for warranty service Create an Acer ID I have an Acer ID Later

60% 4:28 PM Sign up Register your Acer ID, and activate your AcerCloud service today! Acer ID (Email) Password Back Sign up Personalization is on. Touch for info. q w e r t y u i o p a s d f g h j k l z x c v b n m ?123 @ . Next

Note

Make a note of the email address and password you used for your Acer Cloud ID. You must use this information to sign in to the AcerCloud service from each follow the instructions to register a new Acer ID.

After entering the information, tap Sign up to apply for an Acer ID. Check your email account for an Acer ID activation message and click on the link in the email to activate your Acer ID device.

AcerCloud options

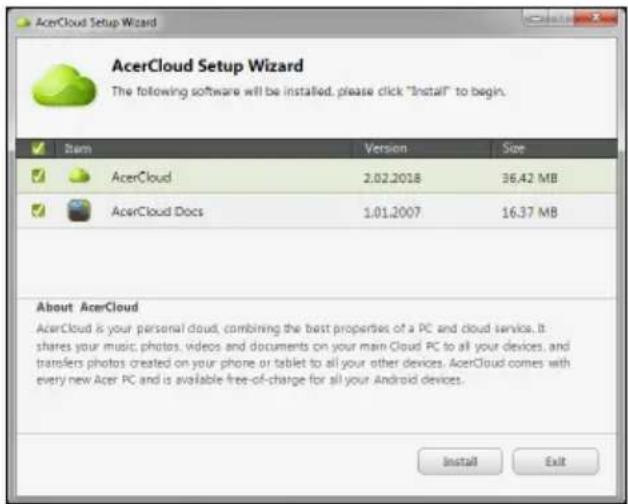

When you install AcerCloud, you have several options. Select the options that are useful on your PC and click Next to complete the setup:

AcerCloud Setup Wizard The following software will be installed, please click "Install" to begin. ✓ Run Version Size ✓ AcerCloud 2.02.2018 36.42 MB ✓ AcerCloud Docs 1.01.2007 16.37 MB About AcerCloud AcerCloud is your personal cloud, combining the best properties of a PC and cloud service. It shares your music, photos, videos and documents on your main Cloud PC to all your devices, and transfers photos created on your phone or tablet to all your other devices. AcerCloud comes with every new Acer PC and is available free-of-charge for all your Android devices. Install Exit

PicStream - Take holiday snapshots on your smartphone and share them with other smart devices. Photos will be backed up permanently on your Cloud PC (see below), and temporarily accessible for 30 days in your personal cloud and on other devices.

Make this PC the Cloud PC - You must define one (and only one) PC as your Cloud PC. Copies of all content added to your personal cloud (e.g. with PicStream) will be transferred to your Cloud PC, and content on this PC will be available to your other AcerCloud devices.

Note

If you already have a Cloud PC, do NOT select this option. Your Cloud PC must be connected to the internet and have sufficient storage for all your media content.

Acer Docs Upload - When you update and save a document on your PC, the document will be put into the personal cloud and streamed to other devices. Documents will be temporarily accessible for 30 days in your personal cloud. You can download documents to other devices for long-term storage.

If Acer Docs Upload is not available, click on the AcerCloud icon in the notification area (the bottom-right corner of the Windows desktop) and select Check for updates to install Acer Docs.

You can access and change these settings from the AcerCloud icon in the icon tray. Click on the AcerCloud icon, then select Open AcerCloud to see the settings window.

USING THE CAMERA

Your smartphone features a digital camera mounted on the rear. This section will take you through all the steps in taking photos and videos with your smartphone.

To activate the camera, open the Application menu and tap Camera.

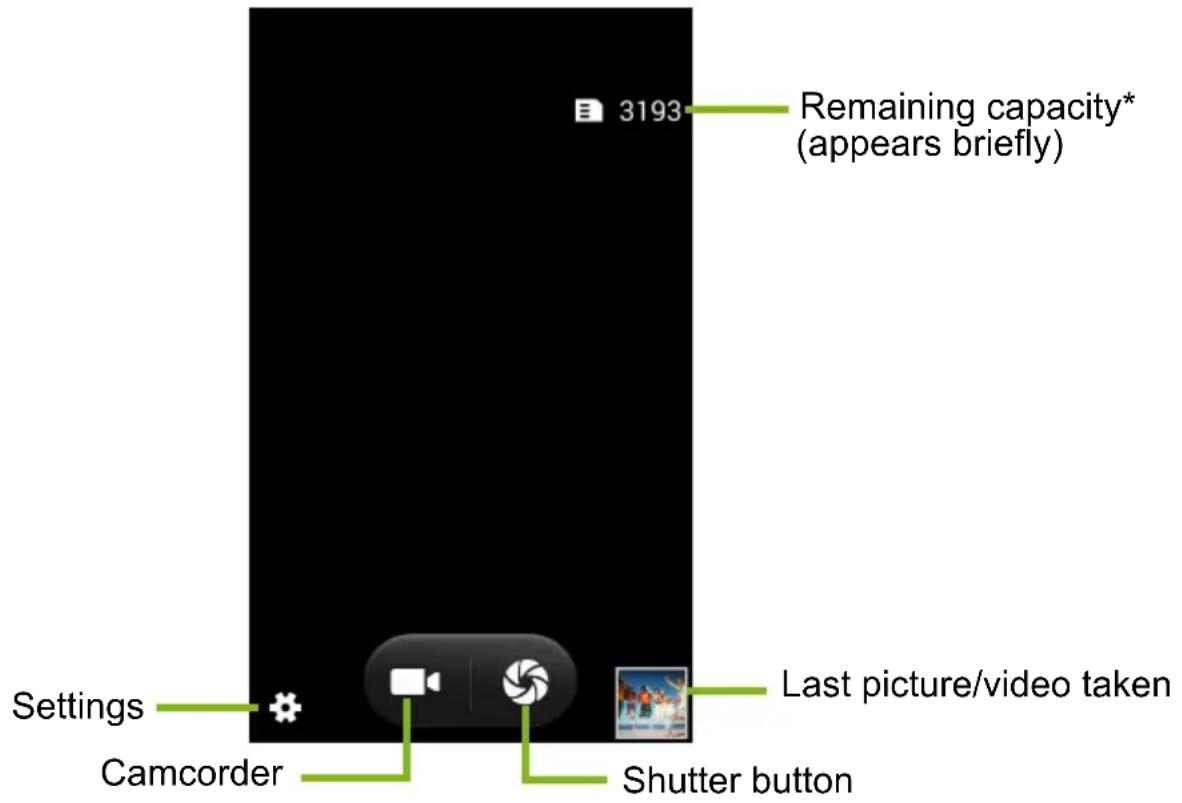

Camera/camcorder icons and indicators

3193 Remaining capacity* (appears briefly) Settings Camcorder Shutter button Last picture/video taken

* The remaining capacity is expressed as an approximate number of images taken at the current resolution.

The camera window provides multiple controls on the image screen. Pinch and reverse pinch the area of the screen you want to zoom in or zoom out, respectively.

Tap the Shutter button or press the volume key to take a picture. Tap the thumbnail in the bottom-right corner to open the gallery.

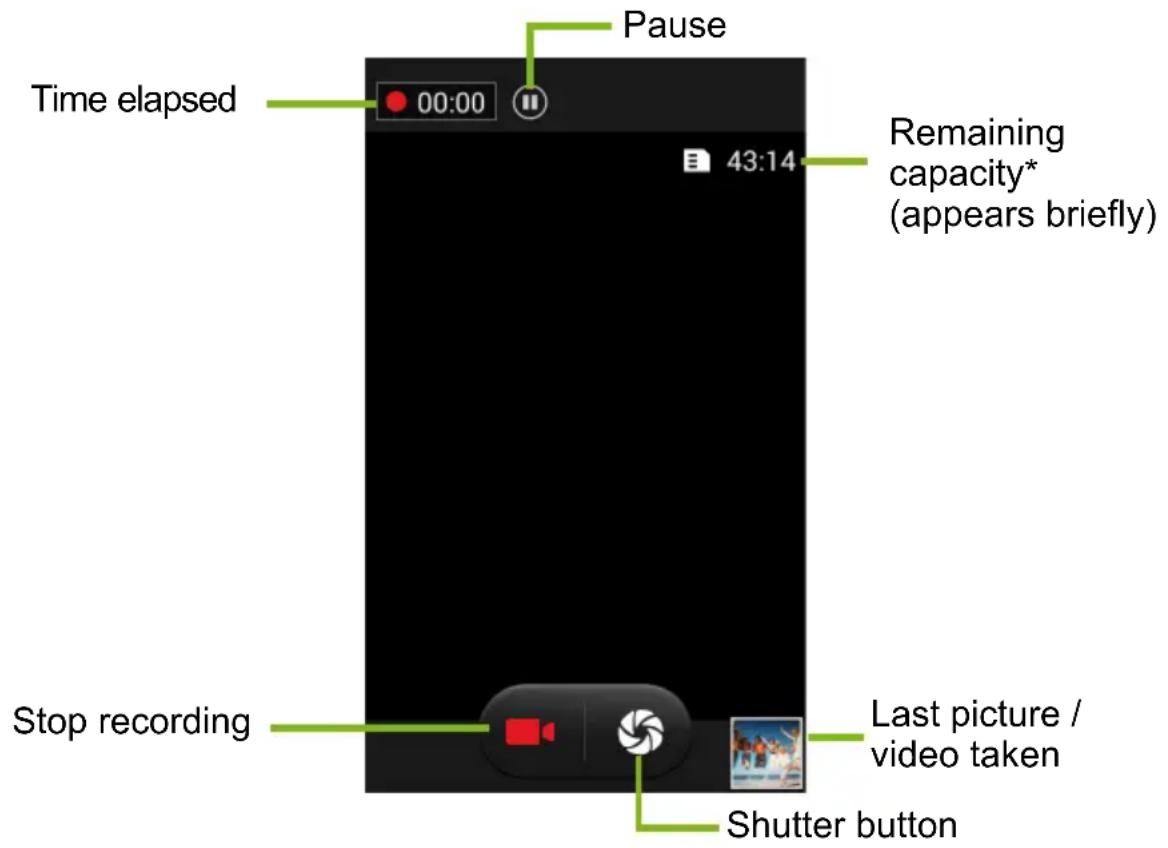

Tap the Camcorder button and the camcorder immediately begins filming. While filming, you are unable to access camera/camcorder settings; however, you can still take pictures with the Shutter button.

Pause Time elapsed 00:00 43:14 Remaining capacity* (appears briefly) Stop recording Last picture / video taken Shutter button

* The remaining capacity is expressed as an approximate recording time.

Tap the red Stop recording button to stop filming.

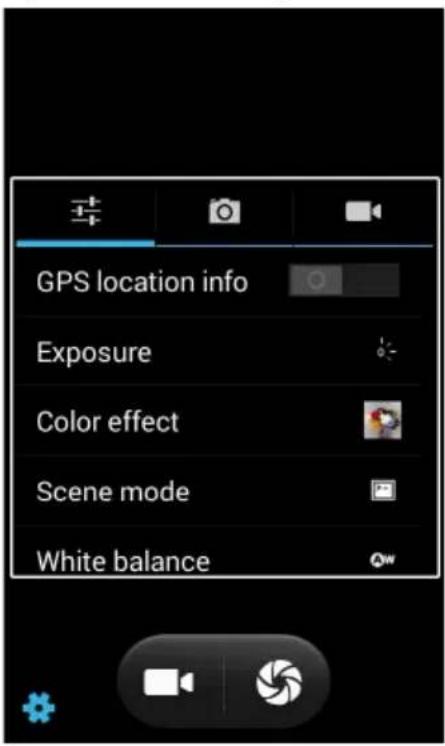

Tap the Settings icon to open the Settings menu.

GPS location info Exposure Color effect Scene mode White balance

Settings menus

General

Note

Some of the following settings are not available for the front camera.

You may adjust the following:

• Turn GPS info on or off: Stores GPS information in the image information.
• Exposure: Over- or under-exposes the image.
  • Color effect: Applies a color effect to the image.

None Negative

Mono Sepia Blue

Sepia

- Scene mode: Adjust photo parameters for a particular environment.

Auto Portrait

Normal Landscape

Night Sports

- White balance: Compensate for different lighting environments.

Auto Fluorescent

Incandescent Cloudy

Daylight

• Image properties: Adjust the Sharpness and Contrast.
• Anti-flicker: Choose from Off, 50 Hz, or 60 Hz.
• Restore defaults: Restore the factory default settings.

Camera

You may adjust the following:

• Turn capture sound on or off: Turns the shutter on or off when you take a picture.
• Turn Face detection on or off: The camera automatically detects faces and focuses on them.
• Set the Self timer: Options are Off, 2 seconds or 10 seconds.
• Continuous shot: Set the maximum number of photos taken in a single burst.
• Picture size: Set the picture resolution.
• Preview size: Set the preview image ratio.
• ISO: Set the ISO value.

Camcorder

You may adjust the following:

• Turn EIS (Electronic Image Stabilization) on or off.
• Turn the Microphone on or off.
• Set the Audio mode: Options are Meeting and Normal.
• Set the Time lapse interval: Choose from Off, 1, 1.5, 2, 2.5, 3, 5, or 10 seconds.
• Set the Video quality: Choose from Low, Medium, High, or Fine.

Taking a photo

1. Ensure you have adjusted the settings described above.
2. Frame your subject and steady your smartphone.

3. Zoom in or out as needed.

4. Tap the Shutter button to take a picture.

TShooting a video

1. Frame your subject and steady your smartphone and zoom in or out as needed.
2. Tap the Camcorder button to start taking a video. The icon will turn red to indicate that recording is in progress. Tap the icon again to stop recording.

Supported formats

Note

To see supported image, video, and audio formats, see Multimedia on page 70.

Viewing photos and videos

After you have taken your photo or video, it is automatically saved. Once you have taken a photo or video, you can view it in Gallery by tapping the thumbnail in the corner of the image screen. Alternatively, open the Application menu and tap Gallery. From Gallery you can share the file directly using various services. Services vary depending on the file type.

You may also edit individual photos you have taken by tapping the

icon in the lower left-hand corner of the image.

Geotagging

Geotagging allows you to store the location where a photo or video was taken right in the photo or video itself.

For the geotag to display, pictures must be taken with GPS location info turned on.

ADVANCED SETTINGS

Putting your smartphone in Airplane mode

You can enter Airplane mode (also known as flight mode) to turn off telephone and Bluetooth functions and use your smartphone as a handheld device during a flight. Check with your airline to make sure this is permitted onboard.

Switch your smartphone off during takeoff and landing as it may interfere with aircraft electronic systems.

Turning Airplane mode on or off

1. Open the Notification area.
2. Tap

11:23 AM 06/19/2014 Screenshot captured. 11:22 AM SnapPhoto 2000 Calculator Calendar Camera Chrome Share Acer User Experience... 16:40 AM Touch to join the Acer User Experien... LiveScreen 11:21 AM Press to enable LiveScreen.

-OR-

1. Press and hold the power button until you get the phone options menu.

2. Tap Airplane mode to switch it ON or OFF.

Note

When Airplane mode is active, the ➗ icon will be displayed in the Notification area.

Power off Restart Close all apps and restart phone Airplane mode Airplane mode is OFF

Restarting your phone

You can restart (reboot) your phone if you find apps are not responding.

1. Press and hold the power button until you get the phone options menu.
2. Tap Restart.

Adjusting settings

Activating or deactivating connections

Open the Application menu and tap Settings to manage your connection settings.

Item Description
SIM management	Turn the data connection on or off and set roaming preferences.
Wi-Fi Turn the Wi-Fi function on or off.
Bluetooth Turn the Bluetooth function on or off.
Data usage	View an estimate of the mobile data used for your SIM.
More...	Access additional connection settings:Airplane mode: Disable all wireless connections so you can safely use this device onboard an aircraft.Default SMS app: Choose which app serves as the default SMS app.Tethering & portable hotspot: Share your phone's mobile data connection via USB or as a portable Wi-Fi hotspot.VPN: Set up and manage Virtual Private Networks.Mobile networks: Set your options for connecting to mobile networks.USB Internet: Share your computer's internet connection via a USB cable. See Internet sharing on page 52.

If your phone is in Airplane mode, the option to turn Bluetooth on will be disabled. Please refer to Putting your smartphone in Airplane mode on page 49 for instructions on turning Airplane mode on or off.

Adjusting Bluetooth settings

You can use Bluetooth to exchange information between your smartphone and other mobile devices.

Bluetooth connections

For all Bluetooth settings, open the Application menu and tap Settings > Bluetooth. Here you can switch Bluetooth on or off, set a device name and discoverability. Tap SEARCH FOR DEVICES to scan for available devices.

To connect to a device, tap the device in the list of available devices. You may be asked to enter a PIN on both devices to establish the connection.

To simply turn on or off Bluetooth, open the Notification area and tap the Bluetooth button.

Internet sharing

Tethering via USB

If you wish to share your mobile internet connection with a computer, you can connect your phone to a PC using the supplied USB cable.

1. Plug the USB sync cable into the micro USB connector on your smartphone.
2. Plug the USB client connector into an available USB port on your computer.
3. Push the Menu button and then tap Settings > More.. > USB Internet.

Wi-Fi hotspot

You can turn your smartphone into a portable Wi-Fi hotspot to share your mobile internet connection with up to 8 clients.

1. Push the Menu button and then tap Settings > More... > Tethering & portable hotspot. Turn Wi-Fi hotspot ON.Tap Wi-Fi hotspot > Set up Wi-Fi hotspot.

2. Set the Network SSID and adjust security between None and WPA2 PSK. Tap Save to finish.

Note

When your smartphone is serving as a Wi-Fi hotspot, you can't use your phone's apps to access the internet via its Wi-Fi connection.

Phone network settings

In the Application menu tap Settings > More... > Mobile networks to adjust your network settings. You can turn data connection on or off when roaming, choose a preferred network mode, specify a network operator and define access point names.

Selecting a network

Your phone will automatically detect your carrier/network settings when you insert a new SIM card. However, you may prefer to manually select a network. This may be a good idea when roaming.

Note

When you are traveling, manually selecting a network may help to reduce your roaming charges. Check with your home service provider for the network offering the most competitive rates at your destination.

1. Open the Application menu and tap Settings > More... > Mobile networks > Network operators > Select Manually.
2. Your phone will search for available networks.
3. Select your preferred network from the list generated. You phone will attempt to register on the selected network.

-OR-

Tap Select automatically to connect to the available network with the strongest signal. This may lead to your phone jumping between networks when you move around.

Note

Contact your service provider should you have any problems obtaining voice mail and the text message service center numbers.

Data usage control settings

Data usage controls let you monitor total usage by network type and app and then set limits if needed.

Ensure Wi-Fi or mobile data is enabled before setting a limit. Access data usage settings from the Application menu by tapping Settings > Data usage.

Phone settings

Many phone settings are automatically configured by your smartphone when you insert a SIM card. The device will communicate with your provider and automatically obtain all necessary settings, such as network name, voice mail and text message center numbers.

You can also view and modify these settings manually through the Call settings screen.

From the Home screen, tap Phone, then tap the Menu button > Settings > Voice Call. Tap which settings you want to modify.

Sound

To adjust your phone's sound settings, in the Application menu tap Settings > Sound.

Item Description
Vibrate Vibrates the device for incoming calls.
Volumes	Adjust the Ringtone, Notifications, and Alarm volumes.
Phone ringtone Sets your default voice calls ringtone.
Default notification Set your phone's default notification sound.
Dial pad touch tones Play tones when using dial pad.
Touch sounds	Play sounds when touching certain UI elements.
Screen lock sound	Play sound when locking and unlocking the screen.
Vibrate on touch	Vibrate when pressing soft keys and on certain UI interactions.

Adjusting the volume

Adjust the volume of your phone using the volume button on the side of the phone. Alternatively, you can set the Ringtone, Notifications, and Alarms volume by opening the Application menu and tapping Settings > Sound > Volumes.

Audio profiles

To adjust your phone's sound settings, in the Application menu tap Settings > Audio profiles. Choose from General, Silent, Meeting, or Outdoor.

Display

To adjust your phone's display settings, in the Application menu tap Settings > Display.

Item Description
Theme	Choose from Default or Acer.
Wallpaper Change the Home screen's wallpaper.
Brightness Adjust screen brightness.
Auto-rotate screen	Enable rotation of the screen when device is tilted.
Sleep	Adjust the delay before the screen automatically turns off.
Daydream	Controls what happens when the phone is docked and/or sleeping.
Font size Change the default font size for the UI.

Setting the date and time

To set the date and time, open the Application menu and tap Settings > Date & time.

If you travel frequently or live in an area that uses daylight saving time, activate Automatic date & time > Use network-provided time from this menu. This will enable your smartphone to set the date and time based on information it receives from the network.

Setting alarms

There are two predefined alarms on your phone by default. Tap Clock in the Application menu, and then tap 🔒 to edit alarm settings. You may:

- Turn the alarm on or off.

• Set the alarm time.
• Set which days to repeat the alarm.
• Set a ringtone.
• Enable or disable vibrate.
• Give it a label.

Changing language and text options

Set your location and language input preferences by opening the Application menu and going to Settings > Language & input.

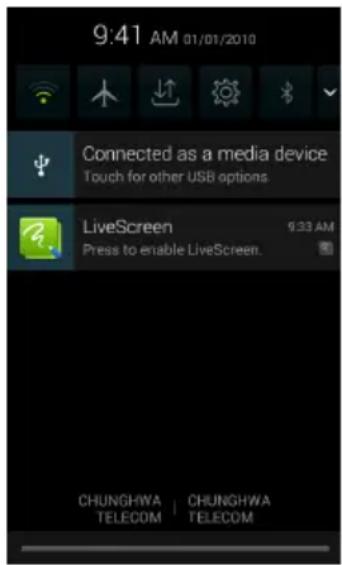

Connecting to a PC

If you wish to transfer information between your device and your computer (either the microSD card in your device or the device's internal memory), you can connect your device to a PC using the supplied USB cable.

1. Plug the USB sync cable into the micro USB connector on your phone.
2. Plug the USB client connector into an available USB port on your computer.
3. Open the notification area and ensure your USB connection method says Connected as a media device. Your device will now be available as a drive in your computer's file

explorer. Tap Connected as a media device to choose other connection methods including Charge only and Built-in CD-ROM.

9:41 AM 01/01/2010 Connected as a media device Touch for other USB options LiveScreen 9:33 AM Press to enable LiveScreen. CHUNGHWA TELECOM | CHUNGHWA TELECOM

Note

After turning on USB storage, you will not be able to access the files in the microSD card or apps such as Gallery or Music.

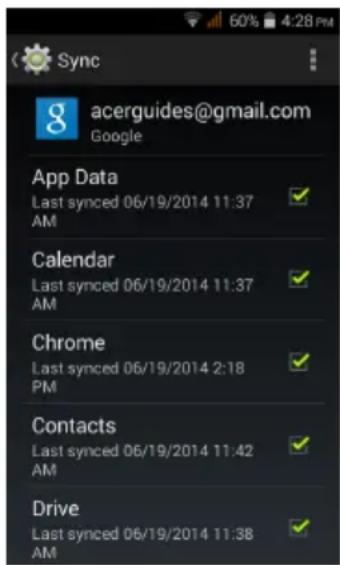

Synchronization

You can sync your calendar, email and contacts on your phone and never worry about losing them again. Sync in real time or adjust it as you please. In the Application menu, tap Settings. Under

ACCOUNTS, tap the appropriate account and again under ACCOUNTS tap that account's email address to access the synchronization settings.

Sync [e-mail] Google App Data Last synced 06/19/2014 11:37 AM Calendar Last synced 06/19/2014 11:37 AM Chrome Last synced 06/19/2014 2:18 PM Contacts Last synced 06/19/2014 11:42 AM Drive Last synced 06/19/2014 11:38 AM

To add a new account, tap Add account. Select the type of account and then follow the onscreen instructions.

Google Sync

In Google, you can set synchronization for Google services. In your Google account's synchronization settings menu, tap the checkmark next to the item you would like to have auto-sync. Tap again to uncheck any for manual synchronization.

To manually synchronize an item, make sure the item is checked, tap the Menu button and then tap Sync now.

Note

You need a Google account to sync your calendar and appointments.

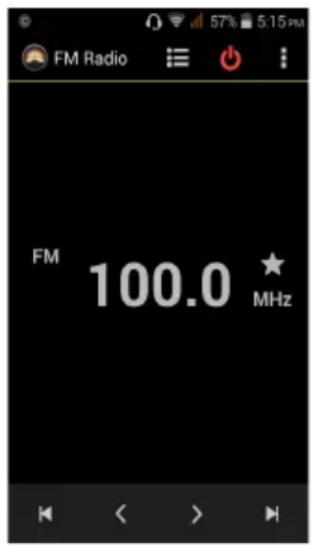

FM radio

The FM radio allows you to listen to your favorite stations while on the move. Headphones must be inserted to the 3.5 mm jack as it functions as an antenna.

You can access the radio by tapping FM Radio from the Application menu.

Tap the back icon to turn the radio off.

FM Radio FM 100.0 ★ MHz

Applications (apps)

Closing an app

To close an active app, in the Application menu tap Settings > Apps. Swipe over to the Running tab, then tap the program you wish to close. Select Stop to close the program.

Uninstalling an app

You can remove programs installed on your smartphone to free up extra storage memory.

1. In the Application menu tap Settings > Apps.
2. Swipe over to the Downloaded tab.
3. Find the app in the list and tap on it.
4. Tap the Uninstall button and then tap OK.

Important

You should only remove programs if you are familiar with the Android operating system.

Restoring to factory settings

You may perform a clean boot to restore your smartphone to the factory settings. Before performing a clean boot, ensure that your

smartphone is not locked. Press any key or tap the screen to see if the phone responds.

Important

You should only perform a clean boot when all other options have failed to restore your smartphone to an operational state.

This will erase all your personal information, any contacts stored on your phone and any programs you installed.

If your phone is responding to screen input, then open Settings from the Application menu. Tap Backup & reset > Factory data reset > Reset phone and then Erase everything to format your phone.

ACCESSORIES AND TIPS

This chapter shows you how to use accessories with your smartphone, as well as provide useful tips for when you are using your smartphone.

Using the headset

Your smartphone is compatible with headsets with built-in microphone for handsfree use when making calls.

To use the headset, plug it into the 3.5 mm headphone jack at the top of the phone.

When the headset is plugged in, all audio is routed to the headset, and the speakers are turned off.

• To answer an incoming call, press the button on the microphone.
• Adjust the volume using the volume up/down button on the smartphone.
• End the call by pressing the button again.

Using a Bluetooth headset

Your smartphone's Bluetooth functions make it fully compatible with all Bluetooth headsets. This allows you to use the unit handsfree when making calls, without the inconvenience of wires.

Creating a new access point

When you need to add another GPRS/3G/EDGE connection on your phone, obtain the access point name and settings (including username and password if required) from your wireless service provider.

1. Open the Application menu and tap Settings > More... > Mobile networks > Access Point Names, and select an operator.
2. Tap the Menu button and then tap New APN.

3. Enter the APN settings. Tap an item to adjust it.

4. When you have finished tap the Menu button and then tap Save.

Important

Some providers and countries do not allow the use of a smartphone as a modem over HSDPA. Please check with your provider before attempting to do so.

Inserting a microSD card

Your smartphone features a memory expansion slot that accepts a microSD card to expand memory and storage capacity.

Please refer to Installing a SIM or microSD card on page 7 for instructions on installing a microSD card.

APPENDIX

FAQ and troubleshooting

This section lists frequently asked questions that may arise during the use of your smartphone, and gives easy answers and solutions to these questions.

Aspect Question Suggestions
Audio	Why is there no sound coming from the device?	If the headset is plugged into the device, the speaker is automatically shut off. Disconnect the headset.Check that the device volume setting is not muted.Check that the volume control is not at its lowest setting.
Multimedia files	Why can’t I view my picture files?	You may be trying to view an image that is not supported.See Multimedia on page 70.
	Why can’t I view my video files?	You may be trying to view a video that is not supported.See Multimedia on page 70.
	Why can’t I play my music files?	You may be trying to play a file that is not supported.See Multimedia on page 70.

Aspect Question Suggestions

Google Play Store	Why can’t I connect to the Play Store?	1. First check that you have a Wi-Fi or data connection and then try again.Some Wi-Fi "hotspots" require you to log in before accessing the internet.2. If you still cannot connect, try adjusting your date/time settings.Open the Application menu and tap Settings > Date & time > Automatic date & time set to off.3. Manually adjust the time and then try to reconnect to the Play Store.
System information and performance	How do I check the OS version of my device?	Tap Settings > About phone to check the OS version (Build number) and other hardware and software information.
Power	I can’t turn on the device.	The battery power may be depleted. Recharge the device.See Charging the battery on page 6 for more information.
RAM / ROM	How do I check the RAM and ROM memory status?	To check the ROM status, tap Settings > Storage.To check RAM status, tap Settings > Apps > RUNNING.
Internal storage	My device’s available internal storage is full or almost full.	Uninstall apps to increase available storage.See Uninstalling an app on page 58.
Aspect Question Suggestions
Unlock pattern	I forgot my unlock pattern.	After a certain number of wrong entries, you will be presented with an option to reset your pattern. Tap Forgot pattern? and enter your Google account username and password.You must have an active Google account on the smartphone.Alternatively, you restore your smartphone to factory settings.See Restoring to factory settings on page 58.
Heat	The phone heats up when charging or making long duration calls.	It is normal for the phone to heat up when charging. When charging is complete, it will return to its normal temperature.It is also normal for the phone to heat up during long periods of use, such as watching a video or a long phone conversation.

Other sources of help

For information on Refer to ...
Up-to-date information regarding your smartphone	www.acer.commobile.acer.com
Service enquiries www.acer.com/support

WARNINGS AND PRECAUTIONS

- Do not use this product near water. - Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.

- Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

- To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.

- Never use this product when engaging in sporting activities, exercising, or in any vibrating environment which may cause a short circuit or damage, and even a risk of explosion from the battery pack.

Protecting your hearing

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
• Decrease the volume if you can't hear people speaking near you.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Operating environment

Important

For safety reasons, turn off all wireless or radio transmitting devices when using your smartphone device under the following conditions. These devices may include, but are not limited to: wireless LAN (WLAN), Bluetooth and/or 3G.

Remember to follow any special regulations in force in any area, and always switch off your device when its use is prohibited or when it may cause interference or danger. Use the device only in its normal operating positions. To successfully transmit data files or messages, this device requires a good quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure that the above separation distance instructions are followed until the transmission is completed. Parts of the device are magnetic. Metallic materials may be attracted to the device, and persons with hearing aids should not hold the device to the ear with the hearing aid. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased.

Medical devices

Operation of any radio transmitting equipment, including wireless phones, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine if they are adequately shielded from external RF energy or if you have any questions. Switch off your device in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF transmissions.

Pacemakers. Pacemaker manufacturers recommend that a minimum separation of 15.3 cm (6") be maintained between wireless devices and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers should do the following:

• Always keep the device more than 15.3 cm (6") from the pacemaker.

- Not carry the device near your pacemaker when the device is switched on. If you suspect interference, switch off your device, and move it.

Hearing aids. Some digital wireless devices may interfere with some hearing aids. If interference occurs, consult your service provider.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic fuel injection systems, electronic anti-skid (anti-lock) braking systems, electronic speed control systems, and air bag systems. For more information, check with the manufacturer, or its representative, of your vehicle or any equipment that has been added. Only qualified personnel should service the device, or install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the device. Check regularly that all wireless equipment in your vehicle is mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags inflate with great force. Do not place objects, including installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed, and the air bag inflates, serious injury could result. Using your device while flying in aircraft is prohibited. Switch off your device before boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.

Potentially explosive environments

Switch off your device when in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device at refueling points such as near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots,

storage, and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmospheres are often, but not always, clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.

Follow any restrictions. Do not use the device where blasting is in progress.

Emergency calls

Important

Wireless phones, including this device, operate using radio signals, wireless networks, landline networks, and user-programmed functions. Because of this, connections in all conditions cannot be guaranteed. You should never rely solely on any wireless device for essential communications like medical emergencies.

If certain features are in use, you may first need to turn those features off before you can make an emergency call. Consult this guide or your service provider for more information.

When making an emergency call, give all the necessary information as accurately as possible. Your wireless device may be the only means of communication at the scene of an accident. Do not end the call until given permission to do so.

Taking care of your smartphone

1. DO take care not to scratch the screen of your smartphone. Keep the screen clean. When working with your smartphone, use your finger or fingernail. Never use an actual pen or pencil or other sharp object on the screen surface.

2. DO NOT expose your smartphone to rain or moisture. Do not let water enter the circuitry through the front panel buttons or expansion slots. In general, treat your smartphone as you would a mobile phone or other small electronic device.

3. DO be careful not to drop your smartphone or subject it to any strong impact. Do not place your smartphone in your back pocket.

4. DO NOT expose your smartphone to extreme temperatures. For example, do not leave your smartphone on the dashboard of a car on a hot day or when temperatures are below freezing point. Also, keep it away from heaters and other sources of heat.
5. DO NOT use or store your smartphone in any location that is dusty, damp or wet.
6. DO use a soft, damp cloth to clean your smartphone. If the surface of the screen becomes soiled, clean it with a soft cloth moistened with diluted window-cleaning solution.
7. DO NOT press down on the screen with force, otherwise you may crack the screen.

Specifications

Note

Specifications may vary depending on region and configuration.

Performance

• 1 GHz quad-core processor
- System memory:

• 512 MB RAM (depending on model)

• 4 GB (depending on model)

- Android operating system

Display

• 4" TFT LCD, capacitive touchscreen
- 800 x 480 resolution

Multimedia

Formats supported:

Type Formats

Image JPEG, GIF, PNG, BMP

Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WMA, WAVE

Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC, MIDI, WMA, WAVE

Video recording H.263, H.264, MPEG4

Video playback H.263, H.264, MPEG4, VP8, WMV

USB connector

• Micro USB connector
• USB client
• DC power-in (5 V, 2 A)

Connectivity

• Bluetooth 4.0
• IEEE 802.11b/g/n
  • GSM 850 / 900 / 1800 / 1900 MHz
  • UMTS 900 / 2100 MHz
  • HSPA+ / GPRS / EDGE
  • GPS

* Frequency depends on model.

\*Camera

• 2 MP rear camera
• Fixed focus

Expansion

- microSD memory card slot (up to 32 GB)

Battery

• 1300 mAh Lithium-ion battery

Note

Length of battery operation will depend on power consumption which is based on system resource use. For example, constantly using the backlight or using power-demanding apps will shorten battery life between charges.

Dimensions

Height 126.5 mm

Width 65 mm

Thickness 10.3 mm (10.7 mm with optional cover)

Weight 130 g (with battery)

END USER LICENSE AGREEMENT

IMPORTANT-READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("AGREEMENT") IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY), AND ACER INC. INCLUDING ITS SUBSIDIARIES ("ACER") FOR THE SOFTWARE (WHETHER PROVIDED BY ACER OR BY ACER'S LICENSORS OR SUPPLIERS) THAT ACCOMPANIES THIS AGREEMENT, INCLUDING ANY ASSOCIATED MEDIA, PRINTED MATERIALS AND RELATED USER ELECTRONIC DOCUMENTATION WHICH MAY BE BRANDED "ACER" ("SOFTWARE"). AGREEMENTS RELATING TO ANY OTHER PRODUCT OR TOPIC ARE NEITHER INTENDED NOR SHOULD THEY BE IMPLIED. BY INSTALLING THE ACCOMPANYING SOFTWARE OR ANY PORTION THEREOF, YOU AGREE TO BE

GRANT OF LICENSE

Acer grants to you the following non-exclusive and non-transferable rights with respect to the Software. Under this Agreement, you may:

1. Install and use the Software only on a single designated phone. A separate license is required for each phone on which the Software will be used;

RESTRICTIONS

You may NOT:

1. Use or copy the Software except as provided in this Agreement;
2. Rent or lease the Software to any third party;
3. Modify, adapt, or translate the Software in whole or in part;
4. Reverse engineer, decompile, disassemble the Software or create derivative works based upon the Software;
5. Merge the Software with any other program or modify the Software, except for your personal use; and
6. Sublicense or otherwise make the Software available to third parties, except

BOUND BY THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT CONTINUE THE INSTALLATION PROCESS AND IMMEDIATELY DELETE ALL INSTALLED FILES, IF ANY, OF THE ACCOMPANYING SOFTWARE FROM YOUR PHONE.

IF YOU DO NOT HAVE A VALIDLY-LICENSED COPY OF THE APPLICABLE SOFTWARE, YOU ARE NOT AUTHORIZED TO INSTALL, COPY OR OTHERWISE USE THE SOFTWARE, AND HAVE NO RIGHTS UNDER THIS AGREEMENT.

The Software is protected by U.S. and international copyright laws and conventions as well as other intellectual property laws and treaties. The Software is licensed, not sold.

1. Make one copy of the Software solely for backup or archival purposes;
2. Make one hardcopy of any electronic documents included in the Software, provided that you receive the documents electronically.

that you may, after prior written notification to Acer, transfer the Software as a whole to a third party so long as you do not retain any copies of the Software and such third party accepts the terms of this Agreement.

1. Transfer your rights under this Agreement to any third parties.

2. Export the Software in contravention of applicable export laws and regulations, or (i) sell, export, re-export, transfer, divert, disclose technical data, or dispose of, any Software to any prohibited person, entity, or destination including, without limitation, Cuba, Iran, North Korea, Sudan and Syria; or (ii) use any Software for any use

prohibited by the laws or regulations of the United States.

SUPPORT SERVICES

Acer is not obligated to provide technical or other support for the Software.

ACER LIVE UPDATE

Certain of the software contains elements that enable the use of the Acer Live Update service, which allows for updates for such software to be automatically downloaded and installed on your phone. By installing the software, you hereby agree and consent that

OWNERSHIP AND COPYRIGHT

Title, ownership rights and intellectual property rights in and to the Software and all copies thereof shall remain with Acer or Acer's licensors or suppliers (as applicable). You do not have or shall not gain any proprietary interest in the Software (including any modifications or copies made by or for you) or any related intellectual property rights. Title and related rights in the content accessed through the Software is the property of the applicable content owner and may be

TRADEMARKS

This Agreement does not grant to you any rights in connection with any trademarks or service marks of Acer or of Acer's licensors or suppliers.

DISCLAIMER OF WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ACER, ITS SUPPLIERS, AND ITS LICENSORS, PROVIDE THE SOFTWARE "AS IS" AND WITH ALL FAULTS, AND HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES, DUTIES OR CONDITIONS OF MERCHANTABILITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF ACCURACY OR COMPLETENESS OF RESPONSES, OF RESULTS, OF WORKMANLIKE EFFORT, OF LACK OF VIRUSES, AND OF LACK OF NEGLIGENCE, ALL WITH REGARD TO THE SOFTWARE AND THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES. ALSO, Acer (or its licensors) may automatically check the version of such software that you are using on your phone and may provide upgrades to such software that may be automatically downloaded on to your phone.

protected by applicable law. This license gives you no rights to such contents. You hereby agree

1. Not to remove any copyright or other proprietary notices from the Software;
2. To reproduce all such notices on any authorized copies you make; and
3. To use best efforts to prevent any unauthorized copying of the Software.

THERE IS NO WARRANTY OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO DESCRIPTION OR NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE.

EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACER, ACER'S SUPPLIERS, OR ACER'S LICENSORS, BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, PUNITIVE, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS OR CONFIDENTIAL OR OTHER INFORMATION, FOR BUSINESS

INTERRUPTION, FOR PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR FAILURE TO MEET ANY DUTY INCLUDING OF GOOD FAITH OR OF REASONABLE CARE, FOR NEGLIGENCE, AND FOR ANY OTHER PECUNIARY OR OTHER LOSS WHATSOEVER) ARISING OUT OF OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE SOFTWARE, THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN CONNECTION WITH ANY PROVISION OF THIS AGREEMENT, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, BREACH OF CONTRACT OR BREACH OF WARRANTY OF ACER OR ITS SUPPLIERS OR LICENSORS, AND EVEN IF ACER AND ITS SUPPLIERS AND LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

LIMITATION OF LIABILITY AND REMEDIES NOTWITHSTANDING ANY DAMAGES THAT YOU MIGHT INCUR FOR ANY REASON WHATSOEVER (INCLUDING, WITHOUT

TERMINATION

Without prejudice to any other rights, Acer may immediately terminate this Agreement without notice if you fail to comply with any terms and conditions of this Agreement.

In such event, you must:

1. Cease all use of the Software;

GENERAL

This Agreement represents the complete agreement between you and Acer relating to this license for the Software and supersedes all prior agreements, communications, proposals and representations between the parties and prevails over any conflicting or additional terms of any quote, order, acknowledgement or similar communication.

ADDITIONAL PROVISIONS APPLICABLE TO THIRD PARTY SOFTWARE AND SERVICES

Software provided hereunder by Acer's licensors or suppliers ("Third Party Software") is made available to you for your personal, non-commercial use only. You may not use the Third Party Software in any manner that could LIMITATION, ALL DAMAGES REFERENCED ABOVE AND ALL DIRECT OR GENERAL DAMAGES), THE ENTIRE LIABILITY OF ACER, ITS SUPPLIERS, AND ITS LICENSORS, UNDER ANY PROVISION OF THIS AGREEMENT, AND YOUR EXCLUSIVE REMEDY FOR ALL OF THE FOREGOING, SHALL BE LIMITED TO THE AGGREGATE AMOUNT PAID BY YOU FOR THE SOFTWARE. THE FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS (INCLUDING DISCLAIMER OF WARRANTIES AND EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES ABOVE) SHALL APPLY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE; PROVIDED, HOWEVER, THAT BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OR LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

1. Destroy or return to Acer the original and all copies of the Software; and
2. Delete the Software from all phones on which it was resident.

All disclaimers of warranties and limitation of liability set forth in this Agreement shall survive termination of this Agreement.

This Agreement may only be modified by a written document signed by both parties. If any provision of this Agreement is held by a court of competent jurisdiction to be contrary to law that provision will be enforced to the maximum extent permissible and the remaining provisions of this Agreement will remain in full force and effect.

damage, disable, overburden, or impair the services provided by Acer's licensors or suppliers hereunder ("Third Party Services"). Furthermore, you may not use the Third Party Software in any manner that could interfere

with any other party's use and enjoyment of the Third Party Services, or the services and products of Acer's licensors' or suppliers' third party licensors. Your use of the Third Party Software and Third Party Services is also subject to additional terms and conditions and policies which can be accessed through our global website.

Privacy policy

During registration you will be asked to submit some information to Acer. Please refer to Acer's privacy policy at www.acer.com or your local Acer website.

TRADEMARK INFORMATION

DTS Studio Sound™

Studio Sound

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
