GS33R - Steam cleaner Conair - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Conair
Model	GS33R
Dimensions (H x W x D)	12 x 10 x 6 inches (approx.)
Weight	3.5 lbs (approx.)
Power Source	120V AC, 60Hz
Power Consumption	1500 watts (typical)
Water Tank Capacity	12 oz (approx.)
Heating Time	Approximately 3 minutes
Steam Pressure	Up to 50 psi
Steam Temperature	Up to 212°F (100°C)
Continuous Steam Time	Up to 15 minutes per fill
Mains Functions	Steam cleaning for upholstery, carpets, kitchen surfaces, bathroom tiles, grout, windows, mirrors
Included Accessories	Measuring cup, funnel, scrubbing brush, window squeegee, detail brush, garment steamer attachment
Cleaning & Maintenance	Descale every 3-6 months with vinegar solution; empty tank after use
Safety Features	Auto shut-off when tank empty, locking steam trigger, cool-touch handle
Spare Parts & Repairability	Replacement tank, nozzles, brushes available; user-replaceable gaskets
Warranty	1 year limited warranty

Frequently Asked Questions - GS33R Conair

How long does it take to heat up?

The Conair GS33R heats up in approximately 3 minutes after filling the tank and plugging it in.

Can I use tap water?

Yes, you can use tap water, but for longer life, distilled or demineralized water is recommended to reduce mineral buildup.

How do I descale the steamer?

Fill the tank with a mixture of 50% white vinegar and 50% water, heat for 3 minutes, then steam out the solution. Rinse with clean water.

What surfaces can I use this on?

The GS33R is safe on sealed countertops, tiles, glass, mirrors, carpets, upholstery, and garments. Avoid delicate fabrics or unsealed wood.

How do I change the attachments?

Attachments snap on and off easily. Wait for the steamer to cool down before changing to avoid burns.

Why is steam output low?

Low steam can be due to mineral deposits blocking the nozzle. Descale the unit and check that the tank is properly filled.

Can I use the steamer while it is charging?

No, this model is corded and must be plugged into a wall outlet to operate. It does not have a battery.

Is the steam safe for removing wallpaper?

Yes, the steam can help loosen wallpaper adhesive. Work in small sections and use a scraper tool for best results.

How do I clean the nozzle?

Use a pin or needle to clear any debris from the nozzle holes. For deep cleaning, soak the nozzle in vinegar solution.

What should I do if the unit stops steaming?

First, check if the water tank is empty. If full, the unit may have overheated or tripped a safety switch. Unplug and let it cool for 15 minutes before reusing.

USER MANUAL GS33R Conair

IMPORTANT SAFETY NSTRUCTIONS

When using electrical appliances, especially when children are present, basic safety precautions should always be taken, including the following:

READ ALL INSTRUCTIONS BEFORE USING

DANGER — Any appliance is electrically live even when the switch is off. To reduce the risk of death by electric shock, it does not unplug appliance immediately after using. 2. Do not place or store appliance where it can be put into a drop or water or sink. 3. Do not place in, or drop into water or liquid. 4. If an appliance falls into water, unplug it immediately. Do not reach into the water. WARNING — To reduce the risk of burns, electrocution, fire, or injury to persons: 1. Do not overfill steamer as it can cause hot air out and burn. 2. This appliance shall not be used by or near children or individuals with certain disabilities. 3. Use this appliance only for its intended use as described in this manual. Do not have any comments not recommended by the manufacturer.

1. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged, and the appliance is being used to maintain the appliance. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury to persons when the appliance is used. Return on appliance to an authorized service for the first time is 100% higher than 50%.
2. Keep the cord away from heated surfaces. Do not allow cord to contact heated surfaces. Do not pull or twist cord. Let appliance could open the device to open the cord around around appliance when storing.
3. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
4. Use of a second circuit board for circuit overload, do not operate another high wattage appliance on the same circuit.
5. Use of an extension cord is not recommended. If an extension cord is absolutely necessary, a power supply can be required for less than 200 units rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
6. Use caution when changing attachments, or because we are sure the unit is off and no steam is being released to avoid contact with hot water.
7. Use caution when changing attachments as they may contain hot water from the end of the period, and then on the unit when in use or when pre-heating. Ensure the attachments are dry or cooled off to avoid contact with hot water.

8. Use caution when reducing use. Steamer must sit on floor while steaming

9. Allow unit to cool before emptying reservoir for storage.

10. Use caution when removing hose cap, or a safety closely.
11. Do not use if unit has been dropped or damaged. CAUTION
12. This appliance should never be left unattended when plugged in.
13. This appliance has a polarized plug (one part of the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not have a suitable air supply, and this safety feature.
14. Never drop or insert any object into any opening or hose.
15. Do not place the steam nozzle directly on any surface or on the appliance power cord or plunger, or plugged in. Use the door hook provided.
16. This product emits hot steam during use. Do not touch T-nozzle when product is in use.
17. Do not steam garments while on a person, but it is turned only Houston must be extended and hanging on door hooks.
18. Never yank cord to disconnect from outlet. Instead, grasp plug and pull to disconnect.
19. Burns could occur from touching hot metal surfaces, or steam. Use care when you turn a steam appliance upside down – there may be hot water in reservoir.
20. Use caution when carrying steamer as it contains hot water.
21. Do not keep up will be hot when in use. Avoid prolonged contact.

SAVE THESE NSTRUCTIONS

FOR HOUSEHOLD USE ONLY NOT FOR COMMERCIAL OR INDUSTRIAL USE

UNPACKING INSTRUCTIONS Place the box on a large sturdy flat surface. Carefully remove the appliance from the packing material. Keep all plastic bags away from children. STEAMER ASSEMBLY Attaching the Steamer Hose Align the 2 protrusions in hose cap with the 2 openings in the steamer housing. Push down and twist clockwise (about one quart turn) to securely fasten hose onto housing.

1. Insert

Removing the Steamer Hose (make sure unit has cooled) To remove, turn counterclockwise one quarter turn, then gently pull up until hose releases. Hose may be stiff upon removal from box. Hose will relax after initial use. T-handle will sit properly on door hook once hose is relaxed.

OPERATING INSTRUCTIONS

FILLING THE WATER RESERVOIR (PRIOR TO PLUGGING IN THE APPLIANCE) Remove the hose cap. Fill the reservoir with clean tap water to the desired level or until water reaches "Max Fill" line on side of unit. DO NOT OVERFILL as this will cause water to boil out of steamer and spill. Empty until water is just under the internal fill indicator. DO NOT FILL THE CONTAINER WITH HOT WATER.

Hanging the t-nozzle on the door hook

1. En el 12 de septo en nombre para alvejo ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado ¿La que se ha parte de descendado 1. Cited on access to the hospital and/or other hospitals, which are the most accessible for hospital care. The hospital has a 20% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital. The hospital has a 50% capacity of access to the hospital.

PEL1800 — Clarify clarifies 1. Elastre ascescencia de 2004. 2. Elastre aconstrata de 2005. 3. Elastre aconstrata de 2006. 4. Elastre aconstrata de 2007. 5. Elastre aconstrata de 2008. 6. Elastre aconstrata de 2009. 7. Elastre aconstrata de 2010. 8. Elastre aconstrata de 2011. 9. Elastre aconstrata de 2012. 10. Elastre aconstrata de 2013. 11. Elastre aconstrata de 2014. 12. Elastre aconstrata de 2015. 13. Elastre aconstrata de 2016. 14. Elastre aconstrata de 2017. 15. Elastre aconstrata de 2018. 16. Elastre aconstrata de 2019. 17. Elastre aconstrata de 2020. 18. Elastre aconstrata de 2021. 19. Elastre aconstrata de 2022. 20. Elastre aconstrata de 2023. 21. Elastre aconstrata de 2024. 22. Elastre aconstrata de 2025. 23. Elastre aconstrata de 2026. 24. Elastre aconstrata de 2027. 25. Elastre aconstrata de 2028. 26. Elastre aconstrata de 2029. 27. Elastre aconstrata de 2030. 28. Elastre aconstrata de 2031. 29. Elastre aconstrata de 2032. 30. Elastre aconstrata de 2033. 31. Elastre aconstrata de 2034. 32. Elastre aconstrata de 2035. 33. Elastre aconstrata de 2036. 34. Elastre aconstrata de 2037. 35. Elastre aconstrata de 2038. 36. Elastre aconstrata de 2039. 37. Elastre aconstrata de 2040. 38. Elastre aconstrata de 2041. 39. Elastre aconstrata de 2042. 40. Elastre aconstrata de 2043. 41. Elastre aconstrata de 2044. 42. Elastre aconstrata de 2045. 43. Elastre aconstrata de 2046. 44. Elastre aconstrata de 2047. 45. Elastre aconstrata de 2048. 46. Elastre aconstrata de 2049. 47. Elastre aconstrata de 2050. 48. Elastre aconstrata de 2051. 49. Elastre aconstrata de 2052. 50. Elastre aconstrata de 2053. 51. Elastre aconstrata de 2054. 52. Elastre aconstrata de 2055. 53. Elastre aconstrata de 2056. 54. Elastre aconstrata de 2057. 55. Elastre aconstrata de 2058. 56. Elastre aconstrata de 2059. 57. Elastre aconstrata de 2060. 58. Elastre aconstrata de 2061. 59. Elastre aconstrata de 2062. 60. Elastre aconstrata de 2063. 61. Elastre aconstrata de 2064. 62. Elastre aconstrata de 2065. 63. Elastre aconstrata de 2066. 64. Elastre aconstrata de 2067. 65. Elastre aconstrata de 2068. 66. Elastre aconstrata de 2069. 67. Elastre aconstrata de 2070. 68. Elastre aconstrata de 2071. 69. Elastre aconstrata de 2072. 70. Elastre aconstrata de 2073. 71. Elastre aconstrata de 2074. 72. Elastre aconstrata de 2075. 73. Elastre aconstrata de 2076. 74. Elastre aconstrata de 2077. 75. Elastre aconstrata de 2078. 76. Elastre aconstrata de 2079. 77. Elastre aconstrata de 2080. 78. Elastre aconstrata de 2081. 79. Elastre aconstrata de 2082. 80. Elastre aconstrata de 2083. 81. Elastre aconstrata de 2084. 82. Elastre aconstrata de 2085. 83. Elastre aconstrata de 2086. 84. Elastre aconstrata de 2087. 85. Elastre aconstrata de 2088. 86. Elastre aconstrata de 2089. 87. Elastre aconstrata de 2090. 88. Elastre aconstrata de 2091. 89. Elastre aconstrata de 2092. 90. Elastre aconstrata de 2093. 91. Elastre aconstrata de 2094. 92. Elastre aconstrata de 2095. 93. Elastre aconstrata de 2096. 94. Elastre aconstrata de 2097. 95. Elastre aconstrata de 2098. 96. Elastre aconstrata de 2099. 97. Elastre aconstrata de 2100. 98. Elastre aconstrata de 2101. 99. Elastre aconstrata de 2102. 100. Elastre aconstrata de 2103.

OPERATING THE STEAMER 1. Over the door hanger: hang this over the top of your door and use to hang the T-nozzle and any garment on hanger. (Overloading may cause deformation of door hook.) 2. Make sure the ON/OFF switch is in the OFF position. 3. Make sure all hose connections are secure and tight. 4. Hang the T-nozzle on the door hook. 5. Plug the cord into a normal electrical outlet. 6. Turn the ON/OFF switch to the ON position. 7. The switch will light to indicate when power is on. 8. Steam will be produced from the nozzle in about four to five minutes. Be sure to keep T-nozzle on the door hook while heating up. 9. To turn steamer off, press ON/OFF switch to the OFF position.

This steamer is designed to sit on the floor. Do not put on a table or chair when in use.
OTHER IMPORTANT NOTES During operation, the steamer hose may gurgle. This is a normal result of condensation collecting inside the hose. Simply lift the cool-touch handle upward until the hose is extended to its full height. The gurgling will disappear when the excess moisture inside the hose has had a chance to drain back into the base.

CAUTION: Hose will be hot when in use. Avoid prolonged contact.

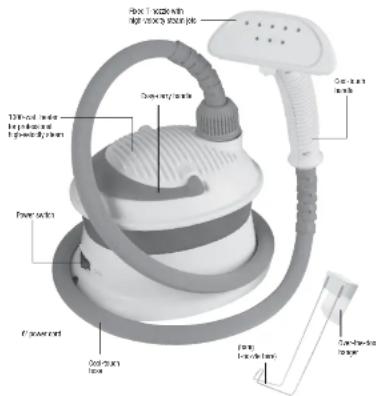

high velocity steam jet T-nozzle

HOW TO STEAM

Grasp the cool-touch handle with the steam jets in the nozzle facing away from you. Begin at the bottom of the fabric to allow the steam to rise inside and outside, removing wrinkles. Slowly move the nozzle from the bottom to the top of the fabric. Remove the nozzle from the garment and smooth the fabric with your free hand. Some fabrics are best steamed on the underside of the material. This will allow the fibers of the fabric to relax, eliminating wrinkles.

NOTE: Test fabric for color fastness in an inconspicuous spot. Drape linens, towels, handkerchiefs and napkins over a rod or place on a towel rack.

Heavier fabrics may require repeated steaming. Repeat as necessary.

With practice, you will gain speed and efficiency. You will soon learn which fabrics require multiple steam applications.

Do not directly touch velvet or silk with the steam head.

using the over-the-door hook

Always steam with hose in upright position, so any condensation is free to flow back into the steamer.

If you steam in a low position, condensation will collect inside the hose. This will cause gurgling and some water droplets to form near the steam jets on the T-nozzle. To avoid this, frequently lift the steam handle upward until the hose is extended to its full height.

TO STEAM DRAPES

Wash and dry drapes as directed according to fabric type. Re-hang drapes and steam drapes when in place.

CLEANING AND STORING

1. Turn the ON/OFF switch to the OFF position and unplug from the power source.
2. Wait for the steamer to cool completely for at least 30 minutes.
3. Unplug power cord and gently wrap around the bottom of the unit.

4. Remove steamer hose

1. Remove excess water from the reservoir by lifting the unit and pouring down a drain.
2. Wrap hose around unit or remove hose from steamer housing and coil and store separately.

DECALCIFICATION

If the appliance begins to produce steam more slowly than usual, if the steamer stops producing steam and then starts again, you may need to decalcify your steamer. Decalcification refers to removing the calcium deposits which form over time on the metal parts of the steamer. For best performance of the Conair™ Fabric Steamer, decalcify the unit from time to time. The frequency depends upon the hardness of your tap water and how often you use the steamer.

To decalcify, use a solution of 1/3 white vinegar and 2/3 water in the water container. Plug the unit into electrical outlet. Turn to the ON position and run until half the amount has steamed. Turn the unit to the OFF position, unplug from electrical outlet, and allow to sit for 30 minutes.

Remove excess water from the reservoir by lifting the unit, inverting and pouring the water over sink, and allowing water to drain from internal reservoir. Repeat the above procedure as many times as necessary until a normal steam rate returns, usually 2-3 times. With each repeated cycle, use a fresh solution of vinegar and water. Run one cycle of fresh, cold water through the unit at the completion of decalcification, before using the unit again to steam garments.

TROUBLESHOOTING THE STEAMER

- PROBLEM - No steam CAUSE - Steamer not turned on SOLUTION - Turn ON/OFF switch to ON position

• PROBLEM - Steamer fails to heat CAUSE - Steamer not plugged in SOLUTION - Plug into electrical outlet

• PROBLEM - No steam

CAUSE - Water level is low SOLUTION - Turn ON/OFF switch off and refill water container

- PROBLEM - Water drips from nozzle CAUSE - Condensation in hose SOLUTION - Hold the hose vertically and allow water to drain back into unit

- PROBLEM - Nozzle gurgles CAUSE - Condensation in hose SOLUTION - Hold the hose vertically and allow water to drain back into unit

• PROBLEM - Poor steam performance CAUSE - Sediment in container SOLUTION - Decalcify reservoir and water container

Note: Minerals in water will vary in different areas. To insure continued operation of the steamer, never store without cleaning and removing excess water from the reservoir and water container.

1. A la que de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidATION.
2. A que de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la fluidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la fluidization.
3. A que de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation de la liquidation des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconduits, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des inter conductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures et des interconductures, des interconductures etdes interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconductures et des interconducture and the interconducture of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidification of the solidificustes para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amelaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrales para el amalaciones y contrale

seada o terciopediol

compact fabric steamer

Product photo of a steam purifier with handle and mesh tube (no visible text or symbols)

Instructions

for Use

For your safety and continued

enjoyment of this product,

always read the instruction book

CONAIR®

Service Center

Conair Corporation

SERVICE DEPARTMENT 7475 N. Glen Harbor Blvd

Glandsle AZ 85307

dichard, AL 05367

For information on any Conair products call 1-800-3-CONAIR or visit us on the web at http://www.conair.com

©2008 Conair Corporation

East Windsor, NJ 08520/Glendale, AZ 85307

08PA10381
