USER MANUAL ASW-USB-25 Apricorn

White APRICORN cable connector with a black warning symbol on its side, against a blue background (no text or symbols on the device body)

USB

2.0

PC/Mac compatible

Connects to any 2.5" SATA Hard Drive or Solid State Drive

Simple & easy to use

Comes with Apricorn's Upgrade Suite featuring EZ Gig II Cloning and Imaging Software for Windows® & ShirtPocket's SuperDuper! for Mac®

Transfer everything in a few easy steps: Operating System, Data, E-mail, Settings and Applications

Perfect for transferring data to bare drives

1 year warranty

2.5" SATA Notebook Drive Upgrade Kit

Looking for a simple solution to upgrade your notebook drive? Apricorn's SATA Wire is the tool for you! Packaged with Apricorn's user-friendly Upgrade Software, which allows you to clone, image, or backup your notebook drive in a snap.

If your notebook is running out of space or you are looking to upgrade to a faster high performance hard drive or solid state drive, Apricorn's SATA Wire is the perfect tool.

Providing a USB connection to ANY 2.5" notebook hard drive or solid state drive and bundled with Apricorn's Upgrade Suite Software, the SATA Wire enables you to upgrade your notebook's drive in three simple steps.

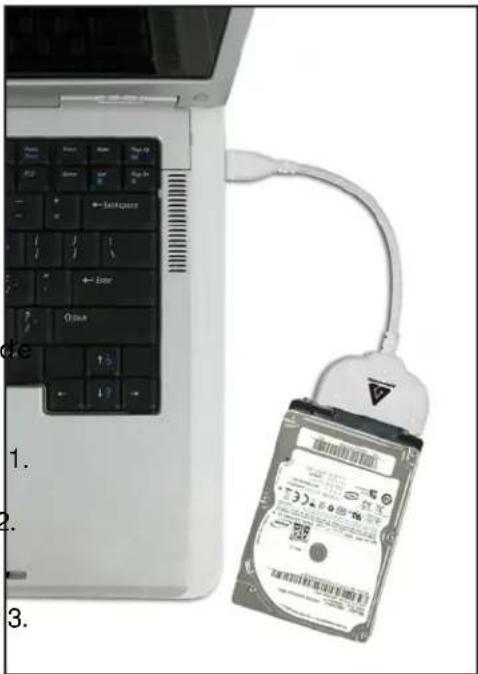

Connect the SATA Wire to your drive and to the USB port on your computer Run the included cloning software to copy 2 all of your data, email, settings and OS from your notebook to the new drive Swap out your old notebook drive with your new one, and you're done.

The SATA Wire is also perfect for transferring data to bare drives or for creating backups of your system. Now there's no excuse when it comes to backing up or upgrading your system, just use Apricorn's SATA Wire.

SATA Wire

2.5" SATA NOTEBOOK DRIVE UPGRADE KIT

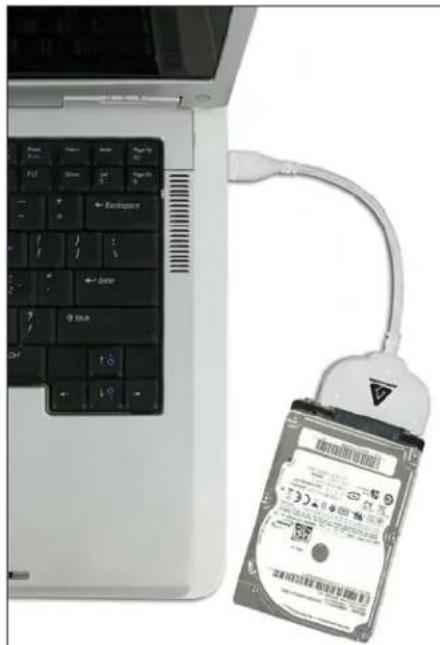

Laptop with keyboard keys connected to a hard drive (no visible text or symbols)

Features Benefits
Upgrade your notebook drive in just three simple steps	When used with the included cloning software, SATA Wire is a three step hard drive upgrade system that seamlessly automates and simplifies the task of upgrading your notebook hard drive.
Portable design No enclosure - Just connect adapter directly to hard drive
Universal 2.5" SATA drive compatibility Compatible with any 2.5" SATA hard drive or solid state drive
Bus Powered Bus powered from your laptop's USB port
Provides USB connection to any 2.5" SATA hard drive or solid state drive	Perfect for transferring data to bare drives, upgrading your system or creating backups
Operating System Compatibility PC and Mac compatible
Plug-n-Play Drivers not required for Windows® 2000, XP, Vista or Mac® OS

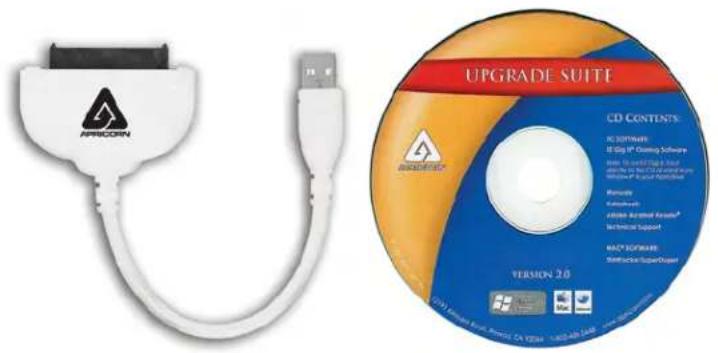

Box Contents SATA Wire and Upgrade Suite	Software CD

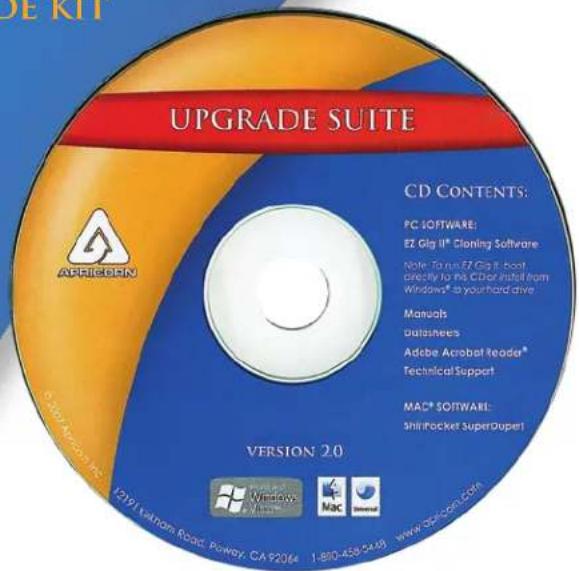

Apricorn's Upgrade Suite CD Programs for PC and Mac
Upgrade & Cloning Software EZ Gig II for Windows®
	ShirtPocket SuperDuper! for Mac®
Specifications
Data Transfer Rates USB 2.0 - Up to 480Mbps
Power Supply 100% bus powered
Hard Drive Interface SATA 2.5" connection
Warranty 1 year limited
Approvals FCC & CE
PC System Requirements	CD-ROM Drive, 128MB RAM, Pentium® II CPU, available powered USB port Supported Operating Systems:Windows Vista Home basic/premium, Ultimate & BusinessWindows XP Home and Professional SP2Windows 2000 Professional SP4
MAC® System Requirements	CD-ROM Drive, Apple® G3 or later, 64 MB RAM, available powered USB port, Supported Operating Systems: Mac® OS 9.2 or later & Mac OS X 10.2 or later
Ordering information	Apricorn Part Number: ASW-USB-25
