Product Type	Security Camera (1080P Eco-AHD Series)
Model	I1-390AHDE36
Image Sensor	1/3" 2MP CMOS Sensor
Effective Pixels	1928(H) x 1088(V)
Resolution	Digital: 1920 x 1080P, Analog: 960H
Minimum Illumination	0.1 Lux (0 Lux with IR On)
Day & Night	Auto (ICR), Color, B/W with EXT
IR LED	15 LEDs, Range up to 15m
Lens	3.6mm Fixed
Video Output	AHD / CVBS (Selectable by Jumper)
Transmission Distance	Up to 300m on 75-3 coaxial cable
Power Supply	DC12V ±10%, 280mA
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Dimensions (WxHxD)	104 x 70.8 x 93.2 mm
Net Weight	269g
Backlight Compensation	On/Off (BLC)
Noise Reduction	2D-DNR (Digital Noise Reduction)
White Balance	Auto / Manual
Signal Format	PAL / NTSC (Selectable via OSD)
OSD Control	Via CoC (Control over Coax) from compatible DVR
Installation	Indoor/Outdoor (with appropriate housing), wall or ceiling mount
Maintenance	Avoid direct sunlight; clean lens with soft cloth and neutral detergent
Safety Cautions	Use certified power adapter; do not open; avoid unstable surfaces

Frequently Asked Questions - I1-390AHDE36 Provision-ISR

How do I access the OSD menu on the I1-390AHDE36?

Use a compatible AHD DVR (Provision-ISR DVRs from version 3.4.4). On the DVR's PTZ interface, call Preset 95 or press Iris+ to open the menu. Navigate with direction arrows; Iris+ acts as Enter.

What is the maximum transmission distance for video?

Up to 300 meters (984 feet) on a 75-3 coaxial cable. For longer distances, use a signal booster or thicker cable.

Can I use this camera with an analog DVR?

Yes, the camera supports both AHD and CVBS output. You can select CVBS via the jumper connector inside the camera to use with standard analog DVRs.

How many IR LEDs does the I1-390AHDE36 have and what is the range?

The camera has 15 IR LEDs with an effective range of up to 15 meters (49 feet) in complete darkness.

What power supply is required?

DC 12V ±10% with a current rating of at least 280mA. Use a certified power adapter to ensure safety and performance.

How do I clean the camera lens?

Do not touch the sensor directly. Use a cotton swab or lens paper to gently wipe. For stubborn dirt, use a neutral detergent diluted with water. Avoid corrosive solutions.

What are the environmental operating limits?

Temperature: -10°C to +50°C (14°F to 122°F). Avoid direct sunlight, flooding, excessive dust, and moisture. Ensure proper ventilation.

Can I mount the camera outdoors?

The camera is designed for indoor/outdoor use but must be protected from rain and direct exposure. Use a weatherproof housing if exposed to harsh conditions.

How do I change the video format between PAL and NTSC?

Access the OSD menu via the DVR, go to Video Settings, and select either PAL or NTSC under the Format option.

What should I do if the camera image is blurry?

First, check if the lens focus is correct. Adjust the camera position. If the issue persists, clean the lens. Also ensure the coax cable connections are tight and the power supply is stable.

USER MANUAL I1-390AHDE36 Provision-ISR

Four technical line drawings of mechanical components, showing front, side, top, and side views (no text or symbols)

FCC

www.provision-ISR.com

Solid red rectangular shape with a thin gray curved border (no text or symbols)

PROVISION ISR

Now you can see!

USER MANUAL

■ 1080P Eco-AHD Series

Contents

1) CAUTIONS
2) Product Introduction

2.1 Camera Introduction
2.2 Product Features

3) Menu Instruction
4) Product Installation

4.1 General Notes
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Connections
4.5 OSD Control

5) Technical Specification

1 CAUTIONS

1. To reduce the risk of electric shock, do not open the machine and maintain by yourself, please consult a professional service person.

2. To prevent fire or shock hazard, use the power after safety certification, the input voltage, current, voltage polarity and operating temperature must meet the requirements of this camera.

3. Please note the operating temperature and environmental requirements of the camera, avoid too low or too high temperature. General operating temperature range of -10^ +50^ (Fahrenheit temperature is 14^ 122^ ). Avoid flooding and rain, minimize dust and moisture erosion, otherwise camera would be damaged.

4. Cameras in use should avoid direct sunlight, glare, otherwise the sensor will be damaged.

5. Do not touch the sensor surface, if any foreign objects exits, a cotton swab or lens paper can be used to wipe, if it is difficult to remove, a neutral detergent diluted with water would be useful. Do not use corrosive solution.

6. In order to make the camera work smoothly and obtain asatisfactory image, the power cord and video connection can not be too long, otherwise the increase of line loss will lead to the inadequate magnitude of the operating voltage of the camera or video signal Inadequate.

7. In order to prevent the camera from falling, please do not place the camera on an unstable bracket, base or other unstable objects. Otherwise it will lead to injury, at the same time, the camera will be damaged.

8. The camera cannot be placed near the radiator or heating resistor.

2 Product Introduction

2.1 Camera Introduction

PROVISION-ISR's new series of cameras are adopted CMOS image sensor with high performance, which provides mega pixel resolution and supports HD video. Moreover, it supports monitoring signals coaxial transmission. Transmission distance can reach more than 300M based on 75-3 coaxial cable. The series can support both AHD/CVBS 960H output as well as realize high speed, long distance and real time video transmission.

2.2 Product Features

• Coaxial cable with BNC connector
• Jumper Terminal
  • Auto Day/Night (ICR)
  • BLC
• 2D-DNR
  • AHD/CVBS Signal Selectable

3 Menu Setup

Iris + from DVR to call Menu.

4 Product Installation

4.1 General Notes

1. Make sure the unit is powered off before installation.
2. Check power supply voltage consistent with the electric voltage to prevent voltage unworthy, resulting in damage to the device.

3. Do not use in the environment beyond the boundaries of the temperature, and maintain good ventilation to prevent the rain in order to reduce the risk of fire or electric shock.

4. The installation and maintenance of this product should be professional, please do not in any way to remove or modify the equipment; can only use the required accessories of manufacturers. Problems caused by unauthorized repair are at your own risk.

4.2 Installation Tools and Information

Prepare the required engineering data and instructions. Before installation please prepare the following tools and instrumentation: A straight or a Phillips-head screwdriver, multi-meter, scissors, needle nose pliers, tape measure, pencil and so on.

4.3 Installation Method

1. Check the equipment whether it is damaged.

2. Mounting bracket or base.

① If the cement wall, install the expansion screws (expansion screw holes need stand or base hole), and then mount bracket or base.

② If the wooden wall, use self-tapping screws to mount.

1. Mounting the camera

a. Dome Camera

Adjust the lens position and make it aim at the monitoring points and present a clear picture, manually fix lens location and adjust the hemisphere cover. Re-examine the screen whether the character meets the requirement. Tighten the hemisphere cover.

b. Bullet Camera

Adjust the body so that the lens aims at the monitoring points and presents a clear picture. Tighten the screws, to ensure that it does not move.

Installation method above is for reference only, the specific installation, please be kind.

Note:

The wall needs to bear at least 3X weight of bracket (base) and camera.

4.4 Connection

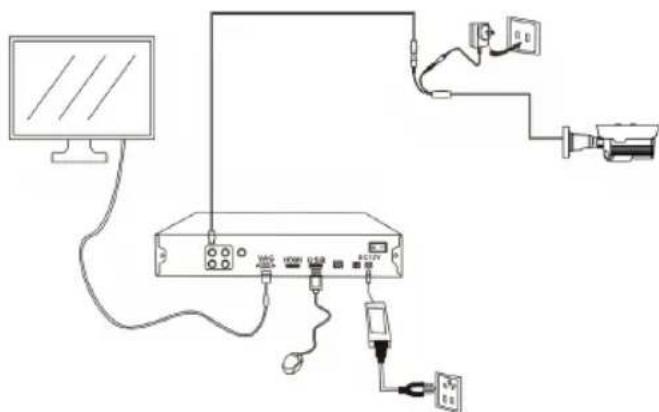

Connection as shown in the figure below

4.5 OSD Control

The preferred control method is CoC (Control over Coax). If your AHD DVR supports this function*, Use the DVR's PTZ interface to call Preset 95 or press on "Iris+" to open the OSD menu. Navigate through the OSD menu by the PTZ direction arrows. "Iris+" performs as "Enter".

*All of Provision-ISR's DVRs support CoC Starting from version 3.4.4

4 OSD:

Main Menu Se	cond Menu Third	Menu
AE	Brightness 1~20
	Exposure Mode Globe
		BLC
WB	AWB
	MWB	RGAIN 1~8
		BGAIN 1~8
Day / Night	Auto
	Color
	B/W
Video Settings	Contrast 1~10
	Sharpness 1~10
	Color Gain 1~10
	DNR 1~10
	Format PAL/NTSC
Language	English/Chinese
Reset
Save-Exit
Exit

5 Specifications:

PRO-AHD camera (1080P)

DI-390AHDE36 / DI-390AHDEVF

I3-390AHDE36 / I4-390AHDEVF

Model	DI-390AHDE36	DI-390AHDEVF	I3-390AHDE36	I4-390AHDEVF
Image Sensor		1/3" 2MP Sensor
Effective Pixels		1928(H)×1088(V)
Scanning System		Internal Sync
Resolution	Digital:1920×1080P, Analog:960H
Min. Illumination		0.1Lux / (0Lux IR On)
Day & Night		EXT, Color, B&W
IR LED	15 LED (15m)	36 LED (25m)	36 LED (25m)	42 LED (35m)
OSD Menu		Available
Backlight Compensation		On/Off
S/N Ratio		≥48dB (AGC Off)
White Balance		Auto / Manual
Noise Reduce		2D-DNR
Video Output	AHD / CVBS (Signal Selectable by Jumper Connector)
Defog		Not Available
Privacy Mask		Not Available
Motion Detection		Not Available
D-Effect		Not Available
Lens	3.6mm	2.8-12mm	3.6mm	2.8-12mm
Power	DC12V±10%, ~280m	ADC12V±10%, ~360mA	DC12V±10%, ~360m	ADC12V±10%, ~380mA
Operation temp.	-10°C~+50°C (14°F~122°F)
Dimension	104*70.8*93.2mm	129.5*90*119mm	206.5*67.6*68.5mm	286*77*85.6mm
Net Weight	269g	476g	380g	836g
