Product Type	LED TV with LCD screen and LED backlight
Screen Size	49 inches (diagonal)
Resolution	3840 x 2160 (4K UHD)
Display Technology	LED (Light Emitting Diode) backlight, LCD panel
3D Capability	Yes (supports 3D content)
Smart TV Platform	LG webOS (with access to apps, streaming)
Remote Control	Magic Remote (AN-MR600) with voice recognition and pointer
Connectivity	HDMI (3x), USB (2x), SCART, RF Antenna, Satellite, CI Slot, Ethernet, Wi-Fi (802.11a/b/g/n), Bluetooth 4.0
Audio	Dolby Digital, DTS, PCM; built-in speakers (specs not provided)
VESA Mount	300 x 300 mm (use M6 screws)
Power Supply	AC 100-240V ~ 50/60Hz (estimated typical)
Power Consumption	Not specified in manual; typical around 100-150W
Standby Power	Less than 0.5W (typical)
Dimensions (without stand)	Approx. 1105 x 645 x 58 mm (estimated for 49")
Weight (without stand)	Approx. 14.5 kg (estimated)
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 60 °C
Warranty	Refer to manufacturer; typical 2 years
User Manual Languages	Multilingual (including EN, BG, CS, ET, HU, LT, LV, MK, PL, RO, RU, SK, SQ)

Frequently Asked Questions - 49UF7767 LED TV LG

How do I clean the TV screen?

Turn off and unplug the TV. Use a soft, dry cloth to remove dust. For stubborn dirt, dampen the cloth with clean water or a mild detergent. Wipe immediately with a dry cloth. Avoid touching the screen with fingers or sharp objects.

What should I do if the remote control stops working?

Check that the batteries are properly installed and not depleted. Ensure there are no obstacles between the remote and the TV sensor. Point the remote directly at the TV. If using a Magic Remote, try re-pairing by pressing (BACK) and (HOME) simultaneously for 5 seconds.

How can I mount the TV on a wall?

Use a VESA standard wall mount bracket (300x300 mm, M6 screws). Disconnect the power and remove the stand. Attach the bracket to the TV and wall following the included instructions. Ensure proper ventilation (at least 10 cm from wall).

Can I watch 3D content on this TV?

Yes, this model supports 3D. Use LG 3D glasses (model AG-F***). Maintain a distance of at least twice the screen diagonal. Take breaks every hour to avoid eye strain.

How do I connect external devices like a game console?

Connect using an HDMI cable for best quality. If the device supports 4K, enable HDMI ULTRA HD Deep Colour in the Picture menu for optimal resolution. Use the INPUT button to select the correct source.

What precautions should I take to prevent image retention?

Avoid displaying static images (logos, menus) for more than 2 hours. Use the TV's screen saver or reduce brightness. Image sticking is not covered under warranty.

How can I reduce power consumption?

Turn off the TV when not in use, or use standby mode. Reduce screen brightness in the Picture menu. Unplug the TV during long absences to cut standby power.

What is the proper way to dispose of old batteries?

Do not mix old and new batteries. Dispose of used batteries according to local regulations. Keep away from children to avoid ingestion. If swallowed, seek medical attention immediately.

Why does my TV make a cracking noise?

A cracking sound is normal due to thermal expansion of plastic components. It does not affect performance. If buzzing occurs, it may be from the high-speed switching circuit.

How do I use the Magic Remote voice recognition?

Ensure the TV is connected to the internet. Press the voice recognition button on the remote and speak clearly within 10 cm. The feature may not work in noisy environments.

USER MANUAL 49UF7767 LED TV LG

Safety and Reference

LED TV*

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

• The product has been impacted by shock
• The product has been damaged
• Foreign objects have entered the product
• The product produced smoke or a strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.

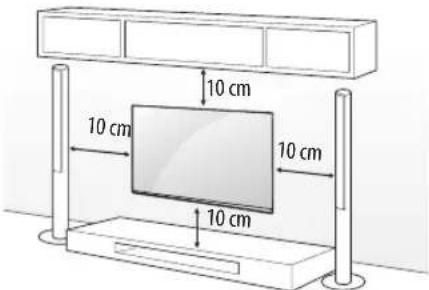

• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
  • Do not install the product on a carpet or cushion.
  • Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (Deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing:

A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D imaging (Only 3D models)

WARNING

Viewing Environment

- Viewing Time

- When watching 3D contents, take 5 to 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

- Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.

- Do not watch 3D videos if you feel nausea, are pregnant and/or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

- 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

- If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

- If your eyesight varies between your right and left eye, correct your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

- Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

- When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

- Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

- Infants/Children

- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it). Special monitoring and extra attention is required for children watching 3D contents.

- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

- Teenagers

- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

- Elderly

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
- Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
- Using modified 3D glasses may cause eye strain or image distortion.
- Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
- The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

Preparing

NOTE

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.
  • Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
  • New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^* A≤10mm

*B≤18mm

• Use a certified cable with the HDMI logo attached.
- If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)

• High-Speed HDMI/™ cable (3 m or less)
• High-Speed HDMI/ ^TM cable with Ethernet (3 m or less)

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.
• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
• Do not remove the panel with your fingers or any tools. Doing so may damage the product. (Only UF84**)

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models.

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

(Depending on model)

AG-F***Cinema 3D Glasses	AN-MR600Magic Remote	AG-F***DPDual Play Glasses
AN-VC550Smart camera LG Audio Device		AN-WF500Wi-Fi/BluetoothDongle

* Some models require Wi-Fi/Bluetooth Dongle for using Magic Remote or LG Audio Device.

* Supporting device of Wi-Fi/Bluetooth Dongle is a different in accordance with model.

Maintenance

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
  • Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing /bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding joystick button.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

Using the joystick button

(Image shown may differ from your TV.)

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

NOTE

- UF64 series does not have a Joystick button but has only a power On/Off button.

Basic functions

	Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
	Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it. All running apps will close, and any recording in progress will stop.
	Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
	Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

Adjusting the menu

When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right.

	Turns the power off.
	Clears on-screen displays and returns to TV viewing.
	Changes the input source.
	Accesses the Quick Settings.

NOTE

- When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved programmes.

Mounting on a table

(Image shown may differ from your TV.)

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Using the kensington security system

(This feature is not available for all models.)

• Image shown may differ from your TV.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall mounting bracket)

Model	43UF64**43UF68**40/43UF77**	49UF64**49/55UF68**49/55UF77**50UF83**49/55UF84**
VESA (mm) (A x B) 200 x 200 300 x 300
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket	LSW240BMSW240	LSW350BMSW240
Model	65UF68**60/65UF77**58UF83**	70/79UF77**
VESA (mm) (A x B) 300 x 300 600 x 400
Standard screw M6 M8
Number of screws 4 4
Wall mount bracket	LSW350B LSW640B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
- The wall mount kit includes an installation manual and necessary parts.
- The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
- The length of screws may differ depending on the wall mount. Make sure to use the proper length.
- For more information, refer to the manual supplied with the wall mount.
- When installing the wall mounting bracket, use the adhesive label or protective cover provided. The adhesive label or protective cover will protect the opening from accumulating dust and dirt. (Only when the label or cover is provided)

- When attaching a wall mounting bracket to the TV, insert the wall mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)

- Depending on the shape of the stand, use a flat tool to remove the stand cover as illustrated below. (e.g., a flat screwdriver) (Only when the item of the following form is provided)

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
  • If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.
• If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC's performance. (Depending on model)

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

• Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
- For a location that is not supported with ULTRA HD broadcasting, this TV cannot receive ULTRA HD broadcasts directly. (Depending on model)

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Euro scart connection

(Depending on model)

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable.

Current input mode\Output Type	AV1(TV Out ^1 )
Digital TV Digital TV
Analogue TV, AV	Analogue TVComponent
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

• Any Euro scart cable used must be signal shielded.
- When watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable. (Only 3D models)
- If you use the Time Machine function on digital TV, TV out signals cannot be output through the SCART cable.

CI module connection

(Depending on model)

View the encrypted (pay) services in digital TV mode.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
• If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

USB connection

Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the TV directly.

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

• Colour → ⚙→ ⋮ → Picture -HDMI ULTRA HD Deep

• On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
• Off : Support 4K @ 50/60 Hz (4:2:0)

If the device connected to Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn't support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV's HDMI ULTRA HD Deep Colour setting to Off.

(This feature is available on certain models which are supported ULTRA HD Deep Colour only.)

NOTE

• Supported HDMI Audio format: Dolby Digital (32 kHz, 44.1 kHz, 48 kHz), DTS (44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) (Depending on model)

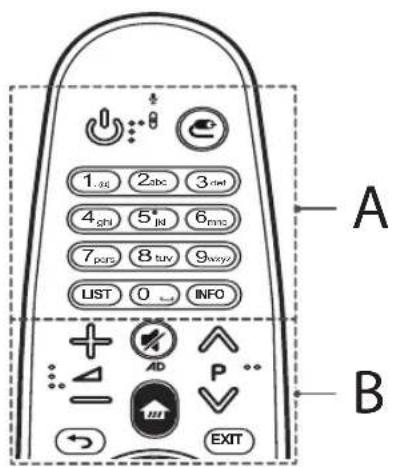

Remote control

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.
  • The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV.

(Depending on model)

A

(POWER) Turns the TV on or off.

TV/RAD Selects Radio, TV and DTV programme.

e-INPUTges the input source.

Q.MENU/ Settings) Accesses the Quick Settings.

□RtA10es an image.

SUBTITLE Recalls your preferred subtitle in digital mode.

Number buttons Enters numbers.

GUIDE Shows programme guide.

☐ (Space) Opens an empty space on the screen keyboard.

Q.VIEW Returns to the previously viewed programme.

B

FAV Accesses your favourite programme list.

INFO 📋 views the information of the current programme and screen.

MUTE d'utes all sounds.

+△Adjusts the volume level.

^P∨ Scrolls through the saved programmes.

^PAGE ∨ Moves to the previous or next screen.

C

1 Reflects the MHP TV menu source. (Depending on model)

1 RISCENst the previous history. (Depending on model)

(HOME) Accesses the Home menu.

MSHAPP She list of Apps.

Teletext buttons 📄 Text buttons are used for teletext.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACKRs to the previous level.

EXIT Clears on-screen displays and returns to TV viewing.

D

AD By pressing the AD button, audio descriptions function will be enabled.

2 Listesses the saved programme list. (Depending on model)

2 REC/*Starts to record and displays record menu.

(Only Time Machine ^Ready supported model) (Depending on model)

Control buttons (■, ▶, 11, ◀, ▶) Controls the Premium contents, Time Machine ^Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^Ready ).

Coloured buttons These access special functions in some menus.

(●: Red, ⋯: Green, ⋮: Yellow, ⌘: Blue)

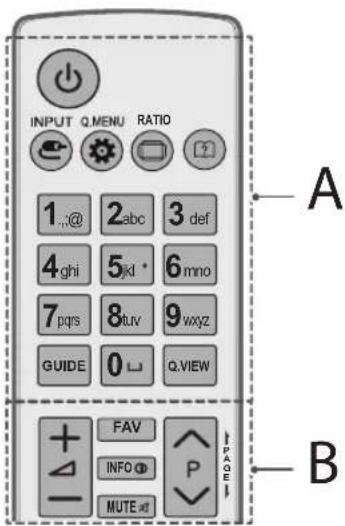

(Depending on model)

A

(POWER) Turns the TV on or off.

e-INPUTs the input source.

Q.MENU / ⚫. Settings) Accesses the Quick Settings.

□RATiOes an image.

(User Guide) Sees user-guide.

Number buttons Enters numbers.

(Space) Opens an empty space on the screen keyboard.

GUIDE Shows programme guide.

Q.VIEW Returns to the previously viewed programme.

B

+△-Adjusts the volume level.

FAVAccesses your favourite programme list.

INFO ① Views the information of the current programme and screen.

MUTE minutes all sounds.

^P∨ Scrolls through the saved programmes.

PAGE Moves to the previous or next screen.

C

RECENT Shows the previous history.

(HOME) Accesses the Home menu.

SHARPhe list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

LIVE MENU Shows the list of Recommended, Programmes, Search and Recorded. (Depending on model)

EXIT Clears on-screen displays and returns to TV viewing.

D

Coloured buttons These access special functions in some menus.

Teletext buttons → Text, buttons are used for teletext.

APP/* Selects the MHP TV menu source. (Depending on model)

LIVE TV Returns to LIVE TV.

Control buttons (■ Control the Premium

contents, Time Machine ^Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^Ready ).

REC/* Starts to record and displays record menu. (Only Time Machine ^Ready supported model) (Depending on model)

SUBTITLE Recalls your preferred subtitle in digital mode.

ADBy Pressing AD button, audio descriptions function will be enabled.

TV/RAD Selects Radio, TV and DTV programme.

Magic remote functions

(Depending on model)

When the message "Magic remote battery is low. Change the battery." is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

A

(Power) Turns the TV on or off.

(INPUT) Changes the input source.

* Pressing and holding the button displays all the lists of external inputs.

Number buttons Enters numbers.

LIST Accesses the saved programmes list.

INFO Views the information of the current programmes and screen.

B

+△Adjusts the volume level.

A P Scrolls through the saved programmes.

(MUTE) Mutes all sounds.

* By Pressing and holding the button, video/audio descriptions function will be enabled. (Depending on model)

(HOME) Accesses the Home menu.

(BACK) Returns to the previous screen.

EXIT Clears on-screen displays and returns to Last Input viewing.

C

Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the Wheel button.

△ ▽ (up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press △ buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right.

GUIDE Shows programme guide.

Screen Remote) Displays the Screen Remote.

* Accesses the Universal Control Menu. (Depending on model)

D

3D Used for viewing 3D video. (Only 3D models)

(Voice recognition)

(Depending on model)

Network connection is required to use the voice recognition function.

1 Press the voice recognition button.

2 Speak when the voice display window appears on the TV screen.

• Use the Magic Remote no further than 10 cm from your face.
- The voice recognition may fail when you speak too fast or too slowly.
- The recognition rate may vary depending on the user's characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and TV volume).

(Q. Settings) Accesses the Quick Settings.

* Pressing and holding the ⚙ button displays the Advanced menu.

Coloured buttons These access special functions in some menus.

Teletext buttons (TEXT T.OPT These buttons are used for teletext.

SUBT. Recalls your preferred subtitle in digital mode.

Registering magic remote

How to register the magic remote

To use the Magic Remote, first pair it with your TV.

1 Put batteries into the Magic Remote and turn the TV on.
2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control.
* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.

How to deregister the magic remote

Press the (BACK) and (HOME) buttons at the same time, for five seconds, to unpair the Magic Remote with your TV.

* Pressing and holding the EXIT button will let you cancel and re-register Magic Remote at once.

How to use magic remote

• Shake the Magic Remote slightly to the right and left or press

(HOME), INPUT), buttons to make the pointer appear on the screen.

(In some TV models, the pointer will appear when you turn the Wheel (OK) button.)

• If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear.
• If the pointer is not responding smoothly, you can reset the pointer by moving it to the edge of the screen.
• The Magic Remote depletes batteries faster than a normal remote due to the additional features.

Precautions to take when using the magic remote

• Use the remote control within the specified range (within 10 m). You may experience communication failures when using the device outside the coverage area or if there are obstacles within the coverage area.
• You may experience communication failures depending on the accessories.

Devices such as a microwave oven and wireless LAN operate in the same frequency band (2.4 GHz) as the Magic Remote. This may cause communication failures.

• The Magic Remote may not work properly if a wireless router (AP) is within 1 meter of the TV.

Your wireless router should be more than 1 m away from the TV.

• Do not disassemble or heat the battery.
• Do not drop the battery. Avoid extreme shocks to the battery.
- Inserting the battery in the wrong way may result in explosion.

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

External control device setup

To obtain the external control device setup information, please visit www.lg.com.

Troubleshooting

Cannot control the TV with the remote control.

• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed to ④ to -.

No image display and no sound is produced.

• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
- Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

• Check the power control settings. The power supply may be interrupted.
• Check if the Automatic Standby(Depending on model) / Sleep Timer / Timer Power Off is activated in the TIMERS settings.
• If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.

• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
- Restart the PC with the TV on.

Specifications

Wireless module specification

• Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.
• This device should be installed and operated with minimum distance 20 cm between the device and your body. And this phrase is for the general statement for consideration of user environment.

(Only UF68**, UF77**, UF83**, UF84**)

Wireless module (LGSBW41) specification
Wireless LAN Bluetooth
Standard IEEE 802.11a/b/g/n Standard			Bluetooth Version 4.0
Frequency Range	2400 to 2483.5 MHz5150 to 5250 MHz5725 to 5850 MHz (for Non EU)	Frequency Range	2400 to 2483.5 MHz
Output Power (Max.)	802.11a: 13 dBm802.11b: 15 dBm802.11g: 14 dBm802.11n - 2.4 GHz: 16 dBm802.11n - 5 GHz: 16 dBm	Output Power (Max.)	10 dBm or Lower

(Only UF64**)

Wireless LAN module (TWFM-B006D) specification
Standard IEEE 802.11a/b/g/n
Frequency Range	2400 to 2483.5 MHz5150 to 5250 MHz5725 to 5850 MHz (for Non EU)
Output Power (Max.)	802.11a: 11 dBm802.11b: 14 dBm802.11g: 10.5 dBm802.11n - 2.4 GHz: 11 dBm802.11n - 5 GHz: 12.5 dBm

HASZNÁLATI ÚTMUTATÓ

Alapfunkciók

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

C

Three grayscale landscape photos showing vertical grass or shrub under a cloudy sky, framed by a black border (no text or symbols)

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

C

Three grayscale images showing vertical grass or shrub under a cloudy sky, framed by a black border (no text or symbols)

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

C

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

C

(DOMOV), (VSTUP), . 3D

Three grayscale images showing vertical grass or shrub under a cloudy sky, framed by a black border (no text or symbols)

Funcții de bază

A P ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∵ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅

C

Three-panel grayscale image showing a city skyline with vertical streaks, framed by a dotted border (no text or symbols)

Illustration of a person using a computer with a magnified inset showing a device (no text or symbols present)

C

Illustration of a computer monitor connected to a cable with magnified insets showing internal components (no text or symbols)

Teleri seinale kinnitamine

Q.MENU/ 📄. seaded) Avab Quick-seaded.

(:Punane, :Roheline, :Kollane, :Sinine)

(Söltub mudelist)

A

Q.MENU / (seaded) Avab Quick-seaded.

(:Punane, :Roheline, :Kollane, :Sinine)

C

(Q. seaded) Avab Quick-seaded.

Illustration of a computer monitor connected to a cable with two magnified insets showing a satellite mounted on a stand (no text or symbols present)

C

Ratukas (OK) Paspauskite ratuko mygtuko centra, kad pasirinktumete meniu. Programas galite keisti naudodami ratuko mygtuka.

Three grayscale images showing vertical grass or shrub under a cloudy sky, framed by a black border (no text or symbols)

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

C

• Transport velikog televizora treba da obavljaju najmanje 2 osobe.

- U slučaju ručnog transporta, televizor držite na način prikazan na sledećoj slici.

• Prilikom transporta televizor ne izlažite udarcima ili prejakim vibracijama.
• Prilikom transporta televizor držite uspravno. Nikad ga ne okrečite na bok i ne naginjite ga nalevo ili nadesno.
• Ne pritiskajte postolje okvira jer bi se uvijanjem mogao oštetiti ekran.
• Kada rukujete televizorom, vodite računa da ne oštetite izbočeno upravljačko dugme.

OPREZ

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

Pričvršćivanje televizora na zid

1 Umetnite i pričvrstite zavrtnje s ušicom ili nosače televizora i zavrtnje na zadnjoj strani televizora.
- Ukoliko se na mestu zavrtanja s ušicom nalaze obični zavrtnji, uklonite ih.
2 Montirajte nosač na zid i pričvrstite ga zavrtnjima. Poklopite zavrtnje s ušicama na zadnjoj strani televizora sa mestom na kojem se nalazi zidni nosač.
3 Jakim kanapom čvrsto povežite zavrtnje sa ušicama i zidni nosač. Obezbedite da kanap bude u vodoravnom položaju.

OPREZ

C

Točkić (OK) Pritisnite sredinu točkića da biste izabrali željeni meni. Pomoću dugmeta u obliku točkića možete da menjate programe.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Montiranje televizora na zid

(ova značajka nije dostupna na svim modelima.)

1 Umetnite i pričvrstite okaste vijke ili nosače za televizor i vijke na stražnjoj strani televizora.
- Ako se na mjestu za okaste vijke nalaze neki drugi vijci, izvadite ih.
2 Pričvrstite zidni nosač za zid vijcima.
Pritom poštujte lokacije zidnog nosača i okastih vijaka na stražnjoj strani televizora.
3 Povežite okaste vijke i nosače čvrsto uz pomoć jačeg užeta.
Uže mora biti postavljeno vodoravno u odnosu na ravnu površinu.

OPREZ

(:Crveni, :Zeleni, :Žuti, :Plavi)

Tipke teleteksta 📄 TEXTjipkORõriste za upravljanje teletekstom.

APP/* Odabire izvor MHP izbornika. (Ovisno o modelu)

LIVE TV Povratak na TV uživo.

C

Three grayscale images showing vertical grass or shrub under a cloudy sky, framed by a black border (no text or symbols)

Illustration of a computer setup with a monitor and cable, showing two magnified views of a device (no text or symbols present)

Lidhjet (njoftime)

C

Nuk nxjerr as figurë as zë.

Three grayscale images showing vertical grass or shrub under a cloudy sky, framed by a dotted border (no text or symbols)

Prikazivanje nepokretne slike (npr. logotip kanala s kojeg se emitira program, izbornik na ekranu, scena iz video igre) duže vrijeme može izazvati oštećenje ekrana i dovesti do zadržavanja slike, poznatog i kao utiskivanje slike. Utiskivanje slike nije obuhvaćeno garancijom na uređaj.

• Kada vršite transport velikog TV uređaja, trebale bi biti prisutne najmanje dvije osobe.
• Prilikom ručnog transportiranja TV-a, držite ga kao što je prikazano na sljedećoj ilustraciji.

• Prilikom transporta, televizor ne izlažite udarcima ili prejakim vibracijama.
• TV prilikom transporta držite uspravno; nikada ga nemojte okretati na stranu ili naginjati ulijevo ili udesno.
• Nemojte pritiskati postolje okvira jer biste savijanjem mogli oštetiti ekran.
• Budite pažljivi prilikom rukovanja TV-om kako ne biste oštetili izbačeno dugme upravljačke palice.

OPREZ

• Uvijek pazite da ne dodirujete ekran jer to može izazvati oštećenja na njemu.
• Nemojte pomjerati TV povlačenjem za držače kabla, jer se oni mogu slomiti i izazvati povrede ili uzrokovati oštećenja na TV-u.

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

1 Umetnite i stegnite okaste vijke ili nosač za TV i vijke na stražnjoj strani TV-a.
- Ako su vijci postavljeni na mjesto okastih vijaka, najprije uklonite te vijke.
2 Montirajte zidne spojnice sa vijcima na zid. Poravnajte poziciju zidne spojnice i okastih vijaka na stražnjem dijelu TV-a.
3 Povežite čvrsto okaste vijke i zidne konzole jakim užetom. Pazite da uže bude horizontalno u odnosu na ravnu površinu.

OPREZ

• Pazite da se djeca ne penju na TV ili vješaju za njega.

NAPOMENA

• Koristite platformu ili ormarić koji je dovoljno jak i velik da može sigurno podupirati TV.
• Nosači, vijci i konop ne isporučuju se u paketu. Dodatni pribor možete nabaviti kod lokalnog distributera.

Postavljanje na zid

A

C

Three-panel grayscale image showing a city skyline with vertical streaks, framed by a dotted border (no text or symbols)

Illustration of a computer monitor connected to a cable with magnified insets showing mechanical components (no text or symbols)

C

Three grayscale close-up panels showing vertical streaks and a dotted border, no text or symbols present

Illustration of a computer monitor connected to a cable with two magnified insets showing mechanical components (no text or symbols)

Technical illustration of a mechanical component with a close-up view showing a pin inserted into a curved channel (no text or symbols present)

C

CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature 0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

	Digital TV Analogue TV
Television system	DVB-T/T2*DVB-CDVB-S*/S2*	PAL/SECAM B/G/I/D/K, SECAM L/L'
Programme coverage VHF, UHF, C-Band*, Ku-Band*		VHF: E2 to E12UHF: E21 to E69CATV: S1 to S20HYPER: S21 to S47
Maximum number of storable programmes	6,000 1,500
External antenna impedance 75 Ω

* Only DVB-T2/C/S/S2 support models.

Regulatory

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

• Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,
• Putting the television into standby mode, will reduce energy consumption, but will still draw some power,
• Reducing the brightness of the screen will reduce energy use.

Isolator (Only Sweden, Norway)

- "Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Better for the environment...

• High Energy Efficiency
• Reduced CO2 emissions
• Designed to facilitate repair and recycling

... better for you.

EU Ecolabel : PL/22/004

LGE announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment-friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address: http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine)

Packing Information (Only Russia, Kazakhstan, Belarus)

Русский

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB ^*

Digital Video Broadcasting

Please contact LG First.

If you have any inquiries or comments, please contact LG customer information centre.

LG Customer Information Centre
Country	LG Service	Country	LG Service
Österreich 0	810 144 131 Nederland	0900 543	5454
België 015 20	00 255 Norge 800 187 40
Luxembourg	0032 15 200255 Polska	801 54 54	54
България	07001 54 54 Portugal	808 78 54 54
Česká Rep. 8	10 555 810 România	031 228 3542
Danmark 808	8 5758 Slovensko 0850 111 154
Suomi	0800 0 54 54	España	963 05 05 00
France	3220 dites LG ou tapez 54	Sverige 0770	54 54 54
Deutschland	01806 11 54 11(0,20€ pro Anruf aus dem Festnetz der DTAG; Mobilfunk: max 0,60€ pro Anruf.)	Schweiz 0848	543 543
Еллάδα	801 11 200 900,210 4800 564	United Kingdom	0344 847 5454
		Россия	8 800 200 7676
Magyarország	06 40 54 54 54 Eesti	800	9990
Éire	01 686 9454	Украина	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805,2255(GSM)
Беларусь	8 820 0071 1111
Latvija	80200201	Узбекистан	8 800 120 2222
Lietuva	880008081	Кыргызстан	0-800-805-8050
Türkiye	444 6 543	Slovenija	080 543 543

www.lg.com
