EM8650 - Motion detector Eminent - Free user manual and instructions

Product Type	Motion Detector
Brand	Eminent
Model	EM8650
Sensor Type	Passive Infrared (PIR)
Detection Range	Up to 12 meters
Detection Angle	120°
Power Source	2x AA batteries (not included)
Battery Life	Approximately 12 months under normal use
Mounting	Wall mount with included bracket
Dimensions (H x W x D)	100 x 60 x 45 mm
Weight (without batteries)	85 g
Indoor/Outdoor Use	Indoor use only
Weatherproof Rating	IP20
Operating Temperature	-10°C to 40°C
Detection Zones	Multiple zones with curtain pattern
Pet Immunity	Up to 25 kg (to avoid false alarms from pets)
Output Signal	Wireless 433 MHz
Alarm Duration	Adjustable: 3 seconds to 2 minutes
Light Sensor	Built-in dusk sensor (disable in daytime)
Compatible Systems	Compatible with most 433 MHz alarm panels
Maintenance	Clean lens with soft dry cloth; check batteries monthly
Spare Parts	Contact Eminent support for replacement brackets or sensors
Safety	Low power consumption; no sharp edges; CE marked
User Manual	Download from notice-facile.com

Frequently Asked Questions - EM8650 Eminent

How do I install the Eminent EM8650 motion detector?

Mount the detector at a height of 2.0-2.4 meters using the supplied bracket. Insert two AA batteries, then pair it with your alarm panel by following the sync procedure in the manual. Avoid pointing the sensor at heat sources or reflective surfaces.

What is the detection range and angle?

The detector has a 120° detection angle and a range of up to 12 meters. Performance may vary depending on mounting height and environmental factors.

How long do the batteries last?

Typical battery life is approximately 12 months under normal use. The detector will send a low-battery signal to your alarm panel when replacement is needed.

Can I use this outdoors?

No, the EM8650 is designed for indoor use only. It is not weatherproof (IP20). For outdoor use, consider a weatherproof model.

How do I avoid false alarms from pets?

The detector has pet immunity up to 25 kg. Mount it at least 2 meters high and avoid aiming directly at pet areas. The curtain detection pattern helps distinguish pets from humans.

What should I do if the detector does not pair with my alarm panel?

Ensure batteries are fresh and inserted correctly. Press the pairing button (see manual) and follow the panel's enrollment process. If it still fails, check compatibility with 433 MHz systems.

How do I clean the motion detector?

Use a soft, dry cloth to gently wipe the lens and housing. Do not use water, solvents, or abrasive cleaners. Cleaning the lens regularly ensures optimal detection.

Does the detector work during the day?

Yes, but it has a built-in dusk sensor that can be disabled using the manual's DIP switch settings if you want daytime detection.

What is the warranty period for the EM8650?

Eminent typically offers a 2-year warranty from the date of purchase. Retain your receipt for warranty claims. For details, contact Eminent support.

Where can I download the user manual?

The manual is available for free download at notice-facile.com. Search for 'Eminent EM8650' to find the PDF with installation, pairing, and configuration instructions.

USER MANUAL EM8650 Eminent

EM8650 Pet immune PIR Motion Detector 2-way

en

Manual

EM8650 - Pet immune PIR Motion Detector

1.0 Introduction ...... 2
2.0 Front of motion detector....2
3.0 Inside the motion detector .... 3

3.1 Infrared sensors....3
3.2 Anti sabotage button....3
3.3 LED On/Off....3
3.4 Group settings (jumpers)....3

4.0 Rear motion detector....4

4.1 Test mode ....5
4.2 Activated ....5
4.3 Pair the motion detector....5

5.0 Installation tips....5
6.0 Test the motion detector....6
7.0 Frequently Asked Questions and other related information....6
8.0 Service and support....6
9.0 Warning and points of attention ....7
10.0 Warranty conditions....8
11.0 Declaration of Conformity ....8

1.0 Introduction

Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent's technical experts. Should you experience any problems with this product, you are covered by a five-year Eminent warranty. Please keep this manual and the receipt in a safe place.

Register your product now on www.eminent-online.com and receive product updates!

2.0 Front of motion detector

1. Detection window
2. LED indicator
3. Mounting bracket

LED indicator :

Flashes continuously : Motion detector is performing a self-test

Flashes 1x : Motion detected

Flashes 2x : Self-test completed. Motion detector is active

Flash once per 3 seconds : Battery power low, exchange battery*

* You will receive a text message if battery level is low. The message contains the following information (up to sensor 9) Sensor name with additionally the text 'battery almost empty'. From sensor 10 the name will be replaced by a zone nr. with additionally the text 'battery almost empty'.

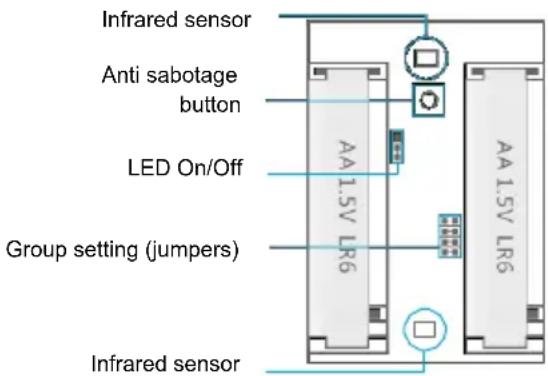

3.0 Inside the motion detector

Remove the screw on top of the motion detector and gently remove the front and back.

3.1 Infrared sensors

The infrared sensors detect the motion. These sensors need to be clean at all time. Do no touch the sensors!

3.2 Anti sabotage button

If the motion detector is opened this switch will detect it and trigger the alarm.

3.3 LED On/Off

By switching this jumper setting you can set if the LED in front of the motion detector will be switched "On or Off". By default this setting is turned ON (LED ON).

3.4 Group settings (jumpers)

Every sensor can be configured to be added to a dedicated group by setting the jumper settings; home-group, normal group, single group or 24-hours group.

Bellow you will see an overview of the meaning and how to configure the jumper settings for that type of zone.

Remark : Determine before pairing with the alarm system in which group the sensor will be operational. Once the sensor is successfully paired with the system. The group cannot be changed after pairing!

Remark: If the group of a sensor needs to be changed, all sensors need to be paired with the alarm system once more. It is not possible to remove one single sensor from a group ! (See chapter “Delete all wireless sensors by text message”)

Home-group

Normal-group

Single-group

24-hours-group

Remark : It's recommended to install detectors that needs to be operational 24-hours, for example smoke detectors, in the 24-hours-group.

4.0 Rear motion detector

4.1 Test mode

After the self-test has finished press the test button once. The motion detector will send a trigger signal (flashes 1x).

4.2 Activated

If the motion sensor is triggered more than 2 times within 3 minutes the device switches automatically to power saving mode. The motion detector will activate again if it does not register motion for a time period of 3 minutes.

4.3 Pair the motion detector

Enter the password and press button on the control panel.

The LED will turn on. Press 2x the test button of the motion detector you wish to register. If you hear a beep the sensor is registered to the system. If you hear 2 beeps this indicates this sensor is already registered.

Notice: During the registration process be sure no other sensor is triggered. If a motion detector is in the same room make sure you cover the motion detector or place the motion detector temporarily in a different room.

5.0 Installation tips

Avoid installation of the motion detector in range of a window, air-conditioning, radiator, refrigerator, oven, direct sunlight or other places with high temperature fluctuation.

Do not place 2 motion detectors facing each other or within each other's range.

Motion detectors are usually placed at 2 meters from the floor on the wall.

First install the mounting bracket before placing the motion detector in the bracket. Point the detector in the direction you wish to secure. Test if the motion detector is working properly in test mode.

Top view

Side view

6.0 Test the motion detector

After you fully installed the motion detector and the self-test is completed you can test the motion detector by walking within the range of the motion detector from one side to the other side. The LED indicator of the motion detector will flash if motion is detected. Adjust the motion sensor to get the best results. And repeat the test.

7.0 Frequently Asked Questions and other related information

The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.eminent-online.com for more information about your product.

8.0 Service and support

This users manual has been carefully written by Eminent's technical experts. If you have problems installing or using the product, please fill out the support form at the website www.eminent-online.com/support.
You can also contact us by phone. Below you will find a list with phone numbers for each supported country.

Country	Phone number	Rate per minute*
Belgium (Dutch)	070 277 286	€0.30
Belgium (French)	070 277 286	€0.30
Denmark	[phone]	Local Costs
Finland	[phone]	Local Costs
Germany	[phone]	Local Costs
Italy	[phone]	Local Costs
Norway	[phone]	Local Costs
Spain	807 080 042	€0.41
Sweden	[phone]	Local Costs
The Netherlands	0900-3646368	€0.45
UK	[phone]	Local Costs
Hungary	1-4088902 (From Budapest)	Local Costs
Hungary	06-1-4088902 (From the rest of Hungary)	Local Costs
Hungary	[phone](International)	Local Costs

* Rates mentioned in this table do not include cell phone charges.

9.0 Warning and points of attention

Due to laws, directives and regulations set out by the European parliament, some (wireless) devices could be subject to limitations concerning its use in certain European member states. In certain European member states the use of such devices could be prohibited. Contact your (local) government for more information about this limitations.

Always follow up the instructions in the manual*, especially where it concerns devices which need to be assembled.

Warning: In most cases this concerns an electronic device. Wrong/improper use may lead to (severe) injuries!

Repairing of the device should be done by qualified Eminent staff. The warranty immediately voids when products have undergone self repair and/or by misuse. For extended warranty conditions, please visit our website at www.eminent-online.com/warranty.

*Tip: Eminent manuals are written with great care. However, due to new technological developments it can happen that a printed manual does not longer contain the most recent information. If you are experiencing any problems with the printed manual or you can not find what you are looking for, please always check our website www.eminent-online.com first for the newest updated manual.

Also, you will find frequently asked questions in the FAQ section. It is highly recommended to consult the FAQ section. Very often the answer to your questions will be found here.

10.0 Warranty conditions

The five-year Eminent warranty applies to all Eminent products unless mentioned otherwise before or during the moment of purchase. When having bought a second-hand Eminent product the remaining period of warranty is measured from the moment of purchase by the product's first owner. The Eminent warranty applies to all Eminent products and parts inextricably connected to and/or mounted on the main product. Power supply adapters, batteries, antennas and all other products not integrated in or directly connected to the main product and/or products of which, without reasonable doubt, can be assumed that wear and tear show a different pattern than the main product are not covered by the Eminent warranty. Products are not covered by the Eminent warranty when subjected to incorrect/improper use, external influences and/or when opened by parties other than Eminent.

11.0 Declaration of Conformity

To ensure your safety and compliance of the product with the directives and laws created by the European Commission you can obtain a copy of the Declaration of Conformity concerning your product by sending an e-mail message to: [e-mail]. You can also send a letter to:

Eminent Europe BV

PO Box 276

6160 AG Geleen

The Netherlands

Clearly state ‘Declaration of Conformity’ and the article code of the product of which you would like to obtain a copy of the Declaration of Conformity.
