TA2052BLKB - Car kit Scosche - Free user manual and instructions

Brand	Scosche
Model	TA2052BLKB
Product Type	Car Installation Kit (Dash Kit)
Compatible Vehicles	Select Ford, GM, and Chrysler models (2000-2010)
Color	Black
Material	High-grade ABS plastic
Dimensions (L x W x H)	7.0 x 4.0 x 1.0 inches
Weight	0.5 lb
Included Components	Dash kit trim plate, mounting brackets, screws, and installation guide
Installation Type	Custom-fit, no cutting or drilling required
Warranty	Limited lifetime warranty
Key Features	Maintains factory appearance, easy snap-in installation, allows aftermarket radio in OEM dash
Maintenance	Wipe clean with a damp cloth; avoid harsh chemicals
Safety	Use only as intended; ensure secure fit to prevent rattling
Spare Parts / Repairability	Not repairable; replace entire kit if damaged

Frequently Asked Questions - TA2052BLKB Scosche

What vehicles is the Scosche TA2052BLKB compatible with?

The TA2052BLKB is designed for select Ford, GM, and Chrysler vehicles from model years 2000-2010. Check Scosche's website for a full vehicle fitment list.

Does the kit include a radio or wiring harness?

No, this is a dash kit only. It includes the trim plate, brackets, and screws. You will need a separate wiring harness and radio.

What tools are needed for installation?

Basic hand tools like a screwdriver and panel removal tool. No special tools required.

Is the kit paintable?

Yes, the ABS plastic can be painted to match your vehicle's interior. Use plastic adhesion promoter before painting.

Will this kit work with double DIN radios?

The TA2052BLKB is designed for single DIN radios. For double DIN, you would need a different kit.

Does the kit come with installation instructions?

Yes, a detailed installation guide is included in the package. You can also download a PDF from Scosche's website.

What is the warranty on this product?

Scosche offers a limited lifetime warranty against defects in materials and workmanship.

Can I use this kit in a non-listed vehicle?

It is not recommended. The kit is custom-molded for specific vehicles. Using it in non-listed vehicles may require modification.

How do I clean the dash kit?

Use a soft, damp cloth with mild soap. Avoid abrasive cleaners that could scratch the surface.

Is the TA2052BLKB the same as the TA2052B?

The TA2052BLKB likely refers to the black color variant of the TA2052 series. Check with Scosche for exact differences.

USER MANUAL TA2052BLKB Scosche

1. Using a pick tool carefully pry out the A/C controls.

2. Remove (4) 10mm bolts securing the radio to the dash. Disconnect radio and remove.

KIT PANEL ASSEMBLY

A. ATTACHING THE REAR BRACKETS

1. Align the two (2) screw hole locations to the matching locations on pocket. When aligned, slide the bracket together. Screw the two (2) supplied screws to screw hole locations.

Technical line drawing of a mechanical housing assembly (no text or symbols)

B. HAZARD / CLOCK DISPLAY REMOVAL INSTRUCTIONS AND REATTACHMENT

1. Remove the (2) small Phillips screws from each side of the factory radio that secure the radio to the rear of the radio face and pull the radio assembly away from the back of the face of the radio and sel aside with the screws that were removed.
2. Using a small flat blade screwdriver, carefully remove the hazard / clock display panel by prying the thin plastic strip from around the instrument housing outward to release the hazard / clock display from the housing. There are (2) retaining snaps on the top side and the bottom side and (1) on each edge.
3. Once the module is removed, carefully remove all plastic mounting clips from the factory panel and reattach them to the corresponding mounting clips on the 5886 panel.
4. Slide the hazard / clock display panel into the housing on the 5886 panel until it snaps and locks into place.

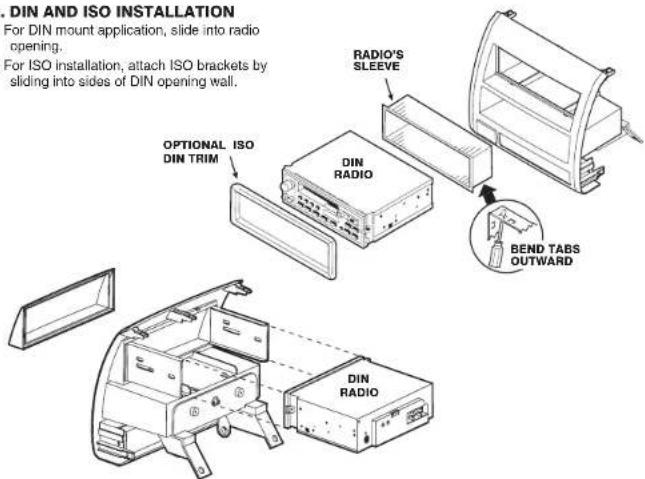

C. DIN AND ISO INSTALLATION

1. For DIN mount application, slide into radio opening.
2. For ISO installation, attach ISO brackets by sliding into sides of DIN opening wall.

SCOSCHE®

TA2052B

IN-DASH INSTALLATION KIT FOR 2005-UP TOYOTA TACOMA DIN KIT

INTRODUCTION / PRELIMINARY

Thank you for purchasing the Scosche TA2052B Kit. This Kit was manufactured with the highest of quality standards.

NOTES:

• See your vehicle's instructions for any special tools your installation might require.
- Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting instructions.

FACTORY WIRING CODES

For Factory Wiring Codes go to: www.scosche-cars.com

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harnesscodes and information pertaining to installation of this kit in the listed vehicles. Scasche Industries, Inc. cannot be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.

If you have any further questions call:

© 2007 SCOSCHE INDUSTRIES, INC.

TECH HELP 1-800-621-3695x3

TA2052B 3:07 (3000464)
