Product Type	Car Stereo Installation Kit
Brand	Scosche
Model	TA2043B
Compatible Vehicles	Select GM models (e.g., Chevrolet, GMC, Buick)
Material	ABS Plastic
Color	Black
Included Components	Wiring harness, mounting brackets, screws, trim pieces
Dimensions	Approximately 7 x 5 x 2 inches
Weight	0.5 lbs (0.23 kg)
Installation Type	DIY, requires basic tools
Function	Enables installation of aftermarket stereo into factory dash
Warranty	1 year limited warranty
Maintenance	Clean with damp cloth; avoid harsh chemicals
Safety	Disconnect battery before installation
Spare Parts	Contact Scosche for replacement brackets or screws
Repairability	Kit is not user-serviceable; replace if damaged
Additional Information	Designed for double-DIN or single-DIN stereos

Frequently Asked Questions - TA2043B Scosche

What vehicles is the Scosche TA2043B compatible with?

The TA2043B is designed for select GM vehicles, including Chevrolet, GMC, Buick, and Cadillac models from the early 2000s. Check Scosche's website for a complete compatibility list.

Does the kit include a wiring harness?

Yes, the TA2043B includes a wiring harness that connects your aftermarket stereo to the factory wiring, simplifying installation.

Can I install a double-DIN stereo with this kit?

Yes, the TA2043B supports both single-DIN and double-DIN stereos. It includes appropriate mounting brackets and trim pieces.

What tools are required for installation?

You'll need basic tools: a screwdriver (Phillips and flathead), wire strippers, and possibly a panel removal tool. The kit comes with screws and brackets.

Is the TA2043B easy to install for a beginner?

Yes, the kit is designed for DIY installation. Instructions are included, and many online tutorials are available. However, if unsure, professional installation is recommended.

What is the warranty on the Scosche TA2043B?

Scosche offers a 1-year limited warranty against defects in materials and workmanship. Register your product on their website.

Can I return the kit if it doesn't fit my vehicle?

Most retailers accept returns within 30 days, but confirm with the seller. Ensure compatibility before purchase.

Does the kit include a dash trim?

Yes, the kit includes a dash trim panel that matches the factory finish, giving a clean, OEM-like appearance.

How do I clean the kit components?

Use a soft damp cloth to clean the plastic parts. Avoid abrasive cleaners or solvents that could damage the finish.

Where can I download the installation instructions?

Installation instructions are available for free on the Scosche website or via the notice-facile.com page for this product. You can also access them through the QR code on the packaging.

USER MANUAL TA2043B Scosche

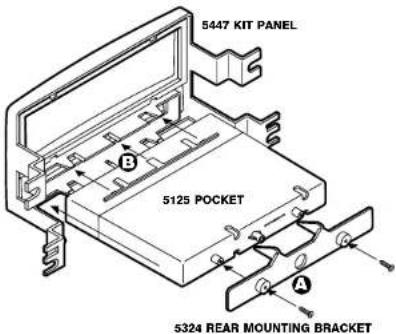

Align the two (2) screw emboss locations to the matching locations on pocket. When aligned, slide the bracket together. Screw the two (2) supplied screws to screw emboss locations

B. ATTACHING THE POCKET: Align the pocket to the snaps of kit panel. Snap the pocket into place on the back of kit panel.

STEREO INSTALLATION

2003-Up Toyota Sequoia

RADIO REMOVAL AND IN-DASH INSTALLATION

NOTE: The Factory radio provision is for a Double ISO/DIN style radio.

1. Extract (1) Phillips screw from each air vent in radio dash bezel.
2. Using panel removal tool, pry off radio bezel, pull away, unplug and remove.
3. Extract (4) 10 mm bolts securing radio, pull away, unplug, and remove.

2003-Up Toyota Tundra

RADIO REMOVAL AND IN-DASH INSTALLATION

1. Extract (2) Phillips screws in vents.
2. Remove (3) AC control knobs. Remove (3) Phillips screws from behind.
3. Using panel removal tool, pop out dash that covers AC controls and radio.
4. Extract (4) 10 mm bolts from radio brackets, disconnect and remove.

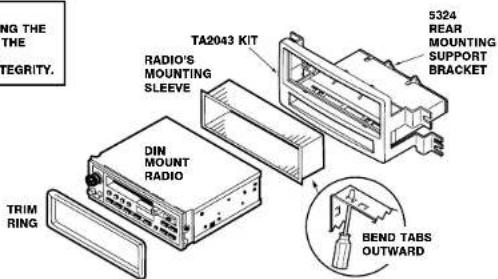

MOUNTING THE RADIO

CAUTION: REAR SUPPORTING THE RADIO ADDS TO THE INSTALLATIONS STRUCTURAL INTEGRITY.

SCOSCHE®

TA2043

IN-DASH INSTALLATION KIT FOR

2003-UP TOYOTA SEQUOIA/TUNDRA VEHICLES

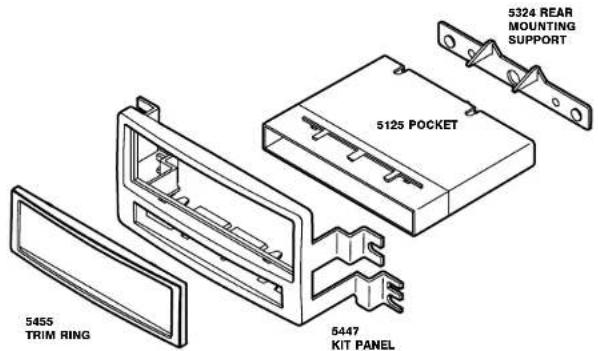

INTRODUCTION / PRELIMINARY

Thank you for purchasing the Scosche TA2043 Kit. This kit was manufactured with the highest of quality standards.

CAUTION:

DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A VOLT/OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC SYSTEMS. AVOID ALL FACTORY AIR BAG WIRING - AIR BAGS CAN ACCIDENTALLY DEPLOY CAUSING SERIOUS INJURY OR DEATH.

NOTES:

• See your vehicle's instructions for any special tools your installation might require.
- Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting instructions.

FACTORY WIRING CODES

For Factory Wiring Codes go to: www.scosche-cars.com

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and information pertaining to installation of this kit (TA2043) in 2003-UP Toyota Sequoia/Tundra Vehicles. Scosche Industries, Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.

If you have any further questions, call our toll free technical help line at: 1-800-621-3695x3 © 2007 SCOSCHE INDUSTRIES. INC. SI 03/07 - TA2043 (3000465)
