Pup Glow 2 - Keyboard Seal Shield - Free user manual and instructions

Product Type	Wired Keyboard
Model	Pup Glow 2
Brand	Seal Shield
Dimensions (L x W x H)	17.5 x 6.5 x 1.2 in (445 x 165 x 30 mm)
Weight	1.5 lbs (680 g)
Connectivity	USB-A Wired
Cable Length	6 ft (1.8 m)
Key Count	104 Keys (Full Layout with Numeric Keypad)
Backlight	RGB Per-Key LED
Waterproof Rating	IP68 (Submersible)
Antimicrobial	Yes (Silver Ion Coating)
Material	Silicone Membrane Keys
Compatibility	Windows, Mac, Linux
Power Source	USB Bus Power (5V, 500mA)
Certifications	FCC, CE, RoHS
Warranty	2 Years Limited
Included Accessories	USB Cable, User Manual

Frequently Asked Questions - Pup Glow 2 Seal Shield

How do I clean the Pup Glow 2 keyboard?

You can fully submerge the keyboard in water. Use mild soap and water, then rinse and let dry completely. The keyboard is IP68 waterproof.

Can I adjust the backlight brightness?

Yes, use the FN + Up/Down arrow keys to increase or decrease the brightness. There are multiple levels and RGB modes.

Is the keyboard compatible with Mac?

Yes, it works with Windows, Mac, and Linux. For Mac, you may need to swap the Alt and Windows keys in System Preferences.

What should I do if some keys stop working?

First, try resetting the keyboard by unplugging it for 10 seconds. If the issue persists, contact Seal Shield support for warranty service.

Does the keyboard have a warranty?

Yes, it comes with a 2-year limited warranty covering defects in materials and workmanship.

Can I use the keyboard in a medical environment?

Yes, the keyboard is designed with antimicrobial silver ion coating and is fully washable, making it suitable for healthcare settings.

How do I change the RGB lighting effects?

Press FN + Right Arrow to cycle through preset lighting modes (wave, breathing, static, etc.). You can also customize colors using software if available.

Is the keyboard wireless?

No, the Pup Glow 2 is a wired USB keyboard with a 6-foot cable.

What type of keys does it use?

It uses silicone membrane keys that are quiet and durable, ideal for clean environments.

Can I replace the keycaps?

No, the keycaps are not removable. The keyboard is sealed for waterproofing, so keycaps are fixed.

USER MANUAL Pup Glow 2 Seal Shield

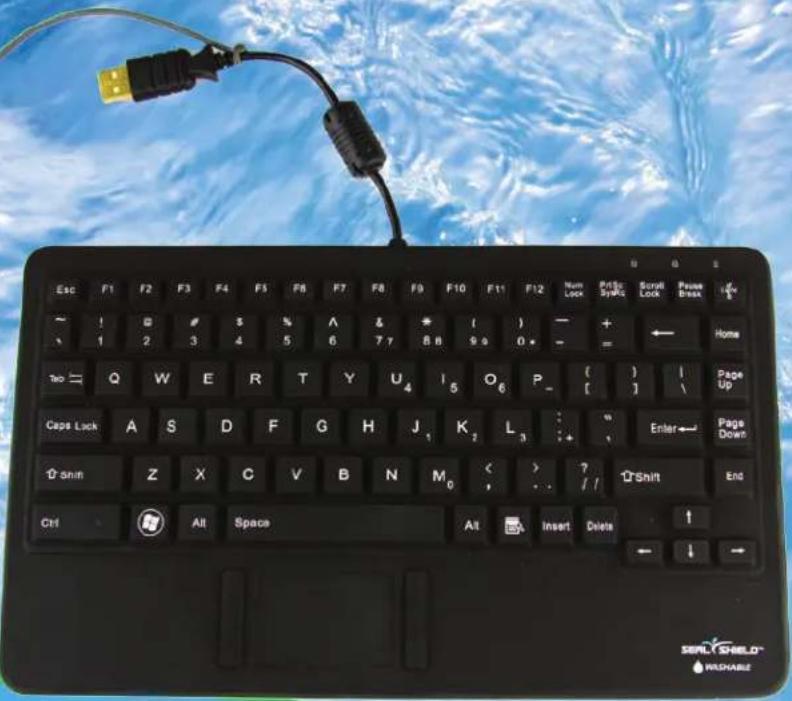

Seal Pup Glow 2™ All-in-One Mini Waterproof Keyboard Model S86PG2

Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Num Lock Print Sync Scroll Lock Pause Address ~ ! @ # 3 % ^ & * ( ) - + 1 2 3 4 5 6 7 8 9 0.0 - = ← Home Too Q W E R T Y U4 I5 O6 P- { } | Page Up Caps Lock A S D F G H J K L3 : " Enter← Page Down Shift Z X C V B N M0 < > ? Shift End Ctrl All Space Alt Insert Delete ↑ ↓ SEAL SHIELD® WASHABLE

100% Waterproof • Spillproof • Dishwasher Safe • Guaranteed

New Design With Backlit Keys
100% Waterproof Guaranteed – Seal Shield™ Limited Lifetime Warranty
Silver Seal™ Protection (antimicrobial silicone reduces bacteria growth on product surfaces)
Quick Connect™ Cable Makes Connecting a Snap!
Seal Cap™ (Patent Pending) Protects Gold-Plated USB Connector
Built-in Seal Touch™ Touch Pad for Pointing and Mouse Functionality
Plug-and-Play Installation
Patent Pending

SEAL SHIELD™

Seal Pup Glow 2™ All-in-One Mini Waterproof Keyboard

100% Waterproof

Seal Shield™ waterproof technology (Patent Pending) products are fully submersible and manufactured to meet rigorous NEMA 4X and IP68 specifications. Seal Shield™ products are rugged and safe and are backed by the Seal Shield™ Limited Lifetime Warranty.

Rugged and Durable

Manufactured from non-corrosive components and certified to be manufactured with no hazardous substances (RoHS compliant). Medical Grade.

100% Spillproof

Accidents happen. Small spills, big spills, even complete submersion — Seal Shield™ can handle it. Whenever accidents happen, or just to keep the product clean, rinse it off under the faucet, soak it in the sink, or put it in the dishwasher. Your Seal Shield™ product comes out clean and ready to use.

Dishwasher Safe

Seal Shield™ products are easy to clean. Just put them in the dishwasher to thoroughly clean and disinfect. Convenient product features makes it fast and easy to go straight from use to the dishwasher for cleaning and back again.

Silver Seal™ Protection

This product is Silver Seal ^™ protected. It contains an antimicrobial, fungistatic agent which protects the product and keeps it cleaner, greener and fresher by inhibiting the growth of microbial bacteria, mold, mildew and fungi on the product's surface.

SilverSeal™

Antimicrobial Product Protection

Seal Pup Glow 2™ Mini Waterproof Keyboard

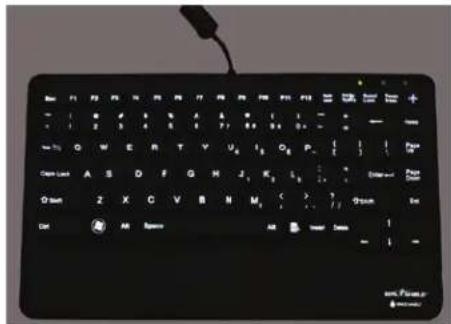

S86PG2 All-In-One Waterproof Keyboards

86 key layout plus backlit on/off key

Backlit keys

Windows®/Mac® Compatible

Mac Compatibility requires OS X 10.5 or later. See product manual for details.

OK F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19 F20 F21 F22 F23 F24 F25 F26 F27 F28 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40 F41 F42 F43 F44 F45 F46 F47 F48 F49 F50 F51 F52 F53 F54 F55 F56 F57 F58 F59 F60 F61 F62 F63 F64 F65 F66 F67 F68 F69 F70 F71 F72 F73 F74 F75 F76 F77 F78 F79 F80 F81 F82 F83 F84 F85 F86 F87 F88 F89 F90 F91 F92 F93 F94 F95 F96 F97 F98 F99 G00

Technical Specifications

Compatibility: Windows, Mac (USB models)

Key layout: 86 keys plus backlit on/off key

Dimensions

LxWxH: 276.5 mm (10.89") x 165 mm (6.5") x 10.5 mm (.41")

Weight: .304kg (0.66 lbs)

Cable Length: 15cm (6in) Quick Connect™ with USB extension cable

Connection Types: Gold-plated USB

Key Switch: Carbon point activation with tactile feedback

Key Switch Operating Force: 150 ±15gf

Key Switch Life Cycle: Greater than 100 thousand keystrokes

Keycaps Type: UV Reinforced Printing

Total Key Travel: 1.6 ±0.5mm (.07 ± .0196 in)

Operating Voltage: +5VDC ± 5%

Power Consumption: 26mA maximum (with LED lights ON)

EMI - RFI: Conforms to FCC rules for a Class B computing device

Approvals/Certifications/Ratings: IP 68, NEMA 4X, RoHS, WEEE, CE, FCC

Waterproof and Dustproof Ratings: 100% Waterproof and Dustproof (IP 68, NEMA 4X)
