level® one LevelOnePoE Extender over Hybrid Fiber Quick Installation Guide
Diagram


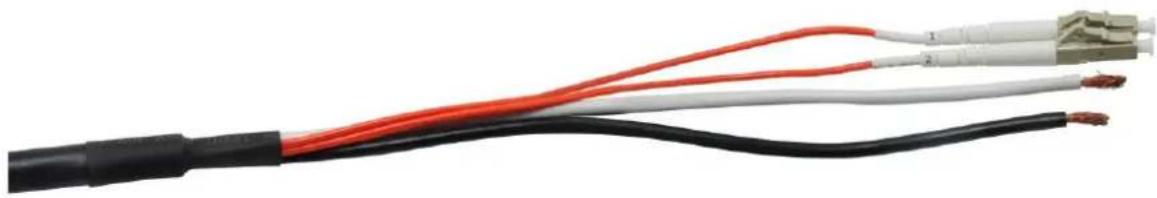

Hybrid Fiber Cable
| PFE-1001T | PFC-0112 | 12 AWG | 50W | 45W | 40W | 20W |
| PFE-1001T | PFC-0118 | 18 AWG | 40W | 20W | 10W | - |
| PFE-1101T | PFC-0112 | 12 AWG | 60W | 55W | 50W | 28W |
| PFE-1101T | PFC-0118 | 18 AWG | 50W | 28W | 18W | - |
Step 1: PFE-1001T /1101T Connections
A. Connect PFE-1001T/1101T RJ45 LAN port to the PC or Notebook using a Category 5 LAN cable as the above connections.
B. Connect the AC-DC Power Adaptor to the PFE-1001T/1101T DC port (back panel).
C. Connect the Fiber cable to the PFE-1001T/1101T Fiber port.
D. Connect the Copper cable to the PFE-1001T/1101T DC Terminal Block (front panel)
Step 2: PFE-1001R/1011R and PFE-1004R/1014R Connections
E. Connect PFE-1001R/1011R and PFE-1004R/1014R RJ45 LAN port to the PoE IP CAM using a Category 5 LAN cable as the above connections.(PFE-1004R/1014R PoE DiP Switch need On)
F. Connect the Fiber cable to the PFE-1001R/1011R Fiber port.
G. Connect the Copper cable to the PFE-1001R/1011R DC Terminal Block (front panel)
Step 3: POWER ON and Run
H. Turn the AC-DC Power Adaptor ON.
I. Run the PC IP CAM monitoring software.
Ordering Information
| Model | Specification |
| PFE-1001T | PoE Extender over Hybrid Fiber, Transmitter, 65W |
| PFE-1101T | PoE Extender over Hybrid Fiber, Transmitter, 120W |
| PFE-1001R | PoE Extender over Hybrid Fiber, Receiver with 1 PoE Output |
| PFE-1004R | PoE Extender over Hybrid Fiber, Receiver with 4 PoE Output |
| PFE-1011R | PoE Extender over Hybrid Fiber, Outdoor Receiver with 1 PoE Output |
| PFE-1014R | PoE Extender over Hybrid Fiber, Outdoor Receiver with 4 PoE Outputs |
| PFC-0112 | Hybrid Fiber Cable, 12 AWG |
| PFC-0118 | Hybrid Fiber Cable, 18 AWG |
