Product Type	ScreenCast TV Adapter for Intel Wireless Display
Brand	Belkin
Model	F7D4501au
Connectivity	HDMI (cable included), RCA composite (cables sold separately)
Wireless Technology	Intel Wireless Display (WiDi)
Wireless Range	Up to 30 feet (9 meters)
Power Supply	AC/DC power adapter (attached)
Video Output	HDMI (up to 1080p), RCA composite (up to 480p)
Audio Output	HDMI: PCM stereo or 5.1 surround; RCA: stereo analog
HDCP Support	Yes (HDCP 2.0+)
Security	4-digit PIN pairing
Compatible Laptops	Laptops with 2nd generation Intel Core processor and Intel Wireless Display
TV Compatibility	TV with HDMI or RCA input
Operating System	Windows 7 (multiple monitor modes)
Setup	First-time setup via Intel Wireless Display software
Language Support	Multiple languages (selectable via reset button)
Reset Function	Short press: change language; long press (>5s): reset security profile
Regulatory Approvals	FCC Part 15 Class B, CE
Warranty	Limited 1-year warranty
Package Contents	ScreenCast TV Adapter, Power Supply, HDMI Cable, Quick Install Guide, User Manual on CD

Frequently Asked Questions - F7D4501au BELKIN

How do I connect the ScreenCast TV Adapter?

Connect the adapter to your TV using the included HDMI cable (or RCA cables sold separately). Then plug the attached power supply into an outlet. Turn on your TV and select the correct input source.

What laptops are compatible with this adapter?

This adapter works with laptops that have an Intel Core processor (second generation or later) and support Intel Wireless Display (WiDi). Check with your PC vendor for specific model compatibility.

What is the maximum wireless range?

The range is up to 30 feet (9 meters) under optimal conditions. Actual range may vary due to interference and building materials.

Can I play protected content like Blu-ray discs?

Yes, the adapter supports HDCP 2.0+, allowing playback of protected content such as Blu-ray or DVD movies, provided your laptop and media player also support HDCP.

How do I reset the adapter?

Use a paper clip to press the reset button. A short press (<1 second) cycles through language options. A long press (>5 seconds) resets the security profile, requiring you to re-pair your laptop.

Can I change the language displayed on screen?

Yes, press the reset button for less than one second to cycle through available language options. The selected language will be stored.

What audio formats does the adapter support?

Via HDMI, it supports PCM stereo or 5.1 surround sound. Via RCA jacks, it outputs analog stereo or left/right from surround sources.

How can I switch between display modes (mirror, extended, etc.)?

The adapter uses Windows 7 multi-monitor modes. You can select mirror (clone), extended desktop, or projector-only via your laptop's display settings.

Why can't my laptop find the adapter?

Ensure the adapter is powered on and your laptop is within range (30 feet). Check that your laptop supports Intel Wireless Display. Move the laptop closer and verify the TV input is set correctly.

What is the warranty period for this product?

Belkin provides a limited 1-year warranty against defects in design, assembly, material, or workmanship. Contact Belkin support for service.

USER MANUAL F7D4501au BELKIN

What's in the Box? 2

What's not in the Box? 2

What Else Should I Know? 3

Adapter Setup 4

Where to Place Your ScreenCast TV Adapter .... 4

Plugging Everything Together 4

Software—First-Time Setup 5

Using Your ScreenCast 10

How to Use It 10

Playing Content on Your TV 10

Options for Using the TV Screen 11

What Else Do I Need to Know? 12

Using the Reset Button 13

Information.... 14

FCC Statement....14

Belkin International, Inc., Limited 1-Year Product Warranty ..... 15

Technical Support 17

GETTING STARTED

Introduction

Thank you for purchasing the ScreenCast TV Adapter for Intel Wireless Display. We created this product to help you wirelessly transmit your favorite content from your laptop to the best screen in your house—your living-room TV.

Before the ScreenCast TV Adapter, you may have needed a long cable or simply crowded around your laptop screen to share movies, pictures, and surf the Web.

Now you can take content from any WiDi laptop with a second-generation Intel® Core™ processor and easily display it on your TV with the ScreenCast TV Adapter.

From the latest Blu-ray Disc™ movies to your favorite Netflix® and YouTube® videos, to just showing off pictures of your recent family vacation, exactly what you see on your laptop can now be displayed on your TV from as far as 30 feet away.

What's in the Box?

• ScreenCast TV Adapter for Intel Wireless Display
• Power Supply (attached to ScreenCast TV Adapter)
- Quick Install Guide
- User Manual on CD
• One HDMI Cable

What's not in the Box?

• An Intel Wireless Display (WiDi) laptop
- You need a WiDi laptop to use the ScreenCast TV Adapter. The latest generation WiDi laptops support streaming of DVD and Blu-ray™ content to your TV in 1080p quality. Check with your PC vendor on which generation of WiDi your PC supports.
• A TV with an available HDMI or RCA input port
- Belkin recommends a 1080p-capable TV and HDMI for the best picture and sound possible. If you use the ScreenCast TV Adapter with an older model TV that only has RCA (component) inputs, you will only be able to view standard-definition (480p) content.

What Else Should I Know?

• Intel Wireless Display is a technology that enables a second display for Intel Wireless Display-ready (WiDi) computers. A simple way of thinking about it is as a replacement for a cable to a secondary monitor.
• Once connected, your laptop operates in all the standard Windows ^® 7 multiple monitor modes: duplicate (mirror) images, extended (a second screen for more desktop space), or projector (laptop screen off and duplicate screen on).
• Intel WiFi hardware and Intel My WiFi Technology (Intel MWT) software allows both an easy connection to the ScreenCast TV Adapter and a standard connection to a wireless access point for Internet connectivity.
• With Intel Wireless Display, you can watch videos on your HDTV while surfing the Web on your laptop.

Where to Place Your ScreenCast TV Adapter

• Your ScreenCast TV Adapter and TV need to be close enough together to allow you to connect them with an RCA or HDMI cable (provided). The ScreenCast TV Adapter also needs to have an available power outlet within range.
• For best results, keep your ScreenCast TV Adapter within line-of-sight of wherever you plan to use your WiDi laptop (sold separately)—this will help ensure that your TV receives the best possible signal and you get the most out of your ScreenCast TV Adapter.
• The ScreenCast TV Adapter will be most effective within 30 feet of your laptop, but range will depend on many factors including other sources of interference and the building materials used in your home.

Plugging Everything Together

- Connect your ScreenCast TV Adapter to your TV with the HDMI cable (included in the box) or RCA cables (sold separately), and connect the power supply to the ScreenCast TV Adapter and a nearby outlet.

Software—First-Time Setup

1. Turn on your TV and switch it to the A/V input where your ScreenCast TV Adapter is connected. Then push the power button on the back of the Adapter. You should then see a screen that looks like this:

ADAPTER SETUP

1. On your WiDi laptop, launch the Intel Wireless Display software. On some laptop PCs, this may be a switch at the top of the keyboard. Other PCs may require you to start a program from a shortcut on the desktop or in the system tray. Refer to your PC manufacturer's documentation for specific details on your model.

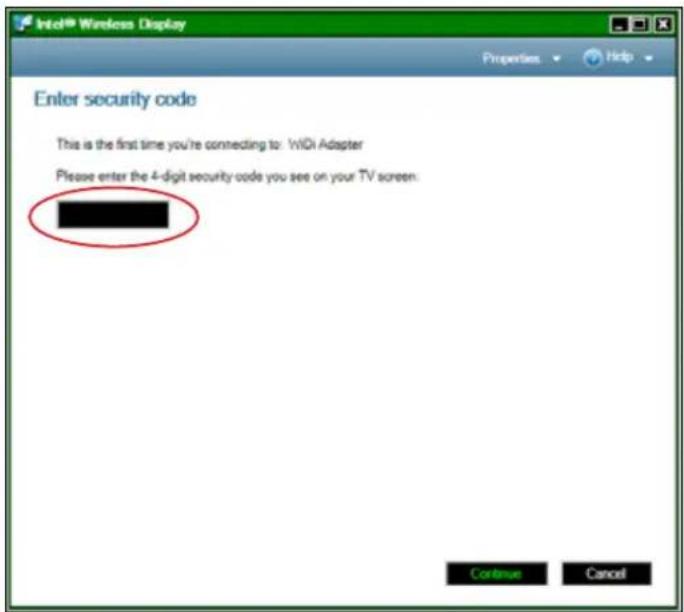

1. When you click to connect to the ScreenCast TV Adapter, a screen will appear on your TV with a 4-digit security code. A similar screen appears on your PC requesting that code. Enter the 4-digit code into the appropriate box on your laptop screen.

ADAPTER SETUP

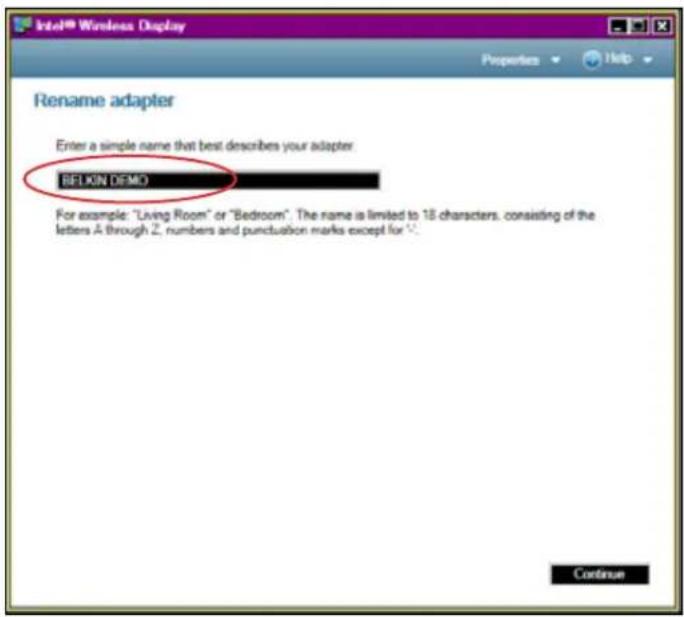

1. Name the ScreenCast TV Adapter. Naming it will allow you to easily find it in a list of available adapters should you have more than one within range. Use a name that is easy to remember like "Living Room WiDi". If you choose not to name it, the device will be set to a factory-default name.

ADAPTER SETUP

1. Next, the software will prompt you to easily configure your display so that it completely fits on the TV screen. (The initial setup uses a mirror approach so that you can see the same screen on both devices—you can change this later.) You can also register your ScreenCast TV Adapter with Belkin to receive updates and support.

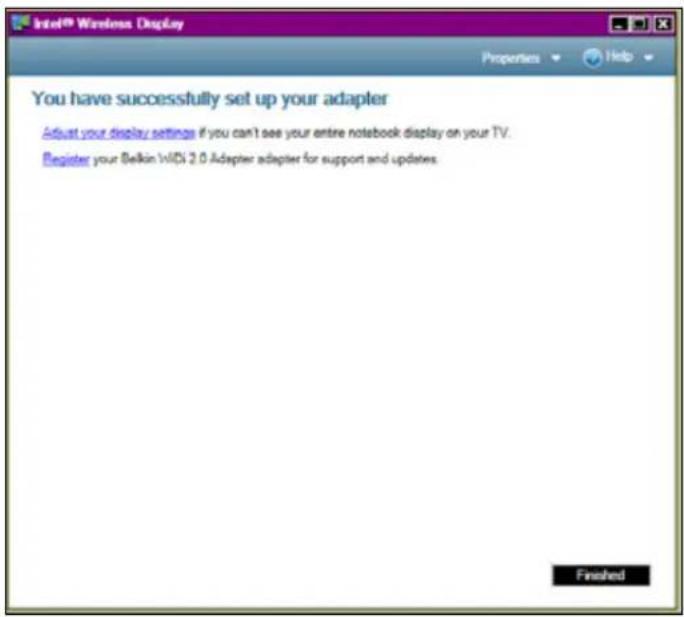

2. Once you have the display configured the way you want and you've registered your product, click "Complete." You can now use your TV as a second monitor.

How to Use It

1. Simply press the Intel Wireless Display button on your WiDi laptop or click on the desktop WiDi icon, and the rest is automatically handled by your PC.

2. When you start WiDi on your laptop, a screen appears that allows you to select from available adapters. The ScreenCast TV Adapter should appear on this list.

- If you don't see the ScreenCast TV Adapter on the list, you may need to move your laptop closer to the ScreenCast TV Adapter for a better signal. You should also confirm that the ScreenCast TV Adapter is connected to power and the power is turned on.

Playing Content on Your TV

- This is the easy part. Once you are connected, you can use your TV as though it is a second screen for your laptop PC. Any content that you can watch on your laptop, including DVDs or Blu-ray Disc, can now be viewed on your TV. Whatever you can watch on your laptop's screen, you can now watch on your TV.

Options for Using the TV Screen

You have three basic options for how to use your TV and laptop screens.

- Mirroring or "cloning" (displaying the same content on both screens)—useful for when you want to use your laptop's keyboard or mouse while showing content to other people.

Two laptops displaying a soccer game with players in action, shown from different angles (no text or symbols visible)

- Extended monitor—this allows you to keep using your laptop screen while sending content over to your TV for a larger group to see.

Two laptops displaying a soccer game: one with a video player interface, the other with a soccer match in progress (no visible text or symbols on screens)

• Using just the TV as a monitor—great for movies or other content that you want to enjoy on one large screen.

Two laptops side by side: one black-and-white, one video on a grass field with soccer players in action (no visible text or symbols)

What Else Do I Need to Know?

Protected Content Output (HDCP)

- Version 2.0+ of Intel Wireless Display supports High-Bandwidth Digital Copyright Protection (HDCP). This support happens between the PC and the ScreenCast TV Adapter and between the ScreenCast TV Adapter and the TV. If any part of this chain is broken, the content may not play on the TV screen. Protected content playback is enforced by the software media player running on the PC.

Audio Output

- The ScreenCast TV Adapter outputs the audio simultaneously to two audio options as follows:

• HDMI: PCM - stereo or surround (5.1 channel sound)
• RCA L&R jacks: analog - stereo or L&R only from surround

Using the Reset Button

Changing the language

- To change the language, you can use a paper clip to push the reset button shown in the diagram. A short press of this button (less than one second) will allow you to cycle between different language options for the ScreenCast TV Adapter.

Hard reset of security profile

- If you press the reset button for more than 5 seconds you will reset the security profile. This will require that you complete the setup process a second time and re-pair your laptop and ScreenCast TV Adapter.

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA 90094, declare under our sole responsibility that the product, F7D4501, to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Exposure to Radio Frequency Radiation.

The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. When connecting an external antenna to the device, the antenna shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Modifications

The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin International, Inc., may void the user's authority to operate the equipment.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the EMC Directive 2004/108/EC. A copy of the European Union CE marking “Declaration of Conformity” may be obtained at the website: www.belkin.com/doc.

Belkin International, Inc., Limited 1-Year Product Warranty

What this warranty covers.

Belkin International, Inc. ("Belkin") warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship.

What the period of coverage is.

Belkin warrants the Belkin product for one year.

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). Belkin reserves the right to discontinue any of its products without notice, and disclaims any limited warranty to repair or replace any such discontinued products. In the event that Belkin is unable to repair or replace the product (for example, because it has been discontinued), Belkin will offer either a refund or a credit toward the purchase of another product from Belkin.com in an amount equal to the purchase price of the product as evidenced on the original purchase receipt as discounted by its natural use.

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to Belkin for inspection upon Belkin's request at the sole expense of the purchaser, or if Belkin determines that the Belkin product has been improperly installed, altered in any way, or tampered with. The Belkin Product Warranty does not protect against acts of God such as flood, earthquake, lightning, war, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modification or alteration.

How to get service.

To get service for your Belkin product you must take the following steps:

1. Contact Belkin International, Inc., at 12045 E. Waterfront Drive, Playa Vista, CA 90094, Attn: Customer Service, or call 800-223-5546, within 15 days of the Occurrence. Be prepared to provide the following information:

a. The part number of the Belkin product.

b. Where you purchased the product.

c. When you purchased the product.

d. Copy of original receipt.

1. Your Belkin Customer Service Representative will then instruct you on how to forward your receipt and Belkin product and how to proceed with your claim.

Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship the damaged equipment to Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment. The cost, if any, of shipping the equipment to and from such repair facility and of such estimate shall be borne solely by the purchaser. Damaged equipment must remain available for inspection until the claim is finalized. Whenever claims are settled, Belkin reserves the right to be subrogated under any existing insurance policies the purchaser may have.

How state law relates to the warranty.

THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. Some states do not allow the exclusion or limitation of incidental, consequential, or other damages, so the above limitations may not apply to you.

Technical Support

US

http://www.belkin.com/support

UK

http://www.belkin.com/uk/support

Australia

http://www.belkin.com/au/support

New Zealand

http://www.belkin.com/au/support

Singapore

1800 622 1130

Europe

http://www.belkin.com/uk/support
