Product Type	Flat Panel Mount
Brand	B-Tech
Model	BT4003
Mount Type	Fixed (no tilt or swivel)
Max Screen Size	Up to 65 inches
Max Weight Capacity	50 kg (110 lbs)
VESA Compatibility	200x200, 400x200, 400x400 mm
Material	Steel with powder coating
Color	Black
Installation Type	Wall mount (fix to concrete or wood studs)
Tilt Range	Not applicable (fixed mount)
Swivel Range	Not applicable (fixed mount)
Level Adjustment	+/- 3 degrees
Cable Management	Built-in cable clips
Dimensions (WxHxD)	400 x 250 x 30 mm (mount plate)
Weight	3.5 kg (7.7 lbs)
Warranty	10 years
Certifications	CE, TÜV
Package Contents	Mount bracket, wall plate, hardware kit, manual
Maintenance	Wipe with dry cloth; check tightness annually
Safety Notes	Mount only on solid wall; use appropriate anchors

Frequently Asked Questions - BT4003 B-Tech

What is the maximum VESA pattern supported by the BT4003?

The BT4003 supports VESA patterns up to 400x400 mm, including 200x200 and 400x200.

Can the mount tilt or swivel?

No, the BT4003 is a fixed mount with no tilt or swivel functionality. It keeps the screen parallel to the wall.

What is the weight capacity of the BT4003?

It can safely hold up to 50 kg (110 lbs).

What tools are needed for installation?

You will need a drill, screwdriver, level, and appropriate drill bits for your wall type. The mounting hardware is included.

Will the BT4003 fit my 65-inch TV?

Yes, it supports screens up to 65 inches, provided the TV's VESA pattern is compatible and weight is under 50 kg.

Can I install this mount on drywall?

Yes, but you must use appropriate toggle bolts or anchors for hollow walls. Always fasten into studs if possible.

Does the mount come with a warranty?

Yes, B-Tech offers a 10-year warranty against manufacturing defects.

How do I secure cables with this mount?

The BT4003 includes built-in cable clips on the bracket to route and manage cables neatly.

Is the mount compatible with curved screens?

Yes, as long as the curved TV has a standard VESA mount and does not exceed the weight capacity.

What should I do if the screen is not level?

The mount has a level adjustment of +/- 3 degrees. Loosen the bolts slightly, level the screen, then retighten.

USER MANUAL BT4003 B-Tech

This Pack Contains 1 Floor / Trolley Base

PLEASE KEEP THIS FOR FUTURE REFERENCE

3D black Y-shaped metal bracket with mounting holes (no text or symbols)

Community Design No. 001713280-0019

FEATURES

• Designed for flat screens up to 50" (153cm) / 70kg (154lbs)
• Suitable for 1 or 2 column support installations
  • Supplied with levelling feet
  • Overall dimensions (with feet);

1046mm (41.2") × 711mm (28") × 60mm (2.4")

* BTW100-4 wheels sold separately
* Support columns and screen mounting plate are sold separately

Community Design No. 001713280-0019 Actual screen size & weight limit dependant on column length and feet type

CONTENTS

Installation Safety Notes....2
Parts List....4
Installation Instructions....6
Optional Accessories....9
Typical Installations....10
Product Dimensions....11
B-Tech Contact Details....12

DESIGNED FOR USE WITH;

BT4005 / BT4011 / BT4015 / BT4020 ∅60mm pole (Sold Separately)

BT8009 (Sold Separately)

BT7507 / BT8600 / BT8500 / BT8501 (Sold Separately)

BT8431 / BT8432 (Sold Separately)

Simple line drawing of a long cylindrical object with two small protrusions at the ends (no text or symbols)

Pure technical diagram of a rectangular structure with internal components and side brackets (no text or symbols)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for use

only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

The articulating arm may spring upward and may cause injury or damage to the equipment when the monitor is removed. Secure the arm by lifting the arm to highest position, to remove monitor safely.

CS

Suitable for loads up to 70kg (154lbs)

REF	PART NAME QTY
1	BASE 1
2	BASE LEVELLING FOOT 4
3	BASE END CAP 4
4	BASE HOLE CAP 2
5	M16 x 60mm HEX BOLT 2

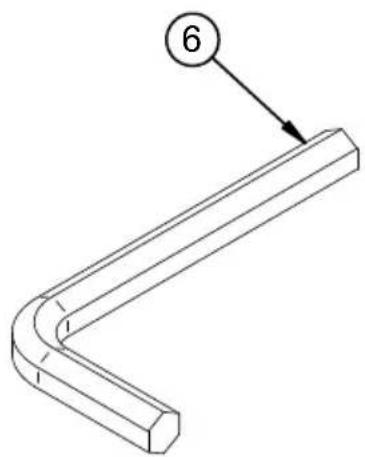

6	14mm HEX KEY (FOR PART 5) 1

Isometric line drawing of a bent pipe or L-shaped structure with a numbered label (6) pointing to the end (no text or symbols on the shape itself)

INSTALLATION INSTRUCTIONS
1	There typical installations for the BT4003: A) BT4003 with 1 pole (page 6) B) BT4003 with 2 poles (page 7)

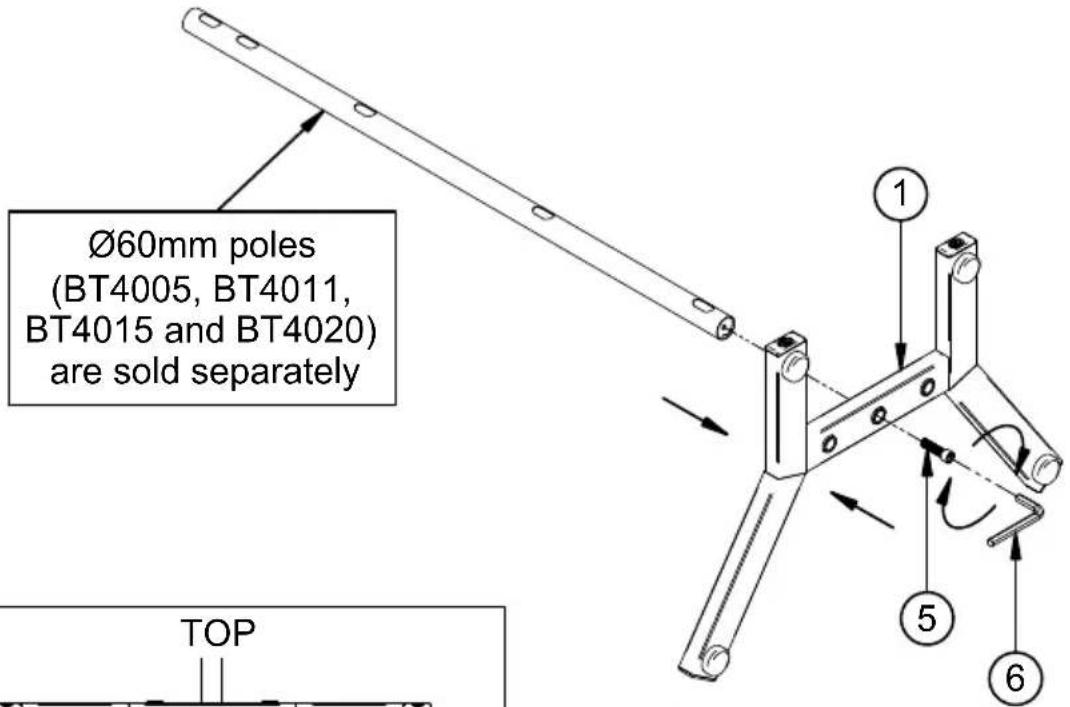

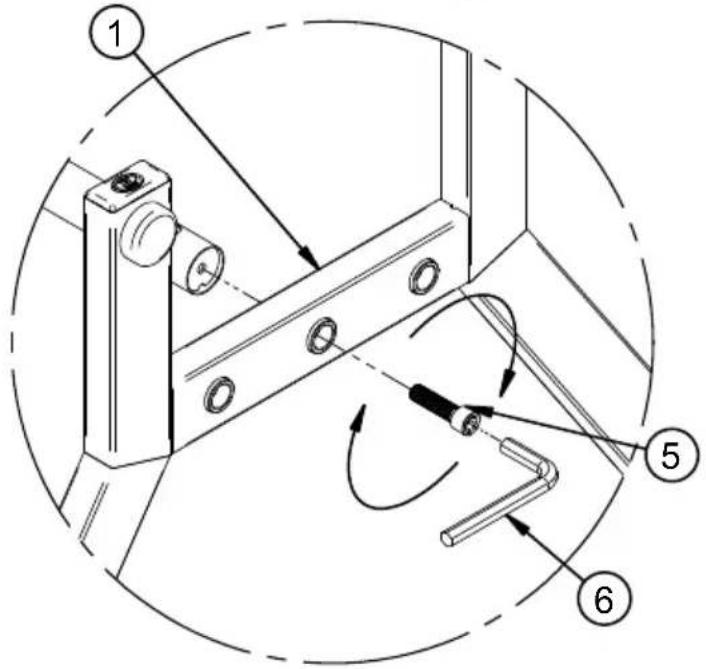

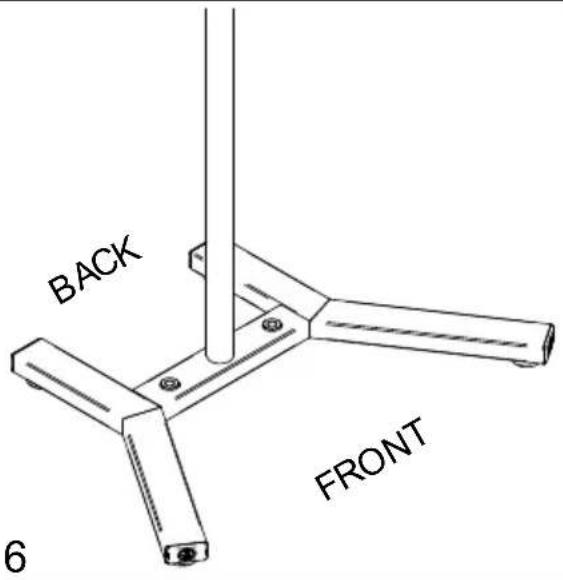

A	Attach a single 60mm pole to the base using part 5.

B

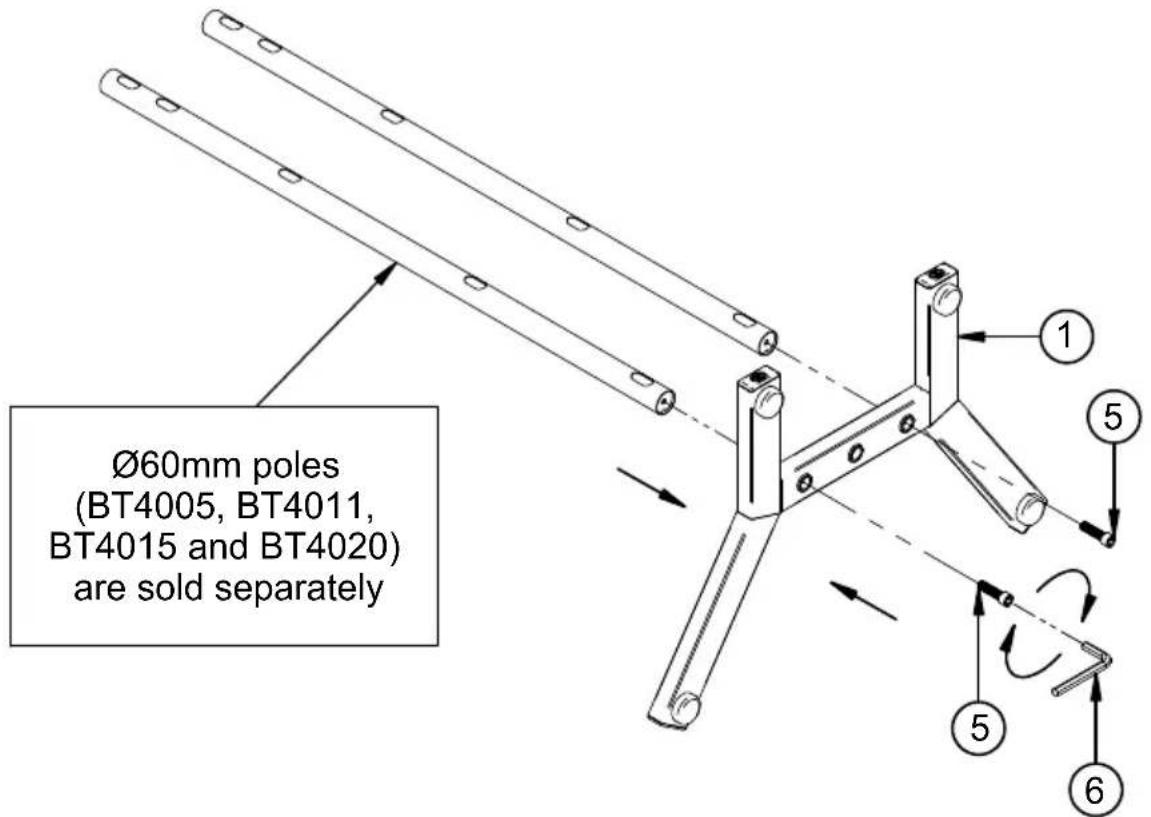

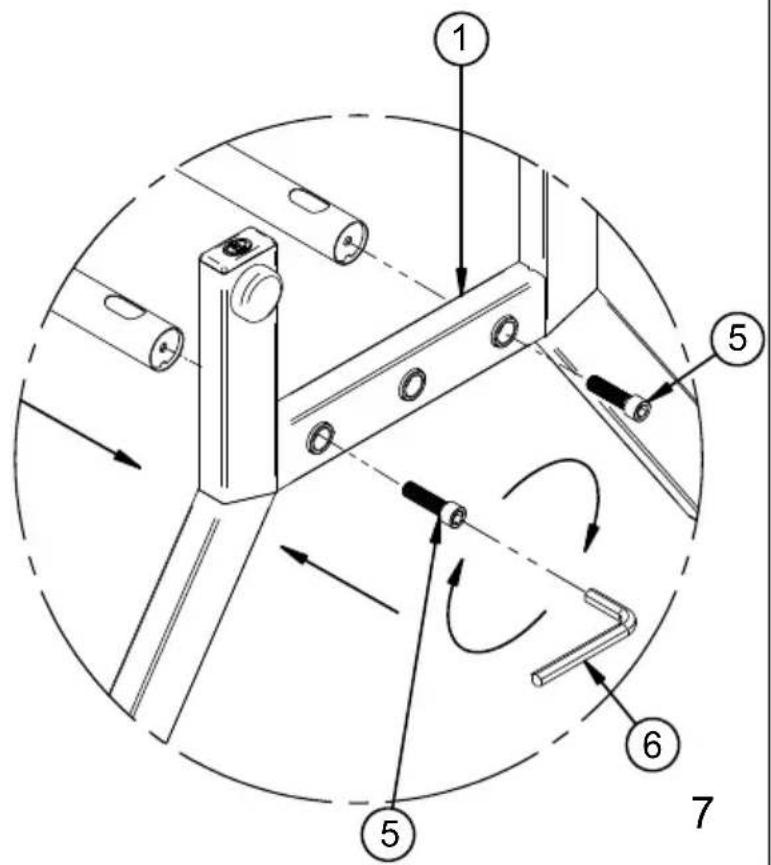

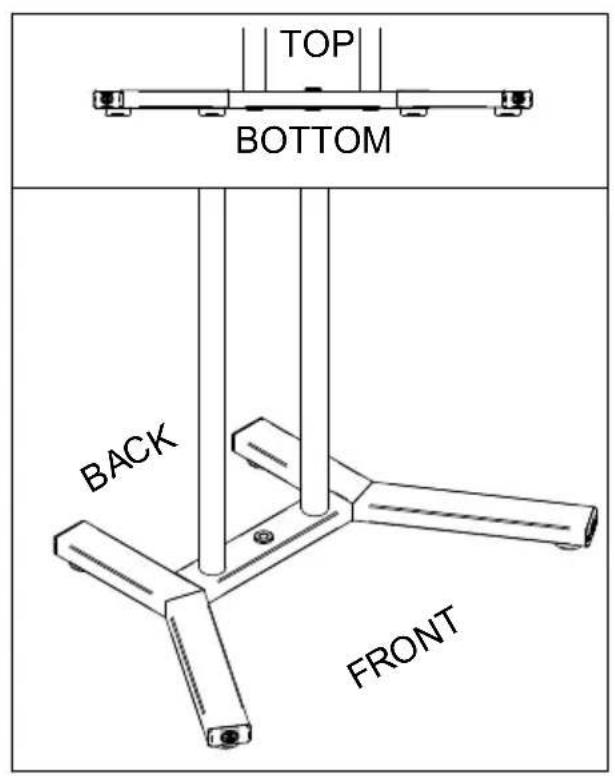

Attach two 60mm poles to the base using part 5.

2

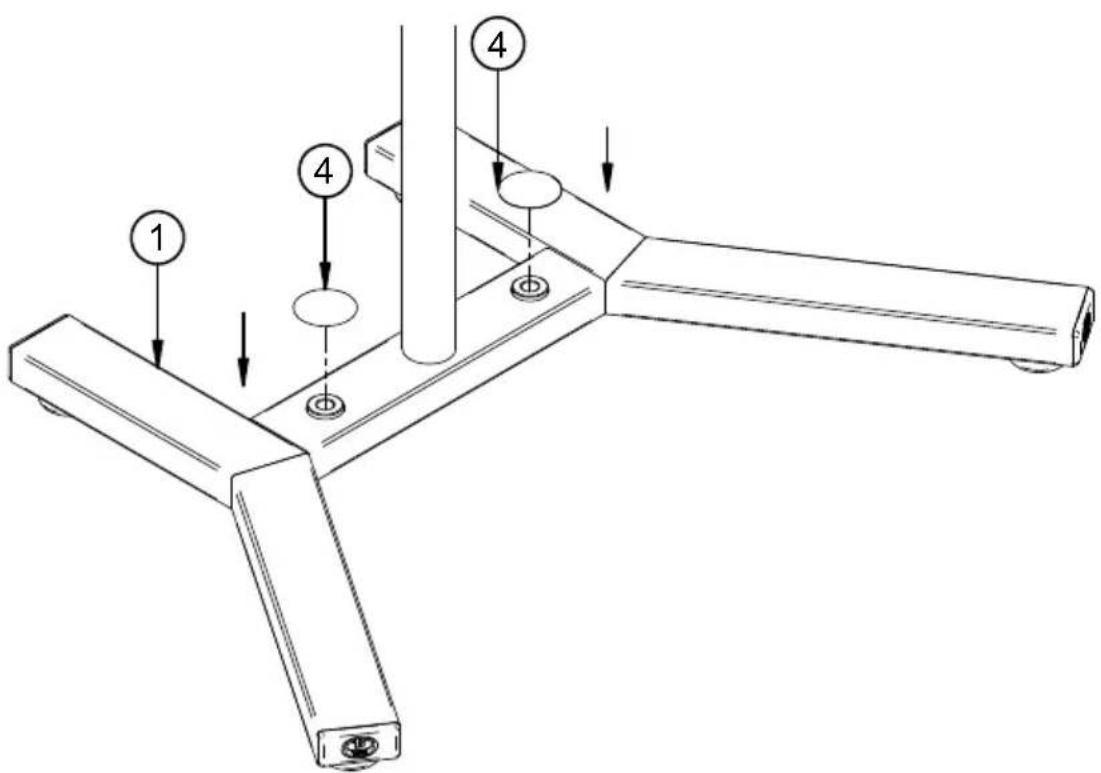

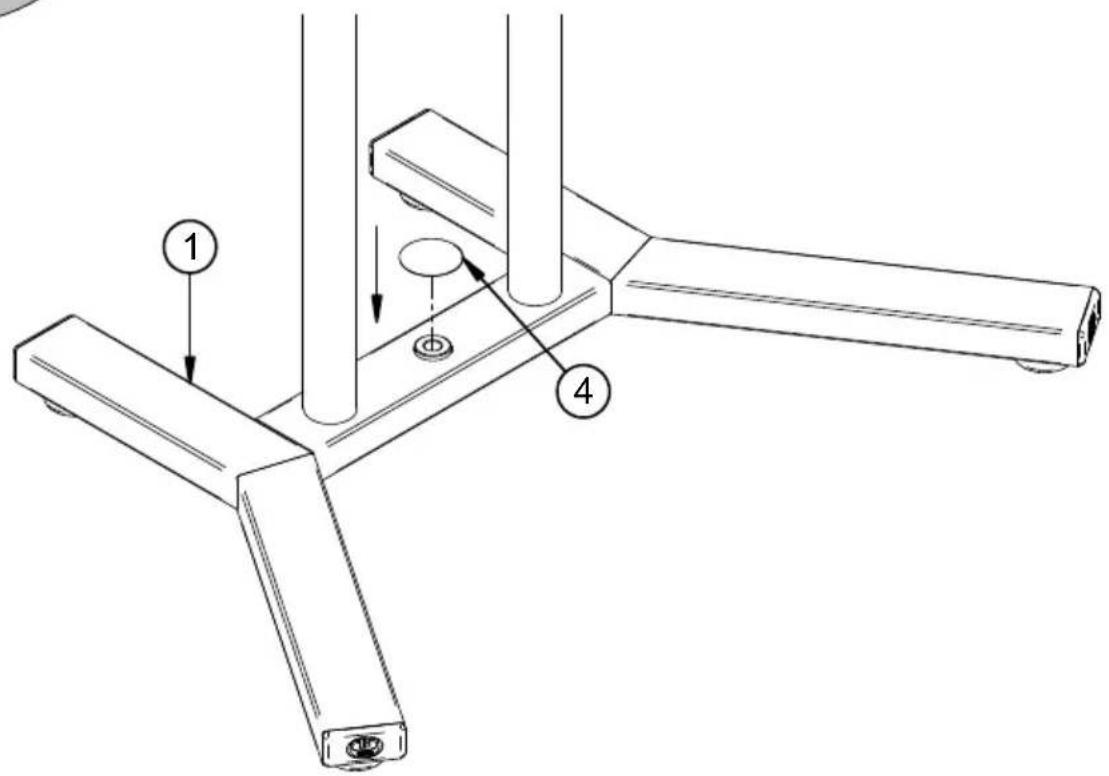

Attach base holes caps.

i.

ii.

8

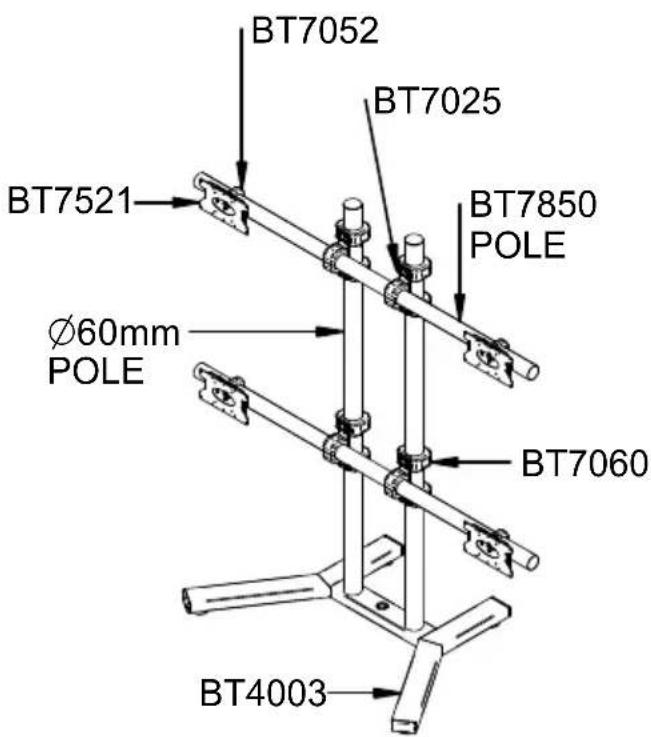

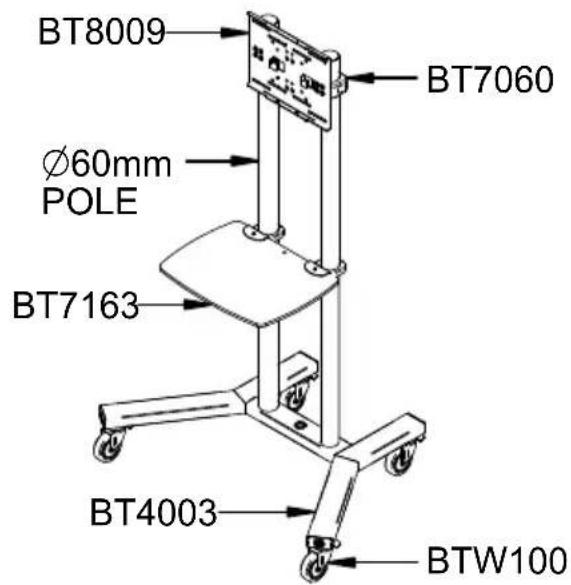

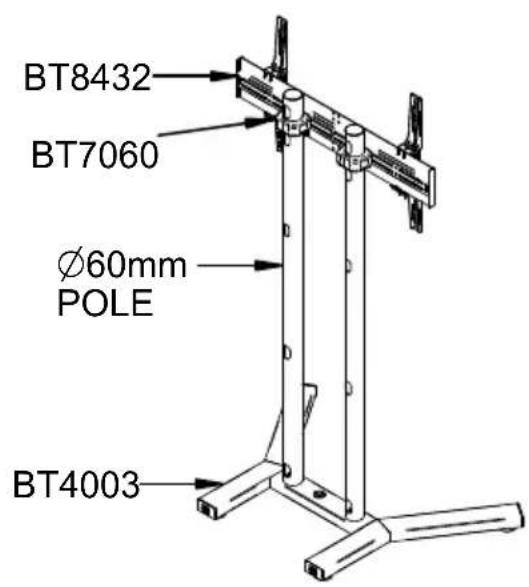

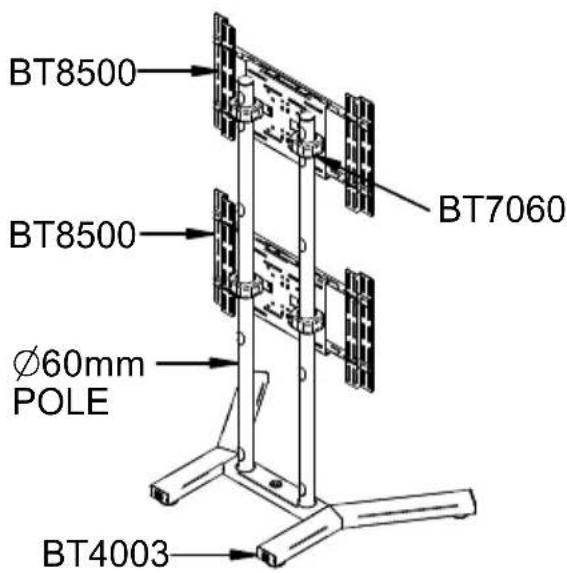

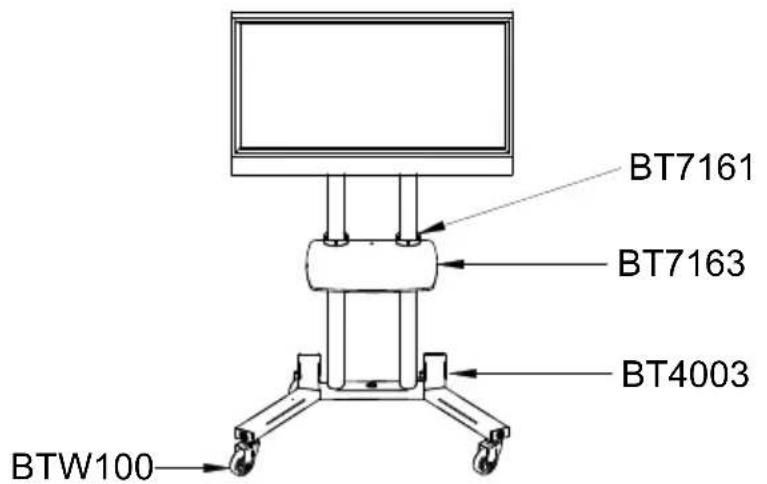

TYPICAL INSTALLATIONS

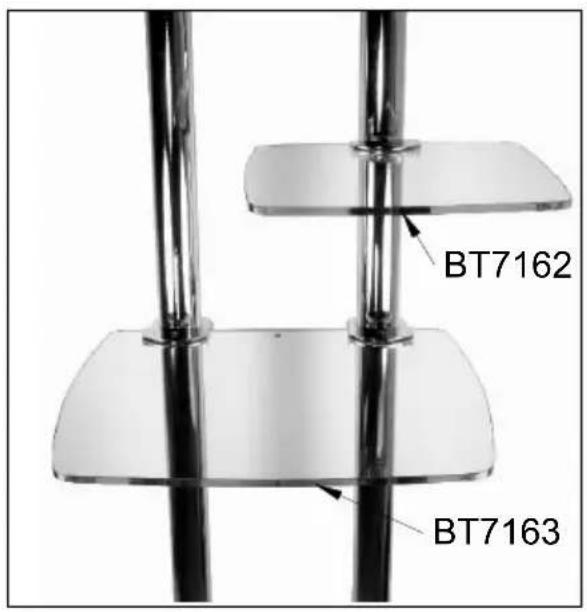

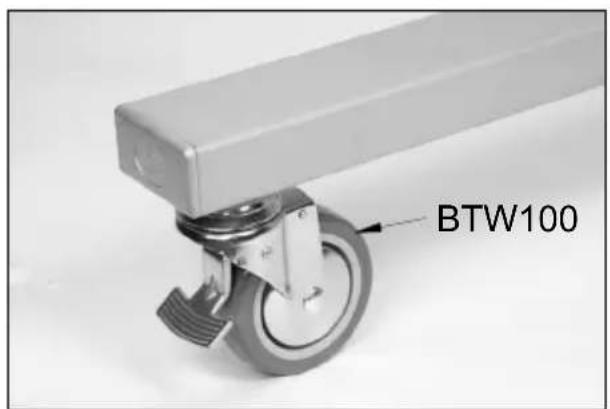

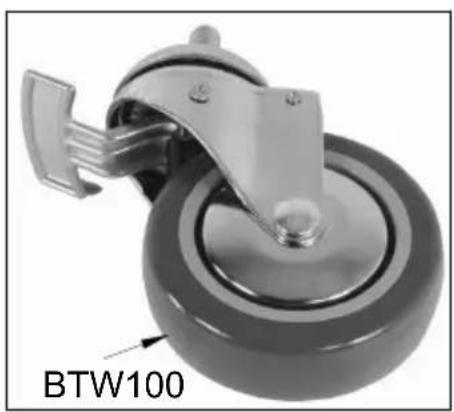

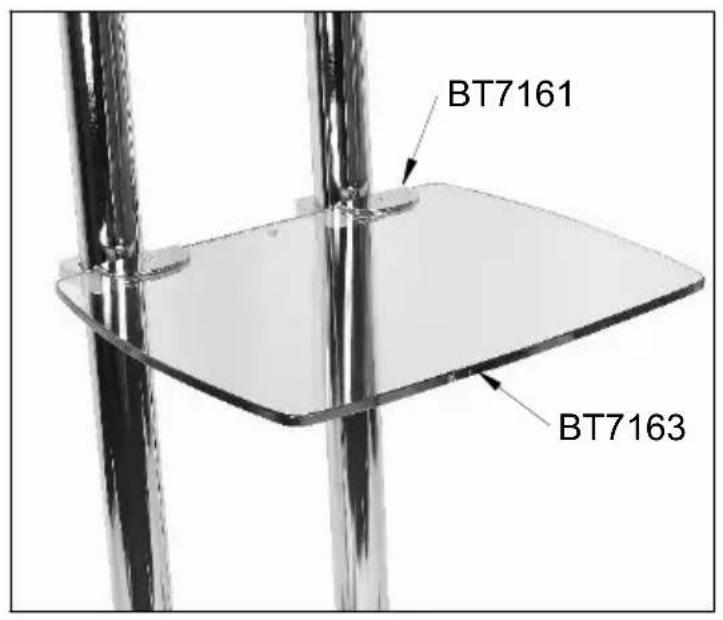

OPTIONAL ACCESSORIES

Close-up of a mechanical component with a labeled part 'BTW100' (no other text or symbols visible)

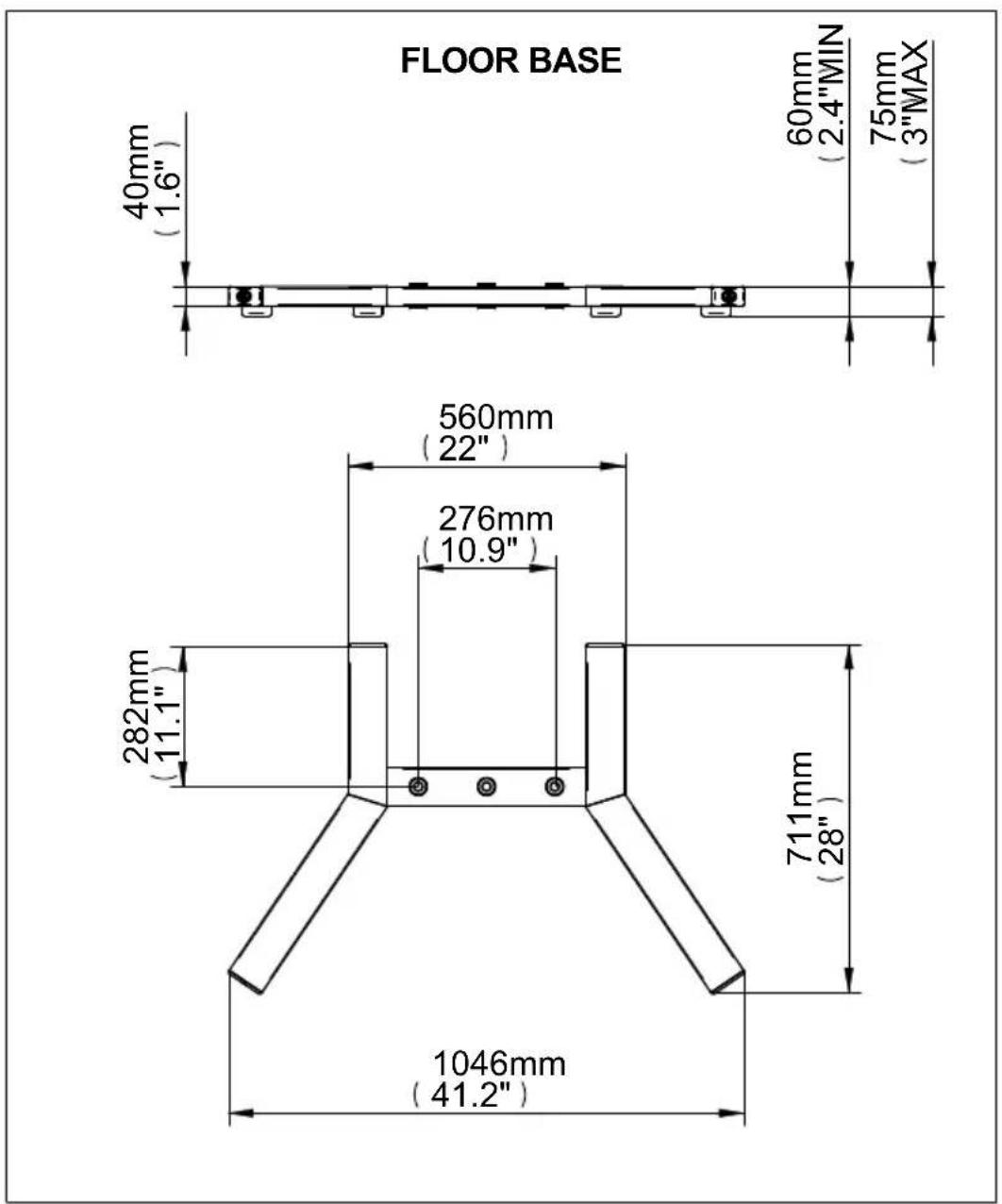

BT4003 PRODUCT DIMENSIONS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BETTER BY DESIGN

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: [e-mail]

EUROPE

BELGIUM

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

GERMANY

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

ASIA PACIFIC

1503 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.

B-Tech and Better By Design are registered trademarks of Bennett Technologies Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE

IP-BT4003-V1.1-PROBX-200910-01 MADE IN CHINA
