Product Type	Canister Vacuum Cleaner
Brand	Samsung
Model	SC8581
Motor Power	2000 W
Dust Capacity	2 L
Cord Length	6 m
Weight	5.5 kg
Dimensions (W x D x H)	30 x 40 x 25 cm
Filtration System	Washable HEPA filter
Noise Level	78 dB
Suction Power Control	Electronic slider on handle
Dust Bag	Reusable cloth bag or disposable paper bag (optional)
Accessories Included	Crevasse tool, dusting brush, upholstery nozzle
Maintenance	Clean dust compartment and wash filter regularly
Power Cord Rewind	Automatic with foot pedal
Safety Features	Thermal overload protection, certified electrical components
Repairability	Spare parts available online (e.g., belts, filters, brush rolls)
Energy Efficiency	Class A (typical)

Frequently Asked Questions - SC8581 SAMSUNG

How often should I clean the filter?

It is recommended to clean the washable HEPA filter every 1-2 months, or when suction drops. Tap off loose dust and rinse under cold water. Allow to dry completely before reinstalling.

How do I replace the dust bag?

Open the dust compartment cover, remove the full bag, and dispose of it. Insert a new reusable cloth bag or disposable paper bag, ensuring it is securely attached. Close the cover until it clicks.

What should I do if the vacuum loses suction?

Check for blockages in the hose, wand, or nozzle. Also inspect the dust bag and filter – empty or clean them if full or dirty. Ensure the suction control slider is set to maximum.

How do I rewind the power cord?

Press the cord rewind pedal with your foot. Guide the cord gently to avoid whipping. The cord will retract automatically into the vacuum.

Can I use the vacuum without a dust bag?

No, the vacuum requires a dust bag (cloth or paper) to collect debris. Using it without a bag may damage the motor and void the warranty.

What spare parts are available for the SC8581?

Common spare parts include replacement filters, dust bags, belts, brush rolls, and nozzles. These can be purchased from Samsung service centers or authorized online retailers.

How do I change the belt?

Unplug the vacuum. Remove the brush roll cover, lift out the old belt, and loop the new belt around the motor shaft and brush roll pulley. Replace the cover and secure.

Is the vacuum suitable for pet hair?

Yes, the SC8581 can handle pet hair, but the brush roll may need periodic cleaning to remove tangled hair. Use the crevice tool for tight spaces.

What does the slider on the handle do?

The electronic slider adjusts suction power. Slide it forward for maximum suction on carpets, and backward to reduce suction for delicate surfaces like curtains.

How do I clean the exhaust filter?

The exhaust filter is typically located at the back of the vacuum. Remove it, tap off dust, and rinse under water if it is washable. Replace if damaged.

USER MANUAL SC8581 SAMSUNG

HOLDING CLAMP

Push the accessory onto the hose handle until it stops.

▶ Carpet Cleaning

Floor Cleaning

NOTE

4 CLEANING THE DUST FILTER

4-1 WHEN SHOULD THE DUST FILTER BE CLEANED?

Lift the handle.

BATTERY TYPE: AA Penlight Battery

NOTE

* Before operating this unit, please read the instructions carefully. * Indoor use only.

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
2. WARNING: Do not use the vacuum cleaner when rug or floor is wet.

Do not use to suck up water.

1. Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
2. Do not use the vacuum cleaner without a dust bin. Empty the dust bin before it is full in order to maintain the best efficiency.
3. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
4. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
5. Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
6. This appliance is not intended for use by young persons or infirm persons without supervision unless they are adequately supervised by a responsible person to ensure that they can use the appliance safely.

Young children should be supervised to ensure that they do not play with the appliance.

1. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
2. The use of an extension cord is not recommended.
3. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. Don't carry the vacuum cleaner by holding the hose.

Use the handle on the vacuum cleaner set.

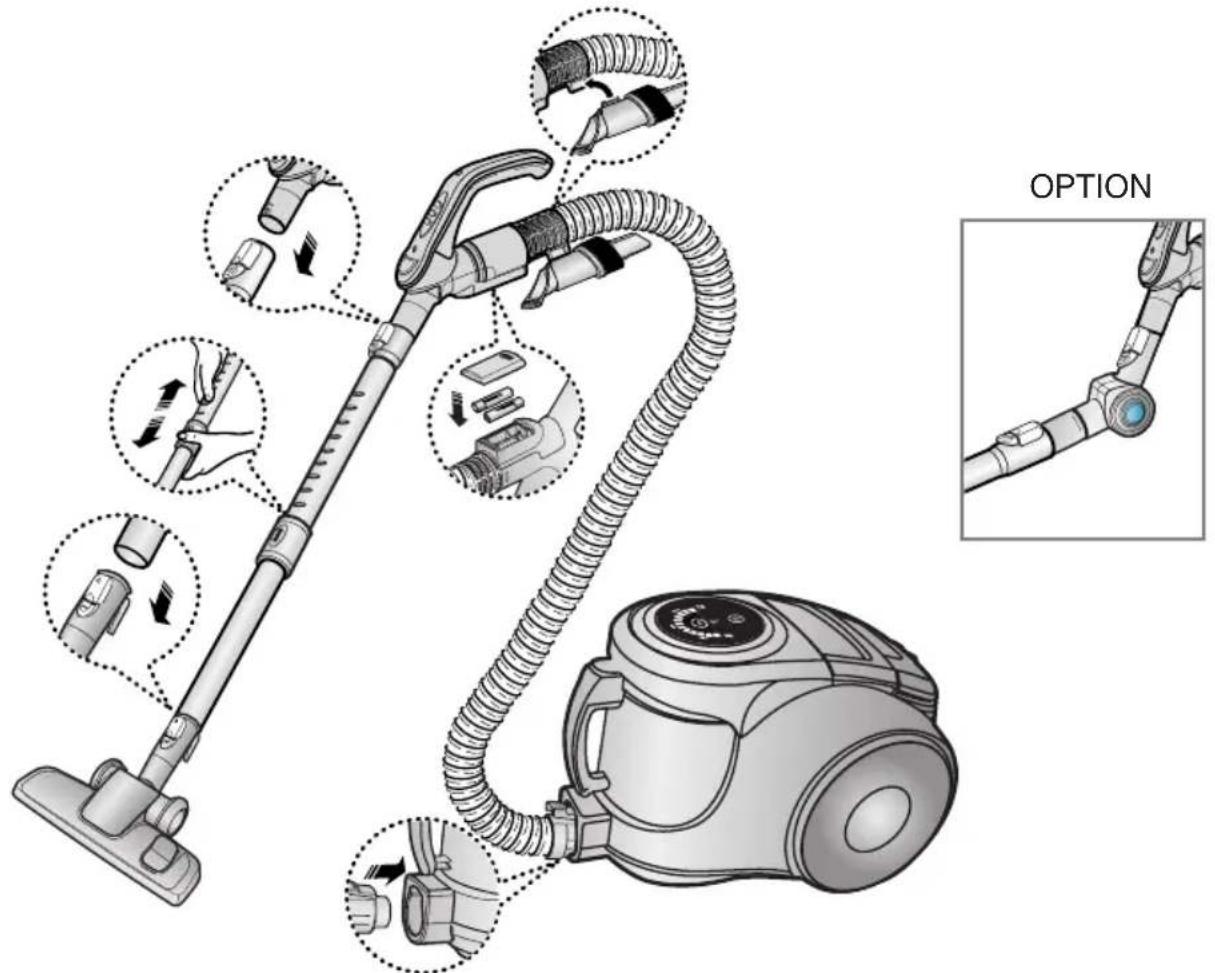

1 ASSEMBLING THE CLEANER

OPTION

▶ Features may vary according to model.

CAUTION: Please do not use the dust bin handle when carrying the machine.

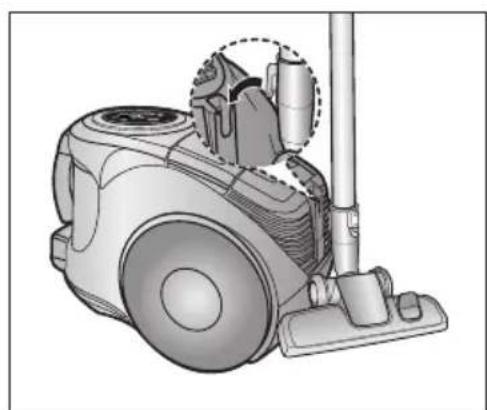

For storage, park the floor nozzle.

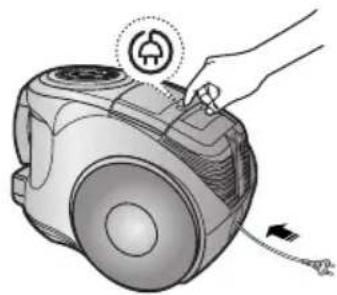

Please make sure your cable is fully extended before use.

When removing the plug from the electrical outlet, grasp the plug, not the cord.

2-2 POWER CONTROL (INFRARED CONTROL)

• HOSE

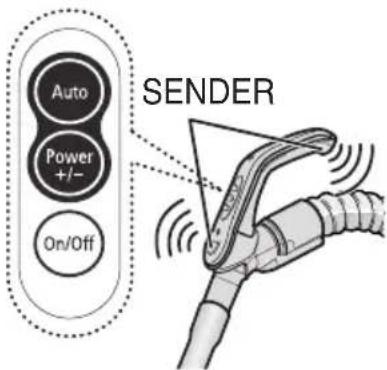

HANDLE CONTROL

[The cleaner is controlled by using infrared signals.]

1. Vacuum cleaner ON/OFF

Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner.

1. Vacuum cleaner MODE (+/-)

Press the MODE button repeatedly to select the correct mode.

(ON) MIN → MID → MAX

1. Using Auto mode

Press the Auto button to operate the vacuum cleaner automatically.

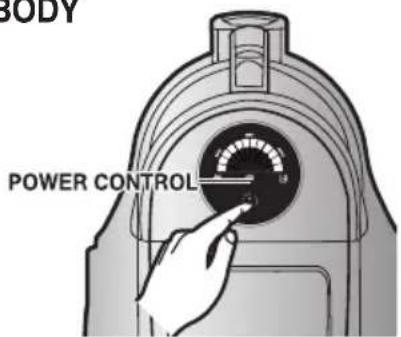

• BODY

Press the power control button repeatedly to select the correct mode.

(ON(MAX) → OFF)

NOTE: If the remote handle control is not working, the cleaner can be operated using the control button on the body of the machine.

The filter light is illuminated when the dust pack requires checking or emptying. An audio signal will also sound.

This shows the generation of negative ions when the vacuum cleaner is in operation.

The IR light indicates the part that receives the infra-red signal from the handle control.

This indicates that the automatic suction mode is selected.

The level of suction is indicated by the LED display.

2-3 HOW TO USE AND MAINTAIN THE ACCESSORIES

▶ Features may vary according to model.

PIPE

Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

ACCESSORY

Push the accessory on to the end of the hose handle.

Pull out and turn the dusting brush for cleaning delicate areas.

To use the upholstery tool, push the accessory on to the end of the hose handle in the opposite direction.

ELBOW EXTENDING TUBE (OPTION)

1. Connect the elbow extending tube to connecting part for hose knob and telescopic pipe.
2. Fit the telescopic pipe to the lower part of the elbow extending tube.
3. Press the PUSH button.
4. With the PUSH button pressed, the elbow extending tube is folded.
5. Using the elbow extending tube allows hard to reach areas (e.g. under furniture) to be cleaned without having to kneel down.

OPTION

▶ Carpet Cleaning

▶ Floor Cleaning

Adjust the inlet lever according to the floor surface.

Remove waste matter completely if the inlet is blocked.

OPTION	Vacuum dust in wide area at once	Remove waste matter completely if the inlet is blocked.

OPTION

For improved pick-up of pet hair and fibre on carpets

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

Push the Open button of the transparent screen cover to separate the cover.

Remove the brushbar from the transparent screen.

Remove waste matter such as dust and hair tangled around the brushbar using scissors.

4

Remove dust inside the brush housing using a dry duster or crevice tool.

5

Insert brushbar into rotating belt and assemble.

6

Click the transparent screen cover back into place to reassemble.

OPTION

Brush for blanket

For picking up pet hair and fiber on upholstery and bed linen.

Clogs on the turbine keep the brush from turning; in this case, take care of it.

Remove waste matter completely when the inlet is blocked.

Turn the lock button to 'UNLOCK' and remove waste matter.

To reassemble, align the cover to the front of the main body and close. After closing the cover, ensure that the lock button is turned to the 'LOCK' position.

Warning: Use for bedclothes only. Be cautious not to damage the brush during unclogging.

3 EMPTYING THE DUST BIN

Once dust reaches the dust full mark, or once the filter check light is on, empty the dust bin.

Take the dust bin out by pressing the button.

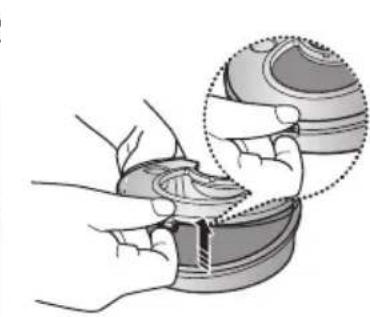

Separate the dust bin cover.

Throw away dust in the bin.

Close the dust bin cover.

6

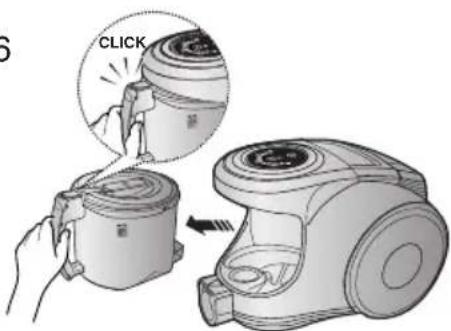

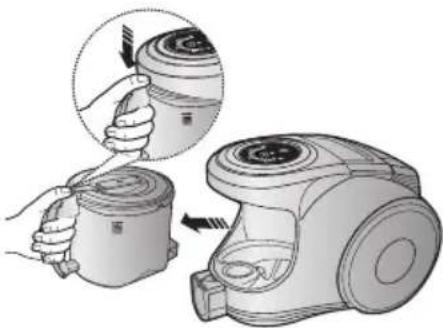

Before use, push the dust bin into the main body of the vacuum cleaner until you hear the "click" sound.

• Empty into a plastic bag (recommended for asthma/allergy sufferers)

NOTE

You may rinse the dust bin with cold water

4 CLEANING THE DUST PACK

4-1. WHEN TO CLEAN THE DUST PACK

- If suction is noticeably reduced during cleaning, please check the dust pack as indicated below.

Turn the vacuum power to 'MAX'

HANDLE CONTROL

If the filter check indicator turns red with the inlet floating 10 cm above flat floor, clean it.

When the indicator light comes on, please empty the Dust Pack (4-2) as shown in the following illustrations.

4-2 CLEANING THE DUST PACK

Remove the dust bin and dust pack as shown.

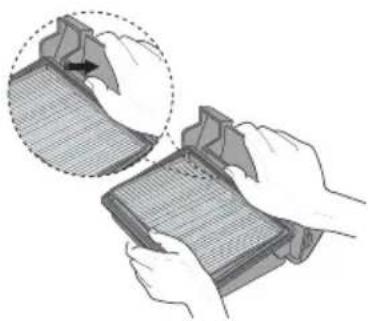

Remove the fixed frame of the dust pack cover.

Remove the sponge and filter from the dust pack.

Wash the sponge and the filter of the dust pack with water.

Let the sponge and filter dry in the shade for more than 12 hours.

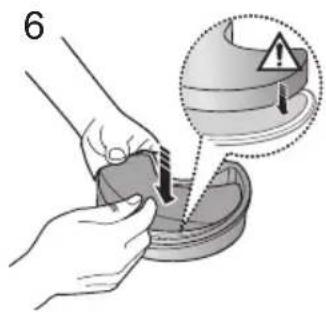

Put the sponge and filter into the dust pack.

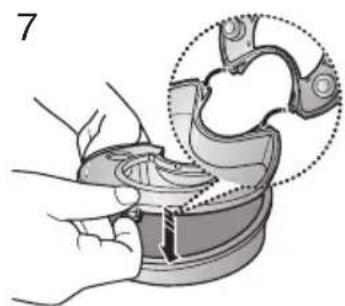

Before reassembly, align the dust pack cover and dust pack correctly.

Put the assembled dust pack into the main body.

NOTE: Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

5 CLEANING THE MOTOR PROTECTION FILTER

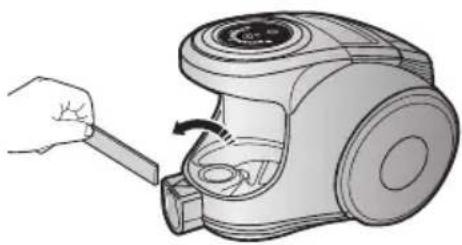

Take out both the dust bin and the dust pack.

Remove the motor protection filter from the vacuum cleaner. Shake and tap the dust from it and put back in machine.

6 CLEANING THE OUTLET FILTER

Lift the handle. Hold the handle of the outlet filter and lift to remove.

Remove the fixed frame of the outlet filter cover.

Remove the fixed frame of the outlet filter cover.

Dust off the outlet filter by gently tapping.

Before reassembly, align the outlet filter cover and the outlet filter correctly, and push the outlet filter until you hear a click sound.

Push the outlet filter into the main body until you hear a click sound.

7 CHANGE THE BATTERY (OPTIONAL)

WARNING

BATTERY TYPE: AA SIZE

NOTE

1. When the vacuum cleaner does not work, replace the batteries. If the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AA.
3. Never disassemble or recharge the batteries.
4. Never heat up the batteries or throw them into fire.
5. Do not reverse (+),(-) poles.
6. Dispose of the batteries properly.
7. IF YOU HAVE A PROBLEM

PROBLEM CAUSE REMEDY
Motor does not start.	No power supply. Thermal cut-out.	Check cable, plug and socket. Leave to cool.
Suction force is gradually decreasing.	Nozzle, suction hose or tube is blocked.	Check for blockage and remove it.
Cord does not rewind fully. Check that the cord is not twisted or wound unevenly.		Pull the cord out 2-3m and push the cord rewind button.
Vacuum cleaner does not pick up dirt.	Crack or hole in hose.	Check hose and replace if required.
Low or decreasing suction	Filter is full of dust.	Please check filter and, if necessary, clean as illustrated in the instructions.

This vacuum cleaner is approved for the following.

EMC Directive: 89/336/EEC, 92/31/EEC and 93/68/EEC

Low Voltage Safety Directive: 73/23/EEC and 93/68/EEC
