Product Type	Flat Panel Mount
Brand	B-Tech
Model	BT8431
VESA Compatibility	200x200mm to 600x400mm
Maximum Weight Capacity	50 kg (110 lbs)
Panel Size Supported	42" to 86"
Tilt Range	-5° to +15°
Swivel Range	±45°
Rotation	±3°
Distance from Wall	30 mm to 60 mm
Material	Steel / Aluminum
Color	Black
Power Requirement	None (manual mount)
Cable Management	Yes, integrated covers
Installation Kit	Includes screws, anchors, and bubble level
Safety Features	Locking mechanism, anti-theft screws
Maintenance	Wipe with damp cloth, check screws periodically
Spare Parts Availability	Contact B-Tech customer service
Warranty	5 years
Weight (Mount Only)	Approx. 5.5 kg (12 lbs)
Dimensions (Mount Only)	720 x 400 x 60 mm

Frequently Asked Questions - BT8431 B-Tech

What is the maximum VESA size supported by the BT8431?

The BT8431 supports VESA patterns from 200x200mm up to 600x400mm, covering most large flat panels.

What is the weight capacity of this mount?

It can hold up to 50 kg (110 lbs), suitable for most 42" to 86" screens.

What tools are needed for installation?

You will need a drill, screwdriver, wrench, and a stud finder. All necessary hardware is included.

Can the mount be tilted or swiveled?

Yes, it offers -5° to +15° tilt and ±45° swivel for optimal viewing angles.

Does it come with cable management?

Yes, the mount includes integrated cable covers to keep wires organized and hidden.

Is it compatible with a concrete wall?

Yes, but you must use the supplied concrete anchors and ensure the wall can support the weight.

How far from the wall will the screen be?

The distance from wall to screen is adjustable between 30 mm and 60 mm.

Can I install it on drywall?

It is recommended to mount into wood studs. For drywall alone, use appropriate toggle bolts (not included).

What is the warranty period?

B-Tech offers a 5-year warranty against manufacturing defects.

How do I clean the mount?

Wipe with a soft, damp cloth. Do not use abrasive cleaners. Periodically check and tighten screws.

USER MANUAL BT8431 B-Tech

FLAT SCREEN WALL MOUNT WITH TILT

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

mountlogic® range

PLEASE KEEP THIS FOR FUTURE REFERENCE

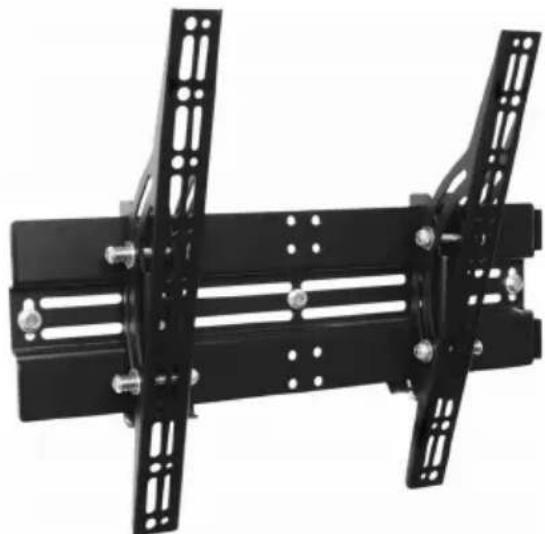

Mechanical assembly with black metal frame and mounting brackets (no text or symbols visible)

COMMUNITY DESIGN NO. 001713280-0035
REG DESIGN NO: 3021714
PATENT APPLICATION NO: 0817023.5

FEATURES

• Designed for flat screens up to 50" (127cm) / 35kg (77lbs)
• Suitable for VESA & Non-VESA flat screens
• Mounts screen only 80mm (3.1") from the wall
• Features Torsion Tilt mechanism for +/- 18° tilt
• Suitable for concrete / brick or stud walls up to 16" (40cm)
• Includes locking bar for secure installation
• Simple hook-on installation with all mounting

hardware included

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Optional Accessories....10

Product Dimensions....11

B-Tech Contact Details....12

TOOLS REQUIRED

13mm (1/2") spanner or socket

Crosshead screwdriver

Drill

10mm (7/16")

masonry bit or 6mm (1/4") wood bit

Pencil

Level (optional)

Stud finder (optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This wall mount is intended for use only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

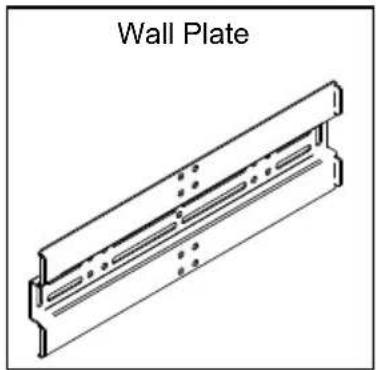

Isometric line drawing of a wall plate with internal ribs and mounting holes (no text or symbols)

REF	PART NAME QTY
1	WALL PLATE 1
2	INTERFACE ARM A 1
3	INTERFACE ARM B 1
4	HOOK PLATE 2
5	24mm SPACER 4
6	LOCKING BAR (RIGHT) 1
7	LOCKING BAR (LEFT) 1
8 M4 X 16mm SCREW (FOR PARTS 6 & 7) 2
9 M8 NYLOC NUT 4
10	M8 PLASTIC WASHER	16
11	M8 METAL WASHER	4
12	TORSION TILT SPRING	4
13	M8 X 65mm PIN HEX SECURITY SCREW	4
14	5mm PIN HEX SECURITY KEY (FOR PART 13)	1

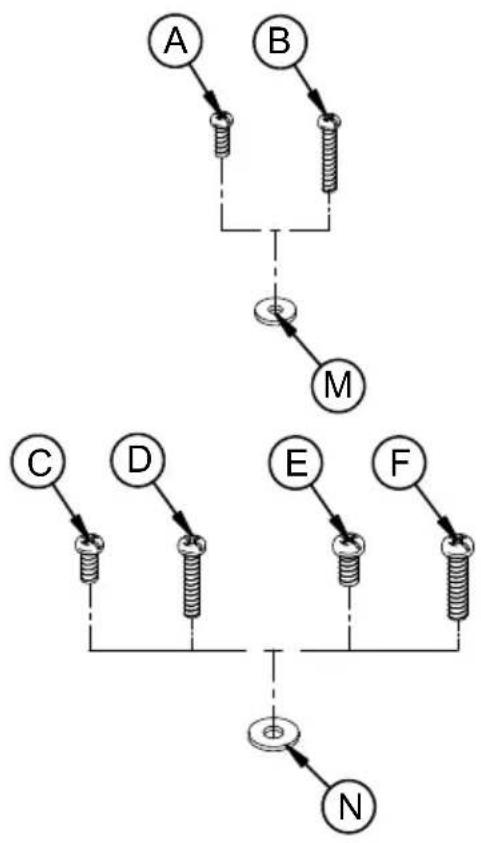

INTERFACE KIT

A	M4 x 12mm SCREW	4
B	M4 x 25mm SCREW	4
C	M5 x 16mm SCREW	4
D	M5 x 25mm SCREW	4
E	M6 x 16mm SCREW	4
F	M6 x 25mm SCREW	4
G	M8 x 16mm SCREW	4
H	M8 x 25mm SCREW	4
I	M8 x 40mm SCREW	4
J M6 x 12mm SPACER (FOR PARTS B, D & F)		4
K	M8 x 13mm SPACER (FOR PART H)	4
L M8 x 24mm SPACER (FOR PART I)		4
M	M4 METAL WASHER (FOR PARTS A & B)	4
N	M6 METAL WASHER (FOR PART C, D, E & F)	4

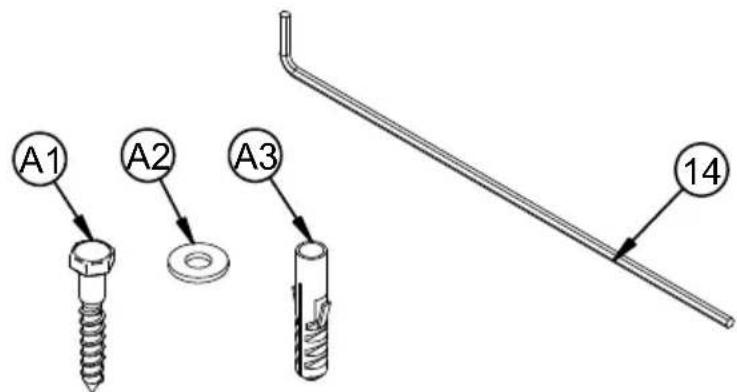

FIXING KIT

A1	M8 X 50mm COACH SCREW	6
A2	M8 METAL WASHER (FOR PART A1)	6
A3	No. 10 WALL PLUG (FOR PART A1)	6

INSTALLATION INSTRUCTIONS

1

Attach wall plate to either a concrete or stud wall.

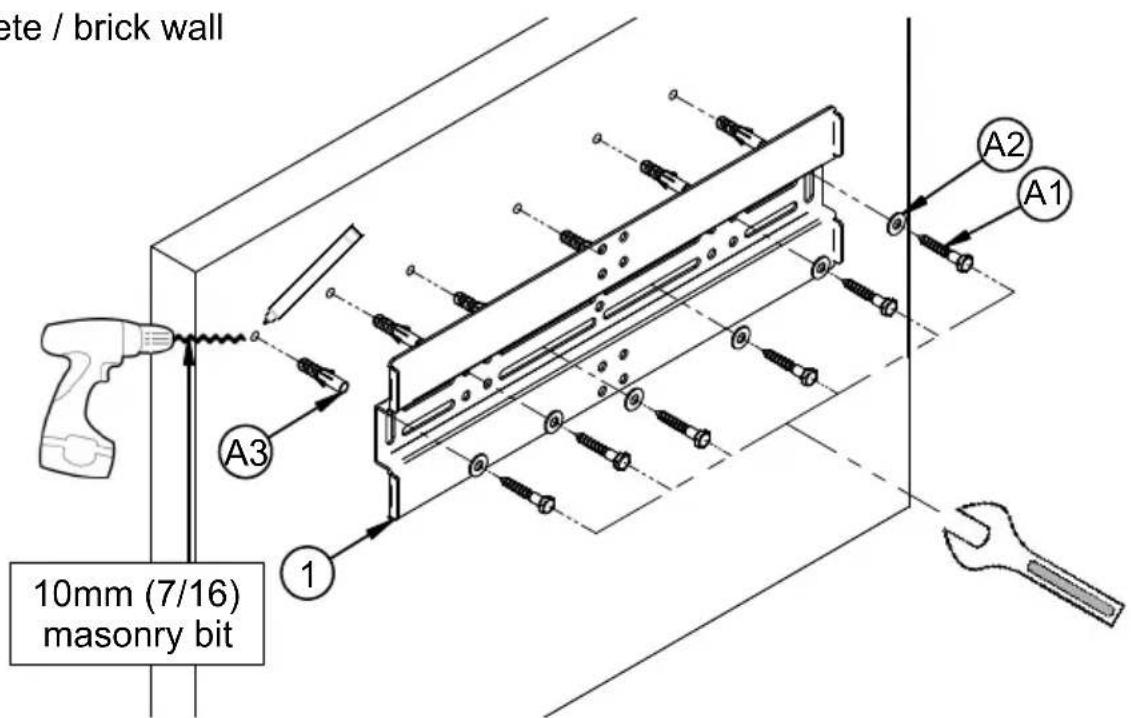

i. Concrete / brick wall

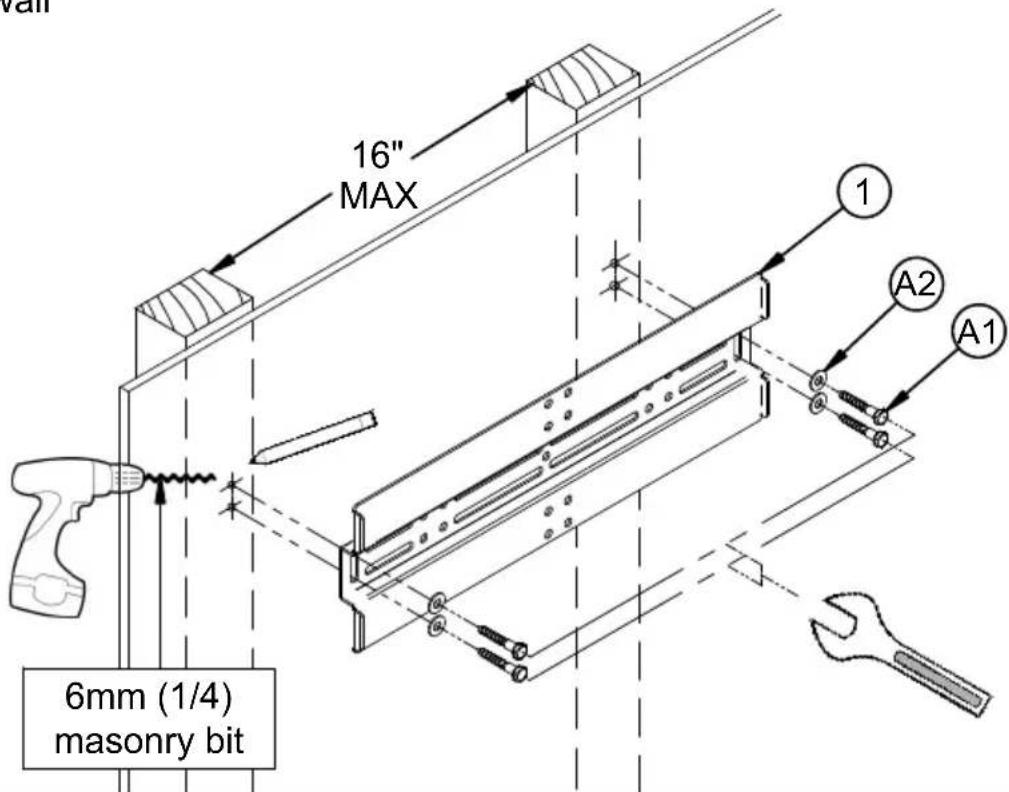

ii. Stud wall

6

z

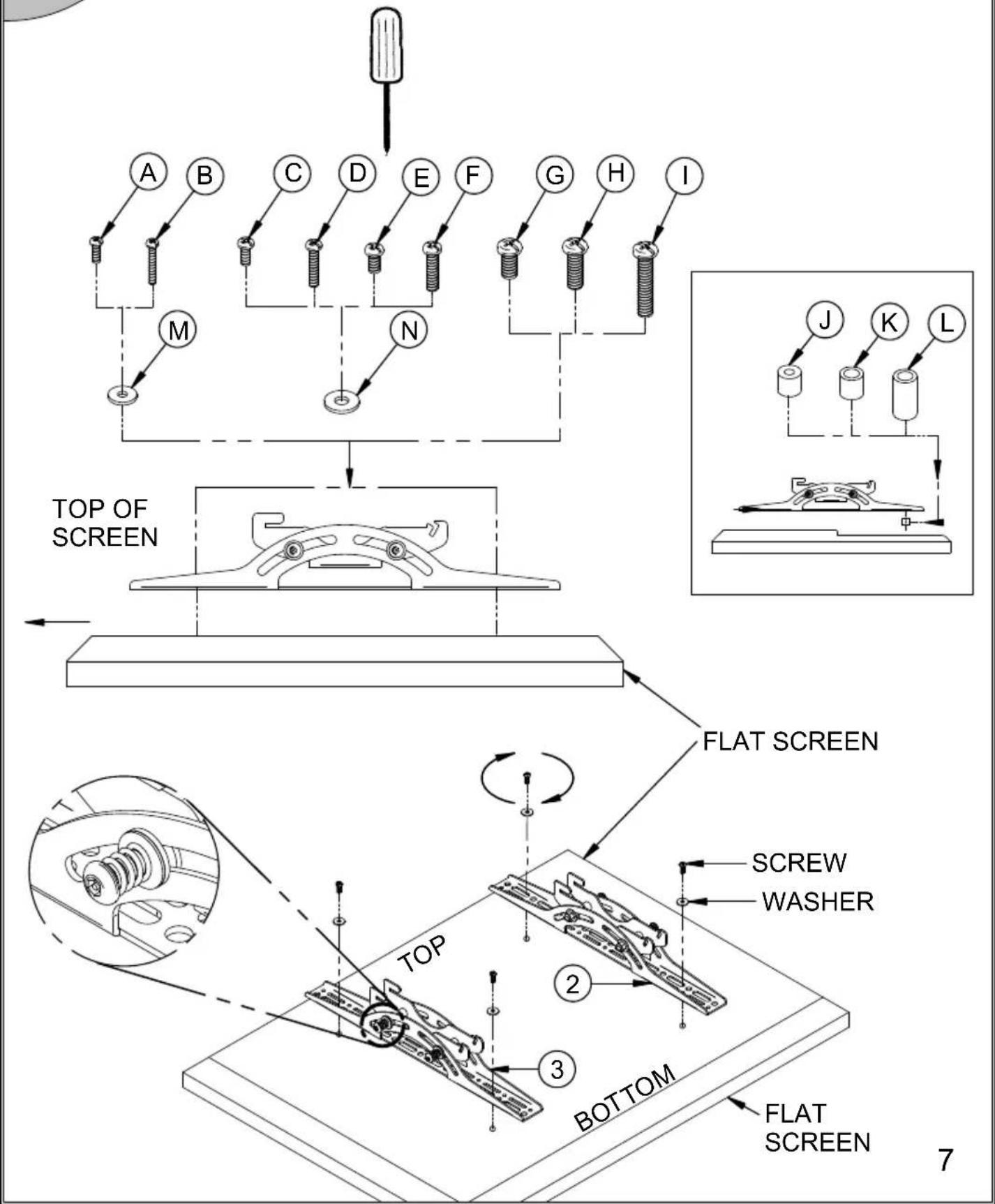

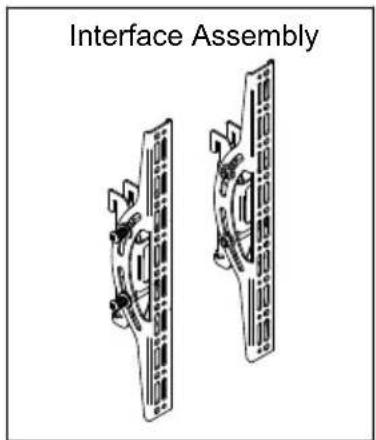

Attach interface arms to flat screen using interface kit.

3

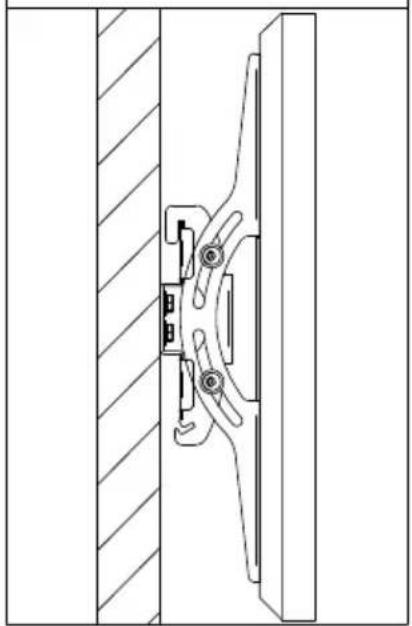

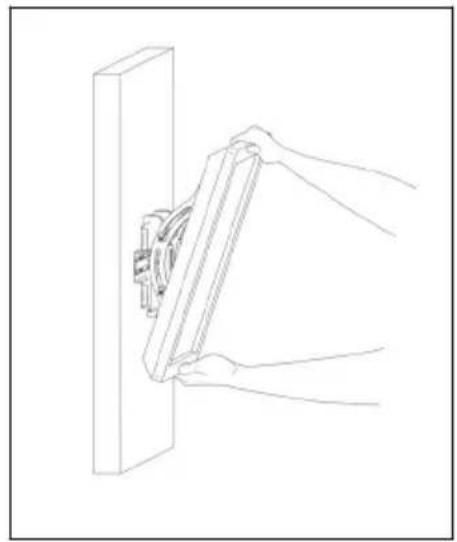

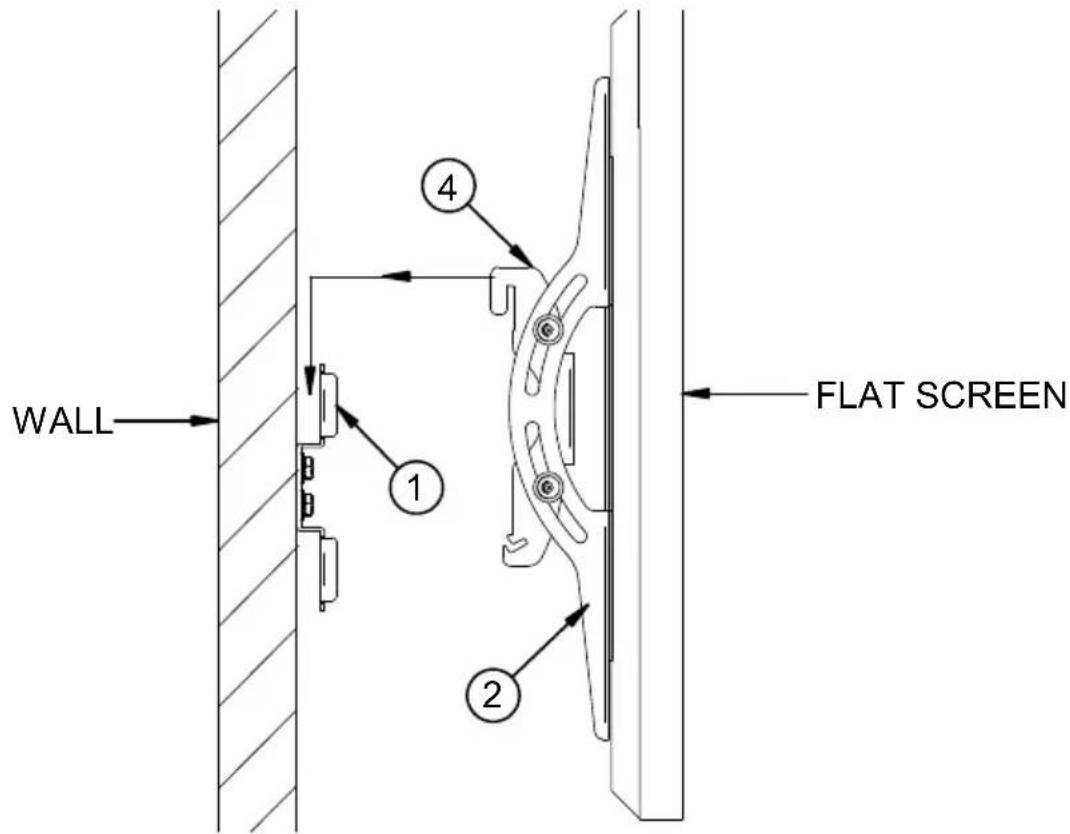

Hook flat screen onto wall mount (this may require 2 people).

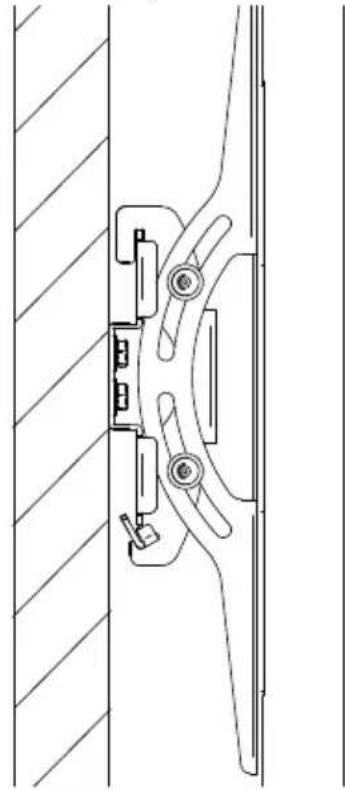

Flat screen hooked onto wall.

Technical line drawing of a mechanical assembly with hatched sections and a central bracket (no text or symbols)

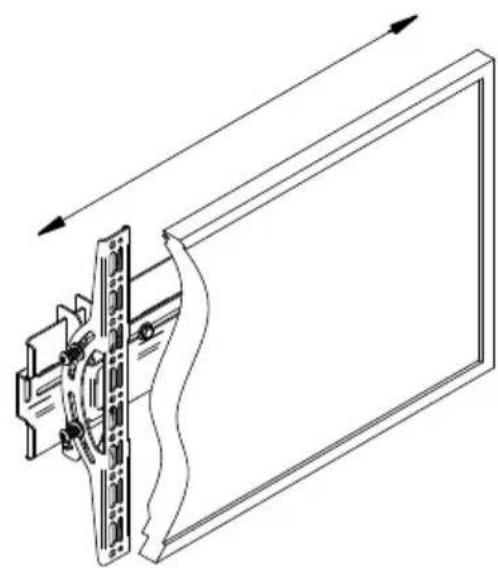

Lateral Adjustment

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

8

4

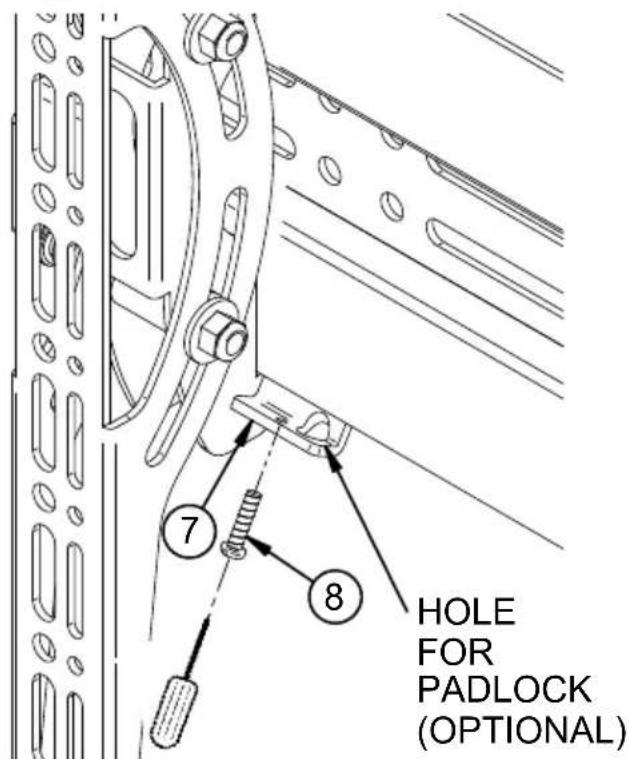

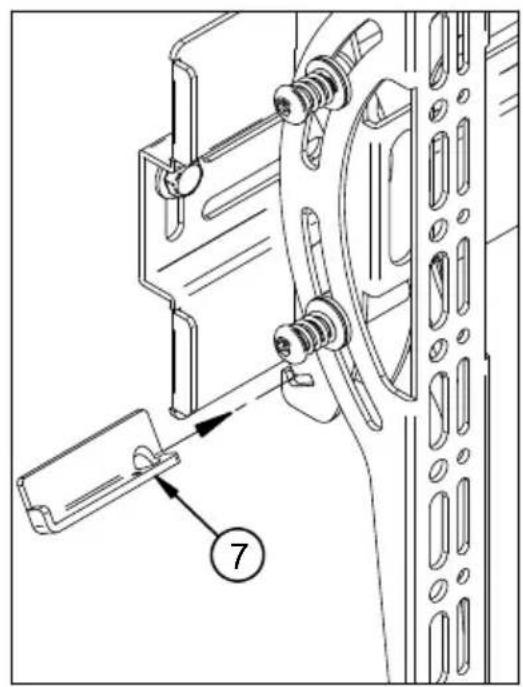

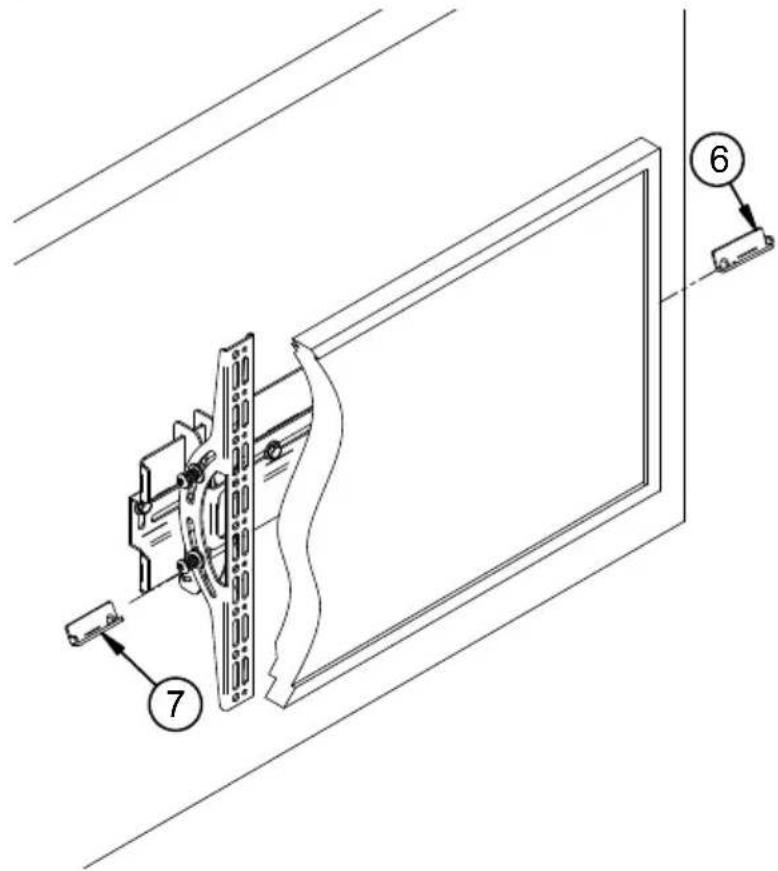

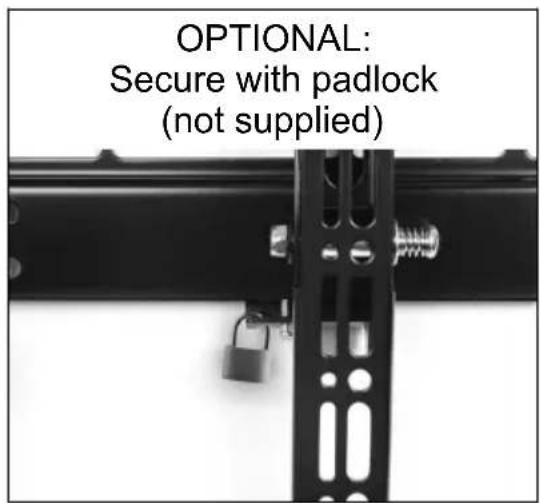

Insert locking bars and screws.

i) Locking bars

ii) Locking screws

9

5

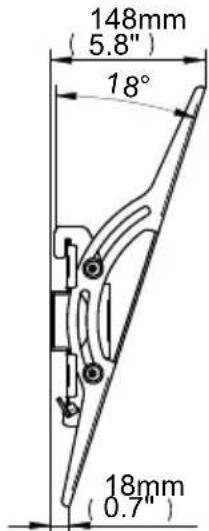

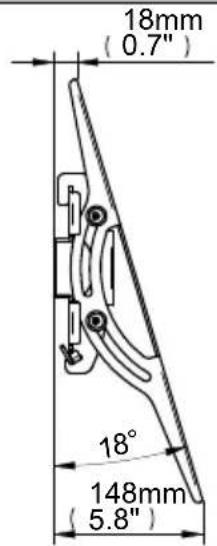

Adjust the tilt by hand.

Technical line drawing of a mechanical assembly with hatched sections and internal components (no text or symbols)

+/- 18°

Line drawing of hands installing or adjusting a wall-mounted device against a vertical panel (no text or symbols)

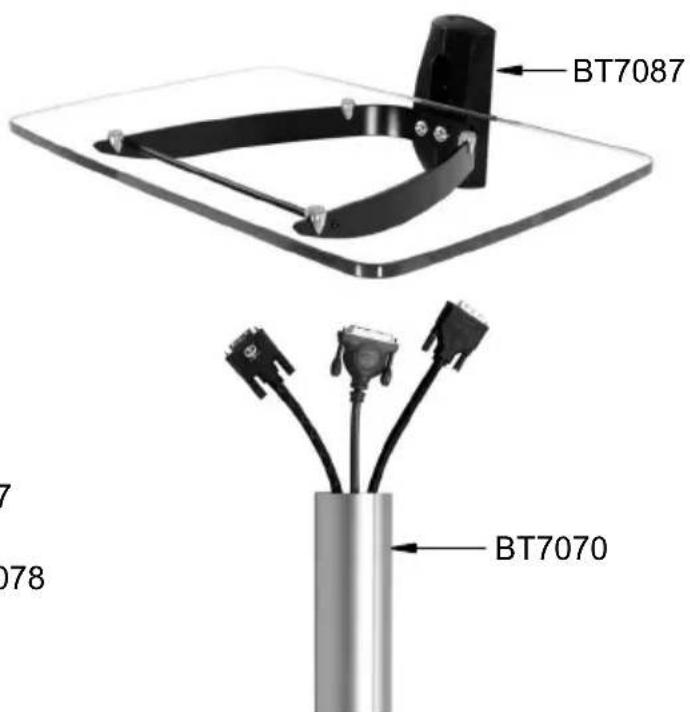

OPTIONAL ACCESSORIES

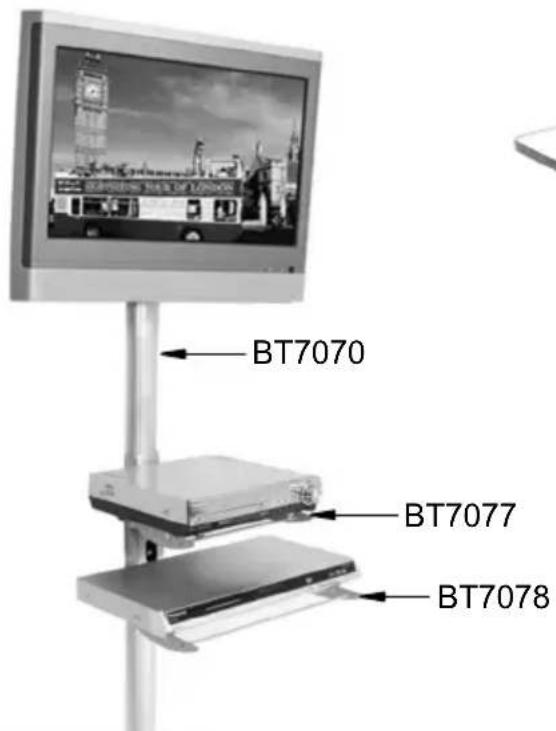

B-Tech AV Component Shelves & Cable Management.

BT8431

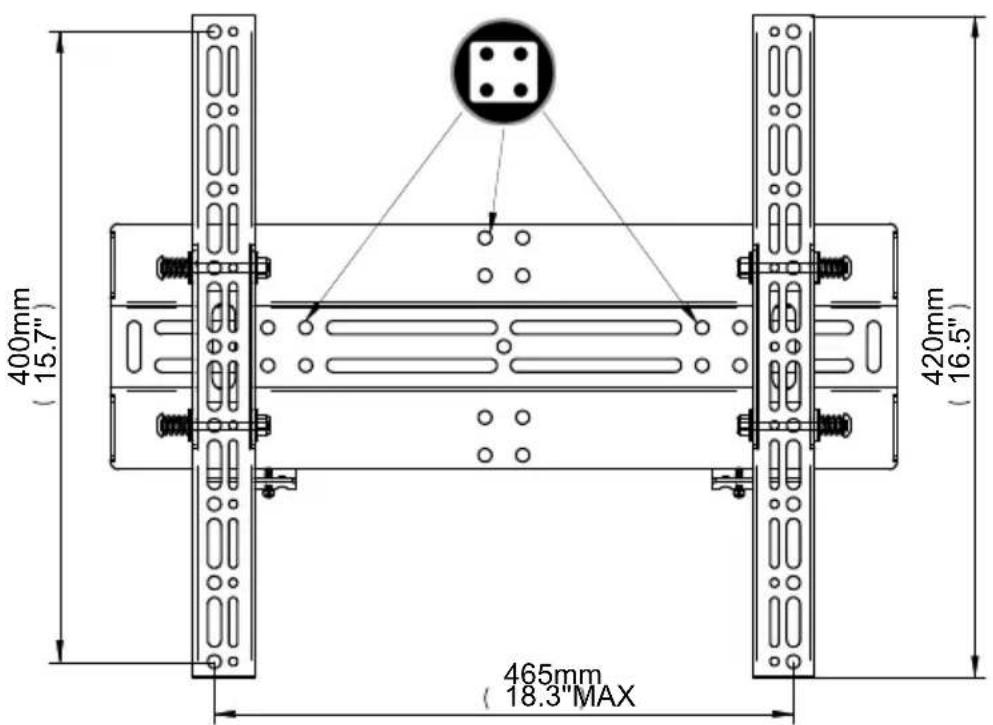

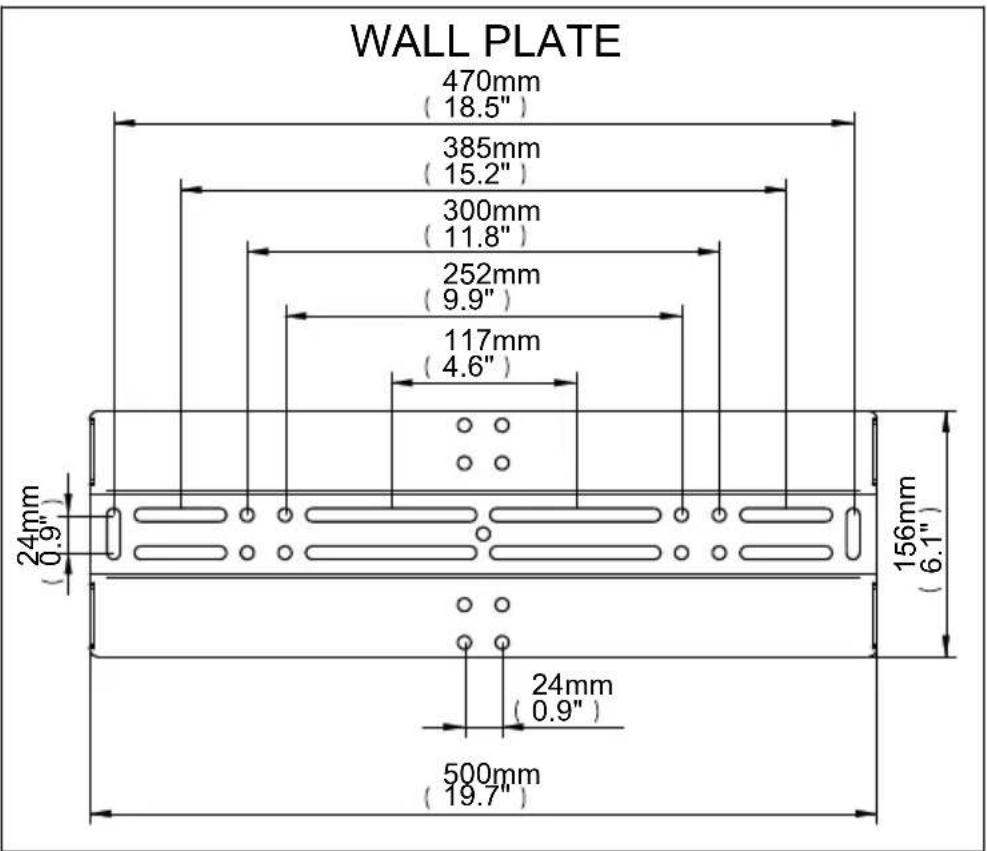

PRODUCT DIMENSIONS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BETTER BY DESIGN

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants NN11 4NR, UK

Email: [e-mail]

EUROPE

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

NORTH AMERICA

203 Eggert Road,

Buffalo, NY 14215, USA

Email: [e-mail]

SINGAPORE

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

ASIA PACIFIC

1503 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.

B-Tech, Better By Design. System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

IP-BT8431-V3-OR2BX-120810-03 MADE IN CHINA
