Product Type	Refrigerator with Freezer
Brand	Kelvinator
Model	KI420BFM2
Overall Height	175 cm
Overall Width	60 cm
Overall Depth	65 cm
Net Weight	68 kg
Energy Consumption	300 kWh/year
Energy Efficiency Class	E (EU scale)
Climate Class	N-ST (16°C - 38°C)
Noise Level	42 dB(A)
Refrigerator Capacity	220 Litres
Freezer Capacity	80 Litres
Freezer Star Rating	4 Stars
Defrost Type	Frost Free (No Frost)
Cooling System	Static (Direct Cool)
Shelves Material	Tempered Glass
Door Hinge	Reversible
Interior Light	LED
Control Type	Manual Thermostat
Cleaning Recommendation	Clean interior with mild detergent and warm water; avoid abrasive cleaners.
Safety Features	Stabilizing legs; anti-tip device; cool-touch exterior
Spare Parts Availability	Shelves, door bins, thermostat, light bulb (LED board) available from authorized service centers.

Frequently Asked Questions - KI420BFM2 KELVINATOR

How do I adjust the temperature on my Kelvinator KI420BFM2?

Turn the thermostat dial inside the refrigerator compartment. Typically, a setting of 3-4 is suitable for normal use. The higher the number, the colder the temperature. Refer to the user manual for specific recommendations.

What does the 'Frost Free' feature mean?

The KI420BFM2 is equipped with No Frost technology, which automatically prevents ice buildup in the freezer. This means you do not need to manually defrost the appliance. However, the system may cause some air circulation; ensure food is properly wrapped.

How do I reverse the door opening direction?

The door is reversible. To change the hinge side, remove the top hinge cover, unscrew the hinges, lift off the door, and reattach the hinges on the opposite side. Use the pre-drilled holes. Keep the screws safe. For detailed steps, consult the installation guide.

Why is my refrigerator not cooling properly?

Check if the thermostat is set correctly and the door is fully closed. Ensure the rear vents are not blocked and the condenser coils (usually at the back) are clean. If the problem persists, the compressor or gas system may need professional service.

How often should I clean the condenser coils?

Clean the condenser coils at the back or bottom of the fridge every 6 to 12 months to maintain efficiency. Use a vacuum cleaner or a soft brush. Disconnect the power before cleaning.

What is the recommended temperature for the refrigerator and freezer compartments?

For the refrigerator, keep between 3°C and 5°C (37°F - 41°F). For the freezer, set to -18°C (0°F) or colder. Use a separate thermometer to verify.

How do I change the interior light bulb?

The KI420BFM2 uses an LED light. If it fails, the entire LED board may need replacement. Contact an authorized service center. Do not attempt to replace with a conventional bulb as it may damage the electronics.

What should I do if the refrigerator makes unusual noises?

Normal sounds include gurgling (refrigerant flow) and clicking (compressor start/stop). If you hear rattling or vibration, check if the appliance is level and the back panel is secure. A loud hum may indicate a faulty compressor. If persistent, call service.

How do I properly store food to avoid odors?

Store food in sealed containers or cling wrap. Place strong-smelling items like cheese in airtight containers. Clean spills immediately. Place an open box of baking soda inside to absorb odors. Replace every 3 months.

Where can I find spare parts or service for my Kelvinator fridge?

Contact Kelvinator authorized service centers. Use the customer service number in your warranty booklet or visit the Kelvinator website. Provide the model number KI420BFM2 when ordering parts.

USER MANUAL KI420BFM2 KELVINATOR

A Global Tradition of Excellence

USER MANUAL

Line drawing of a refrigerator with door, front panel, and side legs (no text or symbols)

REFRIGERATORREF

MODEL: KI420BFM2

CB CE

CKKN-L01-A

Kelvinator Guarantee Conditions

FOR DOMESTIC USE ONLY NOT FOR COMMERCIAL OR INDUSTRIAL USE

ANY ALTERATION OR MODIFICATION OF THE EQUIPMENT VOIDS THE GUARANTEE

FAILURE TO USE AN AUTHORISED SERVICE AGENT OR GENUINE PARTS FOR INSTALLATION OR SERVICE VOIDS THE GUARANTEE

1 Kelvinator guarantees the equipment against defective material or faulty manufacture, provided it is used for domestic purposes only, for a period of 24 (twenty four) months, from the date of purchase by the original retail purchaser. This guarantee only applies to Kelvinator large appliances

2 (a) In the first 6 (six) months from date of purchase, for valid guarantee claims, collection, return and installation (Built-in and gas appliances) of the appliance will be free of charge within South Africa if installed by an authorized Kelvinator service agent.

(b) For the remainder of the guarantee period where the repaired appliance is used or installed more than 50 kilometres from the nearest Kelvinator service agent or elsewhere in South Africa, travel costs to the place of use or installation shall be for the account of the purchaser.

1. This guarantee is given on condition that only labour, parts and accessories supplied by authorised agents are at all times used in connection with the appliance, including the installation thereof, and that an authorised Kelvinator service agent installs and/or services the appliance.

2. Kelvinator shall not be responsible for damage of any kind resulting from electricity fluctuations, faults in the building wiring, faulty installations, and improper use of controls or failure to use the appliance in accordance with the operating instructions and/or general misuse and/or abuse, or if not used for domestic purposes only, or for damage caused by a superior force (vis mator). Any repair or tampering by an unauthorized person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment, shall render the guarantee null and void.

3. After the first 6 (six) months from the date of purchase, this guarantee does not apply to light bulbs, loose glass, glass oven doors and enamelled surfaces, filters and other parts subject to wear and tear or discolouring, as well as damage caused by abrasive and highly concentrated cleaners and/or cleaning materials or cleaners prohibited by the user manual.

4. Kelvinator shall not be responsible in terms of this guarantee for the replacement or repair of any part of the equipment which may have been damaged in transit if delivery is undertaken by any party other than Kelvinator or an authorised agent

5. All gas appliances are to be installed by a gas installer, registered with SAQCC GAS. Electrical appliances are to be installed by a qualified electrician who is an authorised service agent or assisted by an authorised service agent from who proof of installation will be required.

6. Repairs carried out under guarantee have a guarantee period of 3 (three) months on the parts and labour supplied to repair the unit. Parts removed during guarantee repairs become the property of Kelvinator.

7. After expiry of 6 (six) months from the date of purchase the guarantee shall be available only to the original retail purchaser of Kelvinator domestic appliances from an authorised Kelvinator Dealer or Distributor and only where the appliance has been retained for use in the Republic of South Africa

8. Failure to produce documentary proof of the date of original acquisition by the original purchaser to Kelvinator or an authorised service agent, will result in normal charges being levied for travel costs, the work carried out and the parts supplied, unless a production date can be proved to be within the 6 (six) months preceding the guarantee claim

9. After 6 (six) months from the date of purchase of the appliance the liability of Kelvinator under this guarantee is limited to the replacement and/or repair of the defective parts within the guarantee period and does not extend to the installation or removal of the appliance.

Service and Spares

In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local Kelvinator Service Centre by telephoning:

010 207 3000 (South African Customers) [phone] (International Customers)

Help us to help you

Please determine your type of enquiry before writing or telephoning. When you contact us we need to know:

• Your name
• Telephone Number
  ■ Physical Address where appliance is located
  ■ Model and Serial Number of the appliance
• Clear and concise details of the fault

Customer Care

For general enquiries or information regarding Kelvinator appliances contact:

Customer Care Department

Kelvinator

P.O. Box 3657

Johannesburg

2000

South African Customers: 010 207 3000

International Customers: [phone]

E-mail: [e-mail]

Website : www.kelvinator.co.za

Note: Note:

During the period of high relative humidity, moisture may form on the surface of the refrigerator. It is not malfunction. You may just wipe it up yourself. If your refrigerator is still not functioning properly after making the above checks, please contact with the maintenance service department without any delay.

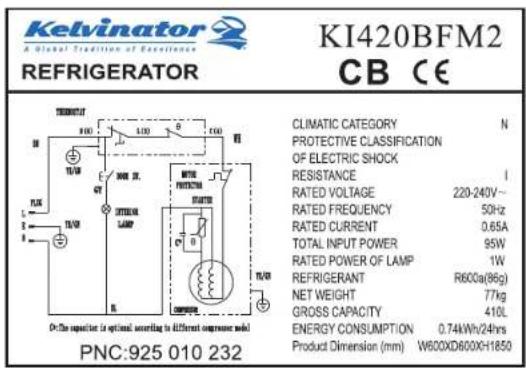

Technical Specifications Technical Specifications

* For the detailed specifications please refer to the nameplate at the back of the refrigerator.
* The specifications are subject to change without prior notice due to product improvement.

Kelvinator A Global Tradition of Electronics REFRIGERATOR KI420BFM2 CB CE TOMATO PROTECTIVE CLASSIFICATION OF ELECTRIC SHOCK RESISTANCE RATED VOLTAGE 220-240V~ RATED FREQUENCY 50Hz RATED CURRENT 0.65A TOTAL INPUT POWER 95W RATED POWER OF LAMP 1W REFRIGERANT R60Ω(86g) NET WEIGHT 77kg GROSS CAPACITY 410L ENERGY CONSUMPTION 0.74kWh/24hrs Product Dimension (mm) W600XD600X-H1850 PNC:925 010 232

CONTENTS CONTENTS

Structure Illustration 2

Instructions for Installation 3

Cautions for Safety 4

Operation 4

Cleaning and Maintenance 6

Troubleshooting----7

Technical Specifications ----8

Please read this users operation manual before using.
■ Appearance of refrigerator refer to production.
Because of production improvement, your refrigerator may not be consistent with this user manual fully.

Cleaning and Maintenance: Cleaning and Maintenance:

Instructions for Installation Instructions for Installation

1. When cleaning the refrigerator, disconnect the electric wire. Rub it carefully with a piece of cloth soaked with neutral cleanser, then wipe it clean with fresh Water. Do not wash the refrigerator with water directly to prevent the unit from rust and breakdown.

1. Never use acids, chemical solution, thinner, gasoline or the likes to clean the refrigerator because they may damage the painting cover and plastic parts of it

Detergent

1. Once or twice a year dust the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

2. Do not tilt the refrigerator by more than 45^ from an upright position when moving it. Avoid collision and violent vibration during transportation.

Do not apply force to any part such as the condenser, the door and its handle in order to prevent the gerator from deforming, or else its performance will be affected.

Two cartoon characters: one with a sad, anthropomorphic paper character and the other with a frowning face (no text or symbols)

1. Ensure that there is enough space around the refrigerator in order to let it work well.

30cm 10cm 10cm 10cm

1. The refrigerator should be kept away from high temperature, sunshine or humid conditions.

Two cartoon characters with expressive faces and dynamic poses, one standing on a surface with a sun and smoke, the other holding a phone (no text or symbols)

1. The refrigerator should be placed on solid floor to avoid much noise.

2. For your safety and protection, this unit is grounded through the power cord plug when plugged into a matching wall outlet. If you are not sure whether your wall outlet properly grounded, please consult a qualified electrician..

Cautions for Safety :

1. It must be checked that the voltage should be the same as the rated voltage before the refrigerator is used.
2. The power plug should have its own separated socket in order to prevent the electric wire from being over heated by other plugs.
   3 Do Not allow children to tamper with the controls or play with the product.
   4 Do Not hang heavy objects onto the door of the product to avoid the refrigerator turning over..
   5 It is dangerous to alter the specifications or attempt to modify this products in any way
   6 Do not place sealed container or carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode resulting in damage to the freezer or people.
3. Do not spray water on to the refrigerator. Otherwise it may cause malfunctions of the refrigerator or electric shock.
   8 Do not store flammable materials such as alcohol, gasoline, LP gas and glue etc, in the refrigerator.
   Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions.
   10 When you change the light bulb or when the refrigerator is not in use for long periods, disconnect it from the electricity supply..
   11 Wait for 5 minutes before restarting the unit after the power supply has been stopped..

Operation :

1. When operating the refrigerator for the first time, set the thermostat dial at 3, connect the electric wire and run it without loading any food. Usually this takes 2 or 3 hours. Then set the thermostat dial at the desired setting and place foods into the refrigerator.

2. The temperature of the refrigerator can be adjusted by turning the thermostatic dial. setting of the thermostatic dial at 3\~4 is the most suitable for general operation. The higher the thermostat dial is set, the lower the temperature inside the fridge.

3. Do not put too much food in the refrigerator. Open the door less frequently in order to maintain the temperature of the refrigerator and always leave warm food to cool down to room temperature before putting into the refrigerator to save electric consumption

1. When making ice cubes, fill the ice tray with drinkable water. And put it into the freezer. It takes about 2 or 3 hours to make ice cubes. Pieces of ice cube can be removed by twisting it. Do not press it up and down, otherwise, the ice tray may break.

1. Frost in the fridge will defrost automatically and the water can flow to the water collection pan above the compressor. The water will evaporate by the heat of compressor.

Defrost the freezer whenever the layer of frost on the surface reaches 3 or 4 mm. When defrosting, remove all foods, set the thermostat to position 0 and open the door. After the frost has melted, discard the water and dry up the interior of the freezer, The refrigerator can then be restarted by turning its thermostat to the desired setting.

1. Do not heat the freezer directly with hot water or a hair dryer. This may cause deformation of the inner casing.

2. Do not scrape ice or separate food using a sharp tool or a wooden bar so as not to damage the casing.

General

This type of refrigerator is to be used for domestic purposes only.

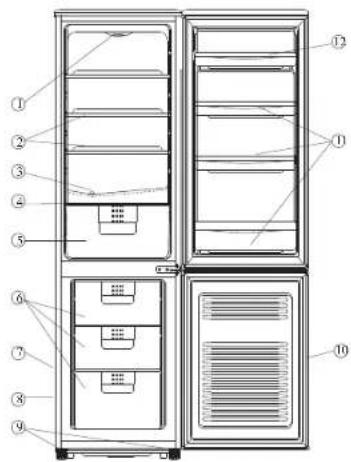

Structure Illustration

Diagram of a refrigerator interior with numbered compartments and labeled storage areas

① Thermostat
② Shelf
Drain Port
④ Crisper Cover
⑤ Crisper
⑥ Freezing Drawer

⑦ Drain hose (Back)
⑧ Compressor (Back)
⑨ Leveling Feet
⑩ Gasket
① Bracket
⑫ Eggs bracket (Inside)

Troubleshooting

1. When the refrigerator does not operate: ensure that

• The electric power is supplied and the voltage is normal.
•The fuse is not burned out.
•The power plug is plugged in firmly in the socket.
• The thermostat setting is not in 0 position.

1. When the refrigerator is not cool enough: ensure that

• The thermostat is at the correct setting
• There are enough space around the refrigerator.
•The doors are not opened too frequently and for too long.
• The refrigerator is not under direct sunlight or placed near the heat source.
• There are not too many foods and hot foods in the refrigerator.

1. When the foods in the refrigerator is frozen: ensure that

• The thermostat is at the correct setting.
• There is not too much food that contains a lot of moisture in the refrigerator.

1. When the refrigerator operates too noisily: ensure that

• The refrigerator is properly levelled.
• The refrigerator is not touching objects around it.
• The containers or solid packages stored inside are not touching each other.

1. When the refrigerator does not run in winter: ensure that

• The compensate switch is off. It should be turned on as the ambient
temperature is less than 10 degree.

1. When there is a water leak on the ground: check if

• The drain hole is blocked
- The drain hose in compressor compartment is not installed well.

1. When the compressor runs continuously without stopping: check if

• There are too much food in the refrigerator.
• The thermostat dial is at higher position such as 7 etc.
• The door of refrigerator is opened too frequently.
• The ventilation is not good around the refrigerator.
• The door is not closed well or the door gasket is deformed.
