GamesterGear Cruiser P3200 - Headphones Syba - Free user manual and instructions

Product Type	Over-Ear Gaming Headset
Brand	Syba
Model	GamesterGear Cruiser P3200
Driver Size	50 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ohms
Microphone Type	Built-in Omnidirectional
Connection Type	Wired 3.5mm Jack
Cable Length	2.1 meters
Dimensions (L x W x H)	200 x 180 x 90 mm
Weight	320 g
Power Source	No external power required (passive)
Main Functions	Audio playback, microphone, volume control on cable
Care and Cleaning	Wipe with dry cloth; avoid liquids
Safety Precautions	Do not use at high volume for prolonged periods to prevent hearing damage
Spare Parts and Repairability	Limited user-serviceable parts; contact Syba for replacement ear pads
General Information	Designed for immersive gaming with deep bass and noise isolation

Frequently Asked Questions - GamesterGear Cruiser P3200 Syba

How to adjust the volume?

Use the inline volume control wheel on the cable to increase or decrease the volume.

Can I mute the microphone?

Yes, the cable has a microphone on/off switch to mute or unmute the mic.

Are these headphones compatible with a PC?

Yes, the 3.5mm jack works with PCs, laptops, and devices with a standard headphone/mic combo port.

Do they support surround sound?

The headphones are stereo only; surround sound depends on your audio source.

How to clean the ear cushions?

Wipe gently with a slightly damp cloth and allow them to air dry. Do not submerge in water.

Is the microphone detachable?

No, the microphone is built-in and not detachable.

What is the warranty period?

Check the included manual or contact Syba support for warranty details (typically 1 year).

Can I use these headphones with a mobile phone?

Yes, if your phone has a 3.5mm headphone jack. Otherwise, an adapter may be needed.

Why is only one side working?

Ensure the jack is fully inserted. If the issue persists, try a different device to isolate the problem.

Are replacement ear pads available?

Replacement ear pads can be ordered from Syba or resellers. Check the official website for compatible parts.

USER MANUAL GamesterGear Cruiser P3200 Syba

GAMESTERGEAR

Cruiser P3200

Gaming Headset Manual

TECHNICAL SPECIFICATIONS

Acoustic Design:

Frequency Response:

Driver:

Sensitivity:

Mic Type:

Mic Frequency Response:

Cable Length:

Connector Type:

Closed Back

20hz - 20khz

57 mm @ 32 ohms

112dB SPL, 1mW @ 1khz

Detachable Boom Mic

70hz - 15khz

12.5 ft (3.8 m)

3.5mm for Game Audio

USB for Power & Voice Chat

Package Contents

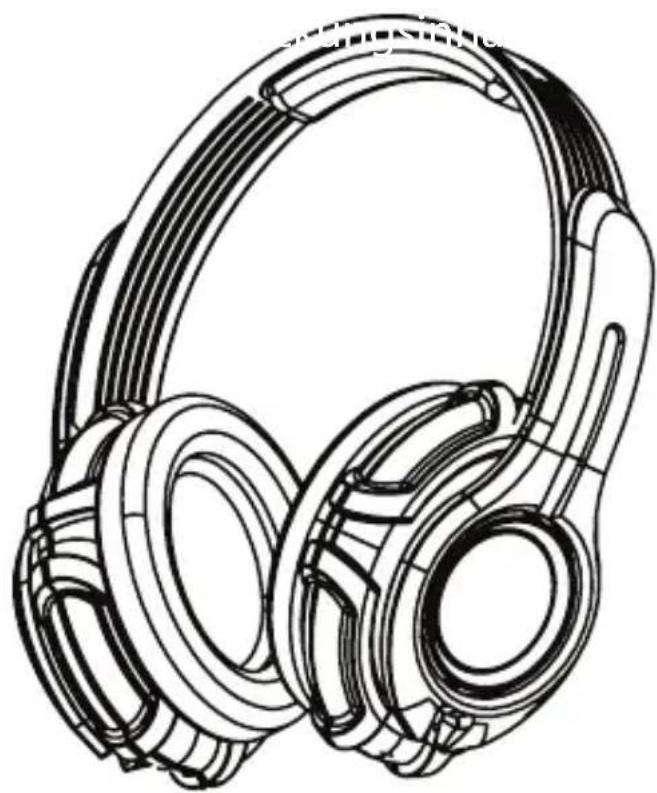

Cruiser P3200 Headset

RCA to 3.5mm Audio Splitter Cable

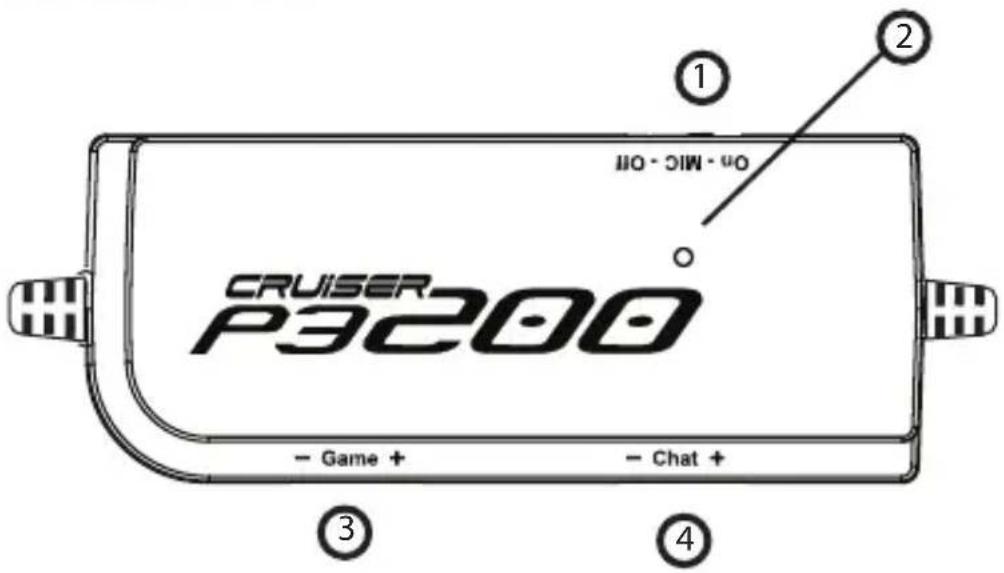

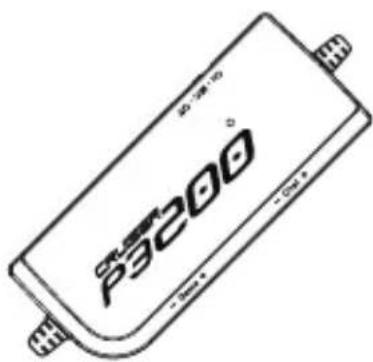

Control Dongle

1. Mic Mute Switch

2. Game Volume

3. Mic Mute LED

4. Chat Volume

PS3™ Audio Configuration

In the PS3™ XMB, select [Setting] - [Sound Settings] - [Audio Multi-Output]

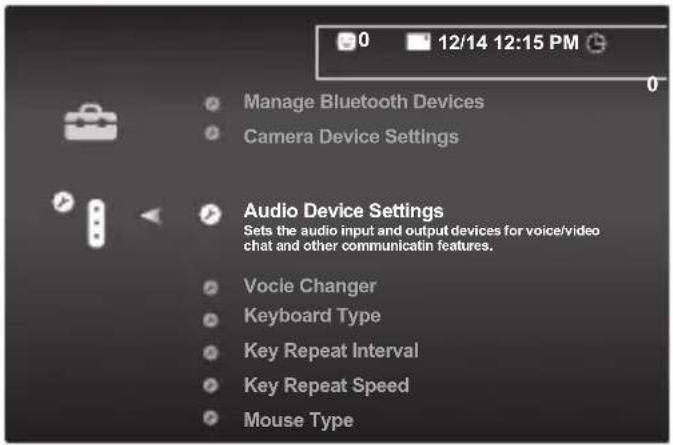

PS3™ Microphone Setup

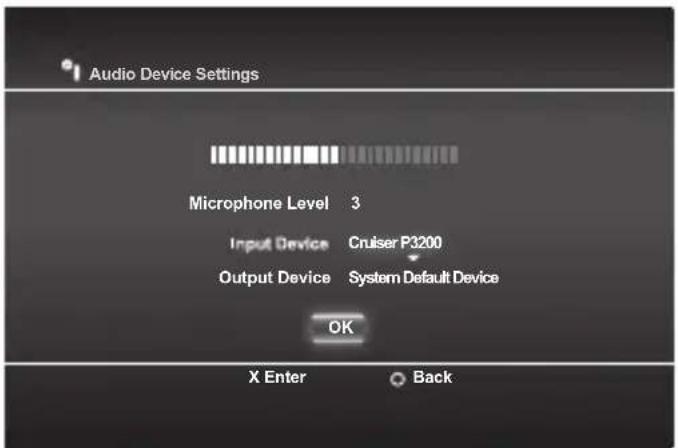

In the PS3-XMB, select [Setting] - [Accessories Settings] - [Audio Device settings]

Adjust the Microphone to level 3

Go down to "Input Device" and select "Cruiser P3200"

Go to "Output Device" and select "Cruiser P3200"

HDMI Setup

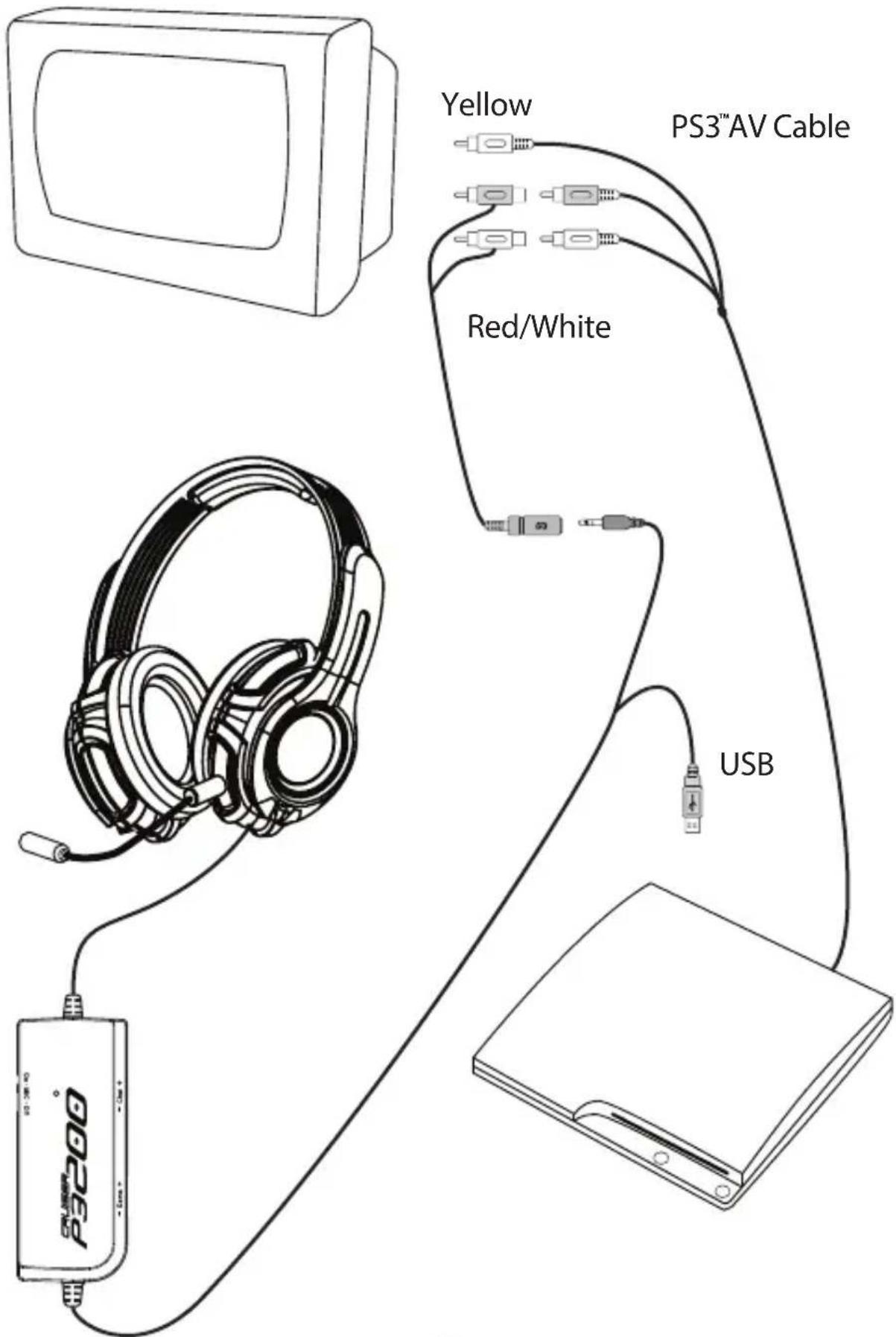

RCA Setup

PC Setup

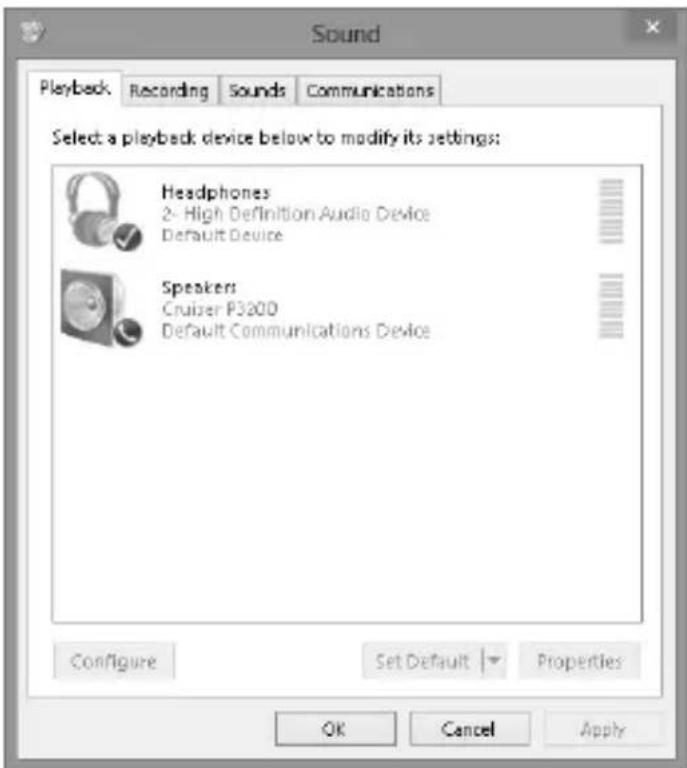

Before using the headset, please go to the [Control Panel] then select the [Sound] folder in Windows to configure the headset.

PC Setup Cont.

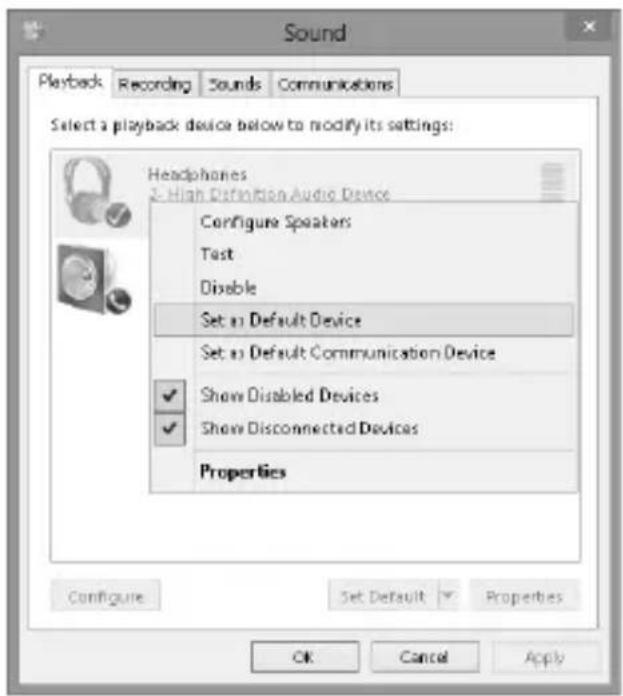

Right click on the device name to where the headphone is plugged into, and set it to "Default Device". This needs to be done for best performance

The Cruiser P3210 device needs to be set to "Default Communication Device" by right clicking on the device name.

Device image/text may vary depending on system setup

Q: Why do I have no sound coming out of my new Cruiser Headset?

A: Be sure to plug in both the USB and the RCA plugs (3.5mm plug for PC) into the correct slot of your system.

Q: I'm sure I plugged everything in correctly to my PS3, but I still have no audio.

A: Please refer to page 3. There we show how to enable multi-output for your PS3.

Q: Why is the mic not picking up my voice?

A: Make sure that the microphone has been properly locked into place, as it will not work if it has not been.

Q: I followed the steps required to mic set up, but I still don't have my mic working.

A: Be sure that you don't accidentally have the mic set to Mute on the dongle.

Q: My Volume Channel is only working on "Chat" in PC-why is that?

A: Please refer to page 8 for proper PC set up of your Cruiser Headset.

Q: I have misplaced/damaged my detachable microphonen, how can I request a replacement?

A: Simply visit the gamestergear website and send us an email request for a new detachable microphone. Please do note that there will be a fee for a replacement microphone.

Maintenance

Do not expose headphones to extreme temperatures. Wipe the headphones and head-band with mild antiseptic to avoid infections. Do not use alcohol-based disinfectants.

Safety Notice

To avoid potential damage to the device, always disconnect all cables before transporting it.

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud. The louder the volume is set the less time it takes to affect your hearing. Be sure to listen at moderate levels.

Tips:

• Before placing a headset on your ears, turn the volume down completely, then slowly increase it to a comfortable level.
• Turn down the volume if you can't hear people speaking near you.
• Avoid turning up the volume to block out noisy surroundings.

Cautions

Do not make any modifications to the system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, system performance, and may void the warranty

Operate this product within the temperature range of -4°F to 113°F ( -20°C to 45°C ) only. Damage caused by use outside of that range may not be covered by the warranty

Check and follow local laws regarding use of a mobile phone and headset/headphones while operating any vehicle or using equipment that requires your full attention. If you use the headset/headphones while engaging in any such activity, be sure to focus on safety.

Limited 1 Year Warranty

GamesterGear hereby warrants that this product will be free from defects in materials and workmanship for a period of one year from the date of purchase. At its option GamesterGear will repair or replace the defective product and promptly return it to you. You should retain proof of purchase to validate the purchase date and return it with any warranty claim.

If you believe this product is defective within the warranty period, carefully repack the unit, insure it, and return it postage prepaid.

For return RMA and address, please visit www.gamestergear.com.

Certification

This device complies with FCC and industry Canada RF radiation exposure limits set forth for general population. It must not be co-located or be operating in conjunction with any other antenna or transmitter.

Eligible to bear CE marking.

Conforms to European EMC. Tested with standards: EN55022, EN55022, CE-LVD, EN60065 (EN50332-1)

Customer Service

For additional help in solving problems, please visit www.gamestergear.com for online support.
