Product Type	Heavy Duty Accessory Collar
Brand	B-Tech
Model	BT7060
Compatible Pole Diameter	60 mm
Material	Heavy duty steel (black finish)
Included Hardware	4 x M10x20mm grub screws, 8 x M8x12mm flat head cross screws, 9 x M8 spring washers, 1 x M8x80mm safety bolt
Included Tools	5 mm Allen key
Covers Included	2 half-shell aesthetic covers
Mounting Type	Clamping with grub screws (optional through-bolt security)
Safety Features	Optional safety bolt to prevent sliding
Compatible Accessories	B-Tech Modulus System mounts
Attachment Points	Double attachment (two sides) for accessories
Installation	Professional installation recommended
Maintenance	Periodic inspection of fixings recommended
Weight (approx.)	Estimated 0.5 - 1 kg (not specified)
Spare Parts Provided	Yes, extra screws and washers for dual accessory attachment
Country of Origin	Not specified (United Kingdom design)

Frequently Asked Questions - BT7060 B-Tech

What is the maximum weight capacity of the BT7060 collar?

The maximum weight capacity is not explicitly stated in the manual. However, the collar is intended for use only with the maximum weights indicated on the product itself. Exceeding that limit may cause instability and injury. Always check the labeling on the product before installation.

Can I use this collar with poles other than 60mm diameter?

No, the BT7060 is specifically designed for 60mm poles only. Using it with other diameters may result in insecure mounting and potential failure.

How do I install the collar on a pole?

Slide the collar onto the 60mm pole at the desired height. Tighten the four M10 grub screws evenly using the included 5mm Allen key until the collar is securely clamped. Optionally, for extra security, drill a hole through the pole and insert the M8 safety bolt through the collar and pole, then tighten with the Allen key.

What are the included covers for?

The two half-shell aesthetic cover plates are designed to snap around the collar after installation to hide the grub screws and give a clean, finished appearance. They can only be used when attaching accessories on one side.

Can I attach two accessories to one collar?

Yes, the collar has attachment points on both sides. Spare M8 screws and washers are provided for attaching accessories on the second side. However, the aesthetic covers cannot be used in this configuration.

Is the safety bolt required for safe installation?

No, the safety bolt is optional. The collar's load-bearing capacity and stability are not affected by its absence, provided the four grub screws are sufficiently tightened. The bolt adds an extra layer of security, especially in areas where accidental loosening is a concern.

What tools are needed for installation?

The package includes a 5mm Allen key for tightening the grub screws and the optional safety bolt. No other tools are required for basic installation. If you choose to use the safety bolt, you will need a drill with a bit suitable for the pole material.

How should I maintain the collar over time?

Perform periodic inspections of all fixings and the collar itself. Check that the grub screws remain tight and that the collar has not shifted. If any parts appear loose or damaged, re-tighten or replace them immediately. Consult a professional if in doubt.

Who should install this product?

B-Tech recommends that a professional AV installer or other suitably qualified person install this product. If you are not confident in performing the installation safely, contact a professional for assistance.

What should I do if I lose a part or need spares?

Spare screws and washers are included for dual accessory mounting. If you lose any components, contact B-Tech or your local distributor. Refer to the parts list in the manual for exact part numbers and descriptions.

USER MANUAL BT7060 B-Tech

60MM LARGE ACCESSORY COLLAR WITH COVERS

This pack contains:

1 heavy duty collar with covers

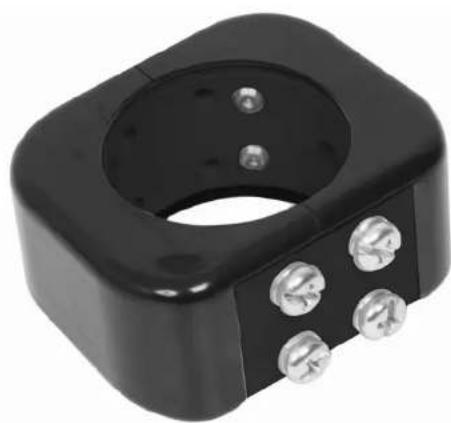

Close-up of a black square mechanical component with four metallic screws (no text or symbols visible)

• Heavy duty accessory collar for use with 60mm poles
- Provides attachment for B-Tech modulus system mounts
- Double attachment
• Aesthetic cover plates included to hide fasteners

Caution: This collar is intended for use only with the maximum weights indicated. Use with heavier than the maximum indicated may result in instability causing possible injury.

Important Safety Instructions.

Read first

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped. If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness. It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

Head Office

B-Tech International Ltd.

Bennett House, Long March, Daventry, Northants NN11 4NR, UK

Tel: [phone] Fax: [phone]

Email: [e-mail]

Europe

B-Tech PRO-AV bvba

Brixtonlaan 32, Zaventem 1930, Brussels, Belgium

Tel: [phone] Fax: [phone]

Email: [e-mail]

North America

B-Tech Audio Video Mounts.

10 Greg Street, #108, Sparks, NV 89431, USA

Tel: [phone] Fax: [phone]

Email: [e-mail]

Asia Pacific

B-Tech International (Hong Kong) Ltd.

23rd Floor, Manulife Tower, North Point, HK

Tel: [phone] Fax: [phone]

Email: [e-mail]

www.btechavmounts.com

BETTER BY DESIGN

BT7060

PARTS LIST

PARTS LIST

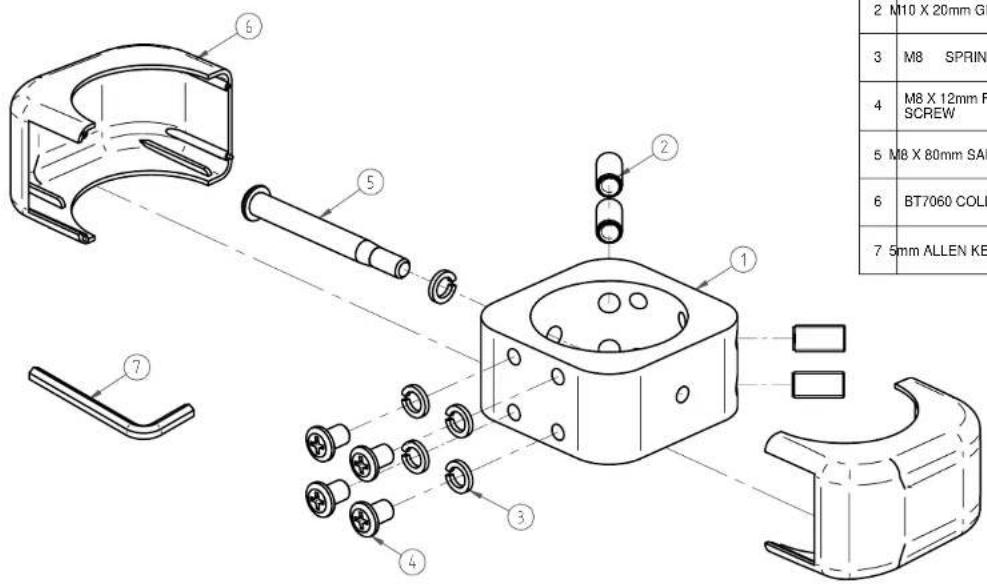

No	PART NAME DESCRIPTION QTY
1	BT7060 COLLAR	TO FIT 60MM POLES	1
2	M10 X 20mm GRUB SCREWS	TO CLAMP COLLAR TO POLE	4
3	M8 SPRING WASHER	SITS UNDER SCREW HEADS	9
4	M8 X 12mm FLAT HEAD CROSS SCREW	TO ATTACH ACCESSORIES	8
5	M8 X 80mm SAFETY BOLT	PASSES THROUGH POLE	1
6	BT7060 COLLAR COVERS HALF PUSH FIT AROUND COLLAR 2
7	5mm ALLEN KEY	TO TIGHTEN (PARTS 2 & 5)	1

Spare screws and washers are provided for use on the other side of the collar if two accessories need to be attached.

Covers cannot be used in this situation.

Attention!

For additional security and/or safety, an optional safety bolt is provided (Part 5). The pole may be drilled through to accommodate this bolt at the installers discretion. The absence of this bolt does not effect the load bearing capacity or stability of the collar, provided that the four grub screws (Part 2) are sufficiently tightend.

PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE
