Product Type	Ceiling Mount for Projectors
Brand	B-Tech
Model	BT5890-150
Ceiling Drop	1645 mm (64.8 in)
Tilt Range	+/- 15°
Roll Range	+/- 15°
Maximum Load	10 kg (22 lbs)
Compatible Projector Fixing Patterns	75x75 mm, 100x100 mm, and other patterns up to 493 mm apart
Fixing Hardware Supplied	M8 screws, ceiling plate (BT5820), carousel, legs
Installation Tools Required	13 mm spanner, flathead screwdriver, drill, 10 mm masonry bit or 6 mm wood bit, pencil, saw (optional)
Material	Steel and aluminum
Color	Black
Swivel	Not provided
Safety Certification	Registered design
Warranty	Limited lifetime warranty (subject to terms)
Country of Origin	Made in China

Frequently Asked Questions - BT5890-150 B-Tech

What is the maximum weight this mount can support?

The BT5890-150 has a maximum load capacity of 10 kg (22 lbs).

What tools are needed for installation?

You will need a 13 mm spanner or socket, a flathead screwdriver, a drill, a 10 mm masonry bit or 6 mm wood bit, a pencil, and optionally a saw for cutting the pole.

Can this mount be installed on drywall?

Drywall alone is not sufficient. The mount must be securely fixed to a wooden stud, concrete block, or other permanent structure behind the drywall.

What is the ceiling drop distance?

The BT5890-150 provides a ceiling drop of 1645 mm (64.8 inches).

Does the mount include a ceiling plate?

Yes, the BT5820 ceiling plate is included and must be fixed to the ceiling first.

What projector fixing patterns are compatible?

It supports 75x75 mm and 100x100 mm patterns directly, and other patterns up to 493 mm apart using the included legs.

How do I adjust the tilt and roll?

Loosen the M8 screws, adjust the projector to the desired angle (up to +/- 15° for both tilt and roll), then re-tighten the screws.

Is professional installation recommended?

Yes, B-Tech strongly recommends that a professional AV installer or suitably qualified person install this product for safety.

What is the weight of the mount itself?

The exact weight is not specified, but it is approximately 2-3 kg (4-7 lbs) based on similar products.

Where can I get support or additional parts?

Contact B-Tech via their website www.btechavmounts.com or email [e-mail] for the UK head office.

USER MANUAL BT5890-150 B-Tech

PLEASE KEEP THIS FOR FUTURE REFERENCE

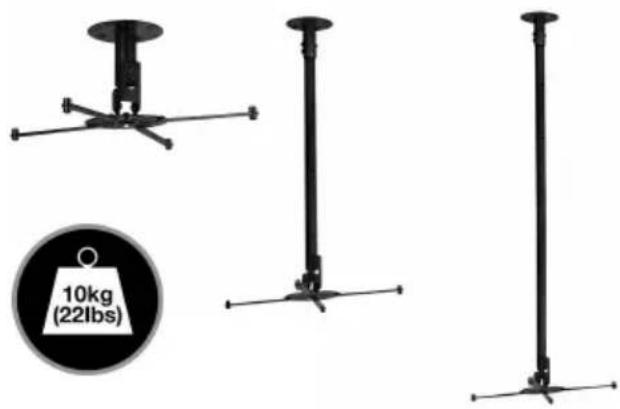

Three black vertical poles with metal rods and a circular inset showing weight measurement (10kg, 22lbs)

REGISTERED DESIGN

The System V ^TM range is available in package or component form.

This installation guide demonstrates how to install and use the System V™ projector mounting range from B-Tech.

CONTENTS

Installation Safety Notes....2

BT5890-010 Installation Instructions....4

BT5890-075 & BT5890-150 Installation Instructions....5

Product Dimensions....10

B-Tech Contact Details....12

INSTALLATION TOOLS REQUIRED

13mm (1/2") spanner or socket

Flathead screwdriver

Drill

10mm (7/16") masonry bit or 6mm (1/4") wood bit

Pencil

Saw (Optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use

only with the maximum weights indicated. Use with

flat screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some ceilings are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

BT5890-075 & BT5890-150 INSTALLATION INSTRUCTIONS

1

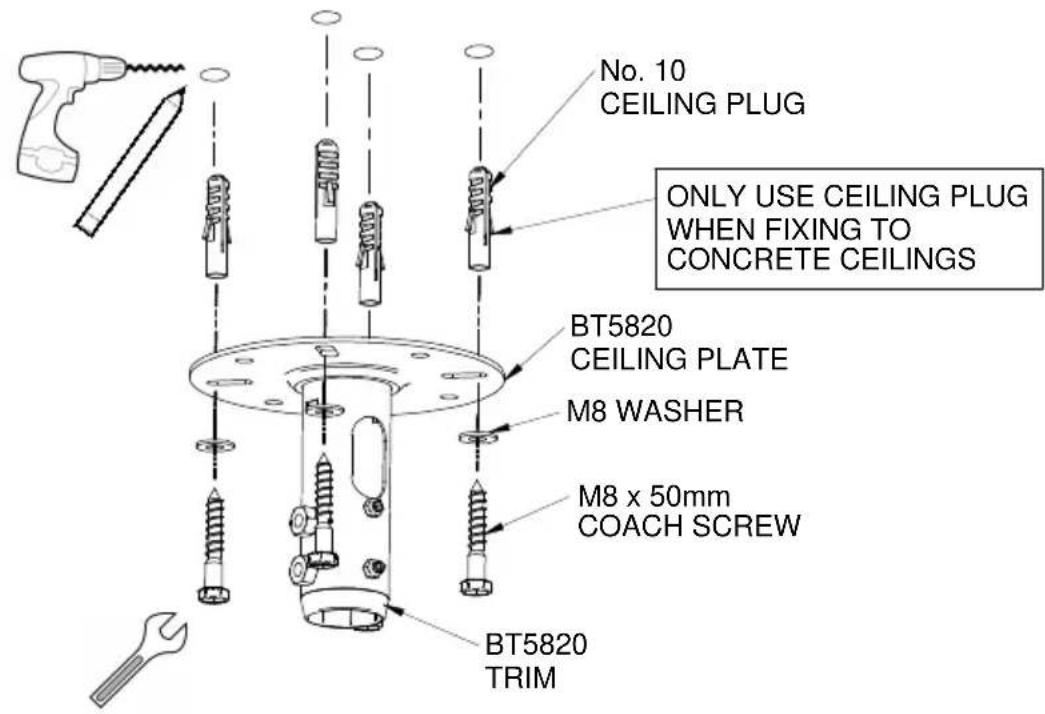

Fix the BT5820 ceiling plate to the ceiling.

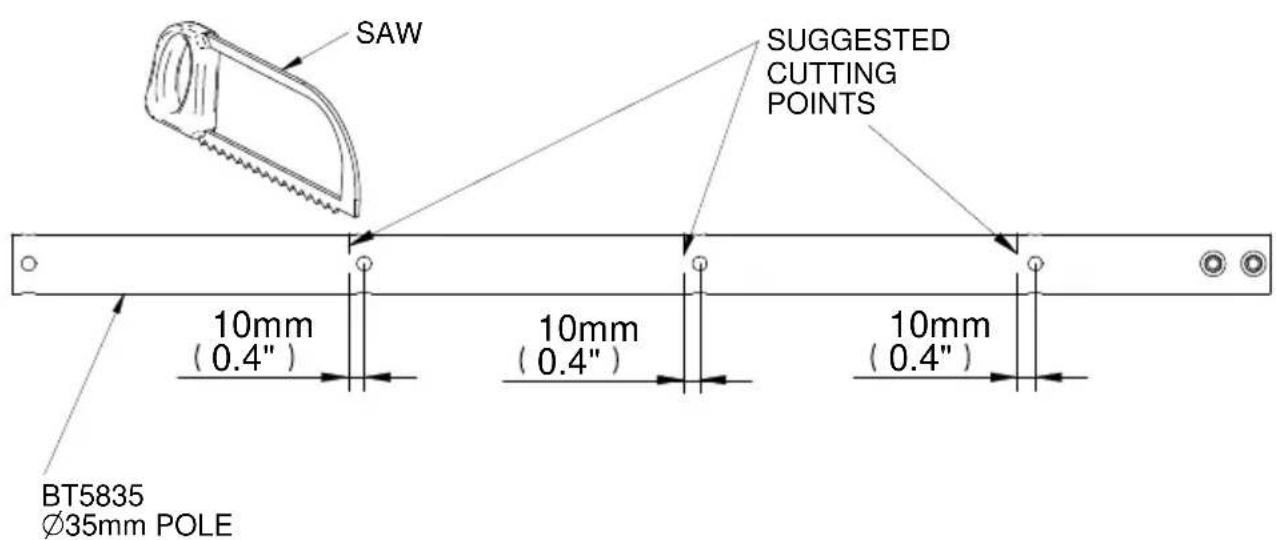

OPTIONAL: Cut BT5835 pole to desired length.

2

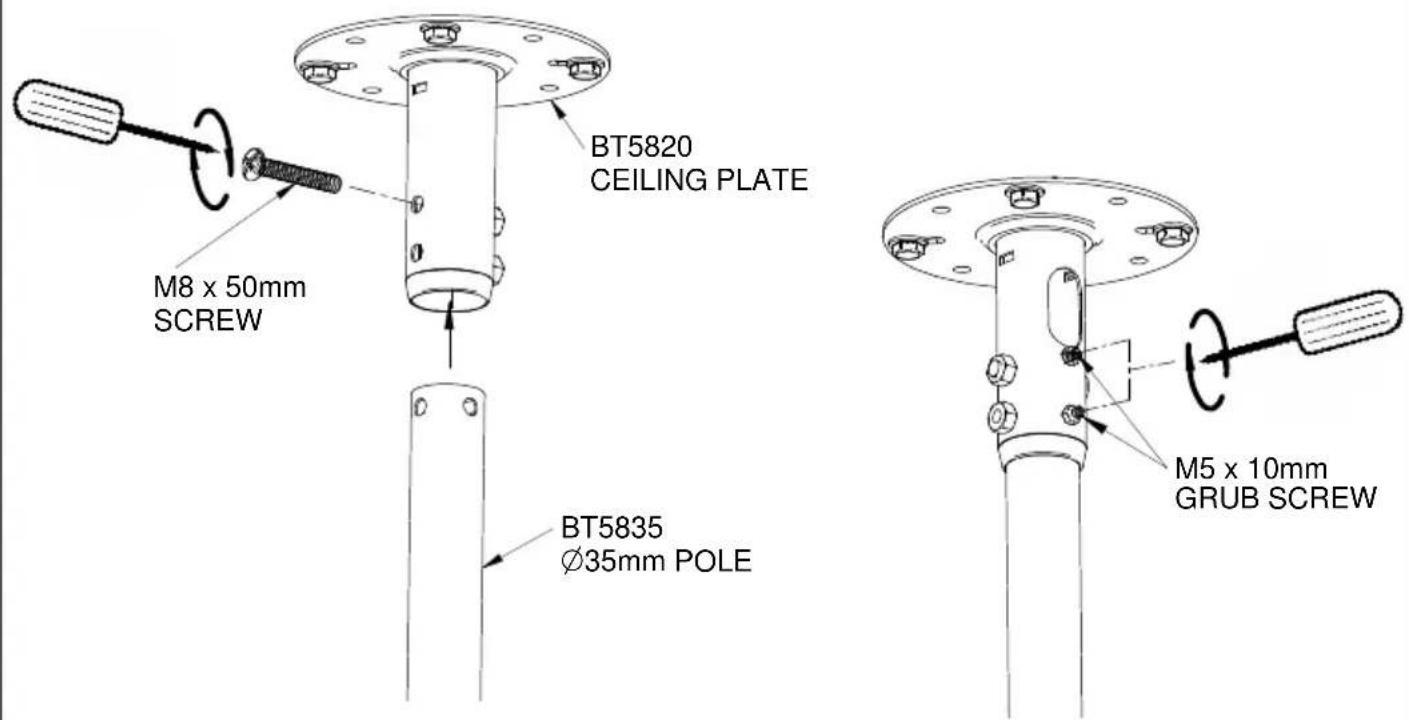

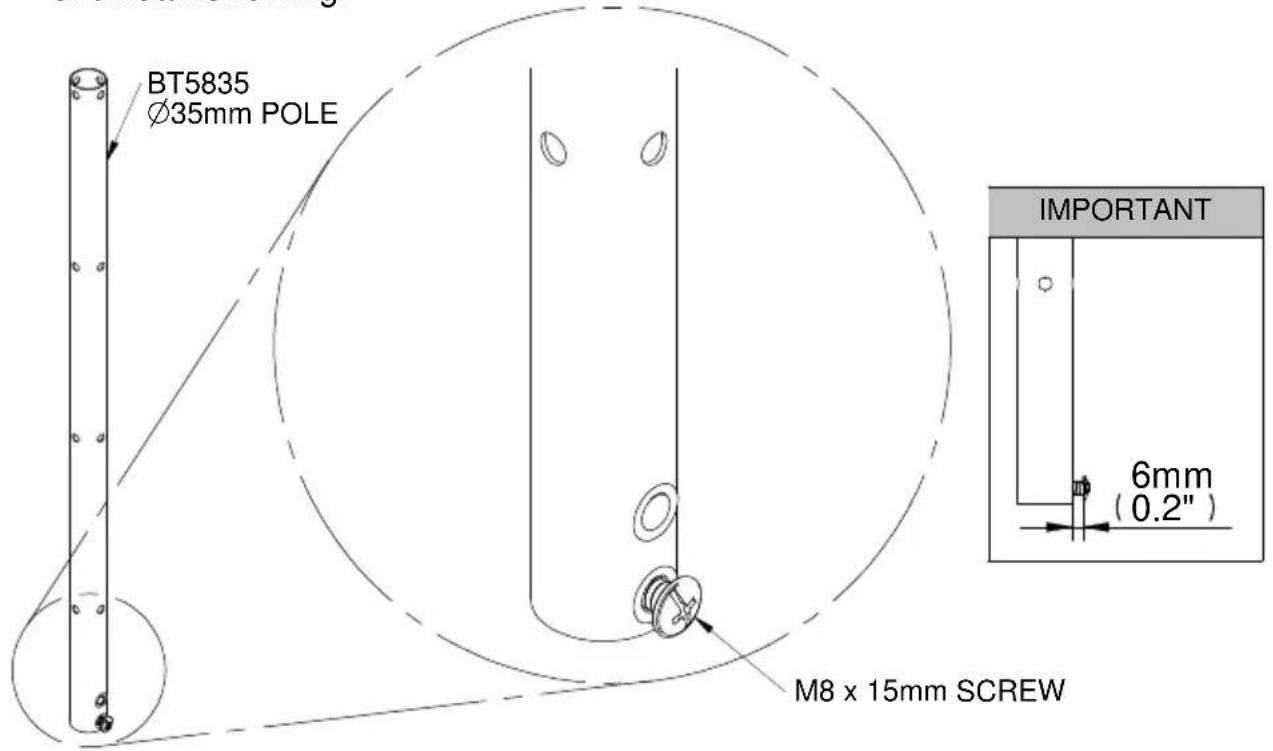

i. Fix one M8 x 15mm screw into the BT5835 pole as shown, leaving 6mm of thread showing.

ii. Attach the BT5835 pole to the BT5820 ceiling mount.

6

3

There are two methods of attaching the mount to the projector, depending on the projector fixing pattern.

A. 75 x 75mm & 100 x 100mm (page 7)

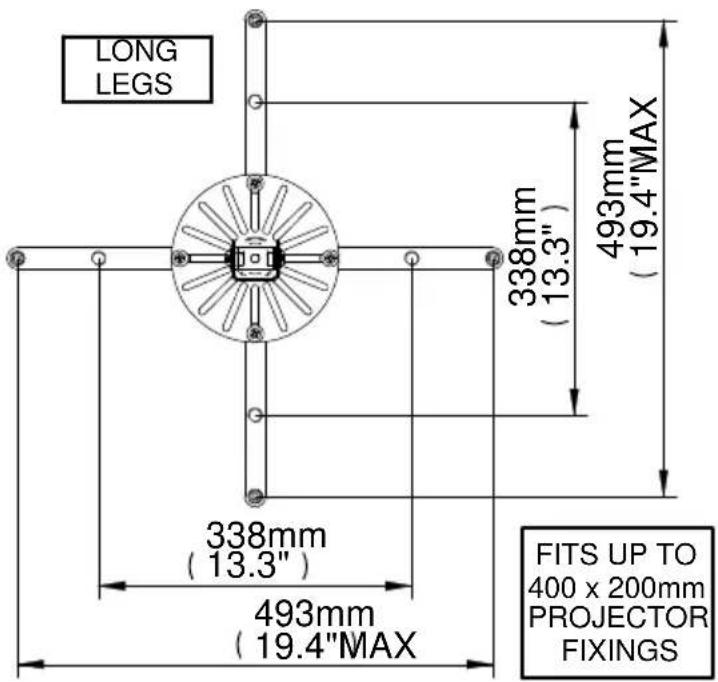

B. All other fixing patterns up to 493mm apart (page 8)

A

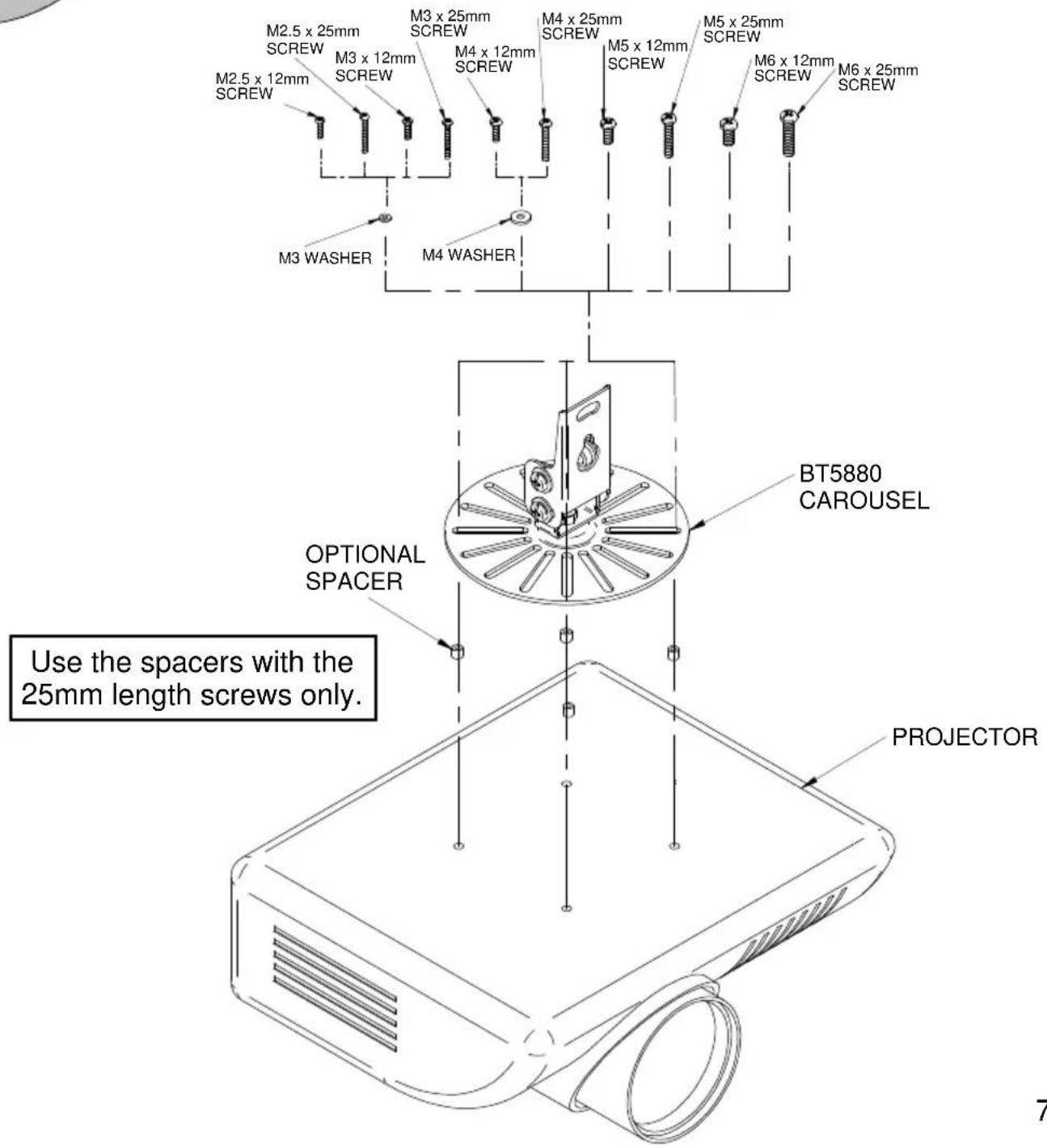

Attach the carousel directly to the projector.

B

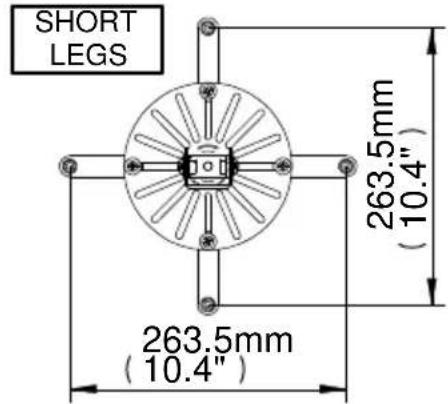

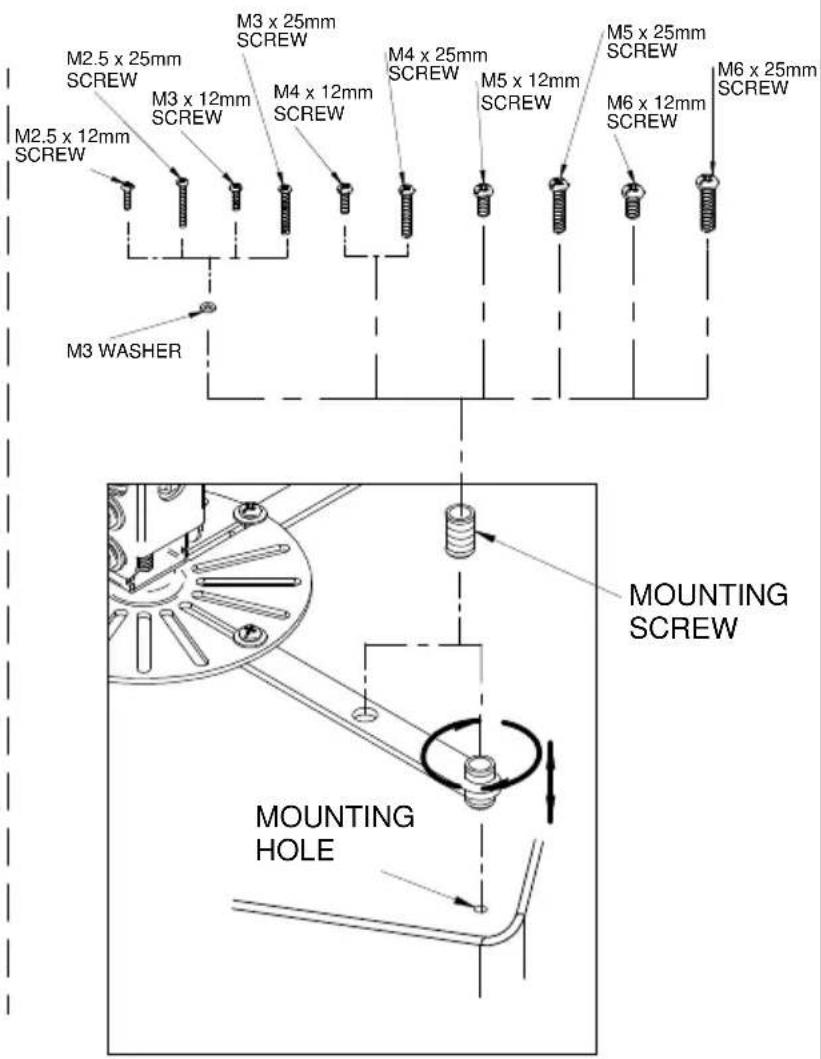

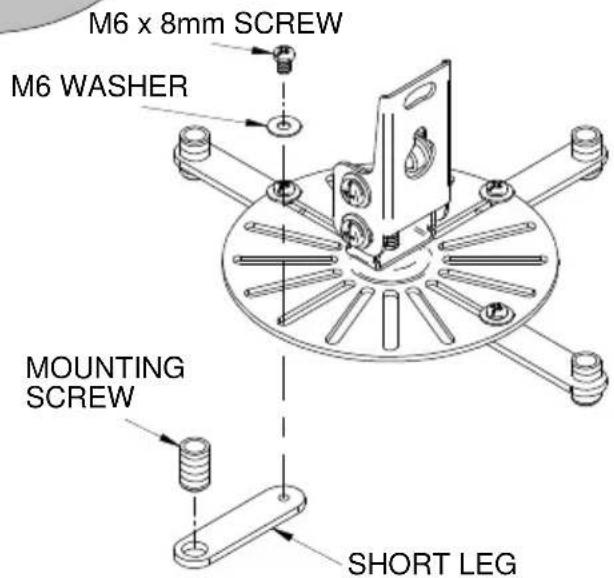

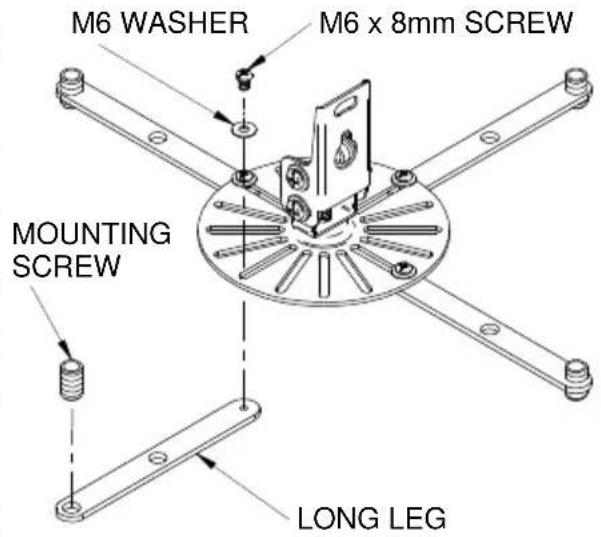

i. Attach the legs to the carousel.

ii. Attach the legs to the projector.

8

4

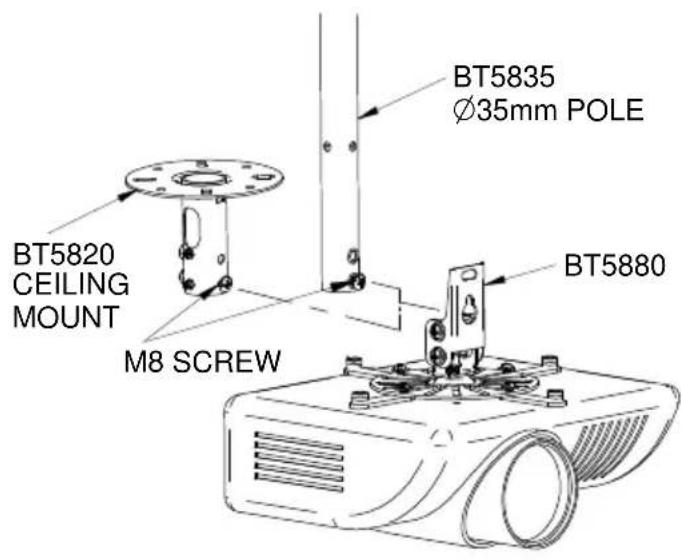

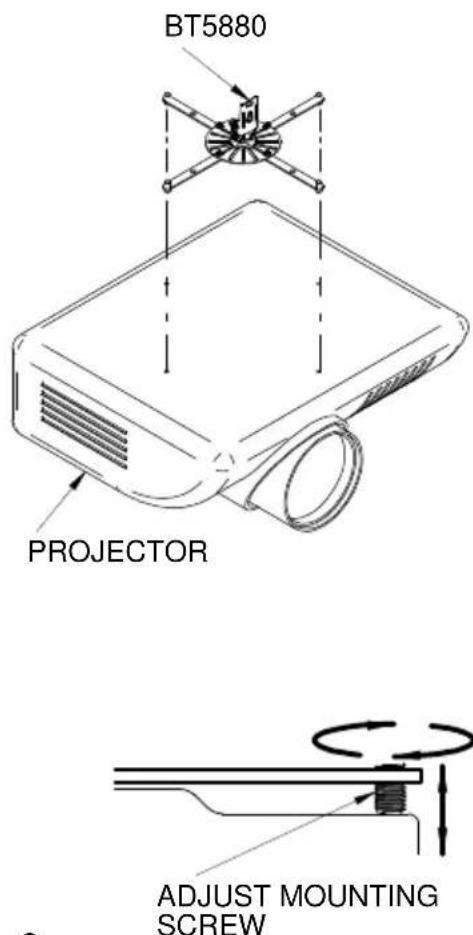

Hook the BT5880 onto the M8 screw using the keyhole fixing.

6

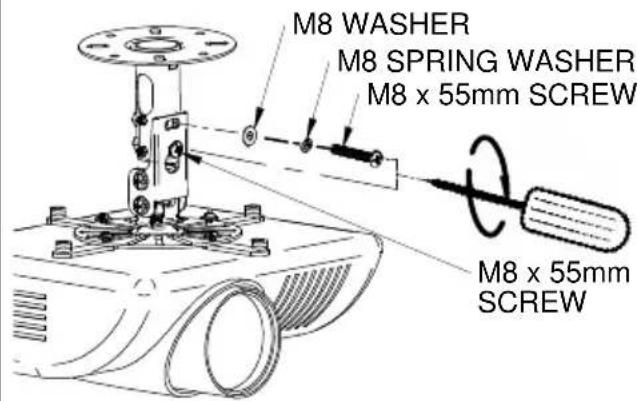

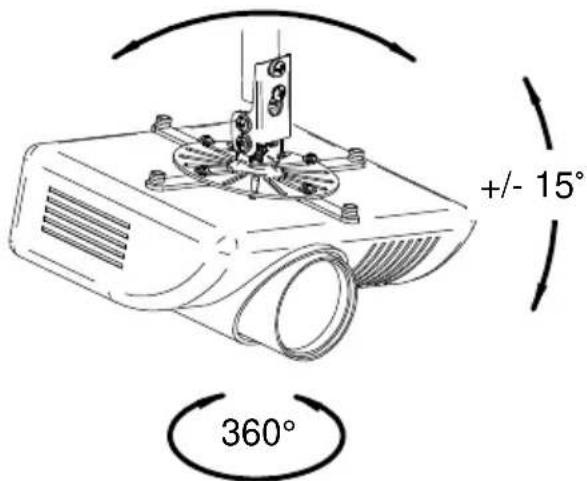

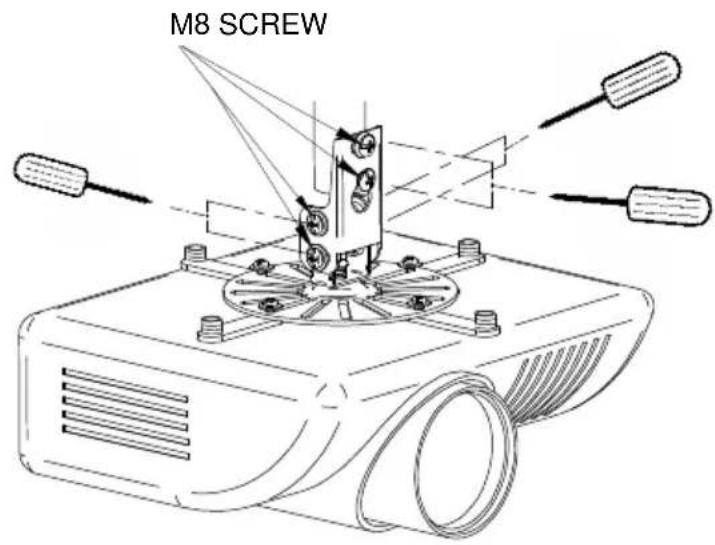

To tilt and roll, loosen the M8 screws, adjust and re-tighten.

5

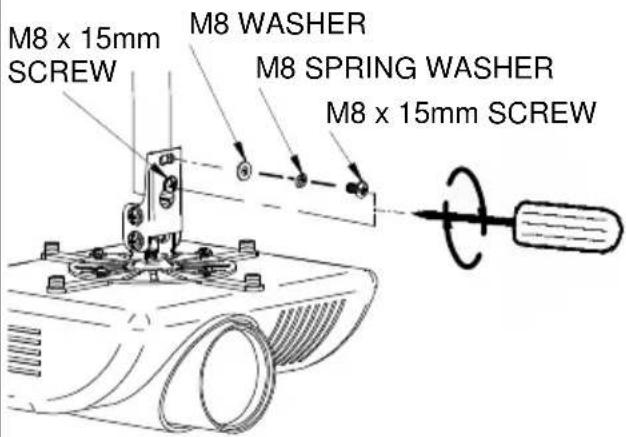

Secure the BT5880 using the M8 screws provided.

+/- 15°

INSTALLATION COMPLETE

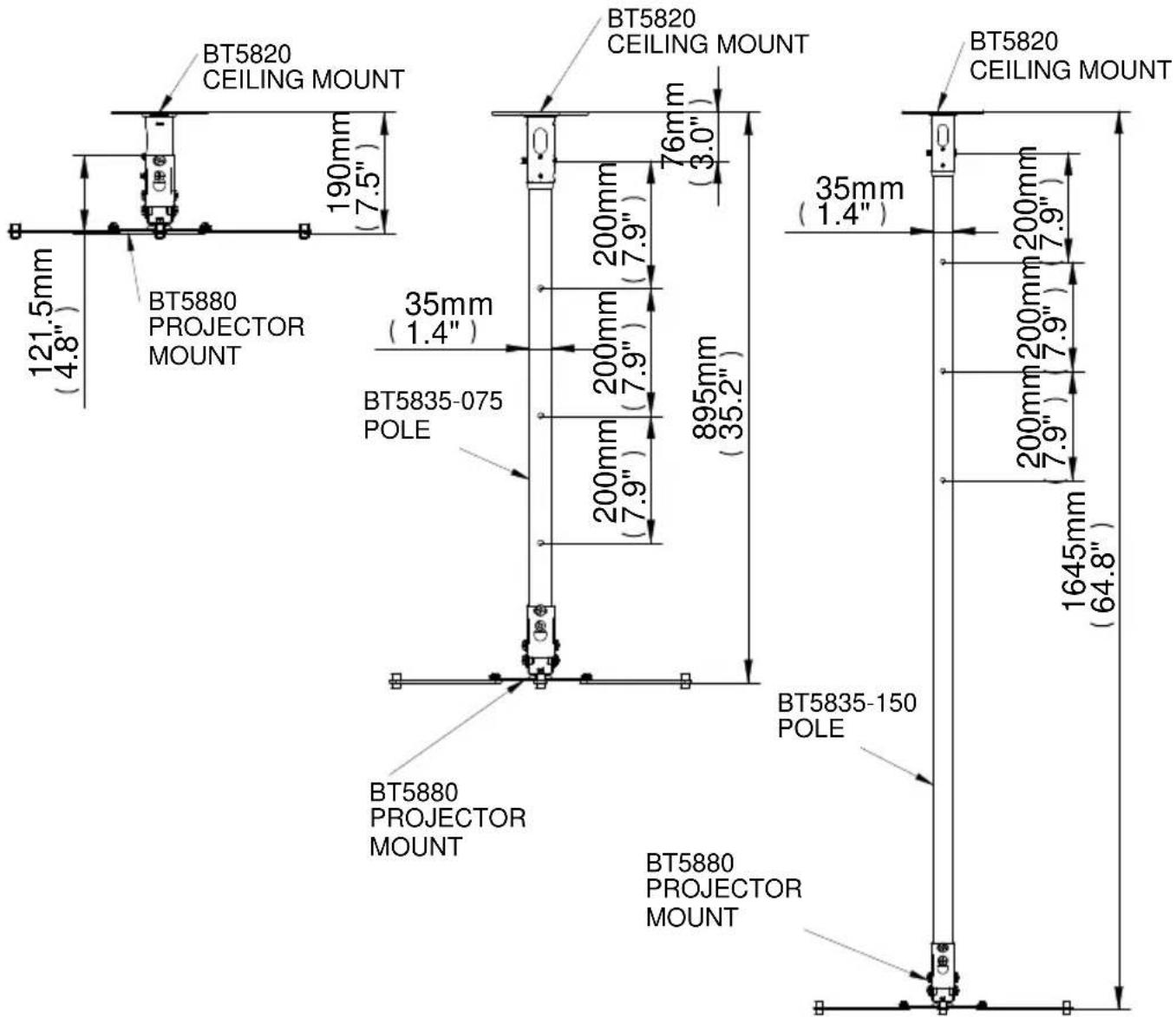

SYSTEM V™ PRODUCT DIMENSIONS

PRODUCT CEILING DROP		MAXIMUM DISTANCE BETWEEN ANY 2 FIXING POINTS		TILT ROLL	SWIVEL		SUITABLE FOR PROJECTORS WITH FIXINGS	MAXIMUM LOAD
BT5890-010	190mm (7.5")						M2.5, M3, M4, M5 & M6
BT5890-075	895mm (35.2")
BT5890-150	1645mm (64.8")

BT5890-010 BT5890-075

BT5890-150

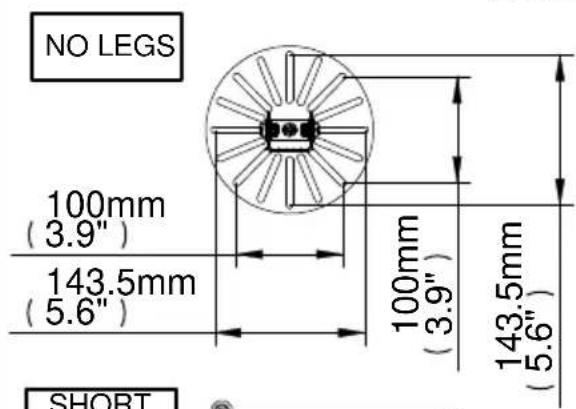

SYSTEM V™ PRODUCT DIMENSIONS

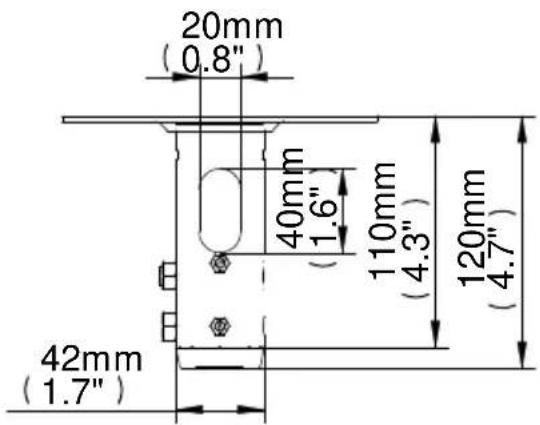

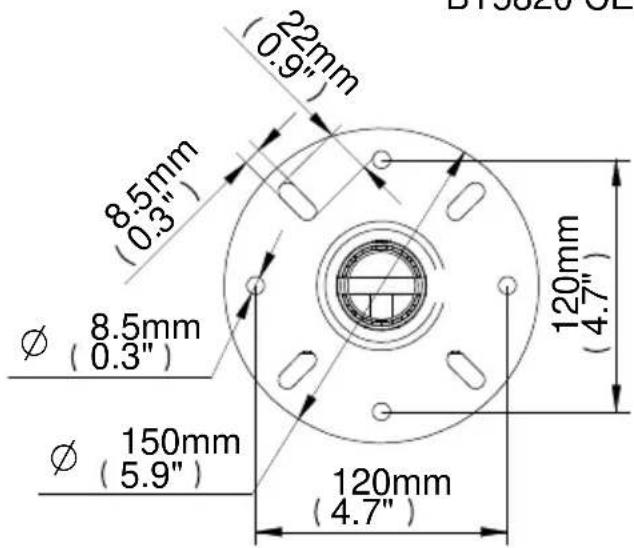

BT5820 CEILING PLATE

BT5880 INTERFACE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BETTER BY DESIGN®

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: [e-mail]

EUROPE

BELGIUM

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

GERMANY

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

ASIA PACIFIC

1109 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

©2011 B-Tech International Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of B-Tech International Limited.

B-Tech, Better By Design and Mountlogic are registered trademarks of B-Tech International Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

IP-SYSTEMV-PR-V1-PROBX-100811-03 MADE IN CHINA
