Product Type	Flat Panel Mount
Brand	B-Tech
Model	BT8222
Mounting Pattern (VESA)	75x75mm and 100x100mm
Screen Size Compatibility	23 to 55 inches
Weight Capacity	Up to 40 kg (88 lbs)
Material	Cold-rolled steel, powder coated
Color	Black
Tilt Range	-15° to +15°
Swivel Range	±45°
Rotation	±5° for level adjustment
Distance from Wall	50 mm (2 inches)
Cable Management	Yes, integrated cable clips
Installation	Wall plate with anchors and bolts included
Product Dimensions (WxHxD)	400x250x50 mm
Box Contents	Mount, hardware kit, instruction manual
Additional Features	Safety lock, rust-resistant finish, 5-year warranty

Frequently Asked Questions - BT8222 B-Tech

What VESA patterns does the B-Tech BT8222 support?

The BT8222 supports standard VESA mounting patterns of 75x75mm and 100x100mm, fitting most flat screens.

What is the maximum weight capacity?

The maximum weight capacity is 40 kg (88 lbs). Ensure your screen does not exceed this limit.

What screen sizes can I use with this mount?

It is designed for screens from 23 to 55 inches, depending on weight and VESA pattern.

Does the mount offer tilt and swivel?

Yes, it provides -15° to +15° tilt and ±45° swivel for optimal viewing angles.

How far from the wall will my screen be?

The mount keeps the screen approximately 50 mm (2 inches) from the wall, giving a low profile.

Is cable management included?

Yes, the mount has integrated cable clips to organize and hide wires.

Is the mount easy to install?

Installation is straightforward with the included wall plate, anchors, bolts, and clear instructions. A level is recommended.

What material is the mount made of?

The mount is constructed from cold-rolled steel with a powder-coated black finish for durability and rust resistance.

Does the mount have a safety lock?

Yes, it features a safety lock to secure the screen and prevent accidental dislodging.

What warranty does B-Tech offer?

B-Tech provides a 5-year warranty against manufacturing defects.

USER MANUAL BT8222 B-Tech

This Pack Contains 1 Mount

PLEASE KEEP THIS FOR FUTURE REFERENCE

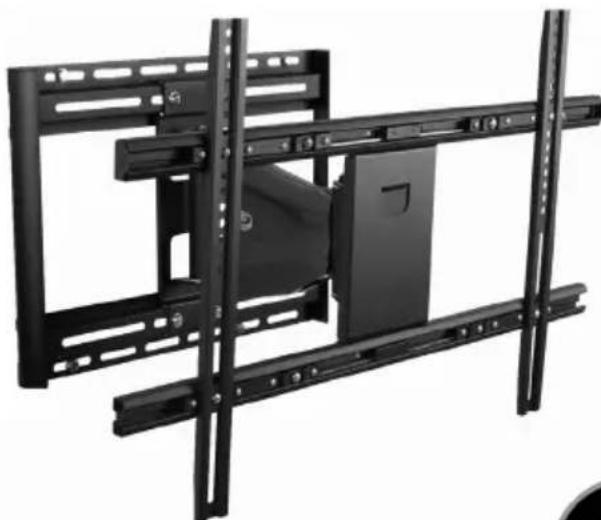

Black metal shelving unit with vertical supports and a central panel (no text or symbols visible)

INSTALLATION MAY REQUIRE 2 PEOPLE

FEATURES

• Designed for flat screens up to 65" (165cm) / 60kg (132lbs)
• Fits screens with VESA & Non-VESA mounting patterns up to 790mm (31.1") x 500mm (20")
• Easy tilt adjustment +15°

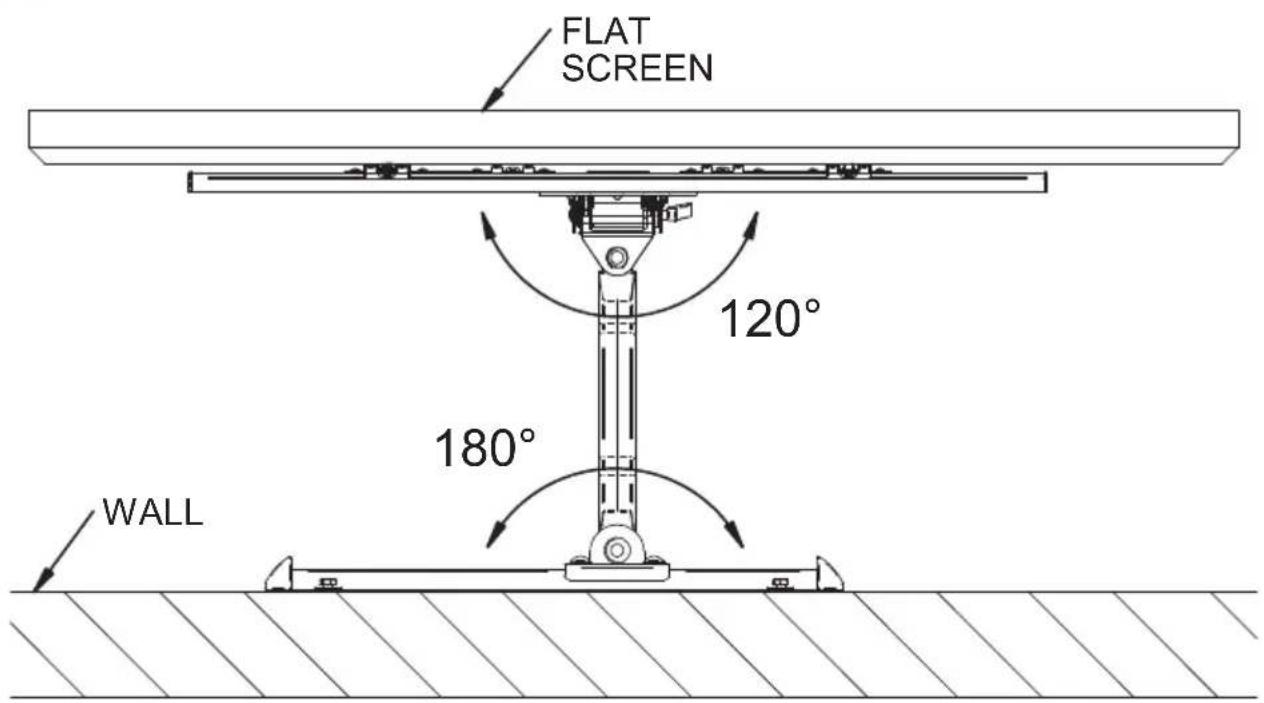

• Features two swivel points: 180^ at wall and 120^ at interface
• Suitable for concrete / brick or stud walls up to 16"
• Simple 'hook-on' installation with all mounting hardware included

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....18

B-Tech Contact Details....20

INSTALLATION TOOLS REQUIRED

17mm (17/26") spanner or socket

Crosshead screwdriver

Drill

12mm (15/32") masonry bit or 8mm (5/16") wood bit

Pencil

Stud finder (optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This wall mount is intended for use only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Line drawing of a wrench with a circular annotation indicating the number 20 (no text or symbols on the wrench itself)

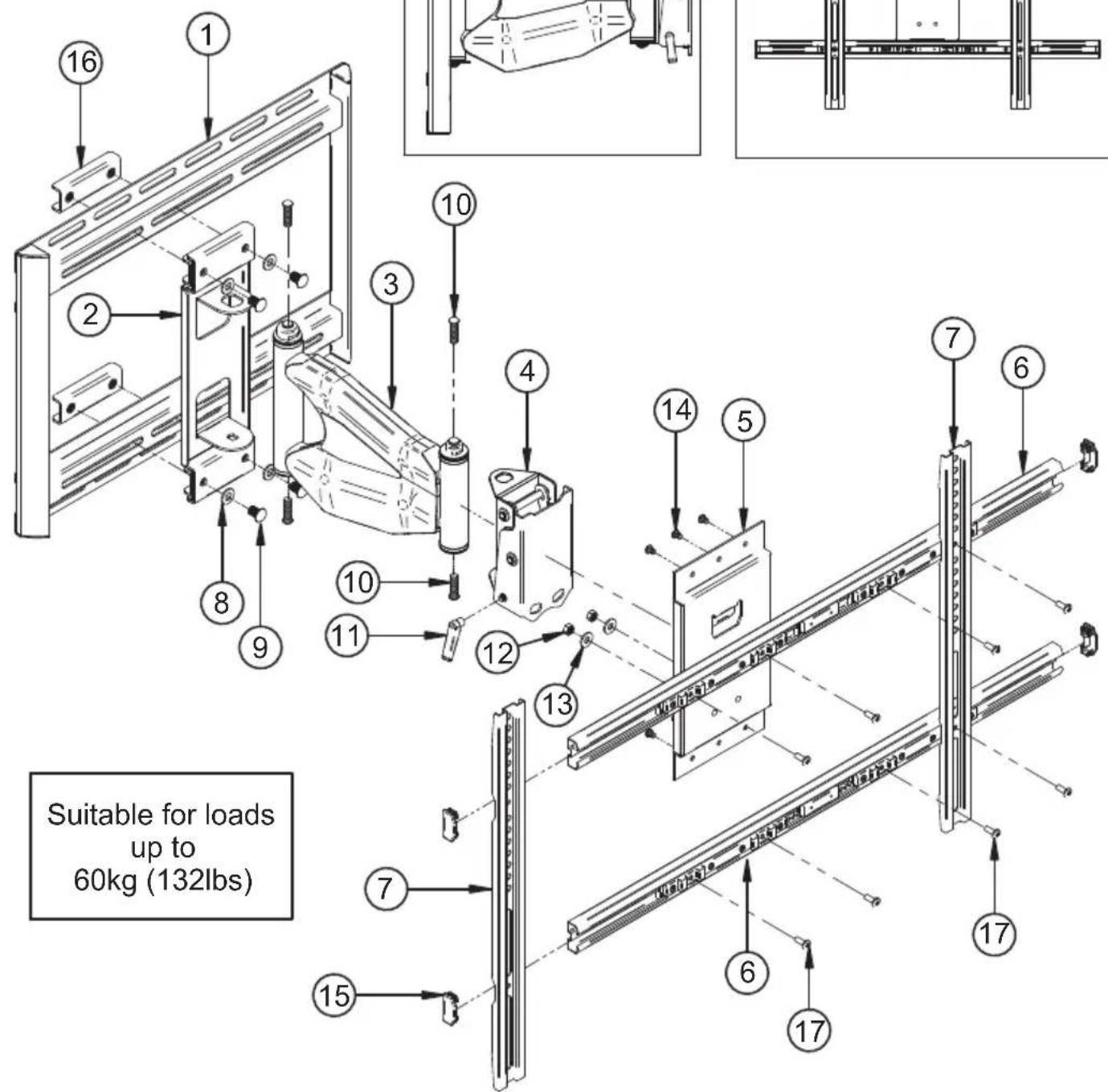

REF	PART NAME QTY
1	WALL PLATE 1
2	FIXING PLATE 1
3	ARM 1
4	TILT PLATE 1
5	HOOK PLATE 1
6	CROSS RAIL 2
7	INTERFACE ARM 2
8	M10 METAL WASHER 4
9 M10 x 25mm HEX SCREW 4
10 M8 x 20mm HEX SCREW		4
11 TILT ADJUSTMENT HAND LEVER		1
12	M8 NUT	2
13	M8 METAL WASHER	2
14 M6 x 8mm HEX SCREW		6
15	PLASTIC CAP	4
16	ADJUSTMENT FIXING PLATE	2
17 M6 x 15mm SCREW		8
18	5mm HEX KEY (FOR PART 10)	1
19	6mm HEX KEY (FOR PART 9)	1
20	13mm/17mm SPANNER (FOR PARTS A1 & 12)	1

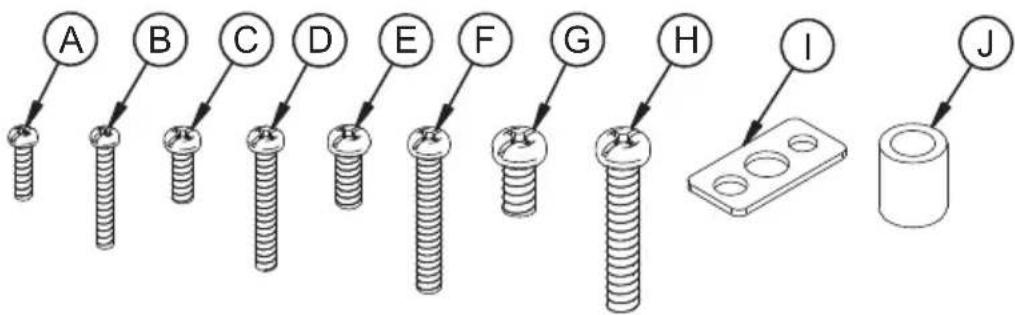

INTERFACE KIT
A	M4 x 15mm SCREW	4
B	M4 x 35mm SCREW	4
C	M5 x 15mm SCREW	4
D	M5 x 35mm SCREW	4
E	M6 x 15mm SCREW	4
F	M6 x 35mm SCREW	4
G	M8 x 15mm SCREW	4
H	M8 x 35mm SCREW	4
I	MULTIWASHER	4
J M8 x 15mm SPACER		4

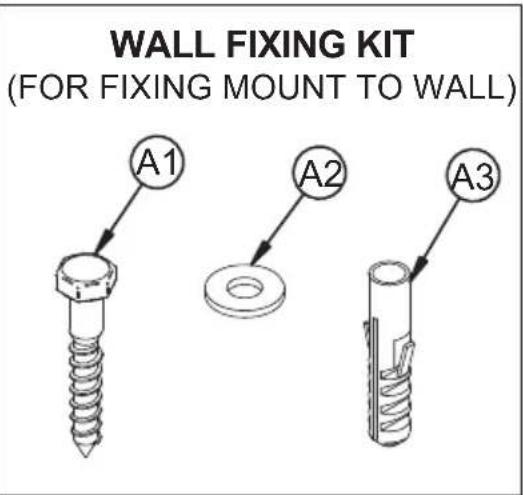

WALL FIXING KIT
A1	M10 x 90mm COACH SCREW	4
A2	M10 METAL WASHER (FOR PART A1)	4
A3	No. 12 WALL PLUG (FOR PART A1)	4

FLAT SCREEN INTERFACE KIT
(FOR ATTACHING MOUNT TO BACK OF FLAT SCREEN)

INSTALLATION INSTRUCTIONS

1

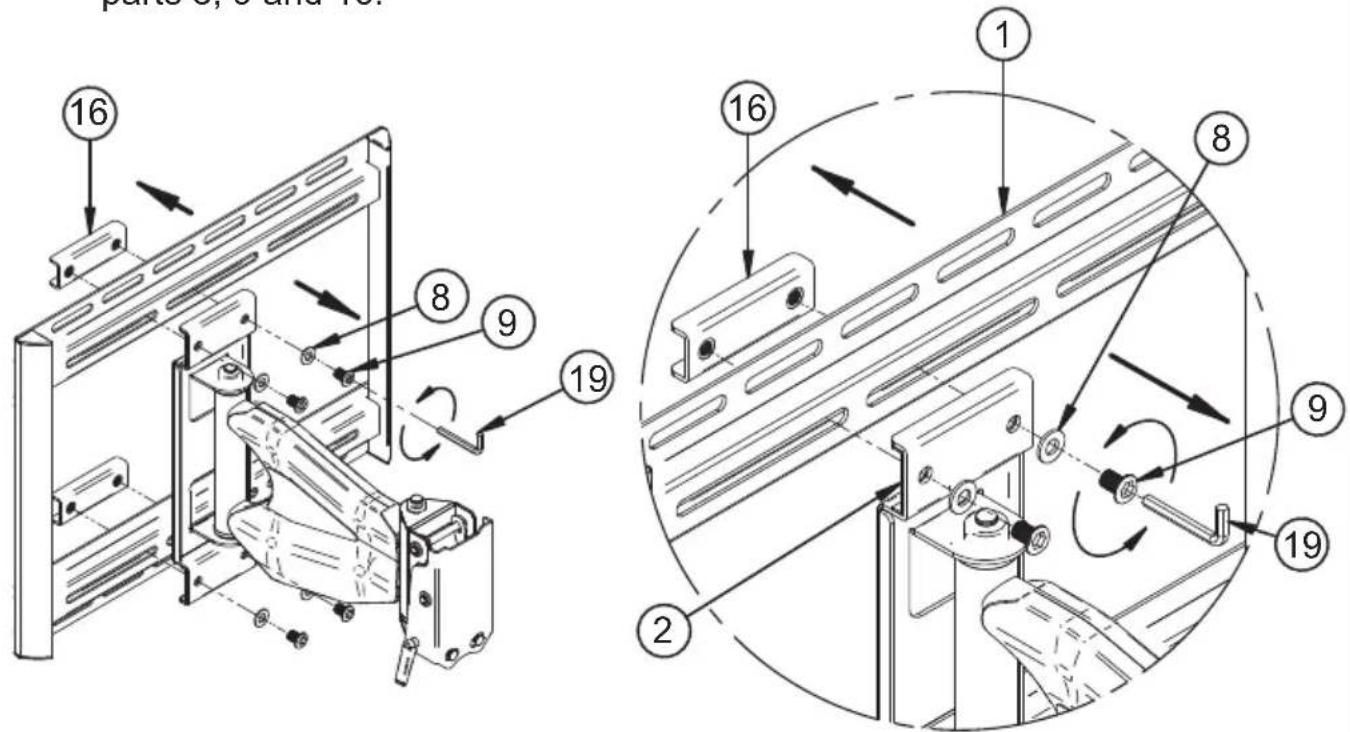

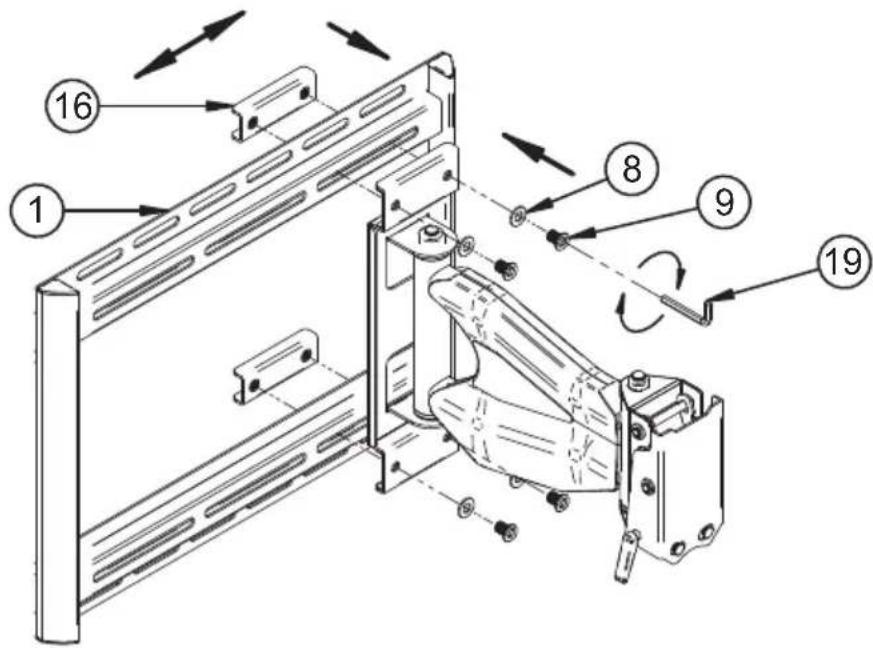

OPTIONAL: To adjust position of the wall arm on the wall plate, remove parts 8, 9 and 16. Then move fixing plate to desired position, then re-attach parts 8, 9 and 16.

2

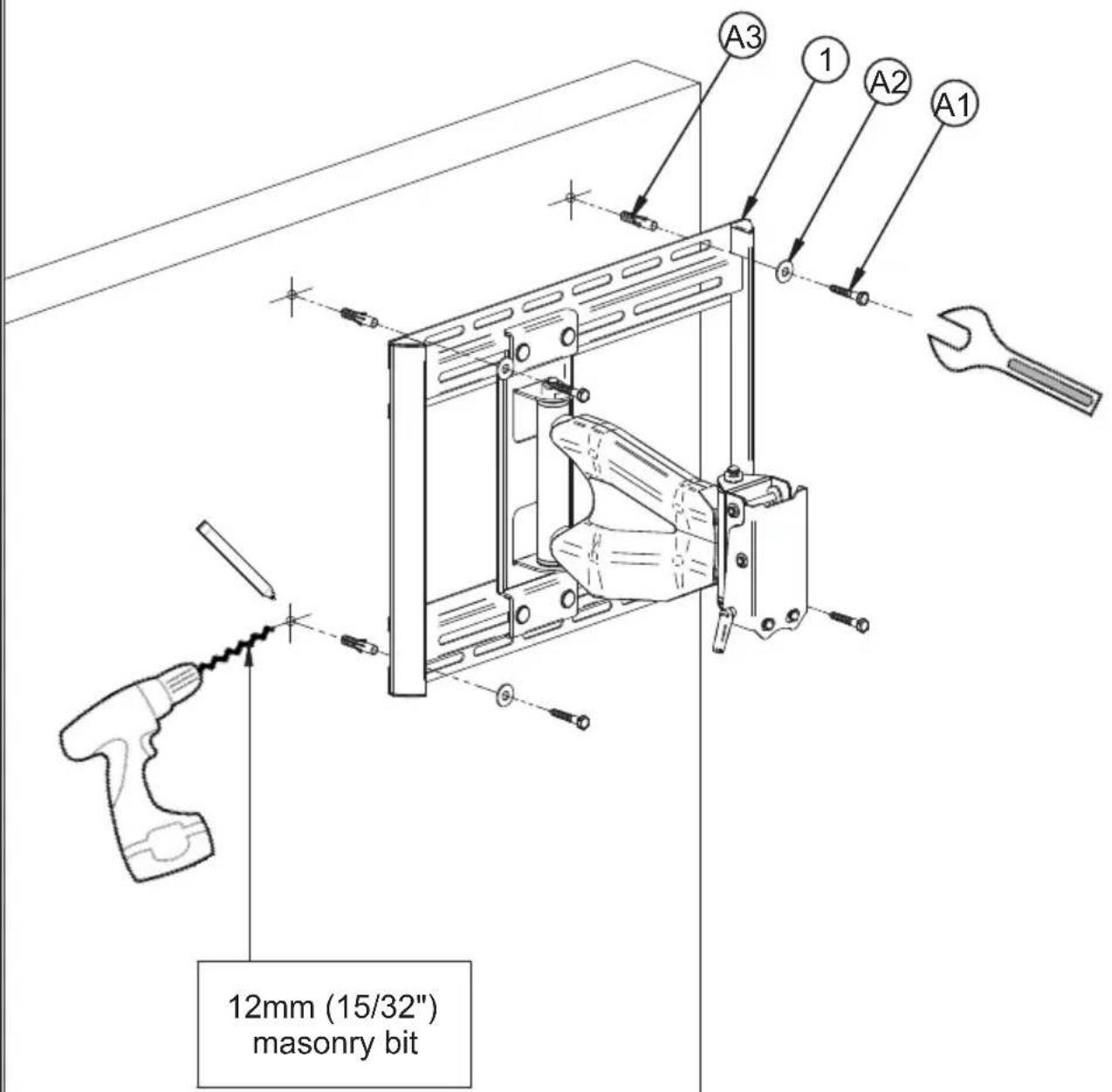

Fix wall plate to the wall using one of the following methods.

i. Brick / concrete walls.

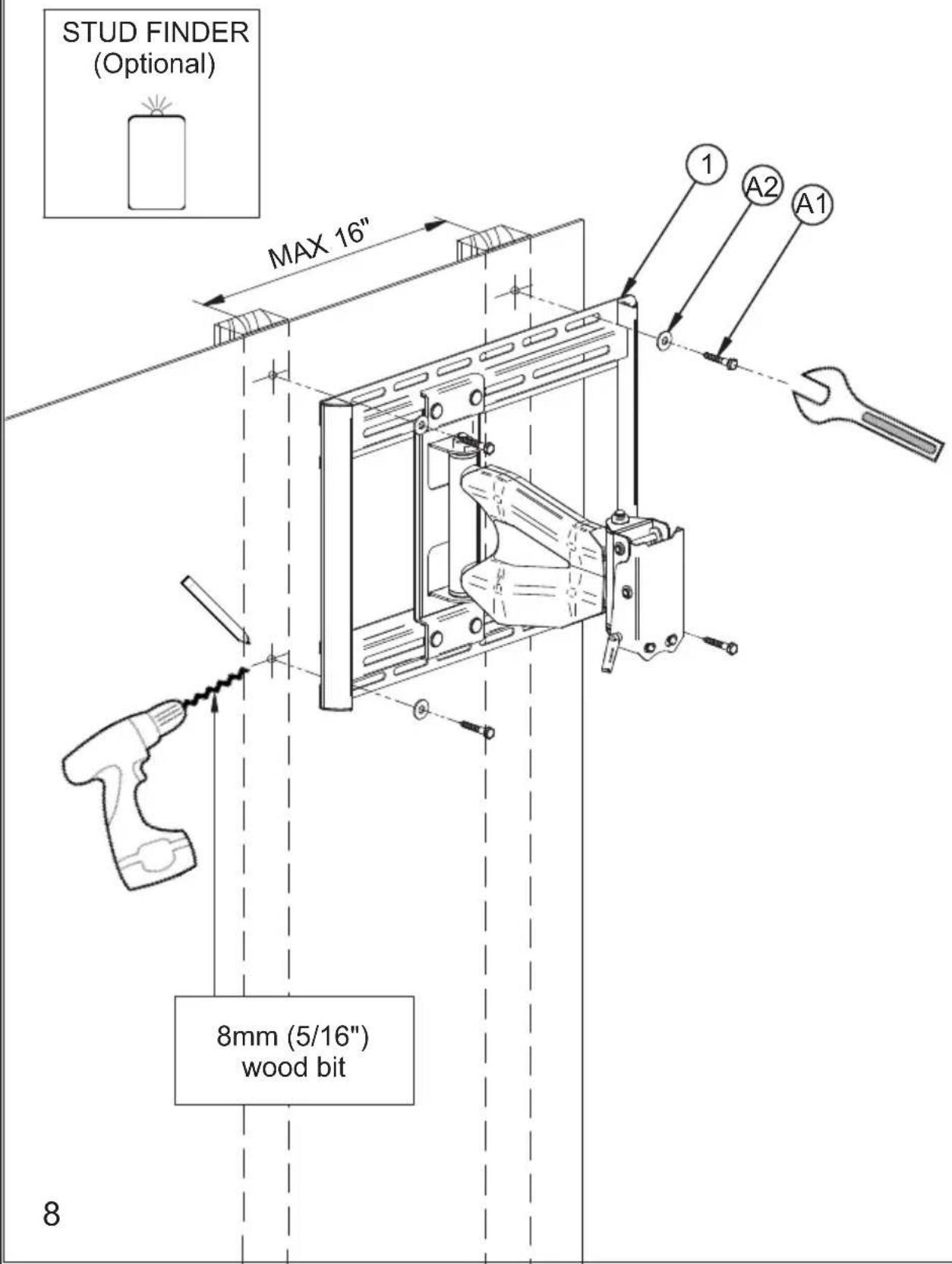

ii. Wood / wood stud walls.

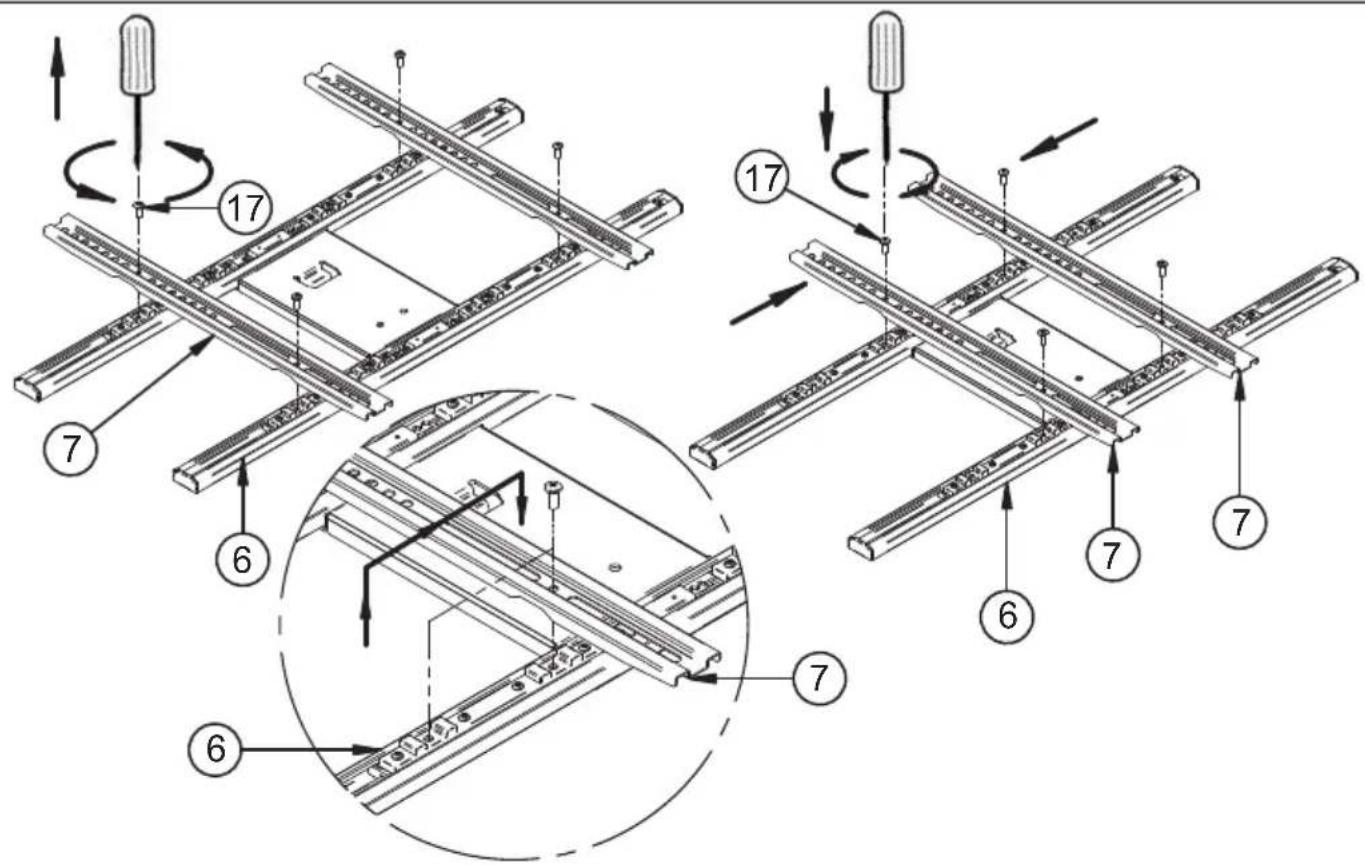

OPTIONAL : For horizontal fixings between 380mm and 140mm, remove interface arms and attach in the vacant position closer to the centre of the interface.

3

Attach interface to screen.

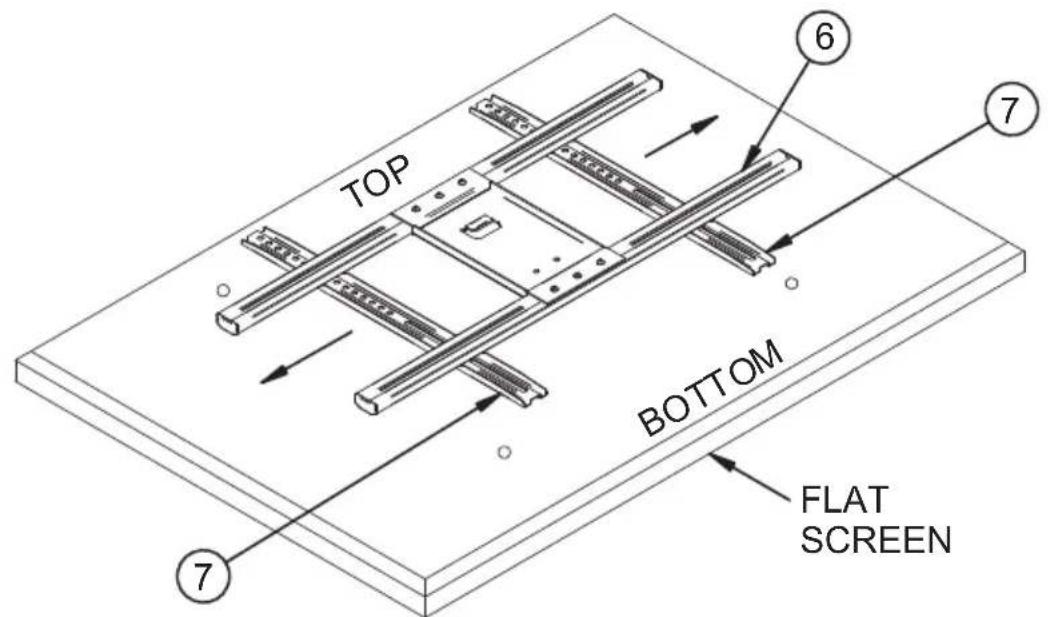

i. Adjust interface arms to suit the flat screen's fixing pattern.

9

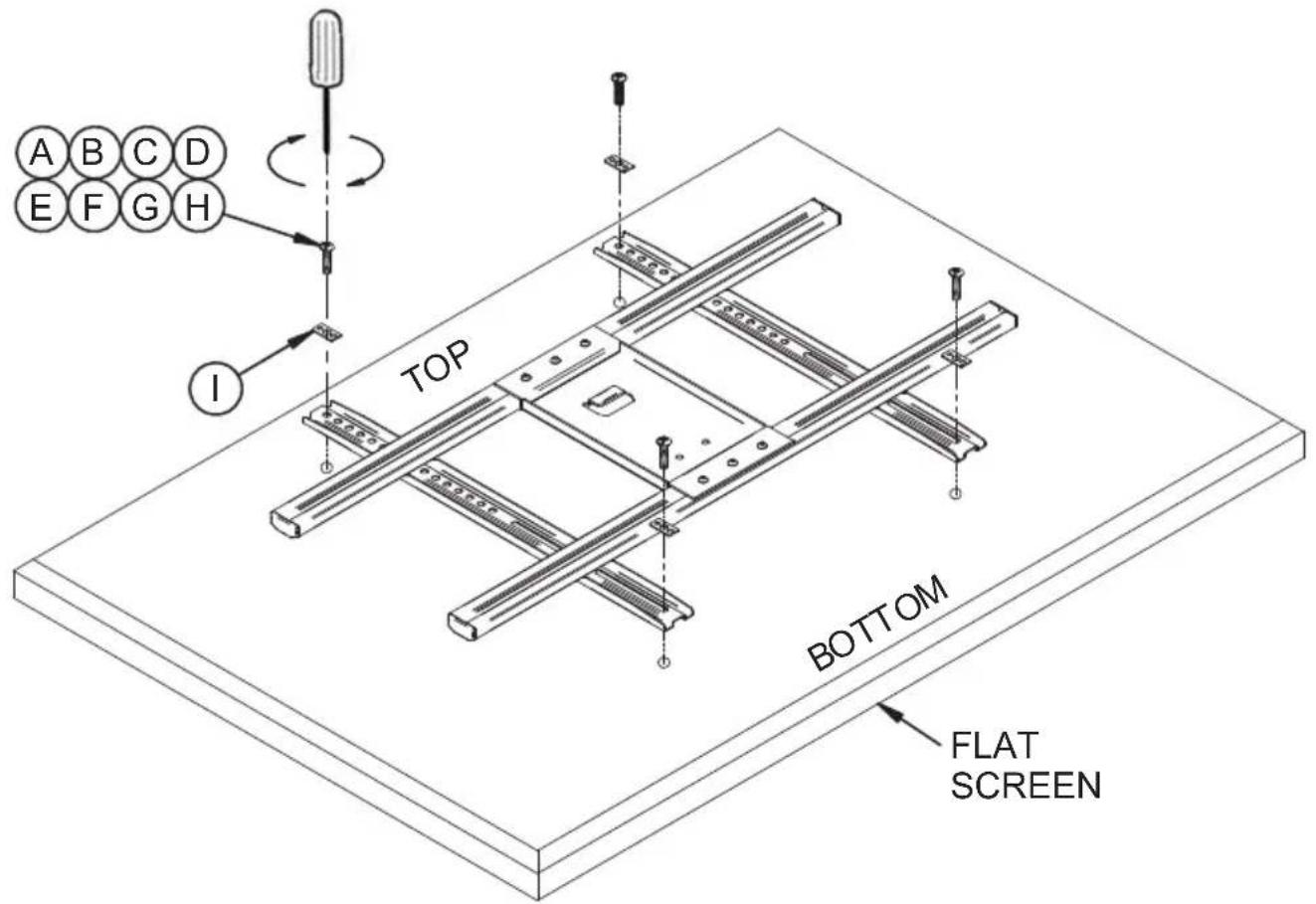

ii. Attach the interface arms to the flat screen.

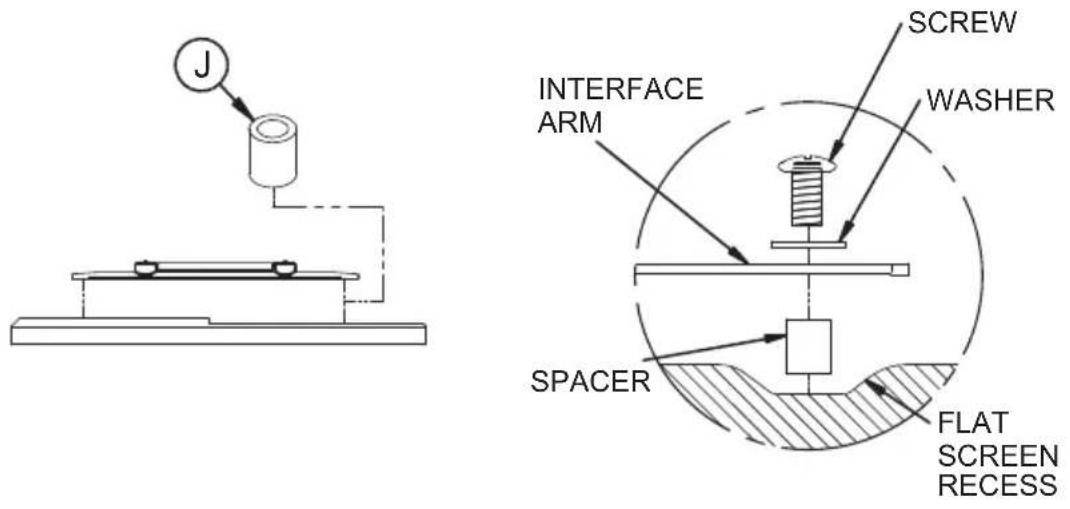

FOR SCREENS WITH RECESS FIXINGS

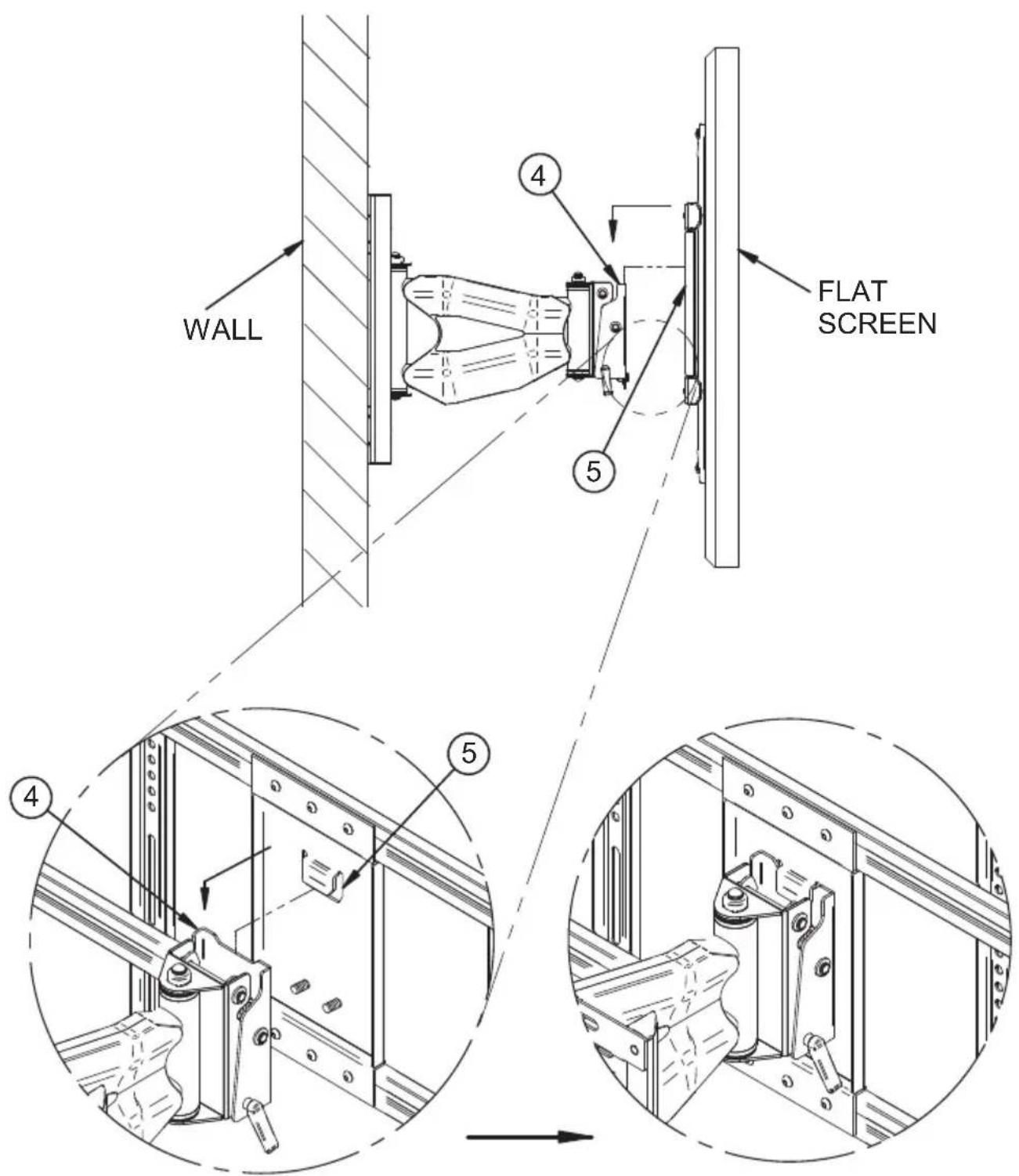

4

Hook the screen onto the tilt plate.

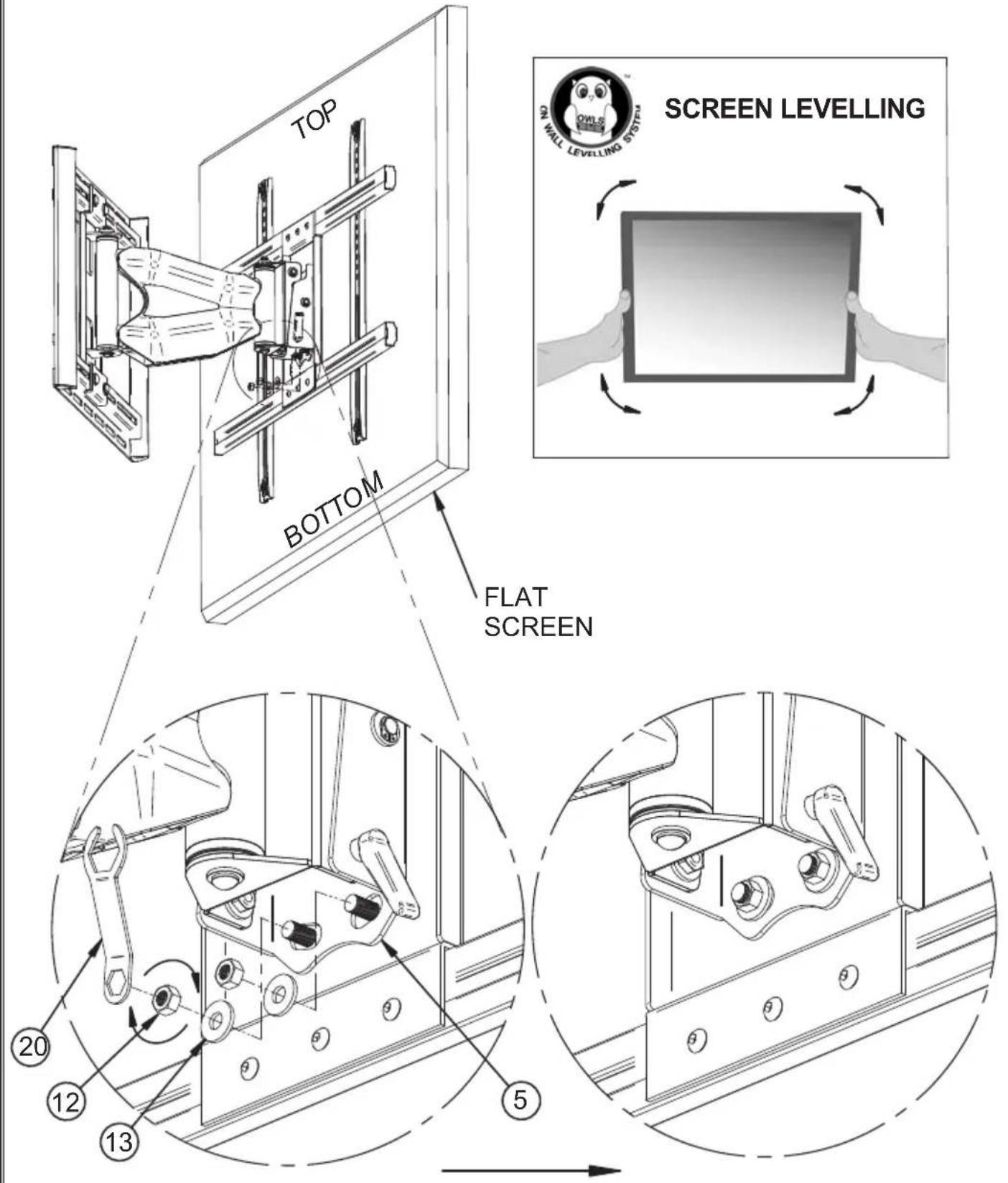

ii. Level screen then fix in place using parts 12 & 13.

5

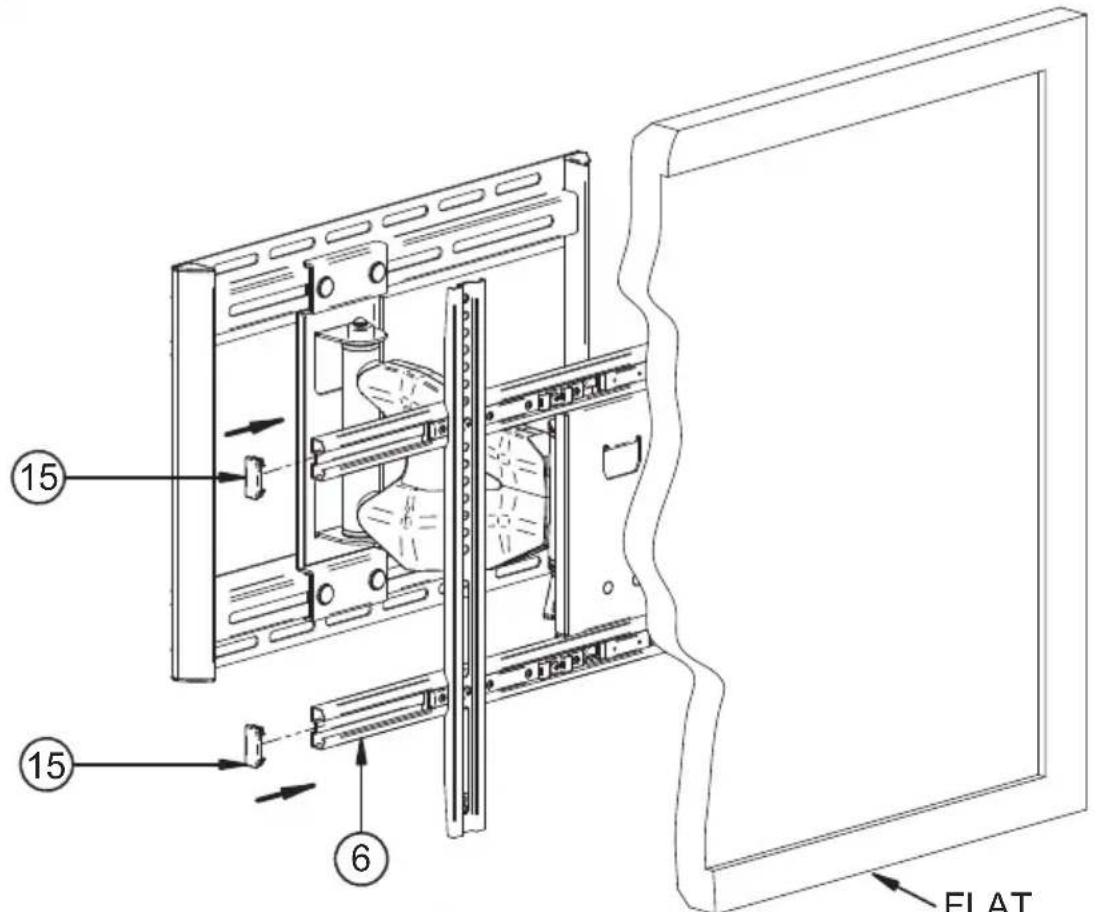

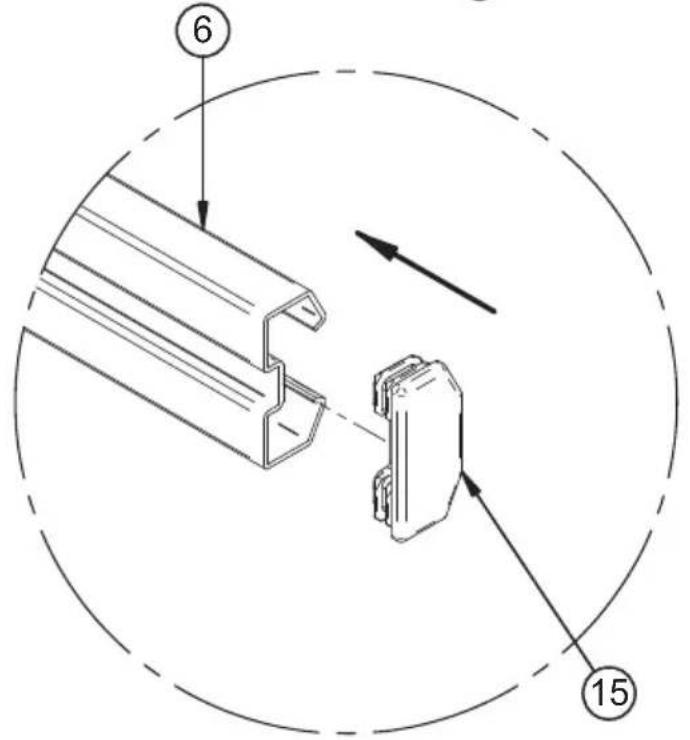

Attach plastic caps (parts 15) to the cross rails (parts 6).

6

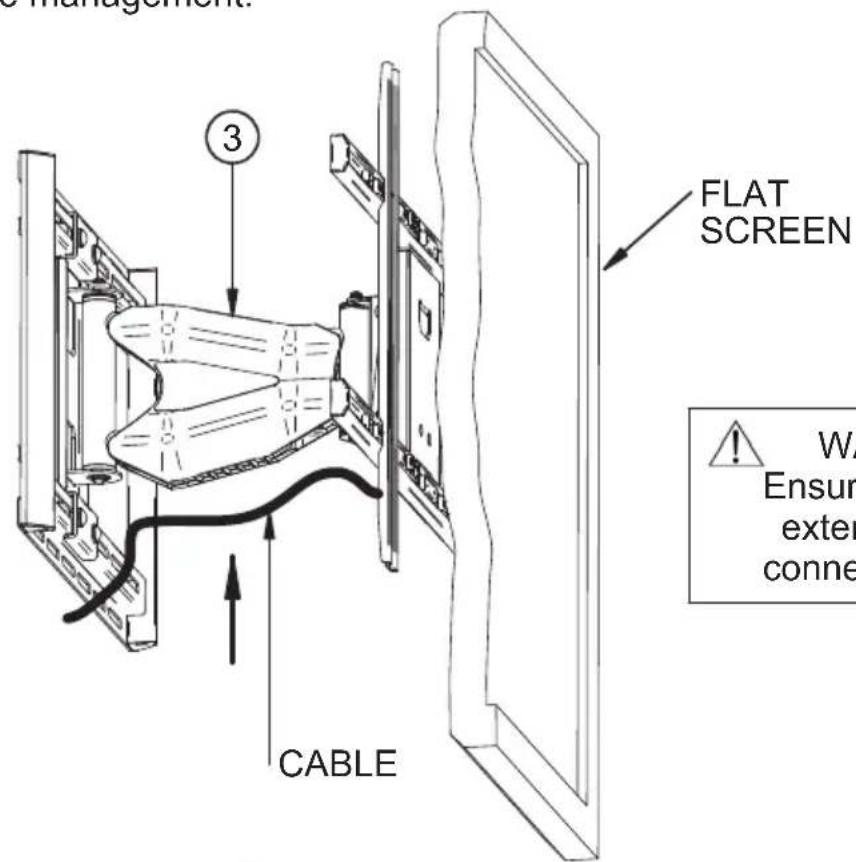

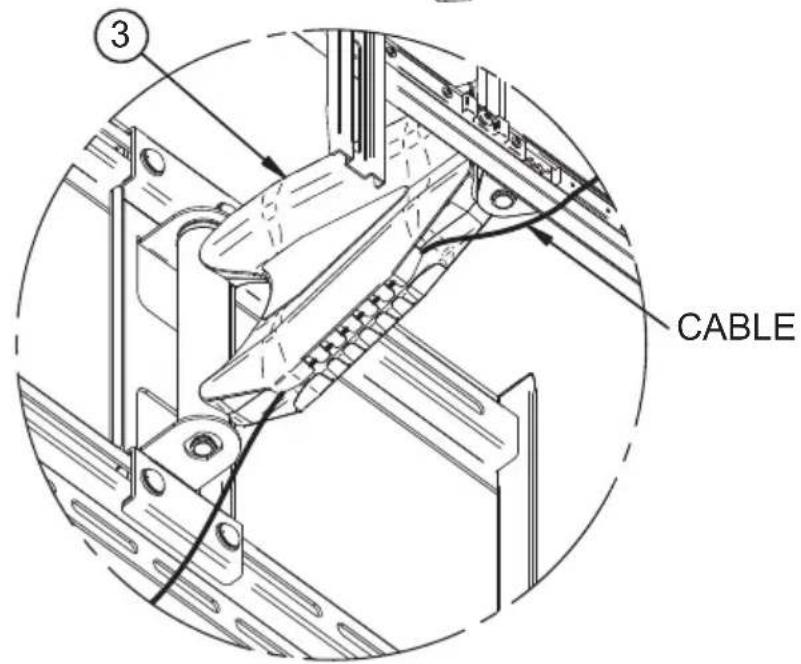

Cable management.

WARNING:

Ensure arm is fully extended before connecting cables.

CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed.

7

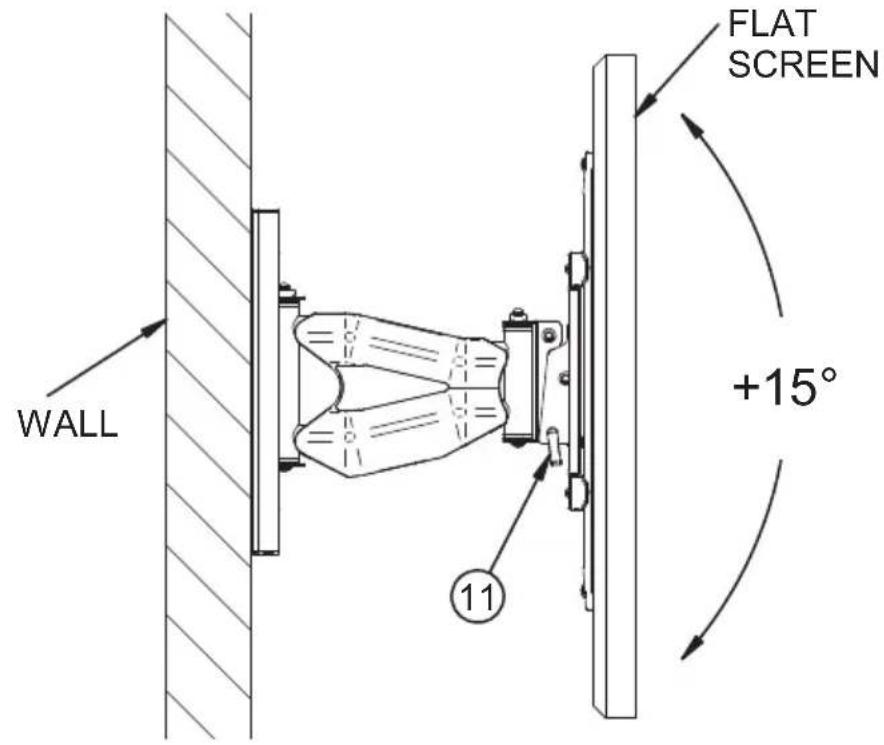

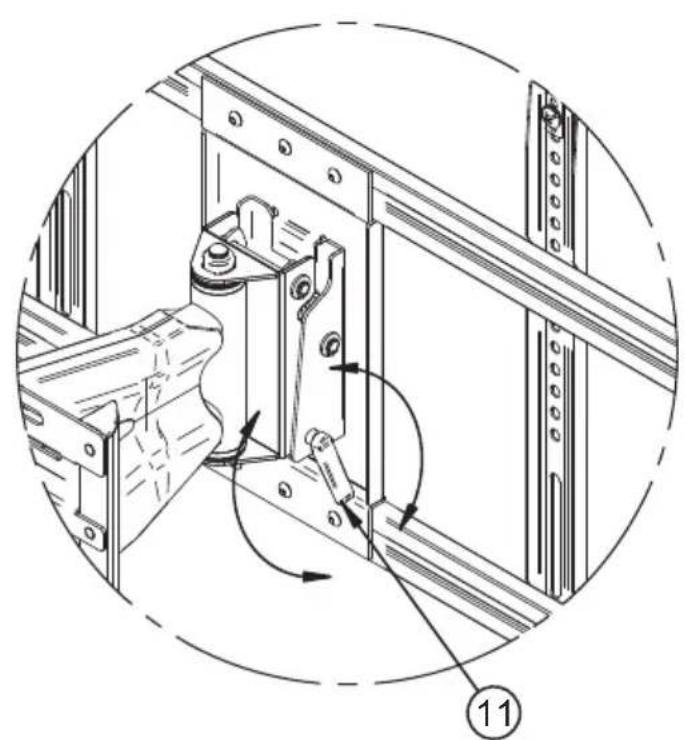

Loosen the tilt adjustment hand lever to adjust tilt, then retighten to fix position.

Technical line drawing of a mechanical assembly with no visible text or symbols

8

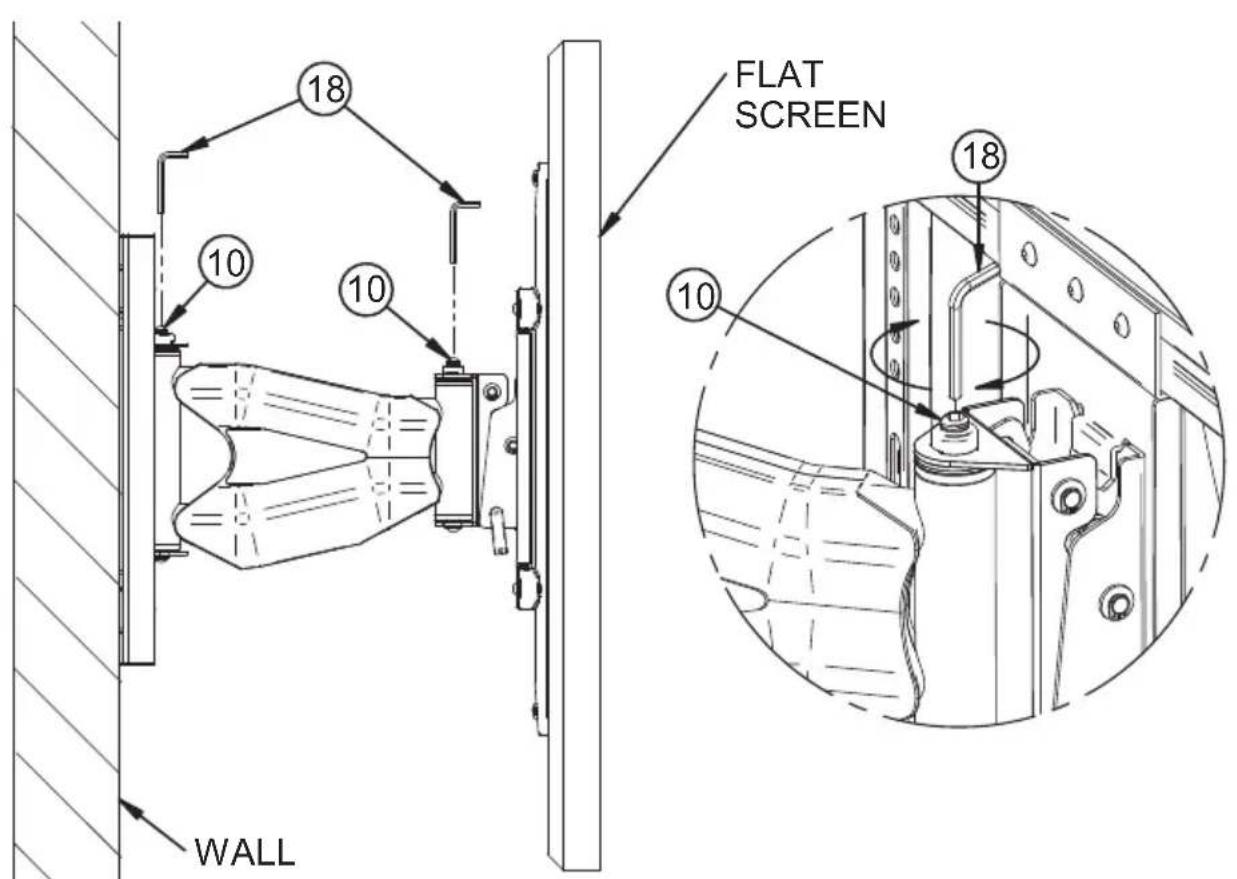

To fix the cantilever arm position, tighten parts 10.

16

8

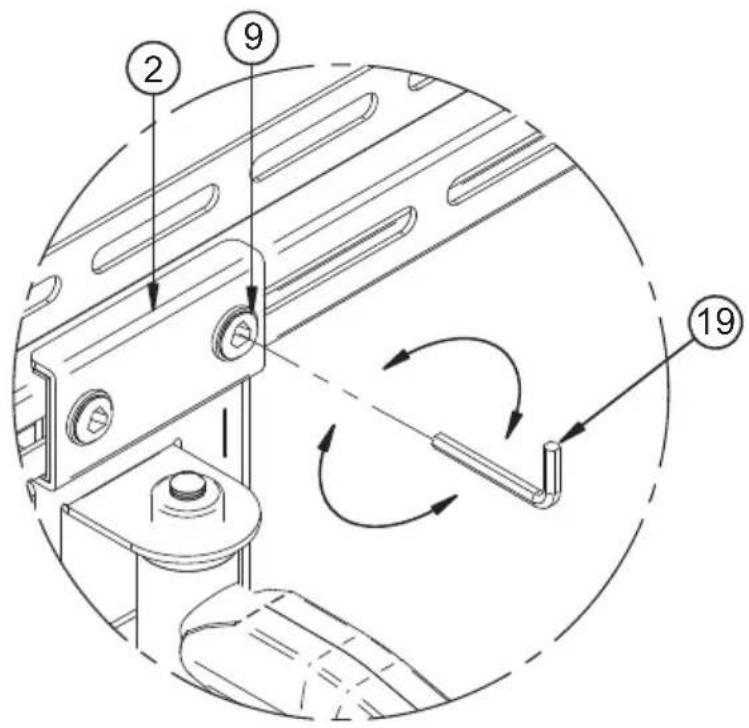

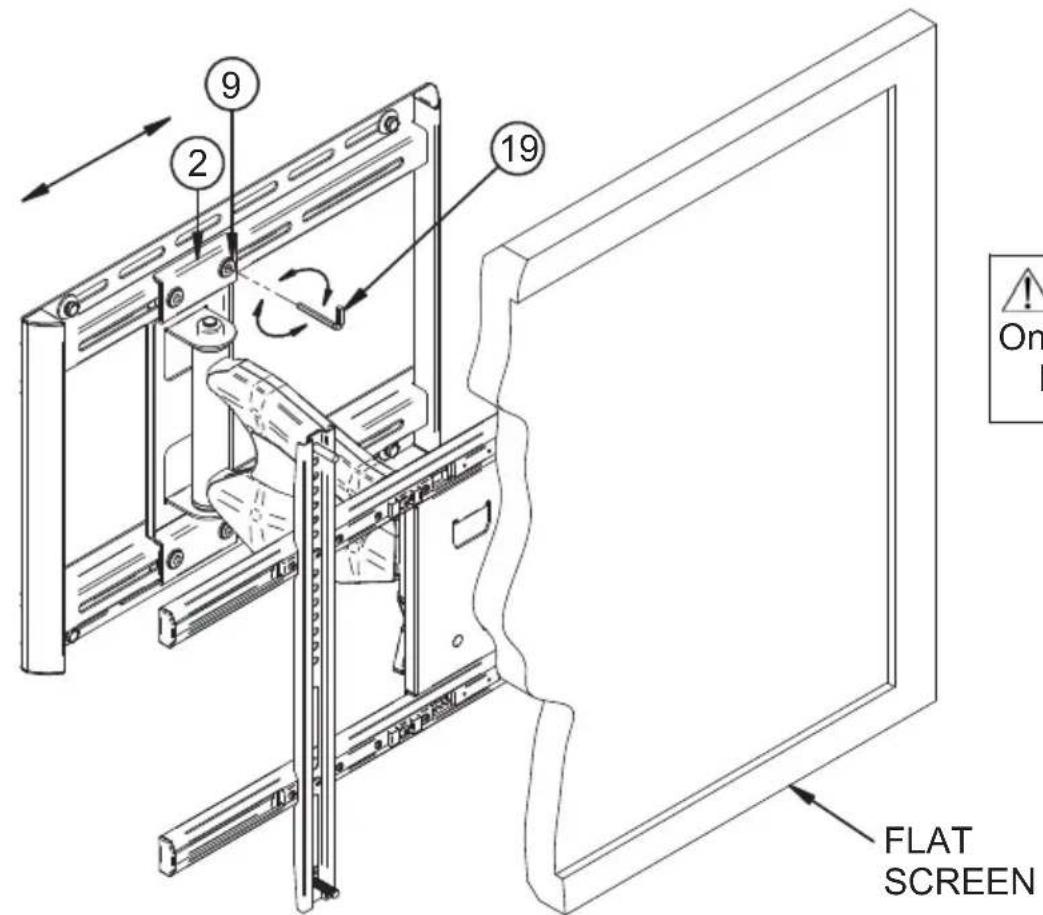

OPTIONAL: For minor lateral adjustment, loosen part 9, then slide fixing plate to suitable position.

WARNING

Only loosen screws. Do not remove

BT8222

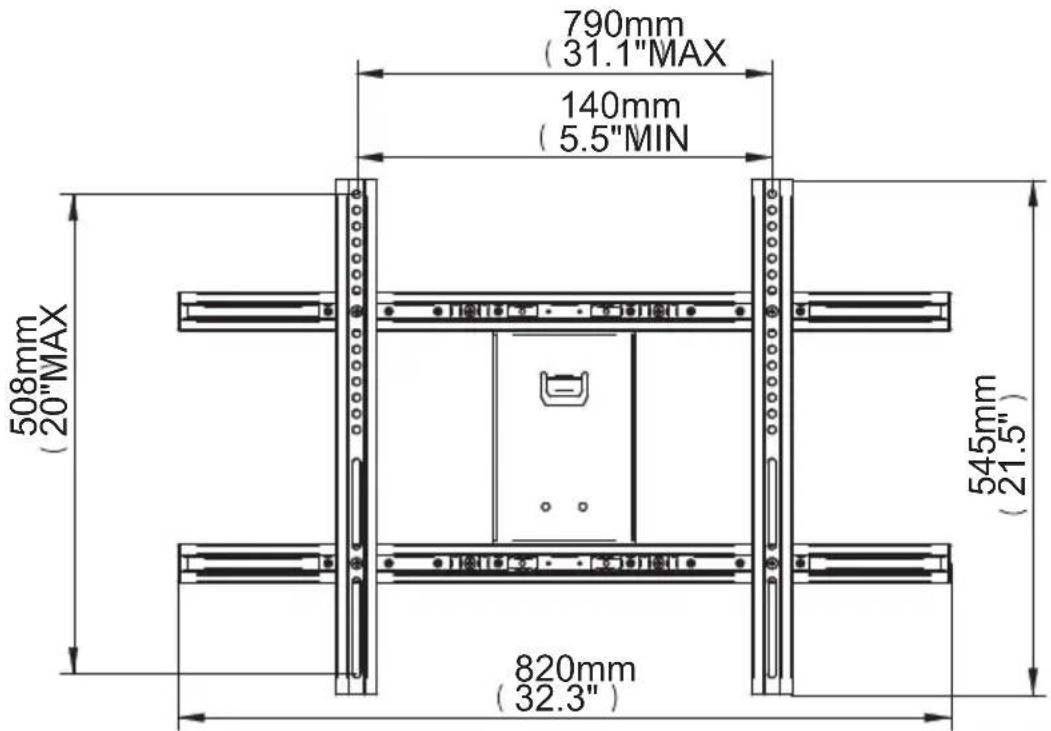

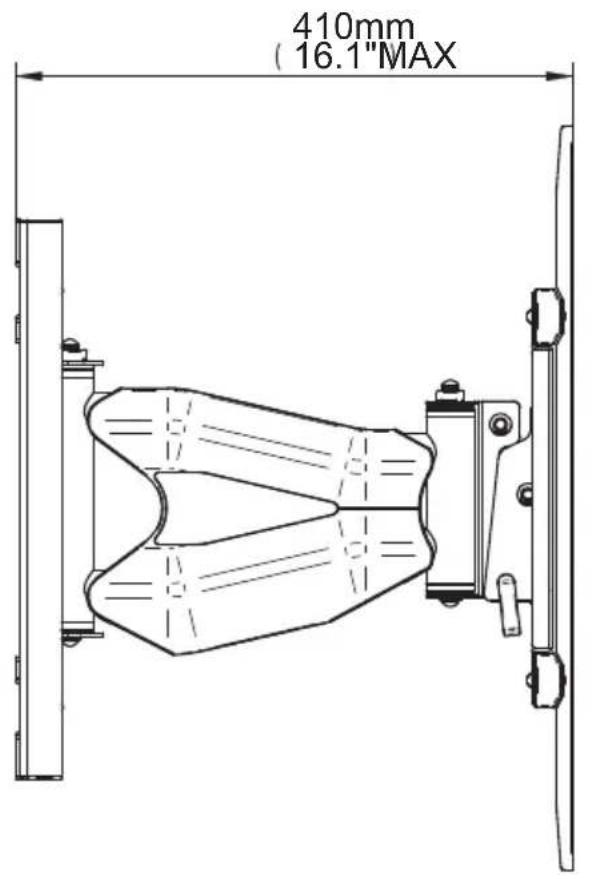

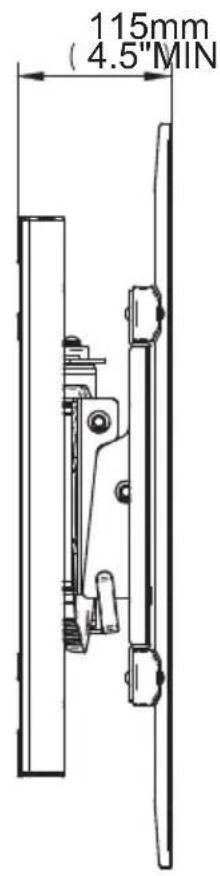

PRODUCT DIMENSIONS

BT8222

PRODUCT DIMENSIONS

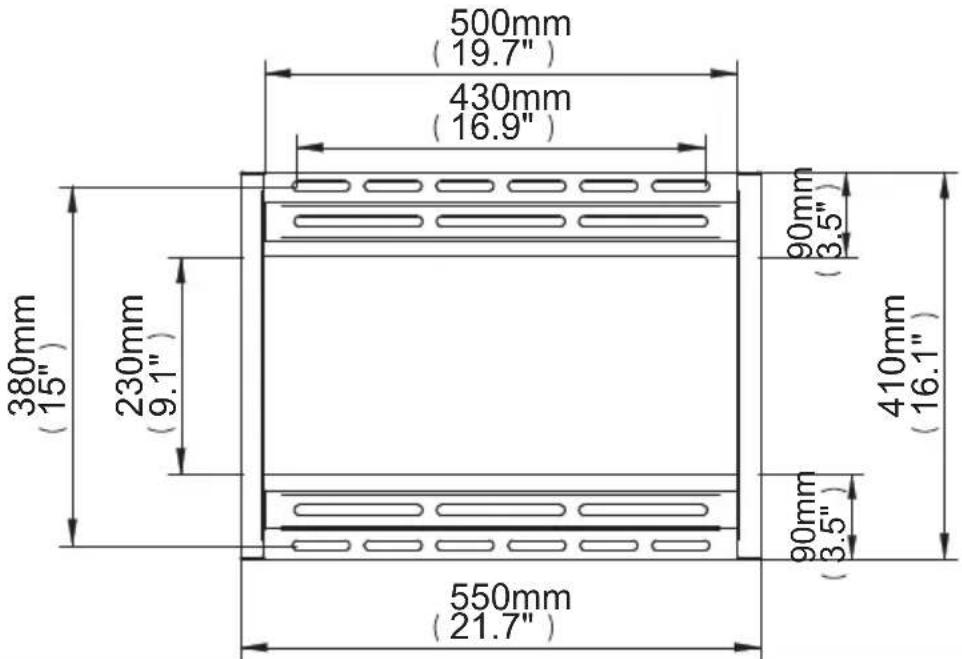

WALL PLATE

INTERFACE
