Product Type	Flat Panel Wall Mount
Brand	B-Tech
Model	BT8504
Compatible Screen Sizes	32" to 55"
VESA Compatibility	100x100 to 400x400 mm
Maximum Weight Capacity	50 kg (110 lbs)
Material	Cold-rolled steel
Finish	Black powder coating
Tilt Adjustment	0° to 15° forward tilt
Level Adjustment	±3° after installation
Wall Distance	Approximately 30 mm (1.18")
Mounting Pattern	Universal with sliding brackets
Product Dimensions (WxHxD)	500 x 250 x 30 mm
Net Weight	2.3 kg
Included Hardware	Wall bolts, concrete anchors, screws, washers
Required Tools (not included)	Drill, level, screwdriver, stud finder
Installation Type	Fixed mount, no swivel
Safety Features	Anti-tip brackets, lockable security screws
Maintenance	Wipe with dry cloth; check tightness annually
Spare Parts Availability	Contact B-Tech customer service
Repairability	Modular design; brackets replaceable
Warranty	5 years

Frequently Asked Questions - BT8504 B-Tech

What is the maximum TV size for the BT8504 mount?

The BT8504 supports screens from 32 to 55 inches, depending on weight and VESA pattern.

What VESA patterns are compatible?

It fits VESA patterns from 100x100 mm up to 400x400 mm.

Can I tilt the TV after installation?

Yes, the mount offers a 0° to 15° forward tilt for optimal viewing angle.

Is the mount suitable for drywall?

Yes, but you must use the provided toggle bolts or anchor into studs for safety.

Does the mount swivel left or right?

No, this is a fixed mount; it does not swivel. For swivel models, consider other B-Tech mounts.

What tools are needed for installation?

You will need a drill, level, screwdriver, and a stud finder. All mounting hardware is included.

How far from the wall will the TV sit?

The TV will be approximately 30 mm (1.18 inches) from the wall when mounted.

Can I use this mount for a curved TV?

Yes, as long as the VESA pattern and weight are within specifications.

How do I clean the mount?

Wipe with a dry cloth. Do not use harsh chemicals or abrasive materials.

What is the warranty period?

B-Tech offers a 5-year warranty against manufacturing defects.

USER MANUAL BT8504 B-Tech

This Pack Contains 1 Trolley / Stand

PLEASE KEEP THIS FOR FUTURE REFERENCE

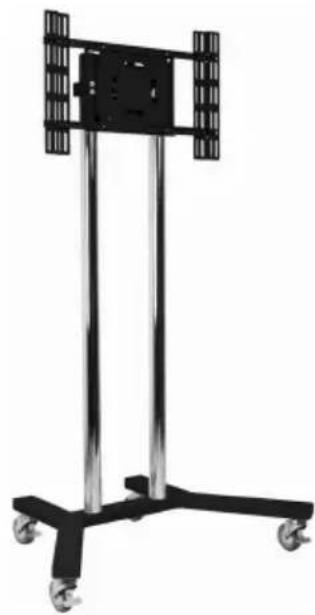

Black and white photo of a vertical stand with wheels, mounted on a metal frame (no text or symbols visible)

FEATURES

• Designed for flat screens up to
  50" (127cm) / 70kg (154lbs)
  • Fits screens with VESA and Non-VESA patterns
  up to 755mm x 410mm
  • Supplied with both trolley feet and wheels
• Mounts screen in landscape or portrait style

CONTENTS

Installation Safety Notes....2

Parts List....4

Safety Instructions....6

Installation Instructions....7

Optional Accessories....17

Product Dimensions....18

B-Tech Contact Details....20

INSTALLATION TOOLS REQUIRED

Crosshead screwdriver

Hex Keys (Supplied)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This stand is intended for use

only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

The articulating arm may spring upward and may cause injury or damage to the equipment when the monitor is removed. Secure the arm by lifting the arm to highest position, to remove monitor safely.

CS

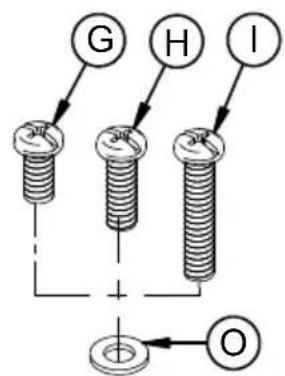

FLAT SCREEN INTERFACE KIT

(FOR ATTACHING MOUNT TO BACK OF FLAT SCREEN)

REF PART NAME QTY

1	TROLLEY BASE 1
2	WHEEL 4
3	LEVELLING FOOT 4
4 BASE END CAP 4
5 M16 x 60 HEX BOLT 2
6	1.5m POLE 2
7	COLLAR 2
8 M10 x 20mm GRUB SCREW 8
9	MOUNTING PLATE 1
10	M8 SPRING WASHER	8
11	M8 x 12mm SCREW	8
12	COLLAR COVER	4
13	POLE END CAP	2
14	M5 x 12mm SECURITY HEX SCREW	16
15	INTERFACE PLATE	1
16	CROSS RAIL
17	INTERFACE ARM	2
18	M6 METAL WASHER	8
19	4mm SECURITY HEX KEY (FOR PART 14)	1
20	5mm HEX (FOR PART 8)	1
21	14mm HEX KEY (FOR PART 5)	1

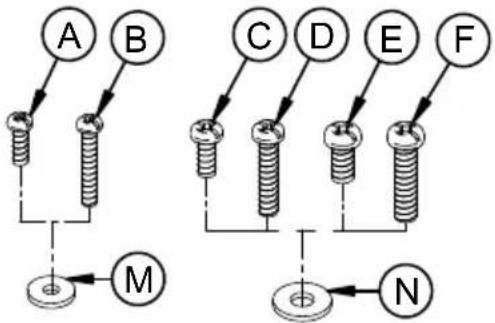

INTERFACE KIT

A	M4 x 12mm SCREW	4
B	M4 x 25mm SCREW	4
C	M5 x 16mm SCREW	4
D	M5 x 25mm SCREW	4
E	M6 x 16mm SCREW	4
F	M6 x 25mm SCREW	4
G	M8 x 16mm SCREW	4
H	M8 x 25mm SCREW	4
I	M8 x 40mm SCREW	4
J M6 x 12mm SPACER (FOR PARTS B, D & F)		4
K	M8 x 13mm SPACER (FOR PART H)	4
L M8 x 24mm SPACER (FOR PART I)		4
M	M4 METAL WASHER (FOR PARTS A & B)	4
N	M6 METAL WASHER (FOR PARTS C, D, E & F)	4
O	M8 METAL WASHER (FOR PARTS G, H & I)	8

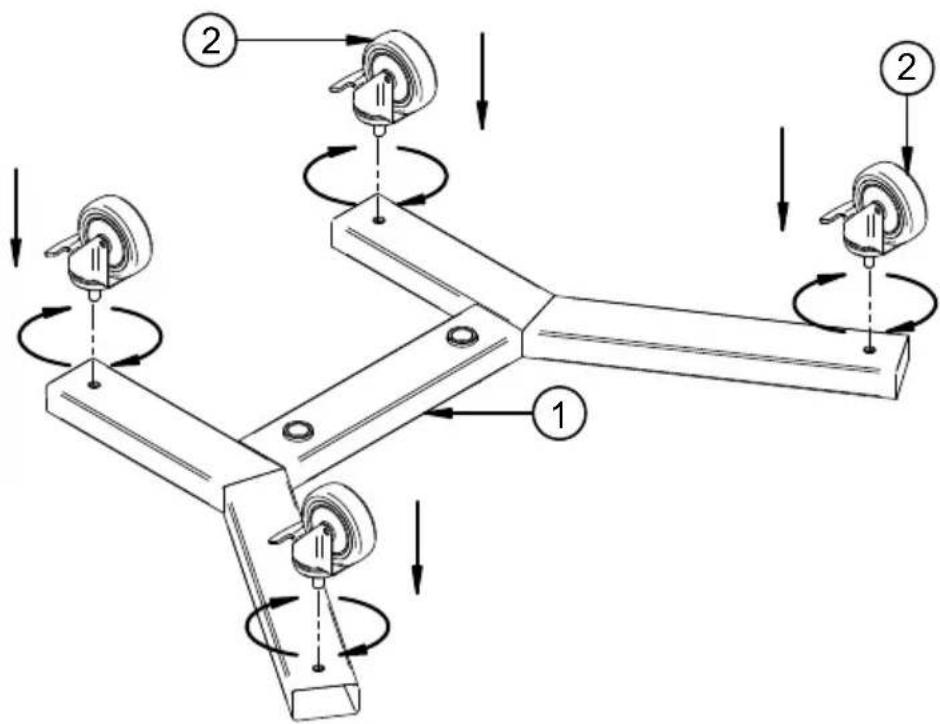

For mobile application select the braked wheels. For fixed installation select the levelling feet.

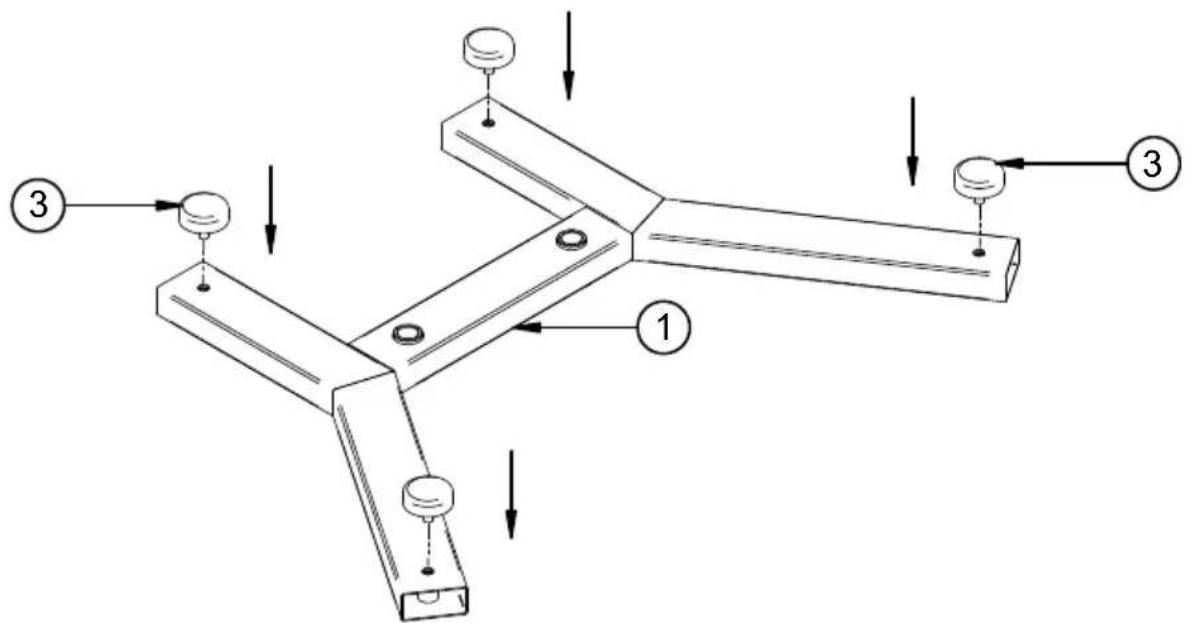

i. Fix the levelling feet to the trolley.

ii. Screw the wheels to the trolley.

2

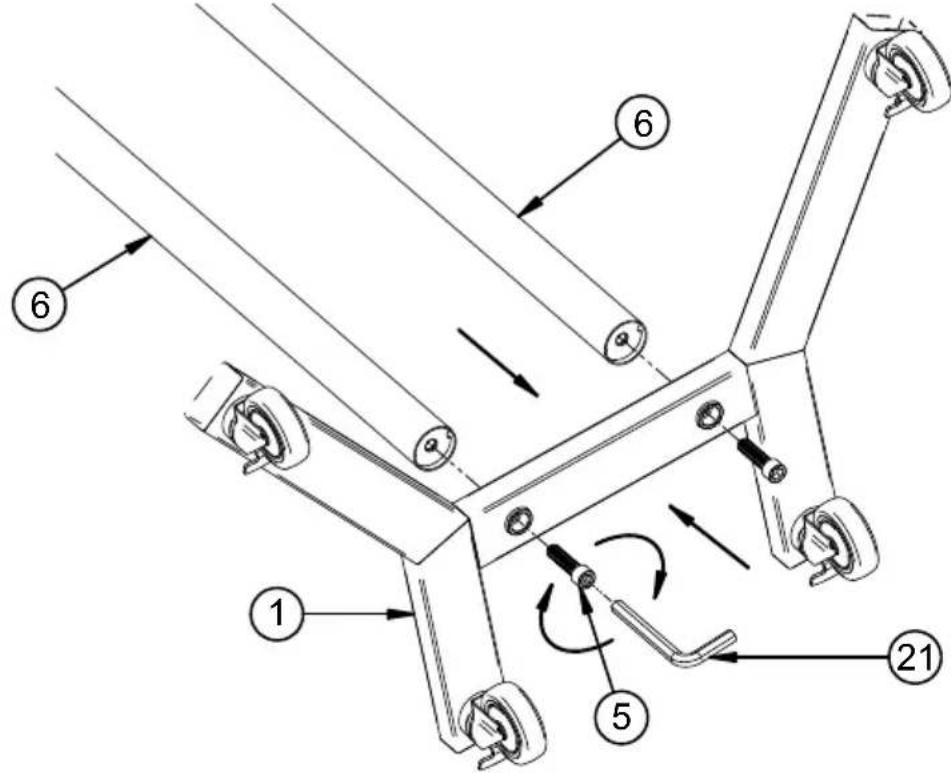

Attach the poles to the trolley base.

3

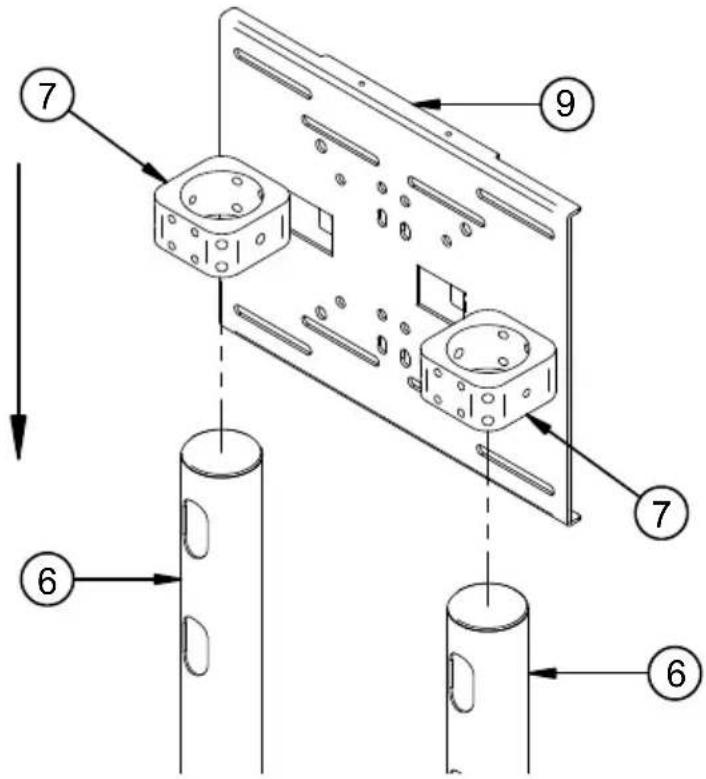

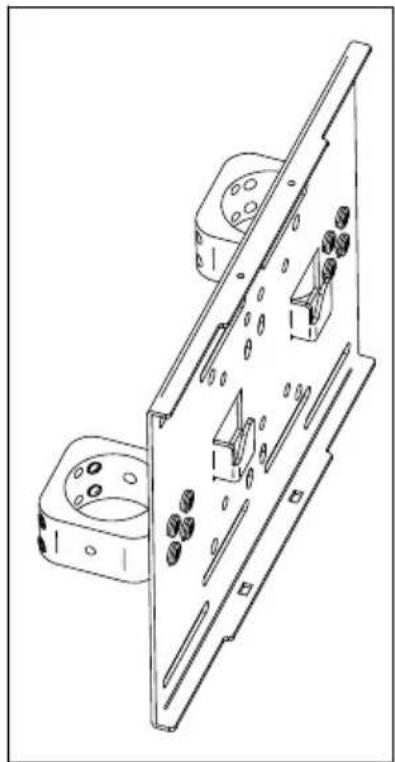

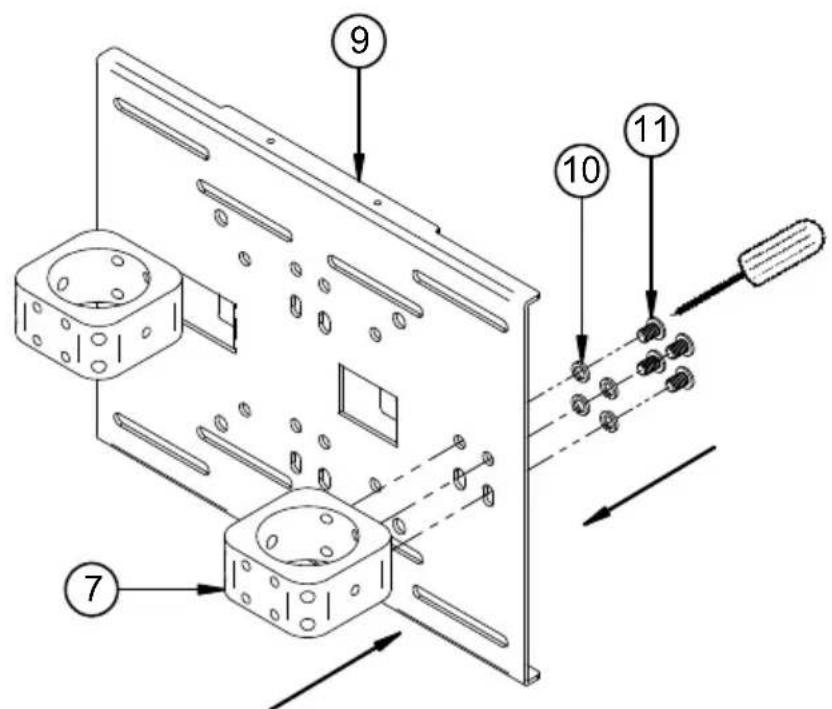

Fix the collars to the mounting plate.

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

8

4

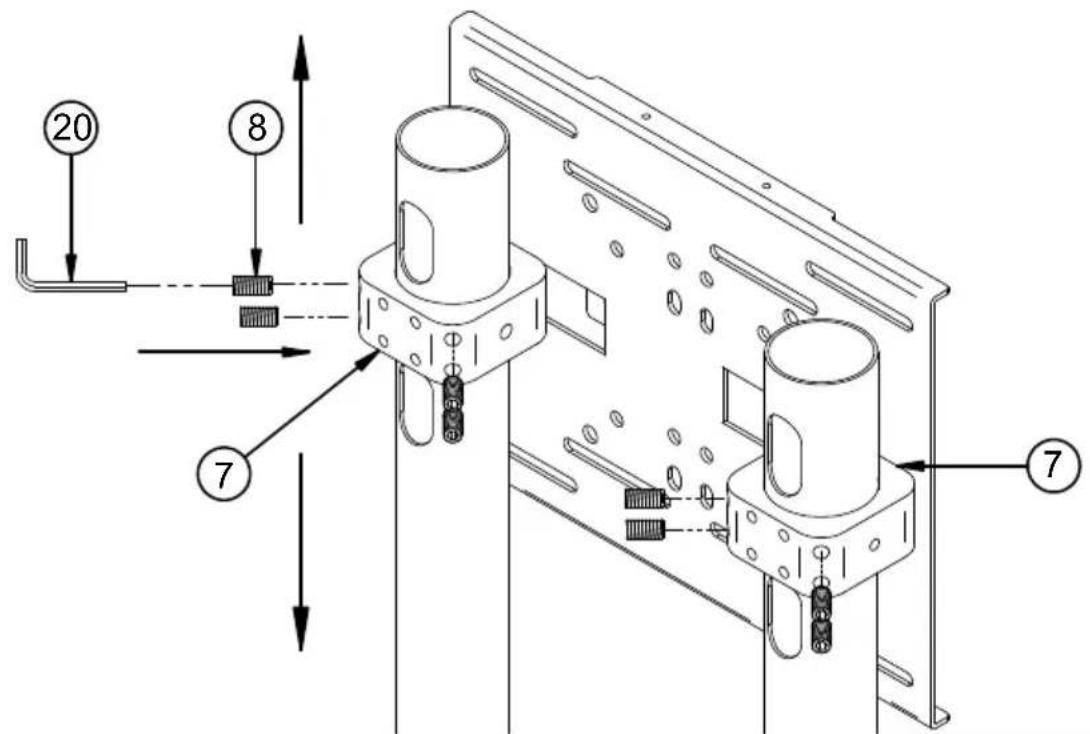

Fix collars and mounting plate to the poles.

i.Slide the collars and mounting plate onto the poles

ii. Fix at desired height by tightening parts 8.

9

SCREEN MOUNTING INSTRUCTIONS

There are two methods of attaching the mount to the screen, depending on the screen fixing pattern.

A) VESA Fixings: 75 x 75mm, 100 x 100mm, 200 x 100mm or 200 x 200mm (page 10)
B) VESA Fixings: 300 x 200mm, 400 x 200mm, 300 x 300m, 400 x 300mm, 400 x 400mm or 600 x 400mm and non-VESA up to 755 x 410mm (page 11)

5

Attach the interface to the back of the screen.

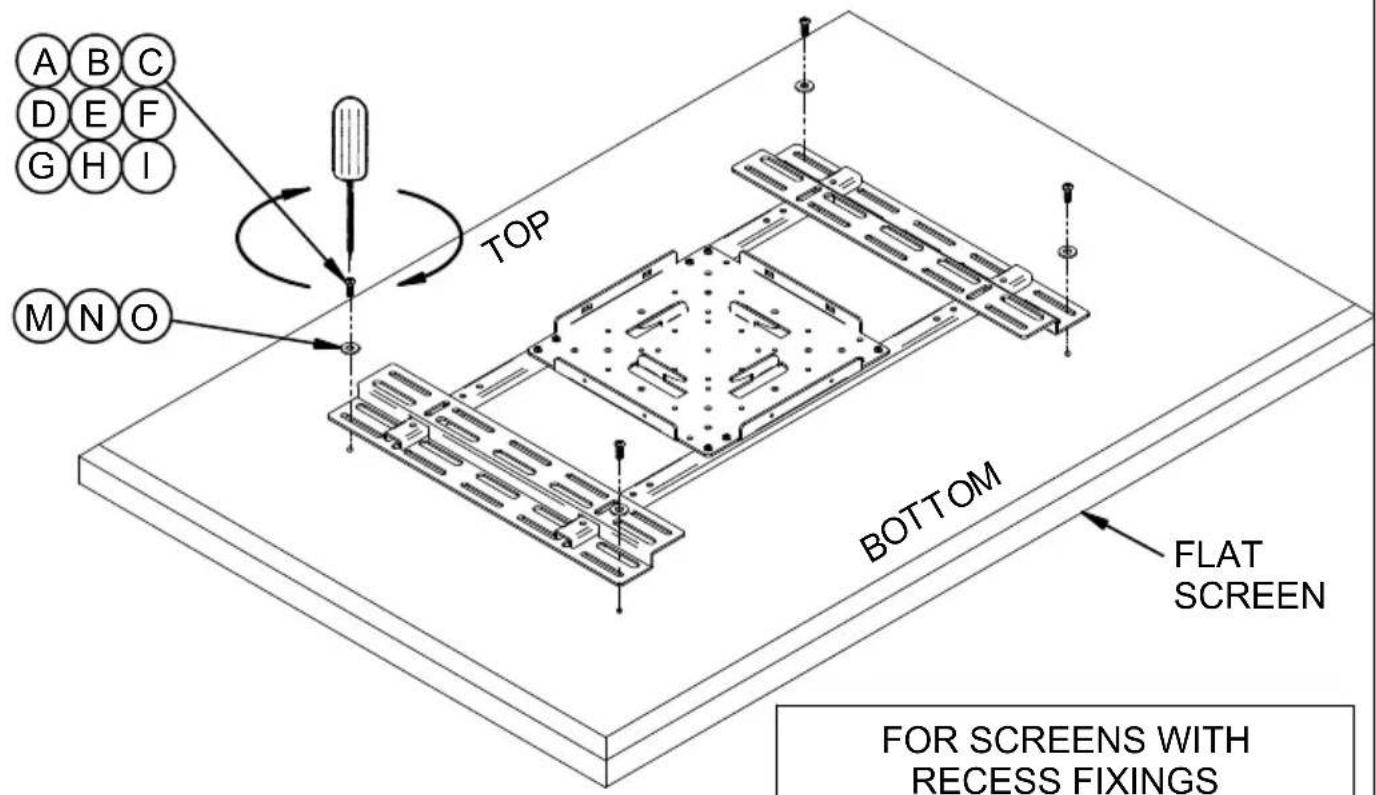

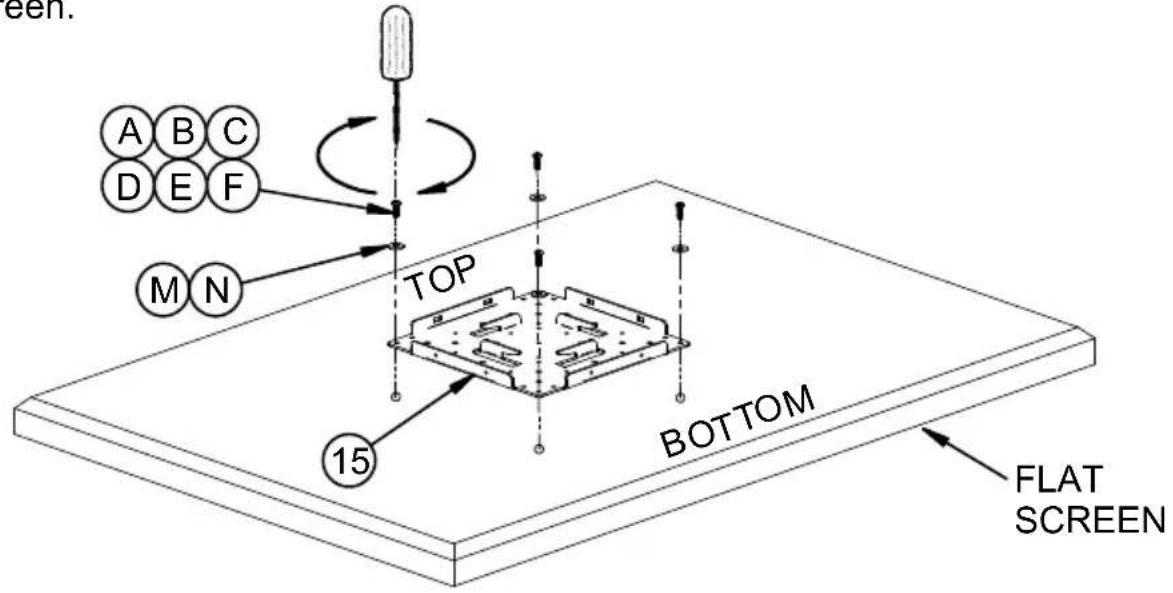

A) For VESA patterns up to 200 × 200 ~mm , attach interface plate to back of the screen.

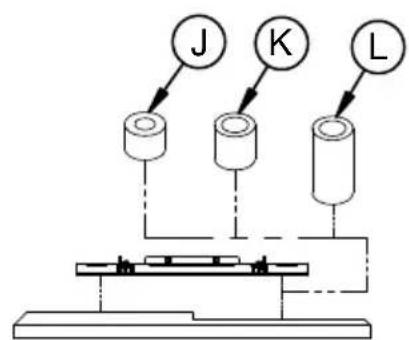

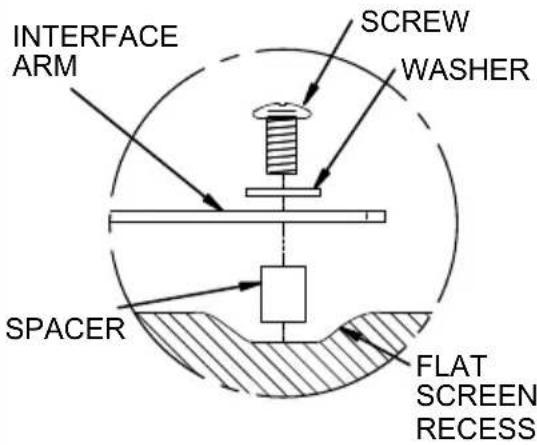

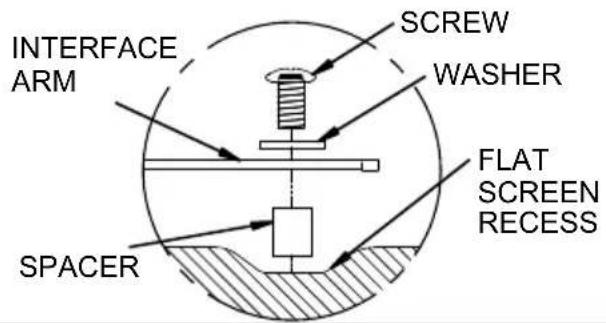

Use spacers on recess in flat screen & for extra space for cables.

Please refer to screen manufacturer manual for guidance on screen mounting.

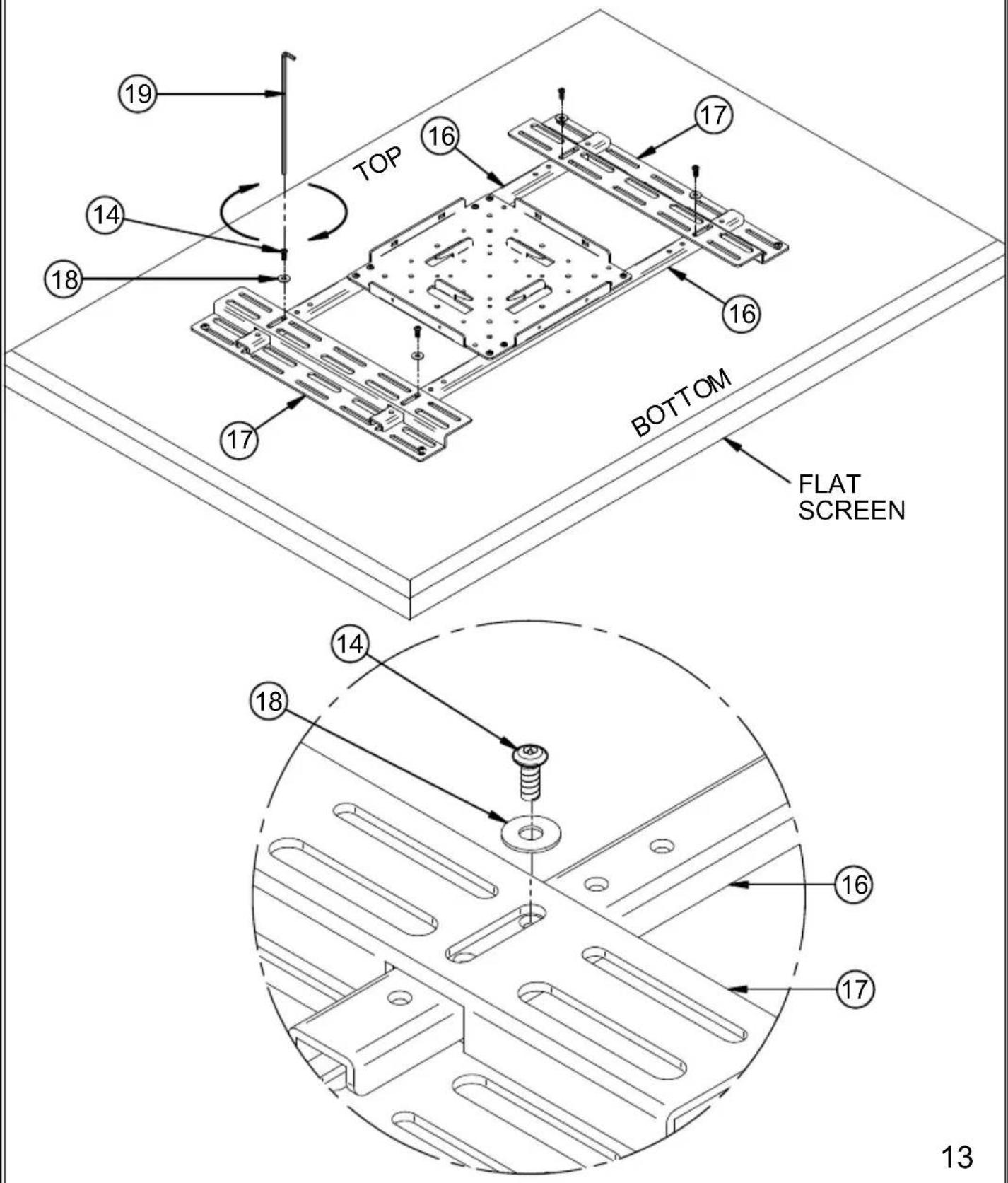

B) For VESA patterns from 300 x 200mm up to 600 x 400mm and non-VESA patterns;

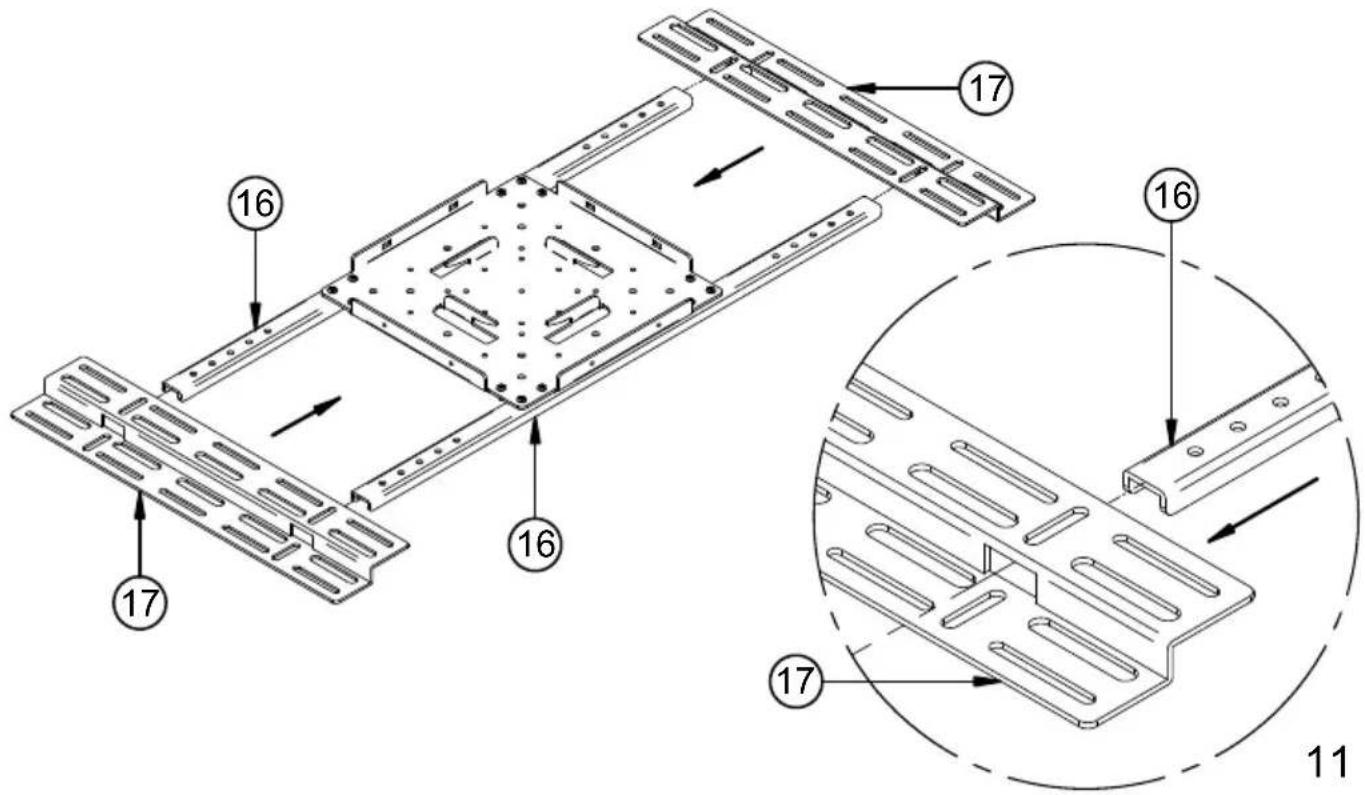

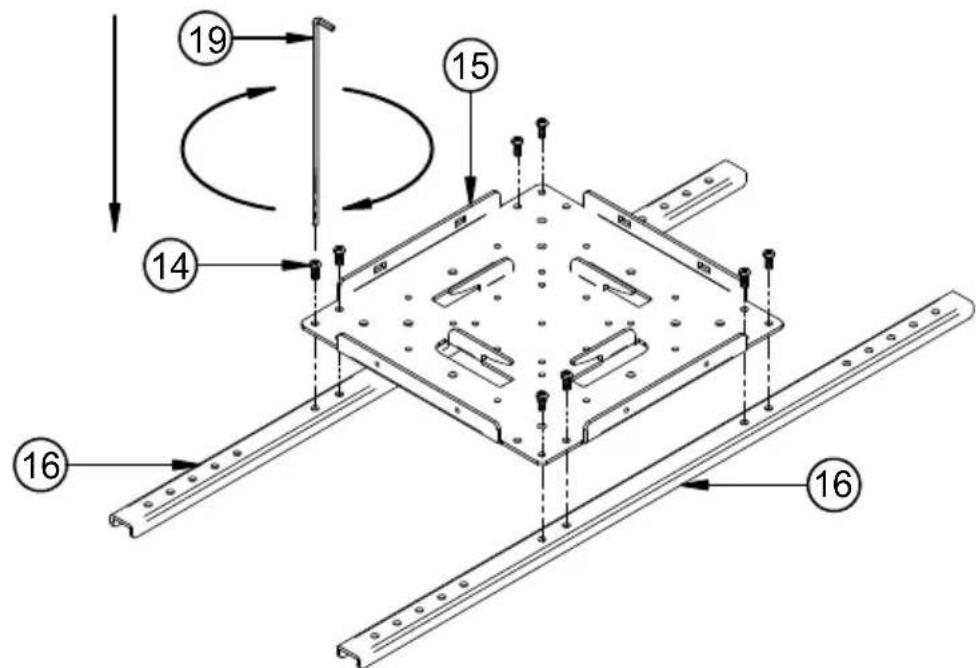

i. Attach the cross rails to the interface plate.

ii. Slide on the interface arms.

iii. Fix the interface arms to the cross rail assembly.

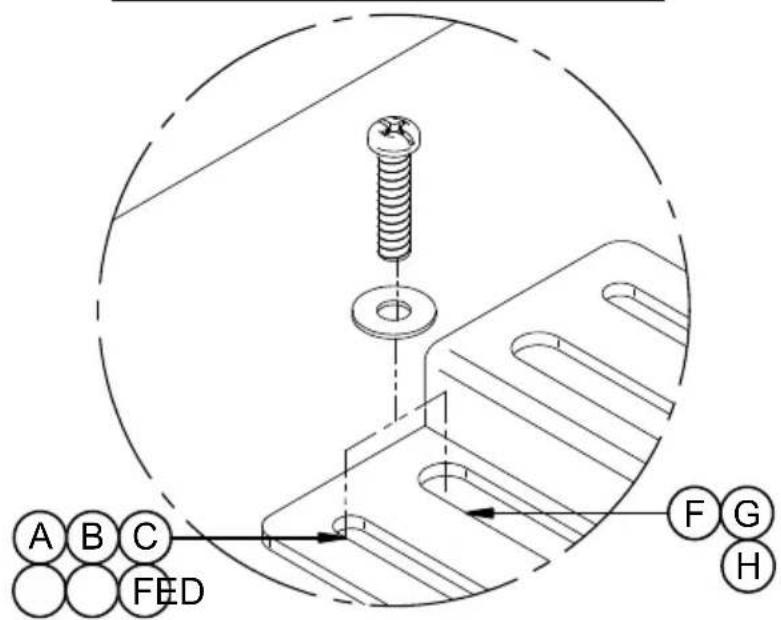

Put required screw into the relevant hole / slot.

12

iv. Fix the interface arms to the cross rails.

6

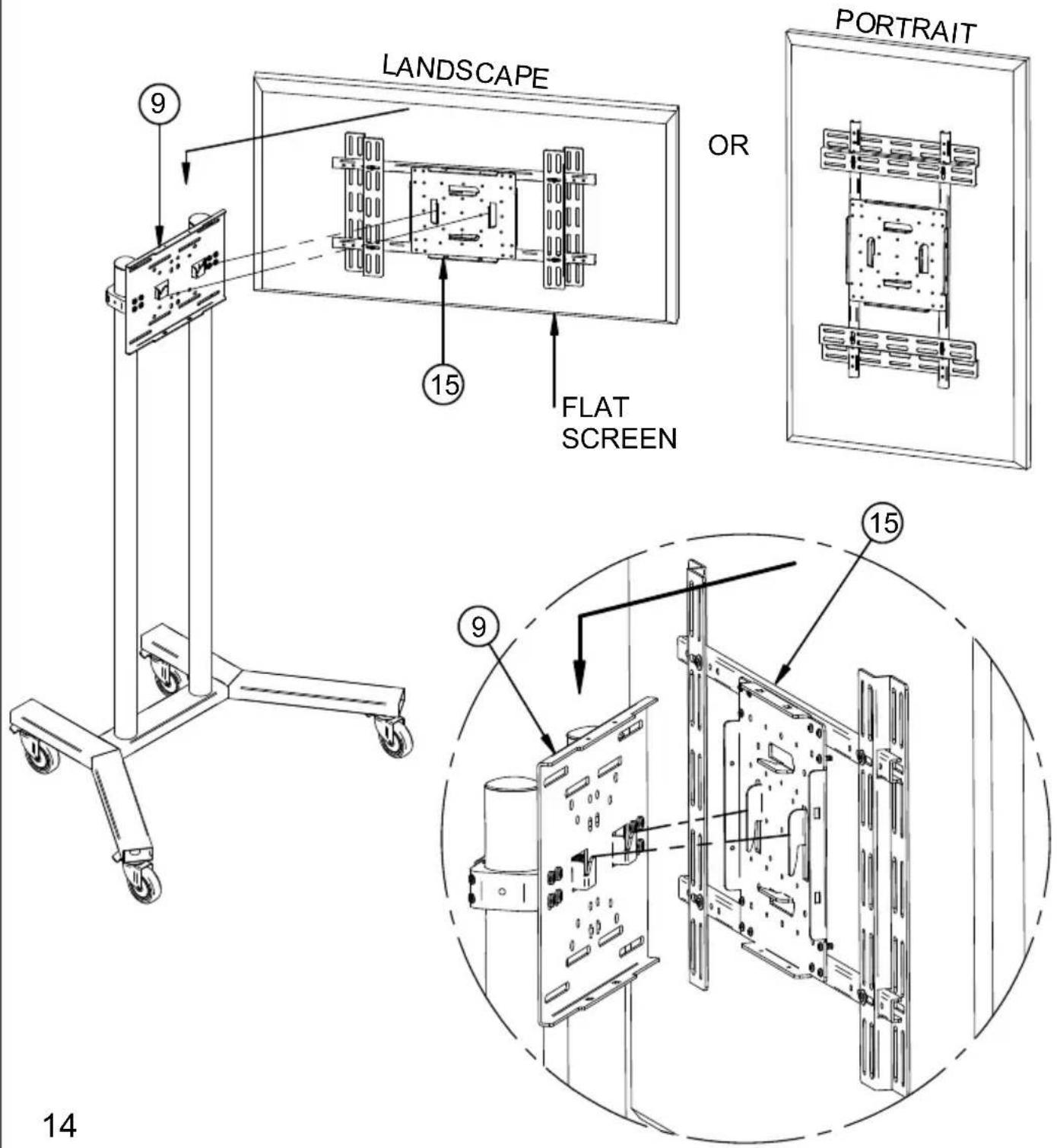

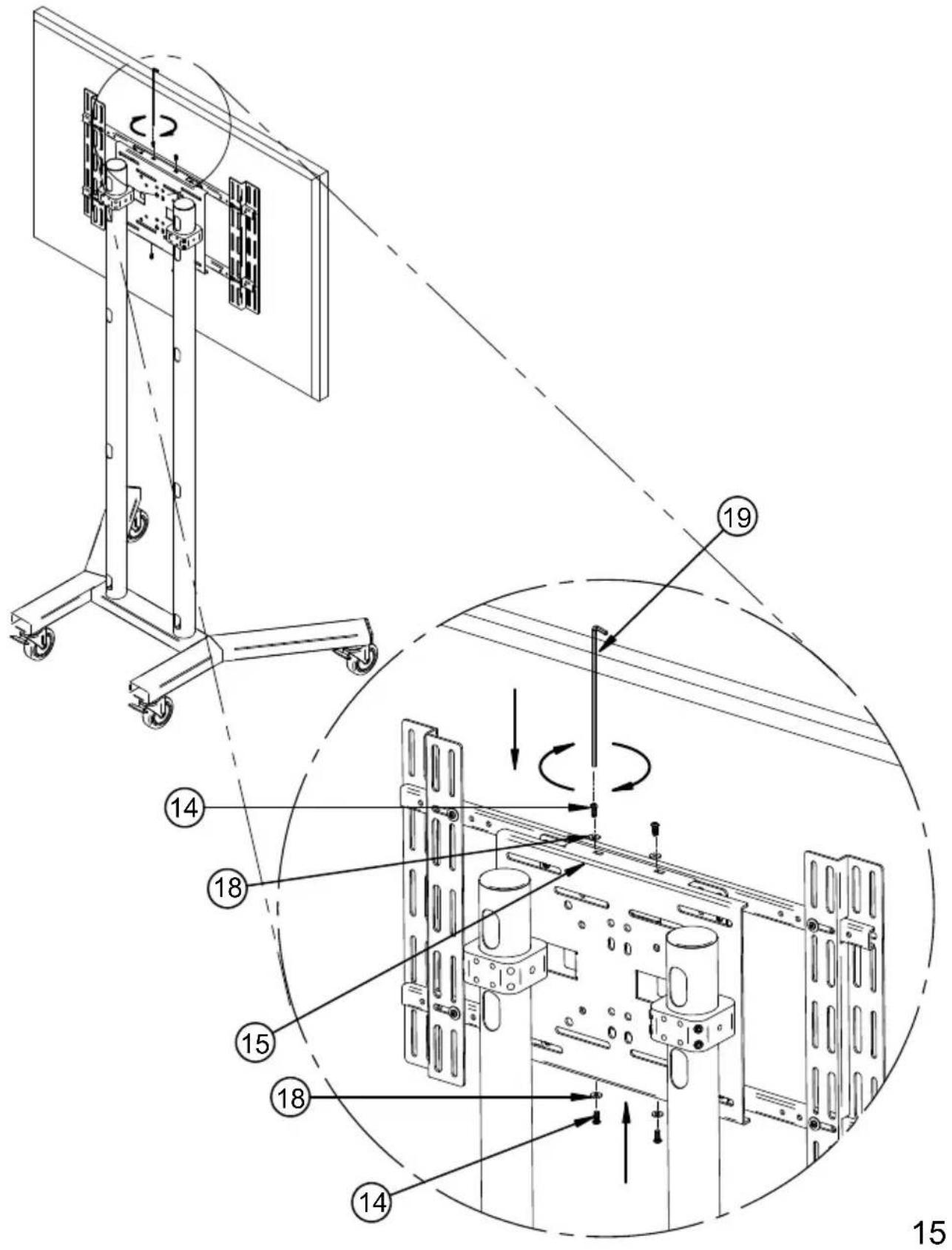

Attach flat screen (in landscape or portrait).

i. Hook on flat screen

⚠ WARNING: Lock wheels before hooking flat screen on. ⚠️

ii. Secure in place using parts 14 and 18.

7

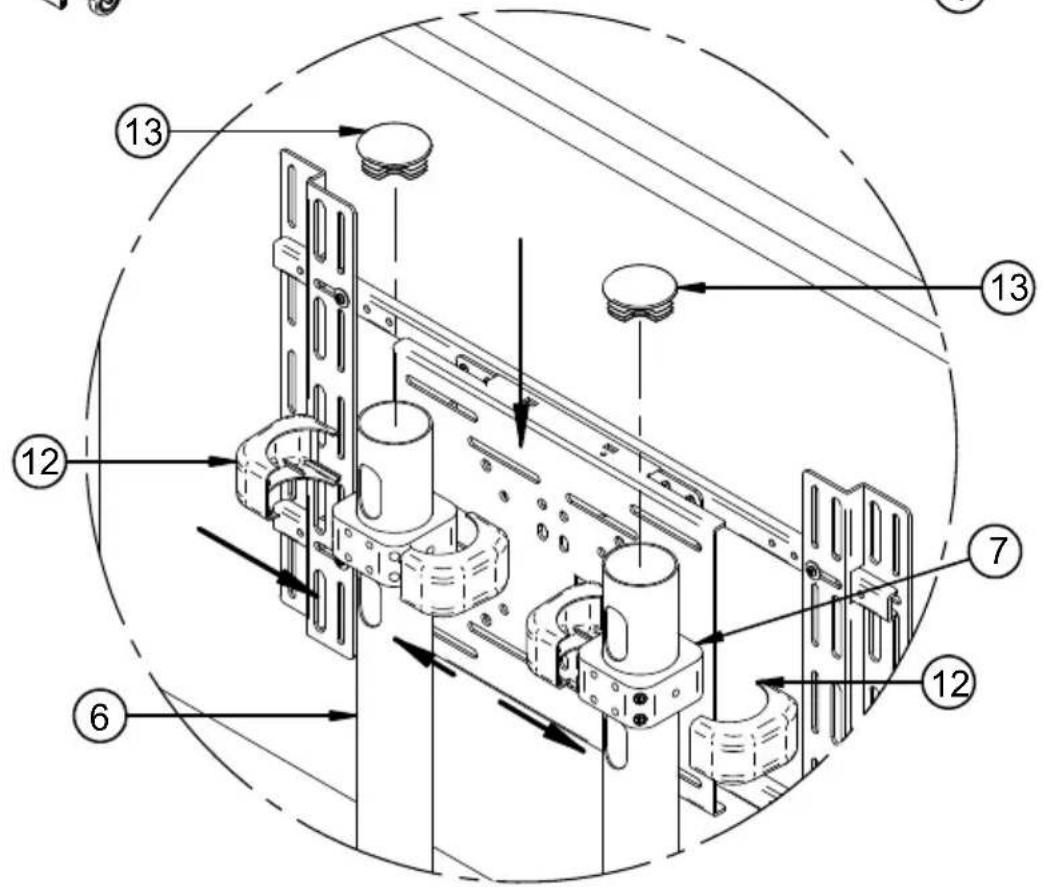

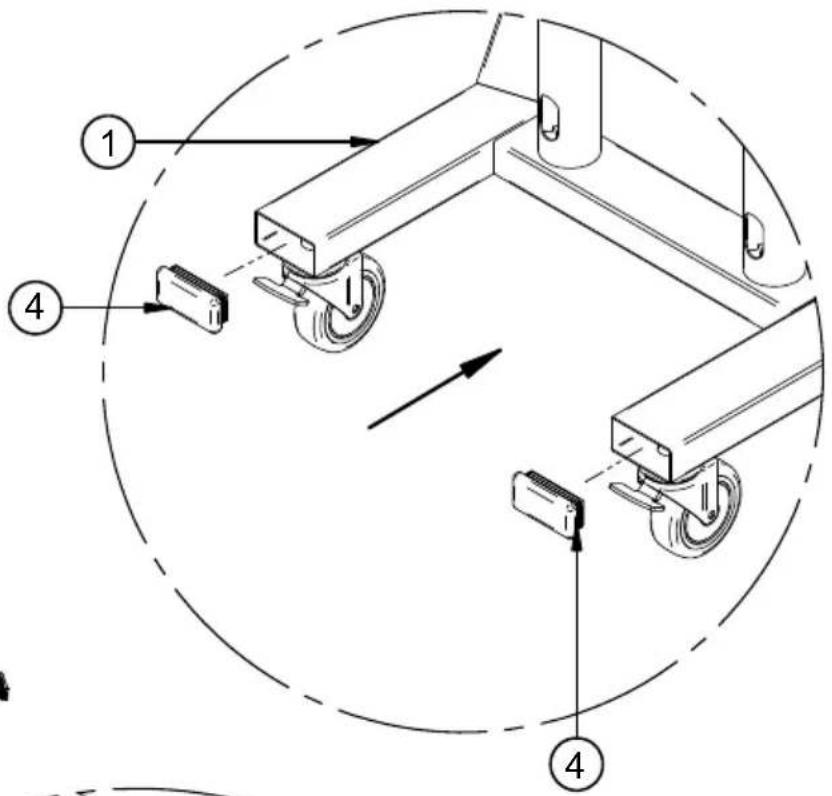

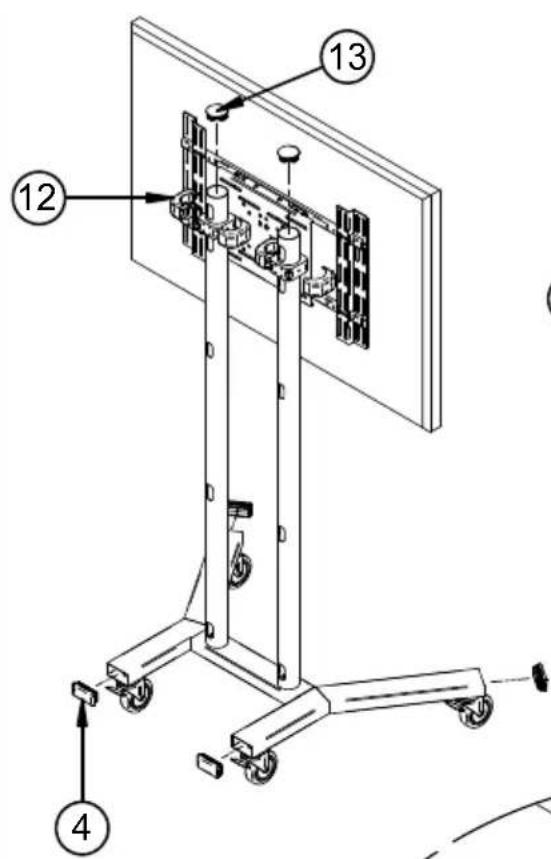

Attach the collar covers (parts 12), pole end caps (parts 13) and base ends caps (parts 4) to trolley / stand.

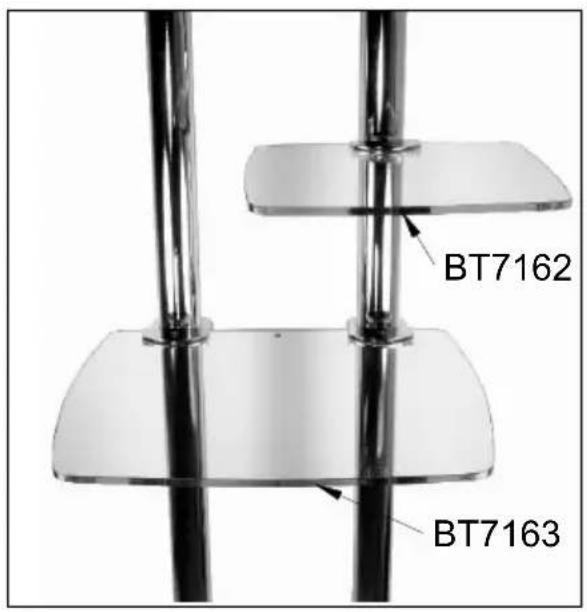

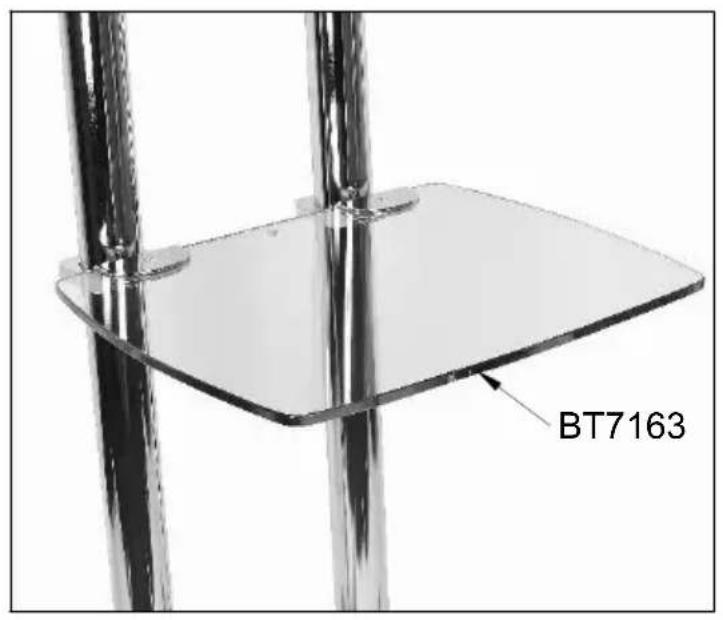

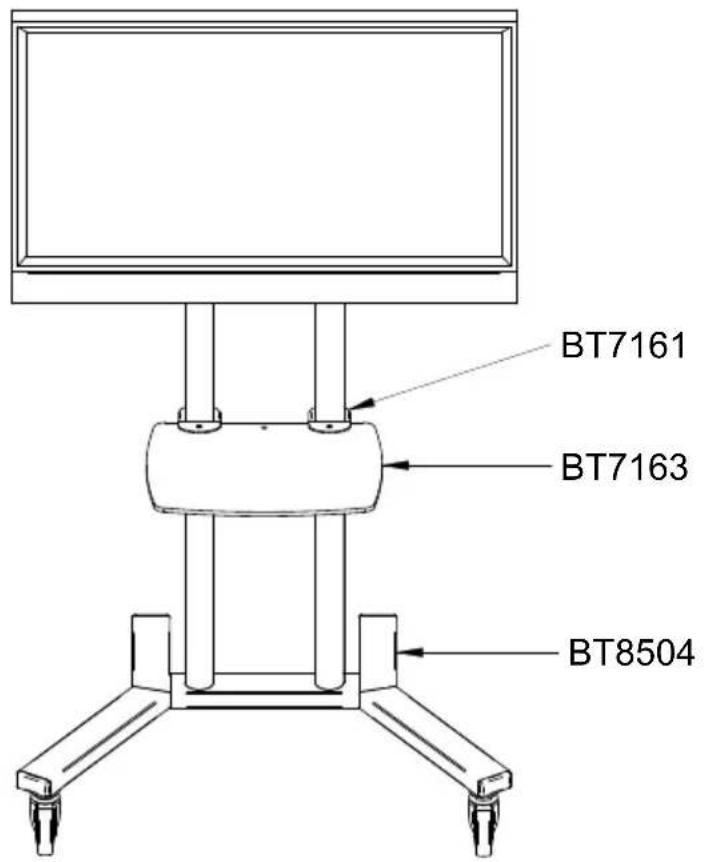

OPTIONAL ACCESSORIES

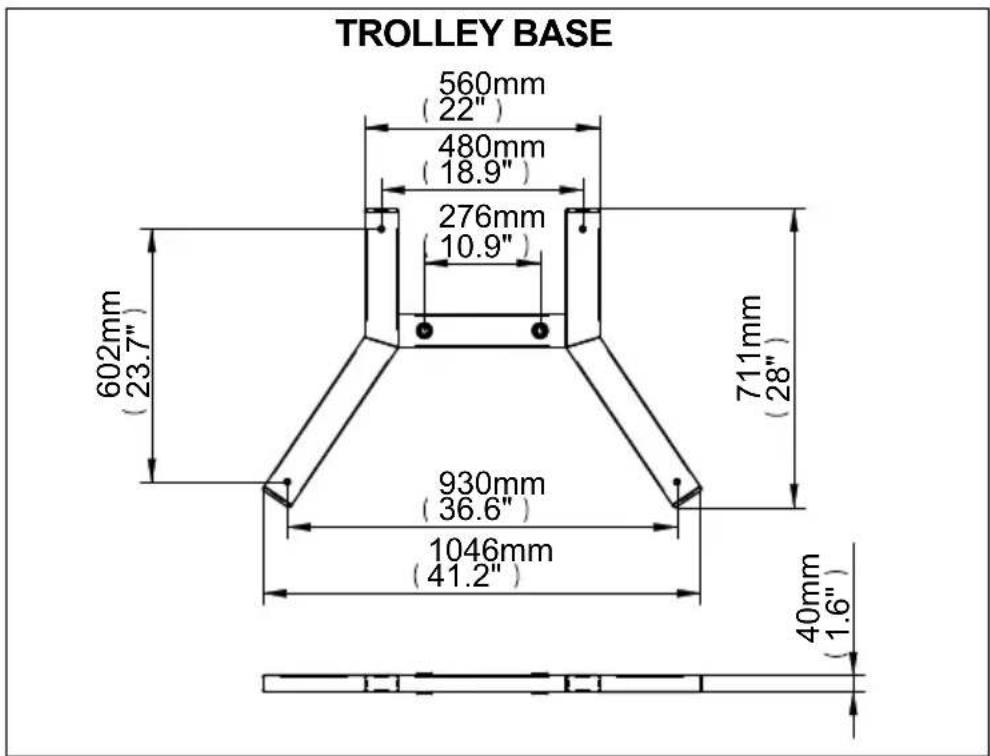

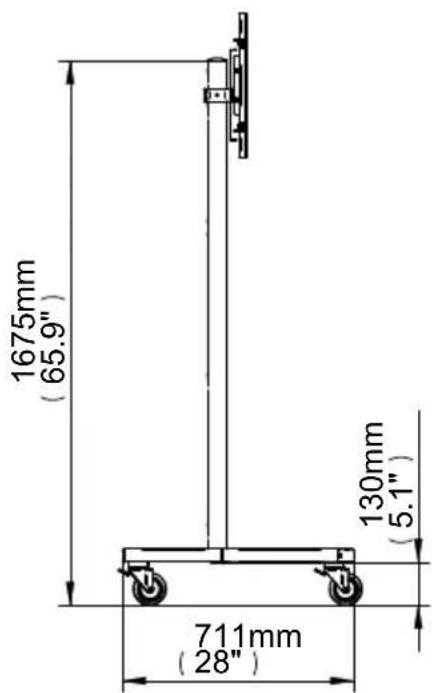

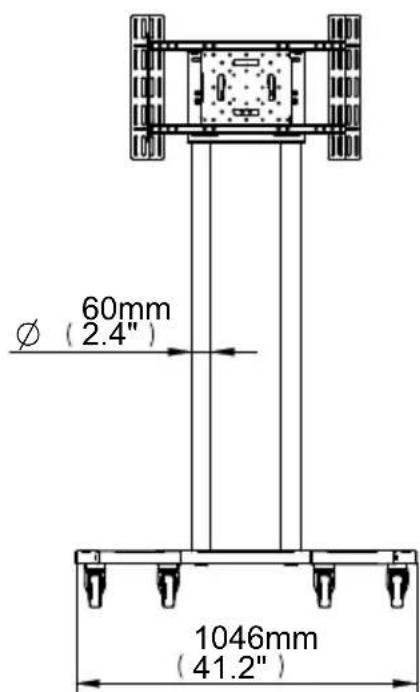

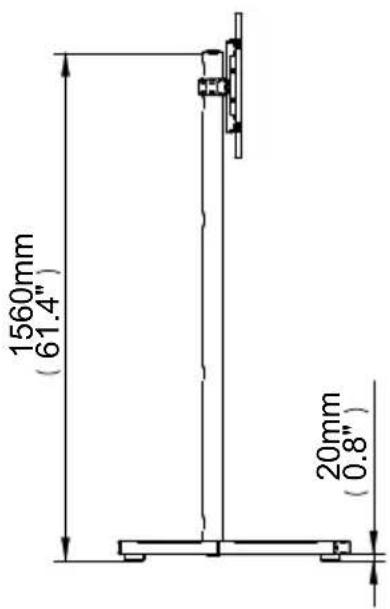

BT8504 PRODUCT DIMENSIONS

BT8504 PRODUCT DIMENSIONS

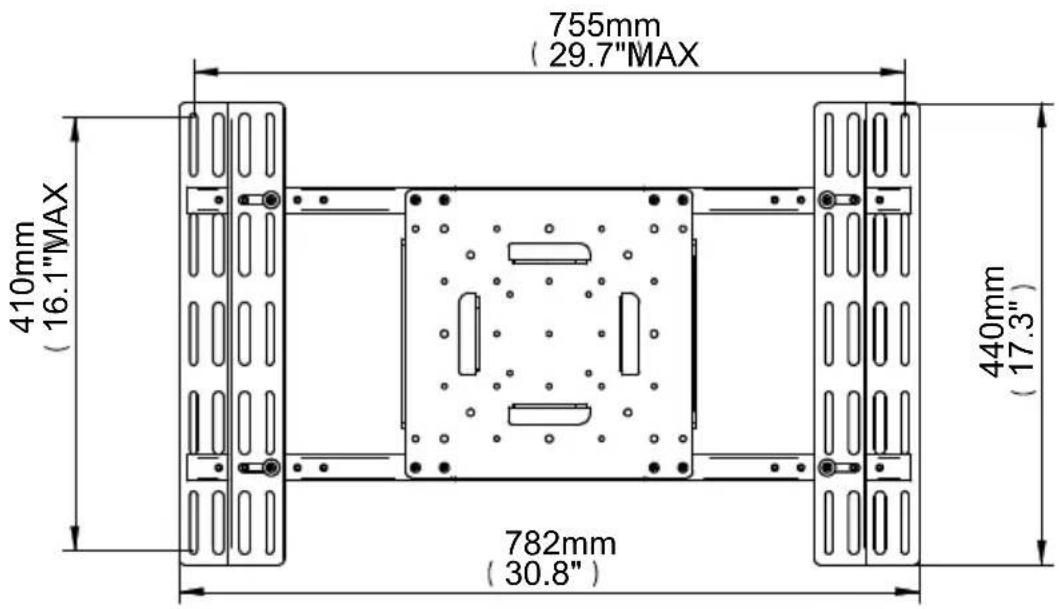

UNIVERSAL INTERFACE PLATE

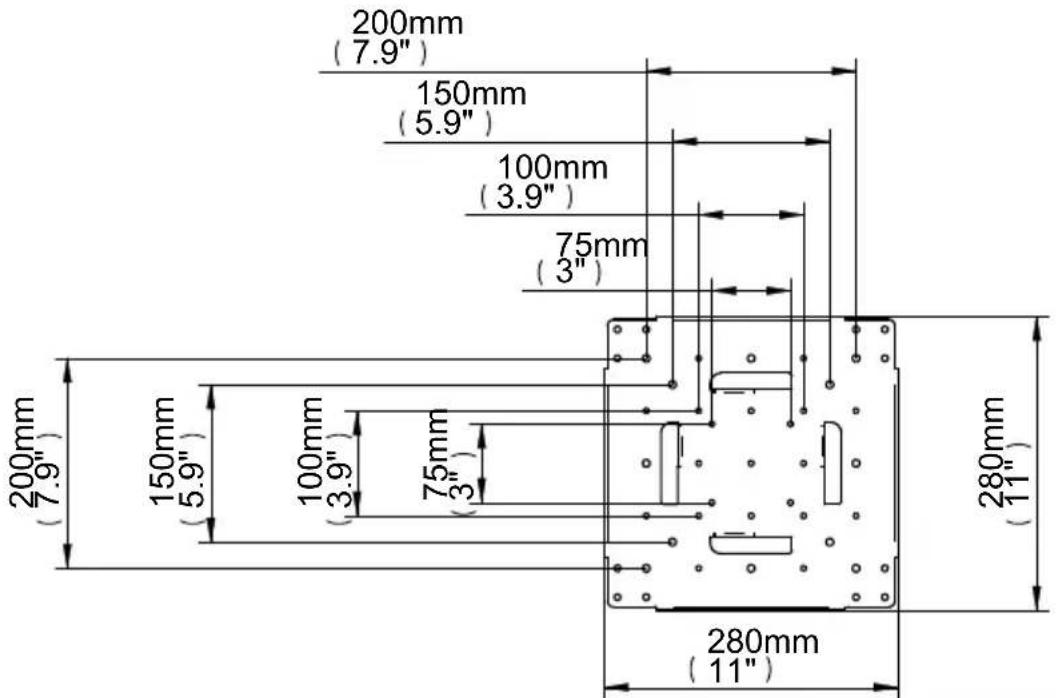

VESA INTERFACE PLATE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BETTER BY DESIGN

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: [e-mail]

EUROPE

BELGIUM

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

GERMANY

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

ASIA PACIFIC

1503 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.

B-Tech, Better By Design and Mountlogic are registered trademarks of Bennett Technologies Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

IP-BT8504-V1-PROBX-280910-1 MADE IN CHINA
