SC8280 - Vacuum Cleaner SAMSUNG - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Samsung
Model	SC8280
Dimensions (W x D x H)	Approx. 400 x 300 x 250 mm
Weight	Approx. 5.5 kg
Power Consumption	2000 W (max)
Dust Capacity	2.5 L (bagged or bagless? Assuming bagged)
Filtration System	HEPA filter
Cord Length	7 m
Operating Radius	9 m (with hose)
Suction Control	Electronic variable power control
Noise Level	78 dB(A)
Accessories Included	Small carpet nozzle, crevice tool, dusting brush
Bag or Bagless	Bagged (Samsung anti-allergy bags)
Filter Maintenance	HEPA filter washable every 6 months
Power Cord Storage	Automatic cord rewind
Handle	Ergonomic soft grip
Safety Features	Overheat protection, automatic shut-off
Repairability	Spare parts available (bags, filters, belts, brush rollers)
Warranty	2 years (depending on region)

Frequently Asked Questions - SC8280 SAMSUNG

How do I change the dust bag?

Turn off and unplug the vacuum. Open the front cover, remove the full bag by pulling the tab, and insert a new Samsung anti-allergy dust bag. Close the cover until it clicks.

How often should I clean the HEPA filter?

Clean the HEPA filter every 6 months. Remove the filter, tap it gently or rinse under cold water (air dry for 24 hours) before reinserting. Do not use the vacuum without the filter.

Why is my vacuum losing suction?

Check if the dust bag is full, the filters are clogged, or the hose is blocked. Inspect the hose and attachments for obstructions. Replace the bag if necessary and clean the filters.

Can I use the vacuum on hardwood floors?

Yes, but use the small carpet nozzle or a dedicated hard floor attachment (not included). Avoid using the power brush on delicate surfaces.

How do I unclog the hose?

Disconnect the hose from the vacuum and attachments. Use a long object like a broom handle to gently push out the blockage. You can also run water through the hose if needed.

What type of dust bag does the SC8280 use?

It uses Samsung type 700 dust bags (anti-allergy). These are available online or at retail stores. Do not use generic bags as they may affect performance.

How do I replace the belt?

Unplug the vacuum. Remove the bottom plate of the power nozzle, remove the old belt, and loop a new drive belt around the motor pulley and brush roller. Reassemble.

The vacuum overheats and shuts off. What should I do?

This is a safety feature. Turn off the vacuum and let it cool for 30 minutes. Check for blockages in the hose or full bag. Clean the filters. If the problem persists, contact support.

How do I store the vacuum?

Store the vacuum in a dry place. Wrap the cord around the automatic cord rewind system or hooks. Keep the vacuum upright to prevent damage to the hose.

Where can I find spare parts?

Spare parts like dust bags, filters, belts, and brush rollers are available from Samsung service centers or authorized online retailers. Use model number SC8280 to find compatible parts.

USER MANUAL SC8280 SAMSUNG

POWER CONTROL

BODY-CONTROLLED TYPE / ON/OFF TYPE

HOSE•

(ON) MIN → MID → MAX

Handle Control

Carpet Cleaning

Floor Cleaning

3-STEP BRUSH (OPTION)

Carpet Cleaning

Floor Cleaning

CHANGING THE BELT -

Body Control

Handle Control

OPTIONAL

For Cloth Bag•

CLEANING THE EXHAUST FILTER

CLEANING THE CYCLONE FILTER (OPTION)

BATTERY TYPE: AA SIZE

TROUBLESHOOTING

Vacuum Cleaner User Manual

100% Recycled Paper

This manual is made with 100% recycled paper.

* Before operating this unit, please read the instructions carefully.

* For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service,

please register your product at

www.samsung.com/register

Safety information

SAFETY INFORMATION

Before operating the appliance, please read this manual thoroughly and retain it for your reference.

Because the following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
CAUTION	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

	Represents something you must NOT do.
	Represents something you must follow.
	Indicates that you must disconnect the power plug from the socket.

IMPORTANT SAFEGUARDS

Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.

WARNING: Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.

Do not use the vacuum cleaner without a dust bag. Change the dust bag before it is full in order to maintain the best efficiency.

Slide to the Stop (or Min) position before inserting a plug into the electrical outlet.

Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts.

Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.

Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The plug must be removed from the socket outlet before cleaning or maintaining the appliance.

The use of an extension cord is not recommended.

1. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
3. Don't carry the vacuum cleaner by holding the hose.

Use the handle on the vacuum cleaner set.

1. Unplug the cleaner when not in use. Turn off the power switch before unplugging.

This vacuum cleaner is designed for domestic household use only. Do not use this vacuum cleaner to clean building waste or debris. Do not use this vacuum cleaner with any of the filters removed as this could cause damage to the internal components and void your warranty.

ASSEMBLING THE CLEANER

MAINTAIN TOOLS AND FILTER

08 Using accessory

09 Maintain floor tools

11 Check filter indicator

12 Changing the dust bag

12 Cleaning inlet filter

12 Cleaning the outlet filter

13 Cleaning the cyclone filter (option)

14 Change the battery (optional)

TROUBLESHOOTING

Assembling the cleaner

For storage, park the floor nozzle.

Operating the cleaner

ON/OFF SWITCH

When removing the plug from the electrical outlet, grasp the plug, not the cord.

POWER CORD

POWER CONTROL

BODY-CONTROL TYPE / ON/OFF TYPE

HOSE

To reduce suction for cleaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open.

Operating the cleaner

BODY (BODY-CONTROL TYPE ONLY)

MIN = For delicate surfaces e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

HANDLE CONTROL TYPE

HOSE

Vacuum cleaner MODE (MIN/MID, MAX)

Press the MODE button repeatedly to select the correct mode.

(ON) MIN → MID → MAX

USING ACCESSORY

Maintain tools and filter

USING ACCESSORY

ACCESSORY

Crevice tool for radiators, crevices, corners, between cushions.

Dusting brush for furniture, shelves, books, etc.

Upholstery brush for cushions and drapery.

Press gently when using rotating brush to gain maximum cleaning. Too much pressure could cause the brush to stop rotating.

PIPE

Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

Maintain tools and filter

MAINTAIN FLOOR TOOLS

2-STEP BRUSH (OPTION)

Adjust the inlet lever according to the floor surface.

Carpet Cleaning

Floor Cleaning

Remove waste matter completely if the inlet is blocked.

3 WAY BRUSH (OPTION)

Carpet Cleaning

Floor Cleaning

Adjust the inlet lever according to the floor surface.

Remove waste matter completely if the inlet is blocked.

PET BRUSH (OPTION)

For improved pick-up of pet hair and fibre on carpets.

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

Maintain tools and filter

MINI TURBO BRUSH (OPTIONAL)

TO REPLACE BRUSHROLL -

If a clog is present or debris is visible, unscrew the two screws on the back of the Mini turbo brush to remove the faceplate and clear any obstructions.

Inspect condition of brushroll.

Replace brushroll if brushes are worn down.

To remove brushroll, pull up and out of end slots in nozzle housing.

Insert ends of brushroll into same slots to replace.

Inspect belt to ensure that it is in good condition.

If belt is broken or cracked, replace belt according to To Replace Belt instructions.

Using at MAX.3.

Press the MAX button to operate the vacuum at maximum intake.

TO REPLACE BELT -

Remove bottom plate.1.

See figure in To Replace Brushroll instructions.

Loop one end of new belt around shaft of pulley.2.

Loop other end of belt around designated area for it on 3. brushroll. Insert brushroll into slots in nozzle housing. See figure in To Replace Brushroll instructions.

Fit Mini turbo brush back together as described in To4. Replace Brushroll instructions.

Maintain tools and filter

CHECK FILTER INDICATOR

WHEN TO CLEAN THE DUST PACK

If the "Filter Check" indicator turns red while you are cleaning, the dust bag requires replacement.

If the "Filter Check" indicator continues to display red even after changing the bag for a new one, turn the cleaner off and check if there is any clogging in the hose, tube, floor nozzle, or on the inlet/outlet filter.

Turn the vacuum power to 'MAX'.

Body Control

Handle Control

If the filter check indicator turns red with the inlet floating about 10 cm above a flat floor, clean the dust pack.

When suction is noticeably reduced continuously, please clean the dust pack.

Maintain tools and filter

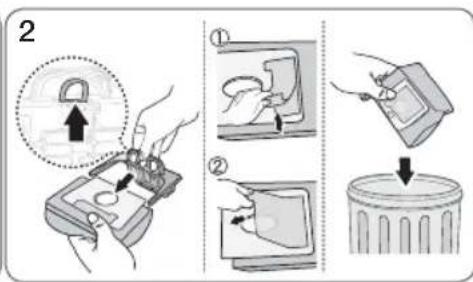

CHANGING THE DUST BAG

OPTIONAL

For Cloth Bag:

After use, if the cloth bag is full of dust, clean the cloth bag and use it again.

You can purchase dust bags in the shops where you bought this vacuum cleaner. A paper bag can be used as you prefer (Paper-bag: VP-90).

CLEANING INLET FILTER

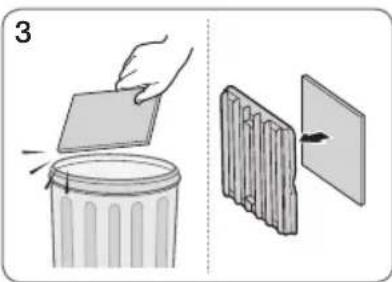

CLEANING THE OUTLET FILTER

Press the fixed frame part at the back of the main body to remove.

Maintain tools and filter

Pull out the filter using the tab. Clean the filter.

Put the filter into the main body until you hear a 'click' sound.

CLEANING THE CYCLONE FILTER (OPTION)

Use Cyclone Filter for the best efficiency.

Maintain tools and filter

CHANGE THE BATTERY (OPTIONAL)

When the vacuum cleaner does not work, replace the batteries.

If the problem persists, please contact our authorized dealer.

Use 2 batteries of size AA.

Never disassemble or recharge the batteries.

Never heat up the batteries or throw them into fire.

Do not reverse (+), (-) poles.

Dispose of the batteries properly.

BATTERY TYPE: AA Size

Troubleshooting

PROBLEM SOLUTION
Motor dows not start.	Check cable, pulg and socket.·Leave to cool.·
Suction force is gradually decreasing.	Check for blockage and remove.·
Cord does not rewind fully.	Pull the cord out 2-3m and push down the cord rewind button.·
Vacuum cleaner dows not pick up dirt.	Check hose and replace if required.·
Low or decreasing suction	Please check filter and, if required, clean as illustrated in the ·instructions.

This vacuum cleaner is approved for the following.

Electromagnetic Compatibility Directive: 2004/108/EEC

Low Voltage Directive: 2006/95/EC

SAMSUNG

CALL CENTER

444 77 11

SAMSUNG

Samsung Electronics Co., Ltd.

12th Fl., Samsung Main Bldg.,

250, 2-Ka, Taepyung-Ro, Seoul Korea

TEL: [phone]

LVD: TÜV Product Service GmbH

Ridlerstr. 65, 80339 Munchen, Germany

TEL: [phone]

EMC:SEQAL

Blackbushe Business Park Saxony Way Yateley

Hampshire GU46 6GG, UK

TEL: [phone]

Importer Company

SAMSUNG

SAMSUNG Electronics Istanbul Marketing and Trade Ltd. Co.

Code No. DJ68-00598F REV(0.1)
