ES246AC - Razor PANASONIC - Free user manual and instructions

Product Type	Bikini Shaper & Trimmer
Model	ES246AC
Brand	Panasonic
Power Source	DC 3V, 2 AA batteries (not included)
Battery Life	Approx. 1 month (5 min shave twice a week) or approx. 45 min continuous operation
Cutting Length Settings	5 settings: 1 (3mm), 2 (6mm), 3 (9mm), 4 (12mm), 5 (15mm)
Grooming Comb	Included, adjustable length
Blade Replacement Interval	Every 1 year with twice a week use
Cleaning	Brush included, clean blades after use; not washable
Water Resistance	Not washable; do not immerse in water
Usage	For bikini line trimming only; not for thick hair or normal shaving
Skin Compatibility	Not for people with allergic tendencies or skin eruptions
Safety	Keep out of reach of children; do not use on pet hair; remove batteries if not used for long time
Accessories Included	Grooming comb, cleaning brush
Weight	Not specified by manufacturer
Dimensions	Not specified by manufacturer

Frequently Asked Questions - ES246AC PANASONIC

How do I change the batteries?

Press down on the battery cover and slide it off. Insert two AA batteries matching the +/- markings, then replace the cover. Use only fresh batteries; do not mix old and new.

How do I clean the trimmer?

Remove the grooming comb. Use the cleaning brush to remove hair from the blades. For a deeper clean, push down the cleaning lever to raise the moving blade and brush between them. Do not wash with water.

How do I adjust the cutting length?

Use the grooming comb. Grasp the adjustment tab and slide it to the desired setting from 1 (shortest) to 5 (longest). Refer to the scale for approximate hair lengths: 1=3mm, 2=6mm, 3=9mm, 4=12mm, 5=15mm.

How often should I replace the blade?

With twice-a-week use, replace the blade every 1 year. For replacement, remove the old blade by pushing it away from the body, then snap the new blade in until it clicks.

Can I use this trimmer on wet skin?

No, this product is not washable. Use only on clean, dry skin. Do not apply soap, cream, or makeup before use, as it reduces blade performance.

How long do the batteries last?

With typical use (5 minutes twice a week), batteries last about one month. If you run the trimmer continuously, you can get approximately 45 minutes of operation.

Can I use this for trimming facial hair?

This trimmer is designed for bikini line hair removal, not for thick hair patches or normal shaving. It may be used on sensitive areas like eyebrows and mouth lines with caution, but avoid acne or irritated skin.

What should I do if the trimmer stops working?

First check the batteries. If they are old or weak, replace them with fresh ones. If the trimmer still does not work, the blade may need cleaning or replacement.

Is the trimmer safe for people with sensitive skin?

People with sensitive skin should use caution, especially around the mouth and eyebrows. Do not use if you have acne, rashes, or skin eruptions. If irritation occurs, stop use.

Can I use the trimmer on pets?

No, never use the trimmer on pet hair. It is designed for human use only.

USER MANUAL ES246AC PANASONIC

Operating Instructions

Model No. ES246

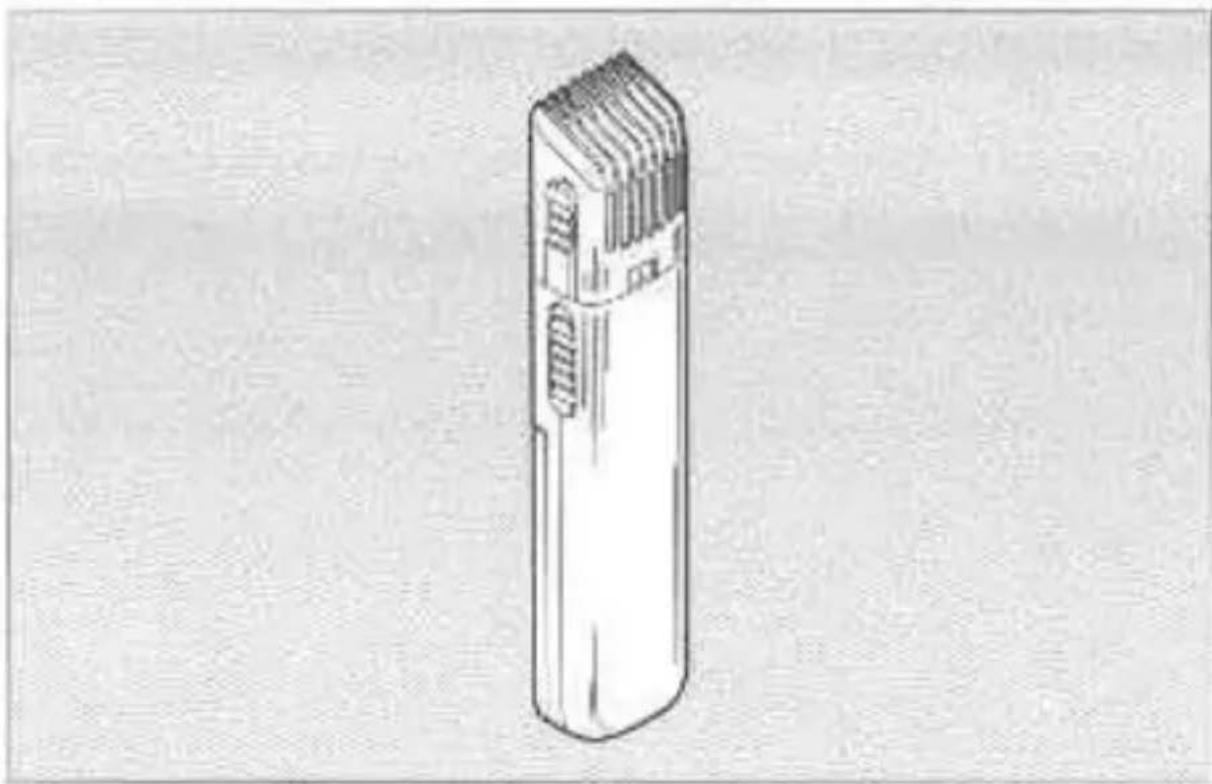

Line drawing of a cylindrical electronic device with a flat top and internal circuit lines (no text or symbols)

Before operating this unit, please read these instructions completely. Thank you for purchasing the Panasonic Bikin Shaper & Trimmer Model No.ES246.

1

Simple line drawing of a brush with a handle and bristles, labeled with number 6 (no text or symbols on the brush itself)

Indicator of hair length / Indicador del largo del cabello

Indicator Setting / Ajuste del indicador	Resulting length / Largo obtenido
5	approx. 5/8" (15 mm) / 15 mm aprox.
4	1/2" (12 mm) / 12 mm aprox.
3	3/8" (9 mm) / 9 mm aprox.
2	1/4" (6 mm) / 6 mm aprox.
1	1/8" (3 mm) / 3 mm aprox.

Line drawing of a mechanical component with internal parts and a rectangular housing, no text or symbols present

Line drawing of a hand holding a mechanical device with granular material, no text or symbols present

Illustration of a hand holding a small object with arrows indicating direction, no text or symbols present

Diagram of a hand using a tool to lift a component, showing motion and assembly (no text or symbols)

Index

ENGLISH Page 5

ESPAÑOL Pagina 7

Before use

This cosmetic trimmer is designed to remove Bikini lines hairs.

Not recommended for use as a normal shaver on thick hair patches.

The following persons should not use this trimmer.

• People with allergic tendencies.
• People who get rashes from shaving and cosmetics.

Care must be taken by persons who have following conditions.

• People with acne or other kinds of skin eruptions must not jet the blade comes into contact with those areas of the skin.
• People with sensitive skin should be careful to trim sensitive areas around the mouth and eyebrows.

Parts Identification

(See fig. 1)

① Blade
② Switch
③ Battery cover
④ Grooming comb
⑤ Adjustment tab
⑥ Cleaning brush

Charging

(See fig. 2, 3)

Remove the battery cover③ by pressing down and pulling in the direction shown.

Insert two batteries observing the Positive (+) and Negative (-) position indicated.

Replace the battery cover.

- Two "AA" batteries (not included)

will last approximately one month (when used for 5 minute shave twice a week).

- When the trimmer begins losing power, replace the batteries.

Using your shaver

(See fig. 4, 5, 6)

Turn on the switch and keep the shaver head flat against the skin.

• Using Grooming comb

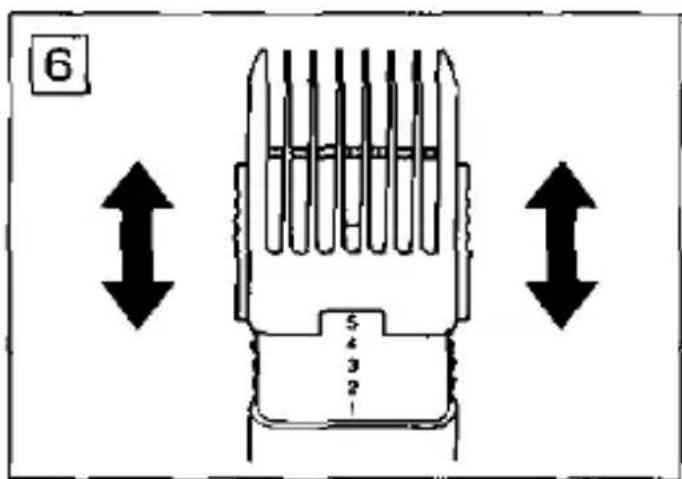

You can adjust the length of the hair with the grooming comb④.

To adjust the cutting length, simply grasp the adjustment tabs and move it to the proper position "1" to "5". (See the more details of the hair length on page 2)

After use, replace the grooming combs④ to the position "1" to protect and keep clean the blade.

Cleaning

Remove the grooming combs.

Hold the body of trimmer and place the thumb against the blade and push away from the main body. (See fig. 7)

Brush hair from the cutting mechanism. (See fig. 8)

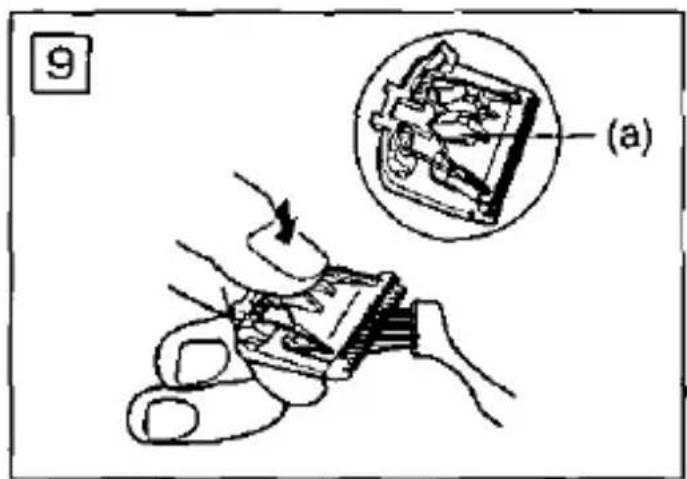

Push down the cleaning lever (a) to raise the moving blade and clean between the blade. (See fig. 9)

To replace the blade, place the guide tabs (b) in the guide sites and push down until the blade clicks into place. (See fig. 10, 11)

Replacing shaver head components

With twice a week use, the blade may need to be replaced every 1 year.

Replacing the blade

(See fig. 7)

Turn the switch off and hold the body of trimmer and place the thumb against the blade and push away from the main body.

Insert the blade

(See fig. 10, 11)

Place the guide tabs (b) in the guide sites and push down until the blade clicks into place.

Caution

• If the body becomes dusty, clean only with a damp or slightly soapy cloth.
  Never use a corrosive cleaner such as benzine, or bleach or immerse the unit in water.
• Keep out of reach of children.
• Never use the trimmer on pet hair.
• During normal operation, the blades and body of the trimmer may become warm. This is normal.
• If the trimmer is not used for a long

time, remove the batteries to prevent possible leakage.

• Do not use new batteries with old ones.
• When the trimmer begins losing power, replace the battery. The battery may leak if not replaced promptly when it reaches the end of its life span.
• Use the trimmer only on clean skin. If you wear makeup, be sure to wash it off and dry your face well before using the trimmer.
• This product is not washable type. Do not use with any soap or cream on the face. This reduces blade performane and weakens the battery.

Specifications

Power source:

DC 3 V, 2 "AA" batteries. (not included)

Operating time:

Approximately. 45 min.

This product is intended for house- hold use only.

READ ALL INSTRUCTIONS BEFORE USE.

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-338-0552.

Antes de usar

Division of Matsushita

Electric of Puerto Rico, Inc.

San Gabriel Industrial Park

65th Infantry Avenue KM9.5

Carolina, Puerto Rico 00630
