Product Type	Bookshelf Speaker
Brand	Klipsch
Model	Synergy KSB-1.1
Dimensions (H x W x D)	13.0 x 7.5 x 8.5 inches (approx)
Weight	8.5 lbs (approx)
Power Handling (RMS)	50 watts
Power Handling (Peak)	200 watts
Sensitivity	91 dB @ 1 watt / 1 meter
Impedance	8 ohms
Frequency Response	55 Hz - 20 kHz (±3 dB)
Tweeter	1-inch aluminum dome
Woofer	5.25-inch copper-spun IMG
Enclosure Type	Bass reflex (rear ported)
Inputs	Spring-loaded terminals
Finish	Black vinyl
Recommended Amplifier Power	15 - 100 watts per channel
Placement	Bookshelf or stand, keep 6 inches from wall
Cleaning	Wipe with a dry, soft cloth. Do not use liquids or sprays.
Safety	Place on a stable surface. Avoid exposure to moisture.
Spare Parts / Repair	Contact Klipsch customer service or authorized service centers.

Frequently Asked Questions - Synergy KSB-1.1 KLIPSCH

What is the recommended amplifier power for the Klipsch Synergy KSB-1.1?

The recommended amplifier power is between 15 and 100 watts per channel. Use with an amplifier that provides clean power within this range to avoid damage.

Can I bi-wire the KSB-1.1 speakers?

No, the KSB-1.1 uses a single pair of spring-loaded terminals. Bi-wiring is not supported.

What is the impedance of the KSB-1.1?

The impedance is 8 ohms, making them compatible with most home theater receivers and stereo amplifiers.

How far from the wall should I place the speakers?

Place them at least 6 inches away from the rear wall to allow the rear port to function properly and avoid boomy bass.

Do the grilles come off?

Yes, the grilles are removable. They are attached with pegs and can be gently pulled off for cleaning or to expose the drivers.

What type of speaker wire should I use?

Use 16-gauge or thicker speaker wire for runs up to 50 feet. The spring terminals accept bare wire or banana plugs.

Are the KSB-1.1 speakers magnetic shielded?

No, they are not shielded. Keep them away from CRTs or sensitive electronic devices to avoid magnetic interference.

How do I clean the speakers?

Wipe the cabinet with a dry, soft cloth. Do not use any liquid cleaners or sprays as they may damage the finish.

Can I use these speakers for surround sound?

Yes, the KSB-1.1 is suitable for surround channels. Pair with a compatible Klipsch center channel for best results.

What should I do if a driver stops working?

Contact Klipsch customer support for warranty service or replacement parts. Do not attempt to repair yourself unless authorized.

USER MANUAL Synergy KSB-1.1 KLIPSCH

Klipsch, L.L.C. P.O. Box 688 Hope, AR 71802

A LEGEND IN SOUND.

8900 Keystone Crossing, Suite 1220

Indianapolis, Indiana 46240

1·800·KLIPSCH • www.klipsch.com

Make sure you return your warranty card so that we may keep you up-to-date on new Klipsch products and promotions. As always, if you have any questions, contact your local authorized Klipsch dealer

For your records:

Model

Serial Number

Date Purchased

Dealer Name

Stamp Here

Postage

FIRST CLASS

Place

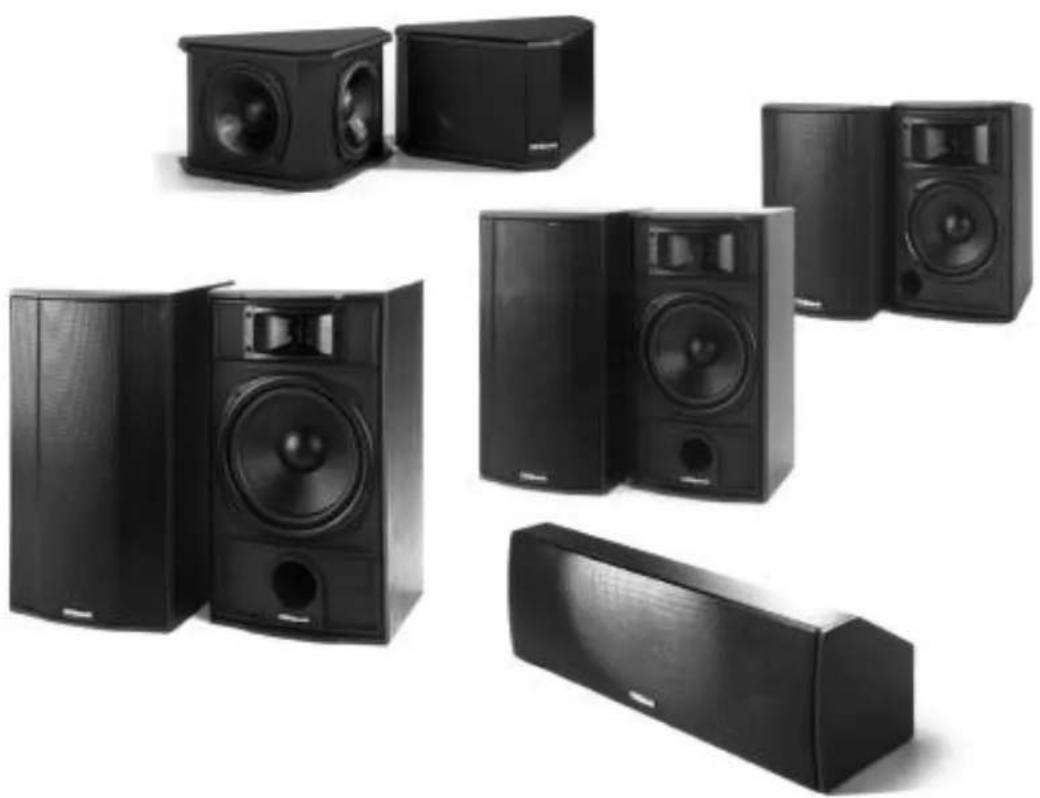

KSB 1.1, KSB 2.1, KSB 3.1, KSC-C1, KSC-S1

Collection of black audio speakers with various speaker models and sound block units (no visible text or labels)

Owner's Manual & Warranty

IF YOU PREFER, YOU CAN REGISTER ONLINE AT WWW.KLIPSCH.COM

For multiple speaker purchases, please fill out only one warranty card.

Name:

Street Address:

City/State/Zip:

Home Phone:

Work Phone:

E-mail Address:

Would you like to receive the latest product updates and news via e-mail?

□ Yes □ No

Product Purchase

Model and serial number must be included to honor your warranty card. For multiple speaker purchases, please fill out only one warranty card.

Model Serial Number

Model Serial Number

Model Serial Number

Model Serial Number

Model Serial Number

Model Serial Number

What store did you purchase your Klipsch products from?

Store Name: State:

How did you hear about Klipsch?

□ Audio/Home Theater Magazine

☐ Other Magazine ☐ TV

Radio

□ Newspaper

Trade Show

Friend

Retail Dealer

Direct Mail

Have you purchased Klipsch products before?

□ Yes □ No

If yes, what products?

Product Name(s):

When do you hope to purchase additional loudspeakers?

☐ 6 mos. – 1 yr. ☐ 1–2 yrs.

How likely are you to consider Klipsch products for your upcoming purchases?

□ Very likely

□

Somewhat likely

□

Doubtful

If doubtful, why?

□

Don't carry product I'm looking for

□

Too expensive

□

Klipsch dealer to

fa

way □ Other

Please tell us about you!

□ Married

Single

Student

□

Male □ Female

Age:

15-17 18-24

25-35

36-45

46-55

55-64

65+

Annual Household Income:

Under \$25,000

\$25-35,000

\$35-50,000

□

\$75-100,000

□

\$100,000+
