Product Type	Gas Barbecue Grill
Model	PRO36RBIN
Brand	Capital
Fuel Type	Liquid Propane (LP) or Natural Gas (NG) convertible
Main Burners	4 stainless steel burners
BTU Output	60,000 BTU total
Cooking Area	720 sq. in. primary + 180 sq. in. warming rack
Grill Dimensions (L x W x H)	56 x 24 x 46 inches (including cart)
Weight	Approx. 150 lbs (68 kg)
Ignition System	Electronic push-button ignition
Material	Stainless steel hood and body
Cooking Grates	Porcelain-coated cast iron
Side Burner	1 side burner (12,000 BTU)
Rotisserie Kit	Included with motor
Temperature Gauge	Built-in lid thermometer
Grease Management	Removable drip tray and grease cup
Safety Features	Gas shut-off valve, flame tamers, stable cart with locking casters
Warranty	Limited lifetime on burners, 5 years on other parts
Assembly Required	Yes, with included hardware and instructions
Cleaning	Brush grates after use; wash drip tray with soapy water; cover when not in use

Frequently Asked Questions - PRO36RBIN Capital

What fuel types can the Capital PRO36RBIN use?

The grill can use liquid propane (LP) or natural gas (NG). It comes with a conversion kit for natural gas. Always check the regulator for proper installation.

How do I clean the cooking grates?

After grilling, burn off residue on high heat for 15 minutes, then brush with a stainless steel brush. For deep cleaning, remove grates and wash with mild soap and water, then rinse and dry thoroughly.

Is assembly required and how difficult is it?

Yes, assembly is required. The process typically takes 1-2 hours with two people. All necessary tools and instructions are included in the box.

What is the warranty coverage?

Capital offers a limited lifetime warranty on the stainless steel burners and a 5-year warranty on all other parts. Labor and shipping are not covered.

Can I use the grill in rainy weather?

It is not recommended to use the grill in rain or snow. Always operate in a well-ventilated outdoor area away from flammable structures. A grill cover can protect it when not in use.

How do I light the grill?

Open the lid, turn the gas tank valve on, wait a minute for gas to settle, then press the electronic ignition button while turning a burner knob to 'HIGH'. If it doesn't light, use a long match with the lid open.

What size propane tank does it use?

The grill uses a standard 20 lb propane tank (also known as a BBQ propane cylinder). The tank is not included.

How do I maintain the stainless steel exterior?

Clean with a soft cloth and stainless steel cleaner or mild soapy water. Always wipe in the direction of the grain to avoid scratches. Apply a stainless steel polish for added shine.

Can I add a rotisserie kit?

Yes, a rotisserie kit is included with the grill. It features a motor and spit rod, and instructions for using it are in the manual.

What should I do if the burners don't ignite?

Check that the gas tank is full and valve is open. Ensure the ignition wire is connected to the electrode. Clean the burner ports if clogged with grease. If still not igniting, replace the batteries in the igniter.

USER MANUAL PRO36RBIN Capital

Available in Natural Gas and LPG versions

www.capitalbrand.com.au

Steamed beef dish with glossy sauce, garnished with a small herb and mint, served on a white plate with yellow potatoes in the background (no text or symbols visible)

MESSAGE 3

WARNINGS 4

LOCATION 5

SAFETY PRACTICES & PRECAUTIONS 6 - 8

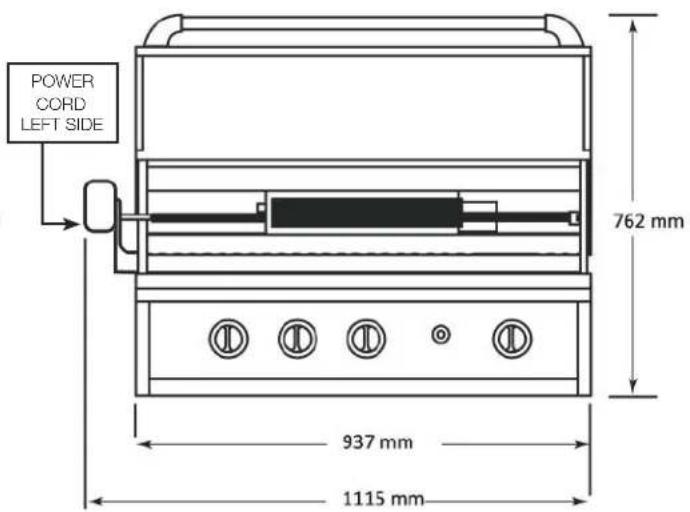

BUILT-IN CLEARANCES 13

AIR SHUTTER INSTRUCTIONS 14

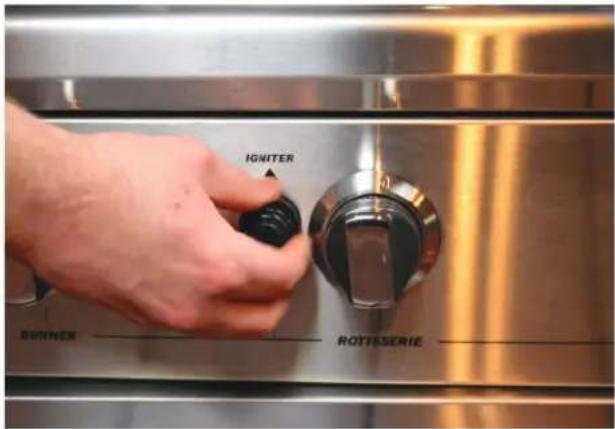

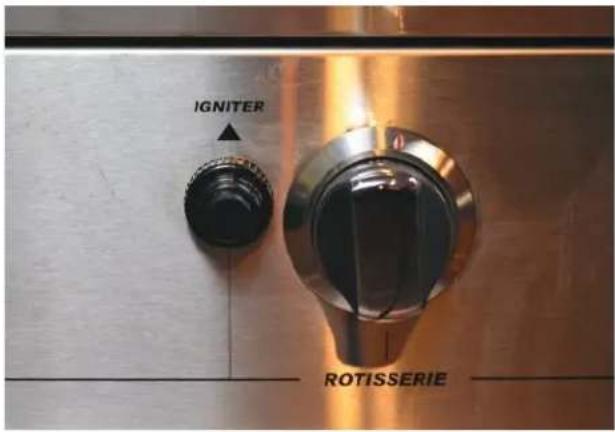

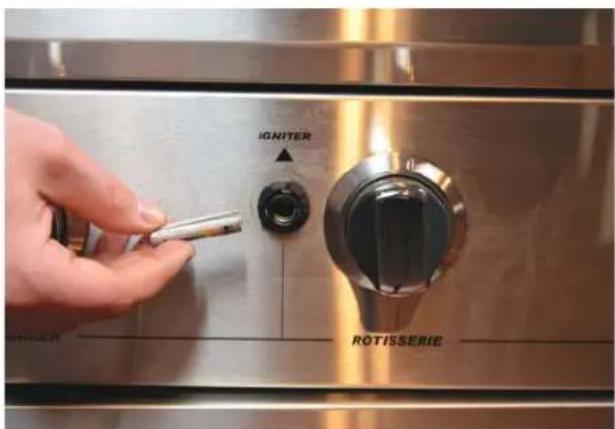

REPLACING THE BATTERY 15

BURNER ADJUSTMENT 16 - 17

USING THE GRILL / FEATURES / LIGHTING INSTRUCTIONS 18 -19

HELPFUL HINTS 20

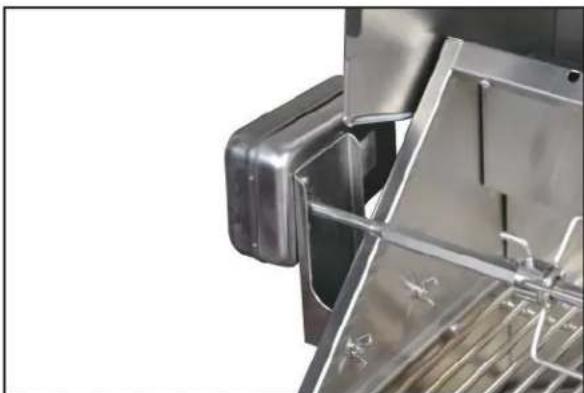

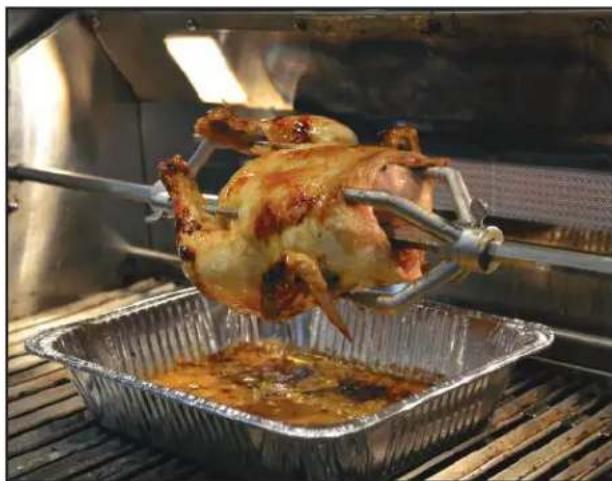

USING THE ROTISSERIE 21 - 23

CARE AND CLEANING 24

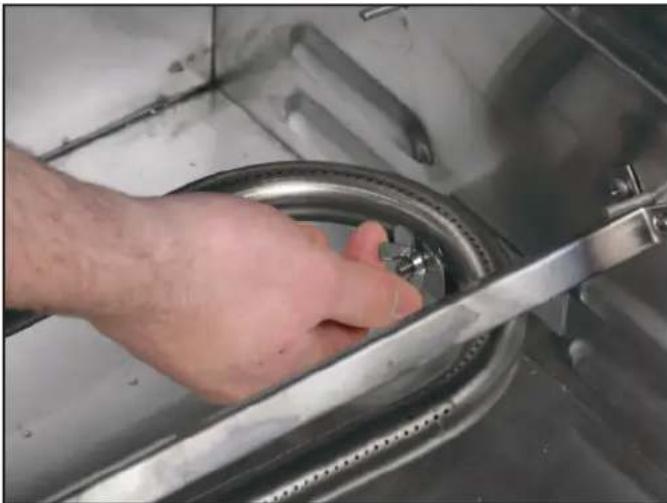

BURNER REMOVAL AND CLEANING 25

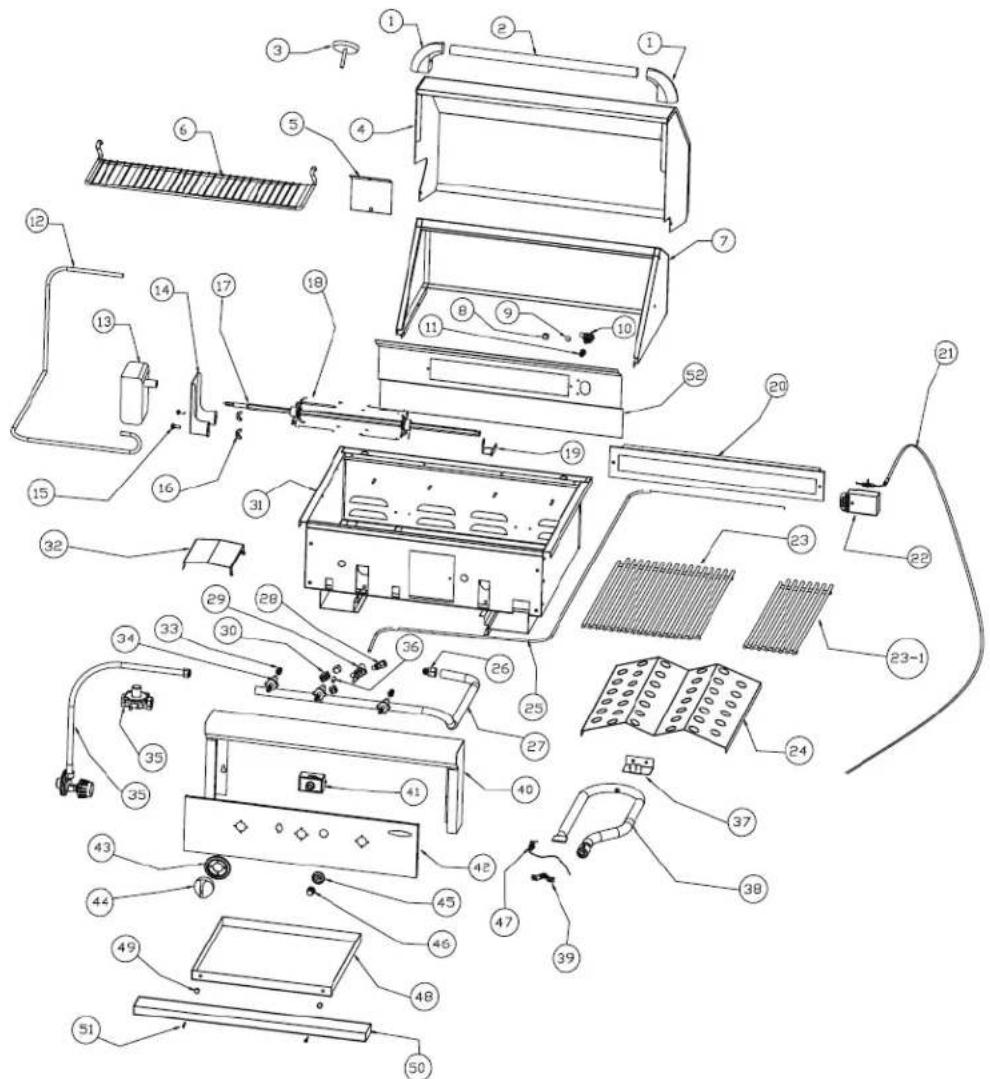

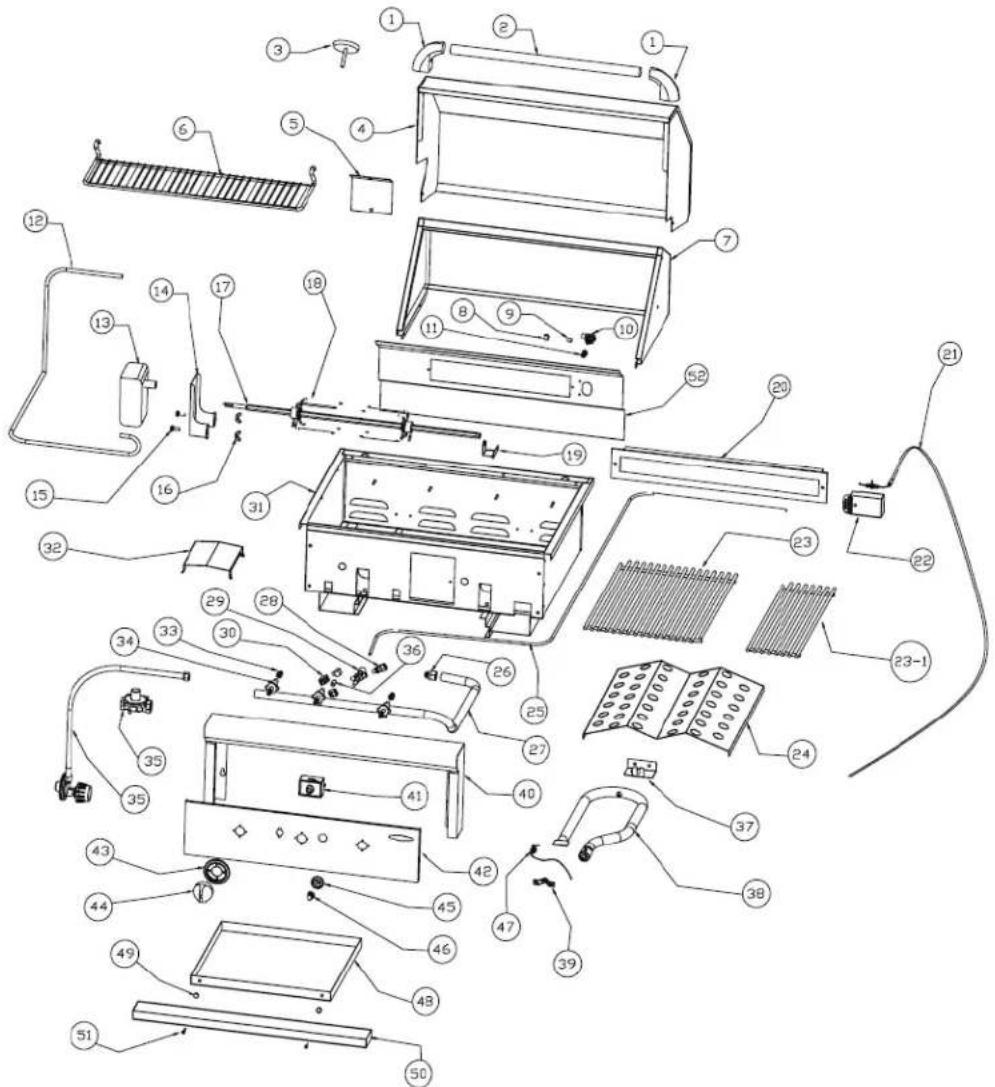

PARTS LIST 26 - 27

TROUBLESHOOTING 28

WARRANTY 29

Dear Valued Customer,

Congratulations on making a smart choice! You have joined an elite group of cooking enthusiasts who demand only the very best from their appliances. A Capital Cooking appliance promises years of enjoyment and maximum pleasure, allowing cooks everywhere to create culinary memories that last a lifetime.

Because of the unique features found in our appliances, we urge you to read this manual thoroughly before installation and use.

Please RETAIN THIS MANUAL FOR FUTURE REFERENCE: it is an invaluable guide to help you better understand your Capital Cooking appliance.

Since your satisfaction is our topmost priority, please feel free to contact our service centre. You may reach us on 1300 762 219, You can email at [e-mail].

Our products are designed and proudly manufactured in America. We trust that our strict adherence to the highest quality assurance standards will provide you with years of troubled free, gourmet cooking.

Happy Cooking!

Capital

CAPITAL

WARNING

FOR OUTDOOR USE ONLY!

WARNING!

DO NOT attempt to light barbecue without reading the LIGHTING INSTRUCTIONS section in this manual.

WARNING!

This appliance must be serviced only by a qualified licensed person.

Improper installation, adjustment, alteration or maintenance can cause injury or property damage.

Please contact Arisit on 1300762 219 for Service Department for additional information or assistance for an approved installer.

NOTE: This manual must remain with the owner for future reference

WARNING!

DO NOT spray aerosols in the vicinity of this appliance while it is in operation.

DO NOT use or store flammable materials in or near this appliance.

DO NOT place articles on or against this appliance.

DO NOT modify this appliance.

WARNING!

DO NOT store or use petrol or any other flammable liquids in the vicinity of this or any other appliance.

DANGER!

If you smell gas, shut off gas to the appliance, extinguish any open flames and open barbecue lid.

If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

WARNING!

Our barbecues produce intense heat with temperatures in excess of 1000 degrees. To avoid the risk of damaging (warping) the lid and causing injury, DO NOT operate the barbecue with all burners on HIGH (including rotisserie burner) and lid closed for more than 8 minutes at any given time.

Failure to follow provided instructions or follow basic safety precautions will void all warranties.

Capital Cooking is not responsible for damages or injuries caused by a failure to follow instructions or basic safety practices.

NOTE: Children and pets should never be left alone or unattended in area where the barbecue is being used.

Compliance

This BBQ Conforms with AS/NZS 5263.1.7-2016 and is not for indoor use.

For Australia LPG and Natural Gas

FOR OUTDOOR USE ONLY.

Check your local building codes for the proper installation method of installation. In the absence of localcodes, this unit should be installed in accordance with AS/NZS 5601 Gas Installation code and

SAA Wiring Rules. In particular, refer to AS/NZS 5601 for pipe sizing details.

LOCATION

WARNING: NOT FOR USE IN MARINE CRAFT, CARAVANS OR MOBILE HOMES.

PUTTING YOUR BARBECUE IN AN ENCLOSURE

This appliance must only be used in an above ground, open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used must comply with one of the following:

Geometric diagram of a 3D triangular prism with internal planes and a vertical post (no text or symbols)

Geometric diagram of a 3D pyramid-like structure with triangular faces and shaded triangular sections (no text or symbols)

Within a partial enclosure that includes an overhead cover and no more than two walls.

Isometric line drawing of a simple 3D geometric structure resembling a tent or tent with windows (no text or symbols)

Isometric line drawing of a geometric structure resembling a tent or cage (no text or symbols)

Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply:

• At least 25% of the total wall area is completely open; and
• At least 30% of the remaining wall area is open and unrestricted.

In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

Isometric line drawing of a rectangular container with a U-shaped cutout (no text or symbols)

Any enclosure with walls on all sides, but at least one permanent opening at ground level, and no overhead cover.

SAFETY PRACTICES AND PRECAUTIONS

WARNING

When in use, portions of this barbecue get hot enough to cause severe burns. Children and pets should never be left alone or unattended in an area where the barbecue is being used. Never allow children to sit, stand, or play on or around the barbecue at any time.

When properly cared for, your Capital barbecue will give you years of safe and reliable enjoyment. However, extreme care must be taken since the barbecue produces intense heat, increasing the risk of accident. When using this appliance, basic safety practices must be followed, including the following:

To reduce the risk of fire, burns, or other injury, read this Use and Care guide thoroughly. Begin by ensuring proper installation and servicing. Do not repair or replace any part of the barbecue unless specifically recommended in this manual. All other service must be referred to a qualified and Authorized Arisit Technician.

• DO NOT store items of interest to children in or around the barbecue. Never allow children to crawl inside the cart storage drawers or inside access doors.
• NEVER let clothing, pot holders or other flammable materials come into contact with or come too close to any grate, burner or hot surface until it has cooled. Fabric may ignite and result in personal injury.
  • DO NOT heat unopened food containers. A build up of pressure may cause the container to burst.
• ALWAYS use a covered hand when opening the barbecue lid and only do so slowly to allow heat and steam to escape.
• NEVER lean on an open barbecue. When lighting a burner, always pay close attention to what you are doing. Be certain the igniter clicks when the button is pressed.
• DO NOT touch the barbecue burner grate, warming rack, any item in the interior cavity or surrounding area of the barbecue when burners are on. These areas become extremely hot and could cause severe burns.
• GREASE is flammable. Let hot grease cool before attempting to handle it. Avoid letting grease deposits collect in the drip pan. Clean the barbecue after each use.
• DO NOT line drip tray or barbecue racks with aluminum foil. This may severely disrupt combustion airflow or trap excessive heat in the controlled area. This may result in melted knobs and/or igniter, damage to the lighting system and may cause excessive heat on the control panel area.
• TAKE PRECAUTION when cleaning the barbecue. To avoid steam burns do not use a wet sponge or cloth to clean the barbecue while it is hot. Some cleaners produce noxious fumes or can ignite if applied to a hot surface.
• ALWAYS cover the barbecue with the supplied vinyl cover when not in use. This will protect the barbecue from the elements, including sun, rain, wind and dust.

SAFETY PRACTICES AND PRECAUTIONS

BE SURE all control knobs are in the OFF position and barbecue is cool prior to using any aerosol cleaner on or around the barbecue. The chemical that produces the spraying action could, in the presence of heat, ignite or cause metal part to corrode.

ALWAYS use dry potholders: moist or damp potholders on hot surfaces may cause steam burns. Do not use a towel or bulky cloth in place of potholders.

DO NOT let potholders touch hot portions of the barbecue rack or burner.

DO NOT use the barbecue to cook excessively fatty meats or products that promote flare-ups.

NEVER use the barbecue without the drip tray in place and pushed all the way to the back of the barbecue. Grease could leak downward and produce a fire or explosion hazard.

DO NOT operate the barbecue under unprotected combustible construction. Use only in a well ventilated area. DO NOT obstruct the flow of combustion and ventilation air.

DO NOT use the barbecue in buildings, garages, sheds, breezeway or other such enclosed areas. This unit is for Outdoor Use Only!

KEEP ALL electrical cords away from the heated areas of the barbecue.

BEGIN by ensuring proper installation and servicing. Follow the installation instructions provided with this product. Have your barbecue installed by a qualified installer. Have the installer show you where the gas supply shut off valve is located so you know where to shut off the gas to the barbecue in an emergency. The installer must test for satisfactory operation of the appliance following installation.

IF YOU SMELL GAS, your installer has not done a proper job of checking for leaks. If the connections are not perfectly sealed, you can have a small leak and therefore a faint gas smell. Finding a leak is not a “do-it-yourself” procedure. Some leaks can only be found with the burner control in the “ON” position. This must be done only by a qualified technician.

IMPORTANT SAFETY NOTICE REGARDING LPG BOTTLES

Only use 9kg approved LPG bottles. Certain liquid propane dealers may fill liquid propane cylinders for use in the barbecue beyond cylinder filling capacity. This overfilling may create a dangerous condition.

Overfilled tanks can build up excess pressure. As a safety device, the tank's pressure relief valve will vent propane gas vapor to relieve this excess pressure. This vapor is combustible and therefore can be ignited. To reduce this danger, you should take the following safety precautions:

1. When you have your tank filled, be sure you tell the supplier to fill it to no more than 34 (75%) of its total filling capacity.

2. If you own or use an extra tank, or have a disconnected tank, you should never store it near or under the barbecue unit or heat box, or near any other ignition or heat source.

3. NEVER store a spare LPG cylinder under or near the unit.

4. NEVER fill the tank beyond 34 full. A fire causing death or serious injury may occur.
5. NEVER use a dented or rusty LPG tank.

SAFETY PRACTICES AND PRECAUTIONS

A NOTE ON CLOTHING:

For personal safety, wear proper apparel. Loose fitting garments or sleeves should never be worn while using this appliance. Some synthetic fabrics are highly flammable and should not be worn while cooking.

A NOTE ON COOKWARE:

Only certain types of glass, heat-proof glass ceramic, earthenware, or other glazed utensils are suitable for barbecue use.

Other types of materials may break with sudden temperature changes. Use only on low or medium heat setting according to the manufacturer's directions.

WARNING:

Spiders and insects can nest in the burners of this and any other barbecue, and cause the gas to flow from the front of the burner. This is a very dangerous condition that can cause a fire to occur behind the valve panel, thereby damaging the barbecue and making it unsafe to operate.

WARNING:

Keep the area surrounding the barbecue free from combustible materials, trash, combustible fluids and vapors such as petrol or charcoal lighter fluid. DO NOT obstruct the flow of combustion and ventilation air.

WARNING:

NEVER use the barbecue in windy conditions. If located in a consistently windy area (oceanfront, mountaintop, etc.) a windbreaker will be required. Always adhere to specific clearances listed.

FLEXIBLE HOSE

If a flexible hose is used to connect to the inlet, it should be as short as possible with a maximum length of

1.5 metres. The supply connection point must be accessible with the appliance installed.

• For LPG Only use supplied hose

• For Natural Gas use 13mm Stainless steel braided hose

• The flexible connection must be approved to class B or D of AS/NZS1869 as a minimum.

• It should not be bent, kinked or compressed;
• It should not be in contact with the rear wall of the appliance or in any case with parts which may reach a temperature of 50^ C;
• It should not come into contact with pointed parts or sharp corners;
• It should not be subject to any pulling or twisting forces;
• It should be easy to inspect along its entire length in order to be able to check its condition.

GAS SPECIFICATIONS

GAS TYPE NATURAL GAS	Pressure 1.0 kPa		LPG GASPressure 2.70 kPa
	Injector Drill Size GC	(MJ/hr)	Injector DrillSize	GC(MJ/hr)
Main Burners #44/2.18mm 20.76 #55/1.32mm 20.38
Rotisserie burner (32") #51/1.70mm 13.46 #59/1.04mm 13.45
Rotisserie burner (36") #48/1.95mm 16.23 #57/1.09mm 16.08

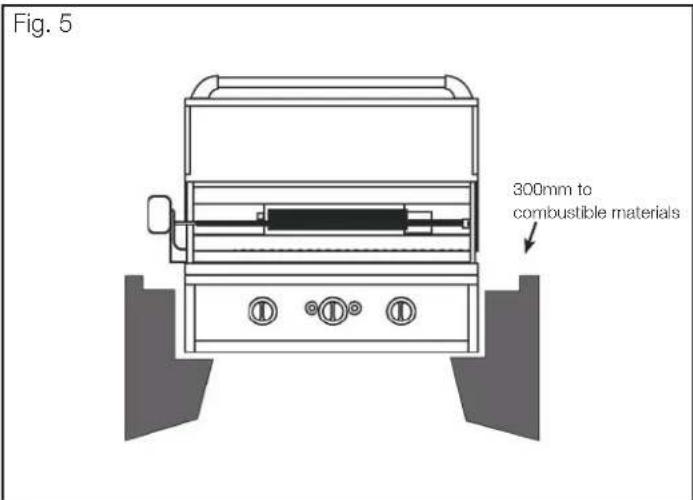

CLEARANCES FROM COMBUSTIBLE MATERIALS

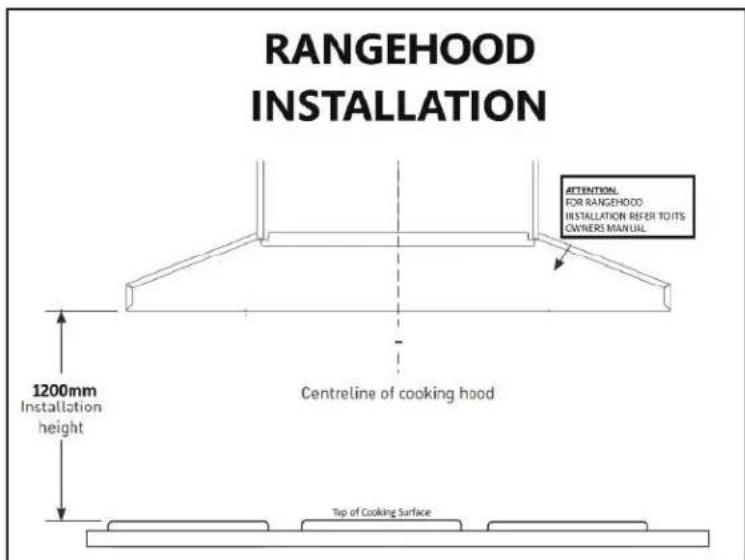

Sides: 300mm, Back: 300mm, Below: 300mm and Above: 1200mm

NOTE: The BBQ must be installed on a level surface.

OUTDOOR USE ONLY.

Check your local building codes for the proper installation method of installation. In the absence of local codes, this unit should be installed in accordance with AS/NZS 5601 Gas Installation code and SAA Wiring Rules.

LPG INSTALLATION

Gas Cylinder Safety Information

This appliance is designed to be used with a gas cylinder not exceeding 9KG Capacity. The Gas cylinder must be constructed and marked in accordance with specifications and certified to AS 2469 for LPG. The gas cylinder supply valve must be turned off when the appliance is not in use. Gas cylinders must be stored outdoors, out of reach of children and must not be stored in a building, garage or any other enclosed area. The gas cylinder used must incorporate a safety collar to protect the valve assembly

• When disconnecting and removing the gas cylinder for the purpose of refilling, always observe the following procedure.
• Ensure that all gas control valves on the appliance and the gas cylinder are turned off before disconnecting the gas line from the cylinder.
• Do not smoke or use a naked flame near the appliance or gas cylinder while disconnecting the gas line between the appliance and gas cylinder.
• Remove the gas cylinder from the enclosure before disconnecting the gas line from the appliance.
• Tighten all connections before placing the gas cylinder back in its enclosure.
• The Gas Leak Testing Procedure should be conducted every time the gas cylinder is refilled and reconnected to the appliance - before using the appliance.

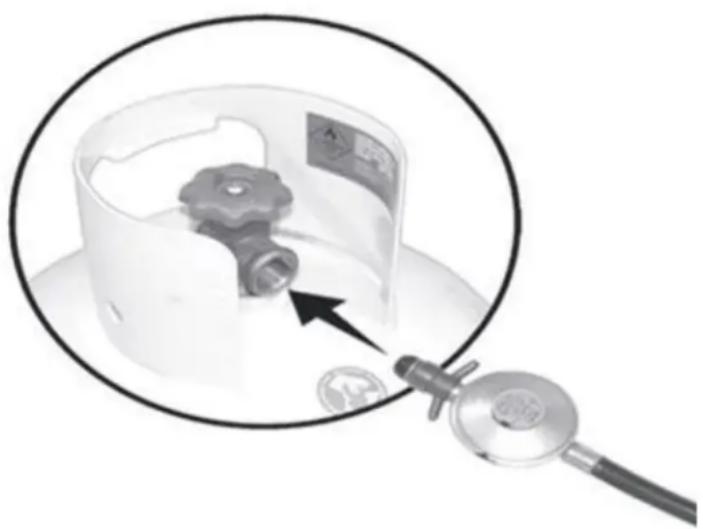

Regulator connection

1. Check that all control knobs are in the 'Off' position.
2. Make sure the cylinder valve is off by turning the valve knob clockwise.
3. Remove the protective cap from the cylinder if present.
4. Leak test the connection with a soapy water solution (See Gas Leak Testing Procedure) Hose and regulator replacement must be a genuine part specified for this appliance and is obtainable from Arisit Parts 1300762219

You should connect your barbeque to a 9 kg gas cylinder, which can be refilled or swapped at petrol stations or your place of purchase when empty. Before connecting the cylinder, inspect the hose, fittings and rubber seals. If there is any sign of splitting or wear, have the hose replaced.

If you have a gas safety gauge, ensure this is connected to your bottle according to the manufacturer's instructions. Now connect the regulator end of the hose to the gas bottle. You won't need a spanner here. Just turn the fitting in an anticlockwise direction and hand tighten as much as you can. This should seal it sufficiently. Ensure the gas bottle is upright at all times. Conduct a leak test before use - see the next section.

Medical device with a stethoscope inserted into a patient's ear canal, showing mechanical components (no text or symbols visible)

LEAK TESTING

GENERAL:

Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks, or immediately check if the smell of gas is detected.

BEFORE TESTING:

Do not smoke while leak testing. Extinguish all open flames. Never leak test with an open flame. Make a soap solution of one part liquid detergent and one part water. You will need a spray bottle, brush, or rag to apply the solution to the fittings For LPG units, check with a full cylinder. The valve panel must be removed to check the valves and fittings.

TO TEST:

Make sure that all control valves are in the “OFF” position. Turn the gas supply “ON”. Check all connections from the supply line, or LPG cylinder up to and including the manifold. Soap bubbles will appear where a leak is present. If a leak is present, immediately turn off gas supply, tighten any leaking connections, turn gas on, and recheck. Check all the gas connections at the base of the control valves where they screw into the manifold pipe.

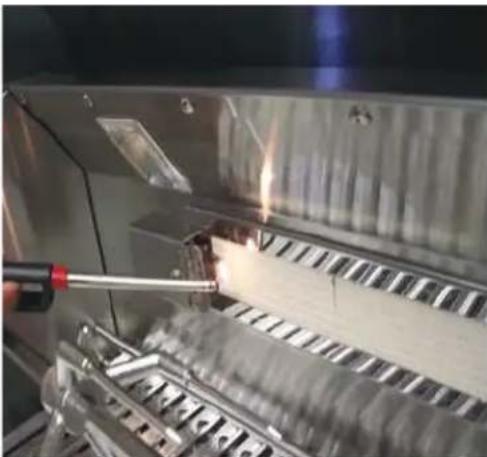

To check rotisserie burner and safety valve, the burner must be lit, then leak test the connections located behind the service panel. If you cannot stop a gas leak, turn off the gas supply and call your local company, or the dealer from whom you purchased the grill. Only those parts recommended by the manufacturer should be used on the Grill. Substitution can void the warranty.

Do not use the grill until all connections have been checked and do not leak.

Check all gas supply fittings for leaks before each use. It is handy to keep a spray bottle of soapy water near the shut-off valve of the gas supply valve. Spray all the fitting. Bubbles indicate leaks. (See Fig 3 and 4)

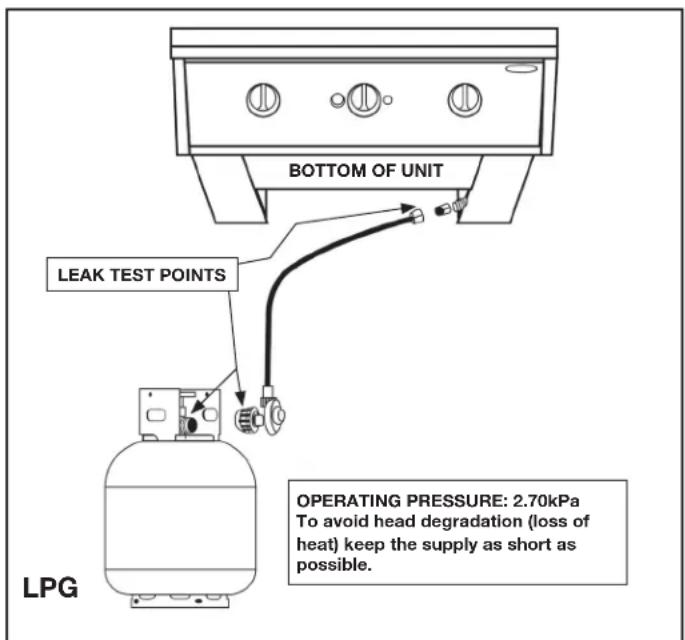

BOTTOM OF UNIT LEAK TEST POINTS OPERATING PRESSURE: 2.70kPa To avoid head degradation (loss of heat) keep the supply as short as possible. LPG

Fig. 3

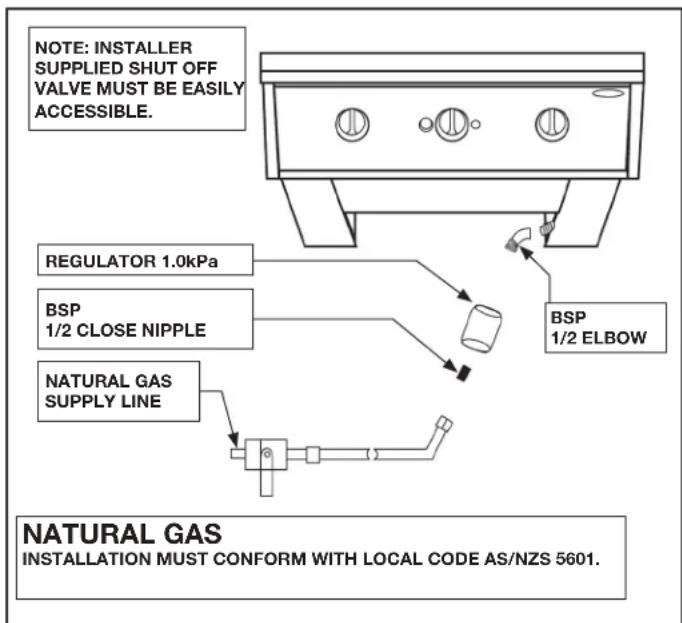

NOTE: INSTALLER SUPPLIED SHUT OFF VALVE MUST BE EASILY ACCESSIBLE. REGULATOR 1.0kPa BSP 1/2 CLOSE NIPPLE NATURAL GAS SUPPLY LINE BSP 1/2 ELBOW NATURAL GAS INSTALLATION MUST CONFORM WITH LOCAL CODE AS/NZS 5601.

Fig. 4

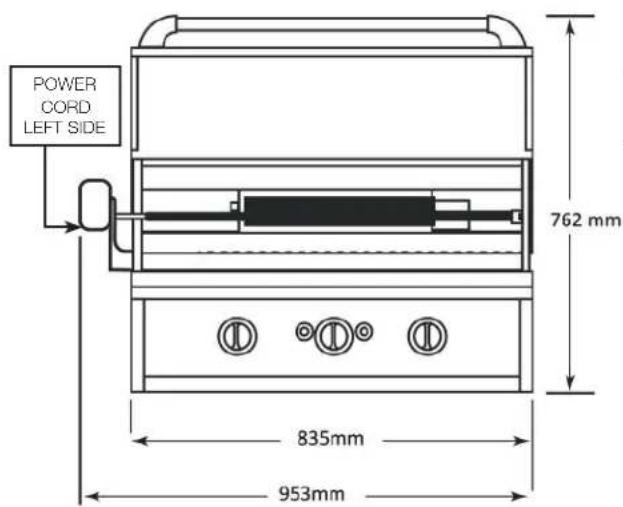

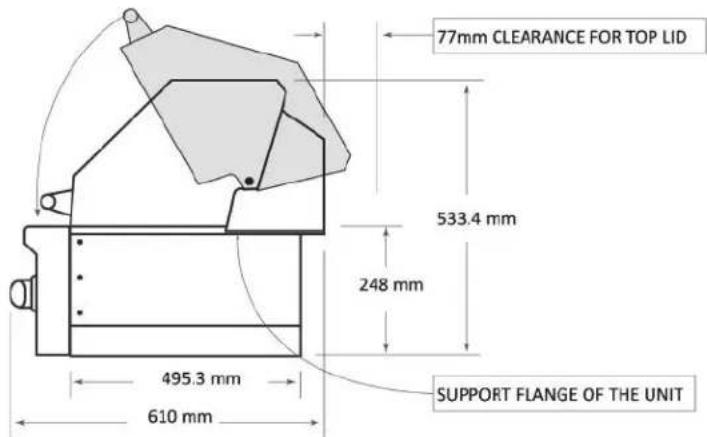

NATURAL GAS INSTALLATION and BUILT IN CLEARANCES

NATURAL GAS INSTALLATION ADVICE

If your Capital BBQ is made for Natural Gas. The installation shall only be performed by a qualified installer and installed in accordance with AS/NZS 5601 Gas Installation code and SAA Wiring Rules.

The grill is designed for easy placement into non-combustible stone enclosures.

For non-combustible applications the grill drops into the opening shown in Fig. 5 and hangs from its side flanges. A deck is not required to support it from the bottom.

LOCATION:

When determining a suitable location, take into account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible.

Locate the grill only in a well-ventilated area.

Never locate the grill inside a building garage, breezeway, shed or other such enclosure area without an approved ventilation system. During heavy use, the grill will produce a lot of smoke. Ensure there is adequate area for the smoke to dissipate.

IMPORTANT

Ensure the following minimum clearances to combustible materials:

• 300mm from the sides
• 300mm from the rear
• 300mm from the base
• 1200mm above the hotplate

Specifications

Barbecue specifications can be found on the data label attached to the barbecue located on the slide-out underneath the grease tray. Hose connection thread is 1/4" B.S.P. located on the right rear of the BBQ.

RANGEHOOD NOTE:

• Min Distance from top of hot plate to lowest part of the underneath of rangehood is 1200mm.
• For Rangehood installation requirements, please refer to Rangehood installation manual.

Fig. 5 300mm to combustible materials

77mm CLEARANCE FOR TOP LID 533.4 mm 248 mm 495.3 mm 610 mm SUPPORT FLANGE OF THE UNIT

RANGEHOOD INSTALLATION 1200mm Installation height Centreline of cooking hood Attention FOR RANGEHOOD INSTALLATION REFER TO ITS OWNERS MANUAL Top of Cooking Surface

BUILT IN CLEARANCES

PRO32

POWER CORD LEFT SIDE 762 mm 835mm 953mm

PRO36

POWER CORD LEFT SIDE 762 mm 937 mm 1115 mm

PRO36 PRO32 A B Professional Grills A B mm235mm mm800mm mm489mm

Professional Grills
CUT-OUT	A	B
HEIGHT 235mm235mm
WIDTH 902mm800mm
DEPTH 489mm489mm

AIR SHUTTER ADJUSTMENTS

BURNER AIR SHUTTER ADJUSTMENT

Each burner air shutter is tested at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the air shutter. The flames of the burners should be visible checked and compared with the following figure.

Flames should be BLUE and stable with no yellow tips, free of excessive noise or lifting. If any of these conditions exist, check if the air shutter or burner ports are blocked by dirt, debris, spider webs, leaves, etc. and proceed with the air shutter adjustment.

The amount of air that is pulled through a burner is governed by a sheet-metal cup at the inlet of the burner, called an air shutter. It is locked in place by a set screw which must be loosened prior to lighting the burner for adjustment.

The air shutter adjustment screws are accessible with a screwdriver.

• Remove the burner by loosening the wing nut as shown in previous figure.
• Loosen the lock screw of the air shutter. Make certain that the burners are sitting properly around the orifices and then light the burners.

WARNING! If the burner is not sitting around the orifice, you will experience a FLASH BACK where flames will shoot out into the firebox. This is a very dangerous situation that could lead to serious injury and damage your barbecue.

To adjust grill burner flame, be advised to adjust according to the following directions. Be careful as the burner may be very hot. Always use protective gloves or oven mits to protect hands from hot burners.

PROBLEM

YELLOW FLAMES: indicates insufficient air.

SOLUTION

Turn the air shutter counter clockwise to allow for more air to the burner

PROBLEM

NOISY FLAME: indicates too much air.

SOLUTION

Turn the air shutter clockwise, until stable blue flame is obtained: Note: you will need to do this repeatedly to ensure proper flame colour and height.

PROBLEM

LIFTING FLAMES: indicates too much air

SOLUTION

Turn the air shutter clockwise, until stable blue flame is obtained. Note: you will need to do his repeatedly to ensure proper flame colour and height.

REPLACING BATTERY

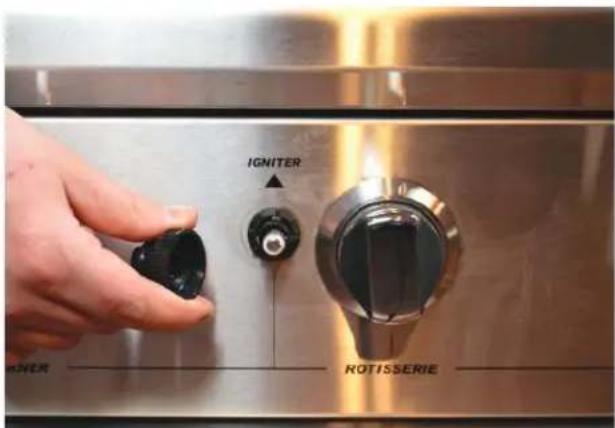

REPLACING THE BATTERY

The Professional Series grills utilize one AAA battery.

The battery is located inside the igniter button. Remove the igniter button by pushing the button in and turning it counter-clockwise a quarter turn.

Remove / insert battery and replace igniter button by pushing the button in and turning clockwise quarter turn.

NOTE: A test battery is provided for your convenience, however you will need to purchase and install a new battery prior to using the grill.

IGNITER ROTISserie

IGNITER RUNNER ROTISERIE

IGNITER ROTISserie

IONITER ROTISserie

BURNER ADJUSTMENTS

BURNER AIR ADJUSTMENT

To adjust tube burner flames:

1. Be careful as the burner may be very hot!
2. If the flame is yellow, indicating insufficient air, adjust the air shutter counter clockwise to allow more air to the burner.
3. If the flame is noisy and tends to lift away from the burner, indicating too much air, turn the air shutter clockwise
4. Once adjusted, turn the burner off, lock the air shutter in position and reverse steps to reassemble.

#41 DRILL SIZE 434.98 MM 224.22 MM MAIN GRILL BURNER 51 PORTS #50 DMS @ 4.77 MM APART 14.29 MM 43° 159 PORTS #50 DMS @ 4.77 MM APART R3 3 - #50 DMS CROSS OVER PORTS EQ. SPACED BETWEEN BURNER PORTS 3 PLACES 1/4-20 X 1/2" STAINLESS BOLT 56 PORTS #50 DMS @ 4.77 MM APART A PRESS SEALED 3/4 5/8 STAINLESS AIR SHUTTER 90° 22.5" TYP SECTION AA 380 mm

Fig. 9

BURNER ADJUSTMENTS (continued)

To Adjust:

(Tools Required: Pliers, Flat Head Screwdriver)

1. Light the burner.
2. Turn the control knob to the lowest setting (all the way counter clockwise).
3. Remove the knob.
4. While holding the valve shaft with the pliers, insert a thin flat-Head screwdriver into the shaft and while viewing the burner adjust to a minimum stable flame. (Fig 10)

WARNING: IMPORTANT!

Before lighting, inspect the gas supply piping or hose prior to turning the gas "ON". If there is evidence of damage or excessive wear, it must be replaced prior to use.

Technical line drawing of a mechanical clamp tool with a pliers, no text or symbols present

Fig. 10

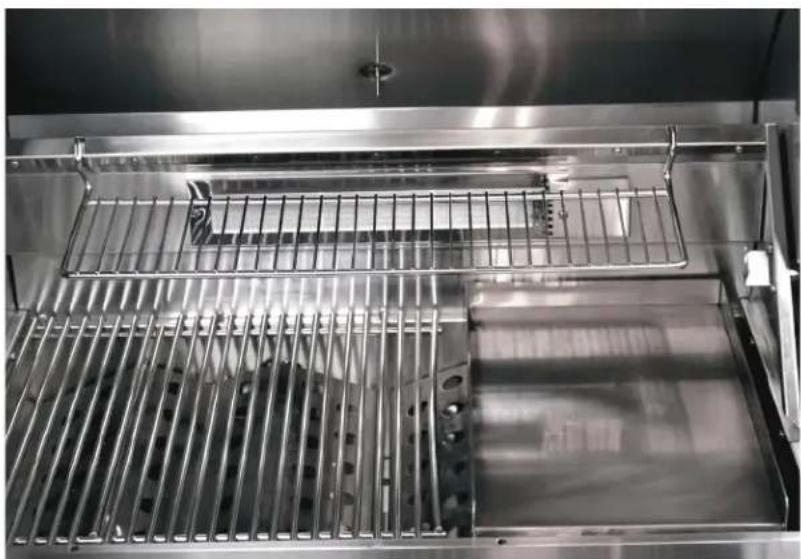

GRIDDLE PLATE

The griddle plate can be placed over any burner.

Position the plate so that the raised section is toward the rear of the barbecue. Ensure the plate rests on the edge of the frame.

Interior view of a stainless steel kitchen or processing unit with metal grating and ventilation slots (no visible text or symbols)

Fig. 10

USING THE GRILL / FEATURES

Did you know there is difference between barbecuing and grilling? Barbecuing requires slow cooking foods with low to moderate heat, and grilling requires intense searing heat to lock in the juices. The Precision Series" is the most versatile grill on the market, because it allows you to do both simultaneously. Our main burners allow for controlled heat, slow cooking vegetables, fish and poultry over a long period of time to ensure maximum results while the Sear-Perfect Zone" allows rapid, intense cooking that locks in juices. But turn down the heat and you can slow cook your food to perfection. Cooked either way, the wonderful results will speak for themselves.

BEFORE TURNING ON THE BURNERS

• Ensure that all packaging material has been removed. Ensure that the grill racks are properly seated.
• Light one burner at a time by turning the farthest raigh hand burner first to HI, then depressing the Igniter button (for detailed lighting instructions refer to “Lighting the Grill” section in the manual).
• When all burners are on, preheat the grill for 5 minutes.
• Keep the lid closed during the preheat time.
• Place the food on the grill and cook to desired length of time.
• Adjust the heat setting if necessary.
  • DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING!
• For flare-ups, keep a spray bottle of water nearby and douse flare-ups with water.

LIGHTING INSTRUCTIONS

Each burner is rated at 20,000 BTUs. The grill burners encompass the entire cooking area and are side ported to minimize blockage from falling grease and debris. Above the burners are stainless steel radiants. Both grill burners have the same electronic igniter. The igniter button is located on valven panel.

PRE-LIGHTING CHECKLIST

• Ensure that all internal packaging has been removed.
• Make sure the burners have been leak-test and are properly located and screwed down via the wing nut at the back of the burner.
• Check that the radiant trays and grill racks are properly seated.
• Inspect the gas supply piping or hose prior to turning the gas on. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. DO NOT use the grill if the odor of gas is present. The pressure regulator supplied with the grill must be used. Substitutions will void the warranty and may make the grill dangerous to use, causing serious injury.
  • If a replacement regulatoris required, please contact the dealer, or factory for replacement.
• Screw the regulator (type 21 POL) into the tank cylinder valver. Leak test the hose and regulator connections with a soap and water based solution prior to operating the grill.

LIGHTING THE MAIN BURNERS

Turn all knobs to OFF position. Turn the gas supply ON. Always keep your face and body away from the grill when lighting. Open the lid, push and turn the control to the HI position and immediately press the igniter button. You will hear a clicking sound that indicated the igniter is firing. At the same time the electrode will spark the burner. It may be necessary to hold down the igniter button until the burner is lit. If it does not light in 5 seconds, turn the knobs to the OFF and wait 5 minutes to allow any accumulated gas to dissipate.

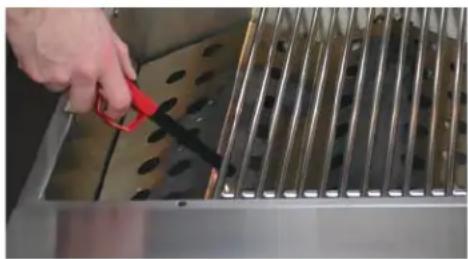

TO MATCH LIGHT THE GRILL

If the burners do not light after several attempts, then the burners and rotisserie burner may be match lit using a long stem match or butane lighter as shown. Keep face as far away from the grill as possible and hold lit match or butane lighter over the hole located at the top of the grill body (see picture). Push and turn the knob to HI. If the burner still does not light in (4) turn the knob to OFF, wait 5 minutes and try again.

Close-up of a hand using a red tool to cut or remove a metal grater with holes (no text or symbols visible)

NOTE: The rotisserie burner will be difficult the light in windy conditions.

USING THE GRILL / FEATURES

REPLACEMENT OF REGULATOR AND HOSE:

The pressure regulator and hose assembly supplied with the unit must be used. For Natural Gas installations the Regulator will be supplied with your BBQ and must be used. If replacement is required it must be replaced with an AS/NZS certified NG regulator.

Your LPG BBQ is supplied with a regulator and hose already fitted and must be used. If replacement is required, it must be replaced with an AS/NZS certified LPG hose and regulator.

These parts can be Obtained by Calling Arisit Parts on 1300 762 219.

Do not use the grill if the odor of gas is present. If the unit is LPG, screw the regulator into the tank and leak check the hose and regulator connections with a soap and water solution before operating the grill. Turn all knobs to OFF then turn on the gas supply. If LPG, is there gas in the tank? Always keep your face and body as far away as possible from the grill when lighting.

• DO NOT leave the grill unattended while cooking.
- KEEP a spray bottle of soapy water near the gas supply valve and check the connections before each use.
- DO NOT attempt to light the grill if odor of gas is detected.
- WAIT five minutes before relighting a hot grill.

IMPORTANT: Using the Grill

Grilling requires high heat for searing and proper browning. Most foods are cooked at the MEDIUM heat setting for the entire cooking time. However, when grilling large pieces of meat or poultry, it may be necessary to turn the heat to a lower setting after the initial browning. This cooks the food through without burning the outside. Foods cooked for a long time or basted with a sugary marinade may need a lower setting near the end of the cooking time.

• Check to be certain the drip pan and grease tray are in place.
• Light the grill burners using the instructions provided in this Use and Care Guide. Lighting Instructions are found on the inside of the drip pan tray sleeve.
  • With the grill lid open, turn the control knob to HIGH to light. Preheat the grill for 5 to 10 minutes.
• Place the food on the grill racks and cook to the desired doneness. Adjust heat setting, if necessary. The control knob maybe set to any position between HIGH and LOW. Note that most barbecuing is performed using a medium to low flame. Adjust the flame to suit your food requirements.
• Allow the grill to cool and clean the grates, drip pan and grease tray after each use.

Note: If using LPG gas, your preheat time may be shorter than recommended. To prevent overcooking or burning, you may want to lower heat settings.

HELPFUL HINTS

A FEW WORDS ON MEAT:

The doneness of the meat, whether rare, medium or well done, is affected to a large degree by the thickness of the cut. Expert chefs say that it is impossible to have a rare doneness with a thin cut of meat.

The cooking time is affected by the kind of meat, the size and shape of the cut, the temperature of the meat when cooking begins, and the degree of doneness desired. When defrosting meats it is recommended that it be done overnight in the refrigerator as opposed to a microwave. This in general yields a juicier cut of meat.

Use a spatula instead of tongs or a fork to turn the meat. A spatula will not puncture the meat and let the juices run out. To get the juiciest meats, and seasoning or salt after the cooking is finished and turn the meat only once (juices are lost when the meat is turned several times.)

Turn the meat just after the juices begin to bubble to the surface.

Trim any excess fat from the meat before cooking. To prevent steaks or chops from curling during cooking, slit the fat around the edges at 2-inch intervals.

A FEW WORDS ABOUT FLARE-UPS

Flare ups are unavoidable and usually relate directly to the type of meat being cooked and its fat content. Our Precision Series Barbecues utilizes hybrid stainless steel/ceramic wave shaped radiants that reduce flare ups considerably as compared to all stainless or all ceramic Radiants used by other manufacturers. Always trim excessive fat and use marinades sparingly.

USING THE ROTISSERIE

USING THE ROTISSERIE: Lighting the rotisserie burner:

NOTE: The safety valve on all Professional Series rotisserie sections is included in the main burner valve. No separate safety button is necessary to operate the rotisserie safety feature.

NEVER USE ROTISSERIE BURNER WHEN GRILLING SURFACE IS USED.

The location of the rotisserie burner makes it more susceptible to strong wind conditions than the protected grill burners. For this reason you should avoid operating the rotisserie during windy conditions. As an added safety feature we've equipped the burner with an automatic safety valve that will not allow gas to flow to the rotisserie burner unless the following conditions are present with the knob on.

• Ignition button is pressed
  • The safety valve button is pressed and held down.
• The safety valve thermocouple has been sufficiently heated to keep safety valve open.

Open the lid. Push and turn the control valve to HIGH and wait 5 seconds. Press the ignition button. Hold the knob pressed in until the rotisserie burner lights. Once lit keep knob pushed in and held in position for 10 seconds. Release ignition button. DO NOT let go of the control knob once burner is lit.

The burner will not stay lit unless it is hot. After 10 seconds, release the knob and set the knob to the desired setting. If the burner does not light within 4 to 5 seconds, release the safety valve button and turn the control knob "OFF" and wait 5 minutes before trying again.

• If relighting a hot burner, wait 5 minutes.
- Never leave the control knob ON if rotisserie is not in use.
- Never light the bottom burners while the rotisserie burner is lit.

Close-up of a metal cutting machine with a tool applying material to a sheet metal sheet (no visible text or symbols)

Manual Lighting:

To manually light the rotisserie, place a lighter flame near the tip of the thermocouple as shown in Fig. 13 Turn the control knob to HIGH.

Hold the safety valve knob in for 10 seconds or until the burner remains lit. Once lit, turn control knob to desired setting. If the burner does not light within 4 to 5 seconds, release the safety valve knob and turn the control knob to OFF and wait 5 minutes before trying again.

USING THE ROTISSERIE (continued)

Roasted chicken being lifted by a metal fork inside an oven, with a small tray of sauce in the foreground (no visible text or symbols)

NOTE: The grill rotisserie system is designed to cook items from the back using infrared heat. The location of the burner allow the placement of the rotisserie basting pan (included) beneath the food to collect juices and drippings for basting and gravy. To flavor the contents of the basting pan you can add herbs, onion, garlic, or spices. Hams are especially good with the addition of pineapple slices and brown sugar to basting pan. The rotisserie burner is an infrared type that provides intense, searing radiant heat. Preferred by chefs over other methods, this intense heat is magnificent for searing in the natural juices and nutrients found in quality cuts of meats.

Once lit, the rotisserie burner will reach cooking temperatures in about 1 minute. the orange/red glow will even out in about 5 minutes.

PREPARATION

Recommended Equipment:

Butcher string, scissors, broiler pan (bottom only), pliers, instant read thermometer, foil, and hot pads.

Work Area:

Allow enough space to accommodate food and rotisserie rod assembly in a clean environment.

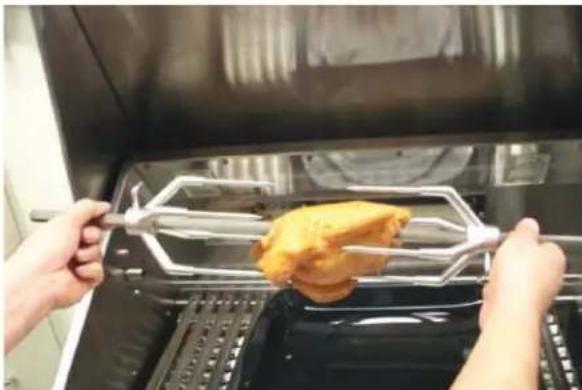

Meat Preparation:

• Tie meat with butcher string or dental floss in three areas. Buy a roast that is equally balanced from top to bottom in size. The meat will cook more evenly while on the rotisserie. For poultry, tie wings and legs to the body using dental floss or butcher string to prevent flopping around.
• Determine the center placement for the food, put 1st prong on Rod, turn "L" shaped screw to tighten.
• Center tied meat/poultry on rod and place second prong. Turn "L" shaped screw to tighten.
• Pick up rod, rotate it to check for balance, If not balanced, adjust prongs and food to balance it. Take pliers and tighten the "L" shaped screw on both sides of the prong.
• Remove grates and warming rack on the grill. Place bottom portion of broiler pan on radiant trays to catch meat drippings.

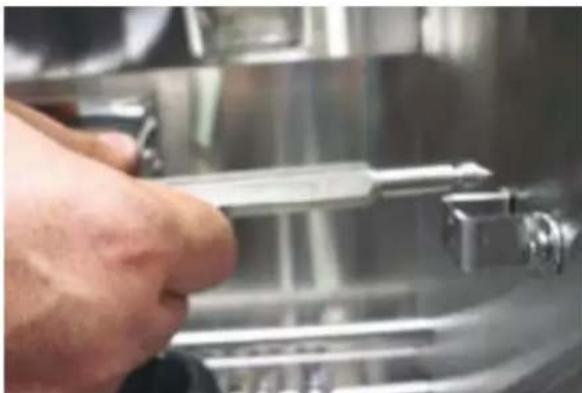

• Place prepared rod into motor socket, lay across to other side in groove/ball bearings and begin.

USING THE ROTISSERIE (continued)

WARNING

Keep hands and face away from front of burner! STAND TO THE SIDE WHEN LIGHTING. ONCE LIT, MOVE HAND AWAY QUICKLY!

WARNING: Electrical Grounding Instructions:

This rotisserie motor is equipped with a three-prong plug for your protection against shock hazard and should be plugged directly into a properly grounded GPO using an appropriate extension cord. Do not cut or modify the extension cord.

The appliance must be electrically grounded in accordance with local codes or, in the absence of local codes, with the SAA Wiring Rules.

Close-up of a stainless steel kitchen appliance with metal grilles and a side panel (no visible text or symbols)

Close-up of a hand using a metal tool to measure a mechanical component (no visible text or symbols)

Person using a metal grater to spread a golden-brown fried food item inside a stainless steel oven (no text or symbols visible)

WARNING! Never have the grill burners (bottom burners) ON during rotisserie cooking. It will burn your meat and make it extremely dry. Use either grill or rotisserie at a time.

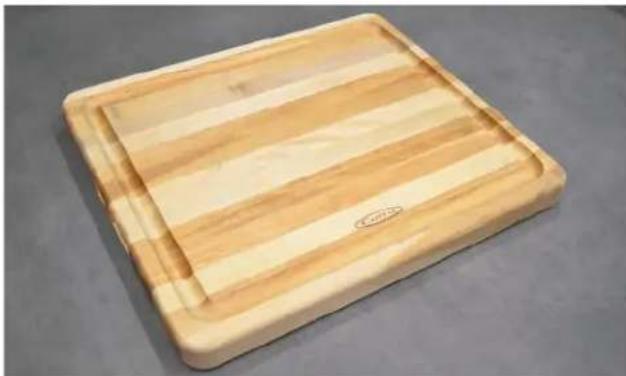

BIRCH WOOD CHOPPING BOARD (Accessory)

WARNING! Moisture may expand the chopping board so that it becomes warped and unable to fit comfortably in the side tray shelves.

NEVER leave a chopping board out overnight or in the presence of excessive moisture or humidity.

ALWAYS store the chopping blocks in a cool dry place after each use.

Wooden rectangular cutting board with horizontal striped pattern and a small circular mark on the front face (no text or symbols visible)

CARE AND CLEANING

IMPORTANT!

Stainless steel tends to rust in the presence of chlorides and sulfides, especially in coastal areas.

To improve rust, wash all stainless steel surfaces every 3-4 weeks with fresh water and stainless steel cleaner.

Capital will not warrantee for rust due to failure to follow recommendations set forth in this section.

The grill is constructed out of non-rusting and non-magnetic stainless steel. After initial usage, areas of the grill may discolor from the intense heat given off the burners: this condition is normal.

To touch up noticeable scratches in the stainless steel, sand very lightly with dry 100-grit emery paper in the direction of the grain. Specks of grease can gather on the surfaces of the steel and bake on the surface giving a 'rust-like' appearance. For removal, use an abrasive pad in conjunction with a stainless steel cleaner.

Always rub in the direction of the grain.

Grill Grates:

(Recommended equipment: Brass bristle barbecue brush, mitts, tap water)

The easiest way to clean the grill grates is immediately after cooking is completed and after turning off the flame. Wear a barbecue mitt to protect your hand from the heat and steam. Dip a fine brush frequently in the bowl of water. The steam created from the contact with the hot grill assists the cleaning process by softening any food particles. The food particles will fall onto the radiant tray and burn off or fall into the drip pan.

Drip Pan Grease Tray:

The grease trays will collect grease from the grill section. The internal trays are dishwasher safe and we recommend that you first clean off the excess residue and debris before washing.

Allow the pan and its contents to cook before attempting to clean.

Clean the grease from the pan after each use to avoid the possibility of a grease fire.

Radiant Trays:

Warning! Allow the grill to sufficiently cool before handling the hybrid radiant trays as these are designed to absorb heat and at maximum temperatures glow red hot!

BURNER REMOVAL AND CLEANING

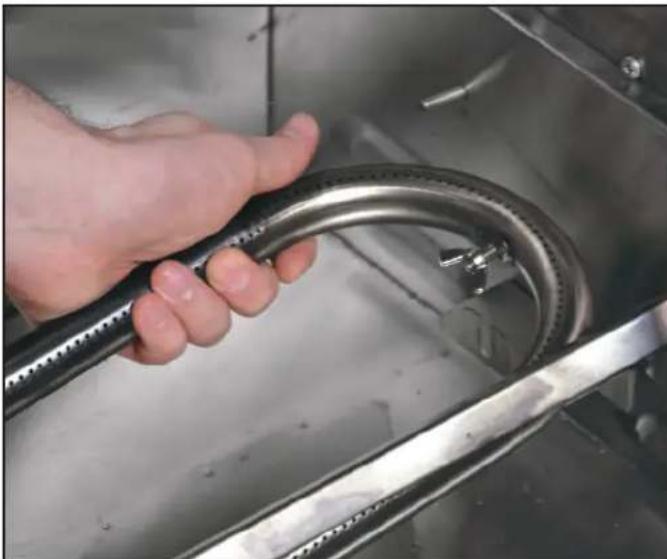

GRILL BURNER:

WARNING! To prevent burns, make sure the burner is cool before removing for cleaning.

Remove the grill grates. Then lift out the radiant trays. Grasp the burner and pull it up carefully and slightly towards the rear wall of the unit so the burner head comes off the brass orifice at the front. Angle the burner sideways and remove. (Fig. 14 and Fig. 15)

GRILL BURNER CLEANING:

Clean the burner exterior with a wire brush. Clear stubborn scale with a metal scraper. Clear any clogged ports with a straightened paper clip. Never use a wooden toothpick as it may break off and clog the port. Shake out any debris through the air shutter. Use a flashlight to inspect the burner inlet to ensure it is not blocked. If obstructions is seen, use a straightened metal wire coat hanger to remove debris.

Close-up of a hand adjusting a metal pipe through a stainless steel kitchen sink (no text or symbols visible)

Fig. 14

Close-up of a hand holding a metallic cable or hose inside a stainless steel container (no text or symbols visible)

Fig. 15

ORIFICE CLEANING:

With the burner removed, remove the orifice and shine a flashlight through the opening to ensure there is no blockage. Use a needle to clear any debris.

Be extremely careful not to enlarge the hole or break off the needle.

WARNING! It is extremely important to engage the burner on the orifice properly to prevent a fire hazard or explosion.

Be careful not to upset the air shutter's original position (unless re-adjusting). Lower the rear of the burner into the cut outs on the support channel at the rear of the burner box. Make sure it is level and does not rock. Light all the burners and check for proper flame characteristics. If adjustments are necessary, refer to section on flame adjustment in this guide. Do this prior to cooking on the grill.

PROGRILL 36"

Exploded view diagram of a refrigerator assembly with numbered parts for identification

PRO GRILL 36"
PART NUMBER DESCRIPTION
1. 81000-01 Tube End Cap
2. 10018-10 Tube Handle
3. 82425-01 Temperature Gauge
4. 10675-32 Lid top Assy. 32"
5. 10648 Back Cover
6. 80010 Warming Rack
7. 10677-32 Base Lid Assy. 32"
8. 82125-03 3/8 Compression Nut
9. 82126-02 Ferrule 3/8
10. 82109 Rotisserie Orifices
11. 82105-57 (LP) / 82105-50 (NAT) Rotisserie Orifices
12. 10036-32 Aluminium Tubing
13. 82411 Rotisserie Motor
14. 10016-01 Rotisserie Motor Bracket
15. 84017-01 Carriage Bolt
16. 84009-01 Wing Nut
17. 10232-01 1/2 Hex Rotisserie Rod
18. 80006 Meat Holder Assy.
19. 10871-02 Rotisserie Rod Support
20. 10036-26 Infra-Red Burner
21. 82001 Electrode for Infra-Red
22. 10508 Rotisserie Electode Cover
23. 80000-02 Grill Rack St/Stl
23-1. 80002-01 Center Grill Rack
24. 10214 Radiant
25. 82414-01 Thermocouple, 72"
26. 82103 Connector 3/8 tube 1/2 pipe
27. 86000-32 Manifold for 02"
28. 82113 Male connector 3/8 tube 1/2
29. 82102 Safety Rack

PRO GRILL 36"
PART NUMBER DESCRIPTION
30. 82111 Elbow Male-Female
31. 10675-32 Body 36" Weld/Assy.
32. 10875-01 Drip Pan Shield
33. 82105-55 (LP) / 82105-45 (NAT) Grill Burner Orifices
34. 82100 Gas Valve
35. 82200 (LP) / 82200 (NAT) Gas Regulator
36. 82115 75 Long Thread 1/8 pipe
37. 10020 Bumer Support Bracket
38. 82300 Burner ‘U’ Shape
39. 10218 Burner Guide
40. 10685-26 Landing Ledge 26"
41. 82401 Electronic Igniter 4L
42. 10647-32R Valve Panel 32"
43. 81304 Bezel
44. 83002 BBQ Knob
45. 83005 Safety Black Knob
46. 83006 Push Safety Black Knob
47. 82000 Electrode burner
48. 10256-02 Drip Pan for 32"
49. 84003-02 Hex Lock Nut 10-32
50. 10245-32 Drip Pan Handle
51. 84002-06 Phil Pan Sc 10-32 1/2
52. 20644-32 Infra-Red Burner Panel

PROGRILL 32"

Exploded view diagram of a refrigerator assembly with numbered parts for identification

PRO GRILL 32"
PART NUMBER DESCRIPTION
1. 81000-01 Tube End Cap
2. 10018-10 Tube Handle
3. 82425-01 Temperature Gauge
4. 10675-32 Lid top Assy. 32"
5. 10648 Back Cover
6. 80010 Warming Rack
7. 10677-32 Base Lid Assy. 32"
8. 82125-03 3/8 Compression Nut
9. 82126-02 Ferrule 3/8
10. 82109 Rotisserie Orifices
11. 82105-57 (LP) / 82105-50 (NAT) Rotisserie Orifices
12. 10036-32 Aluminium Tubing
13. 82411 Rotisserie Motor
14. 10016-01 Rotisserie Motor Bracket
15. 84017-01 Carriage Bolt
16. 84009-01 Wing Nut
17. 10232-01 1/2 Hex Rotisserie Rod
18. 80006 Meat Holder Assy.
19. 10871-02 Rotisserie Rod Support
20. 10036-26 Infra-Red Burner
21. 82001 Electrode for Infra-Red
22. 10508 Rotisserie Electode Cover
23. 80000-02 Grill Rack St/Stl
23-1. 80002-01 Center Grill Rack
24. 10214 Radiant
25. 82414-01 Thermocouple, 72"
26. 82103 Connector 3/8 tube 1/2 pipe
27. 86000-32 Manifold for 02"
28. 82113 Male connector 3/8 tube 1/2
29. 82102 Safety Rack

PRO GRILL 32"
PART NUMBER DESCRIPTION
30. 82111 Elbow Male-Female
31. 10675-32 Body 36" Weld/Assy.
32. 10875-01 Drip Pan Shield
33. 82105-55 (LP) / 82105-45 (NAT) Grill Burner Orifices
34. 82100 Gas Valve
35. 82200 (LP) / 82200 (NAT) Gas Regulator
36. 82115 75 Long Thread 1/8 pipe
37. 10020 Burner Support Bracket
38. 82300 Burner 'U' Shape
39. 10218 Burner Guide
40. 10685-26 Landing Ledge 26"
41. 82401 Electronic Igniter 4L
42. 10647-32R Valve Panel 32"
43. 81304 Bezel
44. 83002 BBQ Knob
45. 83005 Safety Black Knob
46. 83006 Push Safety Black Knob
47. 82000 Electrode burner
48. 10256-02 Drip Pan for 32"
49. 84003-02 Hex Lock Nut 10-32
50. 10245-32 Drip Pan Handle
51. 84002-06 Phil Pan Sc 10-32 1/2
52. 20644-32 Infra-Red Burner Panel

TROUBLESHOOTING

Before Calling For Service:

If the grill does not function properly, use the following checklist before contacting your dealer for service. You may save the cost of a service call. Troubleshooting is for general purposes only. If the problem persists and requires a service call, contact your dealer or the nearest authorized service agency to perform service. Only authorized service agencies can perform warranty service.

Call a Capital specialist at 1300 762 219.

Grill won't light when knob is turned:

- Remove the grill top grates and the radiant trays, watch the ignition tip. You should see the spark plug generating a blue spark onto the burner.

- If there is no spark when the knob is in an ON position, check the electrical connections and breakers.

MAINTENANCE

To maximise the life of your appliance, we recommend having your barbecue serviced by a qualified technician every 5 years. For service and spare parts, contact:

AUSTRALIA

ARISIT PTY LIMITED

40-44 Mark Anthony Drive,

Dandenong South,

VIC 3175, Australia

Warranty, Service And Spareparts

Phone: [phone]

Email: [e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

PO Box 68-140 Newton, Auckland

1145, New Zealand

Warranty, Service And Spareparts

Spare Parts Phone: [phone]

Fax: [phone]

Email: [e-mail]

WARRANTY

Capital - Precision Series Grill Warranty

One (1) Year Full Warranty: Capital warrants the outdoor gas grill and all of their component parts, to be free from defects in materials and workmanship under normal residential use for a period of one (1) year from the original date of purchase. Capital will repair or replace, at its option, any part, which falls or is found to be defective during the warranty period, at no cost to the original purchaser. Warranty service must be performed by a Capital authorized representative during normal business hours.

Five (5) Year Limited Warranty: Capital warrants the gas valves, sear zone burners, rotisserie burners, drip pans and the stainless steel encasements for the ceramic rods to be free from defects in materials and workmanship, under normal residential use, for a period of five (5) years from the original date of purchase. This warranty excludes surface corrosion and heat discoloration which may occur from normal use. Capital will repair or replace, at its option, the actual part found to be defective, with the owner paying for all other costs including labour and freight.

Limited Lifetime Warranty: Capital warrants the stainless steel main burners, stainless steel cooking grates and the stainless steel body housing to be free from defects in material and workmanship under normal residential use and service for the lifetime of the original purchaser. This warranty excludes surface corrosion, scratches and discoloration which may occur during regular use. This warranty is limited to the replacement of the defective parts, with the owner paying all other costs including labour and freight.

Warranty Limitations and Exclusions:

• Warranty applies only to the original purchaser and may not be transferred.
• Warranty coverage begins on the original date of purchase and proof of date of purchase is required. In order to activate the warranty, customer must send in warranty registration card.
• Warranty applied only to the products purchased and located in Australia.
• This warranty does not apply to damages resulting from negligence, alteration or tampering with the appliance, misuse, abuse, accident, natural disaster, hostile environment, flare-up fires, improper installation, and installation which is not in accordance with instructions in the product manual or the local codes.
• This warranty does not apply to dings, dents, scratches or damage due to the use of harsh cleaning chemicals.
  • This warranty does not cover service by an unauthorized service provider, or the use of unauthorized parts.
  • This warranty does not apply to commercial use, or to products with altered or removed serial numbers.
• No one has the authority to add to, or vary the Capital Warranty, or to create for Capital any obligation or liability in connection with the sale or use of its products.
• Capital shall not be liable for incidental, consequential, special or contingent damages resulting from its breach of this written warranty or any implied warranty.

NOTES

NOTES

We reserve the right to change these specifications or design without notice.

CAPITAL

THE ART OF PRECISION

AUSTRALIA

ARISIT PTY LIMITED

40-44 Mark Anthony Drive,

DandenongSouth,

VIC 3175, Australia

Warranty, Service And Spareparts

Phone: [phone]

Email: [e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

PO Box 68-140 Newton, Auckland

1145, New Zealand

Warranty, Service And Spareparts

Spare Parts Phone: [phone]

Fax: [phone]

Email: [e-mail]

Version: AUGUST 2019
