1PAU05 - Humidifier Perfect Aire - Free user manual and instructions

Product Type	Humidifier
Brand	Perfect Aire
Model	1PAU05
Color	White/Black
Tank Capacity	1 gallon (3.8 liters)
Coverage Area	Up to 300 sq ft (28 m²)
Run Time	Up to 24 hours on low setting
Mist Output	Up to 200 ml/h
Humidification Method	Ultrasonic
Dimensions (H x W x D)	10 x 8 x 8 inches (25.4 x 20.3 x 20.3 cm)
Weight	3 lbs (1.4 kg)
Power Supply	120V / 60Hz
Power Consumption	25 Watts
Noise Level	< 30 dB
Auto Shut-Off	Yes (when water tank is empty)
Filter Type	Filter-free (demineralization cartridge optional)
Control Type	Rotary knob for mist output
LED Display	Indicator light for water level
Timer	Not available
Warranty	1 year limited
Included Accessories	Cleaning brush, user manual
Cleaning Instructions	Clean tank and transducer weekly with vinegar and water
Safety Features	Auto shut-off, overheat protection

Frequently Asked Questions - 1PAU05 Perfect Aire

How do I clean the Perfect Aire 1PAU05 humidifier?

Turn off and unplug. Remove tank, empty water. Mix equal parts water and white vinegar, fill tank, let sit for 30 minutes. Rinse thoroughly with clean water. Wipe base with damp cloth. Clean transducer with brush provided. Rinse and reassemble.

What type of water should I use?

Use distilled or demineralized water to prevent white dust buildup. Tap water may cause mineral deposits and reduce performance.

Why is my humidifier not producing mist?

Check that water tank is properly seated and full. Ensure the unit is on a flat surface. Clean the transducer as mineral buildup can stop mist. Verify power cord is securely connected.

How often should I refill the tank?

Depending on setting, the 1-gallon tank may last up to 24 hours on low. Refill when mist output decreases or the water level is low.

Can I use essential oils in this humidifier?

No, this model is not designed for essential oils. Adding them may damage the unit and void the warranty.

How do I store the humidifier when not in use?

Empty and dry all parts completely. Store in a cool, dry place. Clean and dry before storing to prevent mold.

What is the coverage area of the 1PAU05?

It covers up to 300 square feet, ideal for medium-sized rooms like bedrooms or living rooms.

Does the humidifier have an automatic shut-off?

Yes, it automatically shuts off when the water tank is empty for safety.

How do I adjust the mist output?

Turn the rotary knob on the front of the unit to increase or decrease mist output. Low setting for longer run time, high for more humidity.

What should I do if there is white dust around the humidifier?

Switch to distilled water. Clean the unit thoroughly with vinegar to remove existing deposits. White dust is from minerals in tap water.

USER MANUAL 1PAU05 Perfect Aire

White rectangular electronic device with control buttons and indicator lights (no visible text or symbols)

PRODUCT SPECIFICATIONS

NOTE:

The following are the design parameters of the 1PAU05, and the measured parameters are subject to the physical product; the amount of humidification will change depending on the temperature and humidity in the room.

Model: 1PAU05

Voltage: 24V

Watts: 18W

Water Tank Capacity: 2 Liters

CONSUMER PRODUCT INFORMATION

For your own records, please attach a copy of your sales receipt to this manual. Also, write the store name/location and date purchased below:

Store Name:

Location:

Date Purchased:

CONTENTS

Safety Guidelines 4-5

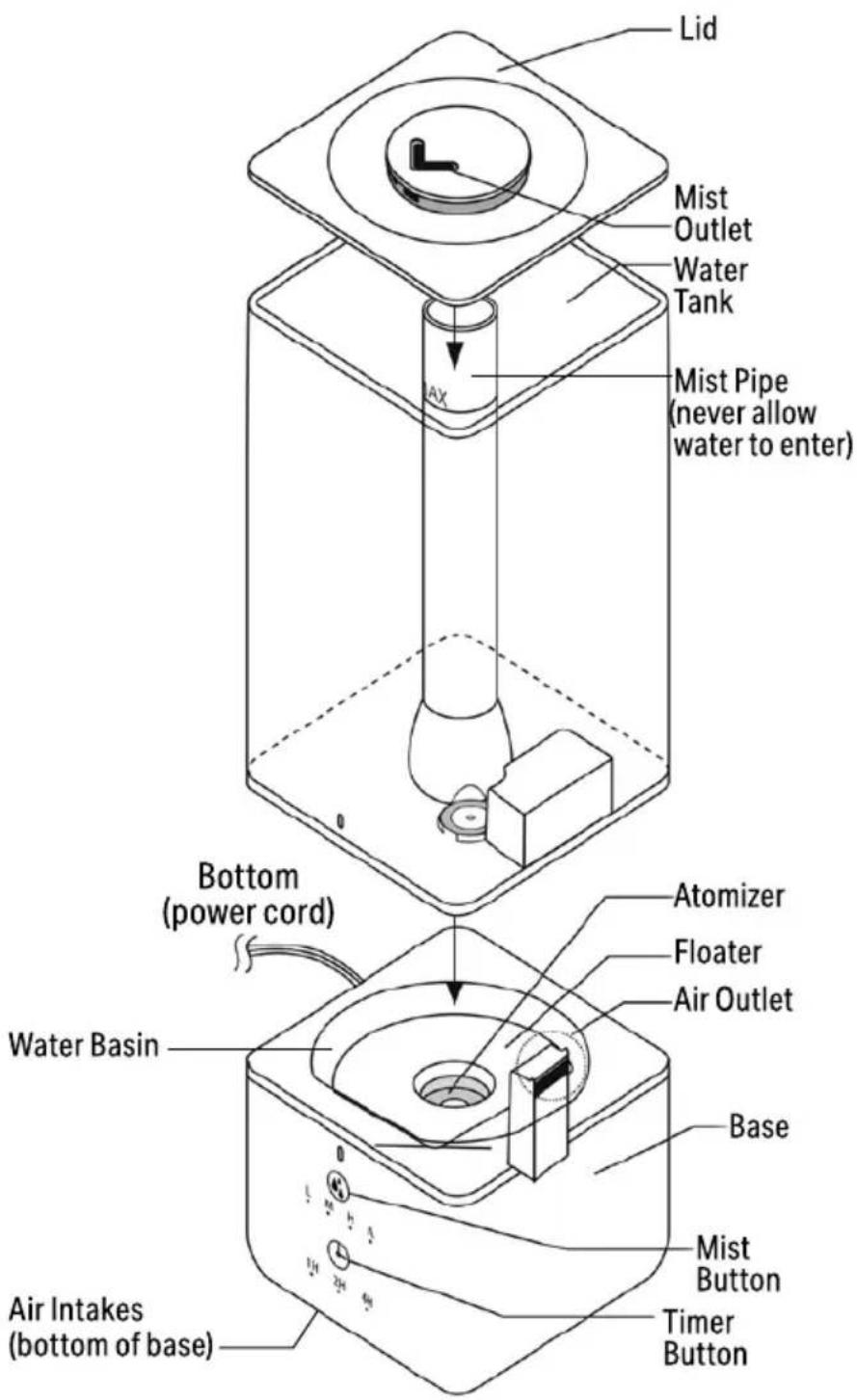

Parts Diagram....6

Preparations for Use....7

Instructions for Use 8

Using Essential Oils 8

Mist Level Settings....8

Timer Settings 8

Maintenance....9-10

Troubleshooting 11

IMPORTANT NOTE:

Read the manual carefully. Make sure to save this manual for future reference. Illustrations in this manual are for explanatory purposes only, your actual product may look slightly different.

SAFETY WARNINGS

1. Be careful not to let water enter or get wet inside the main unit and accessories (other than the tank part and the back part of the main unit). It may cause fire or electric shock.
2. Do not use in bathrooms, shower rooms, etc. Doing so may cause a fire or accident due to electric shock or short circuit.
3. Be careful when installing and using in a place where static electricity is likely to occur. Failure to do so may result in product failure, electric shock, or fire.
4. Do not let children use it as a toy. Also, please supervise not to play. If the main unit is overturned, water will overflow, which may damage the surrounding interior parts.
5. Do not place the product on an inclined surface, on a shelf or other high place, or in an unstable place. Falling over and spilling water may damage the main unit and cause injury.
6. Do not place objects on top of it. If metal objects or liquids such as vases, cups or cosmetics enter the product, it may cause fire or electric shock. If a heavy object is placed on the product and it falls, it may cause injury.
7. Do not install near electronic devices such as computers and TVs, electrical products, furniture, musical instruments, or walls. Touching the mist or tipping over and spilling water may cause damage to the device or the surface of the target.
8. Do not place the product where the air from the air outlet directly hits furniture, walls, or other home appliances. It can cause stains on furniture and walls, malfunction of other home appliances, and fire.
9. Do not place in places with high temperatures. Placing it in direct sunlight or near a stove may cause fire or electric shock. In addition, it may cause deterioration or damage of parts.
10. Do not place near objects that generate heat.
11. Do not move suddenly from a cold place to a warm place. The air in the tank expands and the water may overflow. Also, plastic parts may be deformed or discolored.
12. Do not place the product in a hot and humid environment or in a place with a lot of oily smoke or dust. Failure to do so may resulting product failure, electric shock, or fire.
13. Do not place in a poorly ventilated place. Doing so may cause heat to build up, resulting in deformation, malfunction, or fire.
14. Keep the unit away from walls, bedding, curtains, furniture, etc. Do not push it into a poorly ventilated place such as a closet or box.
15. Do not place near tablecloths or curtains.
16. Do not place the product on a carpet or futon.
17. Do not place the product on its back, sideways, or upside down.
18. Do not disassemble and repair the product unless you are a repair technician.

SAFETY GUIDELINES

CAUTION

1. When unplugging the power plug, do not pull the power cord. Pulling the power cord may damage the power cord or power plug, resulting in fire or electric shock. Grasp the power plug and pull it out.

2. Do not connect or disconnect the power plug with wet hands. Doing so may cause an electric shock.

3. If you will not be using the product for a long period of time, such as when traveling, empty the water tank and unplug the power plug from the outlet for safety.

4. In the unlikely event that it malfunctions, it may cause a fire.

5. Do not carry the product during or immediately after use. You may spill water or get an electric shock.

6. Do not block the air outlet/ventilation port. Doing so may cause deformation or malfunction.

7. Do not place heavy objects on this product or use it for purposes other than its original purpose. Doing so may cause injury or malfunction.

8. Do not give shock to this product. Failure to do so may result in malfunction or injury.

9. When lifting this product, lift it horizontally with both hands. If you handle the product in an unreasonable posture, it may fall and cause damage to the product, as well as injury.

10. If you use the product in the same place for a long time, be careful to keep the bottom of the product and around the floor clean. Doing so may cause stains, mold growth, deformation, or discoloration.

11. When there is a risk of freezing, discard the water in the tank and tray. Using the product while it is frozen may cause malfunction.

12. Do not block the mist outlet. Blocking the mist outlet may cause deformation or malfunction.

13. Use distilled water. Distilled water or filtered water is preferred over tap water. Tap water is not recommended because it will require more frequent cleaning and possible white minerals/dust being dispersed into the air. Tap water is chlorinated, making it difficult for bacteria to grow. Using mineral water, alkaline ionized water, well water, or water from a water purifier can cause mold and bacteria to grow easily, increase water scale, and cause odors.

14. Replace the water in the water tank and water tank with fresh distilled water every day. Regularly clean the inside of the main unit to keep it clean. If you use the product without cleaning it, mold and bacteria will grow due to the dirt and water scale, which will cause odors. In rare cases, depending on your constitution, you may react hyper sensitively and harm your health. In such cases, consult your doctor.

ACCESSORIES

AC Adapter

Cleaning Brush

PREPARATION BEFORE USE

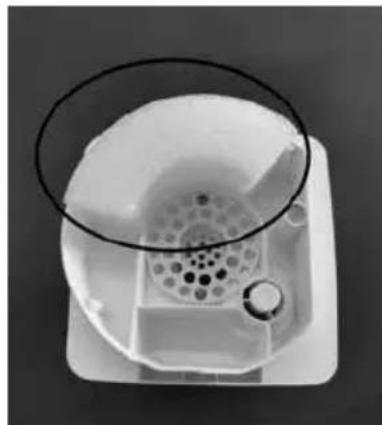

WARNING-BEFORE INITIAL USE: Be sure to move the foam shipping material inside the water tank. The floater controls the water flow. Adding water to the tank without removing the foam shipping material may cause water leakage.

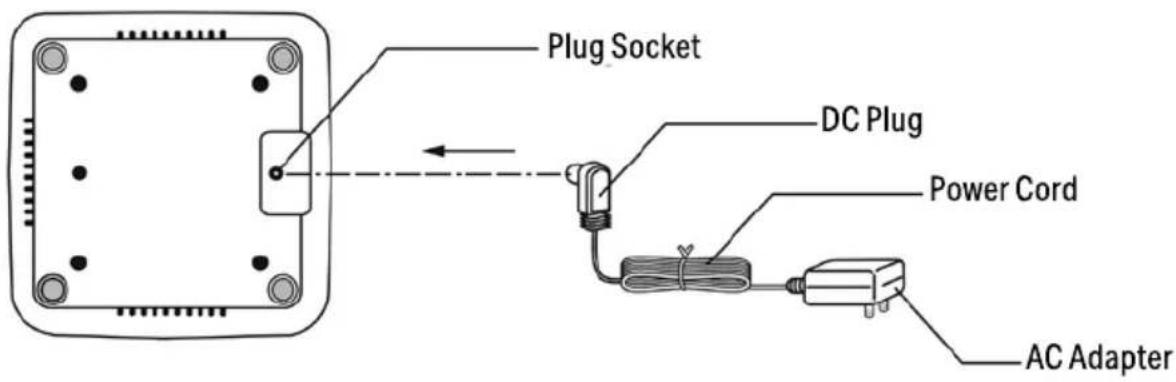

1. Insert the DC plug of the AC adapter into the plug socket located on the bottom of the base.
2. Install the main unit on a firm and level place. Install on a level and stable place.

Top-down view of a white plastic electronic device casing with internal components and a circled area highlighting the interior (no text or symbols)

Bottom of Base Body

Base Body

Bottom of Body

CAUTION

Do not splash water on or into this the mist outlet. If water does get inside, it destroys the fan motor and the machine will malfunction.

OPERATION

1. Remove the cover from the top of the water tank.
2. Fill the tank with distilled water.
3. Do NOT pour water directly into the mist pipe. This will cause a malfunction.
4. Place the water tank cover back on the water tank.

ESSENTIAL OILS

4-5 drops of 100% natural extract essential oils can be added directly to the water tank. Do not add a large amount of oil.

DO NOT use synthetic fragrances and always check the precautions included with any fragrance or oil before using in this humidifier.

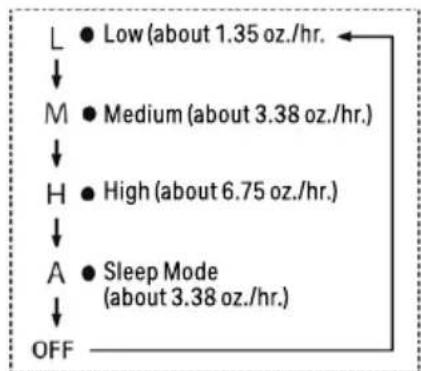

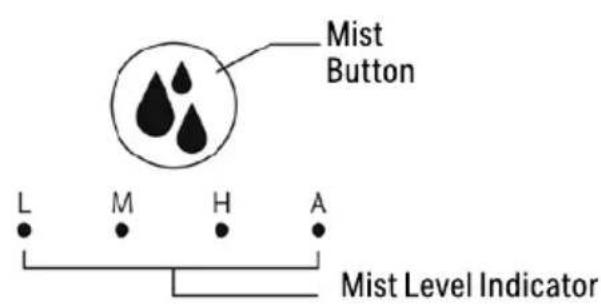

SETTING THE MIST LEVEL

Press first time: Low (L) mist level and 7 color LED light will start to cycle.

Press second time: Medium (M) mist level and 7 colors LED light will continue to cycle.

Press third time: High (H) mist level and 7 colors LED light will continue to cycle.

Press fourth time: Sleep Mode (A) mist will cycle on and off every 30 seconds, the sleep mode indicator light will stay on, and the 7-color LED lights will turn off.

Press fifth time: Machine will turn off.


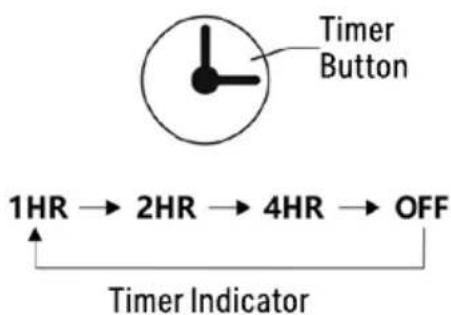

SETTING THE TIMER FUNCTION

Set the off timer by pressing the TIMER button while unit is working. Every time you press the TIMER button, it switches to 1H (OFF after 1 hour), 2H (OFF after 2 hours), 4H (OFF after 4 hours) or Continuous operation. Long press the timer button to turn off the 7 color LED light.

CLEANING

The use of distilled water during use is strongly recommended.

There will be mineral deposits on the atomizer, particularly if the water in your area is hard or softened. These mineral deposits will greatly decrease performance if allowed to dry or build up. If mineral deposits are allowed to dry and harden on the atomizer or inside of the water basin, cleaning will be more difficult and possible permanent damage. Please use only water and vinegar to clean, the white center of atomizer is made of ceramic so harsh chemicals will damage it.

1. Throw away the remaining water in the water basin and dry thoroughly with a soft cloth.
2. Clean the water tank and water basin once a week during regular use, especially when using essential oils.

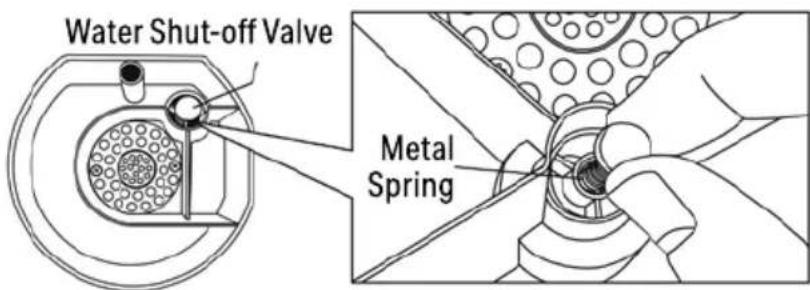

3. If the water shut-off valve on the bottom of the water tank is clogged with dust, it may cause water leakage. Rotate the water shut-off valve spring shaft on the back of the water supply tank with your finger, and clean it carefully with a cotton swab. Be sure the metal spring on the water shut-off valve is not distorted before refilling the water tank.

Do not remove screws from the bottom of the tank!

Be sure the metal spring on the water shut-off valve is not distorted before use.

Bottom of Water Tank

1. Use a vacuum cleaner adapter or can of air to remove dust from the air intake on bottom of the base.
2. Apart from the electrical controls and when the unit is on, any part of the humidifier may be wiped with a soft cloth and buffed with a dry cloth, ensuring the unit is unplugged.
3. Use a cotton swab to clean the mist outlet and the water shut-off valve.

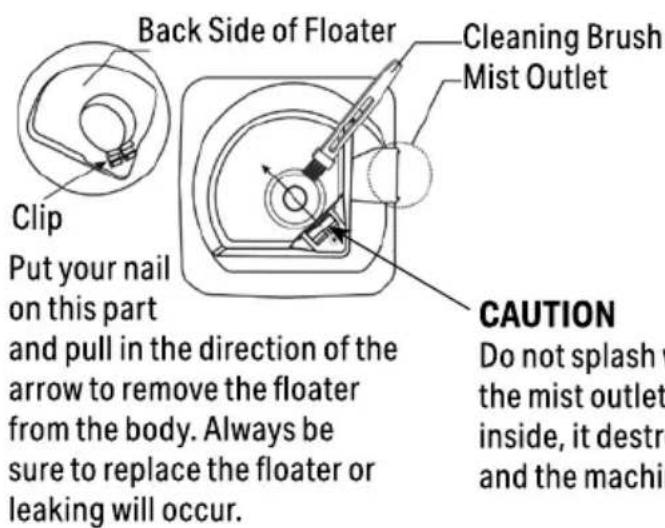

4. Remove the floater and use the included cleaning brush or a soft cloth soaked with water and vinegar to gently clean the atomizer.
5. After cleaning, put the floater back in place, fill the water tank with water, and check that there are no leaks before using.

NOTE: DO NOT clean tank in the dishwasher.

WARNING:

• After removing the water tank, do not touch the metal parts inside the main unit. Doing so may cause injury or malfunction.
- Be sure to turn off the power, unplug the AC adapter from the outlet, and discard the water in the main body before cleaning.
• After cleaning, be sure to put each part back to its original position.
- Do not wash the main body. If water gets into the electric part at the bottom, it may cause a malfunction.

PROBLEM POSESSIBLE ACUSSESOLUTION SOLUTION
Will not tumoron.	Are the main unit and be detlet connected correctly?	Remove the Dplug from the main unit, reinsect it, and tryoperating the main unit again.
Nomist comes out. Poomnist output.	Has the water tank run out of water?	Fill the water tank with water.
	Is there to much water in the water tank?	If water is added above the water level in emists will be generated normally.
	Is the rain intake did it fly?	If there is dust so the rain take up the amount of fair flow oil did decrease and mist will hot to remove be safely calm ban be cleaned with a vacuum attachment or gently with a caran air.
	Are you using in a windy ndy place?	The mist may be considered to see if used in main current such as near an air condition or HVAC vent.
	The mist may be difficult to see depending on the surrounding environment such as temperature.	Even if the mist is hard to see if mist is generated inside the water tank and the blow e far is is peating (you can hear the motor soundly) is not a malfunction.
	If oil address to the atomizer, it may not work properly.	Wipe lightly with the cotton swab dipped in diluted chautak kitchen detergent.
There is a white powdery substance inside and around the water tank.	It is chidoiria or the renimiral from your tap water source contained in tap water.	Distilled water is recommended.
