Product Type	Miniature/Compact POV Camera
Model	CV-BSE-10FT (compatible with CV503, CV504, CV506, CV508, CV346, CV348)
Image Sensor	1/2.8-inch CMOS (estimated)
Resolution	Up to 1920x1080p
Frame Rates	1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23 fps; 720p: 60, 59.94, 50 fps
Lens Mount	M12 (CV503/CV506) or CS/C mount (CV344/CV346)
Included Lens	3.6mm M12 lens (72° AOV) for CV503/CV506; lens sold separately for CS/C mount models
Video Output	HD-SDI (BNC) via breakout cable
Audio	Mic/Line input, adjustable level, attenuation, 16/24 bit sample
Control Interface	On-Screen Display (OSD) joystick; RS-485 communication
Power Supply	12V DC via included power adapter (breakout cable)
Power Consumption	Approx. 4W (estimated)
Dimensions (approx.)	1.5 x 1.5 x 2.5 inches (38 x 38 x 64 mm) estimated based on form factor
Weight (approx.)	0.2 lbs (90 g) estimated
White Balance	ATW, One Push, Indoor, Outdoor, Manual (Blue/Red adjustment)
Exposure Control	Auto, Shutter Fix, AGC Fix, Manual; Shutter 1/30-1/10,000; AGC, Sens Up, Brightness
Day/Night	Auto, Day (color), Night (B&W) with IR cut filter
Image Enhancement	Lens shading, contrast, brightness, saturation, hue, edge enhance, DNR, gamma, black/white level
Special Functions	Digital zoom, defog, image stabilization, backlight compensation, WDR, privacy zones, flicker detect
Genlock	Tri-level sync supported (via BNC)
Operating Temperature	32°F to 104°F (0°C to 40°C) estimated
Warranty	Refer to Marshall website
Manual	Includes detailed OSD menu navigation, troubleshooting

Frequently Asked Questions - CV-BSE-10FT Marshall Electronics

How do I reset the camera to factory defaults?

Power-cycle the camera, then use the OSD joystick to perform the combo: UP, DOWN, UP, DOWN, then push and hold the joystick in for 5 seconds and release.

What resolutions and frame rates are supported?

The camera supports up to 1920x1080p. Available frame rates include 60, 59.94, 50, 30, 29.97, 25, 24, 23 fps for 1080p, and 60, 59.94, 50 fps for 720p. Set via the OUTPUT FORMAT menu.

How do I adjust white balance?

Go to WB CONTROL in the OSD menu. Choose from ATW (automatic), One Push (place white paper in front), Indoor, Outdoor, or Manual (adjust Blue and Red levels from 0-100).

Can I use an external microphone?

Yes, the camera has a mic/line input via the breakout cable. Enable audio in the AUDIO menu, set input source to MIC or LINE, and adjust the level and attenuation as needed.

What should I do if there is no video output?

Check that all devices are powered on, confirm correct voltage and sufficient current from the power supply, and verify that video cables are securely connected. Also ensure the monitor input is correct.

How to clean the lens?

Use a soft, dry, non-abrasive cloth or a commercially available lens cleaning set. Avoid touching the glass with fingers. Clean gently to remove dust or dirt.

How do I enable digital image stabilization?

In the SPECIAL menu, select DIS (Digital Image Stabilization) and set it to ON.

Can I control the camera remotely?

Yes, via RS-485 communication. Configure the camera ID, baud rate (2400-38400), and ID display in the SETUP > COMMUNICATION menu.

How do I adjust the exposure manually?

In AE CONTROL, select MANUAL mode. Then adjust SHUTTER (1/30-1/10,000), IRIS (0-5 for DC iris), and AGC (0-5) as needed.

What is the warranty period?

Warranty information is available on the Marshall website: https://marshall-usa.com/company/warranty.php. Contact support for details.

USER MANUAL CV-BSE-10FT Marshall Electronics

Broadcast A/V Division

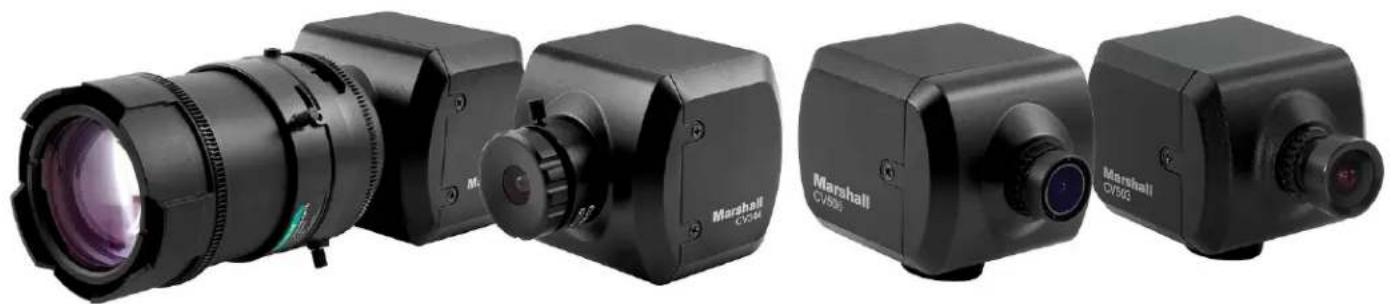

Four black Marshall CVD50 cameras with lens and control knobs, shown from different angles (no text or symbols visible on body)

CV503, CV504, CV506,

CV508, CV346, CV348

Miniature, Micro, Compact POV Cameras

User Manual

Table of Contents

Table of Contents 01

1. General Information 02

2. Menu Structure 03

3. OSD Joystick and Button 05

4. WB Control 06

5. AE Control 07

6. Day / Night 08

7. Audio 09

8. Image Control 10

9. Special 11

10. Setup 12

11. Reset 13

12. Exit 14

13. Troubleshooting 15

Warranty END

1. General Information

Thank you for your purchase of a Marshall Miniature or Compact Camera.

The Marshall Camera team recommends thoroughly reading this guide for a deep understanding of on-screen-display (OSD) menus, breakout cable operation, settings adjustment explanation, troubleshooting, and other critical information.

Please carefully remove all contents of box, which should include the following components:

CV503/CV506 includes:

• Camera with 3.6mm lens (interchangeable)
  • Camera Breakout Cable (Power/RS485/Audio)
• 12V Power Supply

CV344/CV346 includes:

• Camera with CS/C mount (lens sold separately)
• Camera Breakout Cable (Power/RS485/Audio)
  • C-Mount Lens Adapter (only used when using C-Mount lens)
• 12V Power Supply

The CV503/506 ships with a 3.6mm (72°AOV) M12 lens installed and is interchangeable to any number of Marshall M12 lenses.

The CV344/346 Camera utilizes a CS/C lens mount and does not include a stock CS/C Lens. CS/C mount lenses are sold separately, as well as adapters to other lens mount types.

Each camera comes set to default at 1920x1080p @ 30fps out of the box; which can be changed in the OSD Menu to a variety of resolutions and framerates.

To RESET Camera to default settings

(1920x1080p30fps) power-cycle the camera

hen use the following combo on OSD Joystick:

UP, DOWN, UP, DOWN, then push and HOLD

joystick in for 5 seconds then release.

Marshall

CV503, CV504, CV506, CV508, CV346, CV348 Manual

1. Menu Structure

SETUP SUB MENU	SUB MENU
WB CONTROL	ATW
	ONE PUSH
	INDOOR
	OUTDOOR
	MANUAL	BLUE
		RED
AE CONTROL	AUTO	AGC MAX
		SENS UP
		AE BRIGHT
		FLK CONTROL
		LENS MODE (DC IRIS ONLY)
	SHUT FIX	SHUTTER
		AGC MAX
		SENS UP
		AE BRIGHT
		FLK CONTROL
	AGC FIX	AGC
		AE BRIGHT
		FLK CONTROL
		LENS MODE (DC IRIS ONLY)
	MANUAL	SHUTTER
		IRIS
		AGC
		FLK CONTROL
		LENS MODE (DC IRIS ONLY)
DAY / NIGHT	DAY
	NIGHT NIGHT COLOR
AUDIO	MIC/LINE
	AUDIO LEVEL
	MIC ATTENUATOR

SETUP SUB MENU	SUB MENU
AUDIO	SAMPLE BITS
IMAGE CONTROL	LENS SHADING
	CONTRAST
	BRIGHTNESS
	SATURATION
	HUE
	EDGE ENHANCE
	AUTO SATURATE
	AUTO EDGE
	BLACK WHITE LEVEL
	GAMMA CORRECT
	DNR	DNR MODE
		DNR LEVEL
SPECIAL	DZOOM
	DEFOG
	DIS
	BACKLIGHT
	BINNING
	DEFECT PIXEL
	DISP FUNCTION
	WDR
	FLICKER DETECT
	PRIVACY
SETUP	CAM TITLE
	COMMUNICATION RS-485/ID
	SYSTEM INFO
	OUTPUT FORMAT
RESET USER/FACTORY
EXIT

Marshall

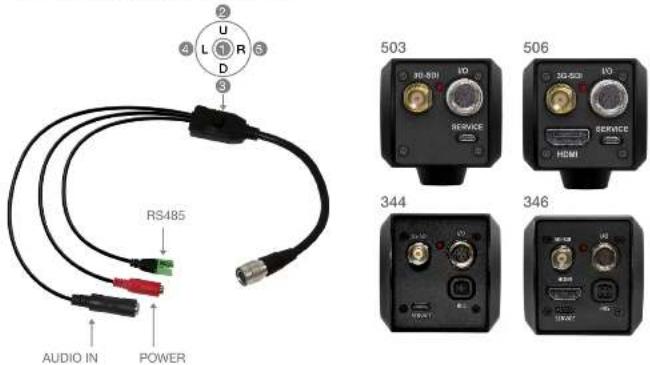

1. OSD Joystick and Button


I/O Cable (included in box) for CV503, CV506, CV344, CV346

1. SET Used to access the menu and confirm selection.
2. UP Used to move the cursor up.
3. DOWN Used to move the cursor down.
4. LEFT Used to move the cursor left and change the value
5. RIGHT Used to move the cursor to the right and change the value.

Press SET button to access the Main Menu

	MENU
	WB CONTROL	>
	AE CONTROL	>
	DAY/NIGHT	>
	AUDIO	>
	IMAGE CONTROL	>
	SPECIAL	>
	SETUP	>
	RESET	>
	EXIT

Icon indicates "Press OSD button" or "Enter Sub Menu"

Marshall

CV503, CV504, CV506, CV508, CV346, CV348 Manual

4. WB CONTROL

Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT buttons.

• ATW: Continuously adjusts camera color balance in accordance with any change in color temperature. Compensates for color temperature changes within the range of 1,900°K to 11,000°K.
• ONE PUSH: Color temperature will be manually adjusted by pushing the OSD button. Place the white paper in front of the camera when OSD button is pressed to obtain optimum result.
  • MANUAL: Select this to fine-tune White Balance manually.
  You can adjust the blue and red tone level manually.
• BLUE: Adjust the Blue tone of the image. (0\~100)
• RED: Adjust the Red tone of the image. (0-100)
• INDOOR: Select this to adjust white balance to indoor lighting condition.
• OUTDOOR: Select this to adjust white balance to outdoor lighting condition.
• INDOOR: Select this to adjust white balance to indoor lighting condition.
• OUTDOOR: Select this to adjust white balance to outdoor lighting condition.

MENU
WB CONTROL	>
AE CONTROL	>
DAY/NIGHT	>
AUDIO	>
IMAGE CONTROL	>
SPECIAL	>
SETUP	>
RESET	>
EXIT

1. Adjust White Balance first by using the ATW mode before switching to MANUAL mode.
2. White Balance may not work properly under the following conditions. In this case, select the ATW mode.
3. When the ambient illumination of the subject is dim.
4. If the camera is directed towards a fluorescent light or is installed in place where illumination changes dramatically, the White Balance operation may become unstable.

Marshall

CV503, CV504, CV506, CV508, CV346, CV348 Manual

5. AE CONTROL

Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or DOWN buttons.

• AUTO: Adjusts the exposure level automatically. Detailed fine tuning options are available under this menu.
• SHUT FIX: Provides more detailed shutter speed options. All other controls are tuned for the selected shutter speed.
• AGC FIX: Provides more detailed gain option. All other controls are tuned for the selected gain value.

• MANUAL: Adjusts the exposure level manually

• SHUTTER: Speed can be set at auto or manual. (1/30-1/10,000)

• IRIS SPEED: Electronic Iris speed can be controlled, for DC Iris lens only. (0\~5)
• AGC: Electronic Iris speed can be controlled, for DC Iris lens only. (0-5)
• AGC MAX: Used to set maximum gain value to control the video noise caused by Auto Gain Control. (Off, Low, Middle, High, DMIN, DMID, DMAX)
• SENS UP: Controls the digital slow shutter to allow extra light into the camera and adjust the picture quality. (Off, x2-x10)
• AE BRIGHT: Select this to adjust auto exposure brightness levels. (0–10)
• LENS MODE: Lens setting will be optimized for selected environment, for DC Iris lens only.
• FLK CONTROL: Provides a proper image sensor frequency to match the power frequency in order to minimize video flicker.

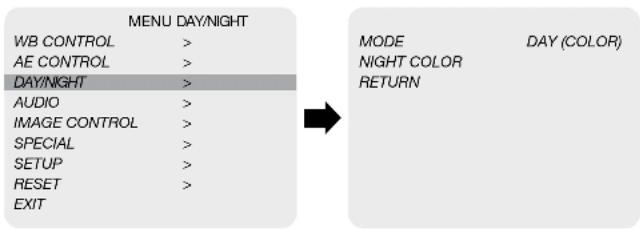

6. DAY / NIGHT

Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, COLOR, and NIGHT using the UP or DOWN buttons.

MODE: Set camera to either color mode or B&W mode. (Day, Night)

DAY: When set to DAY mode, camera stays in color and IR cut filter is engaged.

NIGHT: When set to NIGHT mode, camera stays in B&W and IR cut filter is removed.

- NIGHT COLOR: When on, camera stays on color mode. Night (B&W) can be selected from this mode. (On, Off)

Marshall

CV503, CV504, CV506, CV508, CV346, CV348 Manual

7. AUDIO

Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one sub-mode using the UP or DOWN buttons.

• MIC / LINE: Select MIC or LINE for the audio input source.
  • AUDIO LEVEL: Select this to adjust audio levels manually.
• MIC ATTENUATOR: Audio attenuation can be controlled from this menu to minimize the audio noise level
• SAMPLE BITS: Select the bit depth of audio

MENU AUDIO
WB CONTROL	> MODE OFF
AE CONTROL	> AUDIO LEVEL 0 dB
DAY/NIGHT	> MIC ATTENUATOR OFF
AUDIO	> AGC LIMIT
IMAGE CONTROL	> SAMPLE BITS 24 BITS
SPECIAL	> RETURN
SETUP	>
RESET	>
EXIT

8. IMAGE CONTROL

Select IMAGE CONTROL using the UP or DOWN button.

You can select LENS SHADING, CONTRAST, HUE, And EDGE ENHANCE using the UP or DOWN buttons.

MENU IMAGE CONTROL
WB CONTROL	>
AE CONTROL	>
DAY/NGHT	>
AUDIO	>
IMAGE CONTROL	>
SPECIAL	>
SETUP	>
RESET	>
EXIT

• LENS SHADING: Corrects inconsistent brightness level in the image.
• CONTRAST: Adjust the image contrast level.
  • BRIGHTNESS: Adjust the image brightness level.
  • SATURATION: Adjust the image saturation level.
  • HUE: Adjust the image hue level.
  • EDGE ENHANCE: Adjust the image sharpness level.
  • AUTO SATURATE: Decrease saturation automatically when noise scene is detected.
• AUTO EDGE: Adjust line sharpness level automatically.
• BLACK WHITE LEVEL: Adjust the image black level value.
  • GAMMA CORRECT: Adjust the image output gamma level.
• DNR: Reduces video noise at low ambient light.

Select the DNR level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.

Marshall

CV503, CV504, CV506, CV508, CV346, CV348 Manual

9. SPECIAL

Select SPECIAL using the UP or DOWN button.

You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using the UP or DOWN buttons.

• DZOOM: Digitally zoom the video by the desired ratio.
• DEFOG: This feature will help Increase visibility in extreme weather conditions, such as fog, rain or in a very strong luminous intensity.
  • DIS: This feature enables digital image stabilization
• BACKLIGHT: Adjust backlight compensation by choosing either BLC HLM from this menu.
  • BINNING: Enable or disable pixel binning.
• DEFECT PIXEL: Advanced defective pixel correction menu.
• DISP FUNCTION: Display effect such as freeze mirror, rotation, and style can be applied from this menu.
• WDR: This feature enables user to view both object and background more clearly when background is too bright.
• FLICKER DETECT: Adjust the image sensor frequency to match the power frequency.
• PRIVACY: Mask an area you want to hide on the screen by applying the privacy zones.

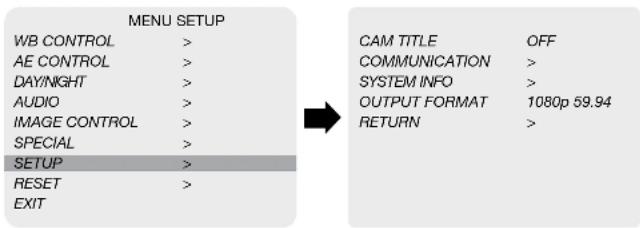

10. SETUP

CAMERA setup can be adjusted from this menu.

You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN buttons.

• CAM TITLE: Camera title can be turned ON or OFF.
• COMMUNICATION: VISCA communication can be adjusted.
1. CAM ID: Camera ID can be setup. (0\~7)
2. ID DISPLAY: Camera ID display can be displayed.
3. BAUDRATE : Camera baudrate can be set. (2400, 4800, 9600, 19200, 38400)
- SYSTEM INFO: Camera information can be found under this menu.
- OUTPUT FORMAT: Camera resolution and frame rate can be set. (1080 by default)
Select the FRAME RATE using the LEFT or RIGHT buttons.
Available Frame Rates are:
1920 x 1080p 60, 59.94, 50, 30, 29.97, 25, 24, 23
1920 x 1080/60, 59.94, 50
1280 x 720p 60, 59.94, 50

Marshall

CV503, CV504, CV506, CV508, CV346, CV348 Manual

11. RESET

Select RESET using the UP or DOWN buttons.

- RESET: Reset the camera settings the factory defaults or user setting value.

• ON: Set the camera setting to either "FACTORY" or "USER" of "CHANGE" menu. Make sure to select the right mode from "CHANGE" before defaulting the camera.
• RESET MODE: Select the desired setting mode.

Select from USER or FACTORY using the LEFT or RIGHT button.

1. USER: Select "USER" if setting value user saved last is needed.
2. FACTORY: Select "FACTORY" if factory default setting is needed.

"FRAME RATE", "CAM ID", and "BAUDRATE" will note change.

12. EXIT

Select EXIT using the UP or DOWN button.

- SAVE: Exit the setup after saving the value changes.

Marshall

13. TROUBLESHOOTING

Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult with your supplier.

Problem Solutions
Nothing appears on the screen.	a. Check that all connected devices are powered on.b. Confirm that the voltage is correct.c. Confirm that the power supply provides enough current to power the camera.d. Check that all video cables are correctly connected.
The picture is not clear.	a. Check that your monitor is correctly adjusted.b. Confirm that the glass in front of the lens is clean. If there is dust, dirt, or fingerprints on the glass, the image quality will be affected.To clean the glass, use a soft, dry, and non-abrasive cloth or a commercially available lens cleaning set.c. Correctly adjust the focus.
The picture has interference.	a. The camera may be close to a high voltage source, such as a power generator.b. The BNC cable is not terminated properly.c. The video cables are not connected properly.
The picture is flickering continually.	a. Check the termination and set the impedance at 75fproperly.b. Ensure that the camera is not pointing towards the Sun or any light source.c. Check if there is any intermediate device.d. Check if the distance of the video cable exceeds the maximum transferable limitation.
The camera is not synchronizing with the reference signal.	a. Make sure Tri-Level reference signal is used.b. Locking takes up to 1 minute depending on the signal strength.Make sure the sync LED is solidly lit.c. Check if the cable and connectors used in reference sync are in good condition.d. Make sure the cable length used in reference sync does not exceed 100 fl.e. Make sure OUTPUT EN is on when using the genlock output.
Focus The miniature (M12) lens that comes installed on camera is set to optimal focus position, however if lens is slightly out of focus rotate lens clockwise or counter-clockwise slightly to fine tune. Once the desired focus point is achieved, rotate the locking nut back towards the camera which will hold the lens position at optimal focus point.

Warranty

For Warranty information please refer to Marshall website page:

https://marshall-usa.com/company/warranty.php

Marshall

20608 Madrona Avenue, Torrance, CA 90503

Tel: [phone] • Fax: [phone]

www.marshall-usa.com

[e-mail]
