USER MANUAL BT8321 B-Tech

natural_image Mechanical assembly with two vertical metal frames connected by a horizontal beam, no visible text or symbols

FEATURES

  • Designed for screens from 42" up to 65"
  • Max Load: 70kg
    • Fits VESA® fixings up to 600 x 400mm
  • Can also be fitted in landscape style
  • Mounts screens just 53.8mm from the wall
  • Arms feature levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
    • All mounting hardware included
  • Can also be pole mounted (poles sold separately)

B-Tech BT8321 - FEATURES - 1

B-Tech BT8321 - FEATURES - 2

B-Tech BT8321 - FEATURES - 3

CONTENTS

Installation Safety Notes....2

Parts List 4

Installation Instructions....6

Product Dimensions....11

B-Tech Contact Details....12

INSTALLATION TOOLS REQUIRED

Crosshead screwdriver

B-Tech BT8321 - INSTALLATION TOOLS REQUIRED - 1

Drill

B-Tech BT8321 - INSTALLATION TOOLS REQUIRED - 2

Drill bit

B-Tech BT8321 - INSTALLATION TOOLS REQUIRED - 3

Pencil

B-Tech BT8321 - INSTALLATION TOOLS REQUIRED - 4

Level (Optional)

B-Tech BT8321 - INSTALLATION TOOLS REQUIRED - 5

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

B-Tech BT8321 - INSTALLATION SAFETY INSTRUCTIONS - 1

CAUTION: This mount is intended for use only with the maximum weights indicated. Use screens heavier than the maximum indicated may instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Design & Manufacturing Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of afragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing.

This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of wall prior to installation as some walls are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

B-Tech BT8321 - CS - 1

REFPART NAMEQTY
1WALL PLATE2
2M8 x 12mm CSK SCREW8
3M8 SLIDING NUT8
4MOUNTING RAIL L:500mm1
5END CAP2
6INTERFACE ARM2
7600mm ADAPTOR ARM2
8M8 x 12mm SCREW4
95AF HEX KEY1
105AF LONG HEX KEY1

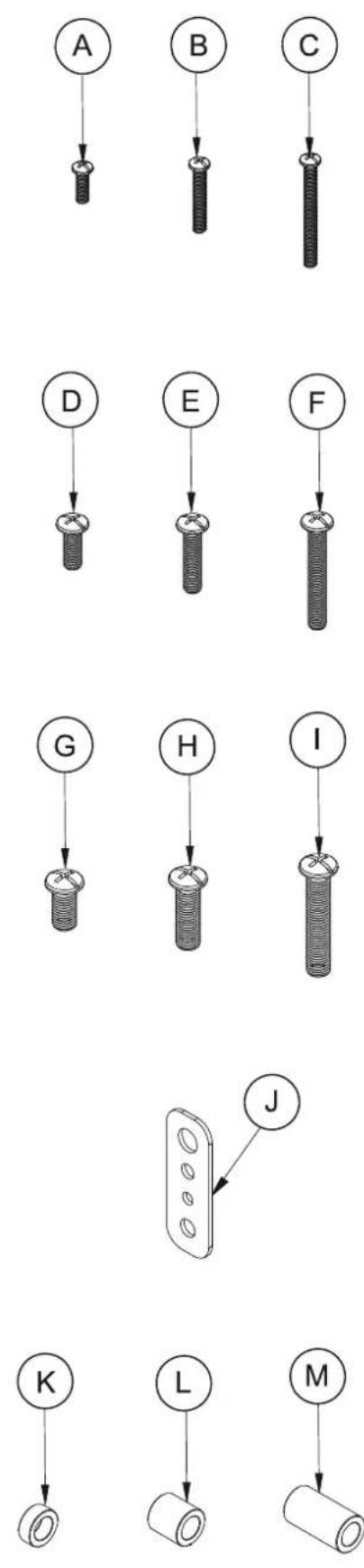

SCREEN INTERFACE KIT
AM4 x 12mm SCREW4
BM4 x 25mm SCREW4
CM4 x 40mm SCREW4
DM6 x 16mm SCREW4
EM6 x 25mm SCREW4
FM6 x 40mm SCREW4
GM8 x 16mm SCREW4
HM8 x 25mm SCREW4
IM8 x 40mm SCREW4
JMULTIWASHER4
K5mm SPACER4
L13mm SPACER4
M24mm SPACER4
WALL FIXING KIT

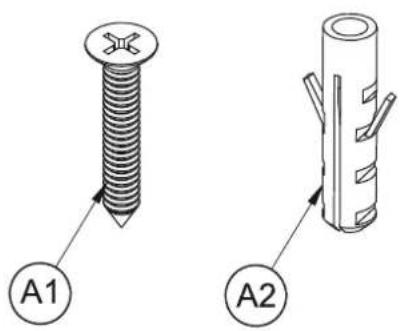

A1M8 x 45mm WOOD SCREW8
A2N°10 WALL PLUG8

A1 A2

INSTALLATION INSTRUCTIONS

1

Attach Wall Plate To Mounting Rail

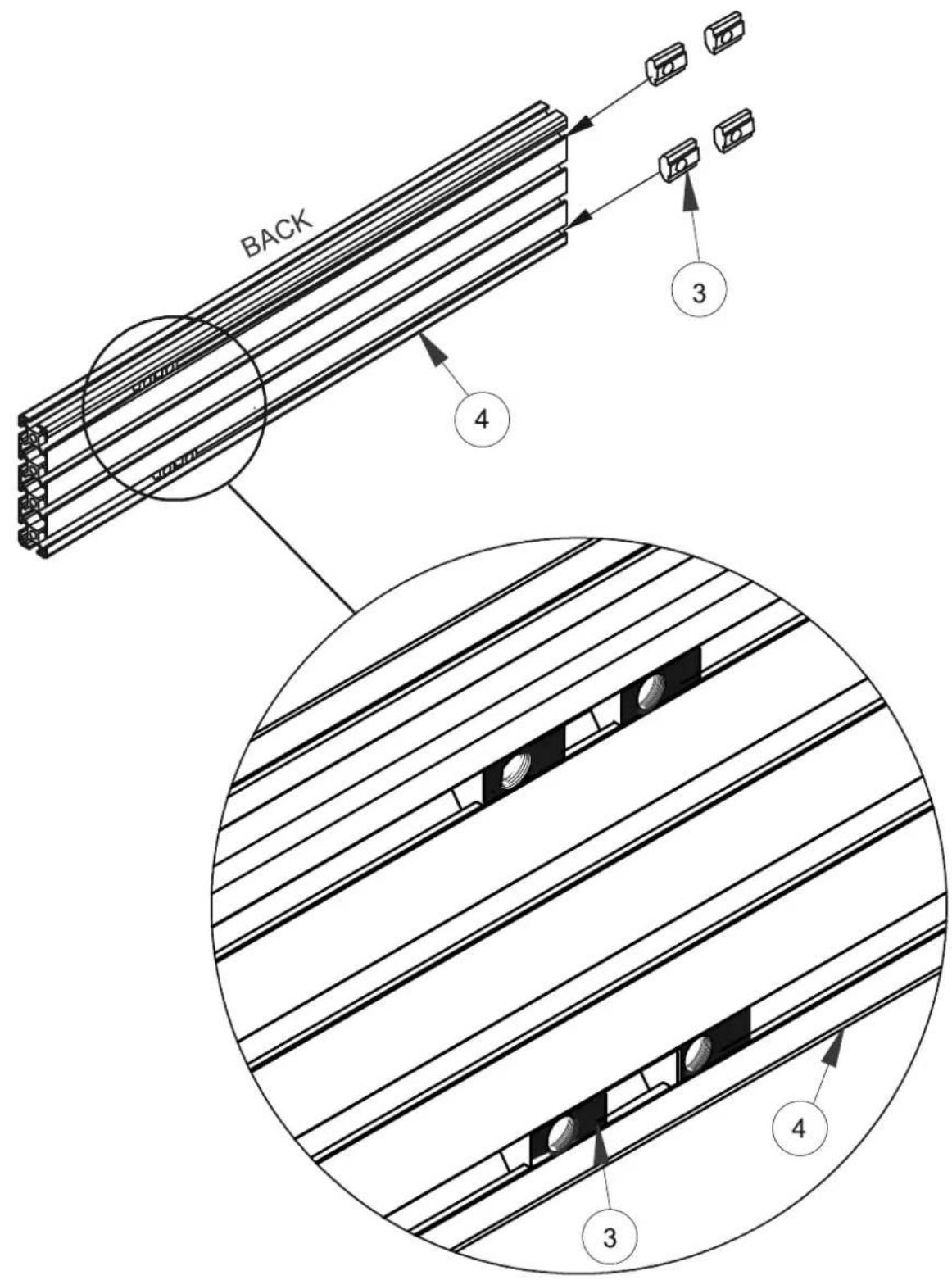

i. For each wall plate, insert 4 x M8 sliding nuts (part 3) into the mounting rail (part 4). Two in the top slot / two in the bottom slot.

BACK 3 4 3 4

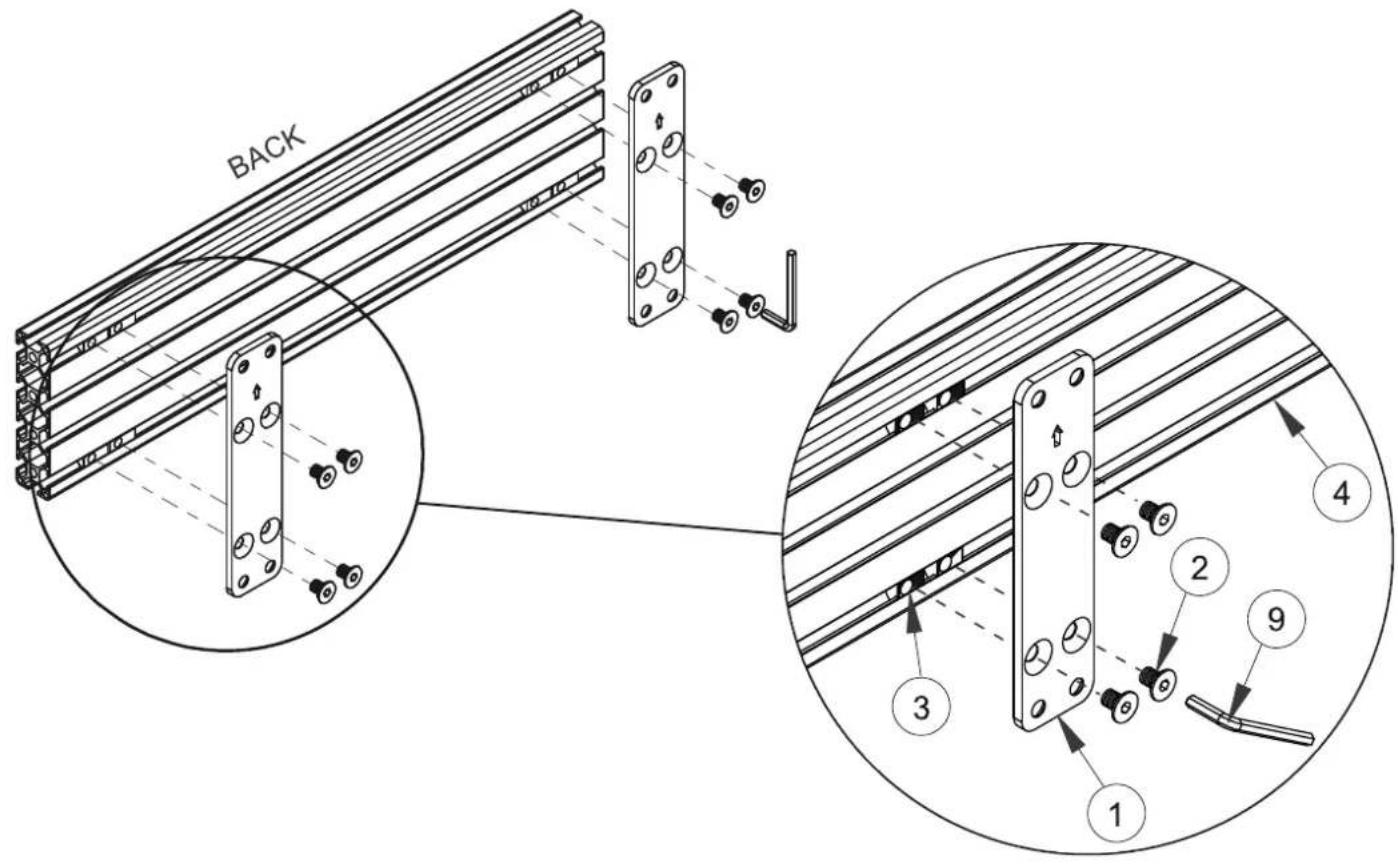

ii. Attach the wall plates (part 1) to the mounting rail (part 4) by fastening M8 x 12mm screws (part 2) into the inserted M8 sliding nuts (part 3).

BACK 3 1 2 4 9

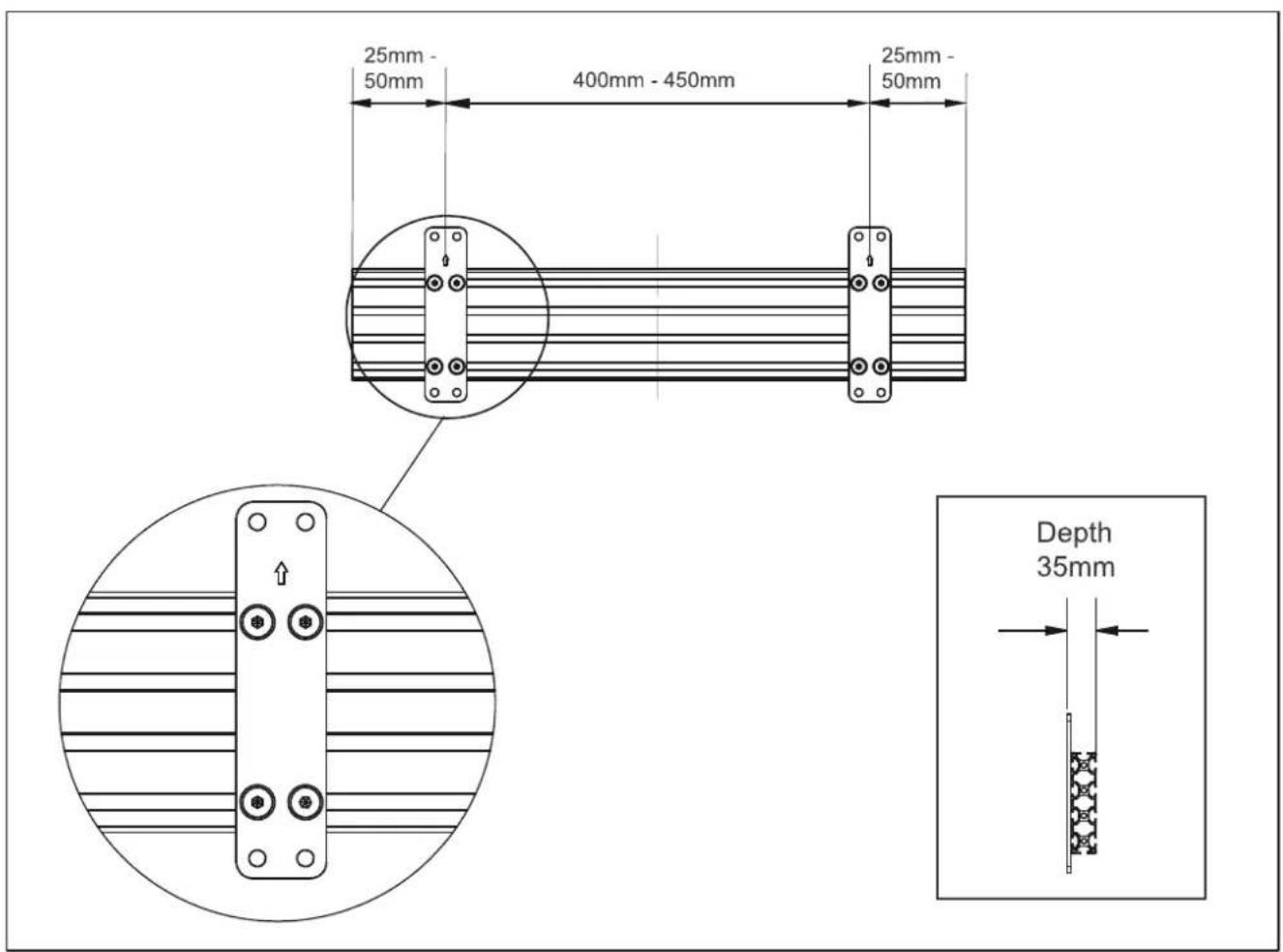

25mm - 50mm 400mm - 450mm 25mm - 50mm Depth 35mm

2

Fix Mounting Rail To The Wall

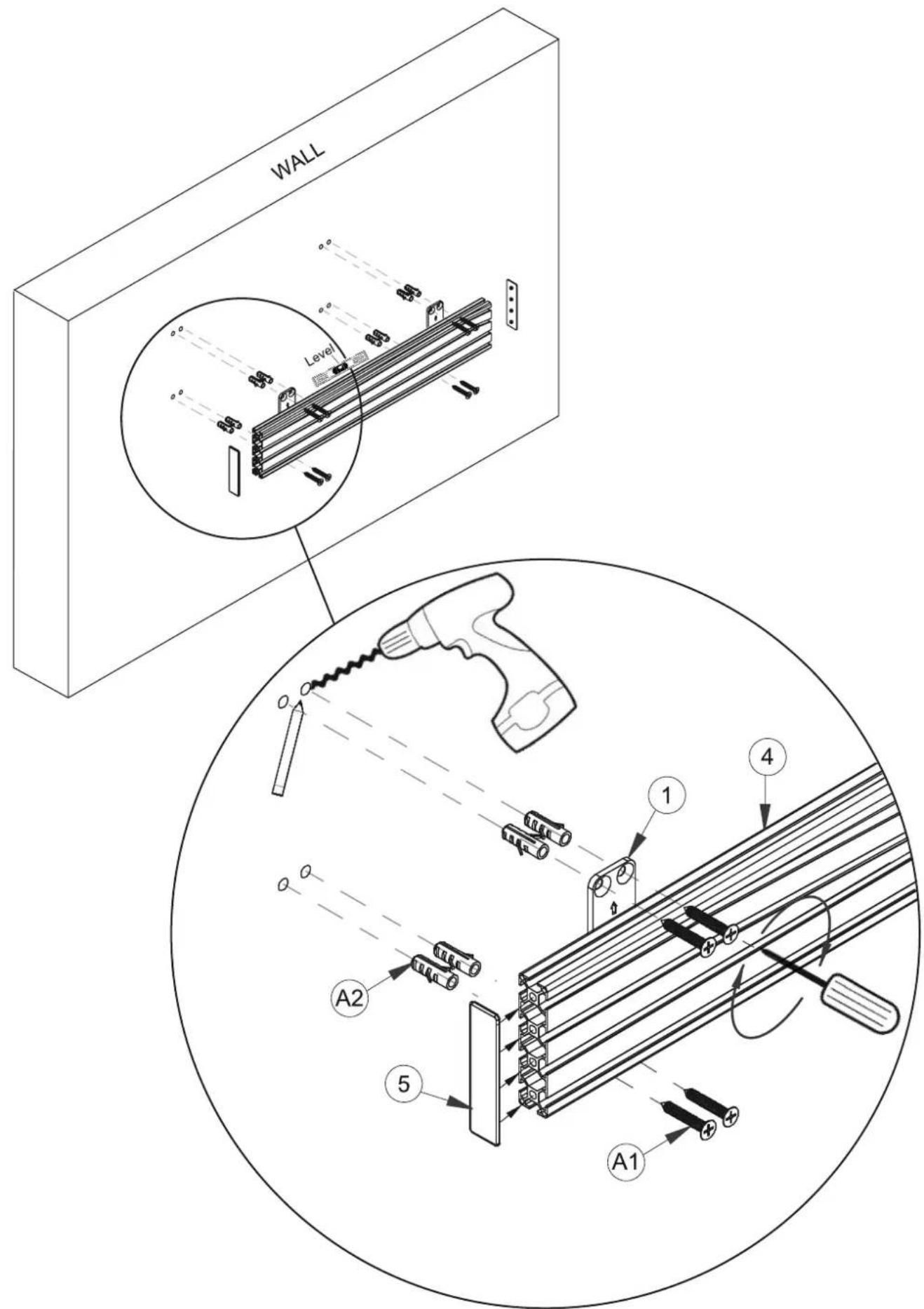

Fix the wall plates (part 1) and mounting rail (part 4) to the wall using the wall fixings (parts A1 & A2). Once mounted, attach end caps (part 5) to mounting rail.

WALL Level A2 5 A1 1 4

3

Attach Interface Arms To Screen

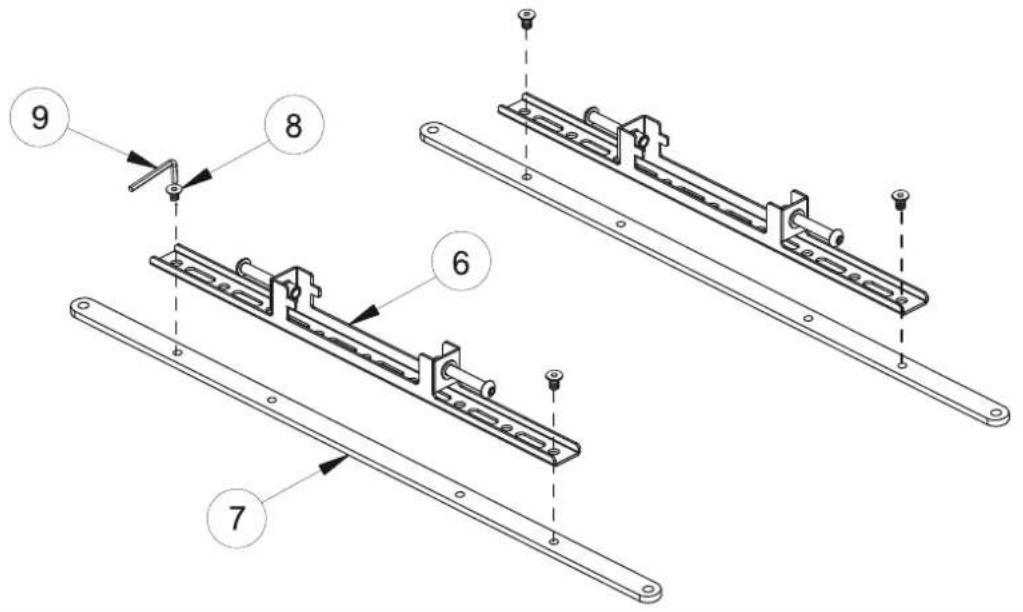

The interface arms (part 6) can mount screens with fixing patterns from 200 x 200mm up to 400 x 400mm.

Optional: For screens with VESA 600 x 400mm fixings attach 600mm adaptor arms (part 7) onto interface arms (part 6).

Technical diagram showing nine numbered mechanical assembly steps with labeled components

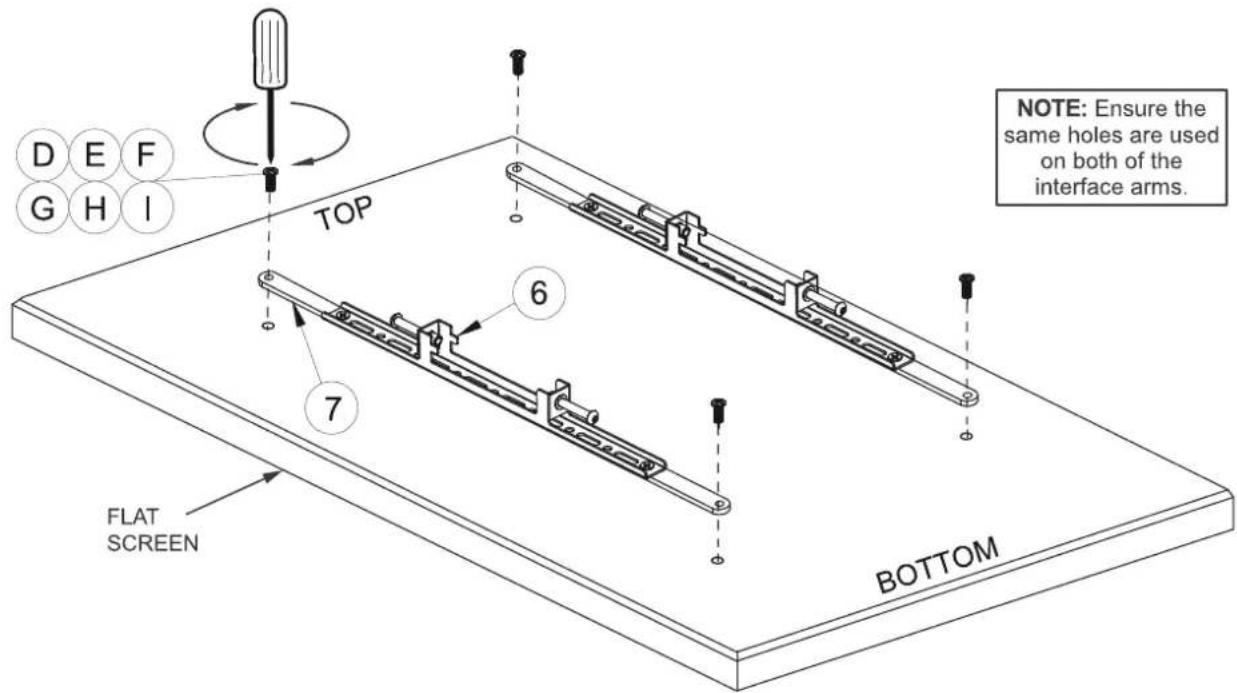

D E F G H I TOP 6 7 BOTTOM FLAT SCREEN NOTE: Ensure the same holes are used on both of the interface arms.

Use multiwasher (part J) when connecting interface arm directly to screen.

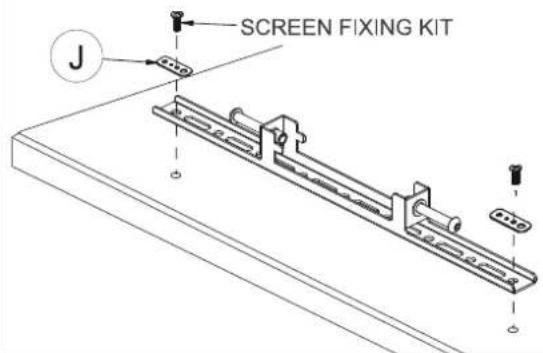

J SCREEN FIXING KIT

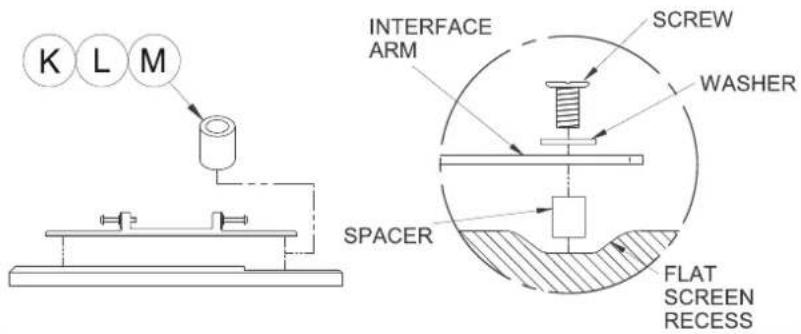

Use spacers for screens with recessed fixings.
K L M INTERFACE ARM SCREW WASHER SPACER FLAT SCREEN RECESS

4

Hook Screens Onto Mounting Rail

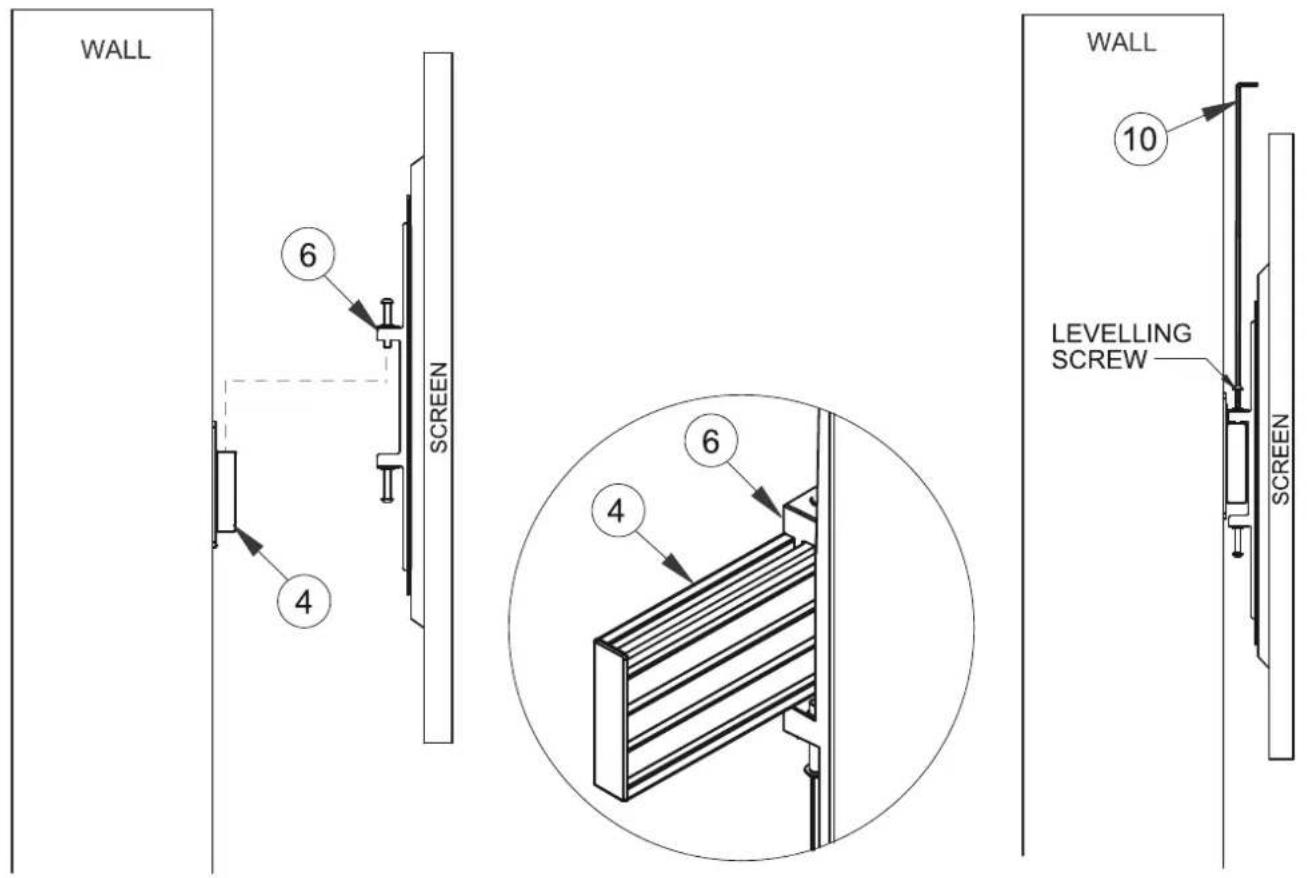

i) Hook screen onto mounting rail. If necessary adjust top levelling screws to level screen.

WALL 6 4 SCREEN 6 4 WALL 10 LEVELLING SCREW SCREEN

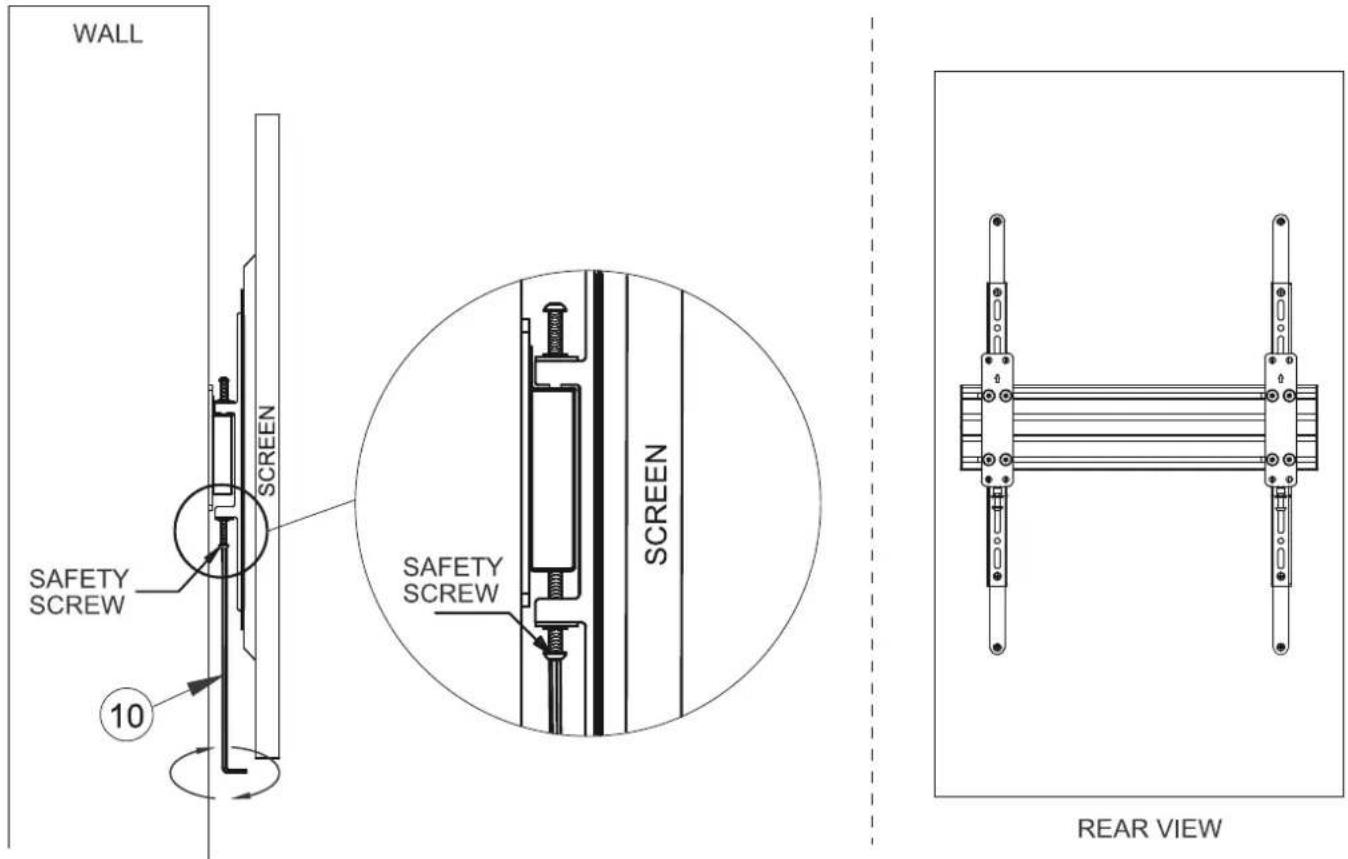

ii) Secure mount by tightening safety screw on bottom of each interface arm.

WALL SAFETY SCREW 10 SCREEN SAFETY SCREW SCREEN REAR VIEW

BT8321

PRODUCT DIMENSIONS

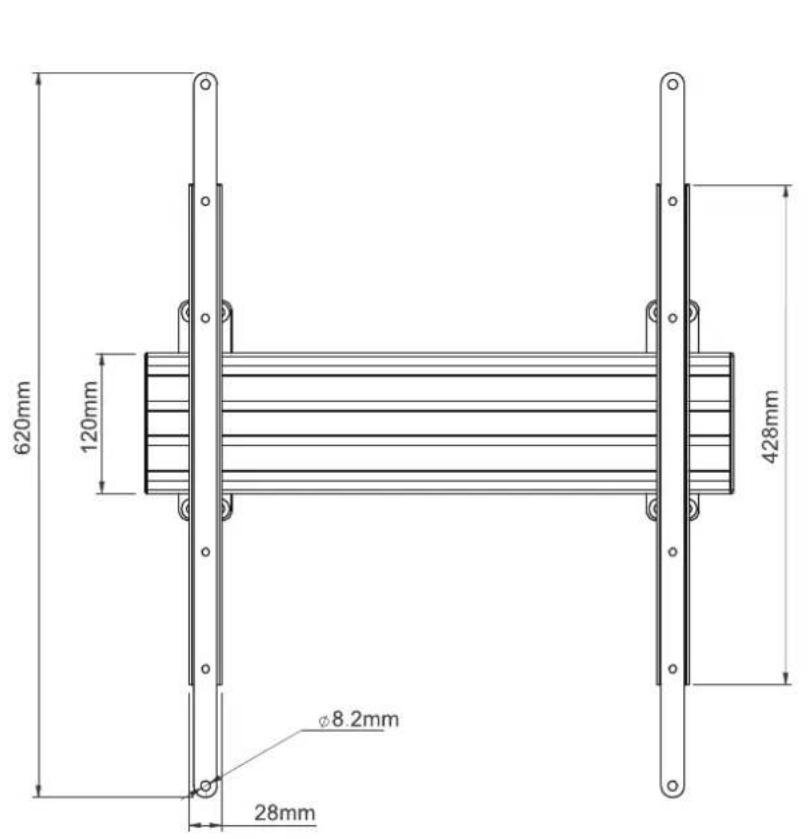

620mm 120mm 428mm Ø8.2mm 28mm

FRONT VIEW

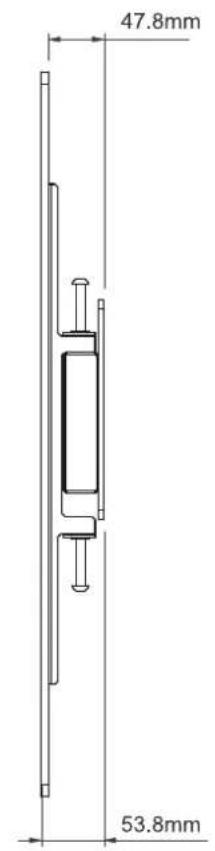

47.8mm 53.8mm

SIDE VIEW

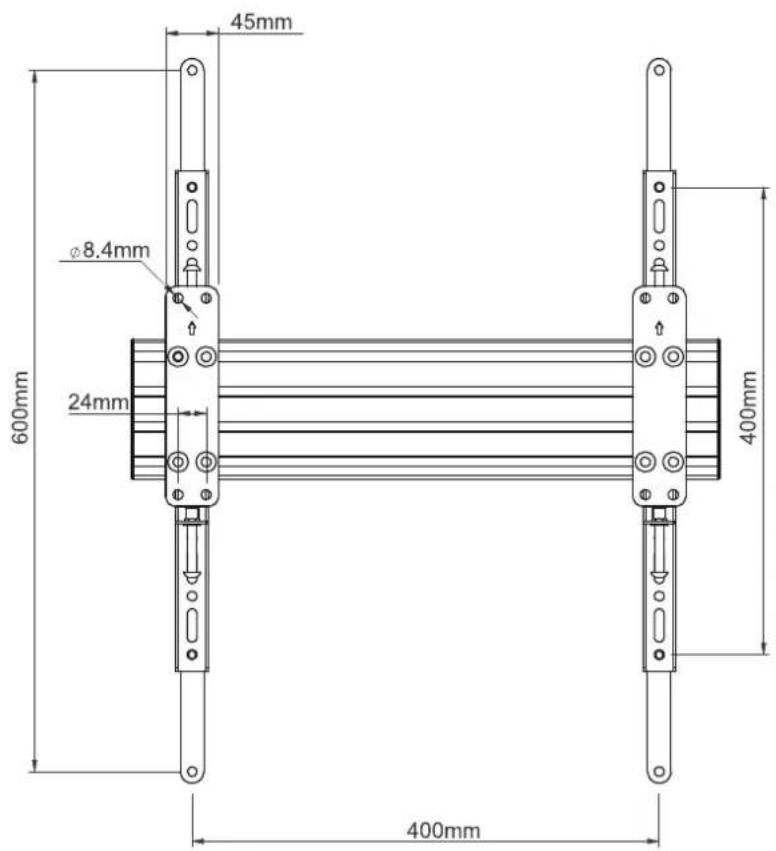

45mm Ø8.4mm 600mm 24mm 400mm 400mm

REAR VIEW

504mm

TOP VIEW

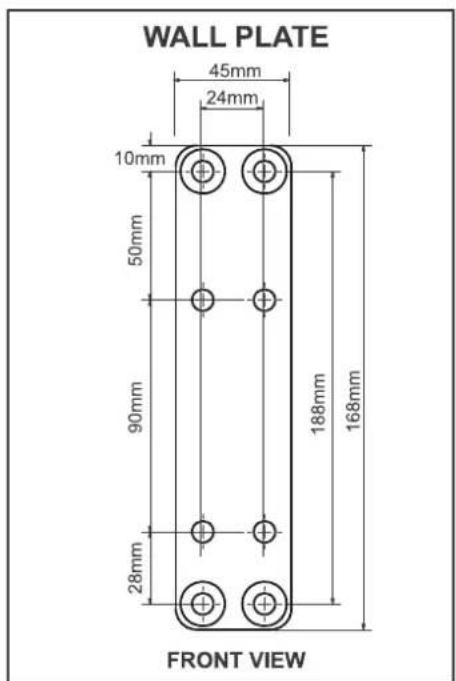

WALL PLATE 45mm 24mm 10mm 50mm 90mm 28mm 188mm 168mm FRONT VIEW

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

B-Tech International Limited

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: info@btechavmounts.com

©2017 B-Tech International Design & Manufacturing Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of B-Tech International Design & Manufacturing Limited.

B-Tech & Better By Design are registered trademarks of B-Tech International Design & Manufacturing Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.
